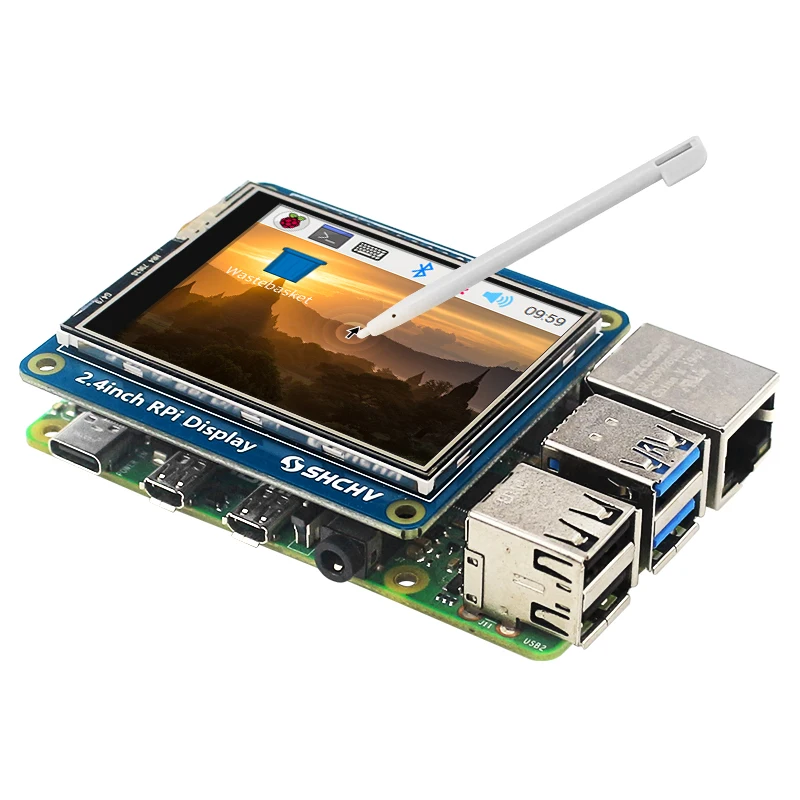

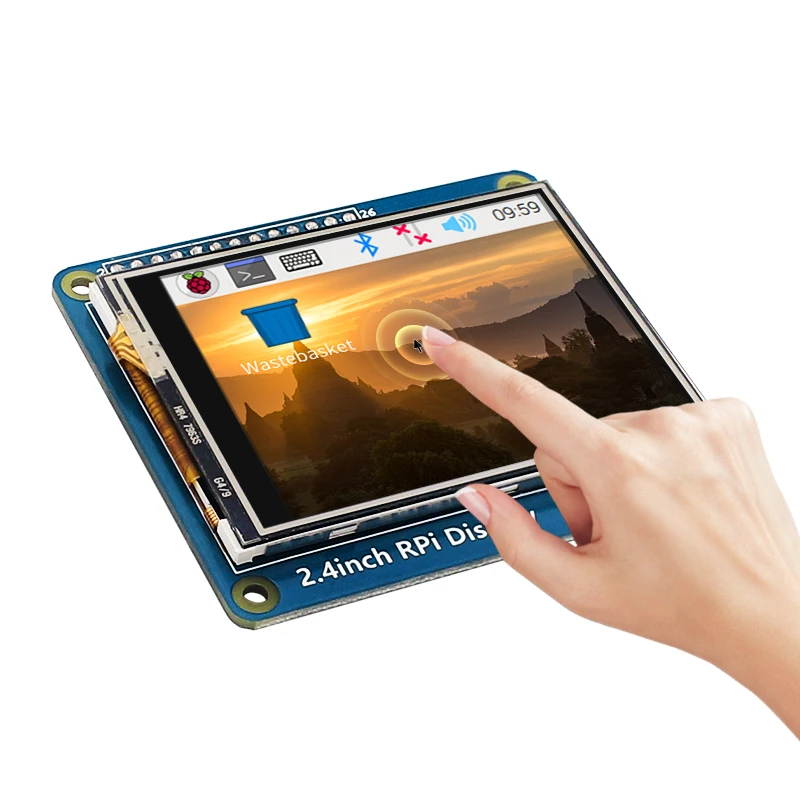

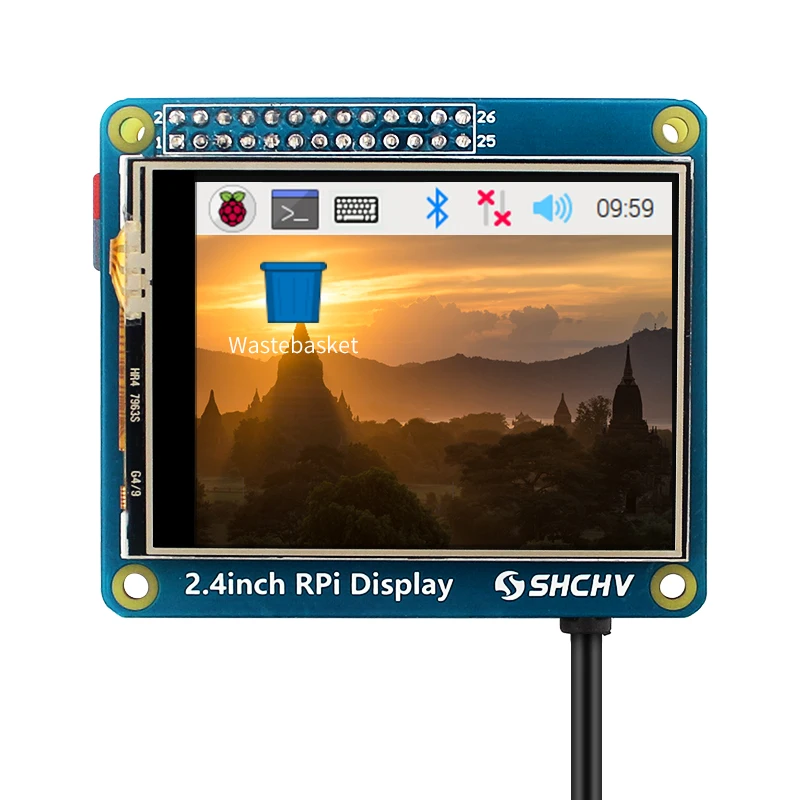

2.4 Inch Raspberry Pi Touch Screen SPI Interface TFT LCD 320×240 Pixel Display LED Backlight for Raspberry Pi 4B 3B+ Zero 2 W

2.4 Inch Raspberry Pi Touch Screen SPI Interface TFT LCD 320×240 Pixel Display LED Backlight for Raspberry Pi 4B 3B+ Zero 2 W

Features:

*2.4inch standard display with physical resolution of 320×240

*SPI interface with resistive touch screen for touch control

*Perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+)

*Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents

*This product has passed CE and RoHS certification

Parameters:

Screen Size：2.4inch

LCD Type ：TFT

Module Interface：SPI

Resolution：320*240 (Pixel)

Active Area：36.72x48.96(mm)

Touch Screen Controller：XPT2046

LCD Driver IC：ILI9341

Backlight：LED

Power Consumption：0.08A*5V

Operating Temperature（℃）：-20~60

Module PCB Size：56.00x65.00(mm)

Rough Weight(Package containing)(g)：37 (g)

How to use with Raspberry Pi OS：

Step 1, Install official image Raspberry Pi OS：
1) Download the latest image from the official download
https://www.raspberrypi.com/software/operating-systems/
​2) Install the system according to the official tutorial steps.

Step 2, Install the driver for the LCD
1) Connect the 2.4inch RPi Display For RPi 3A+ with the Raspberry Pi and plug it in

2) Log into the command line interface for Raspberry Pi（Initial user name: pi, Password: raspberry）, Get the latest drive from GitHub (the raspberry pie needs to connect to the Internet), Execute the following commands:

sudo rm -rf LCD-show
git clone https://
github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD24-3A+-show

After execution, the system will be restarted. If the display and touch are normal, the installation is successful.

More Detail:

http://www.lcdwiki.com/2.4inch_RPi_Display_For_RPi_3A+

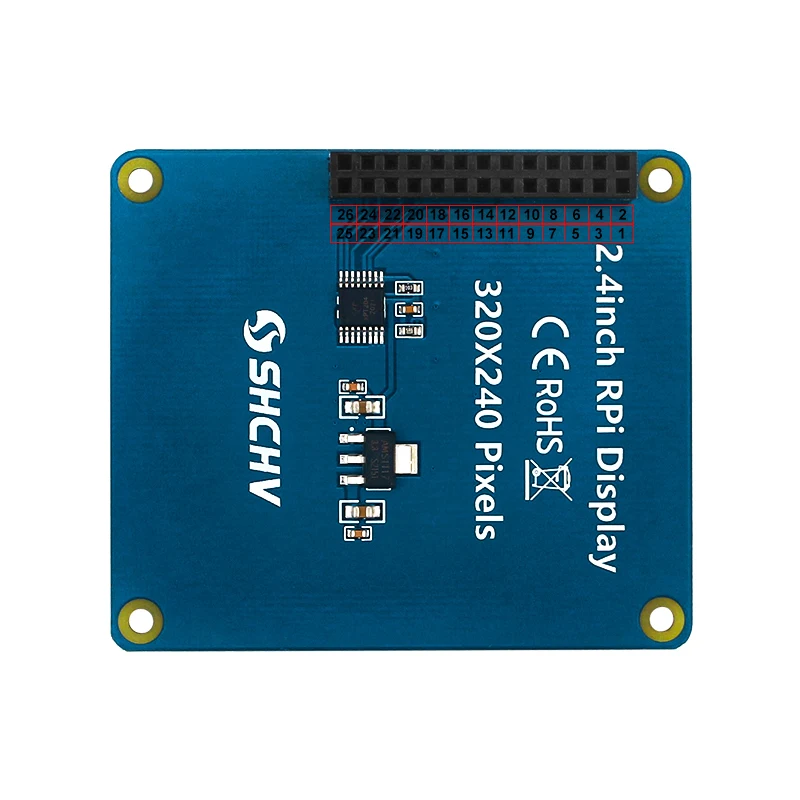

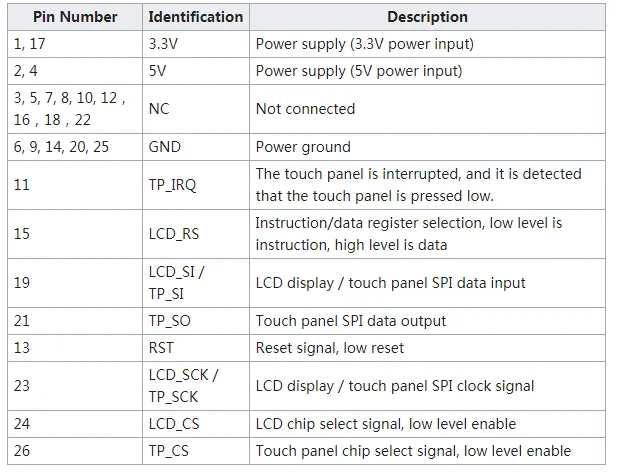

Interface Definition:

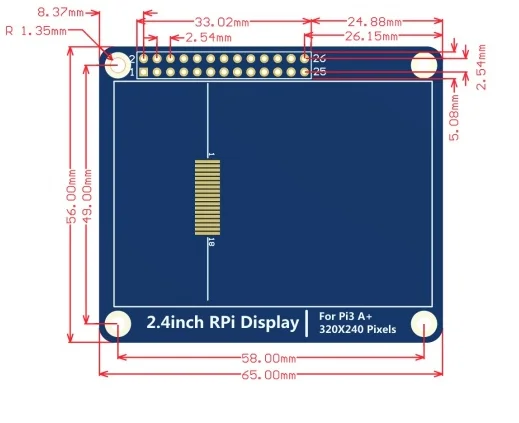

Product Size:

Package List:

1 × 2.4inch Touch Screen

(Don't include the Raspberry Pi Board)
