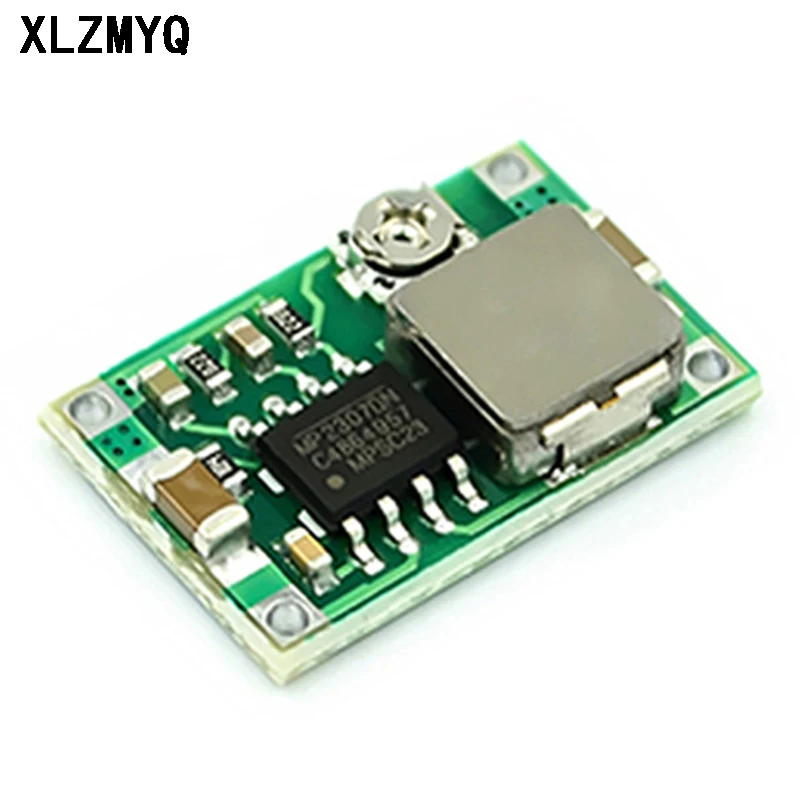

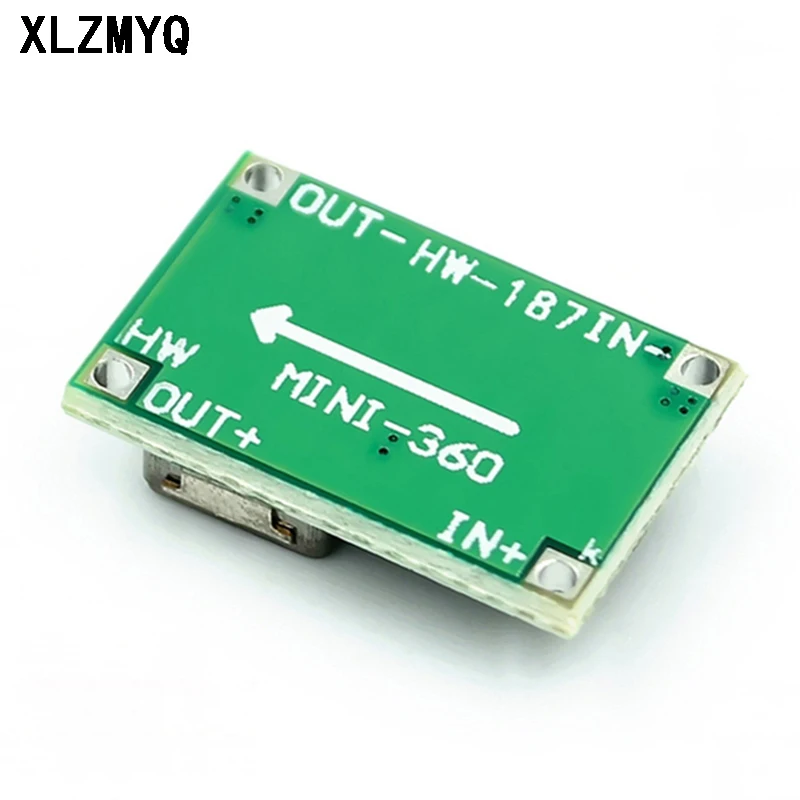

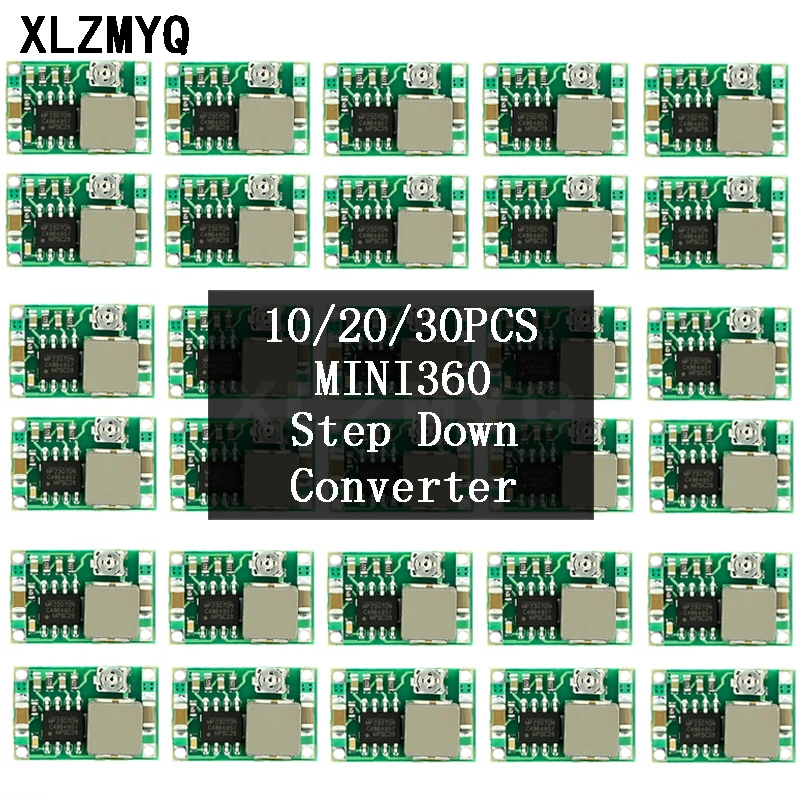

10/20/30 PCs 3A MINI DC-DC STEP DOWN CONVERTER VOLT REGULATOR 5V-23V TO 3.3V 6V 9V 12V 340KHz Buck Converter Board

10/20/30 PCs 3A MINI DC-DC STEP DOWN CONVERTER VOLT REGULATOR 5V-23V TO 3.3V 6V 9V 12V 340KHz Buck Converter Board

Specification:

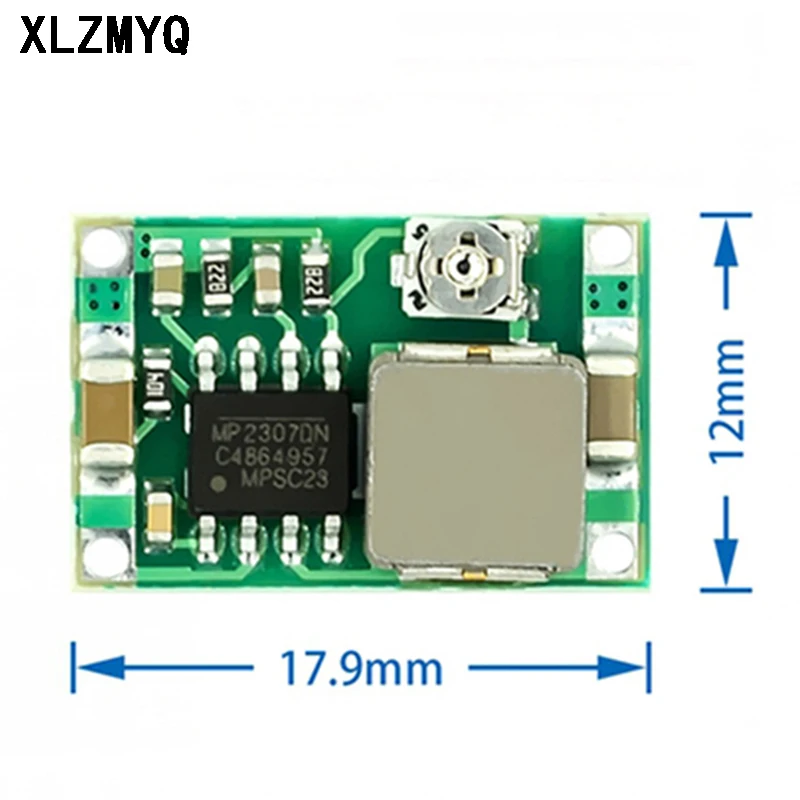

Size: 17*11*3.8mm

Color: multicolor

Material: electronic components

Input voltage: 4.75V-23V

Output voltage: 1V-17V

Output current: 3A peak, 1.8A for long time

Transfer efficiency: 96% (MAX.)

Switching freqnency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Working temperature: -40~85℃

Features:

1. Efficiency: Up to 96% (depends on the difference between input and output voltage) This module uses synchronous rectification, efficient power conversion available.

2. Good performance: Use integrally molded power inductor and synchronous rectifier control chip, small and efficient

3. Wide application: Great for LED lights, micro-controllers, battery chargers, and most other low power devices.

4. Compact and lightweight: It is compact and portable, high efficiency.

Notes:

1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!

2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
