DC 12V Portable Electric Pump Water Cooling Silent Submersible Pump Waterproof Centrifugal Pump Home Garden Outdoor Tool

The DC voltage is 12V. Please do not reversely connect the positive and black wires of the red wire, and do not connect the positive and negative wires in reverse.

This product is a brushless DC water pump, which has the characteristics of long life, low noise, no commutation sparks, and no electromagnetic interference. Widely used in medical, industrial circulating refrigeration, water circulating cooling and water supply for various small appliances, as well as family landscape, music fountain, pet water supply, modern soilless culture water supply, water cooling fans, aquarium equipment, etc.

This product has a unique design. It is driven by high-sensitivity, low-consumption, high-efficiency and intelligent electronic circuits. Combined with the structural design of moving fluids, its comprehensive performance is higher than that of traditional water pumps, and it is more energy efficient and quieter. It is a model product of a new generation of micro-pumps.

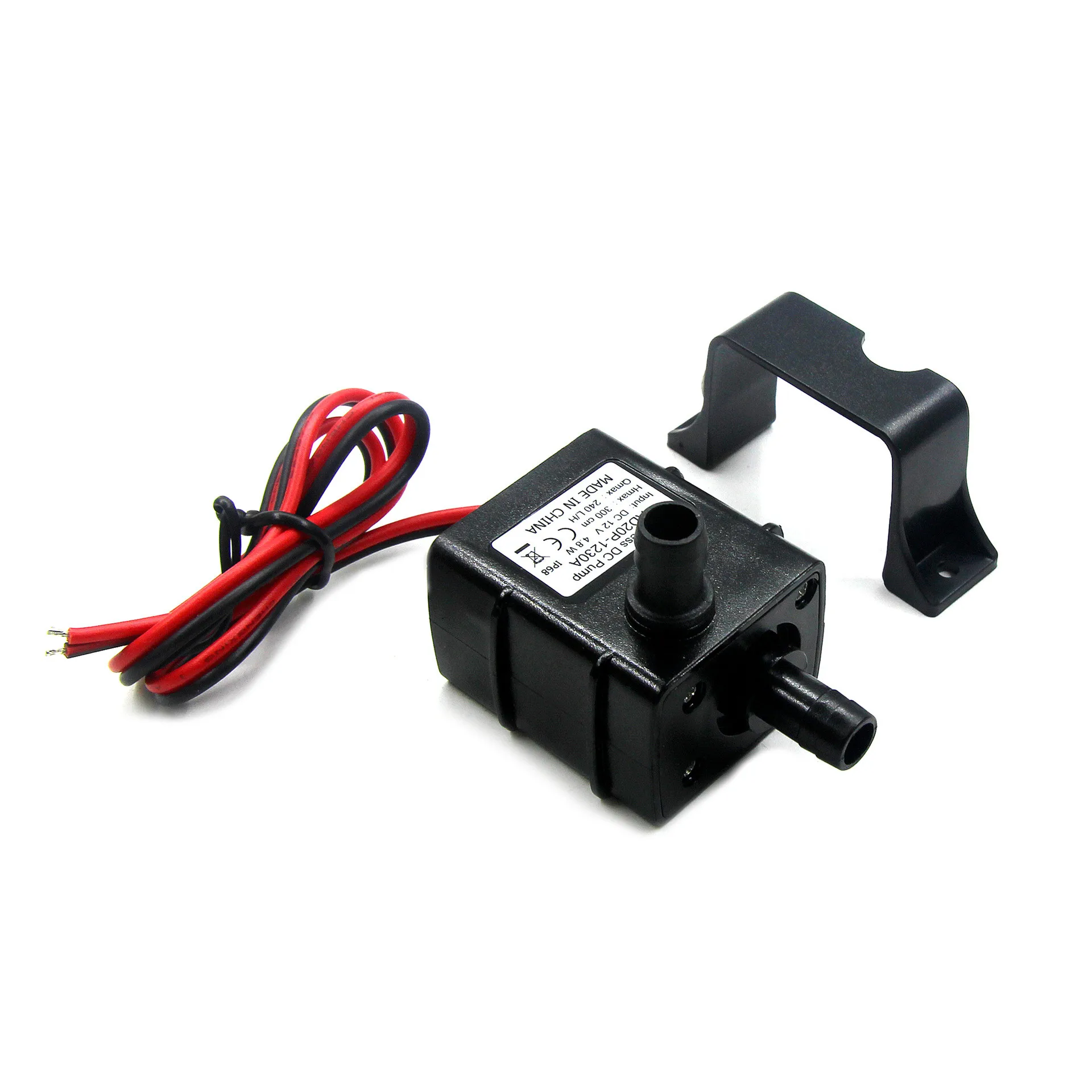

Model: AD20P-1230A

Working voltage: DC 12V Working current: 400MA Maximum lift: 3 meters

Maximum flow: 240L/H Pump life: >10000 hours Pump noise: < 45 dB

Inlet diameter: 8.5mm Outlet diameter: 8.5mm

Product net weight: 75g

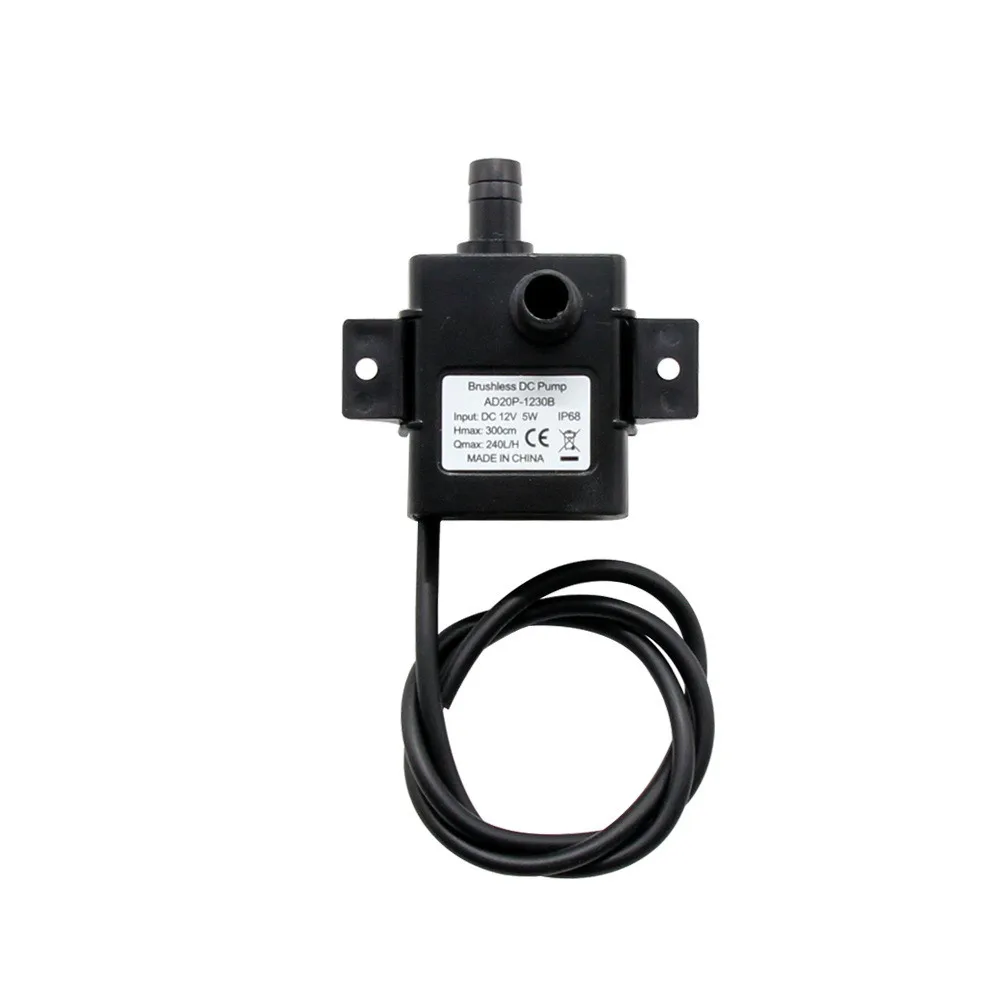

Model: AD20P-1230B

Working voltage: DC 12V Working current: 400MA Highest lift: 3 meters

Maximum flow: 240L/H Continuous working life: 20000 hours Pump noise: ≤ 40 dB

Inlet diameter: 8mm Outlet diameter: 8mm Load power: 5W

Product Net Weight: 70g Dimensions: 55*34*41mm

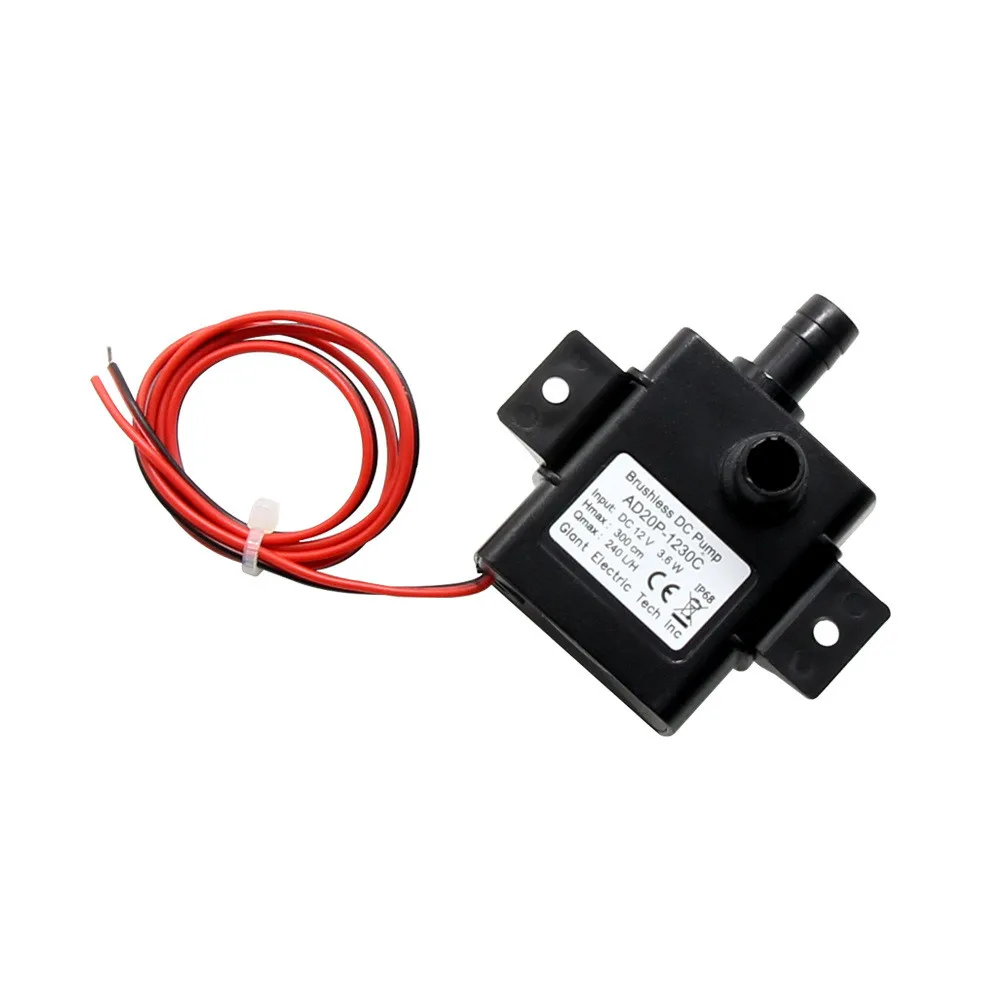

Model: AD20P-1230C

Working voltage: DC 12V Working current: 400MA Highest lift: 3 meters

Maximum flow: 240L/H Continuous working life: 20000 hours Pump noise: ≤ 40 dB

Inlet diameter: 8mm Outlet diameter: 8mm Load power: 3.6W

Product Net Weight: 65g Dimension: 55*34*41mm
