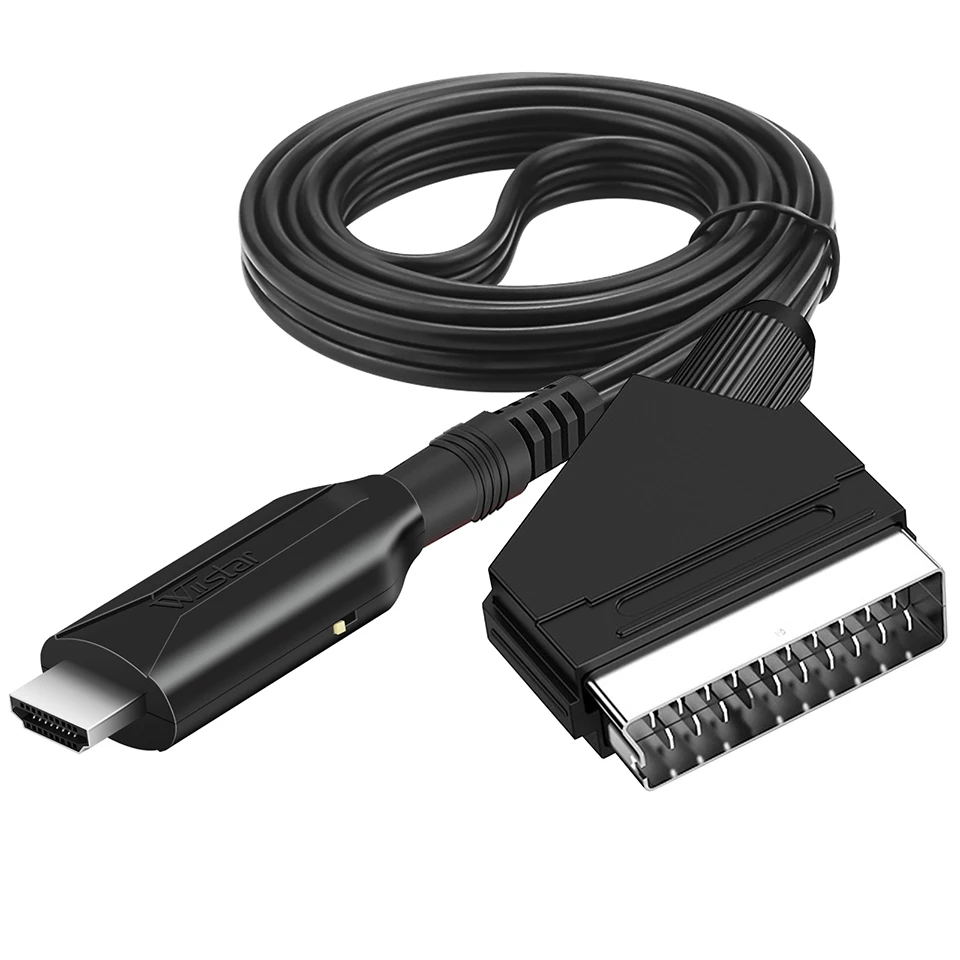

Scart To HDMI -compatible Converter Audio Video Adapter for HDTV/DVD/Set-top Box/PS3/PAL/NTSC

Scart To HDMI-compatible Converter Audio Video Adapter for HDTV/DVD/Set-top Box/PS3/PAL/NTSC

Product description

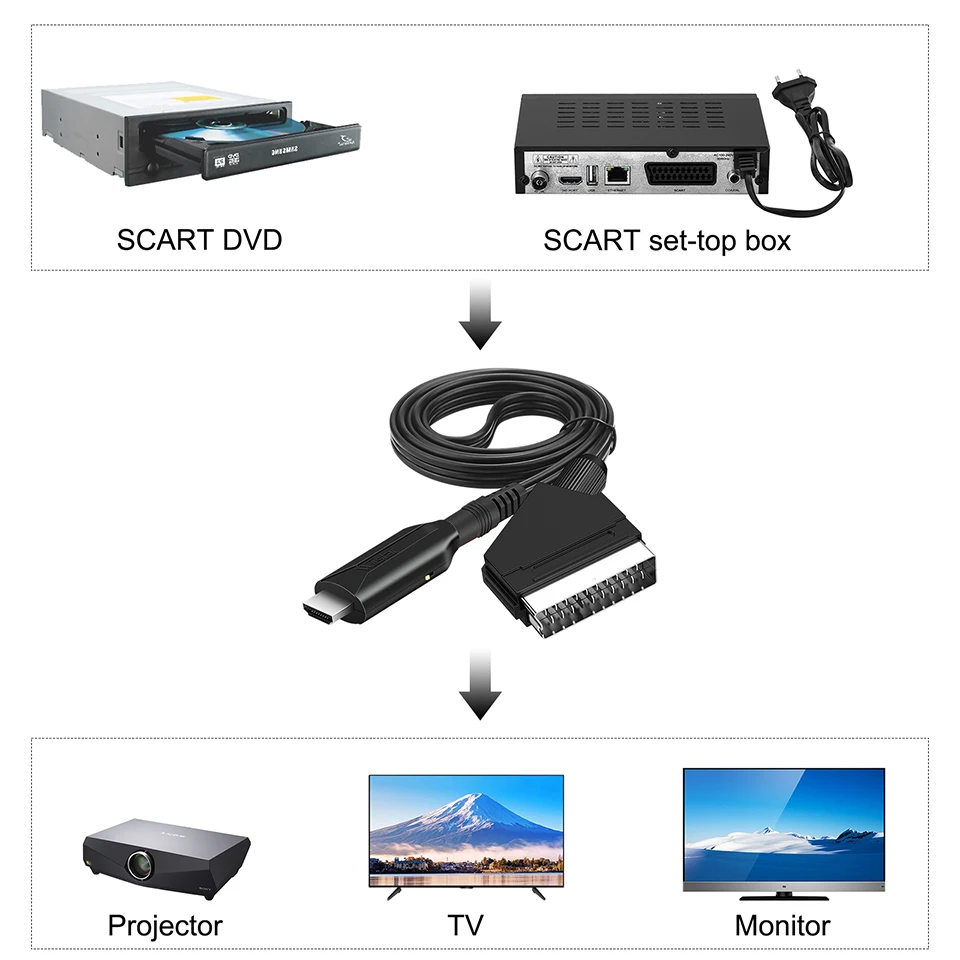

This Scart to HDMI-compatible Converter converts the analog signal input from the Scart interface into a 1080p (60HZ) HDMI-compatible signal output. You can make only SCART interface playback devices, such as DVD, set-top boxes connected to high-definition display devices. Analog to digital process sampling rate of up to 10 162MSPS, using black / white level expansion, improved color transition, dynamic range expansion, bright white processing, automatic detection and other technologies, can automatically convert the composite signal to 1080p (60HZ) output.

Make the picture life-like, bringing you the clearest and most realistic HD visual effects.

Feature:

No drive, light and flexible, plug and play

Adopt advanced signal processing technology to ensure excellent accuracy, color, resolution and detail

Support PAL, NTSC3.58. NTSC4.43, SECAM, PAL / M, PAL / N standard TV format input

Support HDMI-compatible 1080p / 720p output

Specification:

SCART input ..............PAL, NTSC 3.58. NTSC 4.43, SECAM, PAL / M, PAL / N

HDMI-compatible output .............. 1080p / 720p

HDMI-compatible Output Cable Length . ≤7m AWG26 HDMI-compatible Standard Cable

SCART Input Cable Length . ≤8m AWG26 SCART Standard Cable

Maximum operating current . 350mA

Power Adapter Specifications ...AC 100V-240V 50 / 60HZ, DC 5V / 1A

Operating temperature.....- 10 ~ + 55 ℃

Storage temperature ...... - 20 ~ + 60 ℃

Working humidity ......... 10 ~ 90% RH (No condensation)

Storage humidity ......... 5 ~ 95 % RH (non-condensing)

Package Contents:

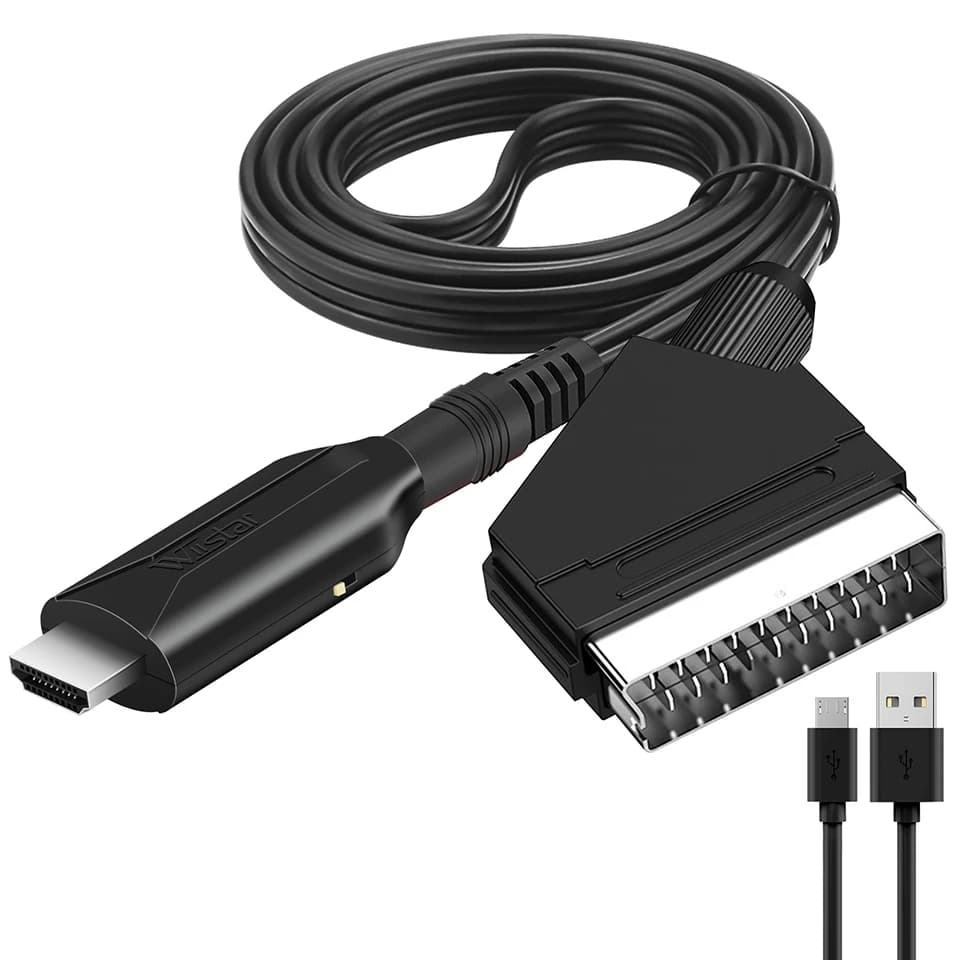

1x Scart to HDMI-compatible Converter

1x USB power cable

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

it can not use  for  sony and blackmagic brand name , if you device brand name belong  sony and blackmagic,please do not buy it .

it must cooonect the micro cable to supply power , the package has not the power adapter ,it only has micro cable ( has not the power adapter)

一：Can not work ?

please check 5 things :

1 . have you connect the micro cable use for supply power ?

2. have you connect right ? scart( dvd ) to hdmi-compatible ( tv ).

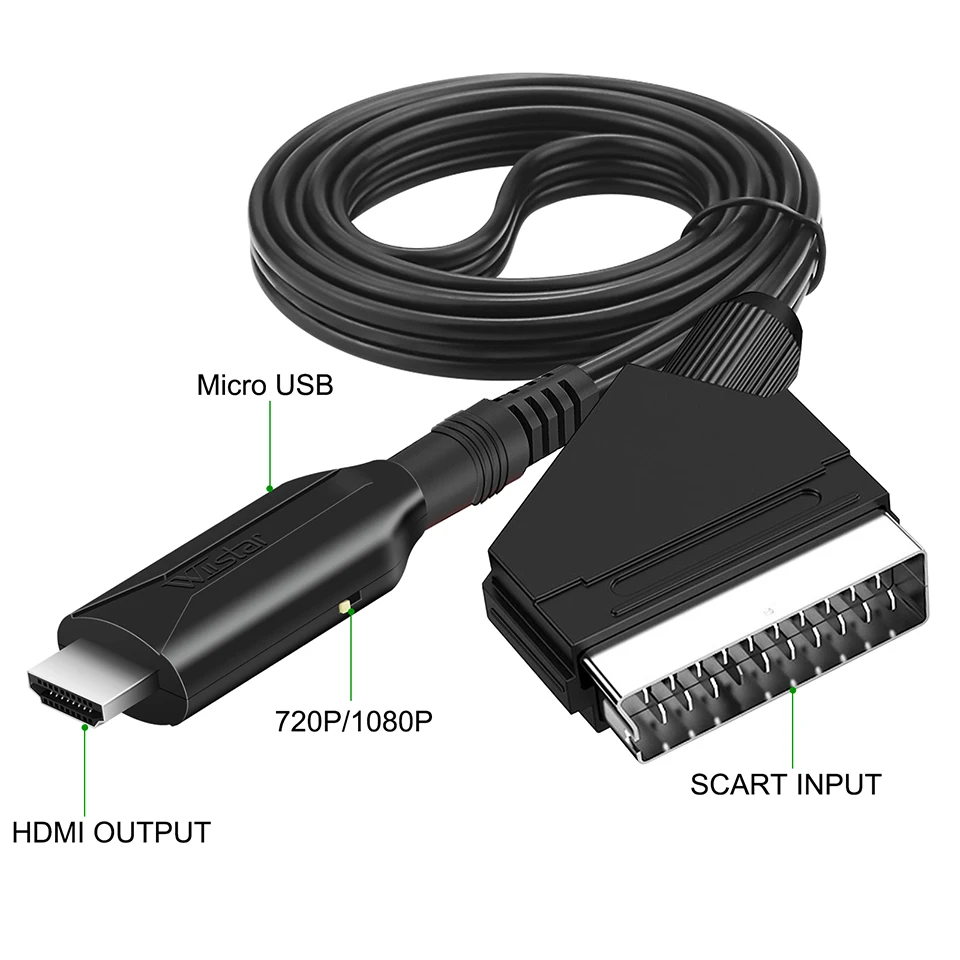

3. have you switch 720p or 1080p on our device ?

4. have you set hdmi-compatible signal on your tv ?

5.Whether the power light on the HDMI -compatible end is on normally. If it is not on, please reinsert the USB mirco cable or replace the USB Miro cablecheck the

二： Only blue screen is displayed on the screen

1: Reseat one end of the SCART Port

2: Rotate the HDMI-compatible body and the cable connection, and unplug it again

3: Set the output resolution of the SCART source device to 480i/576i

三： The screen is silent or the sound is noisy

1: Reseat one end of the SCART port

2: Rotate the HDMI-compatible body and the cable connection, and unplug it again

四： No picture and sound on the screen

1: Reseat one end of the SCART Port

2: Rotate the HDMI-compatible body and cable connection

3: You can toggle the 720p/1080p switch on the product to set it to 720p output mode, which can improve the compatibility of the product

if it still not work ,please do not open a dispute or bad feedback ,please contact us . we will slove it
