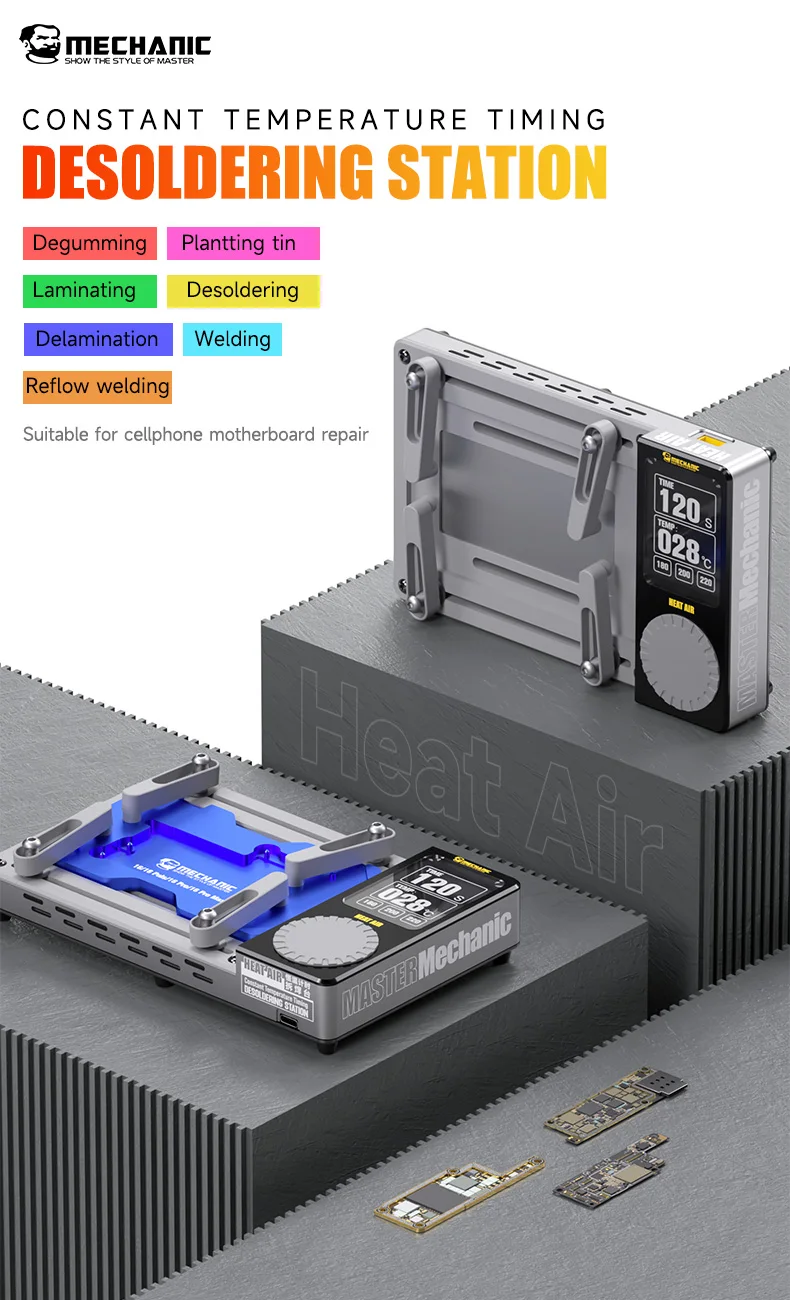

MECHANIC HEAT AIR Intelligent Preheating Platform For iPhone X-16 PRO MAX Motherboard Layered Chip BGA Stencil/Dot Matrix Repair

Mechanic Heat Air constant temperature timing desoldering station for cell phone motherboard layering repair glue removal tin planting CPU IC Nand lamination reflow desoldering and soldering Heating Table

Scope of application: latest support for IP X/XS/XS Max/11/11 Pro/11 Pro Max/12 mini/12/12 Pro/12 Pro Max /13 /13mini /13 Pro /13PROMAX/14 14mini 14 Pro 14PROMAX/15/ 15PIUS/ 15 Pro 15PROMAX/16/ 16PIUS/ 16 Pro 16PROMAX

motherboard layering. Fitting. Dot matrix repair

There is a protective film on the surface of the machine to prevent scratches. After receiving the package, you can tear off the protective film

Description

Mechanic Heat Air constant temperature desoldering preheating platform for iPhone X-15 Pro Max motherboard repair. Intelligent Mechanic Heat Air desoldering station for mobile phone motherboard degumming, tin planting, lamination, delamination, reflow welding, desoldering and soldering repair.

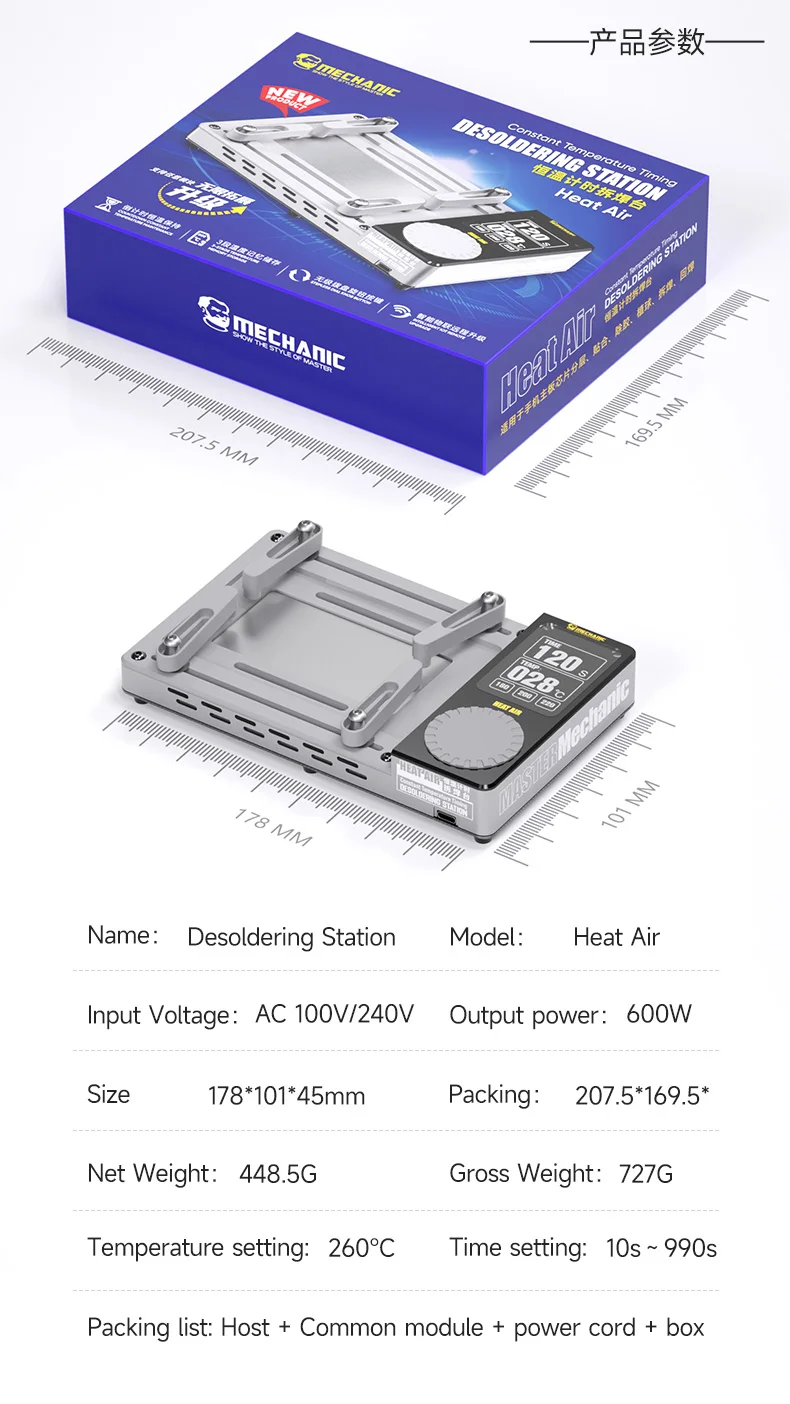

Specification:

Name: Mechanic Heat Air Desoldering Station.

Input Voltage: AC100V/240V.

Output power: 600W.

Size: 178*101*45mm.

Temperature setting: 260℃.

Time setting: 10s-990s.

Packing list(standard): Host + Common module + power cord + box.

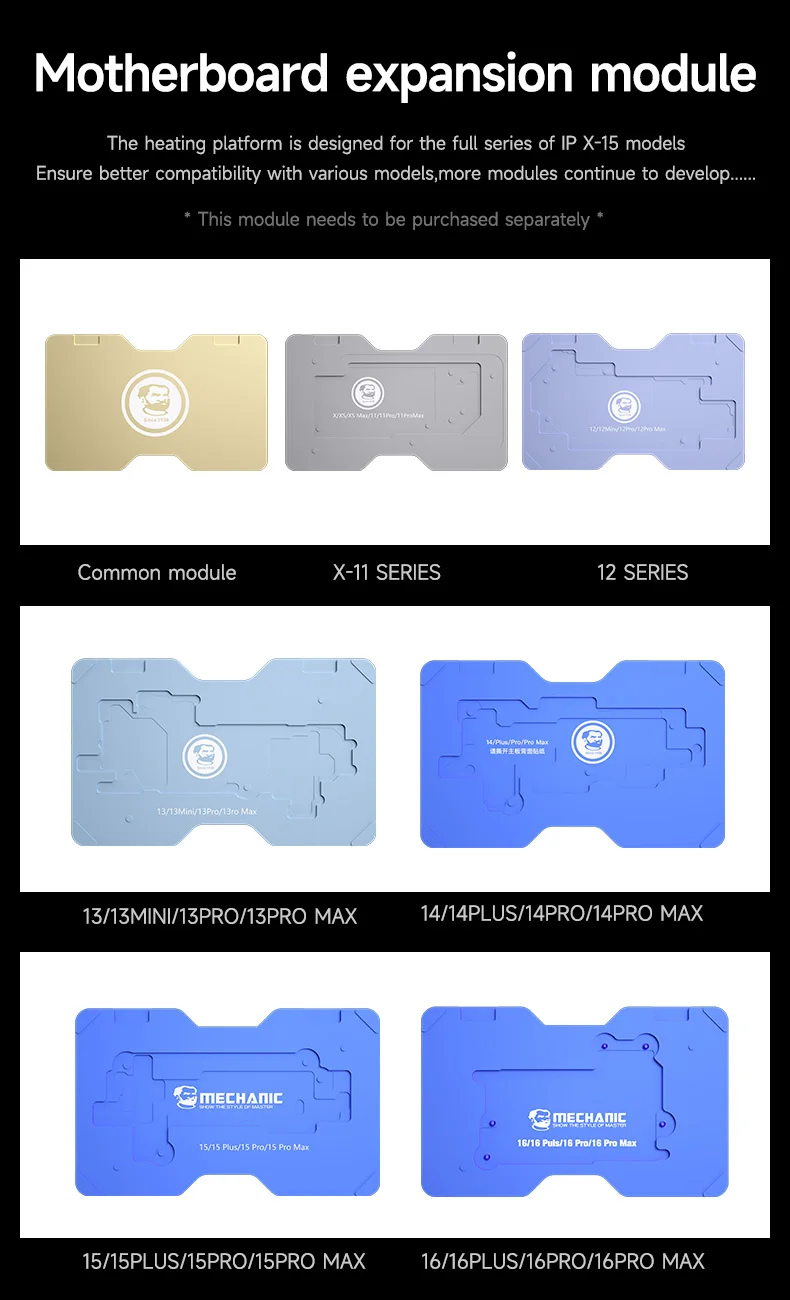

Optional:

1. iPhone X-11 Pro Max heating module with 5pcs reballing stencil.

2. iPhone 12 series heating module with 3pcs reballing stencil.

3. iPhone 13 series heating module with 4pcs reballing stencil.

4. iPhone 14 series heating module with 3pcs reballing stencil

5. iPhone 15 series heating module with 2pcs reballing stencil.

6. iPhone 16 series heating module with 2pcs reballing stencil.

Feature:

1. Mechanic constant temperature timing desoldering station for cell phone motherboard repair, like glue removal, tin planting, lamination, layering, reflow, desoldering and soldering, etc.

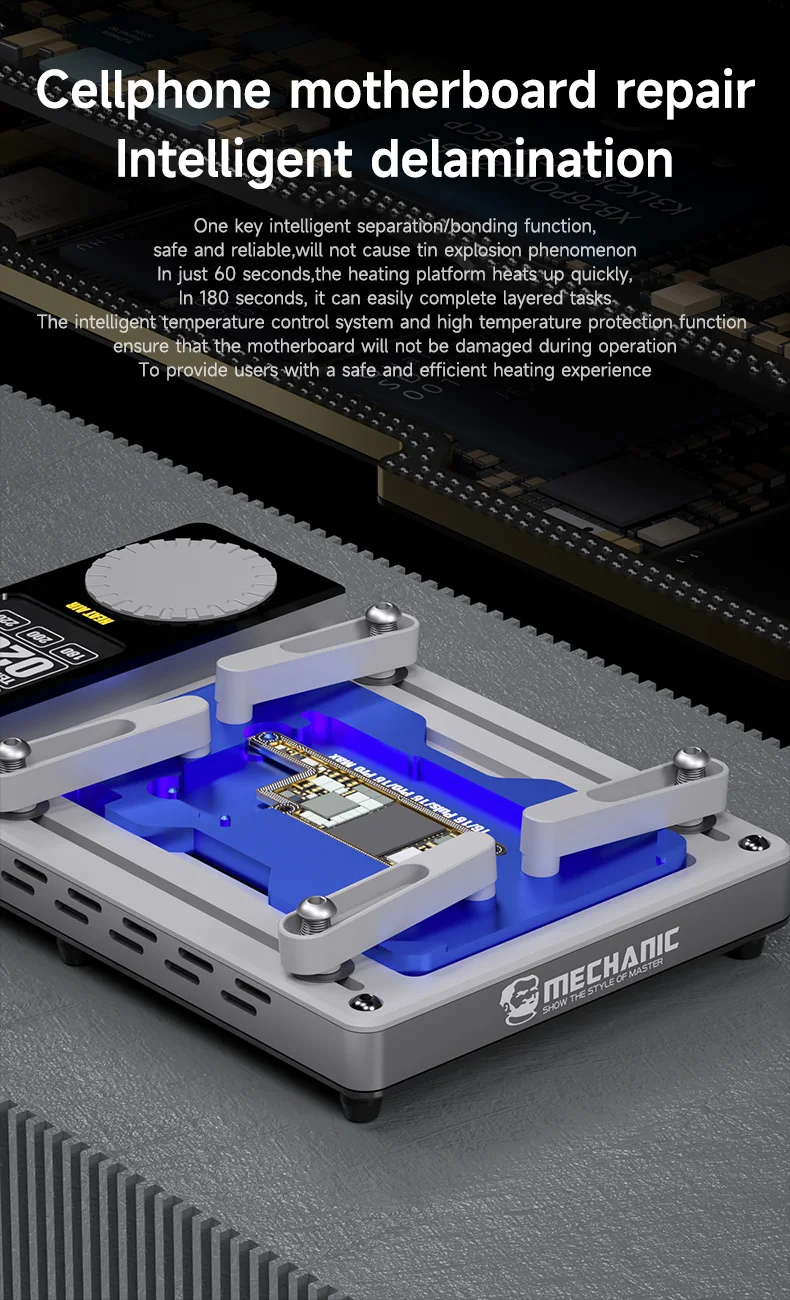

2. One key intelligent separation/bonding function. Safe and reliable,will not cause tin explosion phenomenon.

3. In just 60 seconds,the heating platform heats up quickly. In 180 seconds, it can easily complete layered tasks.

4. The intelligent temperature control system and high temperature protection function ensure that the motherboard will not be damaged during operation. To provide users with a safe and efficient heating experience.

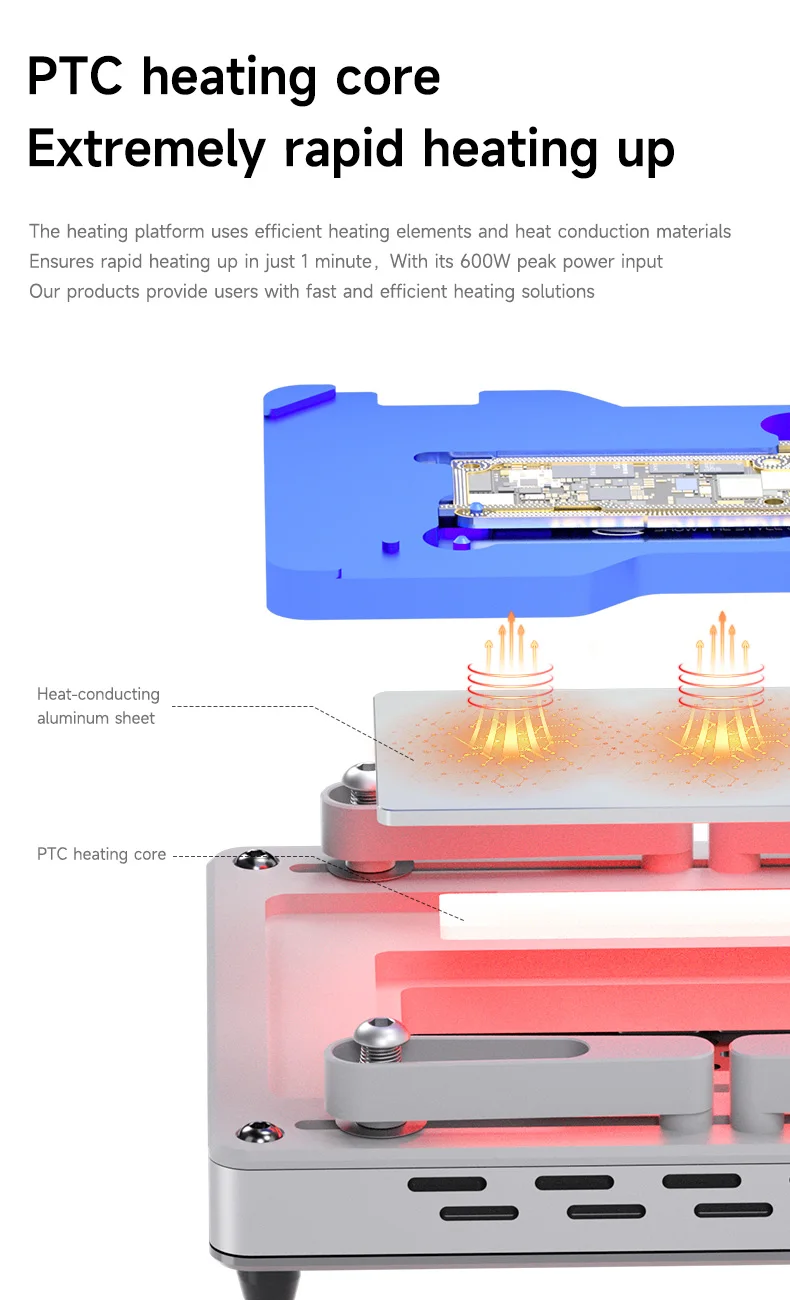

5. PTC heating core, extremely rapid heating up, the heating platform uses efficient heating elements and heat conduction materials, ensures rapid heating up in just 1 minute. With its 600W peak power input.

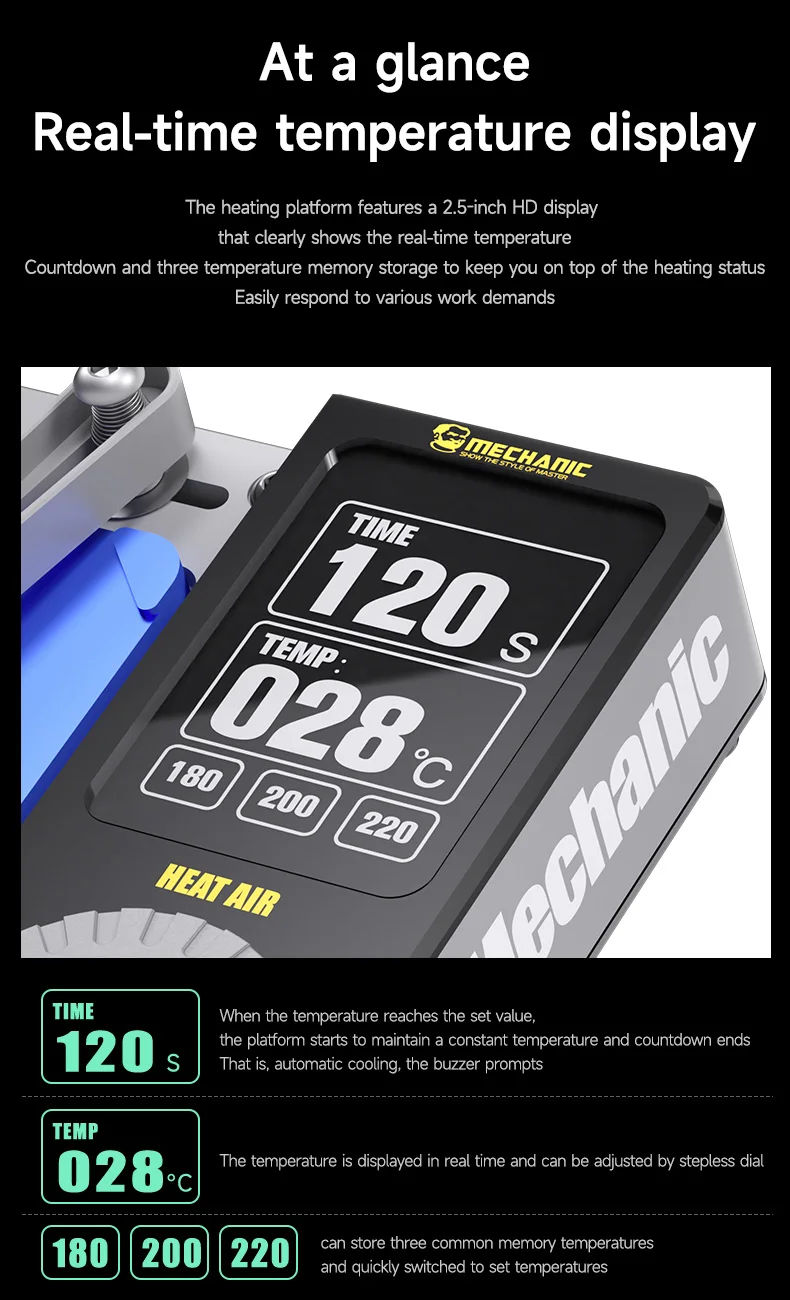

6. Mechanic Heat Air heating platform with a 2.5-inch HD display that clearly shows the real-time temperature. Countdown and three temperature memory to keep you on top of the heating status.

7. When the temperature reaches the set value, the platform starts to maintain a constant temperature and countdown ends. That is automatic cooling, the buzzer prompts.

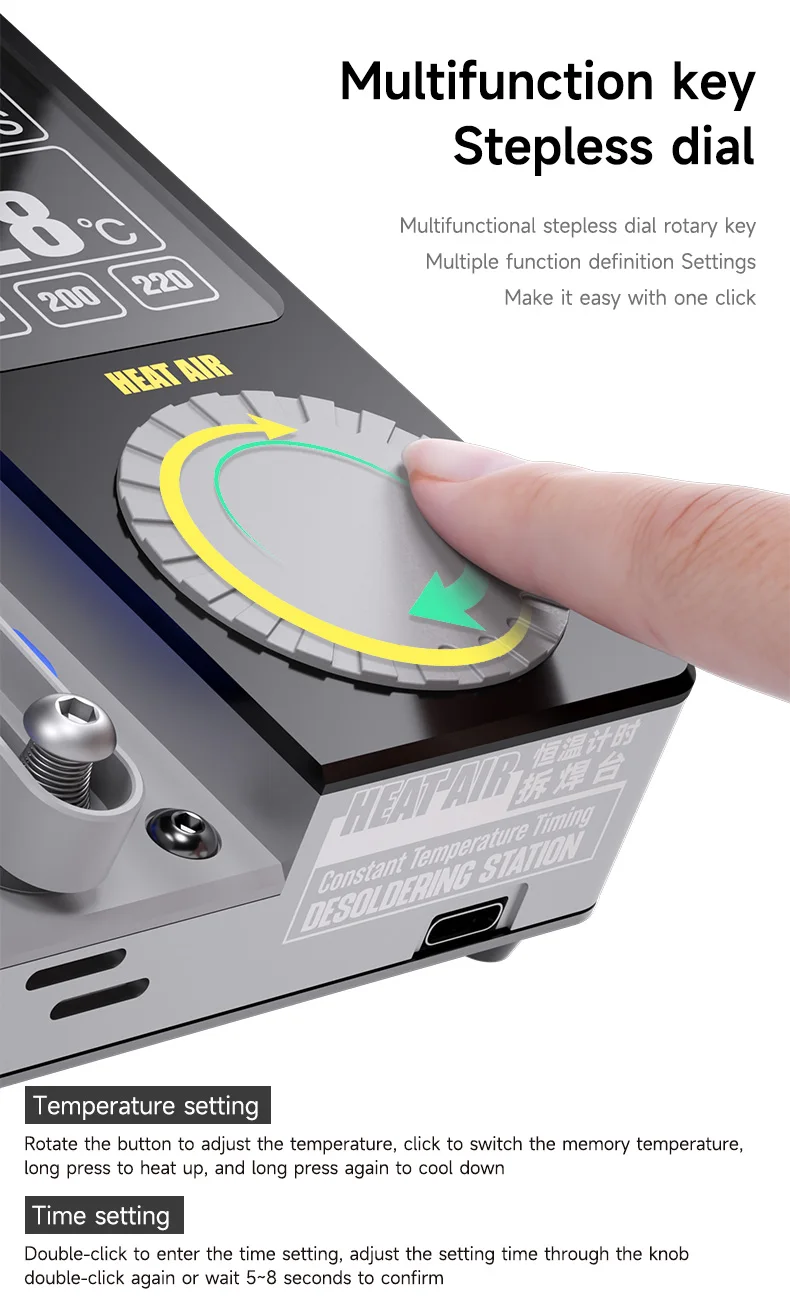

8. The temperature is displayed in real time and can be adjusted with a stepless dial.

9. Can store three common memory temperatures and quickly switch to set temperatures.

10. One click to switch the memory temperature, double-click to enter the time setting, adjust the setting time through the knob.

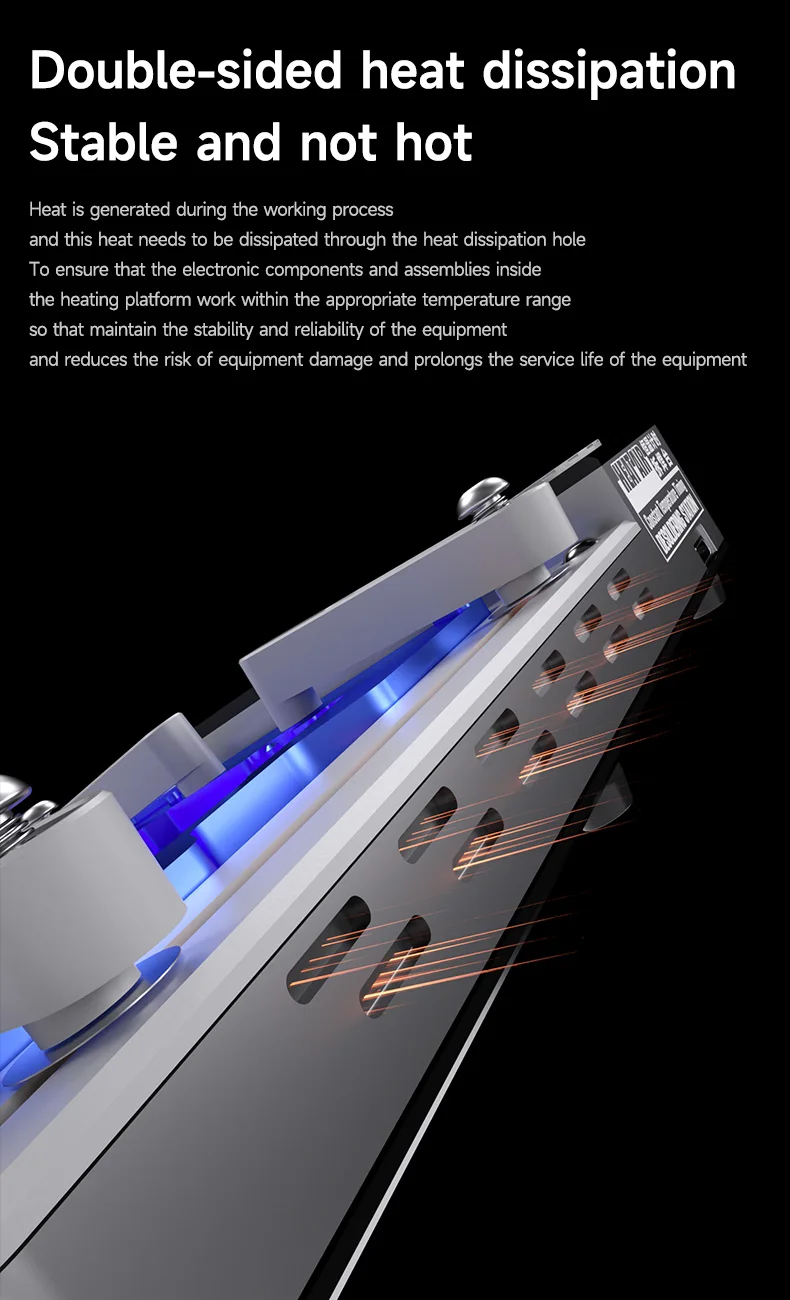

11. Double-sided heat dissipation, stable and not hot.

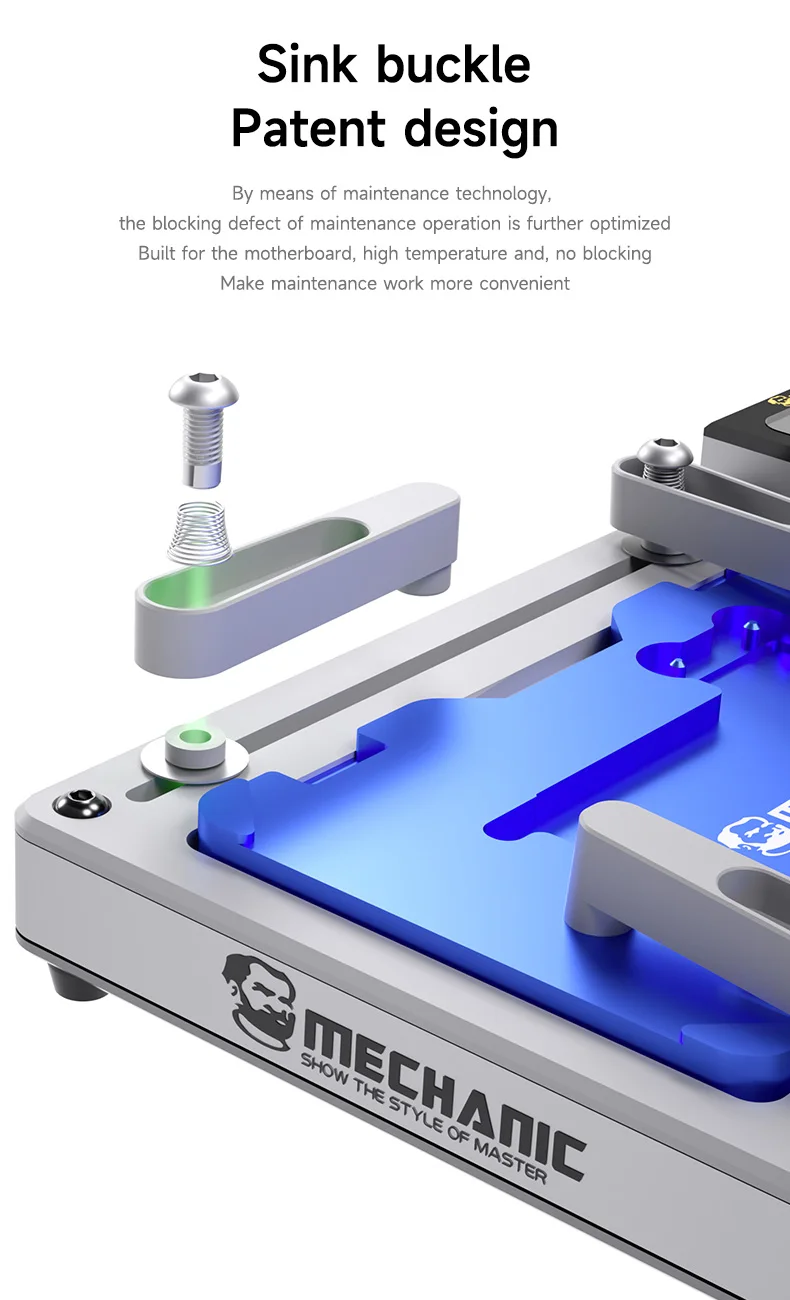

12. Built for the motherboard, high temperature and no blocking, make maintenance work more convenient.

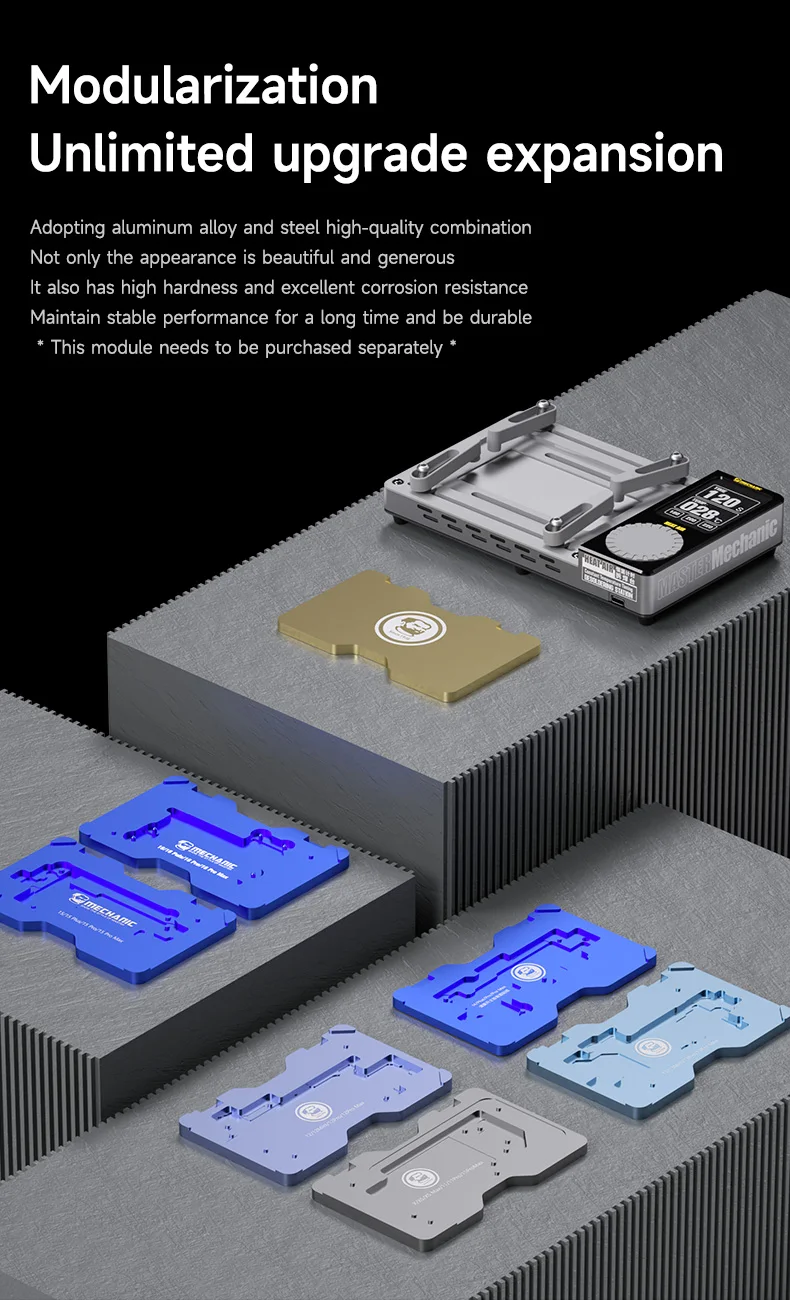

13. Modularization and unlimited upgrade expansion.

14. Boot current fault data storage, current curve fault analysis can be checked.
