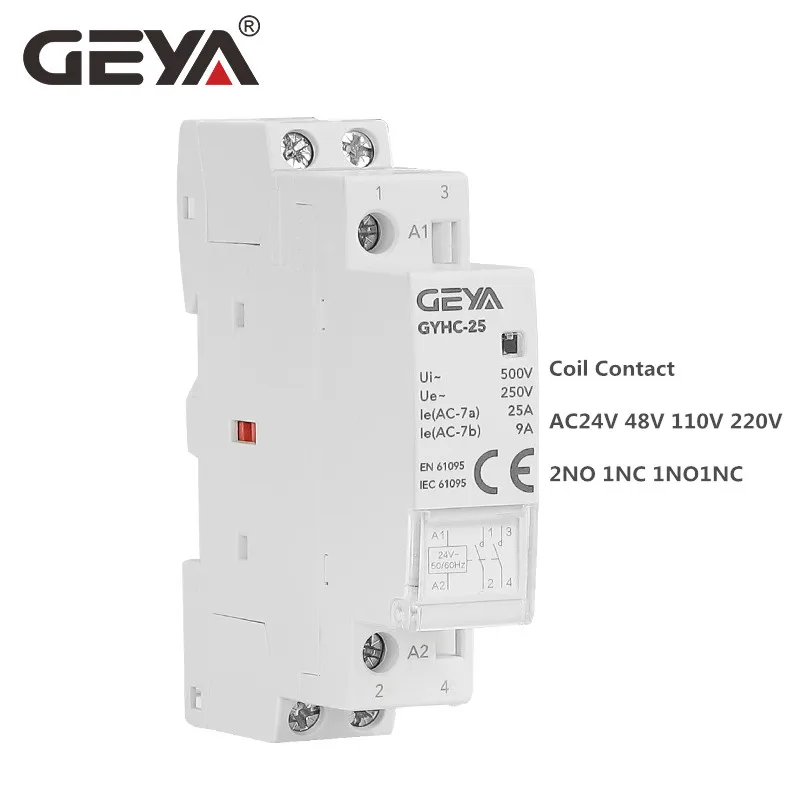

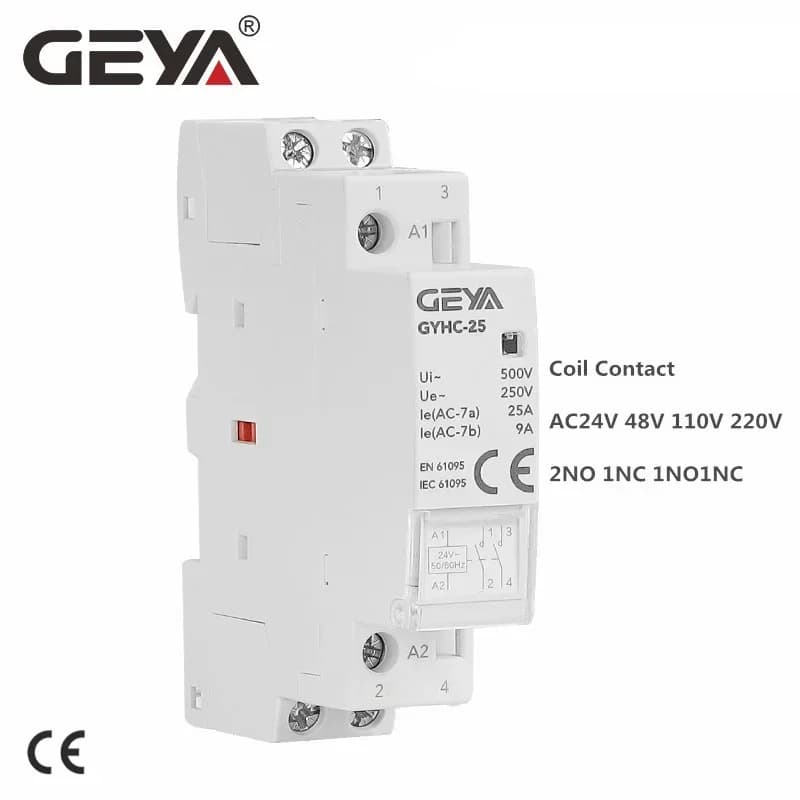

GEYA GYHC Modular Household Contactor AC24V 48V 110V 220V 2P 25A 2NC 2NO 1NO1NC 50/60Hz

GEYA GYHC Modular Household Contactor AC24V 48V 110V 220V 2P 25A 2NC 2NO 1NO1NC 50/60Hz

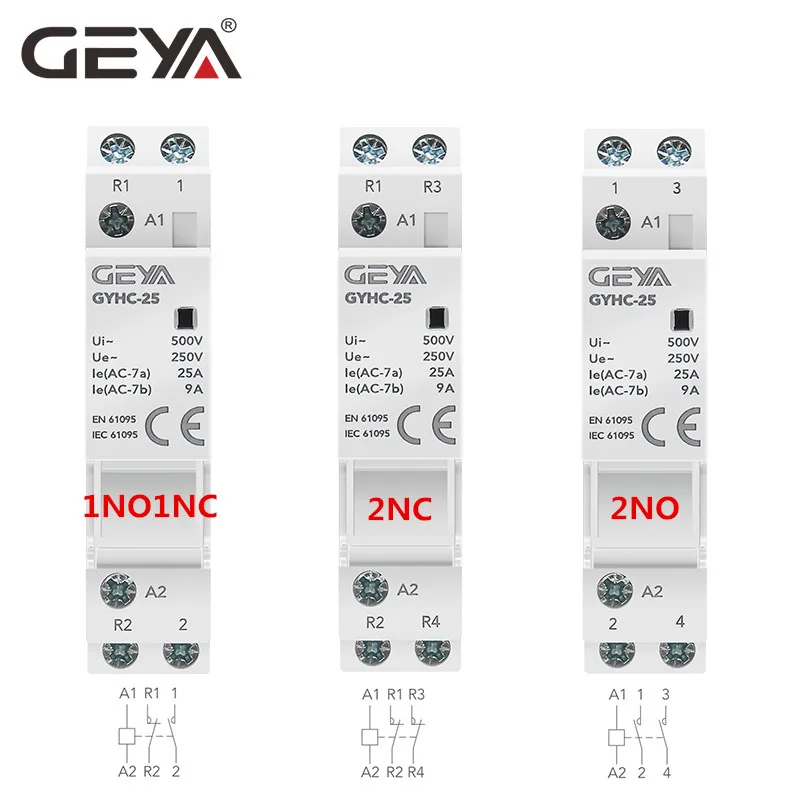

*2NO: 2 Normally Open Contact
*1NO1NC: 1 Normally Open + 1 Normally Close Contact
*2NC: 2 Normally Close Contact
General
The new GYHC series modular contactor uses a new technology platform and apply automated production and testing equipment to create advanced ultra-quiet and long-life contactors.
It can be used for remote control, Lighting, heating, ventilation, rolling curtains, public hot water, Mechanical ventilation system, Low inductive micro-inductive load environment.
*Low power consumption
The GYHC series modular contactor optimizes the electromagnetic system, greatly reducing the holding power of the contactor, and completely solving the problem of high energy consumption of traditional contactors.
*Low noise
Adopts a new design to improve product reliability. 60% of the production process is automated, and key processes throughout the process are monitored automatically. Eliminate the noise problems encountered in the operation of traditional contactors from the design and manufacturing process

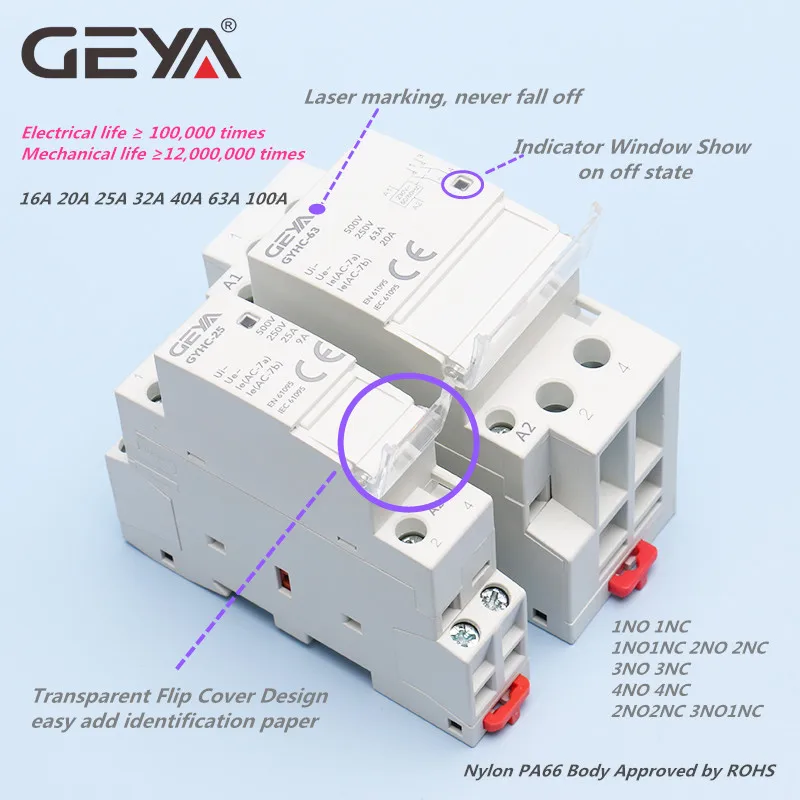

*Super long life
Electrical life greater than 100,000 times Mechanical life is more than 12,000,000 times

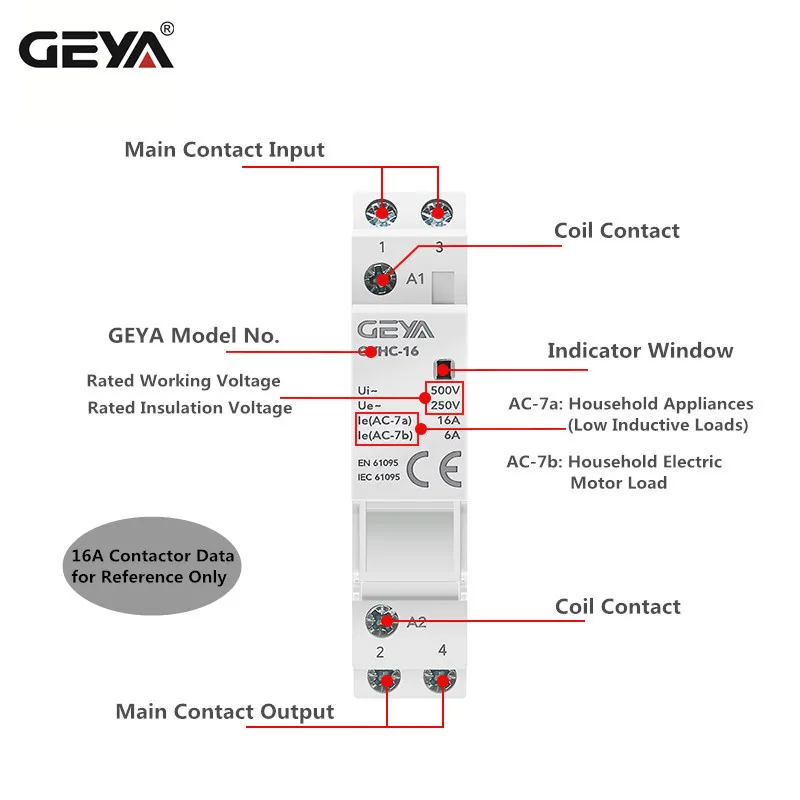

AC-7a: Household Appliances (Low Inductive Loads)
AC-7b: Household Electric Motor Load

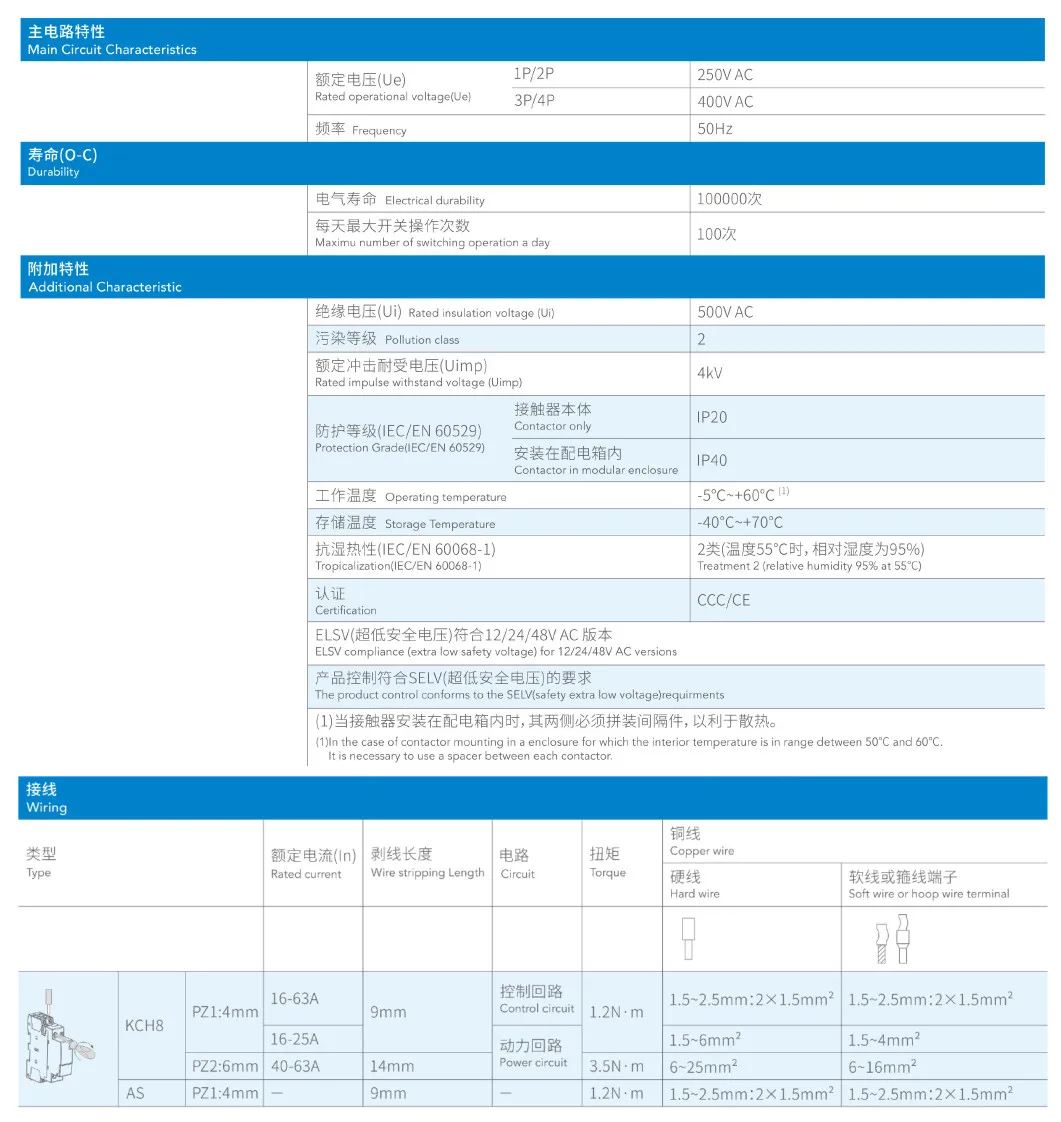

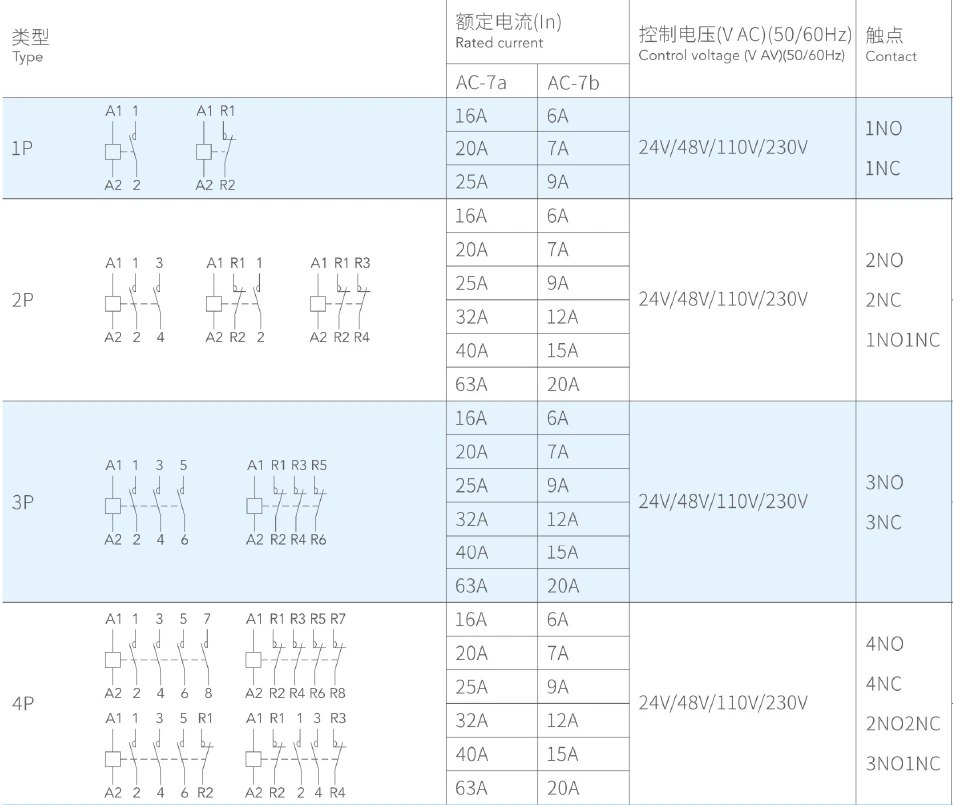

Technical Data
