Dc Power Adapter Charger Connector Plug Jack Cable Cord for 90W 170W 230W300W Lenovo ThinkPad X1 Carbon Yoga 13 Dc Adapter Cable

Dc Power Adapter Charger Connector Plug Jack with Original Cable Cord for Lenovo ThinkPad X1 Carbon Yoga 13 Dc Adapter Cable

There are 5 models optional, Please double check the parameter according your original adapter output voltage current!!!

65W (built-in 560R resistor) 1.2 meters; 0.3 square copper wire, OD4.0mm

90W (built-in 560R resistor) 1.8 meters; 0.52 square copper wire, OD4.0mm

135W (built-in 1K resistor) 1.8 meters; 0.9 square copper wire, OD4.5mm

170W (built-in 2K resistor) 1.8 meters; 1.2 square copper wire, OD4.5mm

230W (built-in 4.62K resistor) 1.5 meters; 1.5 square copper wire, OD5.0mm

300W (built-in 8.66K resistor) 1.5 meters; 2.0 square copper wire, OD5.0mm

Features:

100% brand new, high quality and fine workmanship.

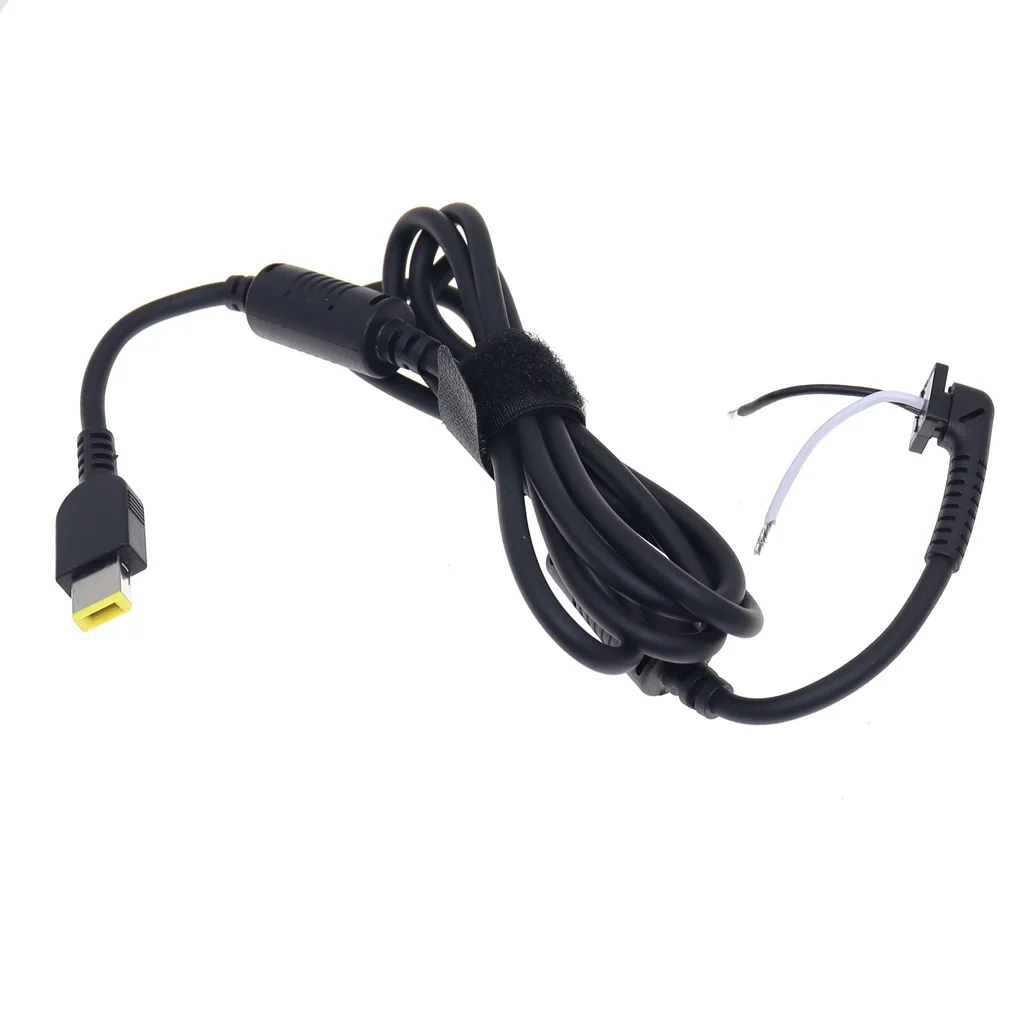

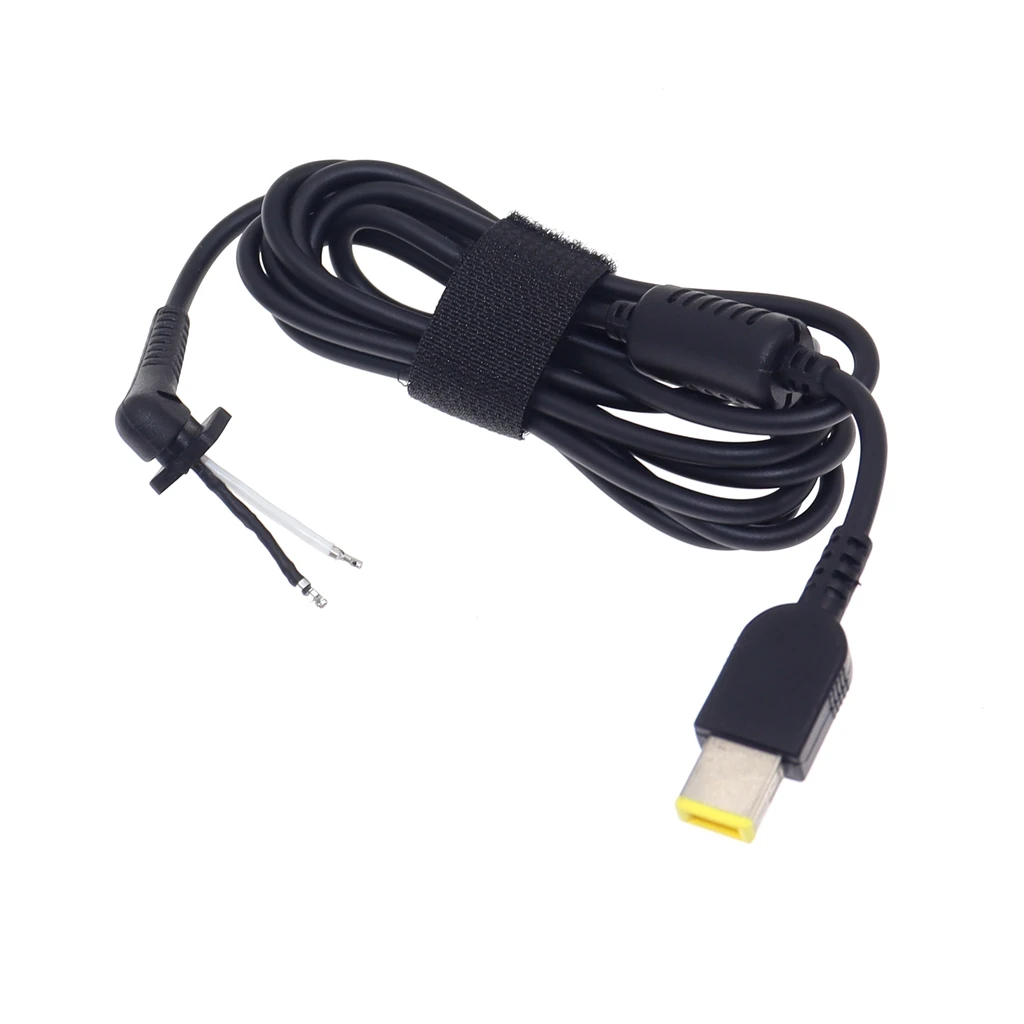

This is DC power supply adapter cord with Square Plug.

1.2meters / 1.5meters / 1.8meters long for you to choose

With true magnetic ring, omnibearing anti-interference.

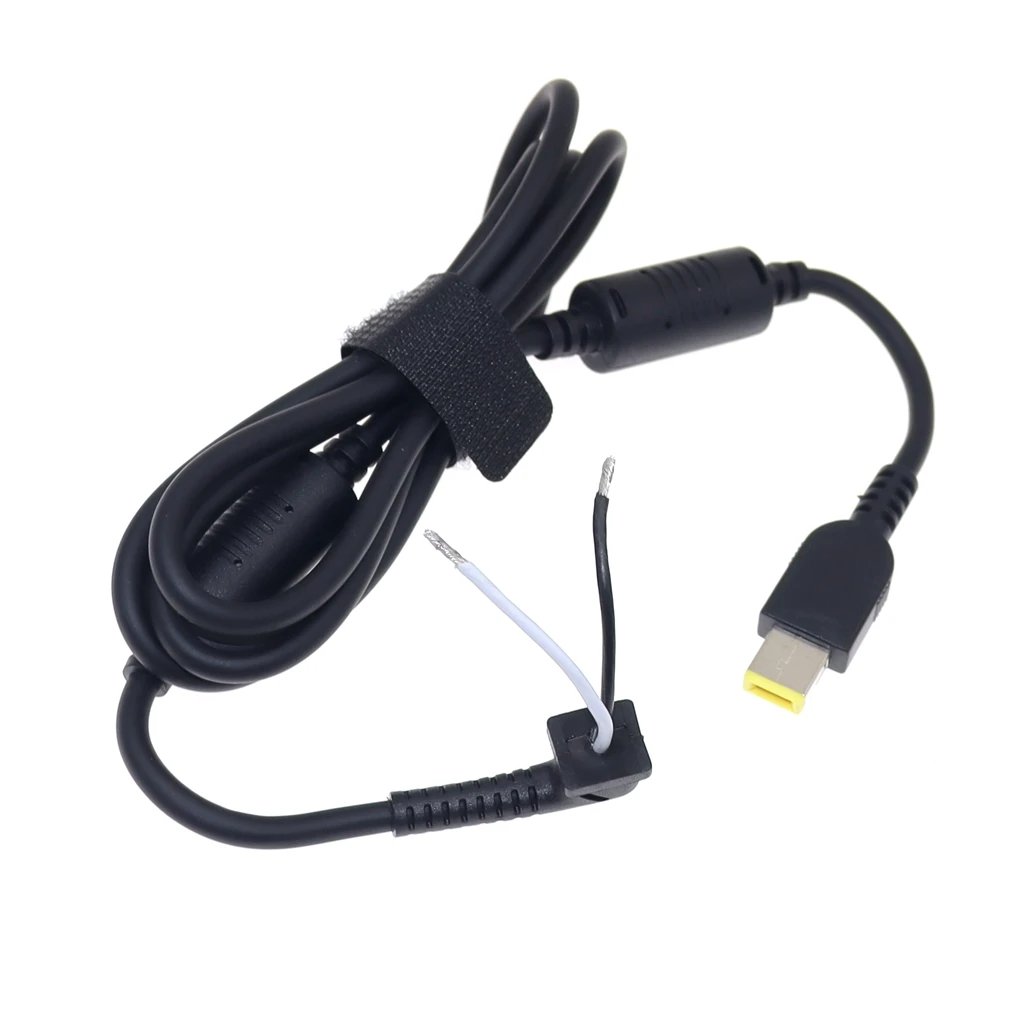

Two core wires design, The white wire is the positive[+] and the black wire is negative[-]. If your adapter is three core wires, it would not be suitable.

Applicable for Lenovo Square plug adapter

Specifications:

Material: Plastic + Metal

Color: Black

Cable length: 1.2m / 1.5m / 1.8m

DC plug: Square plug (For Lenovo)

Quantity: 1 PC

Package includes: (No retail package)

1 X DC Power Adapter Cable

Tips:  The DC cable is the replacement cable to your original adapter, not the original quality.  It is strongly advised that buyer to choose the correct model for your adapter according to your original adapter parameter. Take an example, if the adapter parameter is 20V 6.5A (170W), then you can select the 170W model to use as the replacement cable for your adapter. Different cable bulit in different resistant and could not be used in mixed way. Pls do not use 230W/300W model, which will not not work. Also, DC cord replacement procedure would be done by qualified computer technician.

Instructions:The cable needs to be disconnected from the adapter for connection and then used. The buyer needs to have certain electrician knowledge to use it. Please confirm that you can remove the adapter and understand the wiring before purchasing the cable for replacement.

Customer FAQ:

Q: How do I use this cable?

A:It is recommended that a qualified computer technician perform the DC power cord replacement procedure. You need a repair technician who can weld or a person who knows how to use this product. If it is for personal use, please ensure that you can weld first. Before safe use, you need to remove the original adapter and weld it. We do not recommend buyer to purchase the item if you do not know how to use.

Q: How many watts of cable should I choose for my power adapter?

A:The plug of Lenovo square port is equipped with identification resistance. The 230W ([email protected]) cable is configured with identification resistance corresponding to 230W. Lenovo laptop charging requires correct identification of the resistance. If the identification of the resistance is incorrect, the computer may not recognize the charging. Therefore, it is generally recommended to use as many W (watt) cables as the original power adapter. Cables of different powers are not universal.

Q: Is this the original cable?

A:NO. This DC power cord is a brand new replacement cord for laptop charger DC power cord failure or damage. It is produced in 100% new and copper material and designed to make sure it work as the replacement one for your original one. Please pay attention to this before purchasing.

Q:Can I use it on other power adapters or regulated power supplies of different brands to charge my Lenovo laptop?

A:NO. This DC power cord is a new replacement cord for laptop charger DC power cord failure or damage. It is not supported to connect other power adapters of different brands or models, or to connect adjustable and regulated power supplies. Please confirm the usage before buying
