Raspberry Pi Zero 2w to 3B/4B interface adapter Zero to Pi3/Pi4 / Pi5 Expansion Board Zero Pi0 USB HUB RJ45 HAT

This product does not include raspberry pi Zero 2W.

PI5-3USB-RJ45：

https://www.aliexpress.com/item/3256806239286508.html?gatewayAdapt=4itemAdapt

Introduction

The Raspberry Pi Zero to 3B/4B interface adapter with USB hub and RJ45 10/100M port ,

which is designed refer to the Raspberry Pi 3B/4B size

When the official factory stop to product 3B, Some old project have to change to use 4B.

Now we give another option which use a zero to replace 3B/4B with this adapter

Features

With the unique design , you can make your zero with same USB/HDMI/RJ45 port .

The height of 20x2 GPIO Pins will not change . You can use GPIO expansion board perfectly

Introduction to interface

•3x USB ports, compatible with USB2.0/1.1

•1x RJ45 10/100M port, based on the RTL8152B Ethernet chip

•Micro HDMI to 3B/4B HDMI port

•Work at zero also can work at a computer/Android phone with micro usb/3B/4B or other mini computer with a micro usb cable

Connection Examples

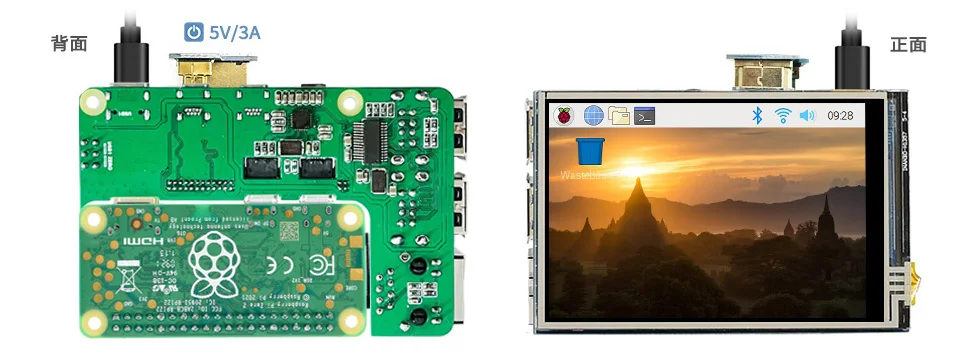

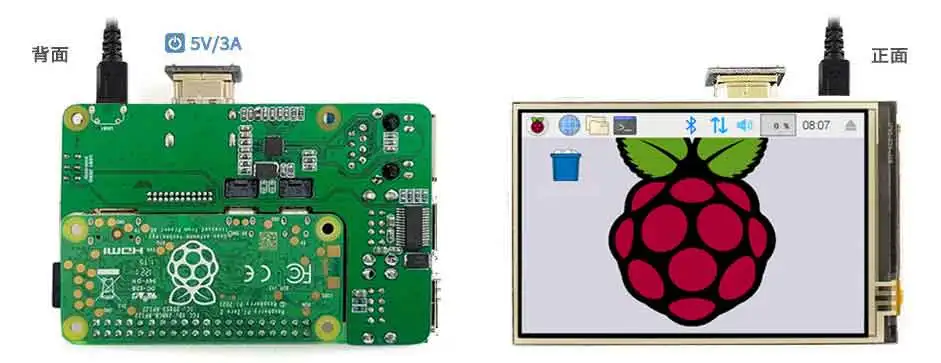

Working With 3.5inch HDMI LCD

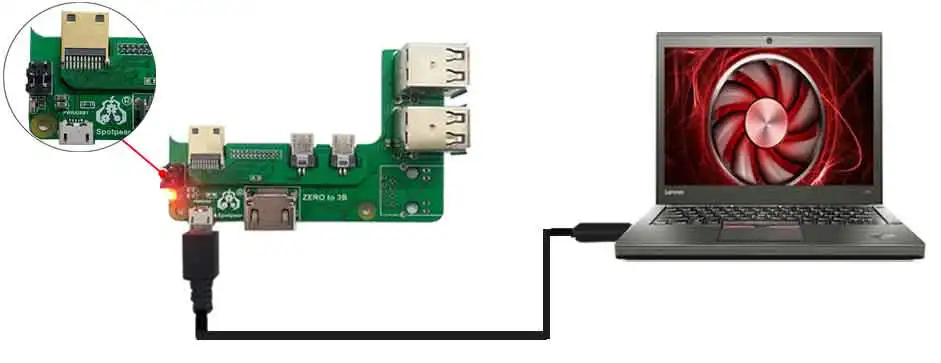

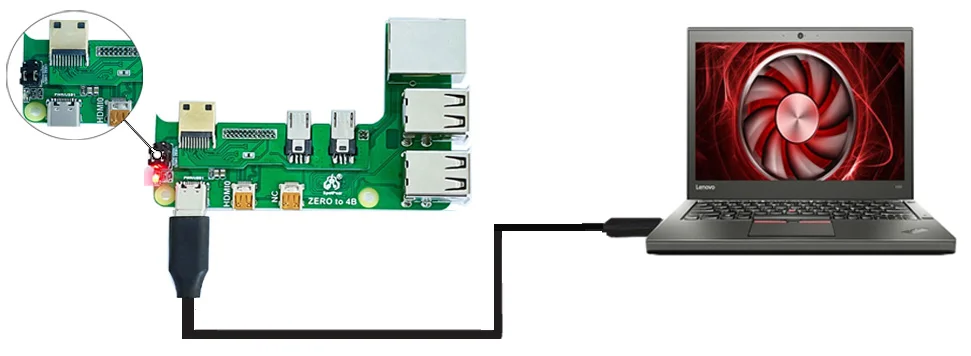

Working With Computer

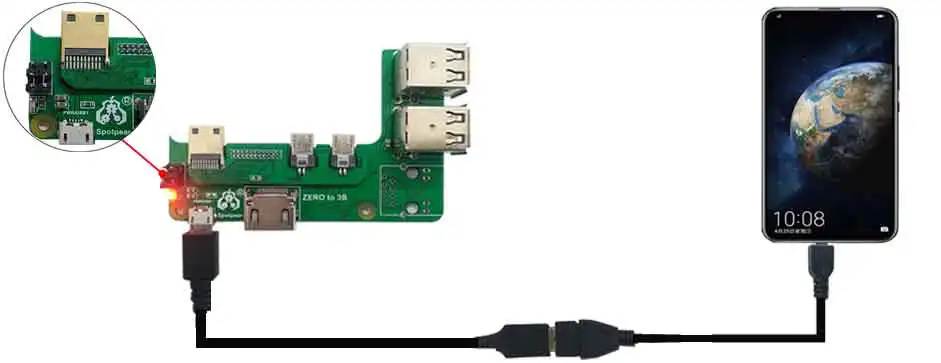

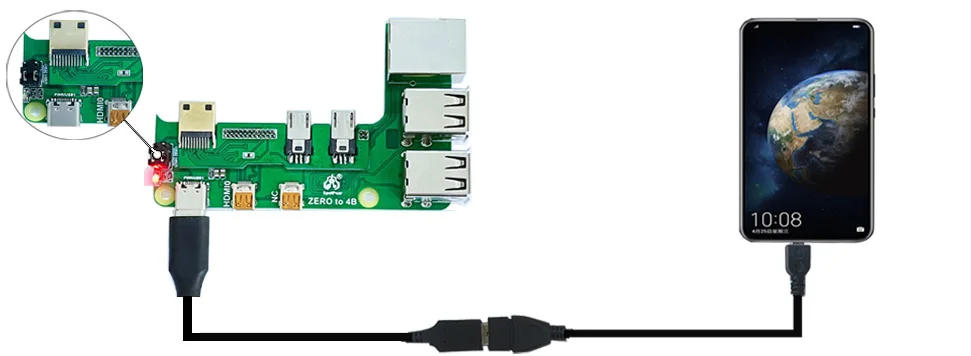

Working With Mobile

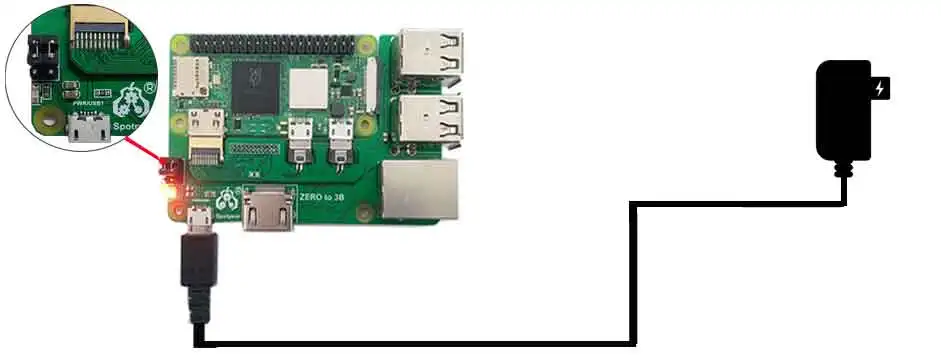

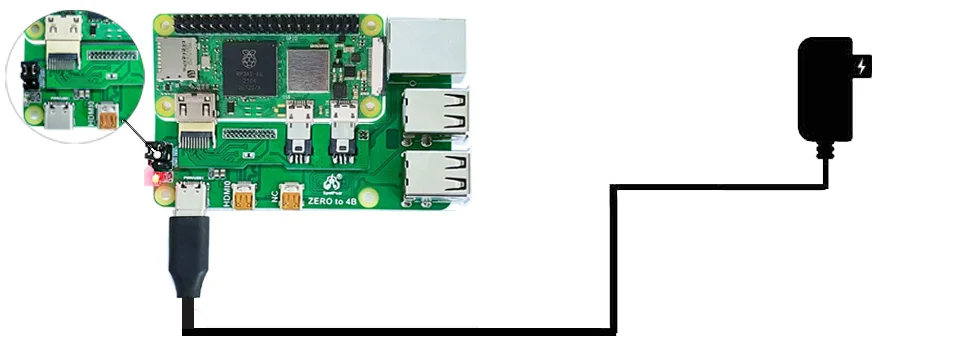

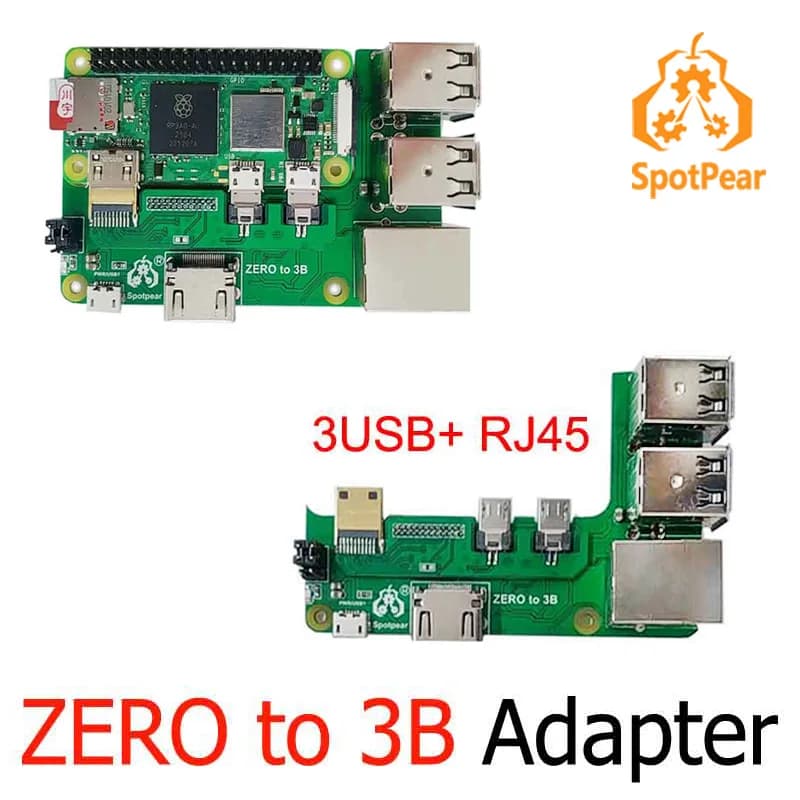

Working With ZERO 2W

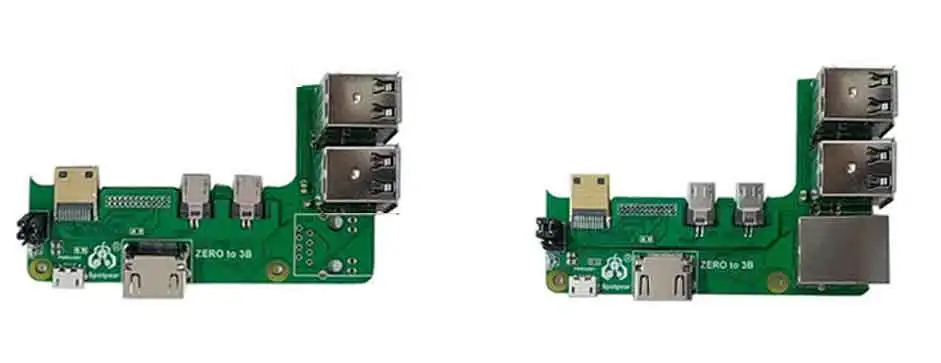

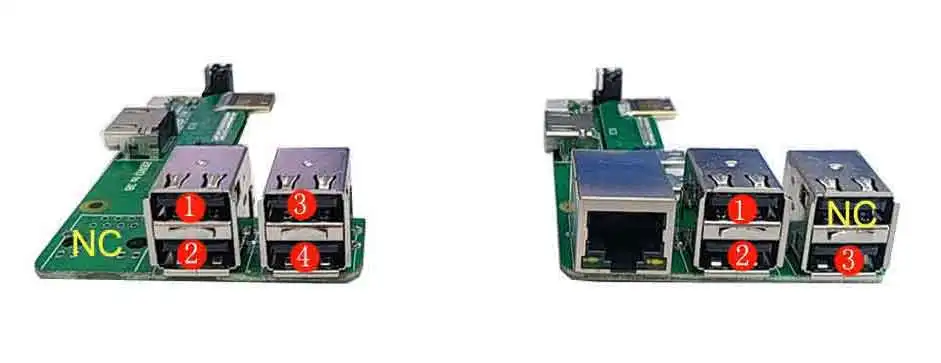

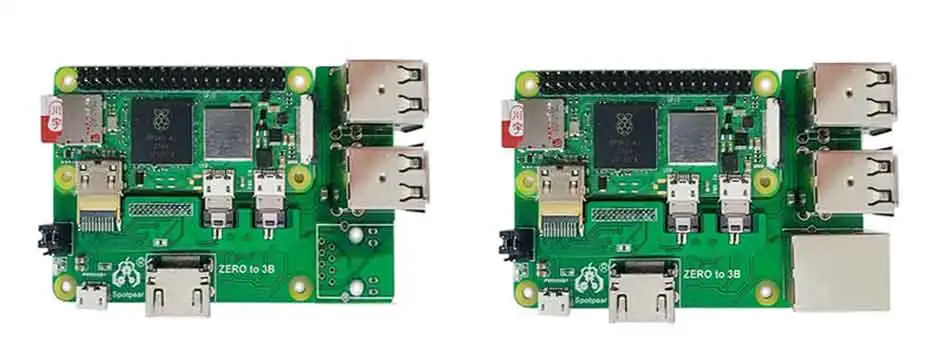

Two Specifications Are Available:

4USB-No RJ45 expansion board: 4 USB interfaces without RJ45 Ethernet interface

3USB+RJ45 expansion board: 3 USB interfaces with RJ45 Ethernet interface

NC = No such Function

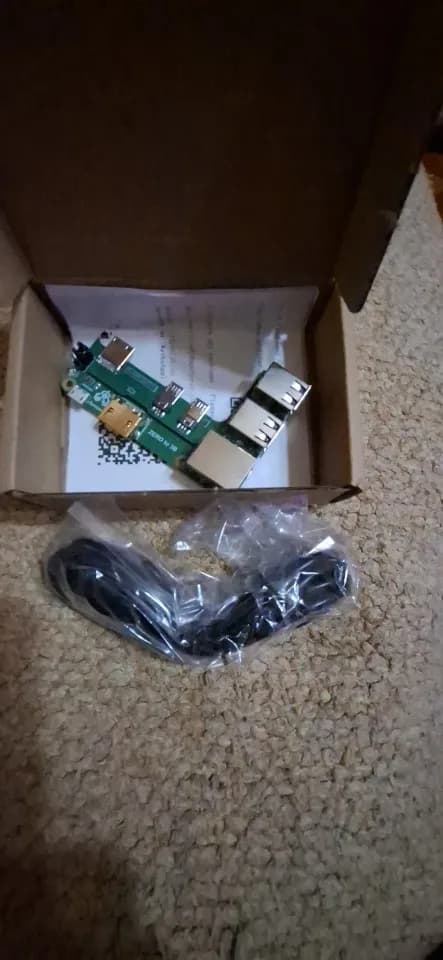

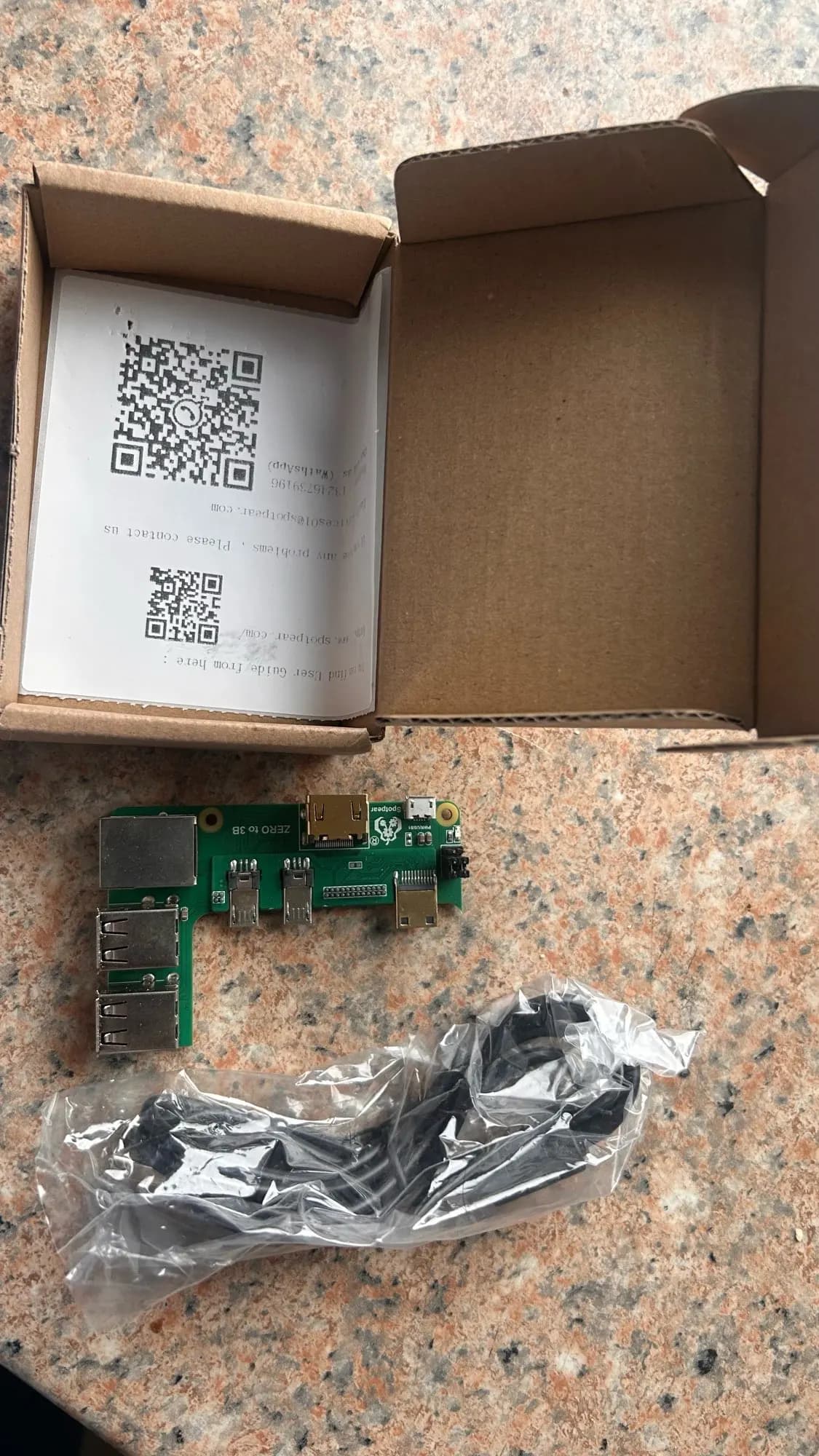

Package Contains

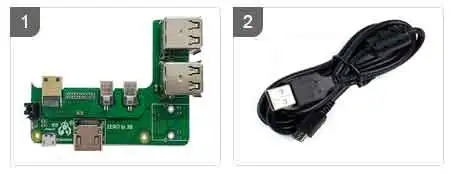

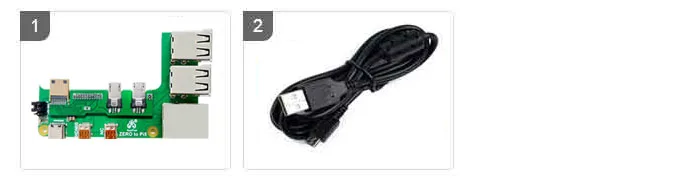

Bundle:Just Zero to 3B Adapter

4USB -No RJ45 x1

Micro USB x1

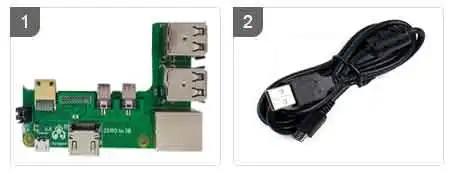

Bundle:Just Zero to 3B Adapter

3USB+RJ45 x1

Micro USB x1

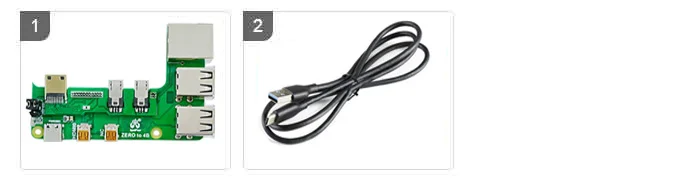

Bundle:Just Zero to 4B Adapter

3USB+RJ45 x1

Type-C USB x1

Bundle: PI5-3USB-RJ45b
