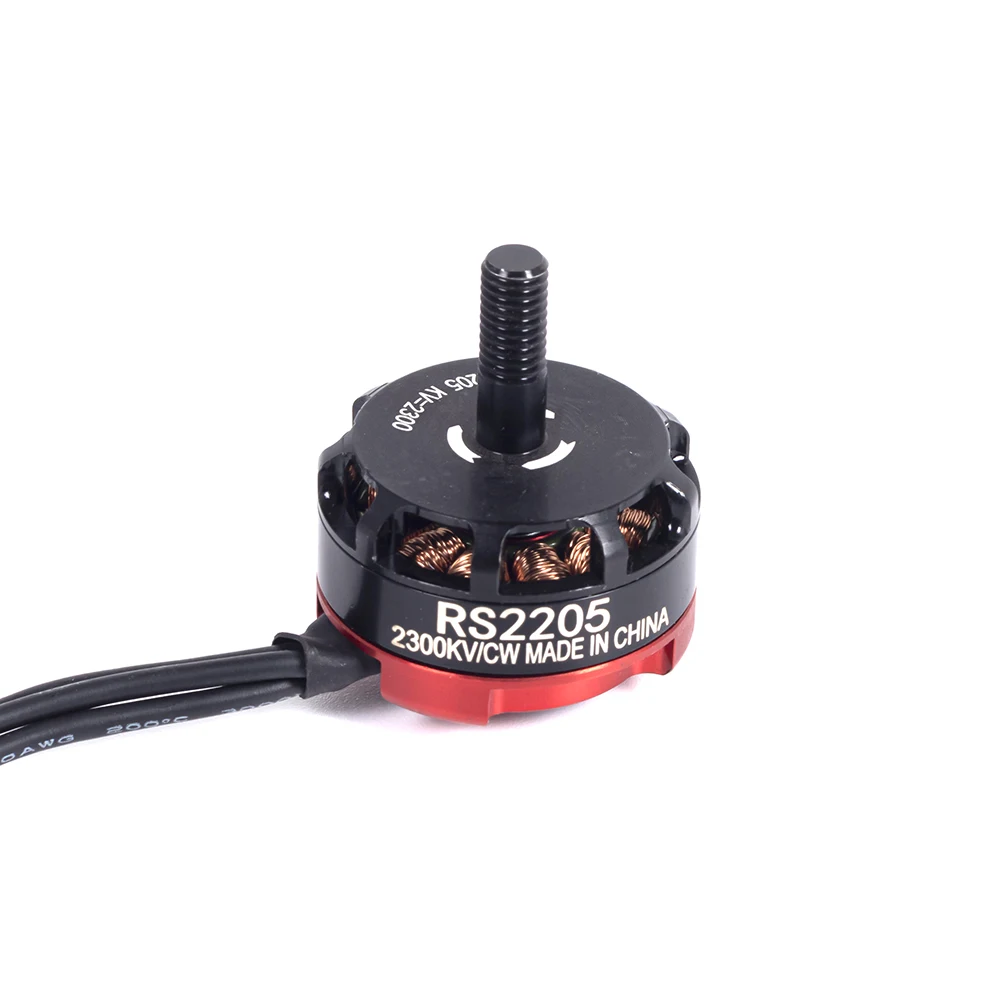

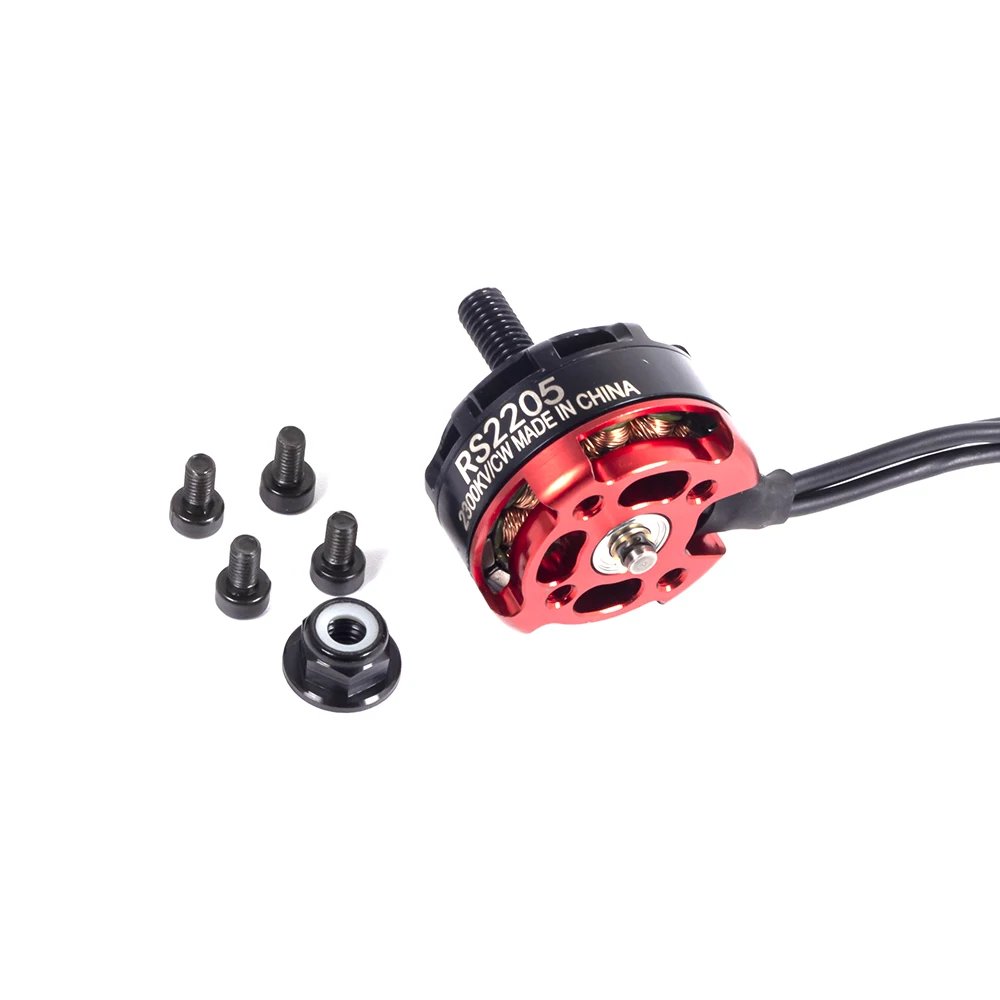

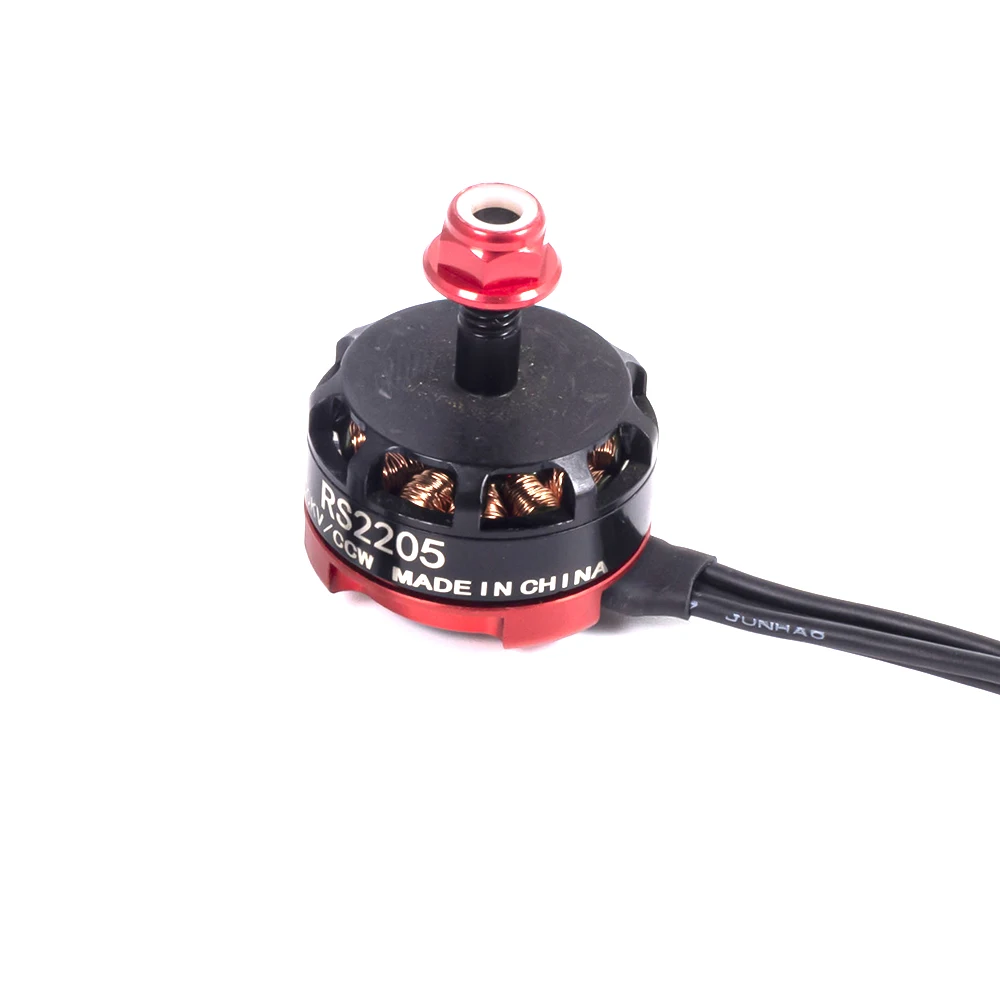

RC RS2205 2205 2300KV CW CCW Brushless Motor for 2-6s 20A/30A/40A ESC 5045 Propeller FPV RC QAV250 X210 Racing Drone Multicopter

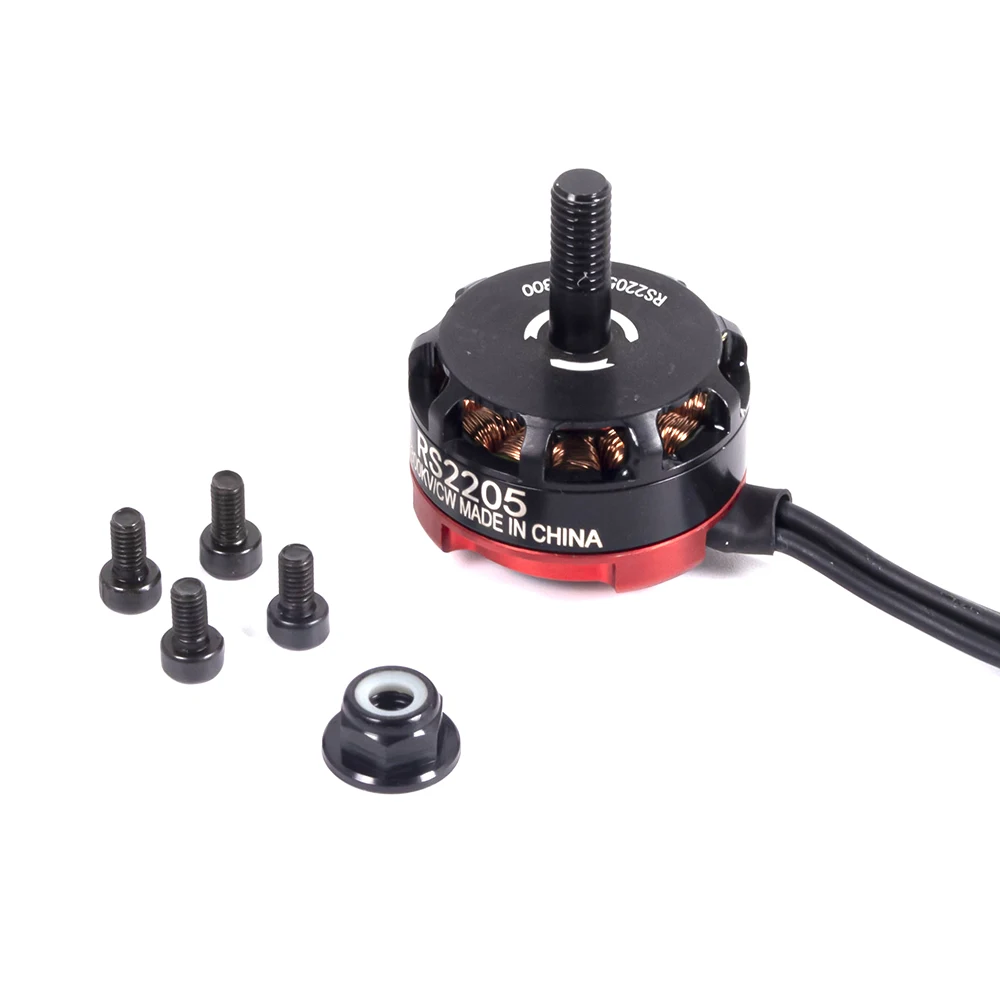

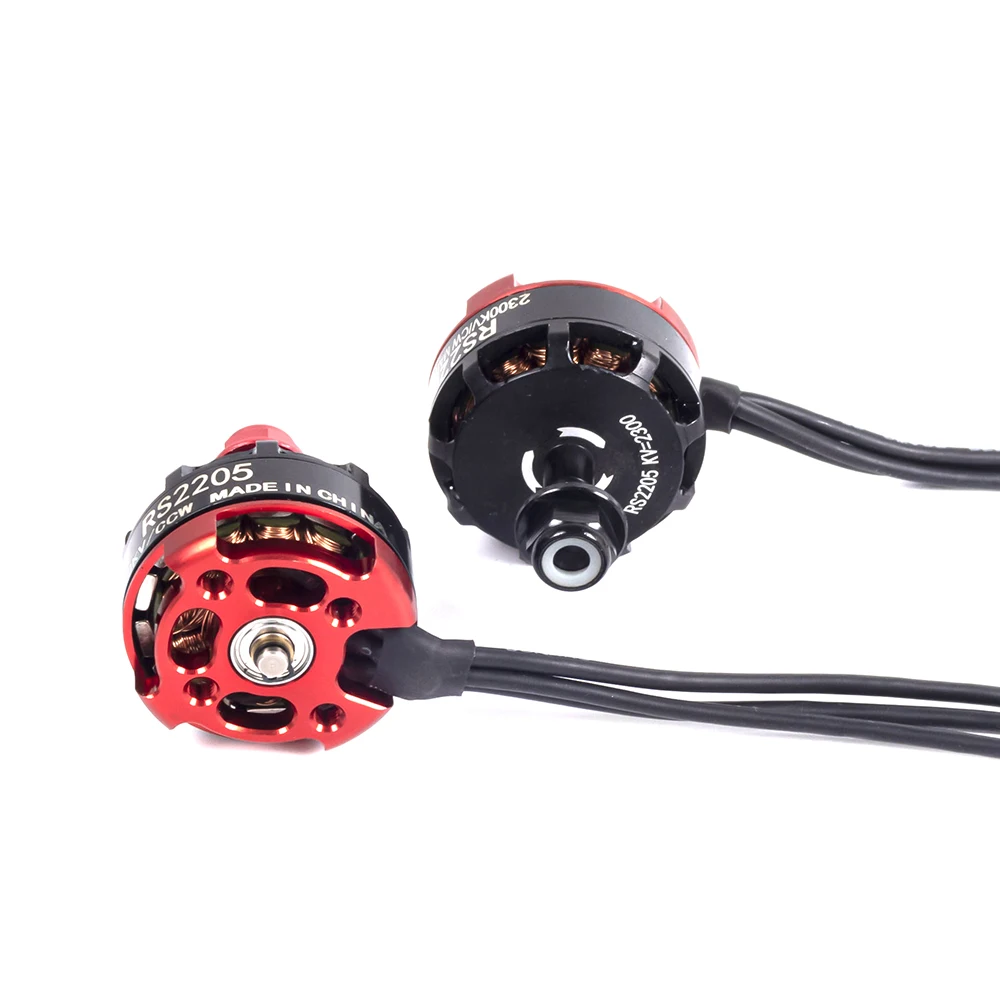

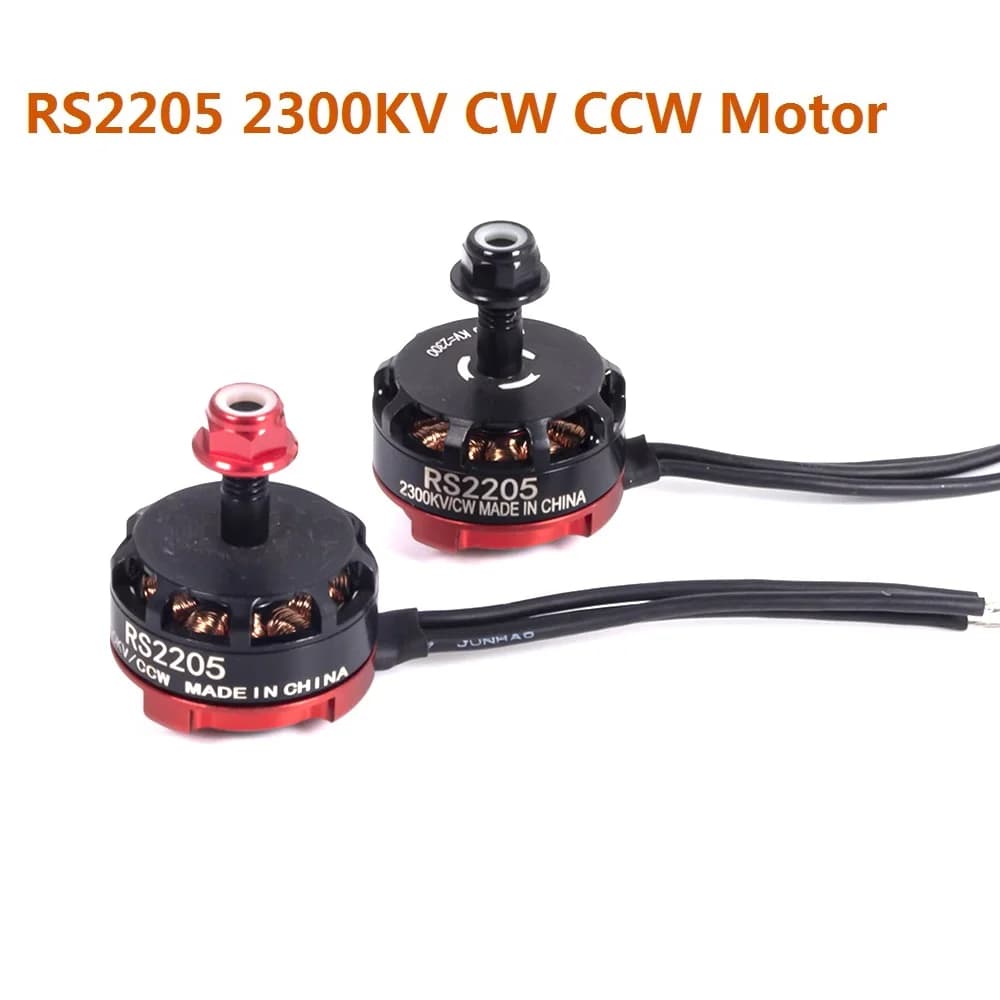

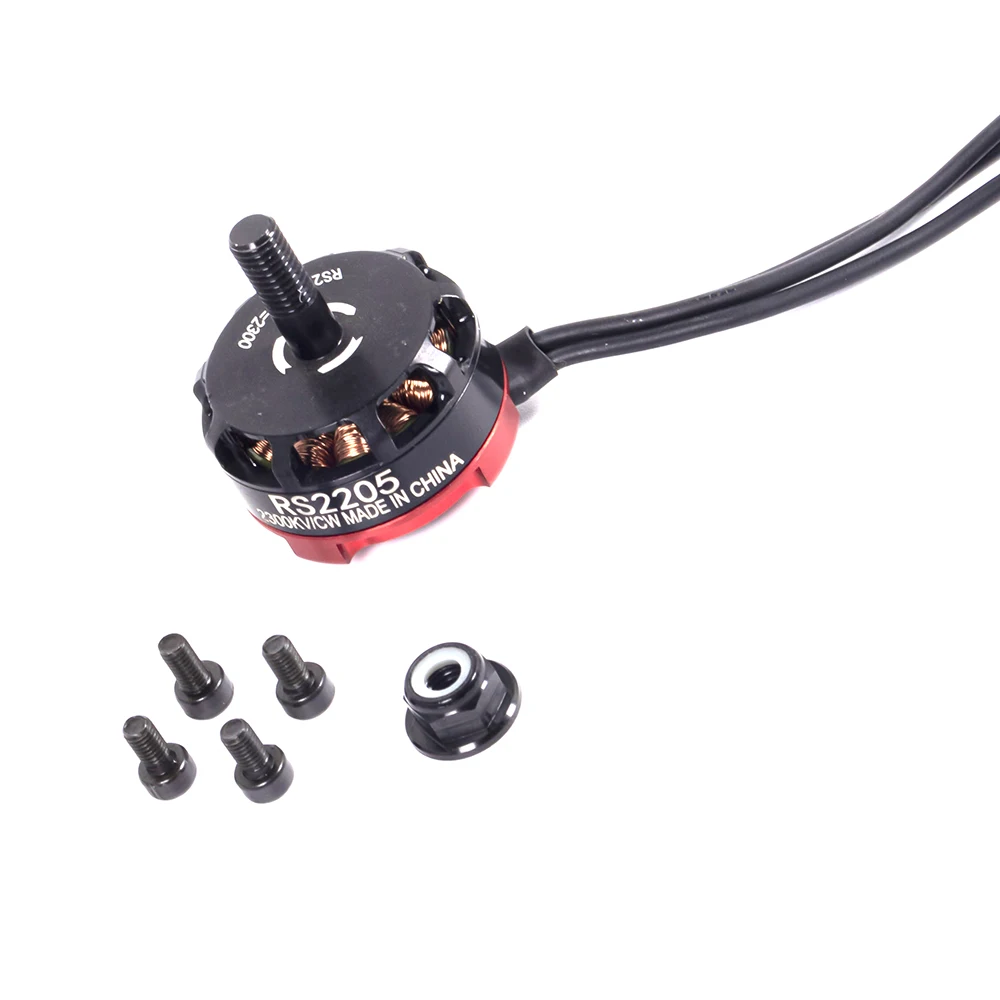

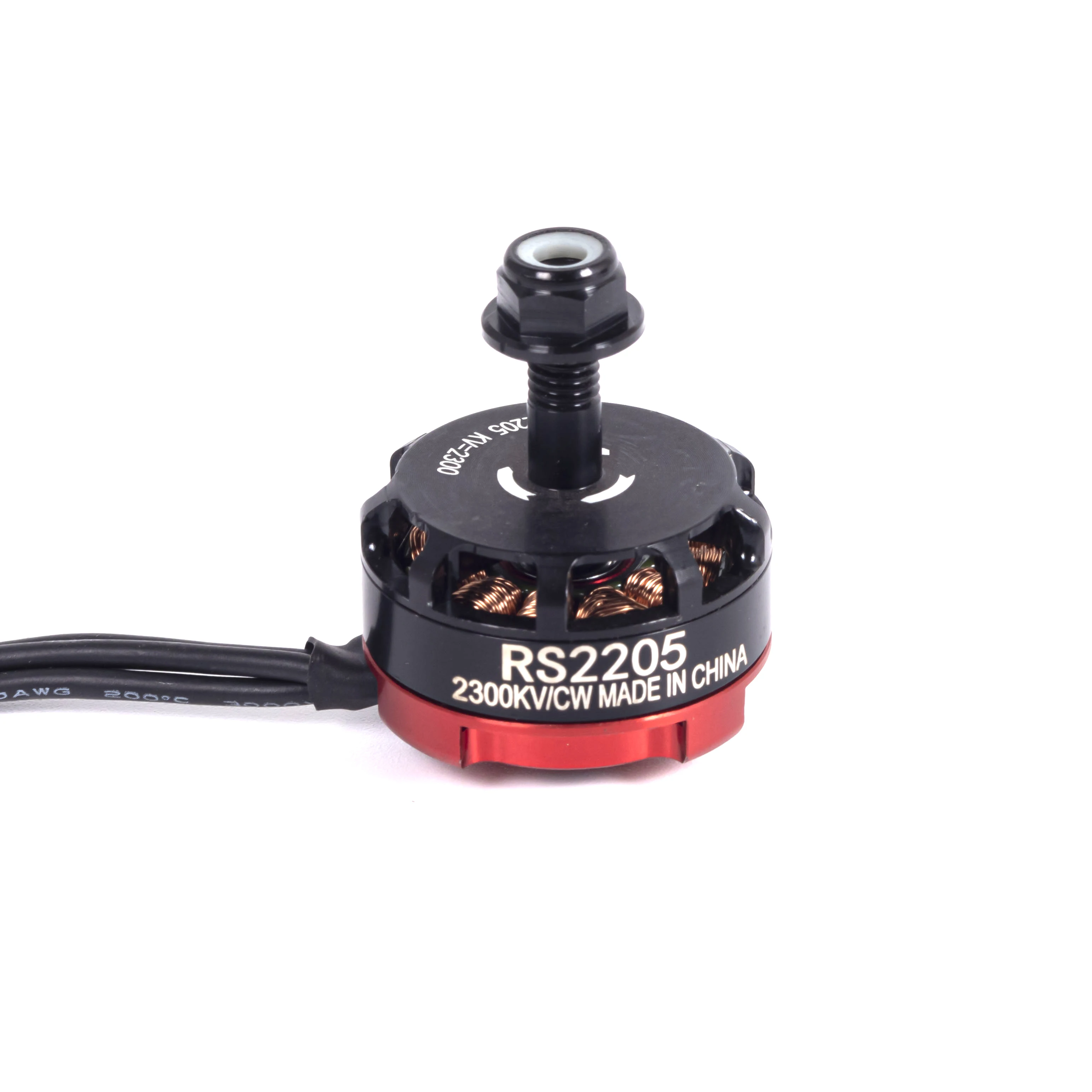

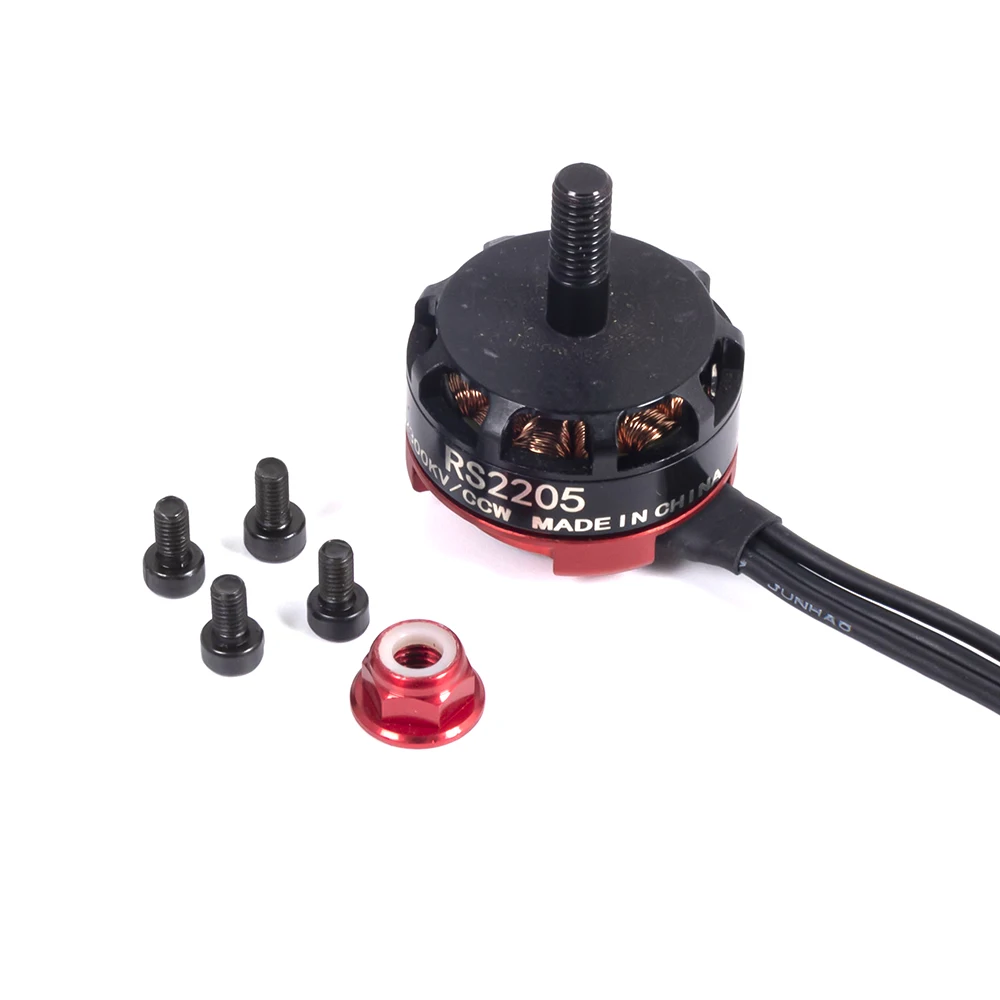

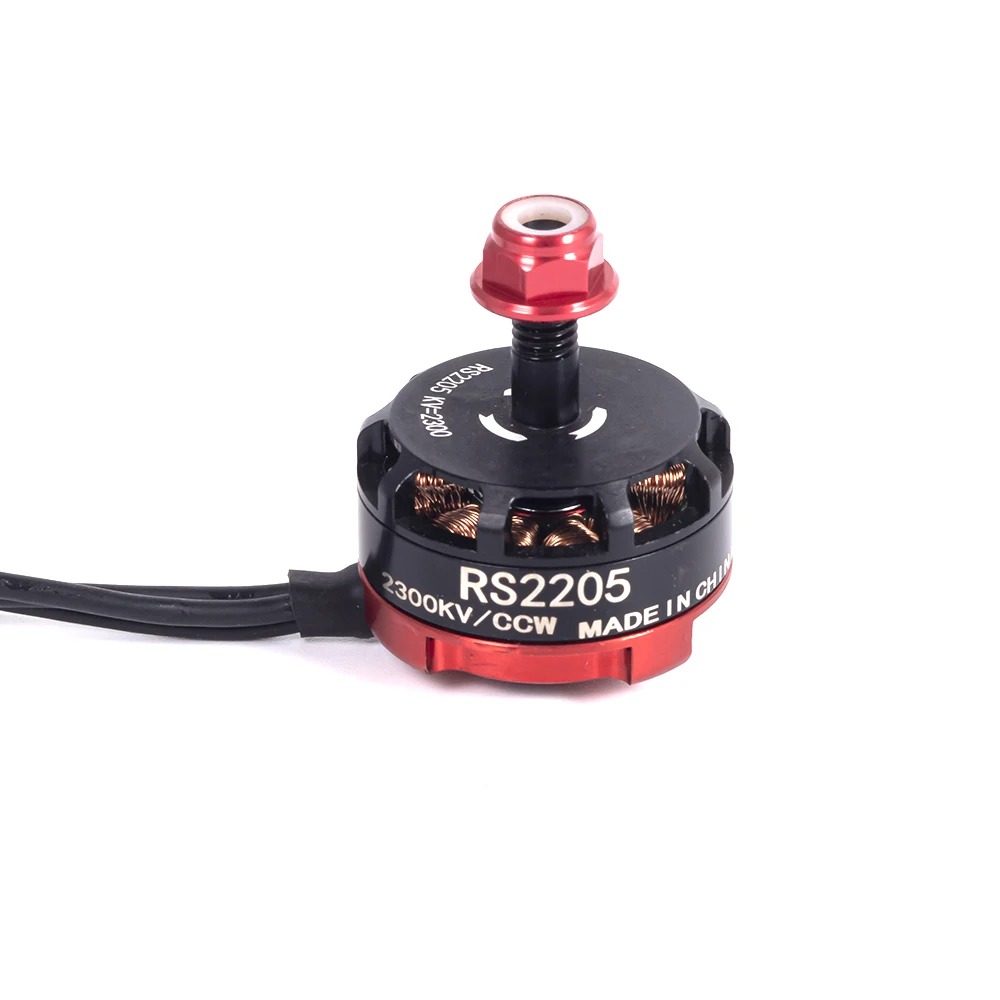

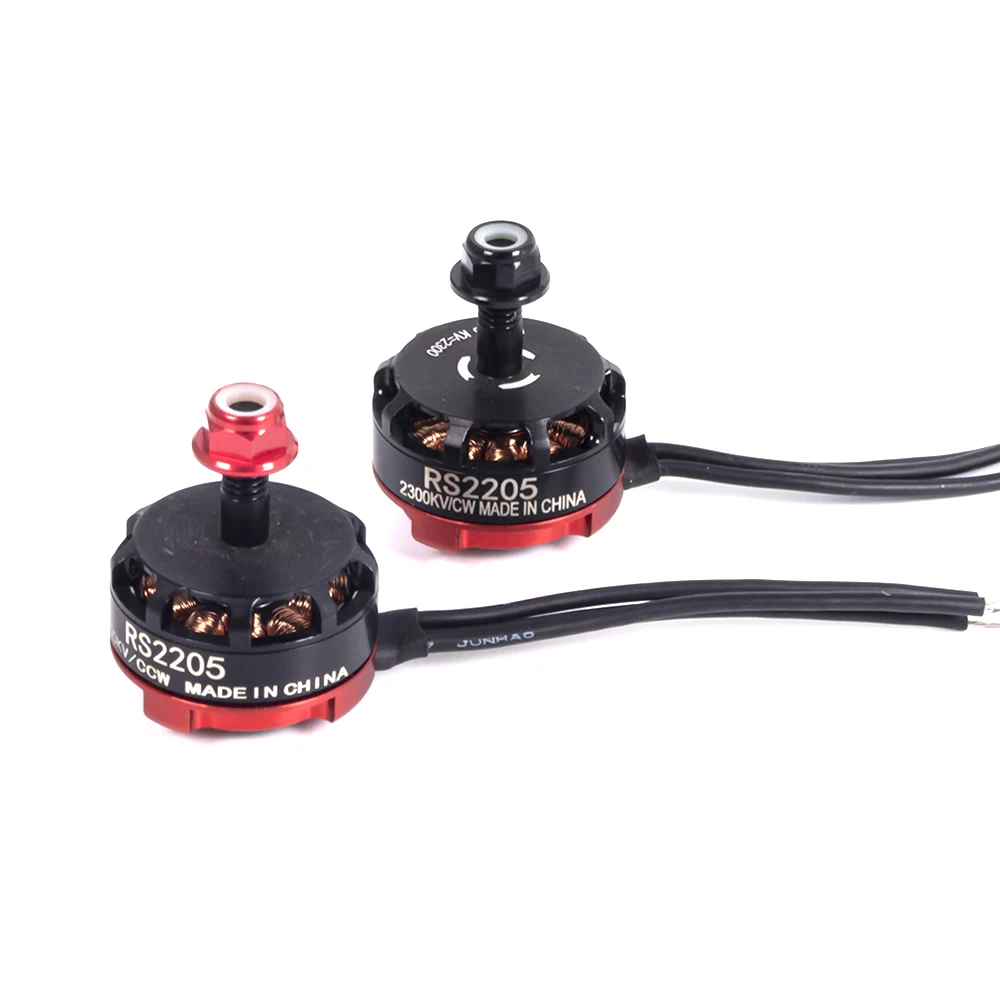

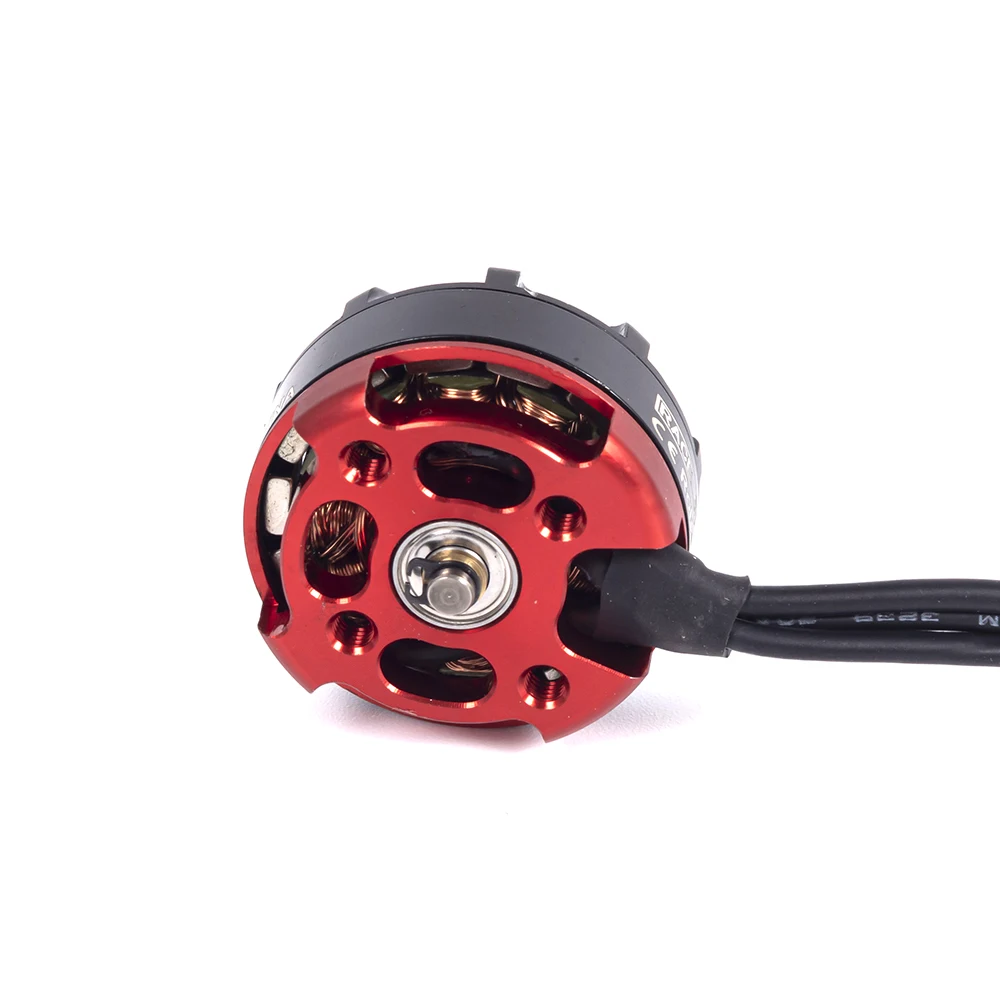

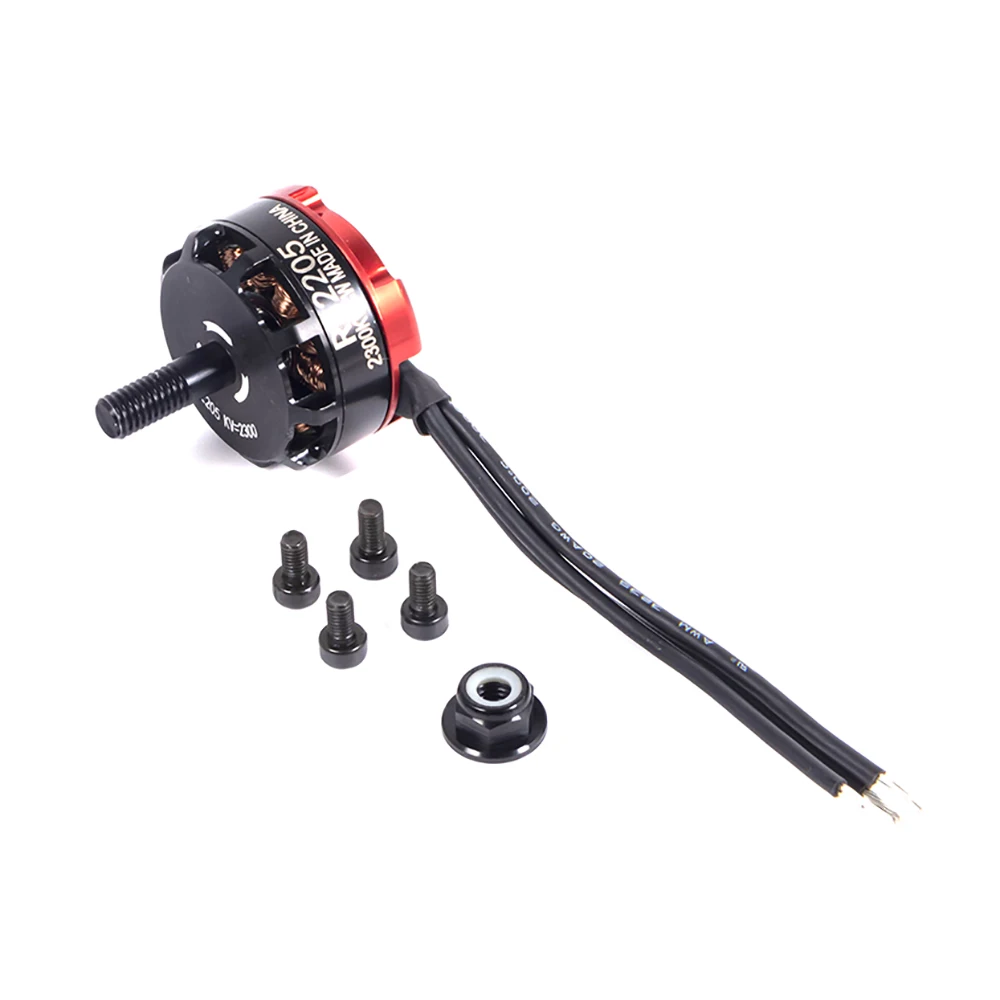

RS2205 2300kv Motor:

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Length:31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

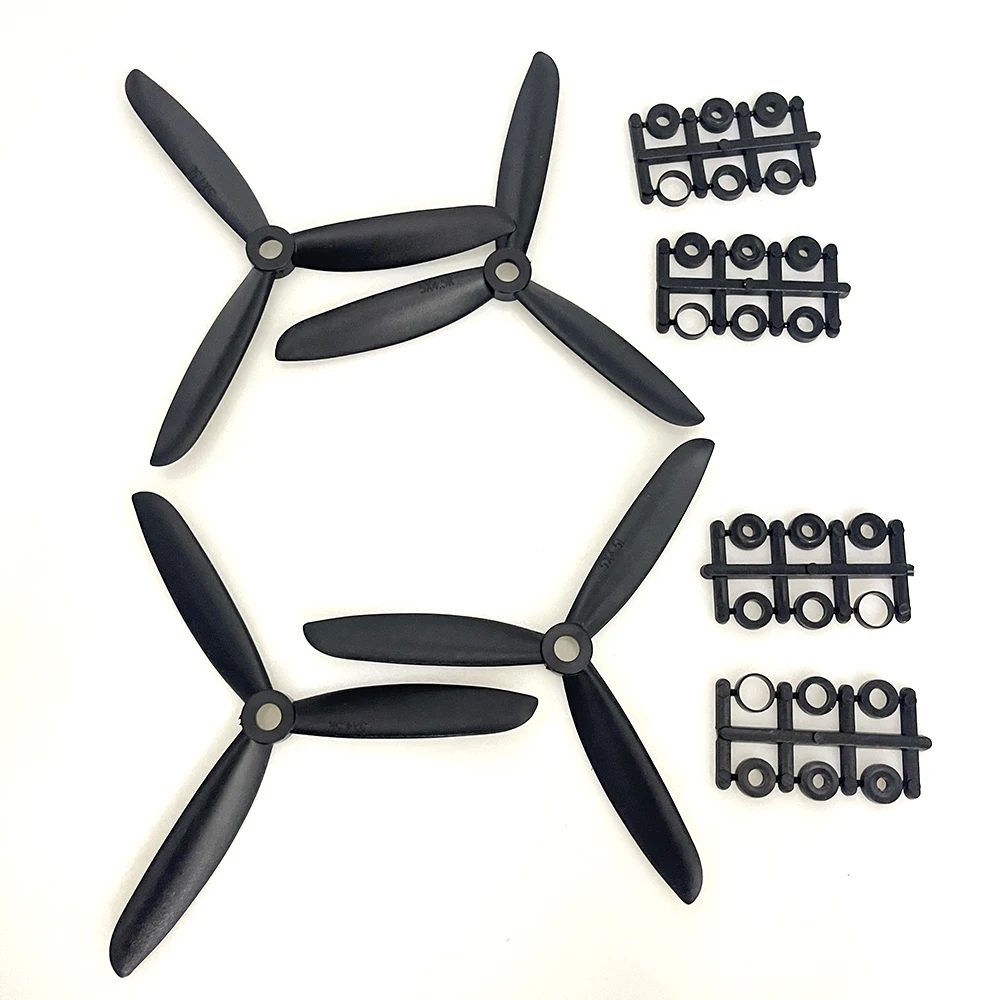

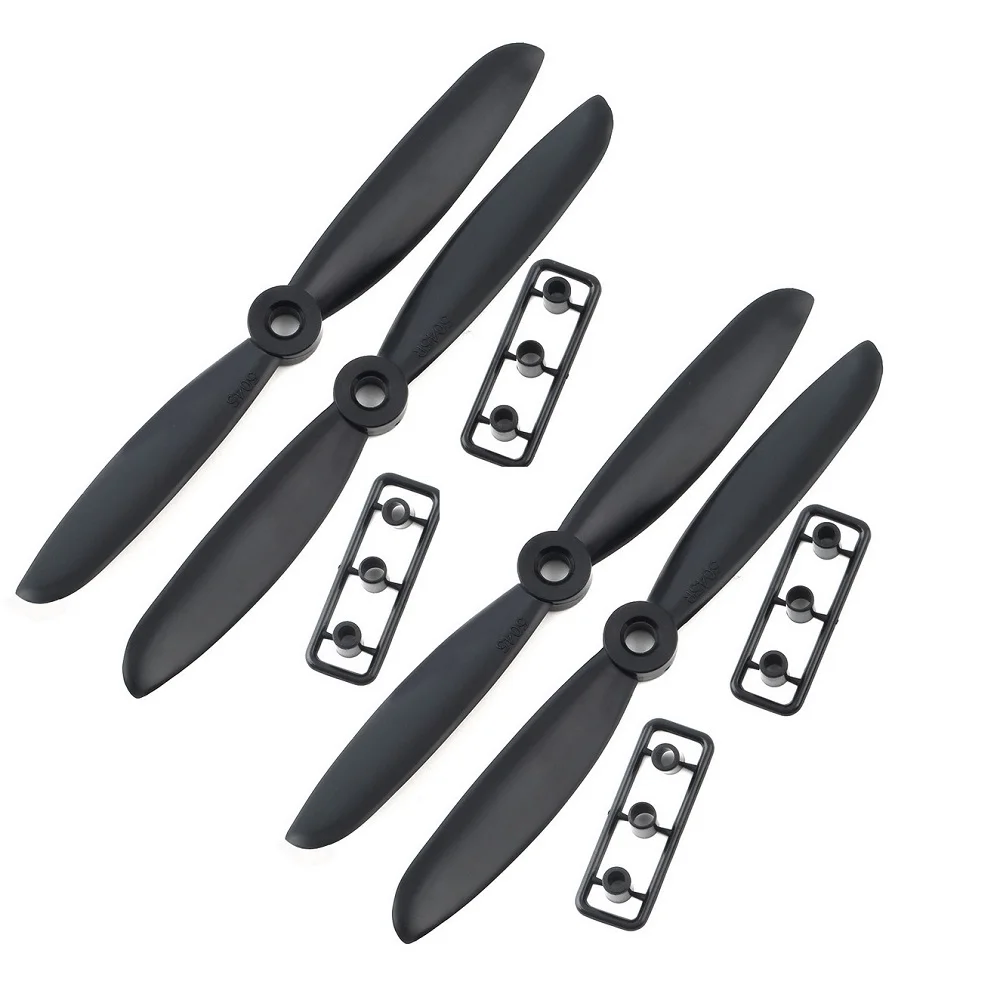

Propeller Suggested: HQ 5045 BN 5045XSH

Weight: 30g

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

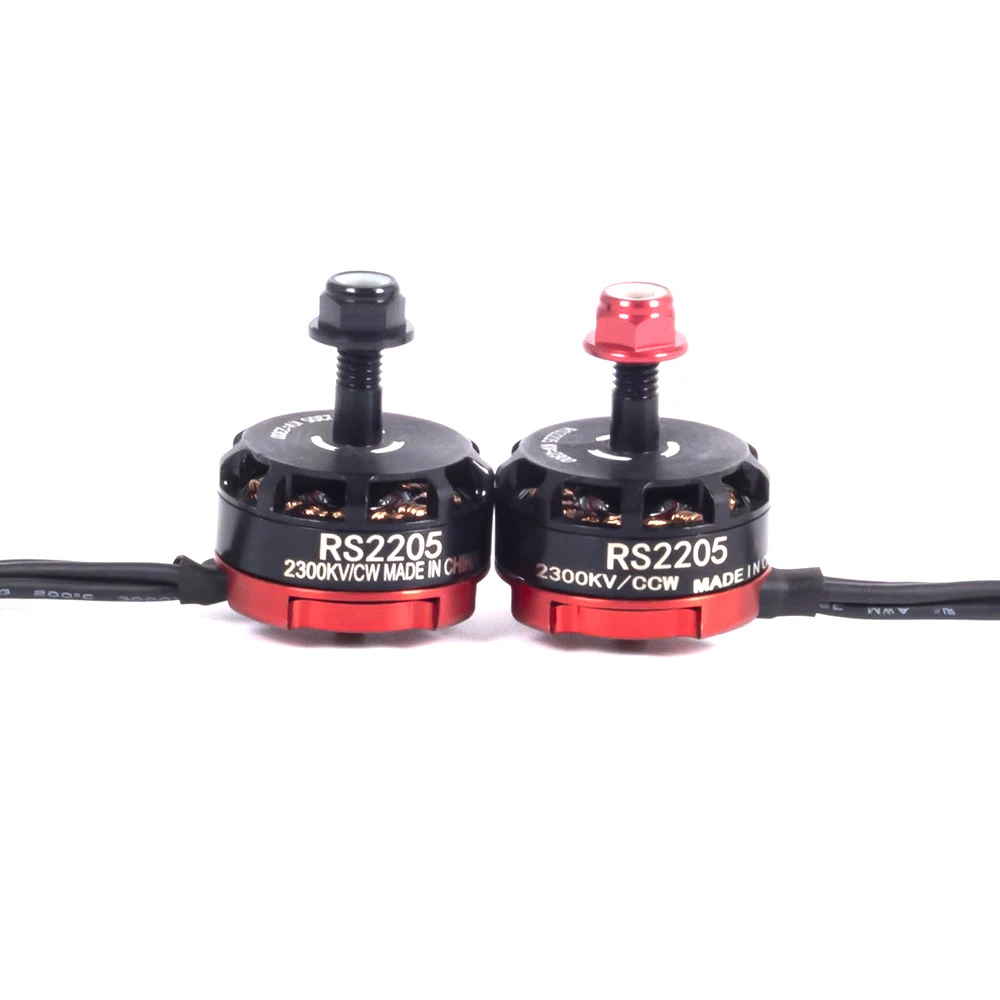

7. Dual Lock CW / CCW Locknuts

FVT LittleBee BLHeli_S SPRING 30A ESC BLHeli_S have all the performance you would hope for and the same tiny size as the DYS BL30A. You will struggle to find a frame small enough to fit these ESCs and they will still give you plenty of headroom on a standard 250 size quad!

Dshot

Dshot is a different and faster communication protocol between the flight controller and the ESC on your quadcopter. It allows the FC to send control commands to the motor quicker, therefore in theory your multirotor should perform better.

Damped mode:This feature allows your motors to respond to throttle decreases much quicker, allowing for more stable flying, and higher response to throttle decreases.

Easy upgrades:With the BLHELI software rapidly evolving, you can flash the lastest firmware using the 3pin connector and suitable USB adapter and now can be used via the cleanflight GUI please note you will need to be running the Betaflight firmware to connect via the cleanflight interface but this is a simple way of adjusting and tweaking the settings of your escs.

30A Description:

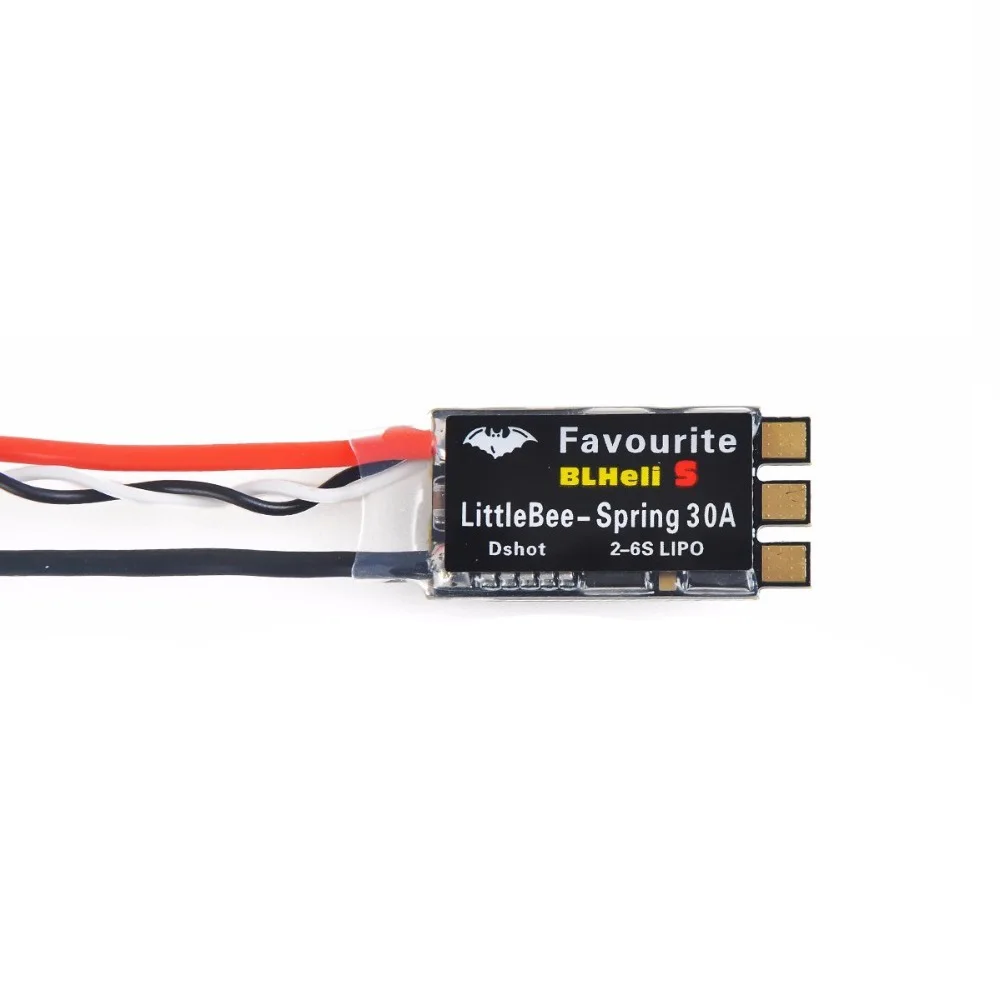

Item name: FVT LittleBee BLHeli_S SPRING 30A ESC

Input Voltage: 2-6S Lipo

BEC Output: No

Continue Current: 30A, Burst Current: 35A up to 10S

Size: 35*17mm

Weight: 9g(include Power and signal wire)

Main IC: SILABS EFM8BB21F16, MCU run 48MHz

MOS: Both low and high side fets are Nfets

Switching speed is very fast, it has dedicated driver chip

BLHeli_S Bootloader andamp; Firmware

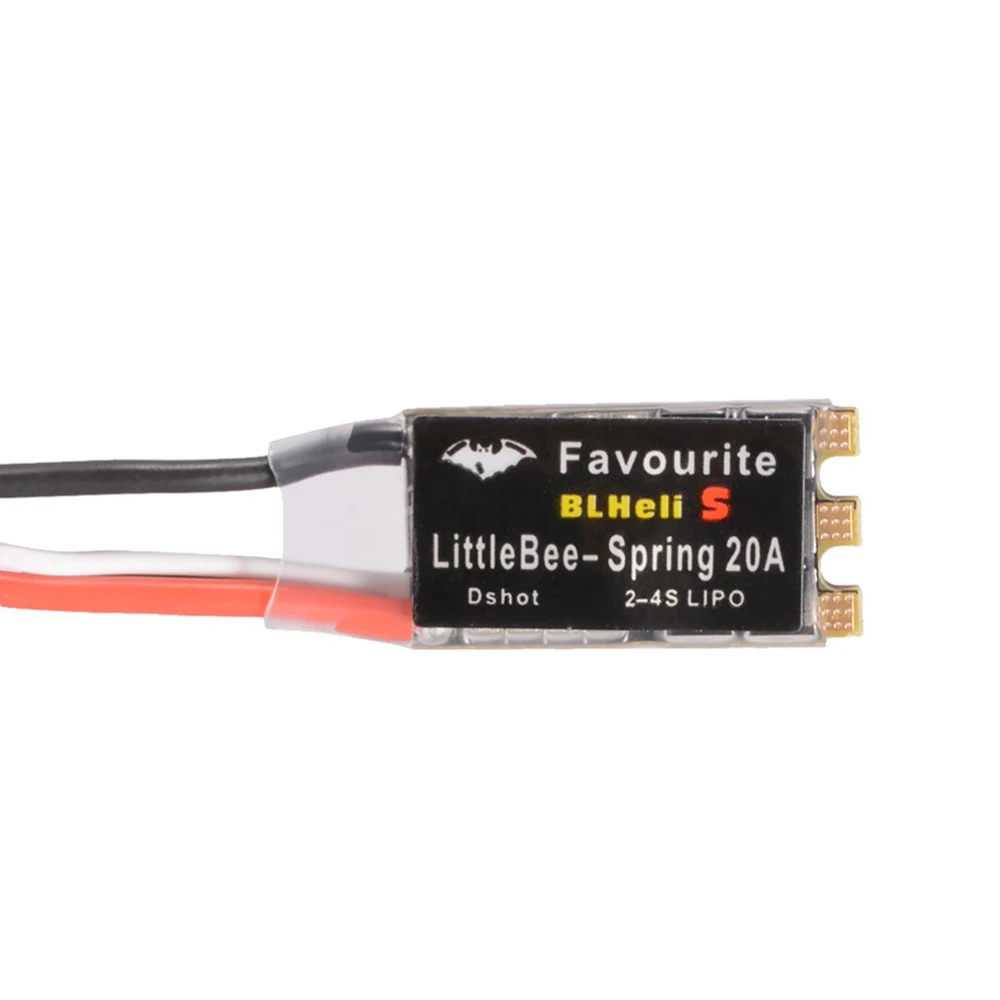

20A Description:

Item name: FVT LittleBee BLheli-s SPRING 20A ESC

Input Voltage: 2-4S Lipo

BEC Output: No

Continue Current: 20A, Burst Current: 25A up to 10S

Size: 23.5*12mm

Weight: 4g(include Power and signal wire)

Main IC:SILABS EFM8BB21F16 ,MCU run 48MHz

MOS: Both low and high side fets are Nfets

Switching speed is very fast, it has dedicated driver chip

BLHeli S Bootloader andamp; Firmware
