Gear Indicator For SUZUKI DL650 V-Strom DL 650 VStrom DL 1000 DL1000 Boulevard C50 M50 M90 C90 C109R/T Motorcycle Accessories

If you have any questions, please feel free to contact customer service, thank you.

Note:

Before purchasing the product, please check whether your motorcycle connector is compatible with my product connector.

Mounting:

For Suzuki Boulevard C50 2005 - 2010

For Suzuki Boulevard M50 2005 - 2018

For Suzuki Boulevard M90 2009 - 2010

For Suzuki Boulevard C90 2005 - 2012

For Suzuki Boulevard C109R/T 2008 - 2015

For Suzuki Boulevard M109R/R2 2006 - 2010

For Suzuki DL650 V-Strom 2004 - 2011

For Suzuki DL1000 V-Strom 2004 - 2013

For Suzuki GSF650 Bandit 2007 - 2010

For Suzuki GSF1250 Bandit 2007 - 2010

For Suzuki GSF1250 N/NA Bandit 2007 - 2009

For Suzuki GSF1250 S/SA Bandit 2007 - 2016

For Suzuki GSX1400 2004 - 2009

For Suzuki GSX650F 2008 - 2010

For Suzuki GSX-R600 2004 - 2005

For Suzuki GSX-R750 2004 - 2005

For Suzuki GSX-R1000 2003

For Suzuki Intruder C800 2005 - 2010

For Suzuki Intruder M800 2005 - 2015

For Suzuki Intruder C1500 2005 - 2012

For Suzuki Intruder M1500 2009 - 2015

For Suzuki Intruder C1800R 2008 - 2015

For Suzuki Intruder M1800R 2006 - 2010

For Suzuki Intruder M1800R2 2008 - 2010

For Suzuki RMX-450Z All Years

For Suzuki RM-Z250 (EFi model) All Years

For Suzuki RM-Z450 (EFi model) All Years

For Suzuki SV650 2003 - 2014

For Suzuki SV1000 2003 - 2009

For Suzuki VL800 Intruder Volusia 2005 - 2010

For Suzuki VL1500 Intruder 2005 - 2012

For Suzuki VLR1800 2008 - 2015

For Suzuki VZ800 Marauder 2005 - 2015

For Suzuki VZ1500 2009 - 2015

For Suzuki VZR1800 2006 - 2010

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

▲Description:

Condition:100% Brand New

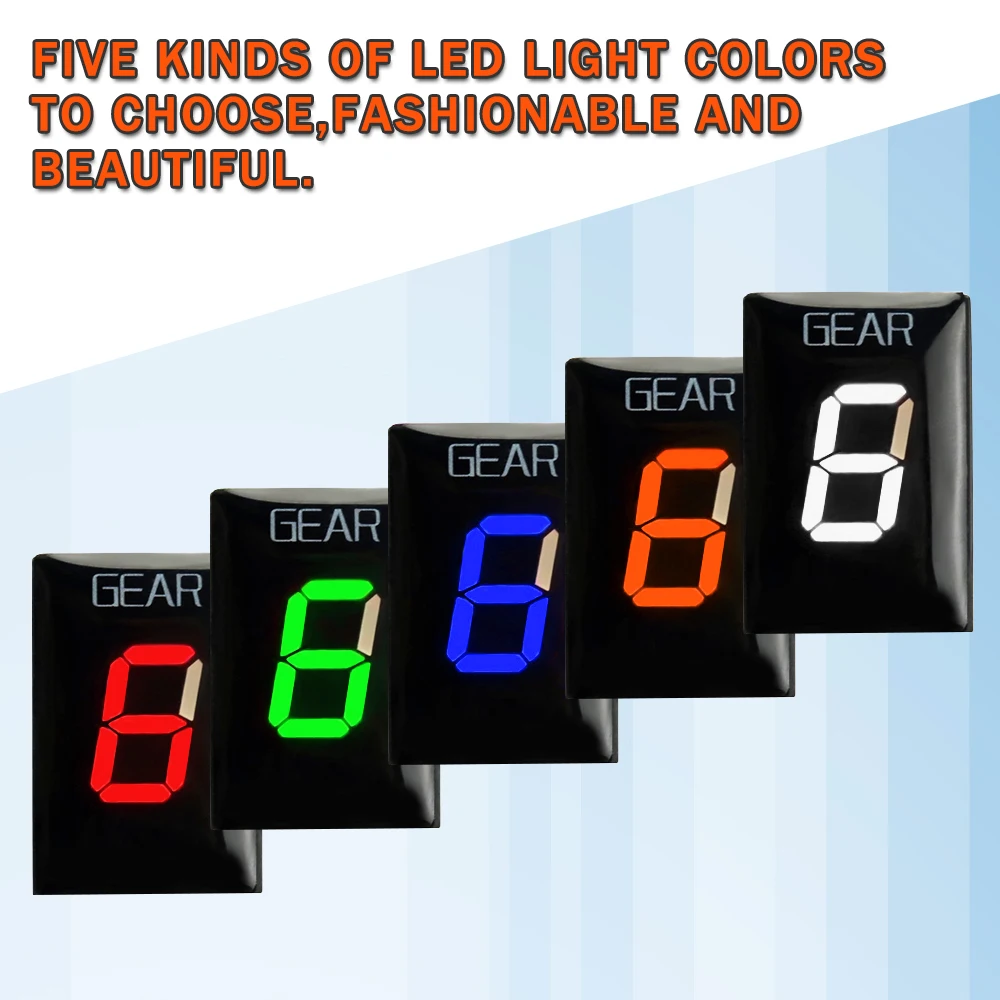

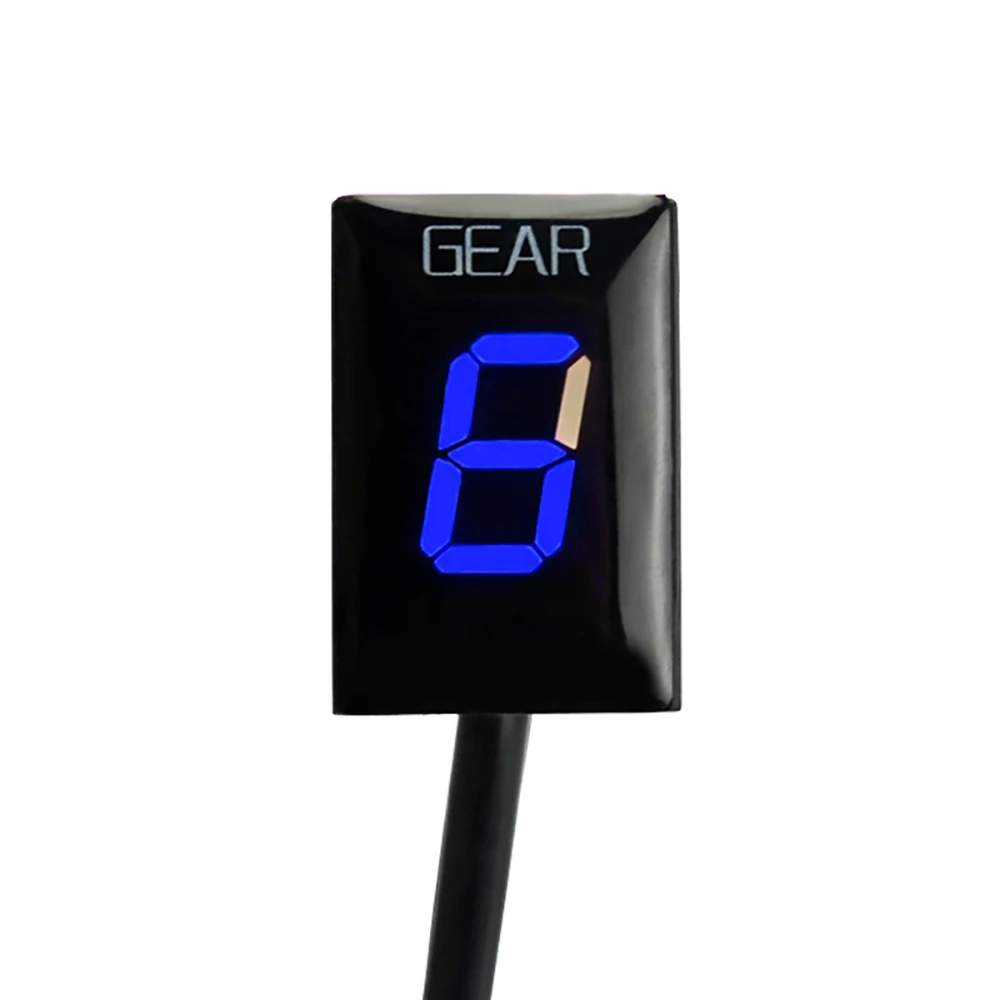

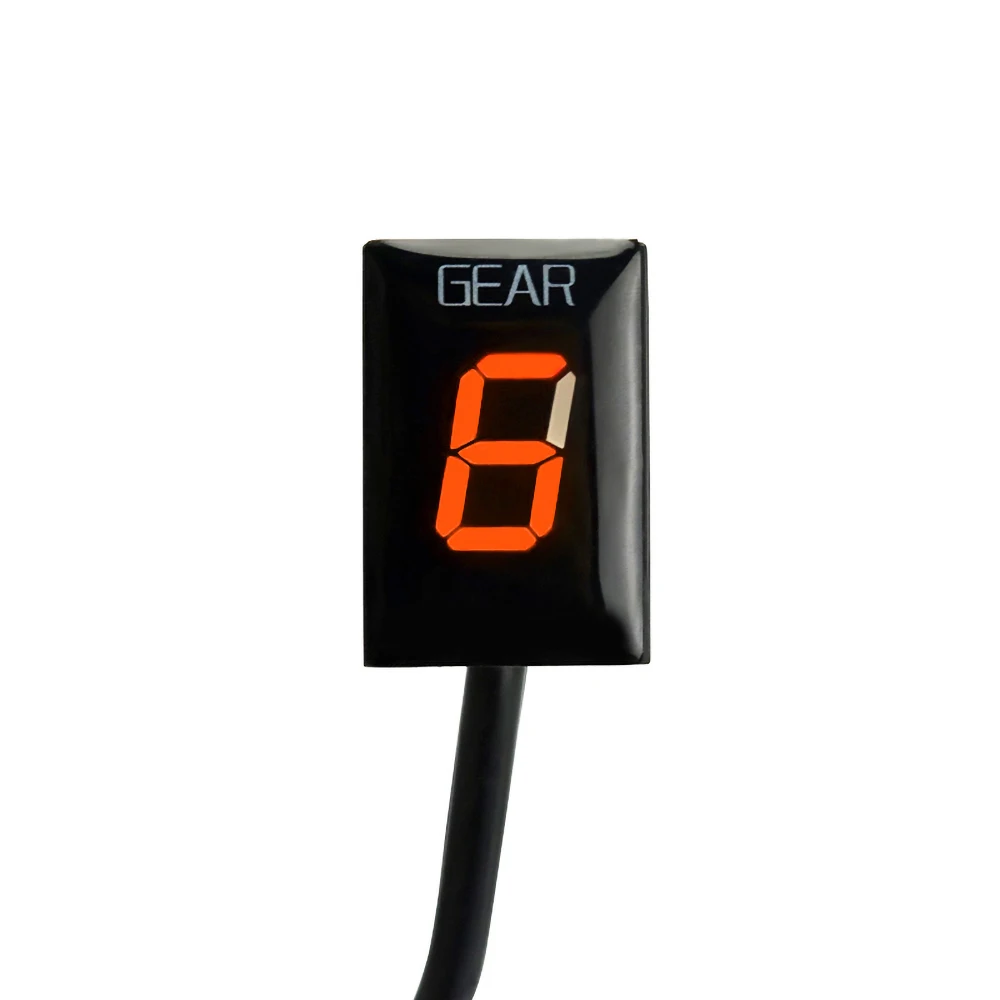

Color of Light Source: Red , green,blue

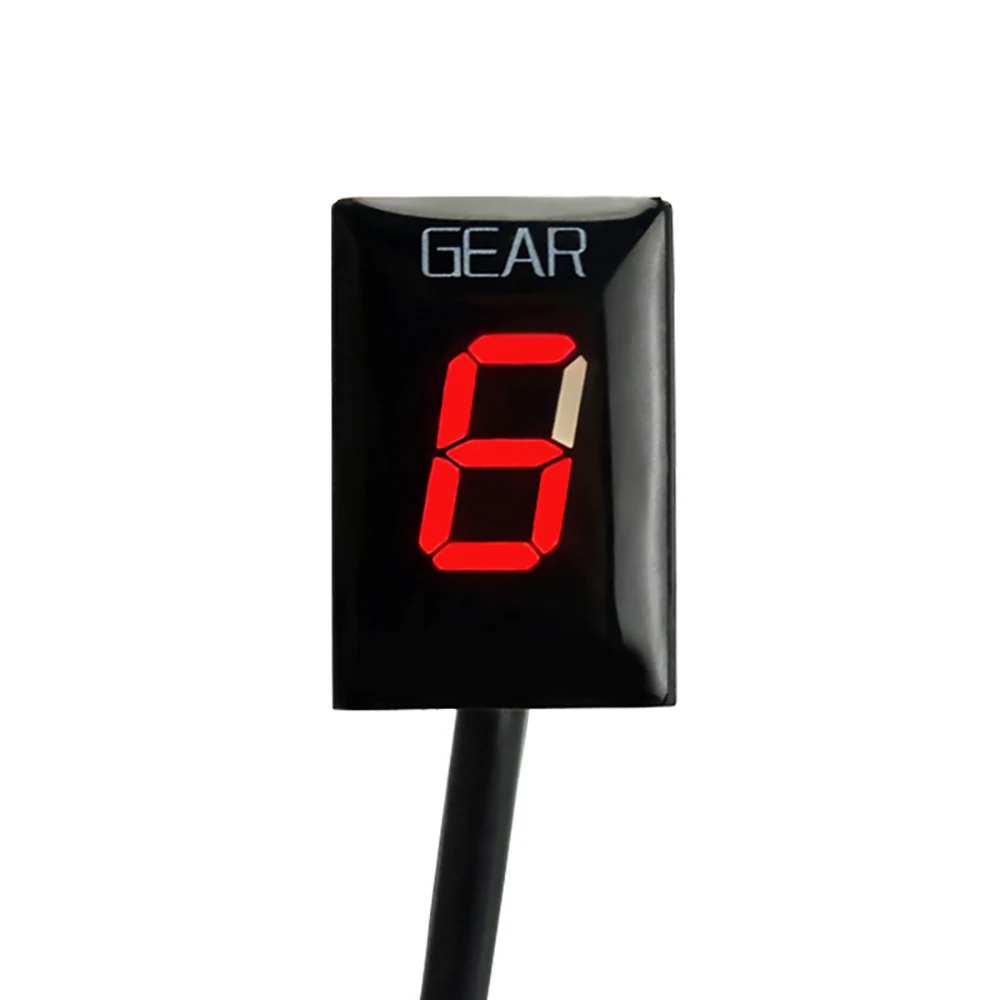

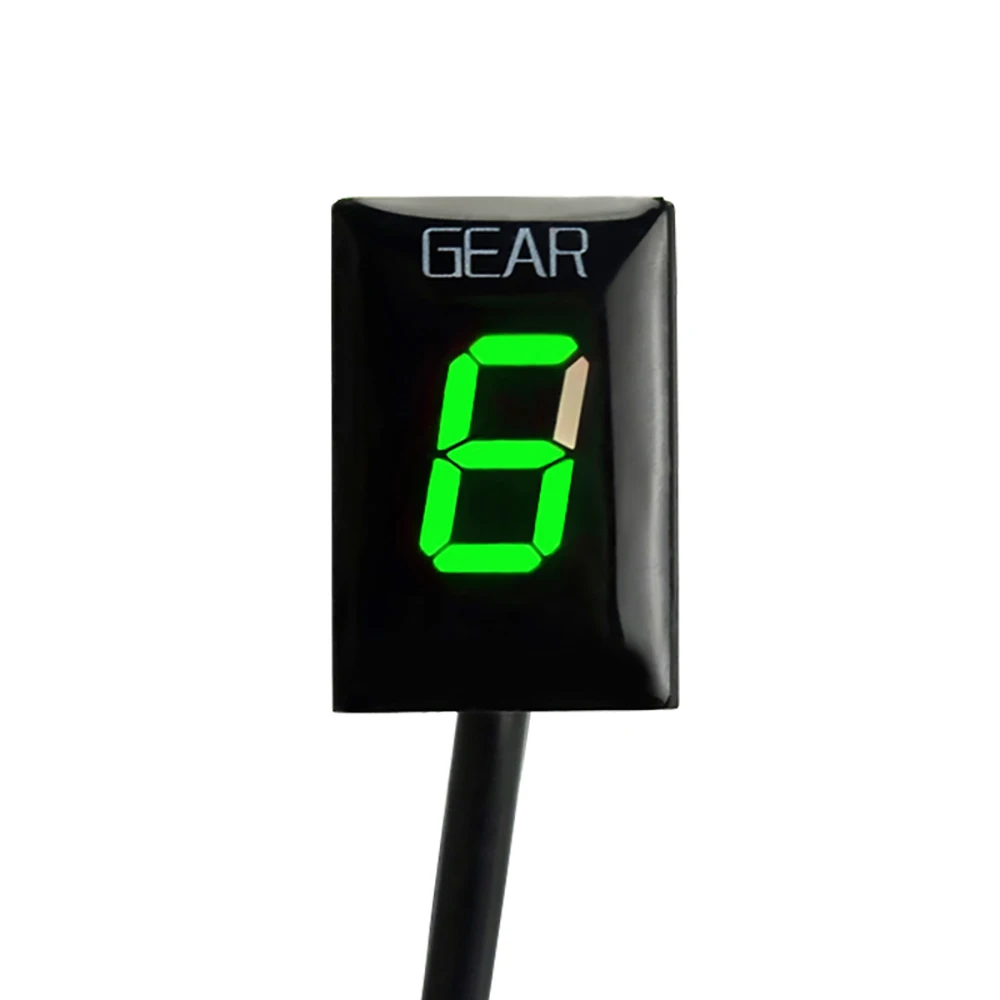

Item Name: Speed Gear Display Indicator

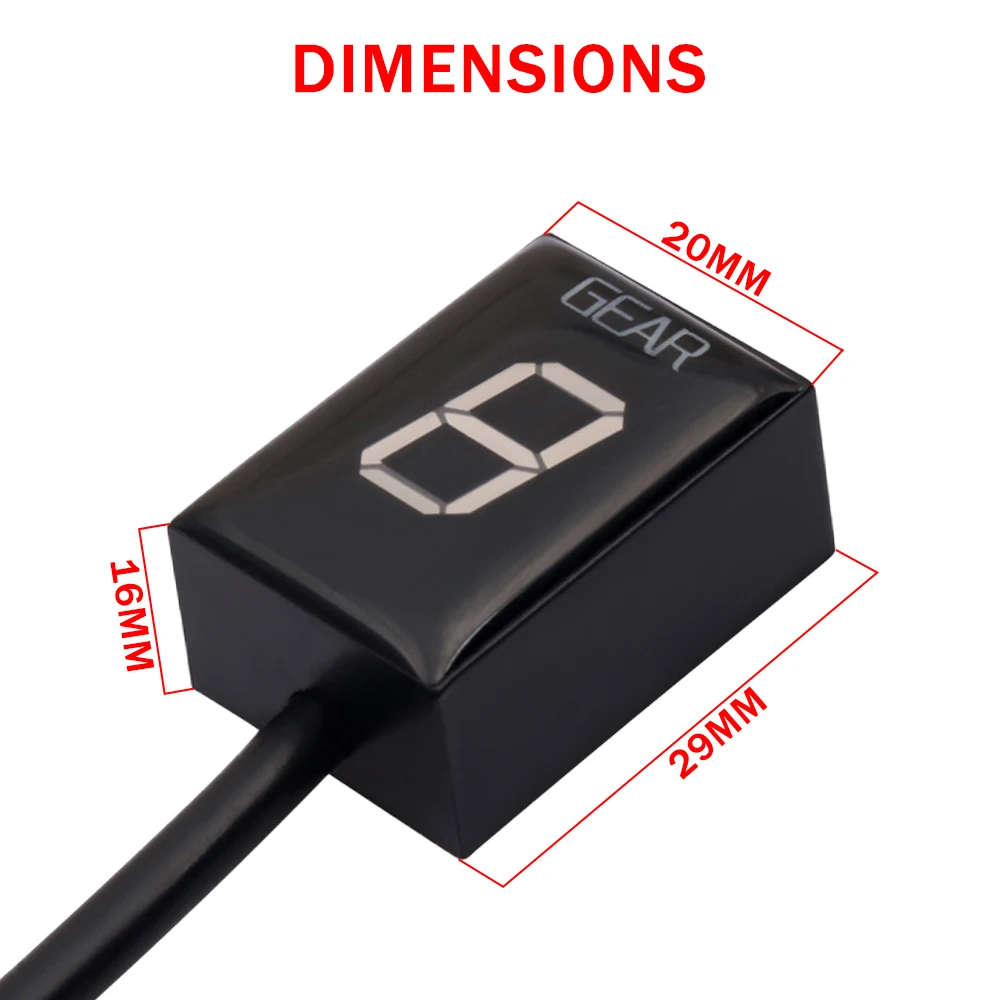

Size: Approx. 4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

▲Package List:

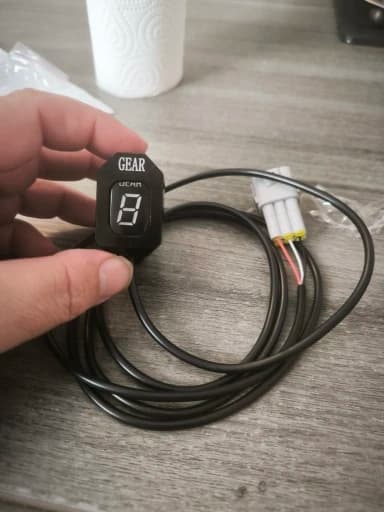

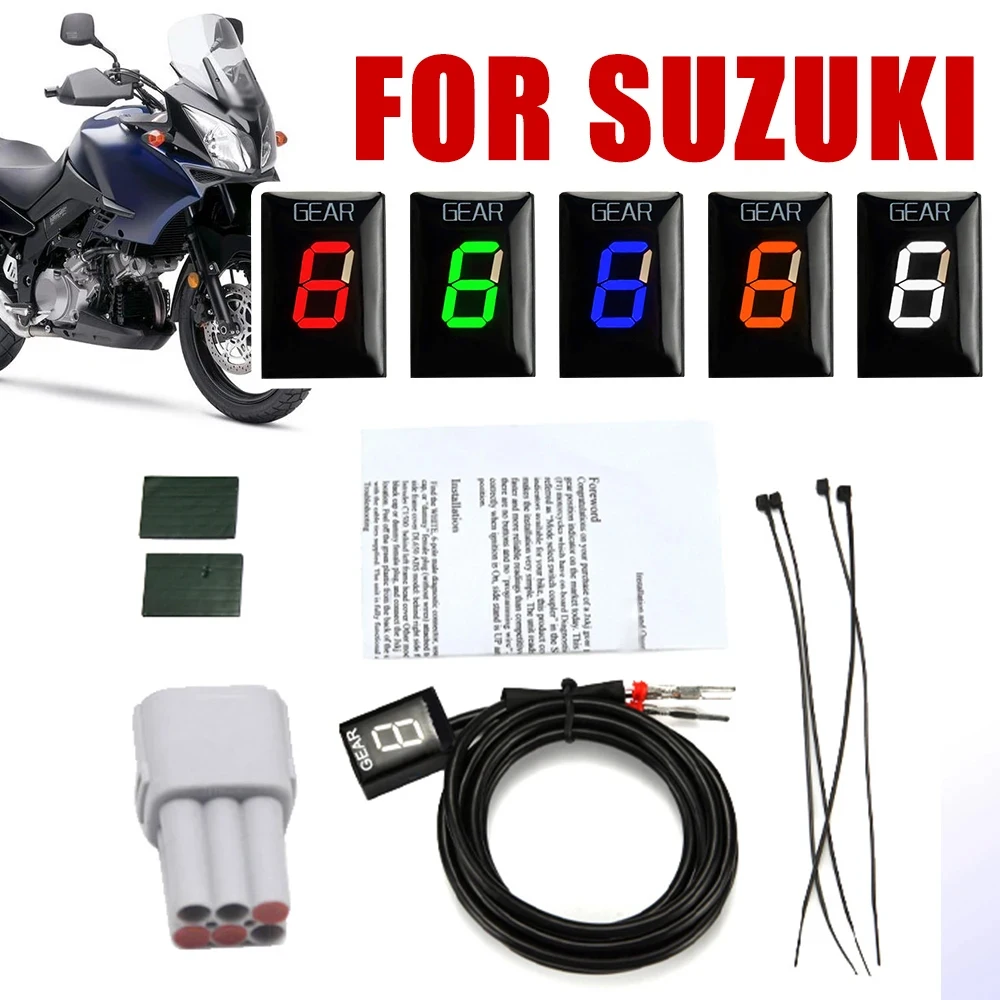

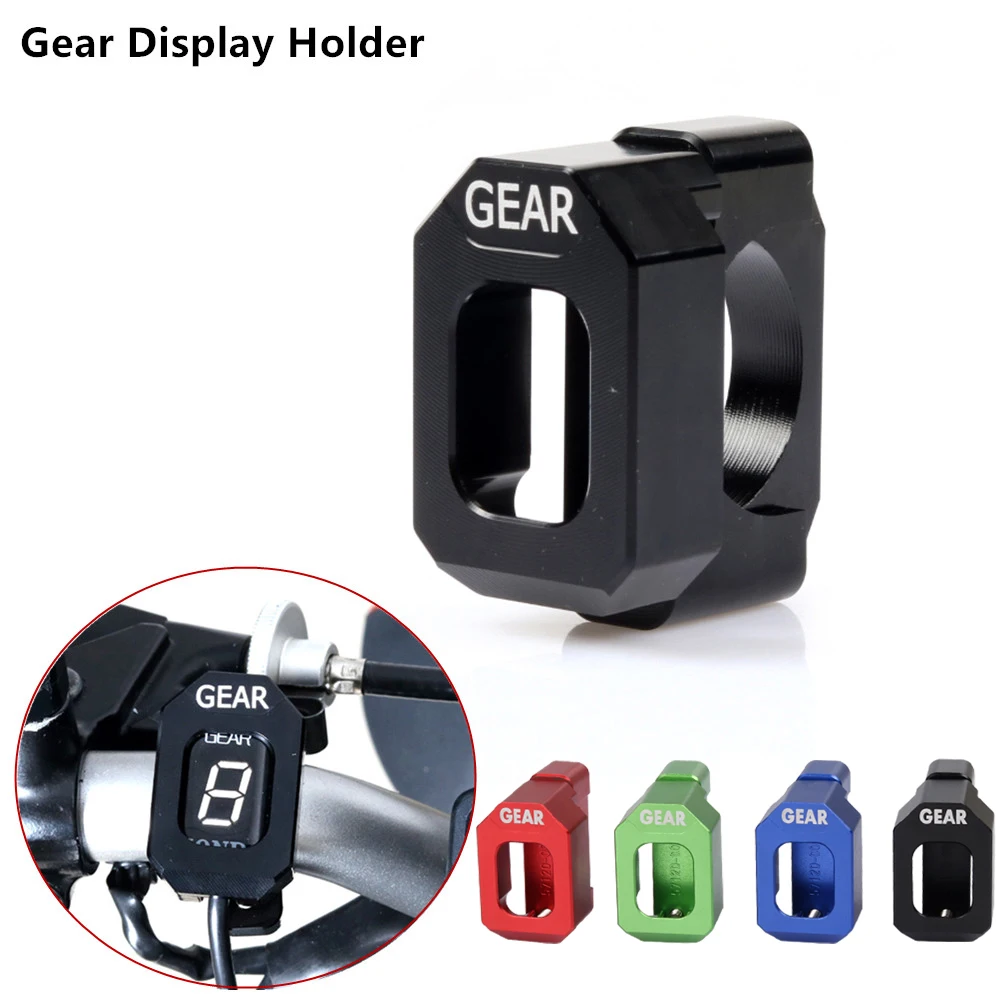

1 xMotorcycle Gear Indicator/Bracket(as shown in the picture)

▲Feature:

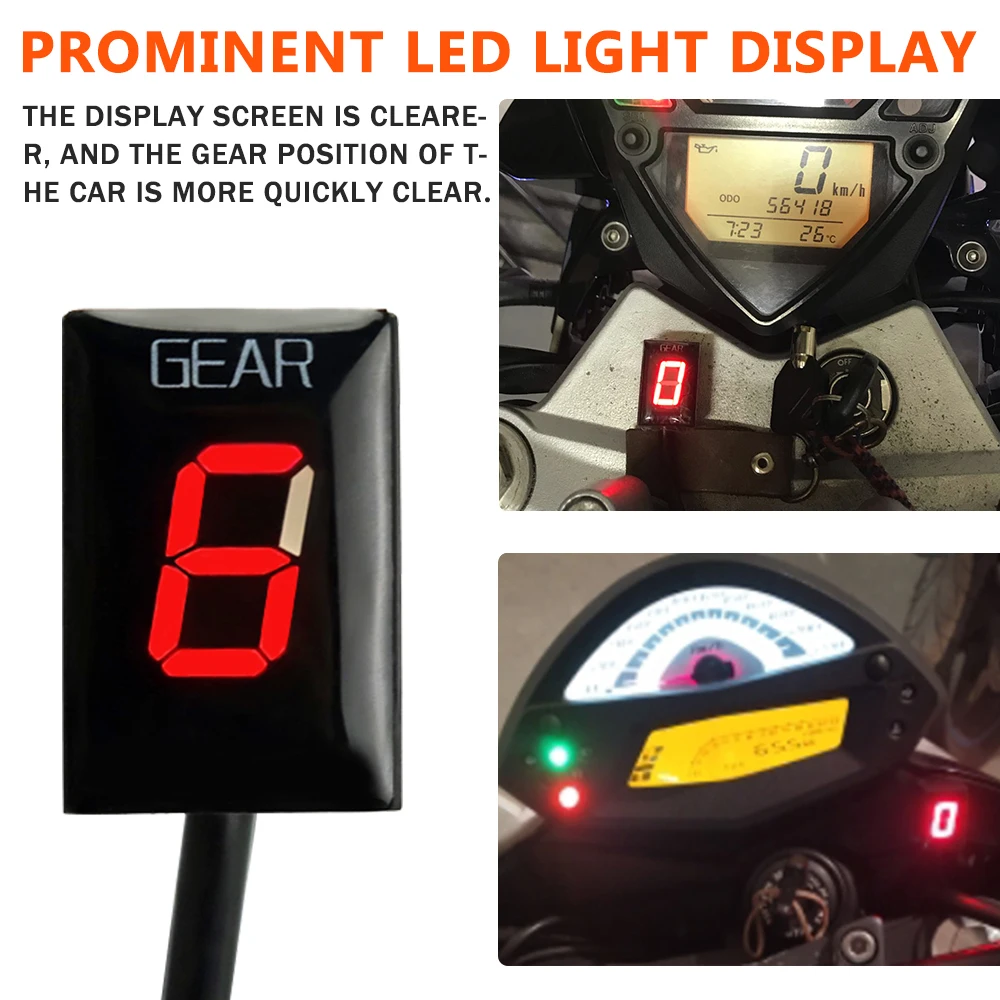

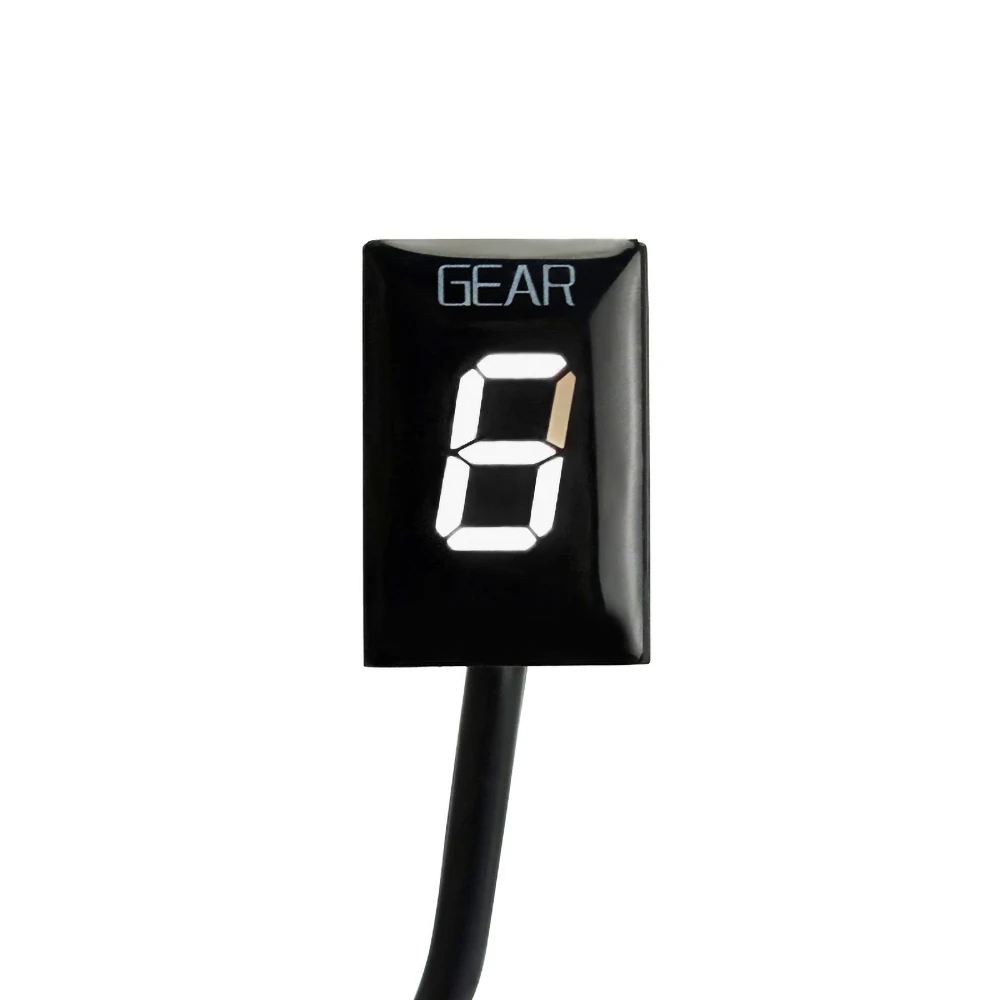

Shows current gear number

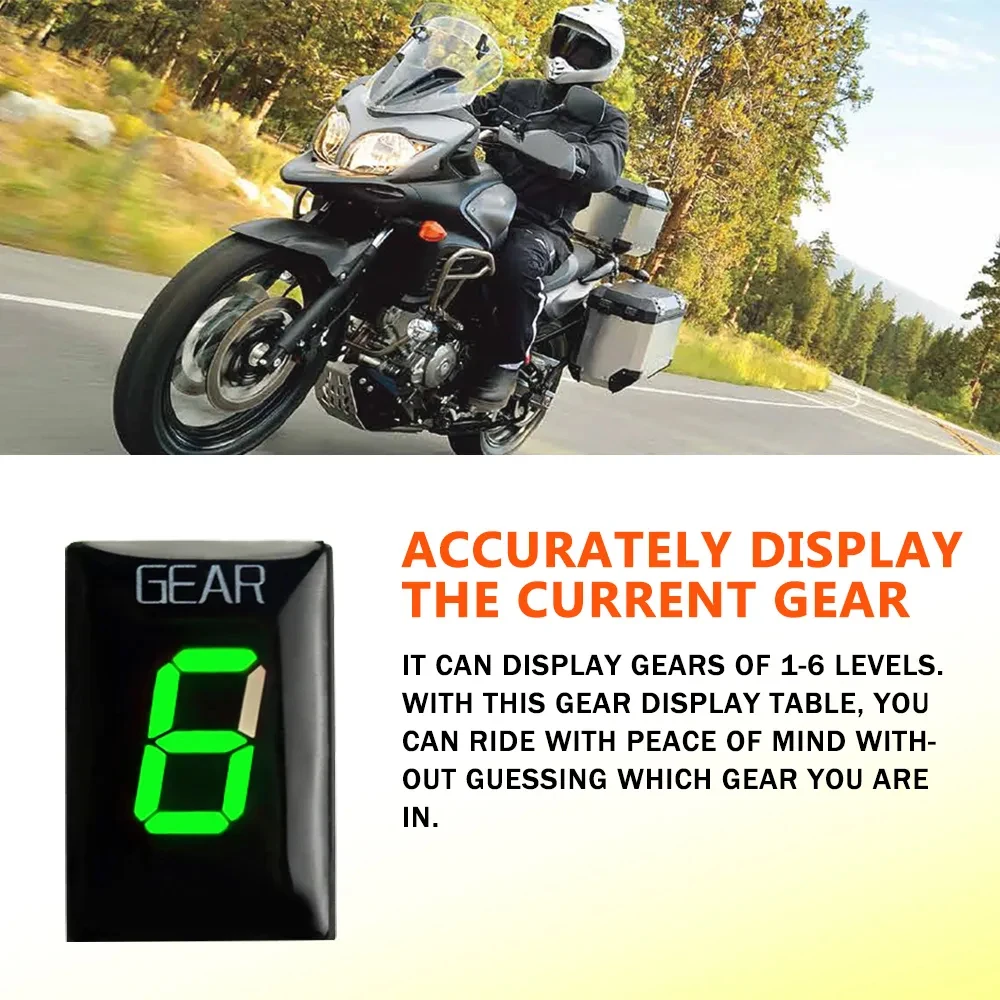

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Auto programming

Compatible with all motorbikes,four wheeler,bikes etc. will fit anything with a shift lever

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

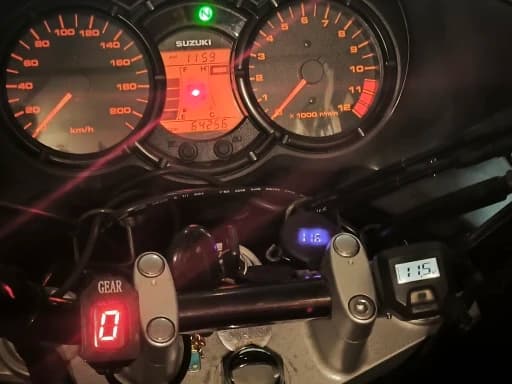

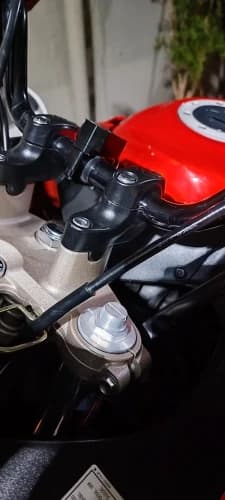

Display can be mounted anywhere

▲Foreword:

Congratulations on your purchase of a gear position indicator. is the most advanced gear position indicator on the market today. This product will fit all For Suzuki fuel injected (FI)motorcycles which have on-board Diagnostic System connector.This connector is referred as ;Mode select switch coupler; in the For Suzuki manuals. Unlike other gear indicators available for your bike,this product connects to the diagnostic connector. It makes the installation very simple.The unit reads data directly from the ECM, offering faster and more reliable readings than competitive products.The unit is fully automatic,there are no buttons and no ;programming wire;, The display will indicate all gears correctly when ignition is On,side stand is UP and the engine stop switch is in RUN position.

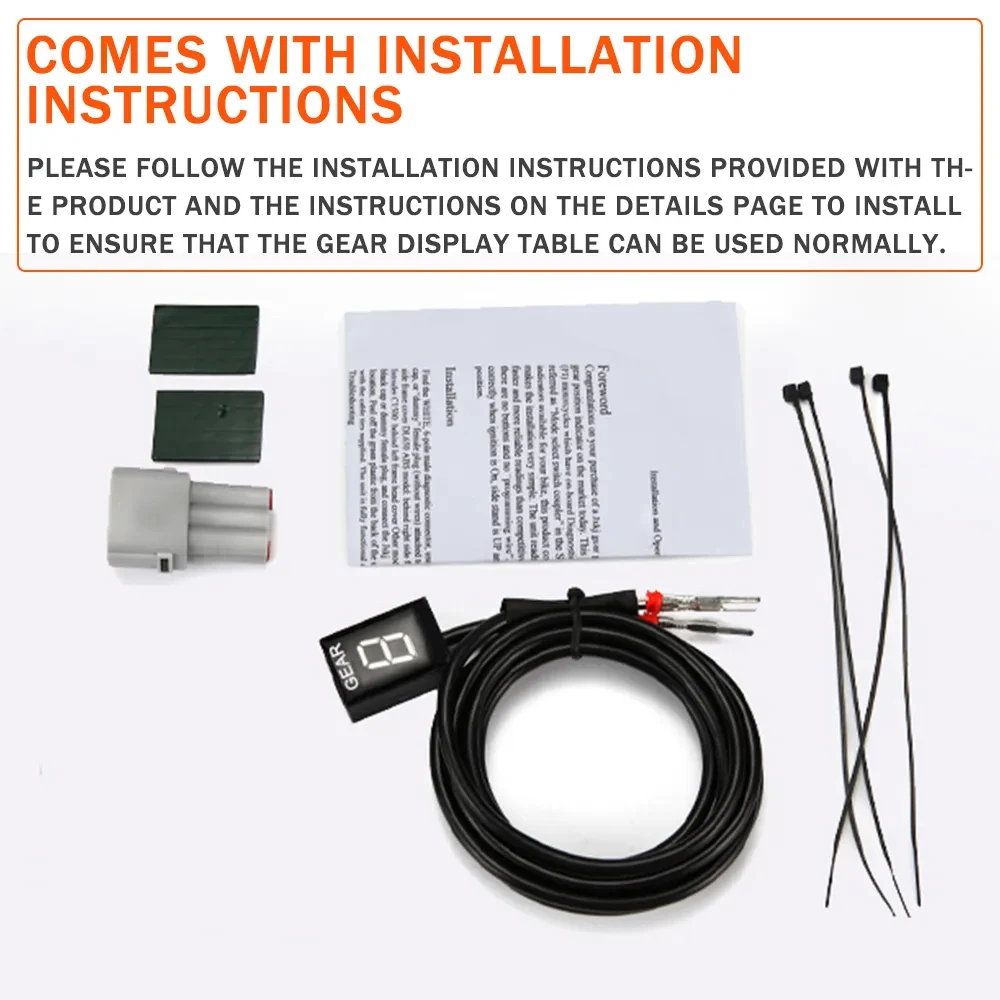

▲Installation:

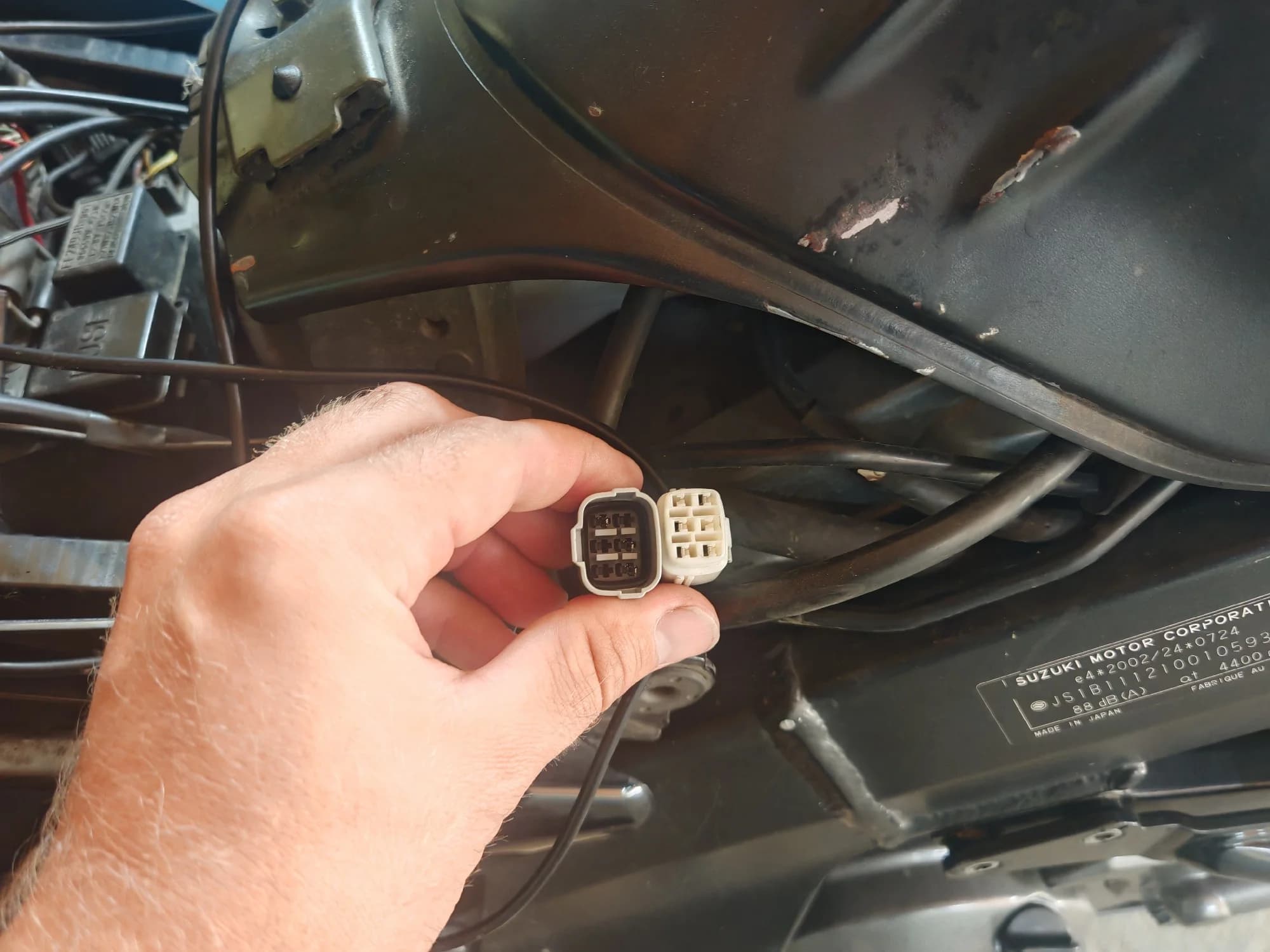

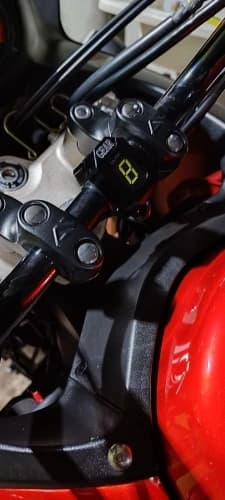

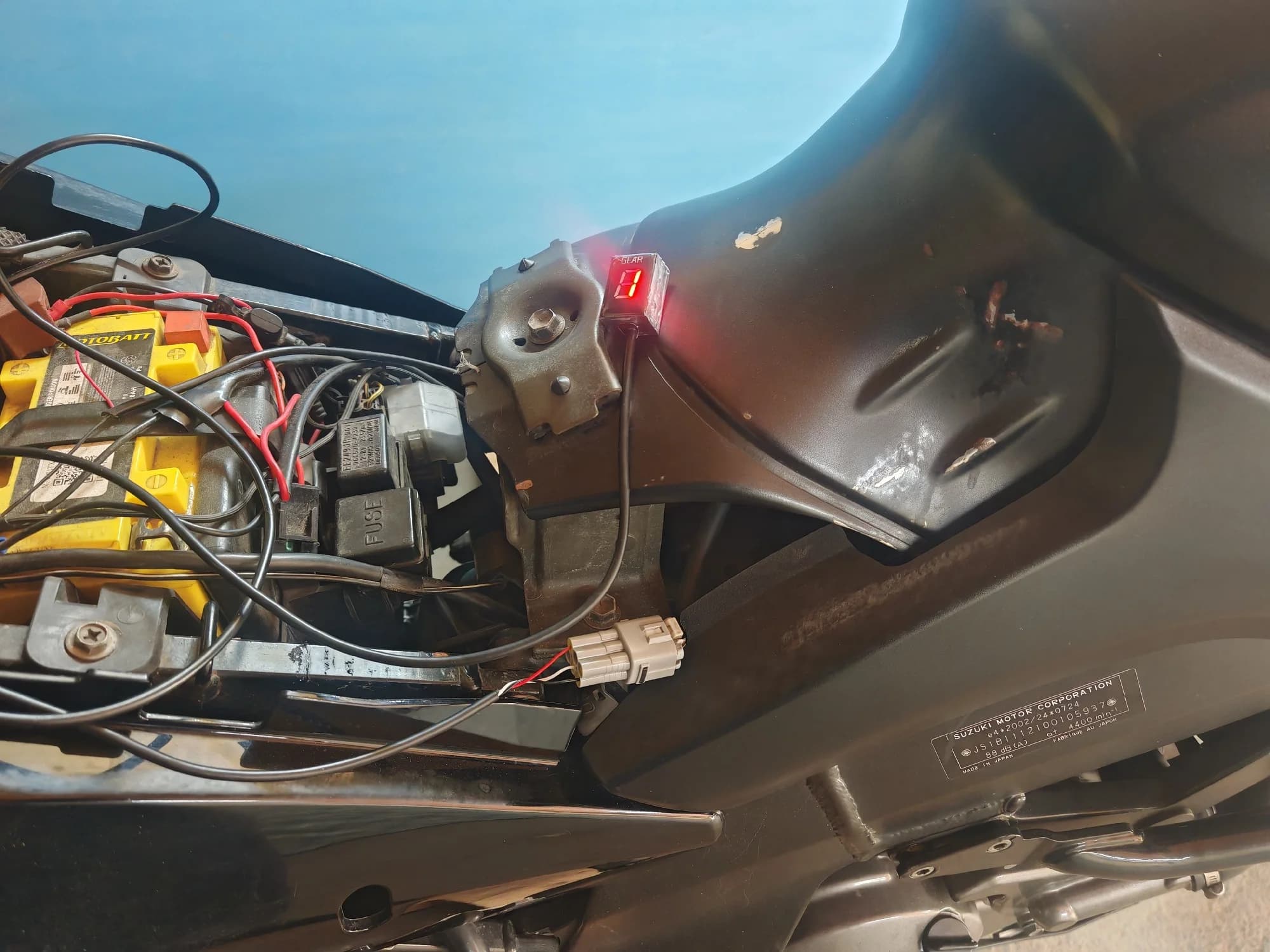

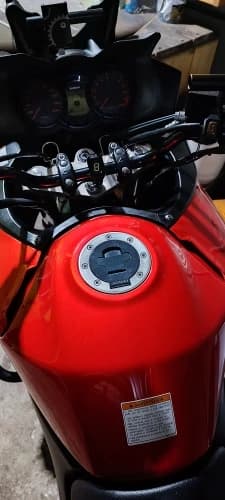

Find the WHITE,6-pole male diagnostic connector,usually near the ECM box.It may have a black cap,or ;dummy; female plug (without wires) attached to it.For GSF650 Bandit/For GSF1250;under right side frame cover,For VL1500/For Boulevard C90/For Intruder C1500;behind left frame head cover,Other models;under seat (rider or pillion) Remove the black cap or dummy female plug,and connect the plug.Route the cable to the mounting location.Peel off the green plastic from the back of the unit,and mount the display.Secure the cable with the cable ties supplied.The unit is fully functional after installation.there is no need to setup. Troubleshooting.

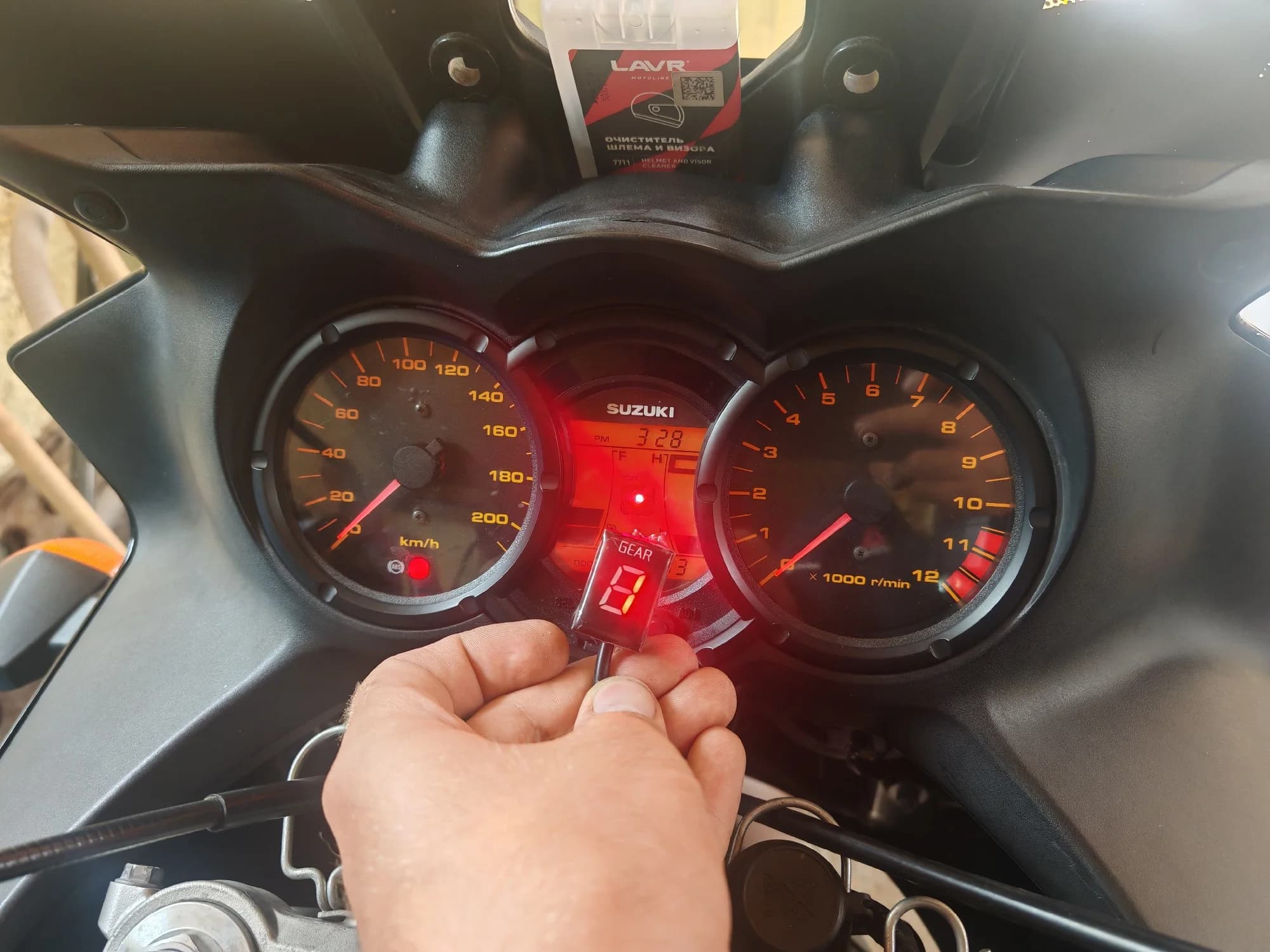

Disconnect the connector and check whether the pins are broken,bent or pushed out of position.Reconnect the plug, and make sure that all connections are good and the connector is fully seated.Make sure the ignition is ON,side stand is UP and engine stop switch is in RUN position when you test the gear position indicator.If some gears are not indicated properly,most likely the Gear Position switch is defective,modified,or a box is installed.If the indicated gears are correct except under hard acceleration or braking,there is interference in the bike is wiring and the ECM receives incorrect gear position values from the sensor.This model indicates the gear position as known by the ECM.
