Electric Waterproof Power 12v Led Light Momentary Push Button Switch 8/10/12/16/19/22 Mm Pressure Switches 220v 24v 3v Keyboard
2.81$
2.81$
Quantity:
1
Availability:
Color
Size
Voltage
Standard
Card Payments
Crypto Payments
Easy return
Reliable Shipping
If you want more item, please contact us,we will add the quantity and give you the cheaper price

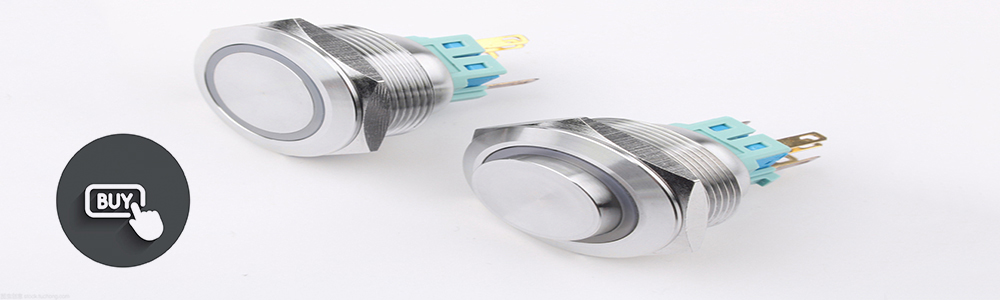

25mm 30mm Click on the following picture
Black Color Click on the following picture

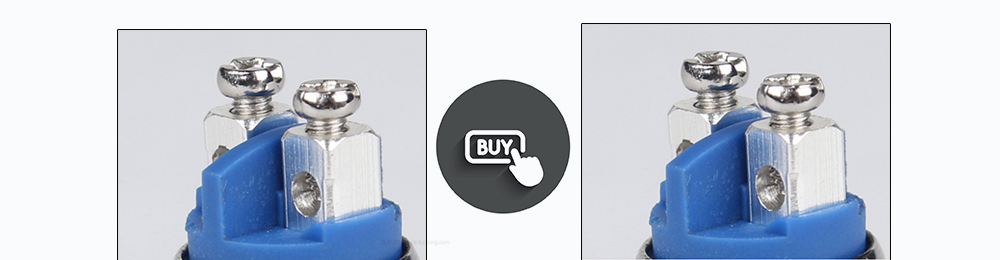

Screw Foot Click on the following picture
Notice: 8mm 10mm Led button must be connected to the outside resistor when used. Otherwise it will burn out
Notice: The welding must be completed within 3 seconds, otherwise the inside will be damaged easily
Specification
If you need special specifications, please feel free to contact customer service,we can customize it .
Contact:sterling silver
Material: Nickel Brass
Color: Silver
LED color: White Yellow Red Green Blue
Switch Rating: 3A /250VAC
Waterproof Grade: IP65
LED Voltage: 3-6V,12V,24V,220V
Operation Type: Momentary and Latching

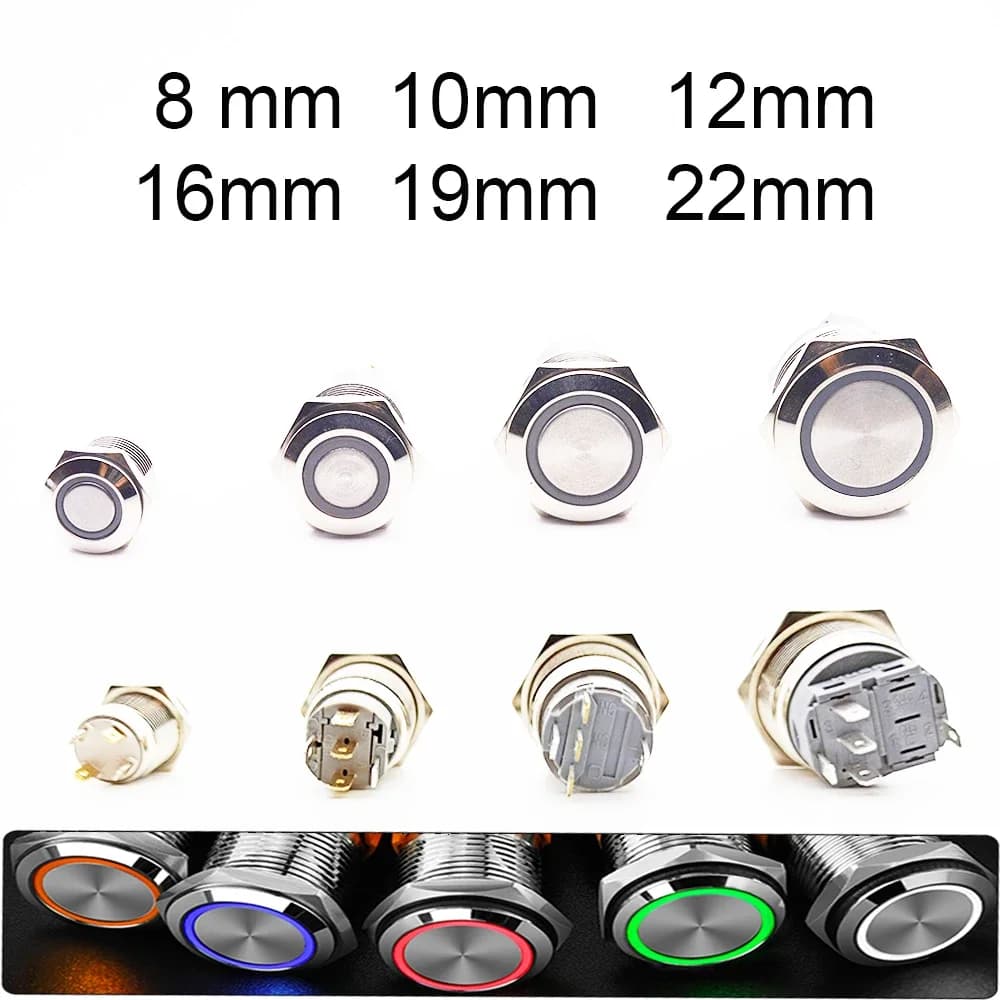

Hole size: 8/10/12/16/19/22mm
Voltage Selection
3V-6V :3V 5V 6V
12V-24V: 12V 24V
220V: 220V 230V
Other voltages are required. Please contact customer service
No led switch button can be applied to 2-250V.

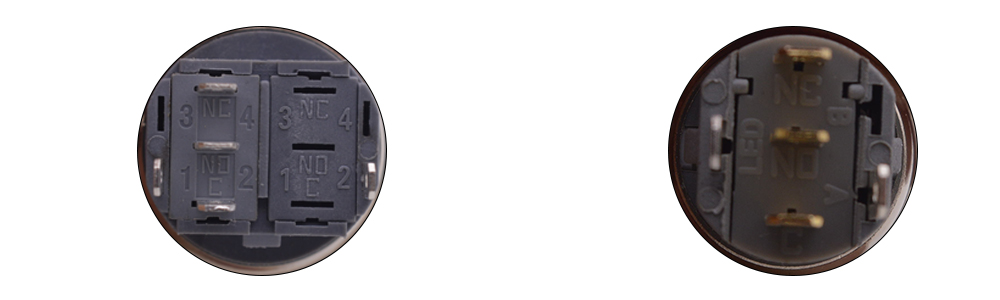

Pin Terminal Introduction
"+": positive pole of the led
" - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
Connect " NO " and " C " : The circuit is alway open unless press the button.
Connect " NC " and " C " : The circuit is alway close unless press the button.
Operation Type :Momentary
After pressing the button ,press-key will return automatically If you don't continue to press the button。Self-reset.
Operation Type:Latching Fixing
After pressing the button ,press-key stay in a position
until it is pressed again, then it return.

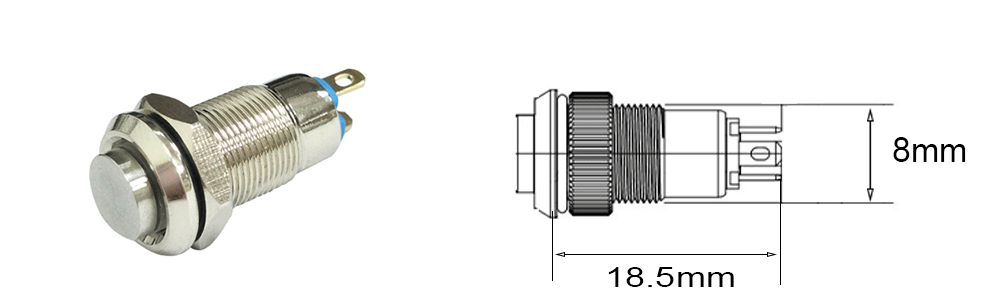

8mm Button

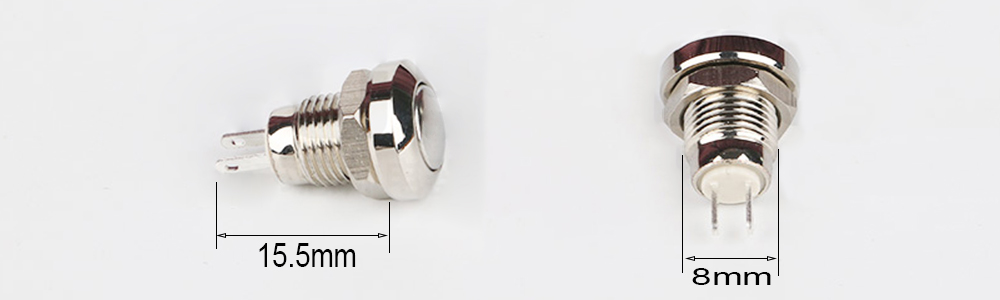

8mm Button (which is momentary and no led ) only has Camber Head. Other 8mm button only has High Head.

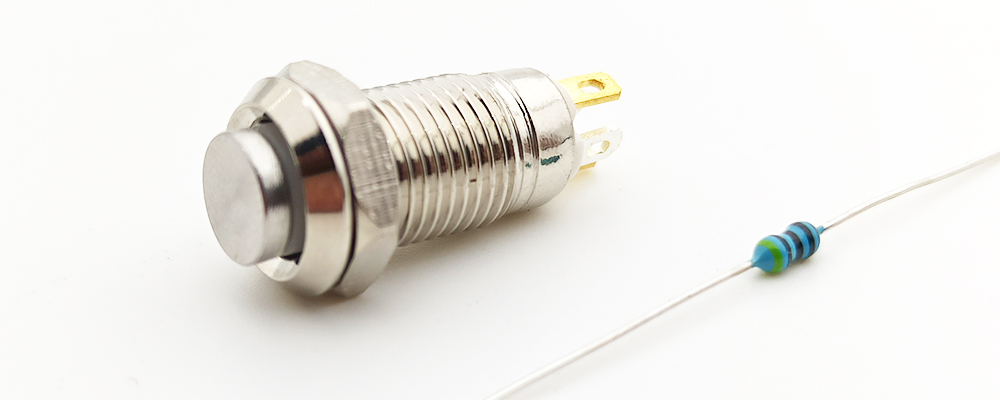

8mm Led button must be connected to the outside resistor when used
Please allow 0.1-0.3mm differs due to manual measurement,8mm

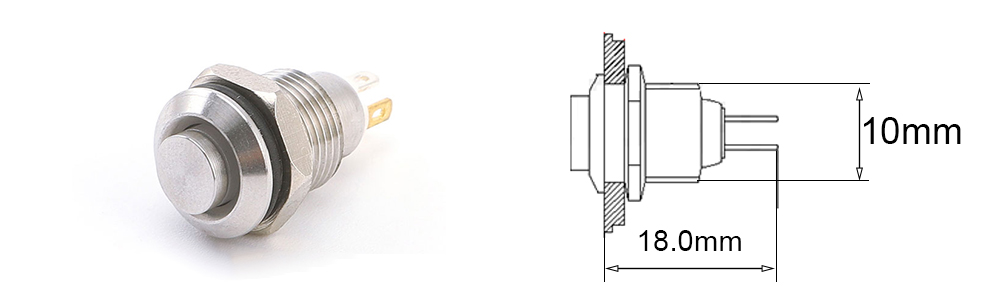

10mm High Head Button
10mm Led button must be connected to the outside resistor when used
Please allow 0.1-0.3mm differs due to manual measurement,

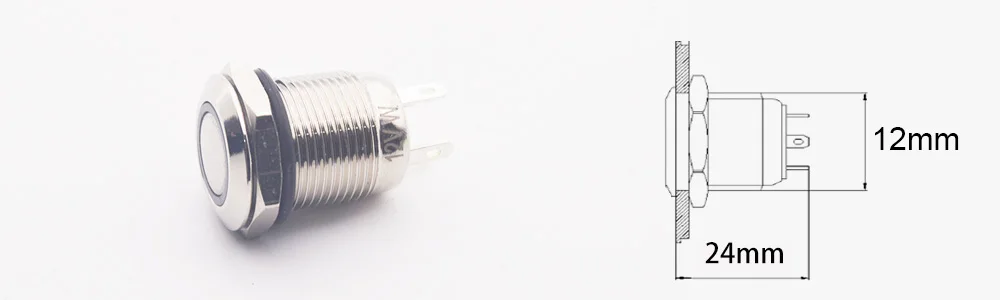

12mm Momentary Button
Please allow 0.1-0.3mm differs due to manual measurement,

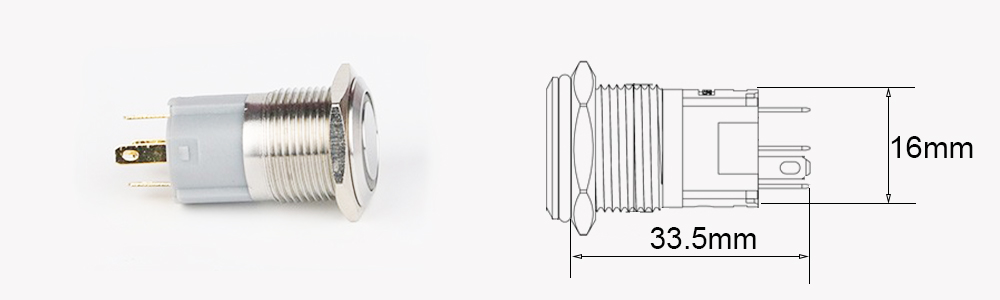

16mm Flat Head Button
Please allow 0.1-0.3mm differs due to manual measurement,

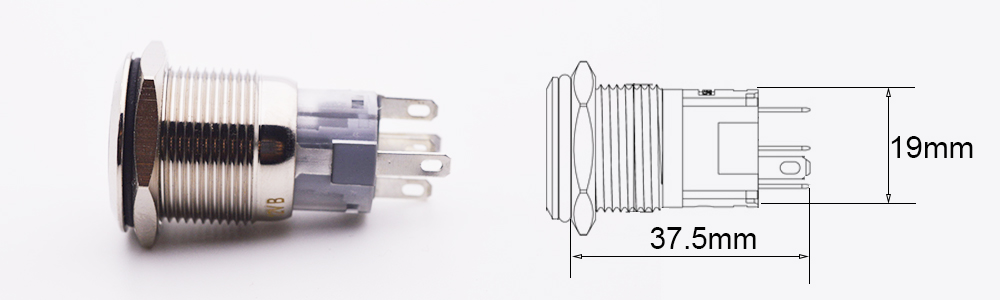

19mm Flat Head Button
Please allow 0.1-0.3mm differs due to manual measurement,

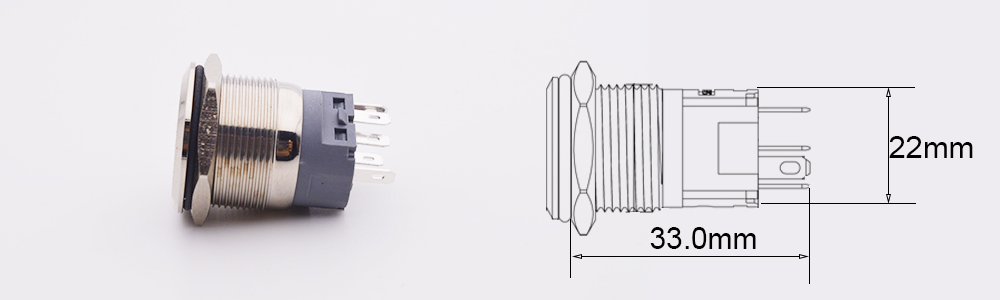

22mm Flat Head Button
Please allow 0.1-0.3mm differs due to manual measurement,

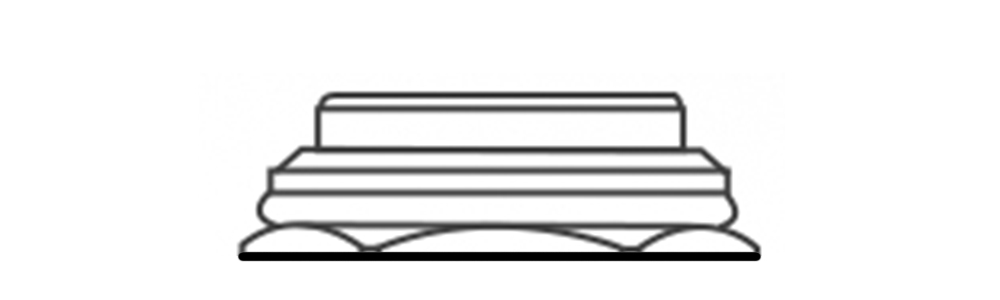

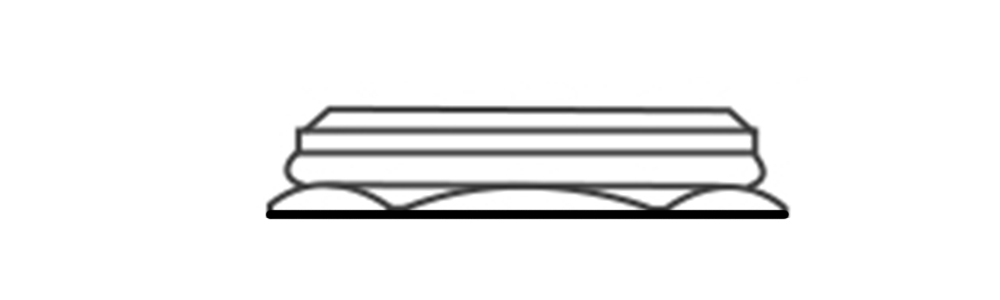

Flat Head
High Head

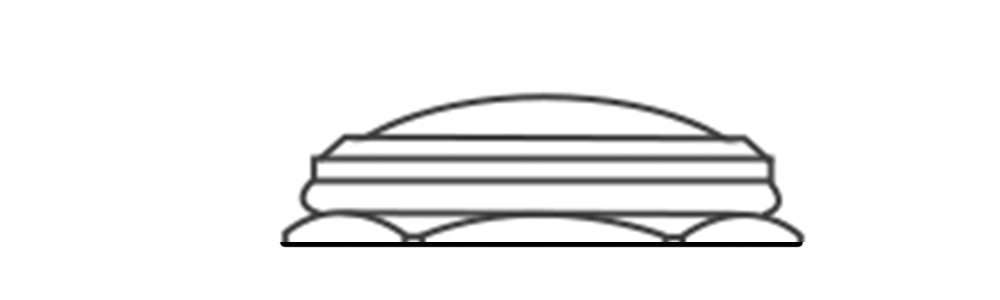

Camber Head
Wiring Diagram
There are many wiring method, the picture below is just for reference

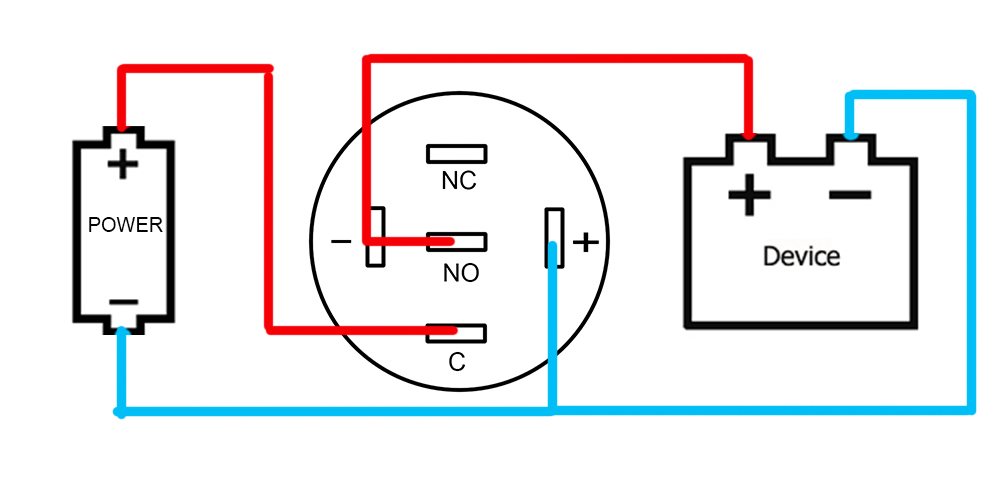

Wiring Diagram of Normal Open
When the switch is pressed, the LED lights up and the load is energized. After press-key return, the load is de-energized, and the light is off.

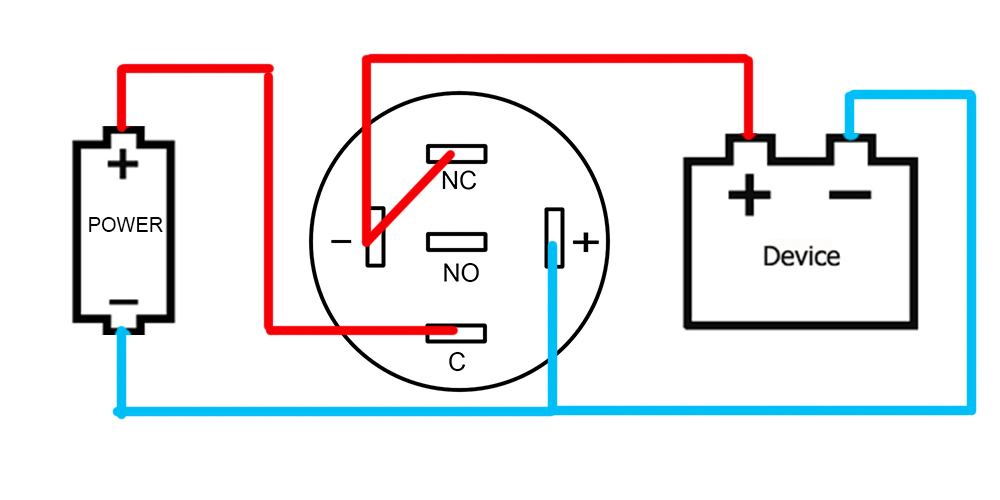

Wiring Diagram of Normal Close
The load is energized.When the switch is pressed, the LED lights up and the load is de-energized. After press-key return, the load is energized, and the light is off.
Features
Made of metal material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Customer Reviews
85 ratings
as described (6)
fast delivery (6)
good quality (4)
small size (3)
incorrect type (3)
bright led ring (2)

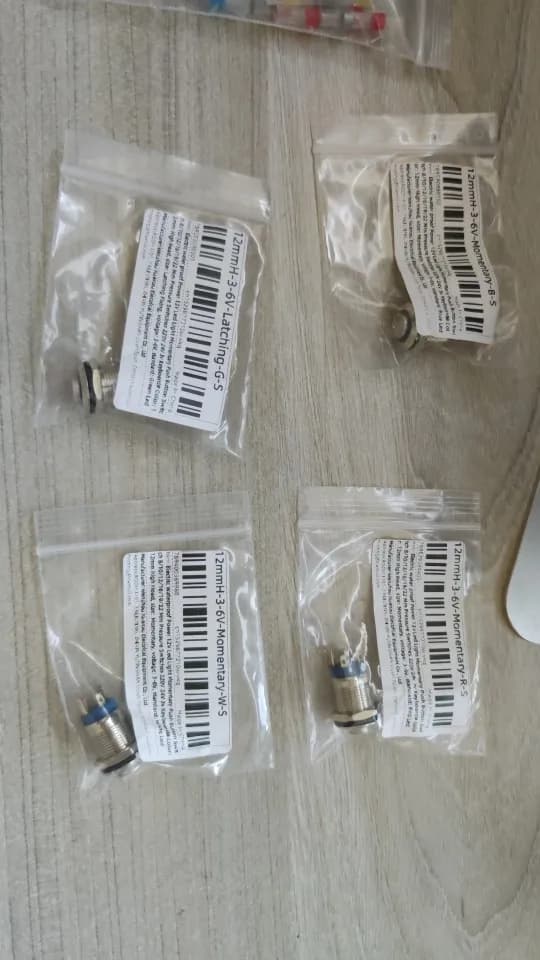

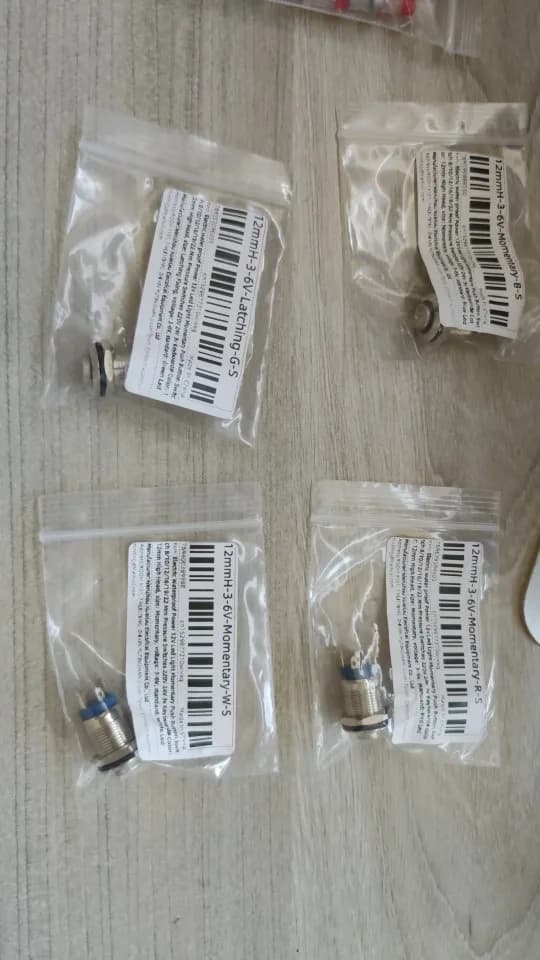

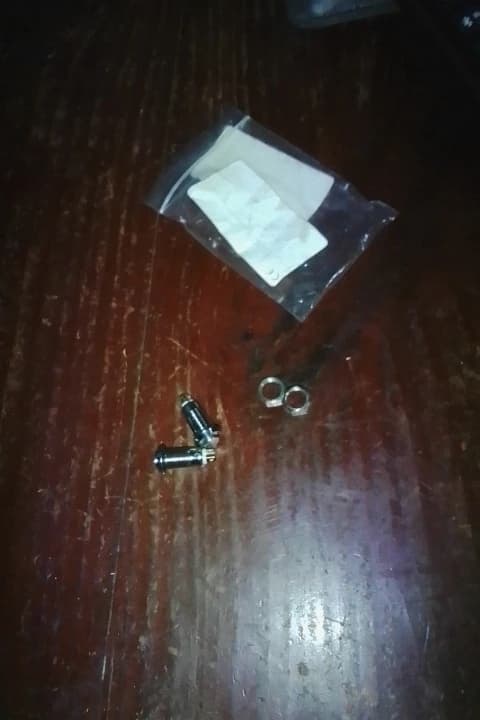

Customer photos (8)
H***r
April 18, 2026
Variant: Color:19mm Flat Head Size:Momentary Voltage:3-6V Standard:Green Led
The switch with the red LED is much too dark; its brightness only reaches that of the green button at about 5 V. Both switches were specified for 3-6 V. Aliexpress refunded the cost of this switch. Ok.
Translated by AliExpress ·
H***r
April 18, 2026
Variant: Color:19mm Flat Head Size:Latching Fixing Voltage:3-6V Standard:Red Led
The button with the green LED is perfectly fine. It's even a DUO-LED button (red and green LEDs can be used interchangeably). Great.
Translated by AliExpress ·
H***r
March 14, 2026
Variant: Color:22mm Flat Head Size:Latching Fixing Voltage:3-6V Standard:Red Led
+++ Fast delivery, affordable price, goods as described and in good condition +++
Translated by AliExpress ·
H***r
March 14, 2026
Variant: Color:22mm Flat Head Size:Momentary Voltage:3-6V Standard:Green Led
+++ Fast delivery, affordable price, goods as described and in good condition +++
Translated by AliExpress ·
Buyer from Ukraine
October 7, 2026
Variant: Color:8mm High Camber Head Size:Latching Fixing Voltage:3-6V Standard:Yellow Led
nice quality. not sure what the instructions depict. connect the input power source to + and - using appropriate resistor, to be always on. or connect + and - to the load when want it be lit when on only, also using appropriate resistor. connect input power source + or - to the 3rd contact. the 4th goes to load
Buyer from Dominican Republic
August 13, 2026
Variant: Color:8mm High Camber Head Size:Latching Fixing Voltage:12-24V Standard:Blue Led
It arrived ahead of time, very well packaged, I haven't tried it yet, they look of good quality, the size I really wanted, thanks to everyone involved and blessings.
Translated by AliExpress ·
