BIGTREETECH TMC2209 V1.3 Stepper Motor Driver TMC2208 3D Printer Parts For BTT Octopus SKR V1.4 SKR Mini E3 Ender3 V2 Voron 2.4

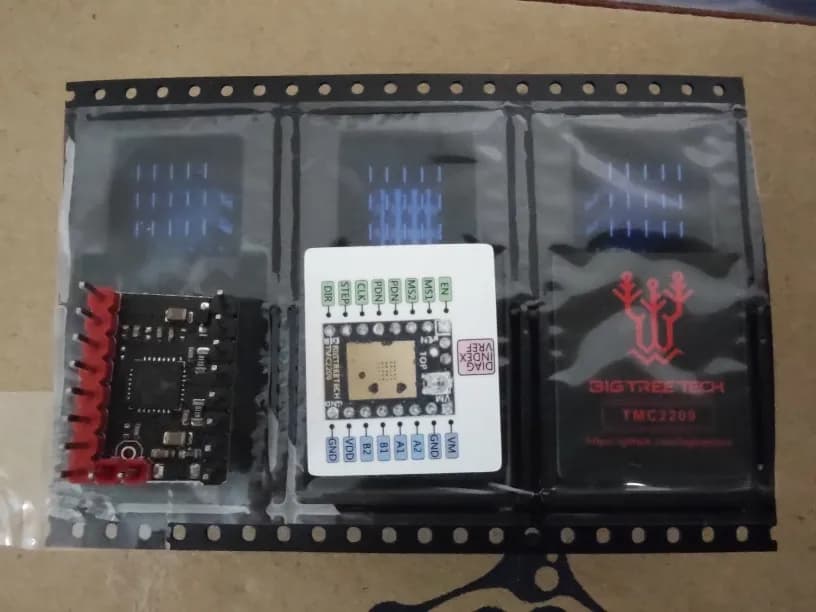

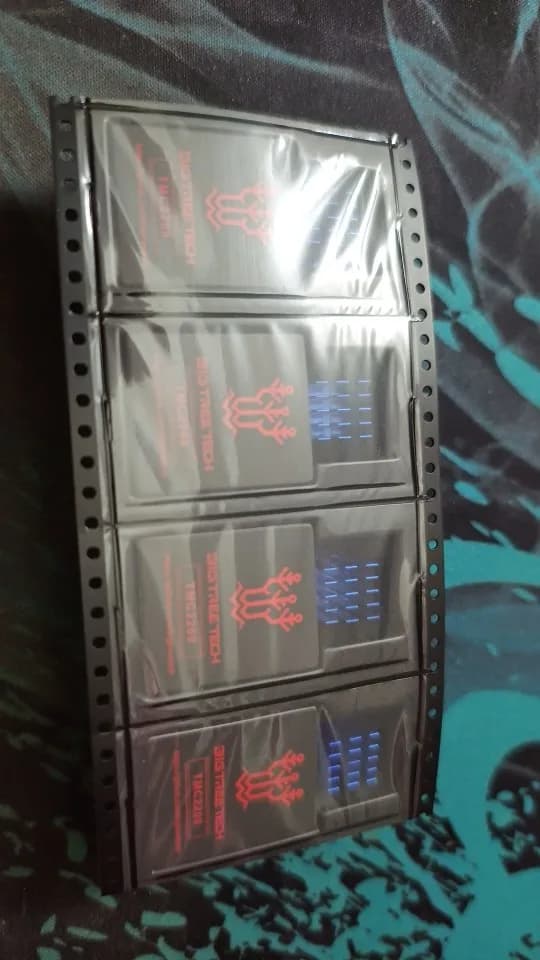

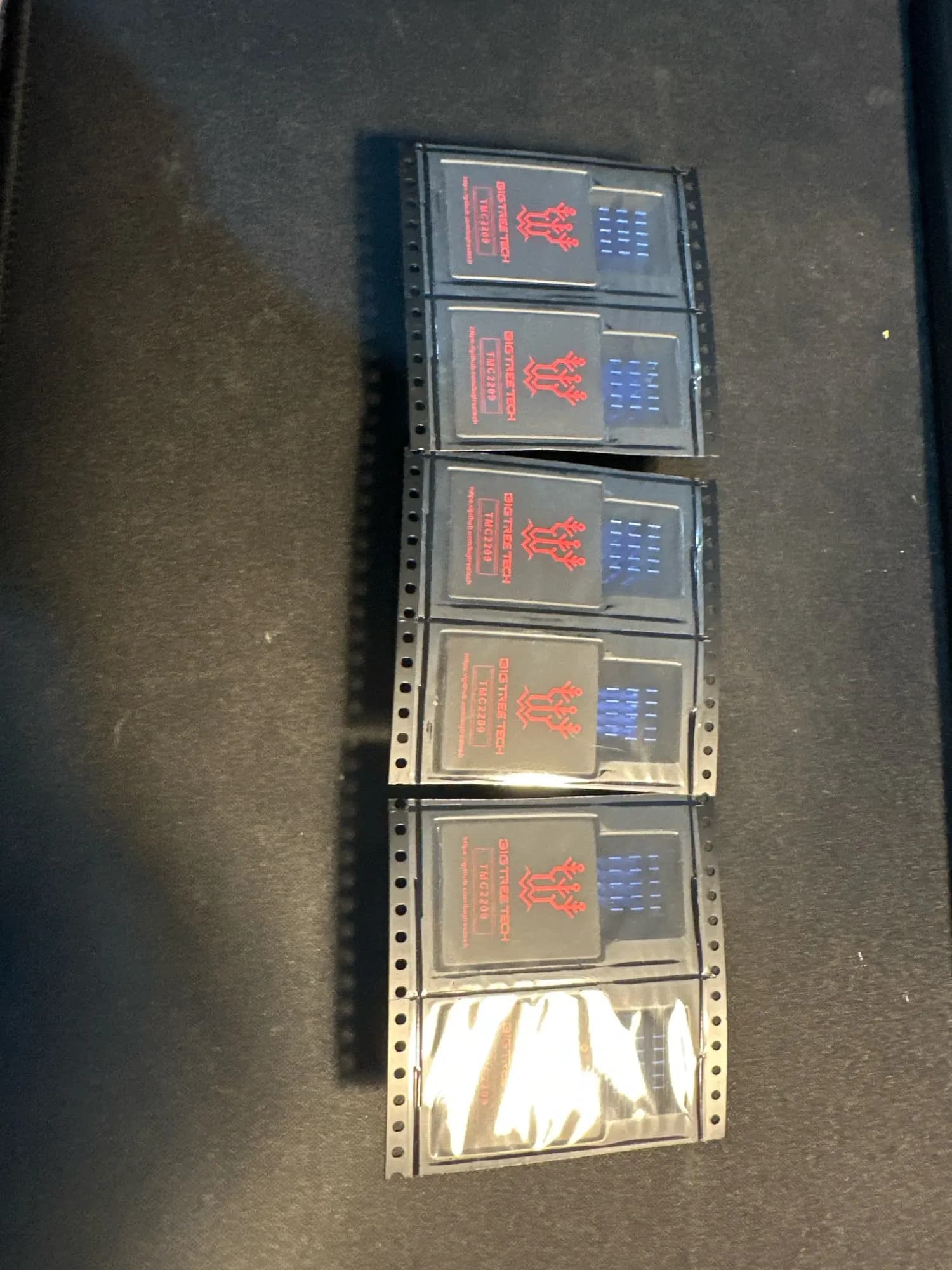

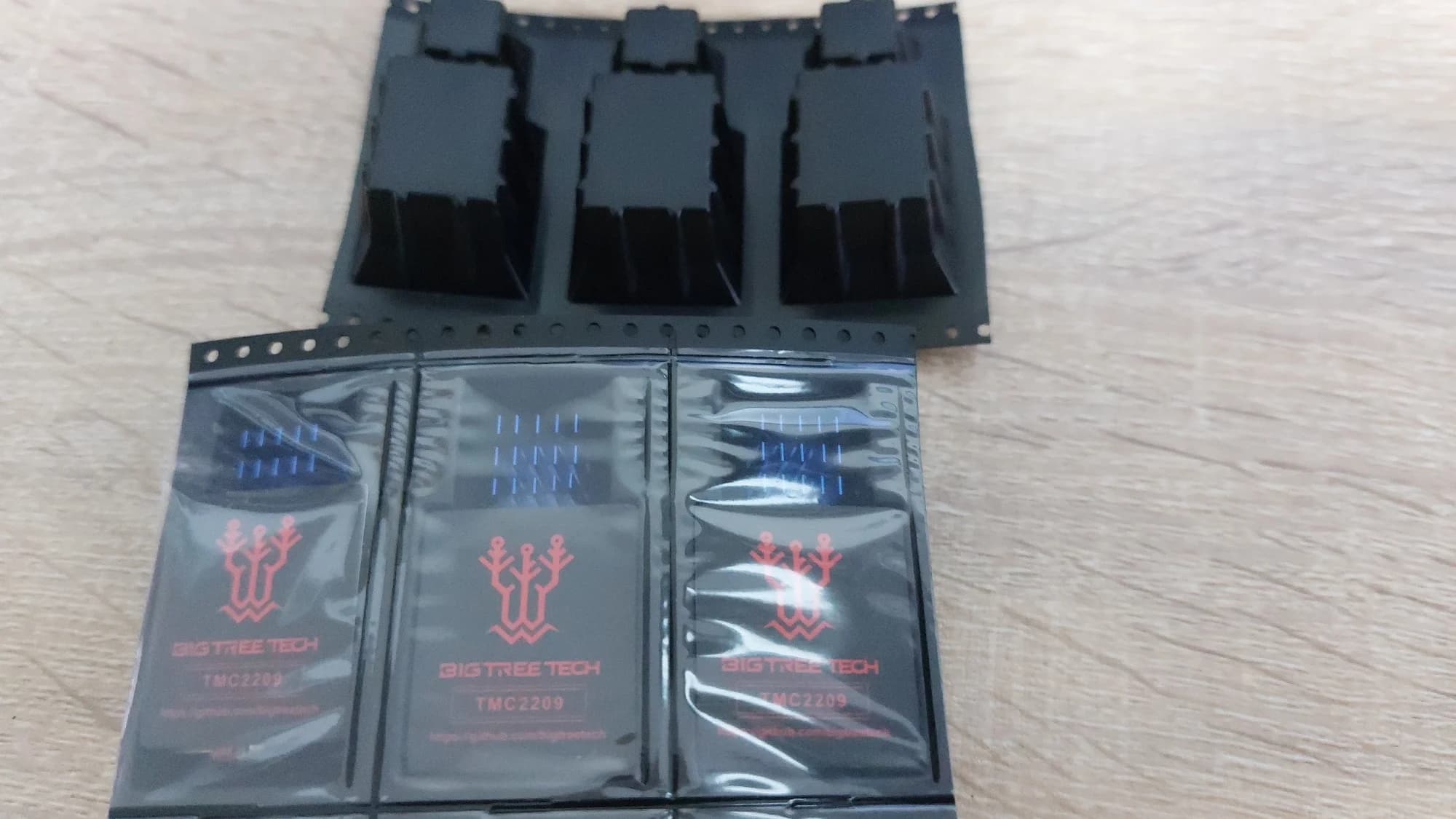

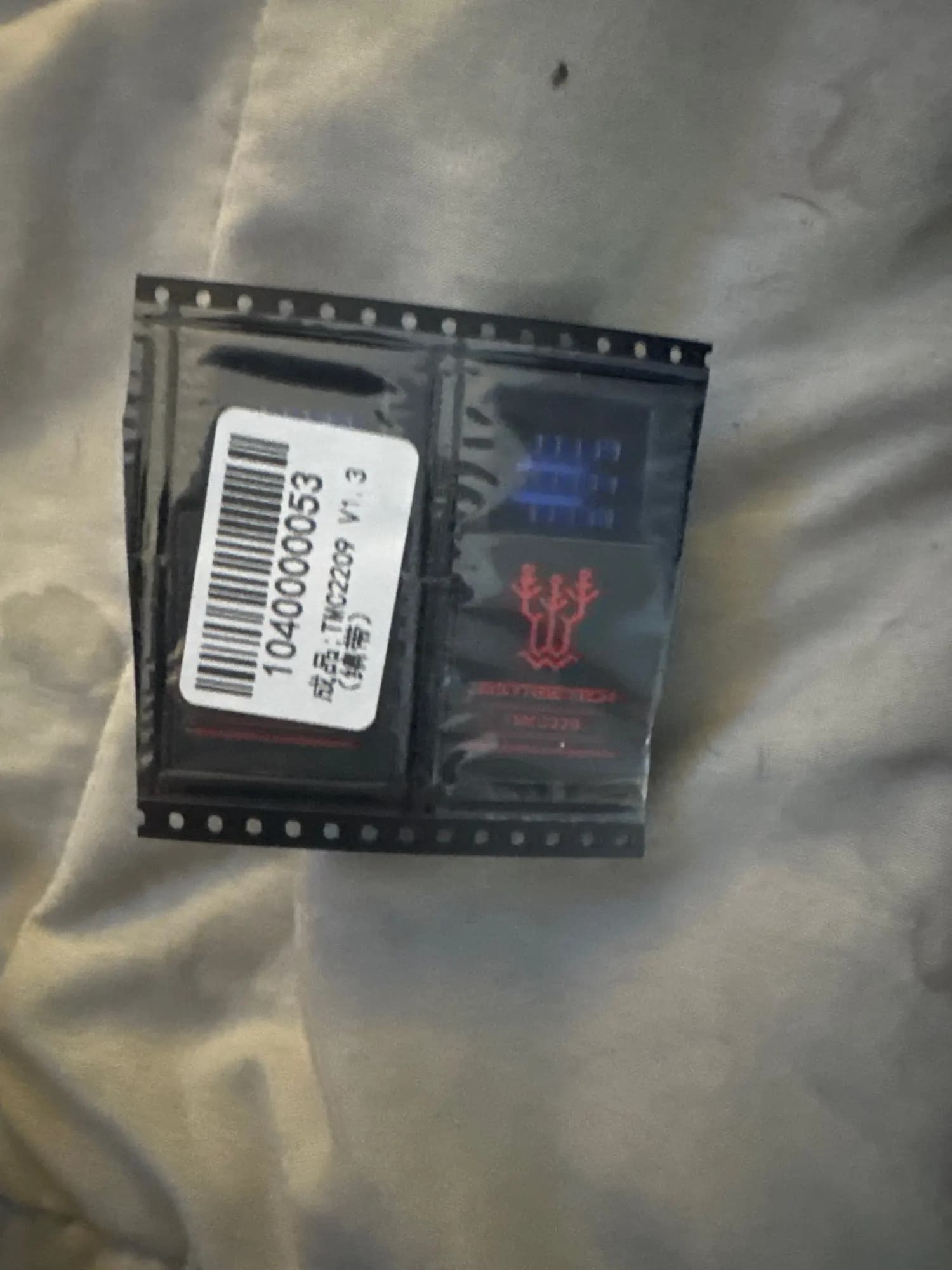

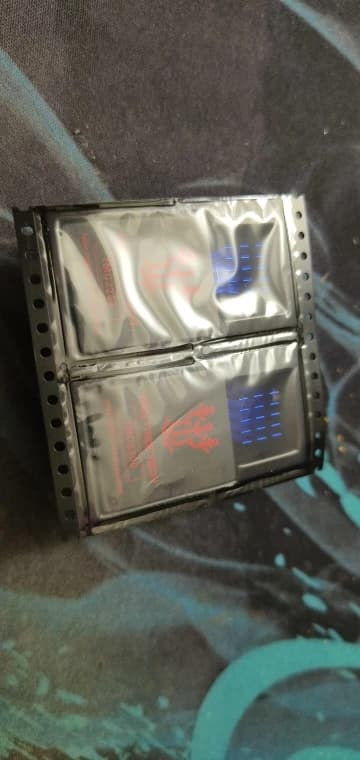

TMC2209 Updated packaging. Randomly send new and old packaging

Note: TMC2209 V1.3--This new version does not carry the wire, which will not affect usage.

TMC2209 V1.3 VS TMC2208, more of these functions:

1. Blocking rotation detection

Stallguard--TMC2209 provides a load and loss of speed detection technology

2. Current dynamic adjustment

Coolstep--TMC2209 provides a current dynamic regulation technology that saves up to 75% of electrical energy.

- stealthChop2 - for quiet operation and smooth motion

- spreadCycle - highly dynamic motor control chopper

- coolStep - current control for energy savings

- stallGuard4 - sensorless motor load detection

The hardware of the modes UART,DIR/STEP is the same. If you need to use UART mode, just need to modify the firmware.

BIGTREETECH TMC2209 V1.3 UART firmware :

https://github.com/MarlinFirmware/Marlin/pull/14215?fbclid=IwAR1QJDcuRzzhg7TihQcsfGTyx4UPcmtfhqhRw0gCzRL5gfqj5ZMC36wpN5M

1/2/4/5/6 PCS TMC2209 V1.3 or TMC2208 V3.0 Stepper Motor Driver + Wire (According to your purchase options)

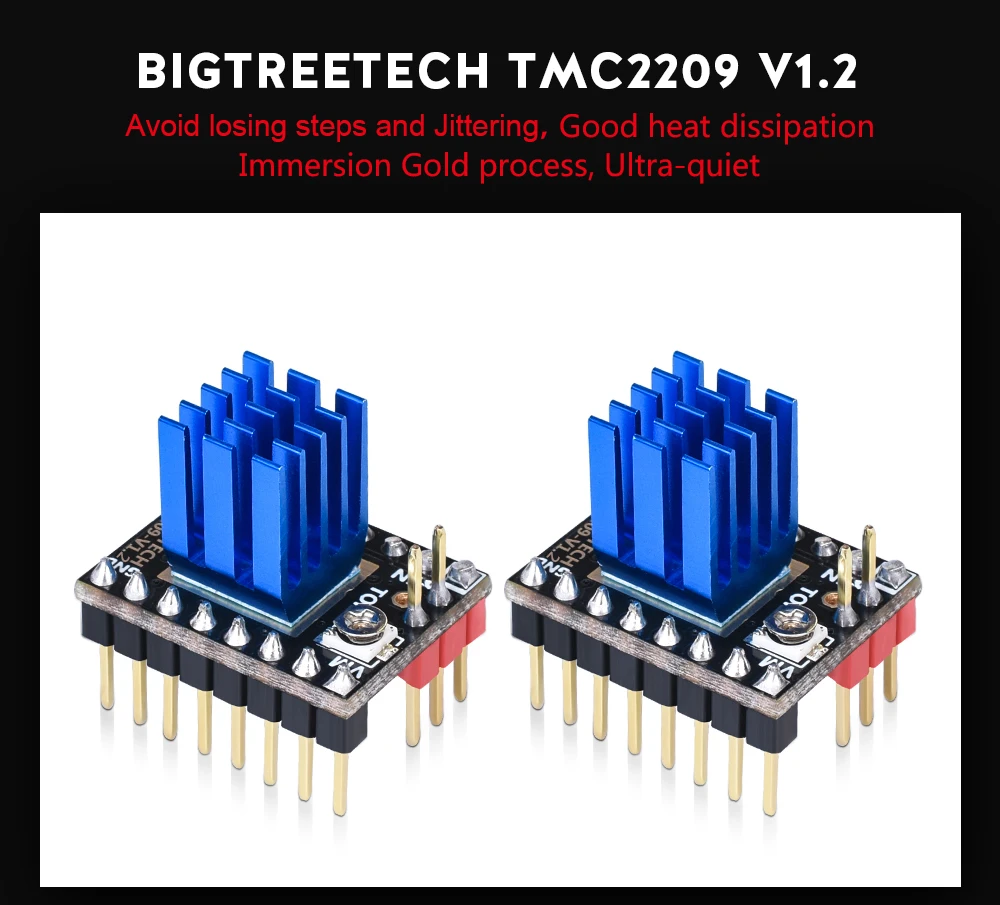

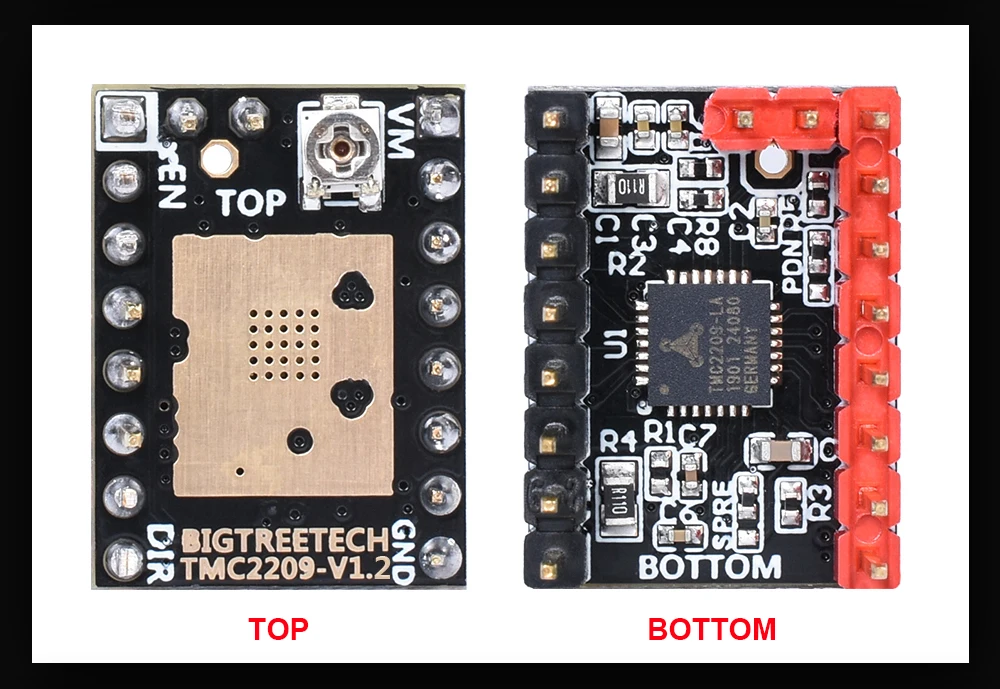

BIGTREETECH TMC2209 V1.2

Avoid losing steps and Jittering, Good heat dissipation

Immersion Gold process, Ultra-quiet

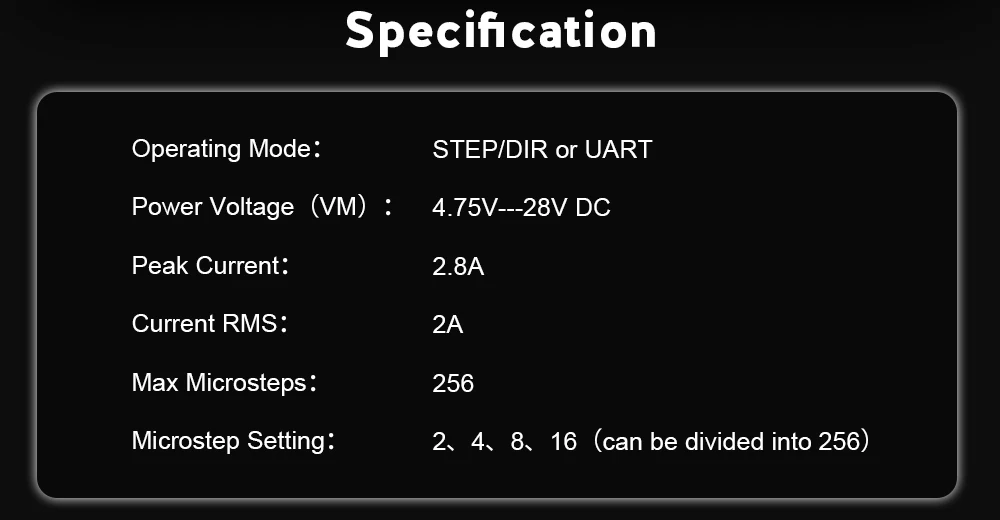

Specification

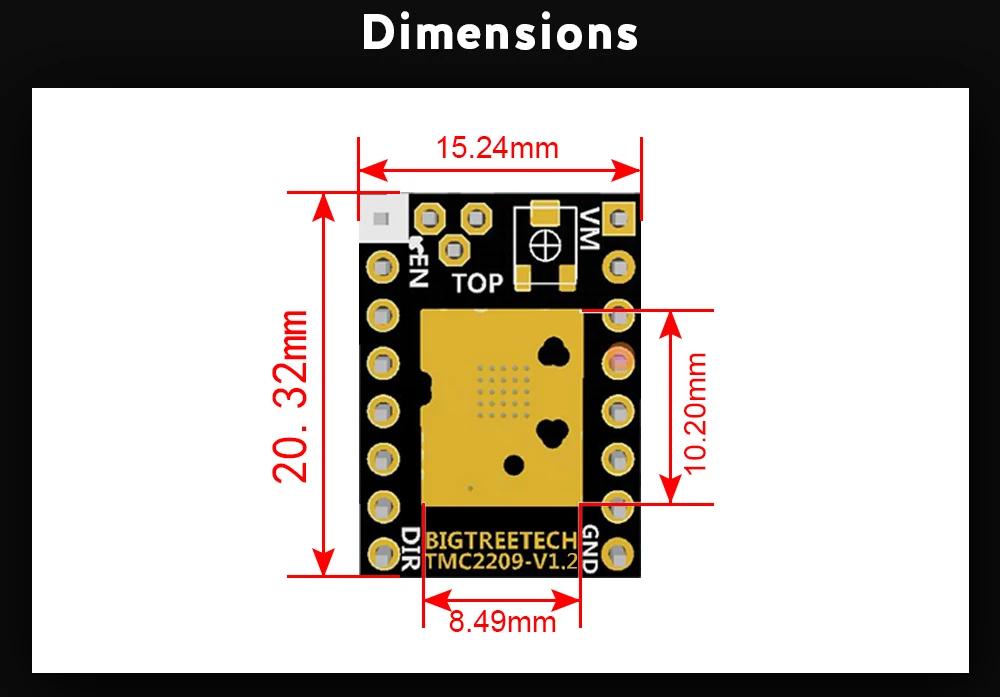

Dimensions

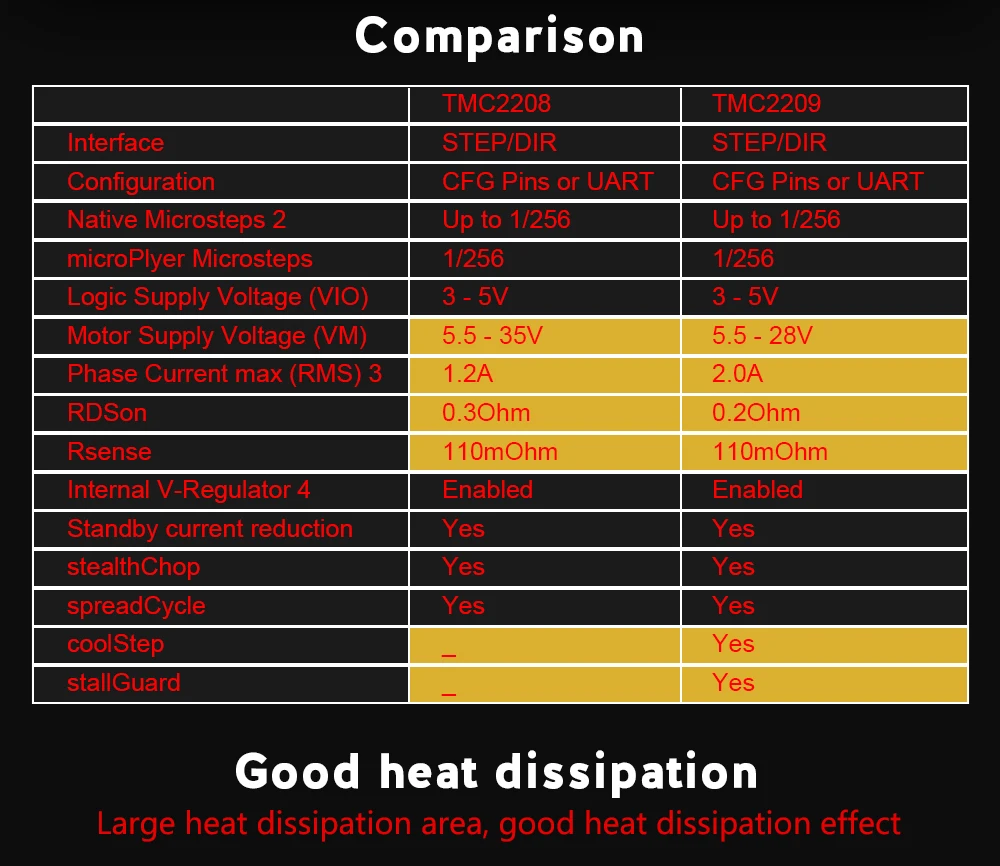

Comparison

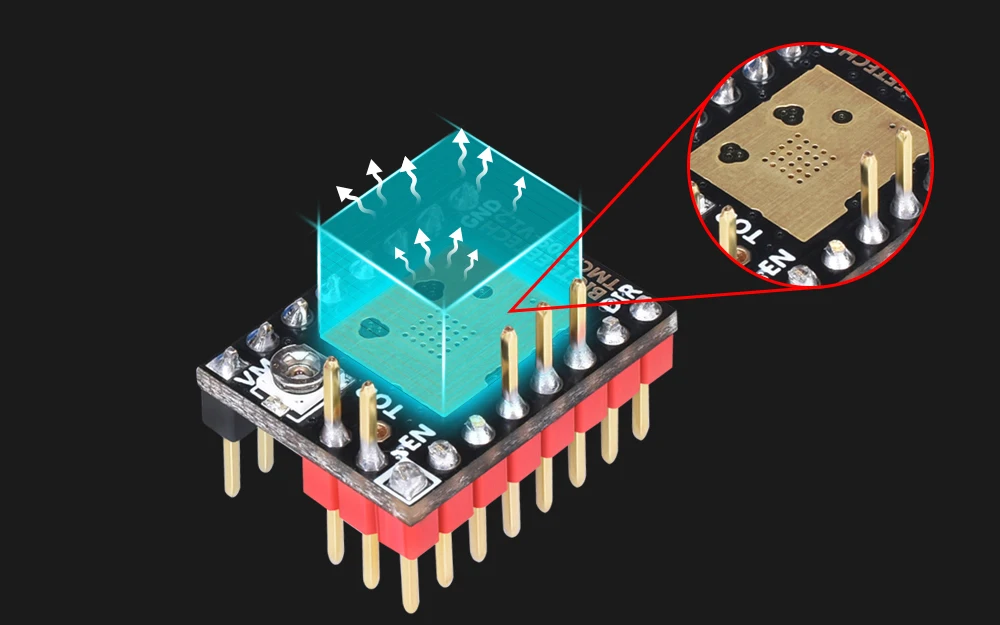

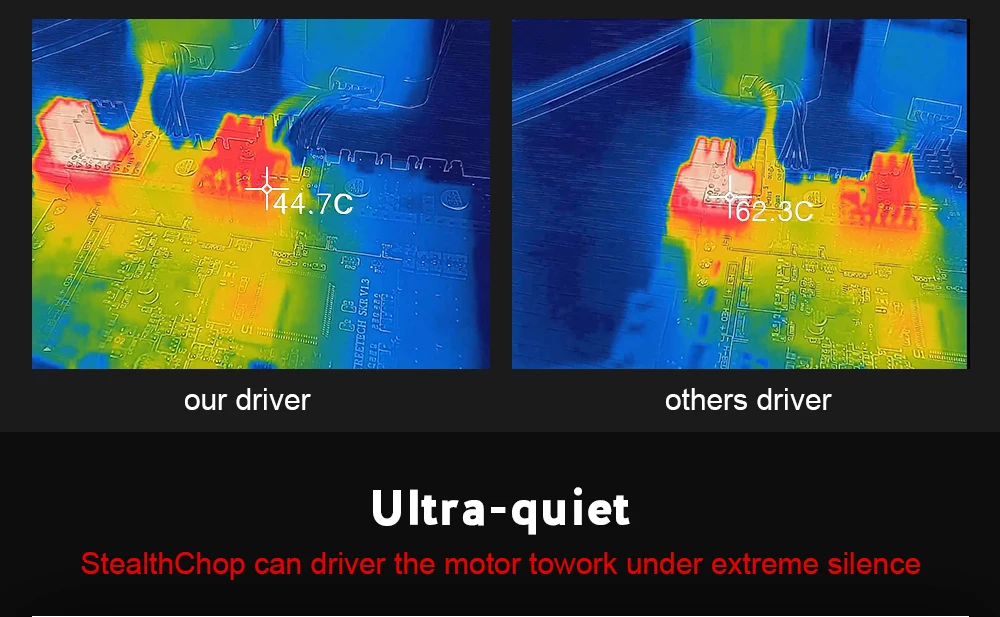

Good heat dissipation

Large heat dissipation area, good heat dissipation effect

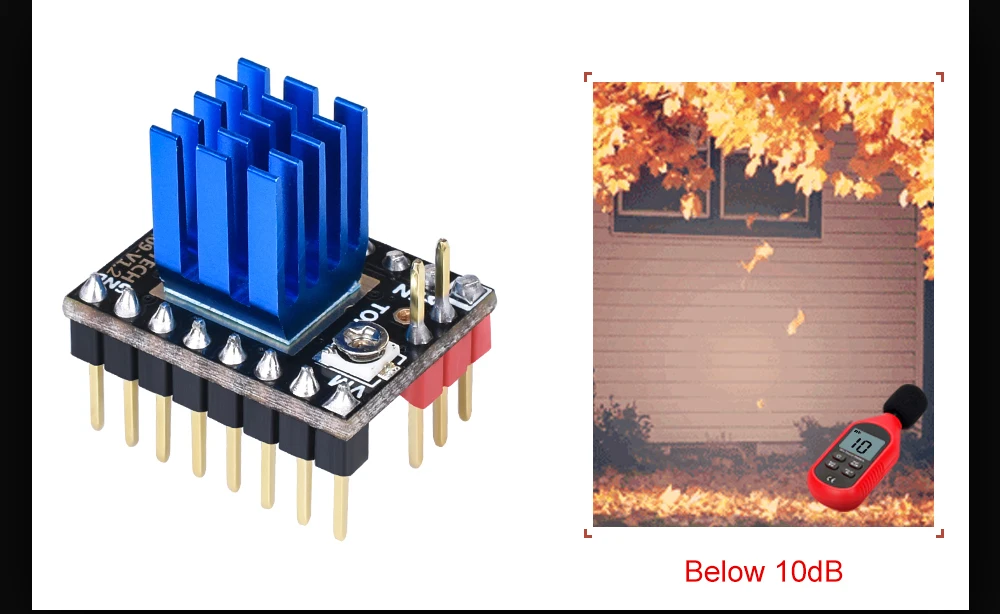

Ultra-quiet

StealthChop can driver the motor towork under extreme silence

Avoid losing steps and jittering

SpreadCycle: The motor controlled by the PWM choppermode operated more smoothly and without Jitter

It can effectively avoid problem such as running deviation losing step and fault caused by the overlode of the chip

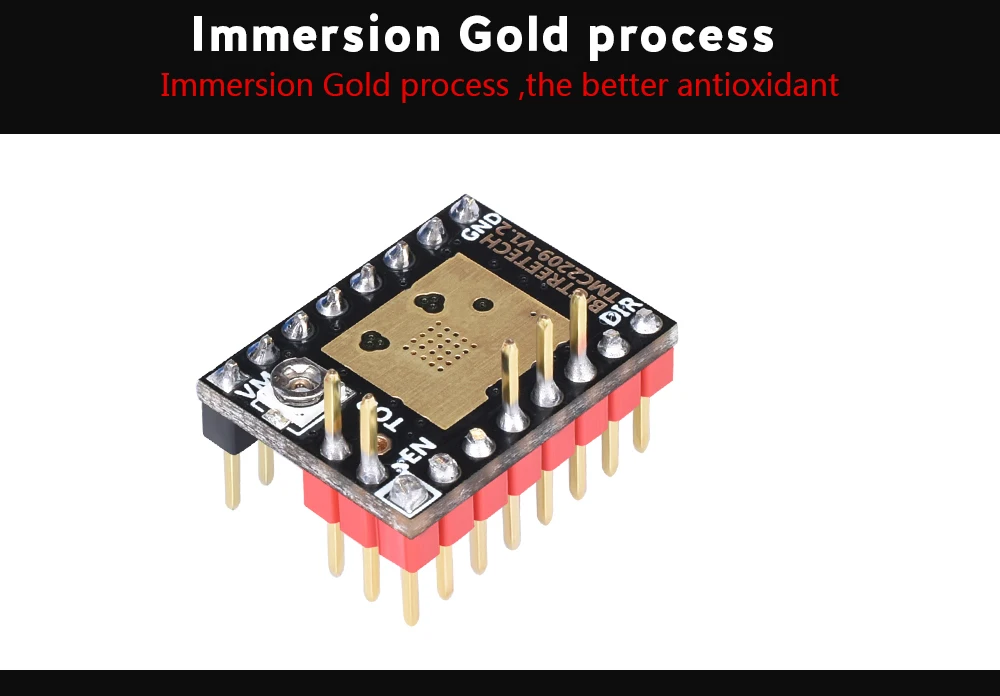

Immersion Gold process

Immersion Gold process ,the better antioxidant

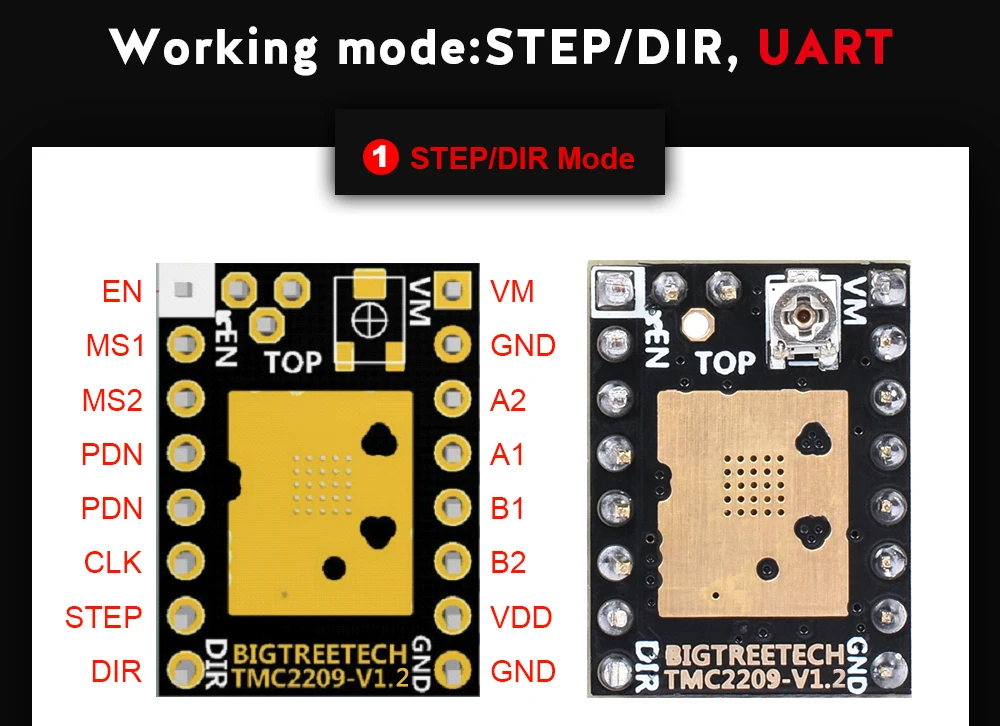

Working mode:STEP/DIR，UART

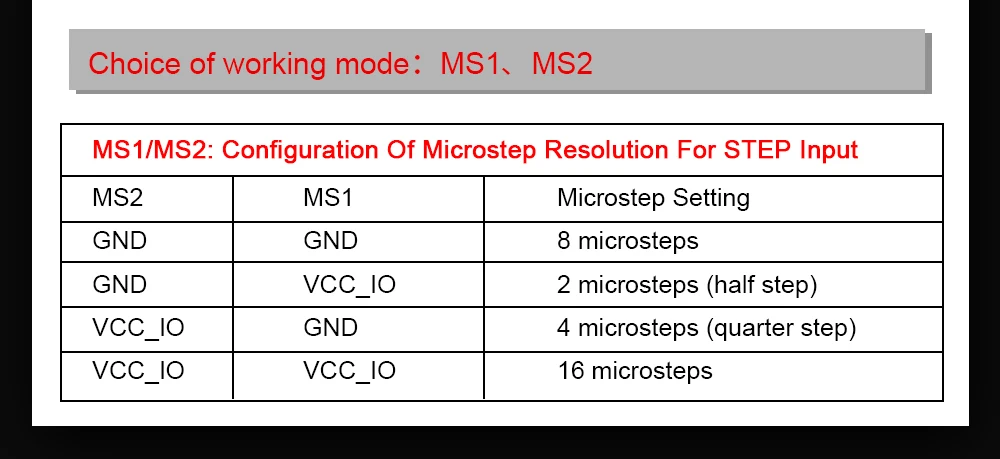

Choice of working mode: MS1、MS2

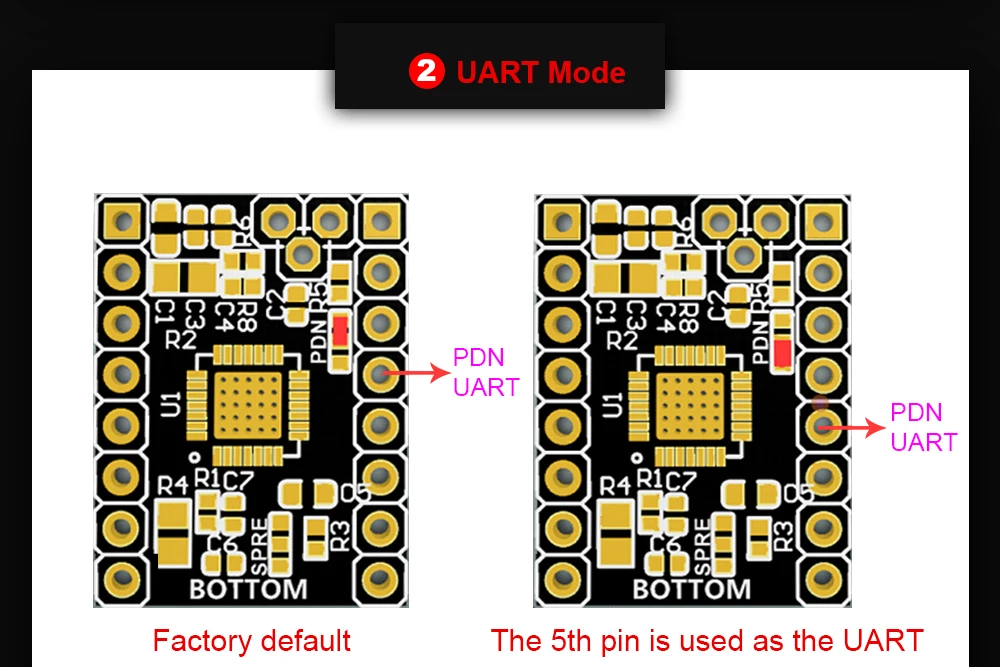

UART Mode

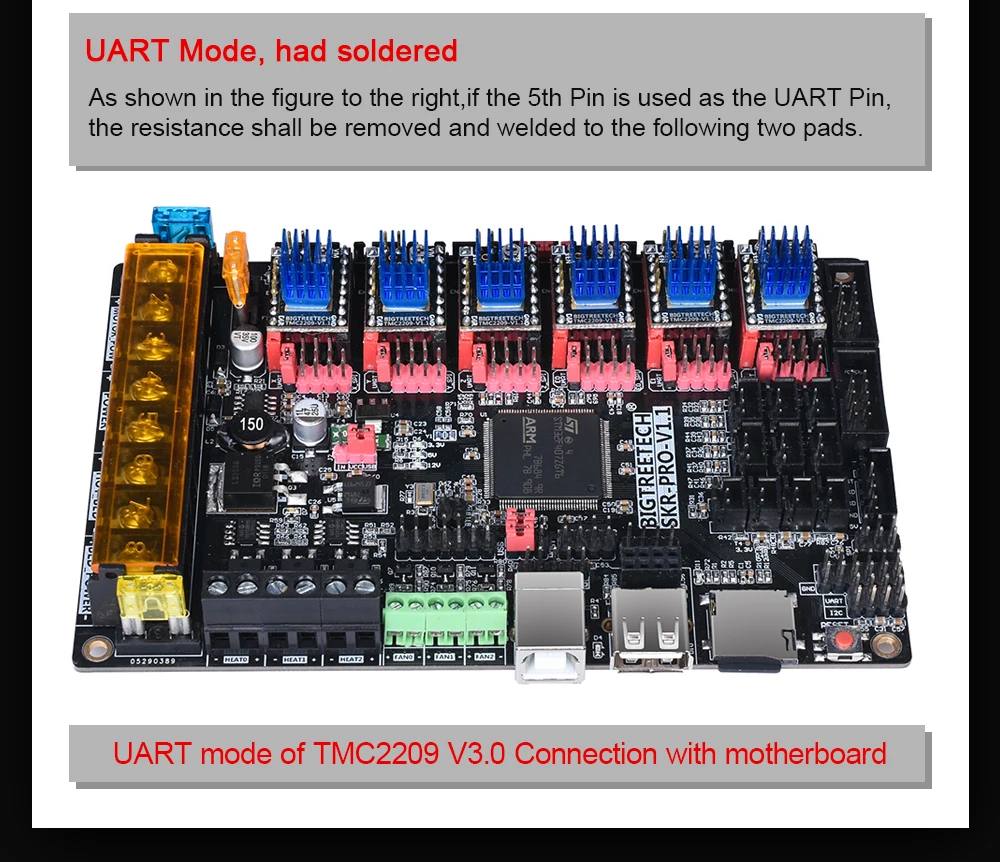

UART Mode, had soldered

As shown in the figure to the right,if the 5th Pin is used as the UART Pinthe resistance shall be removed and welded to the following two pads.

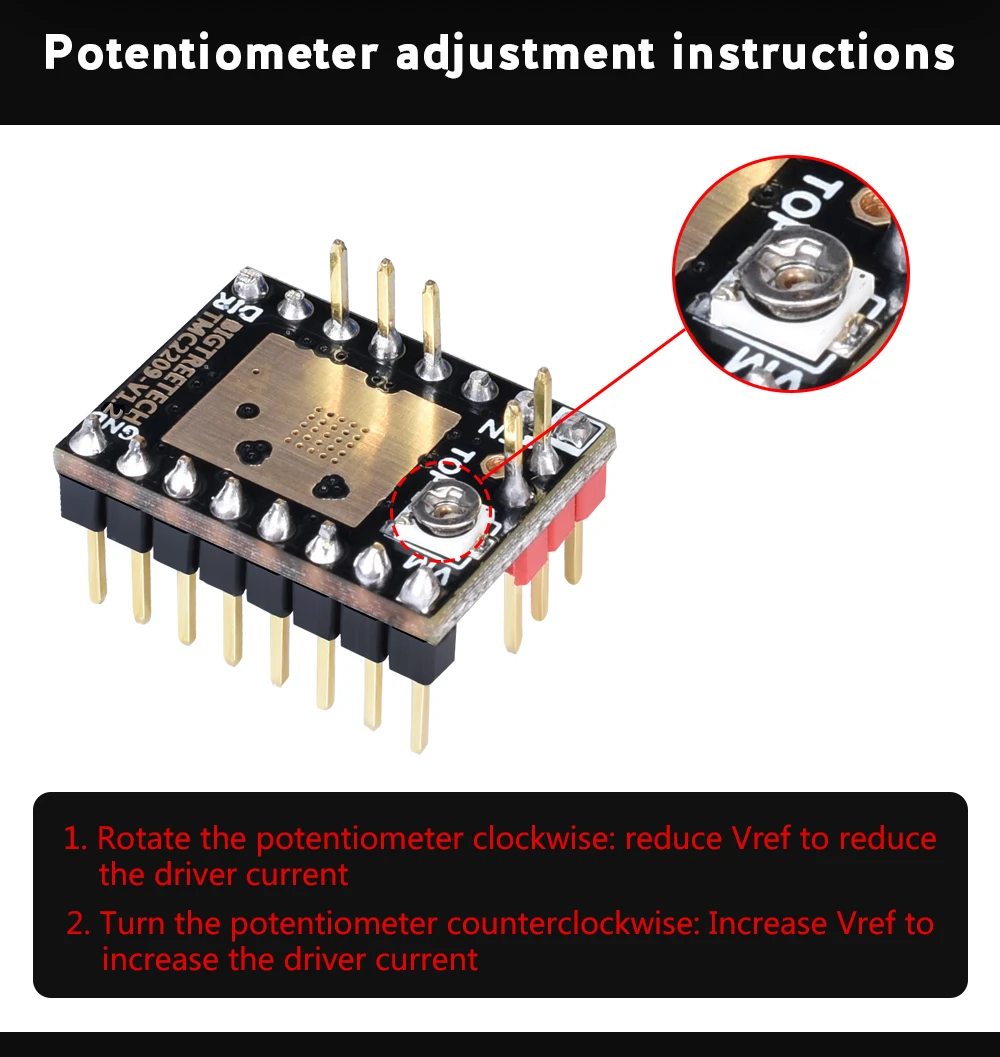

Potentiometer adjustment instructions

1. Rotate the potentiometer clockwise: reduce Vref to reducethe driver current

2. Turn the potentiometer counterclockwise: Increase Vref toincrease the driver current

Note:

1.When the driver is inserted into the motherboard, pleasepay attention to see the direction of the drive, can notbe inserted in reverse, to prevent the drive from burning

2.Be sure to do a good job before driving heat dissipationwork (heat sink + fan), to prevent the drive is notworking properly

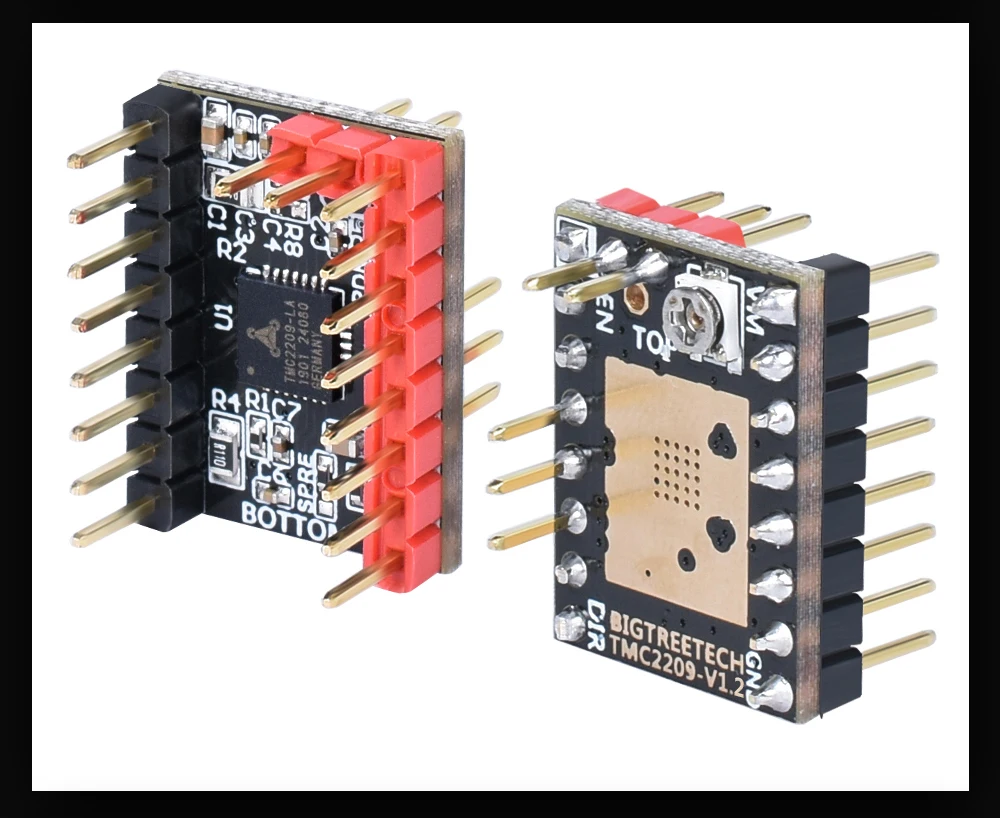

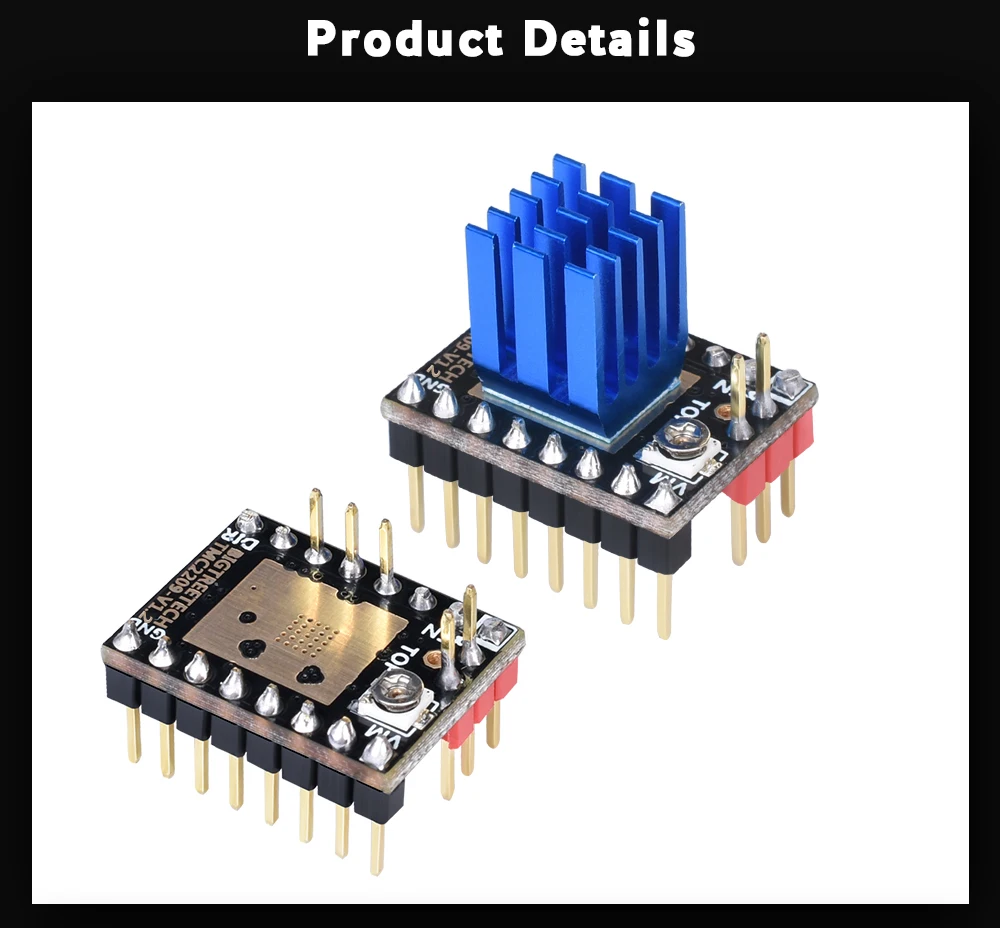

Product Details

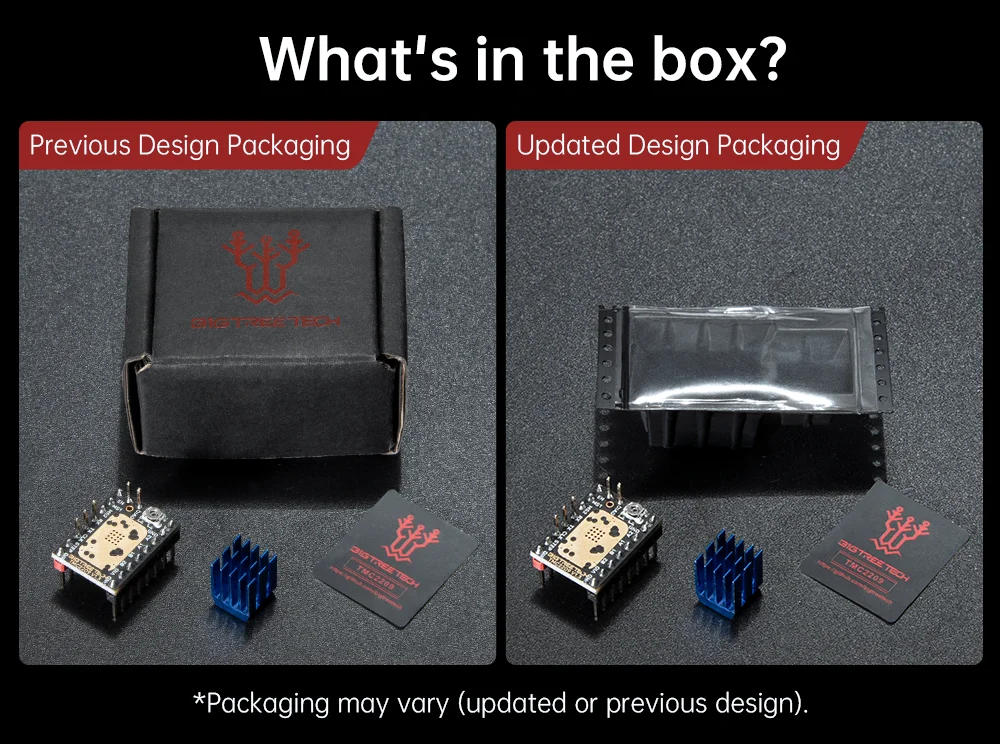

What's in the box?
