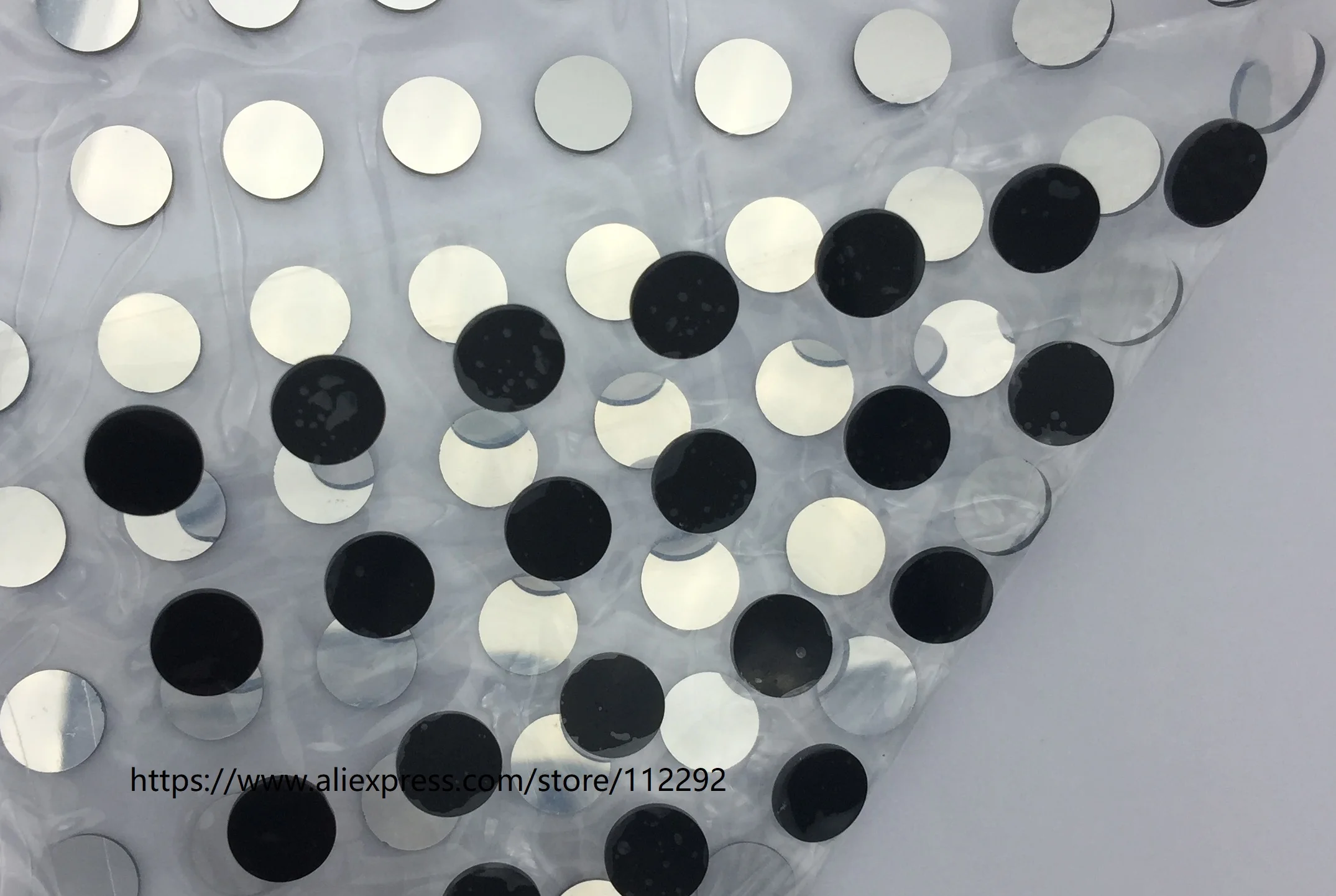

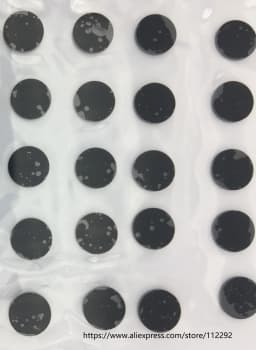

Black 760nm long wave pass filter, infrared pass filter, near infrared imaging of colored optical glass

Our company is a professional manufacturer of lens and optical filter. This product is our own factory design, mold production, good quality, price advantage, quality assurance. All commercial agents are welcome. For details, please contact:

If you have special requirements, you can leave a message with the store!

Note: This product is for special use. If you don't understand it, you can ask the store. If you take a picture, the store will not return it, and you can't make a bad comment.

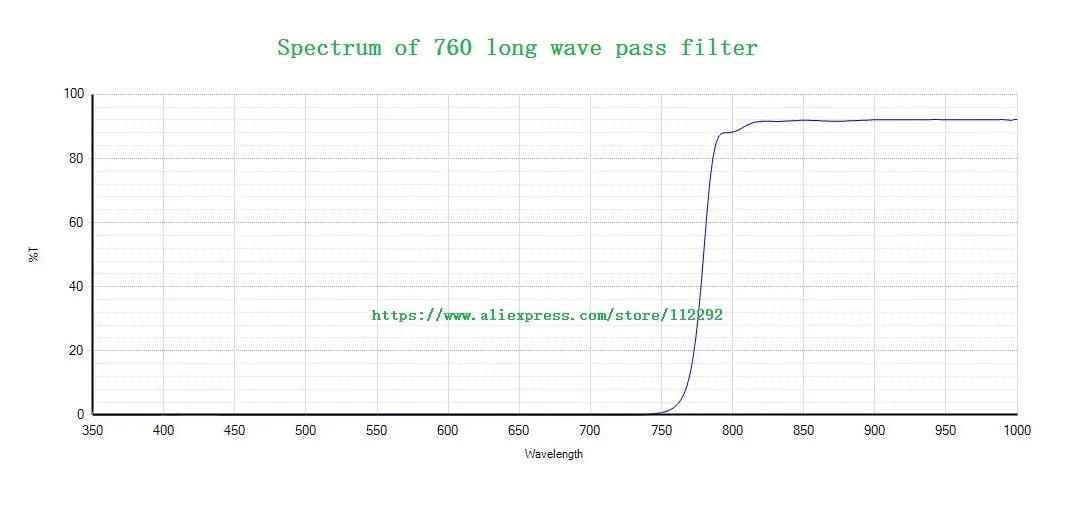

Parameters of black 760 nm infrared long wave pass filter:

Circular: diameter = 6 .0 mm /  8.0mm /  20.0mm

Thickness: 1.1mm

Test wavelength range: 300-1100nm

Transmission wavelength: above 760 nm (imaging part spectrum)

Peak transmittance: > 92%

Cut off wavelength: below 700 (imaging part spectrum)

Cut off depth: < 0.2%

Color and material: black glass coating

Friendly reminder:

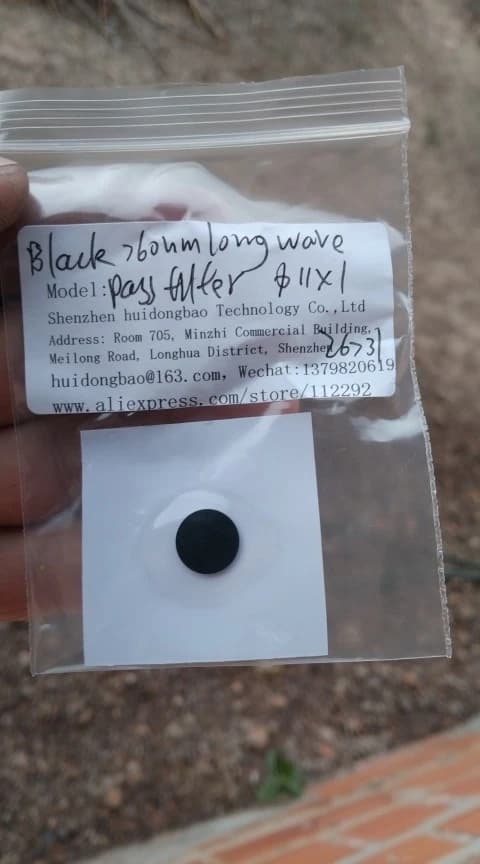

This 760 long wave pass, which means passing through 760nm or above, is available in stock with a diameter of 6mm (without anti reflection), 8mm diameter with anti reflection, and 11mm diameter without anti reflection
