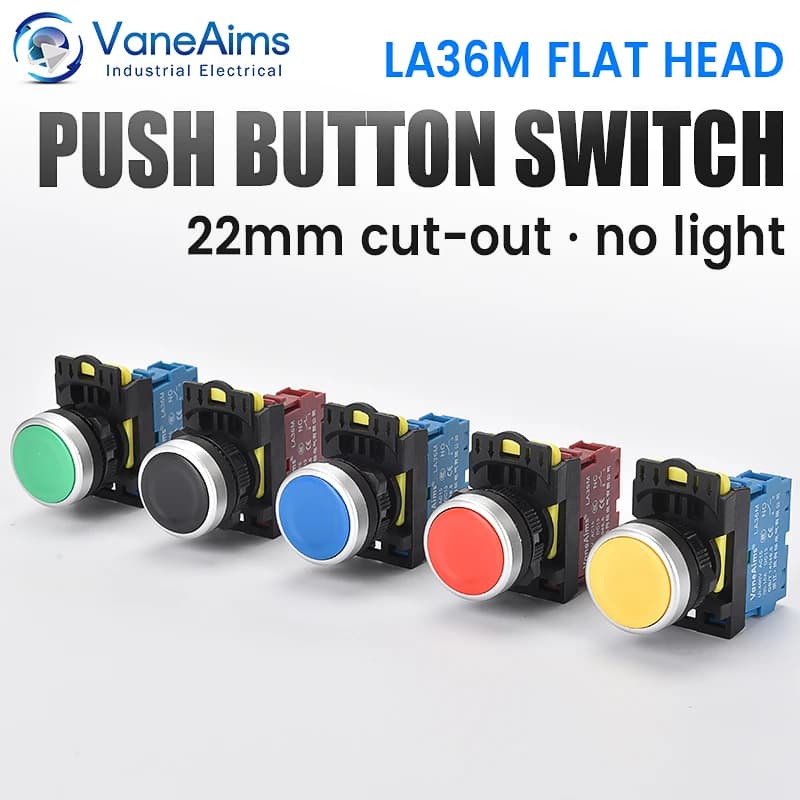

22mm LA36M Push Button Switch Momentary Reset Self Locking Power Button Switch Red Green Blue Yellow Black 12V 24V 220V 10A

22mm LA36M Push Button Switch Momentary Reset Self Locking Power Button Switch Red Green Blue Yellow Black 12V 24V 220V 10A

Product Specification

Product name: Push Button Switch without led light

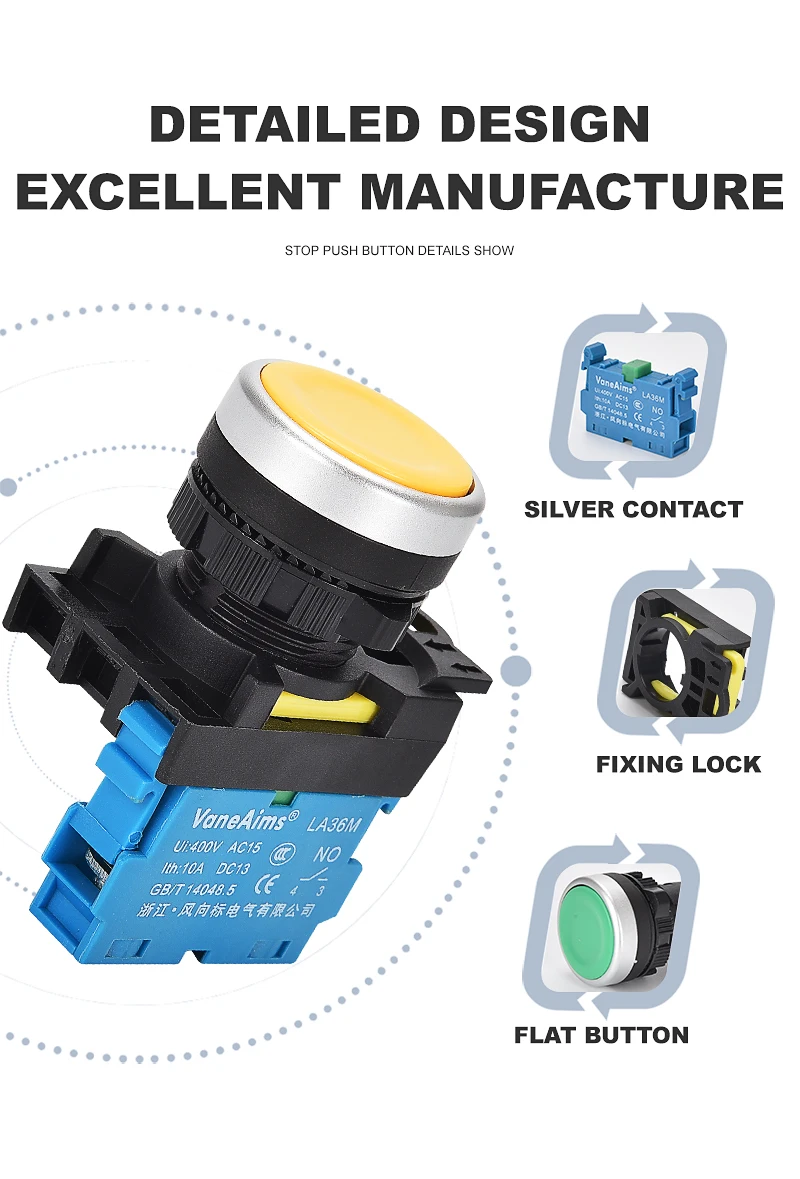

Contact material: Silver contact

Rated Voltage: 400V

Rated current: 10A

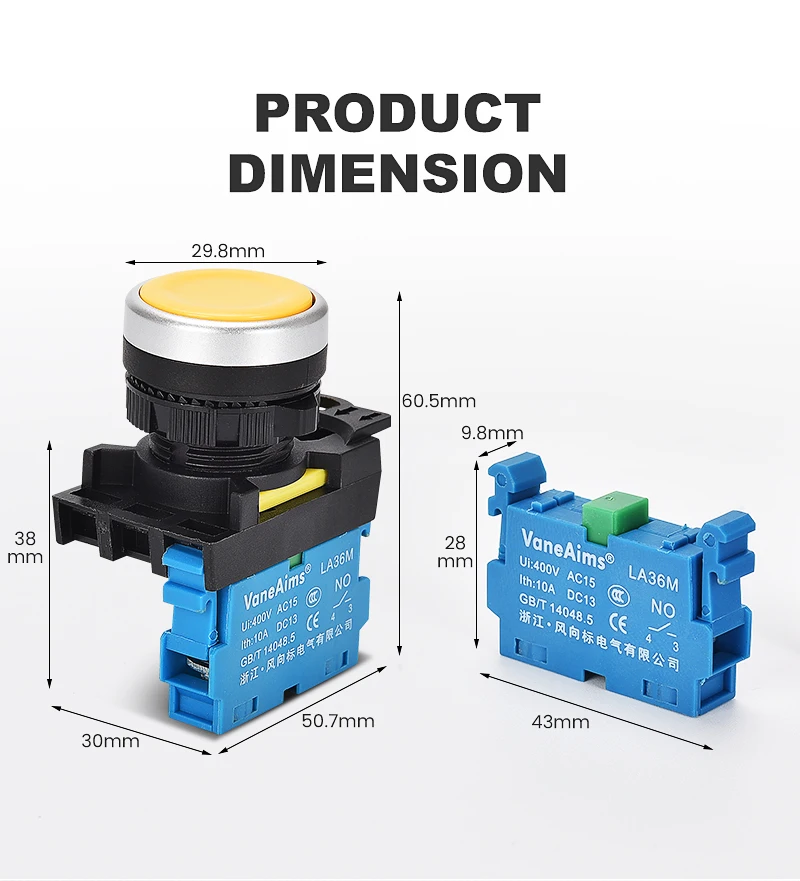

Opening diameter: 22MM

Button contact: 1NO/1NC

Operation mode: Momentary self-reset / fixed self-locking

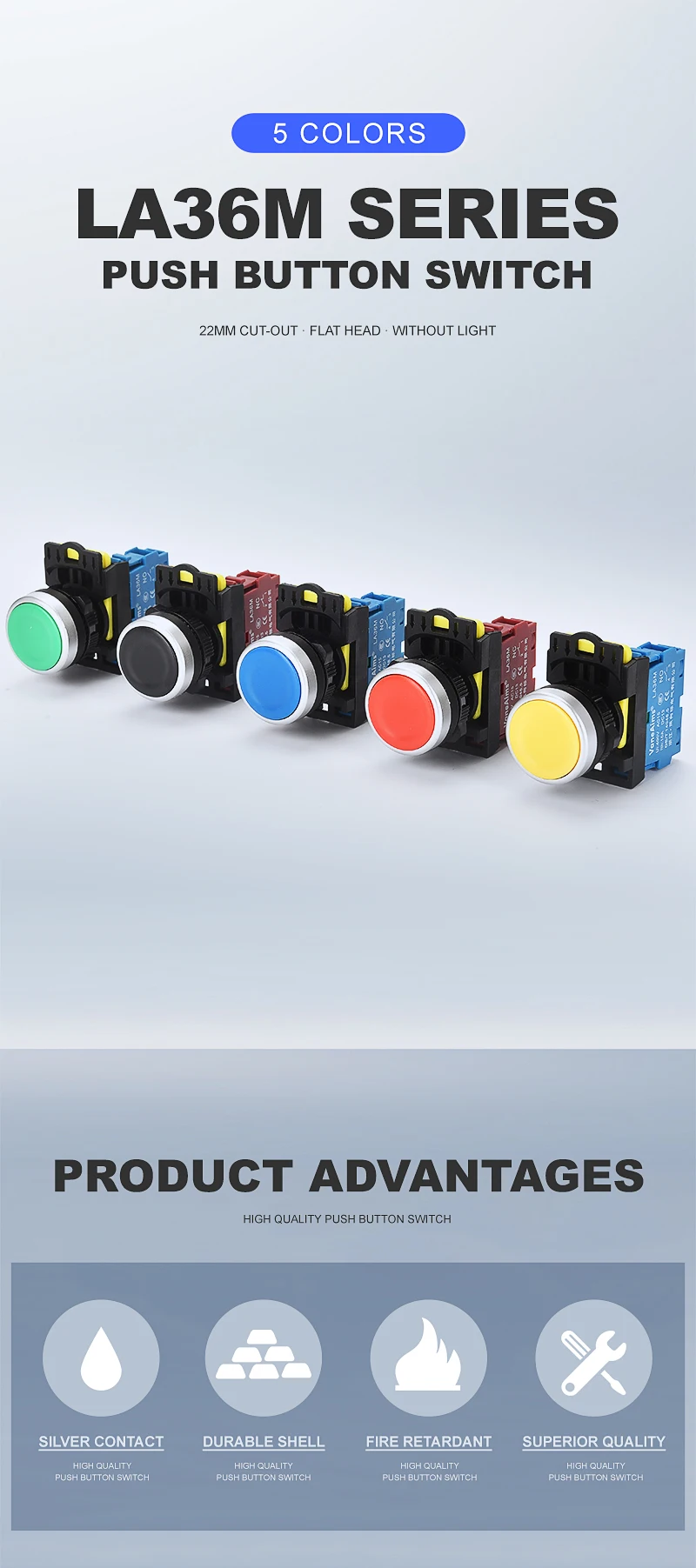

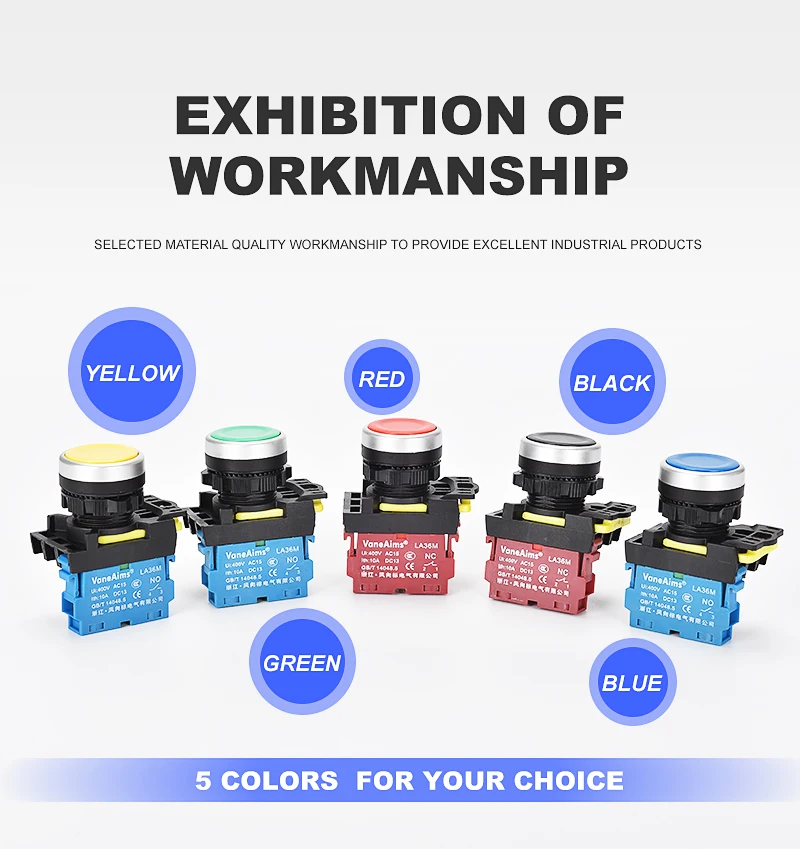

Button color: Red Yellow Blue Green Black

Product model: LA36M

Voltage Available: 12V,24V,220V,110V,380V

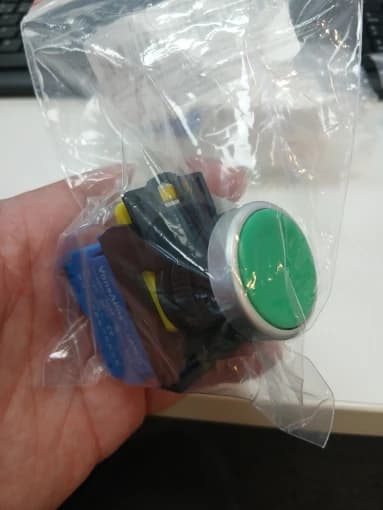

Package Content

1pcs Push Button Switch without Light

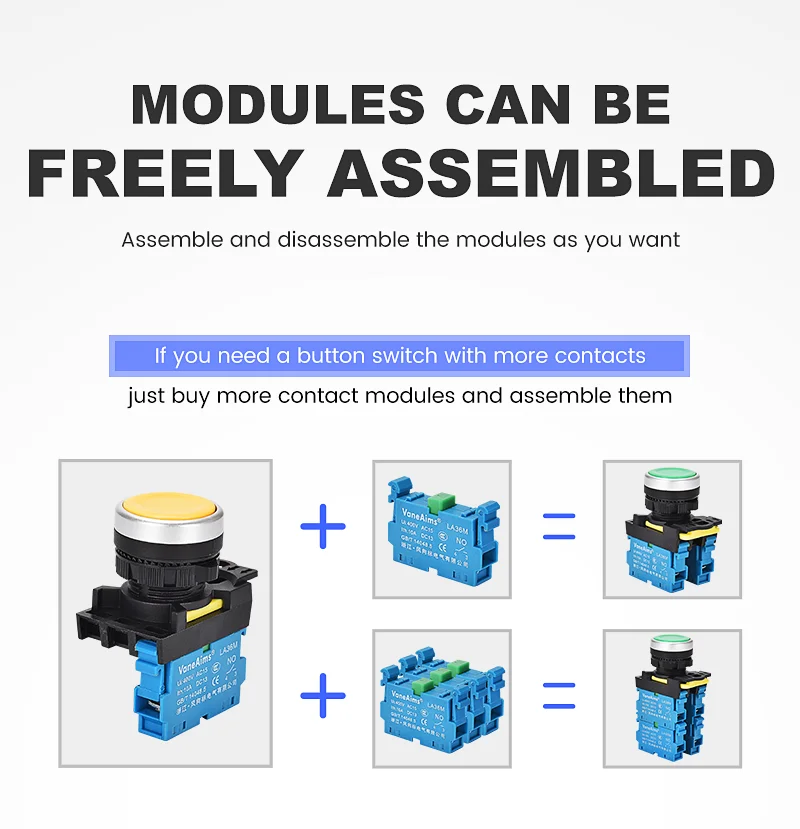

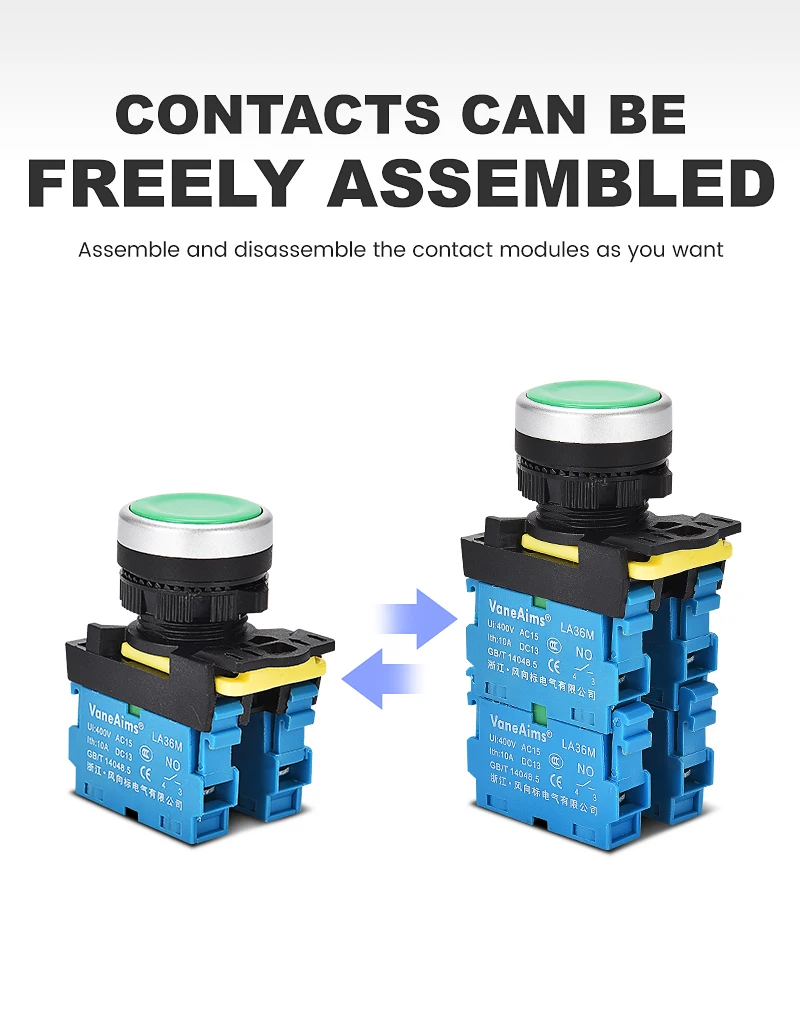

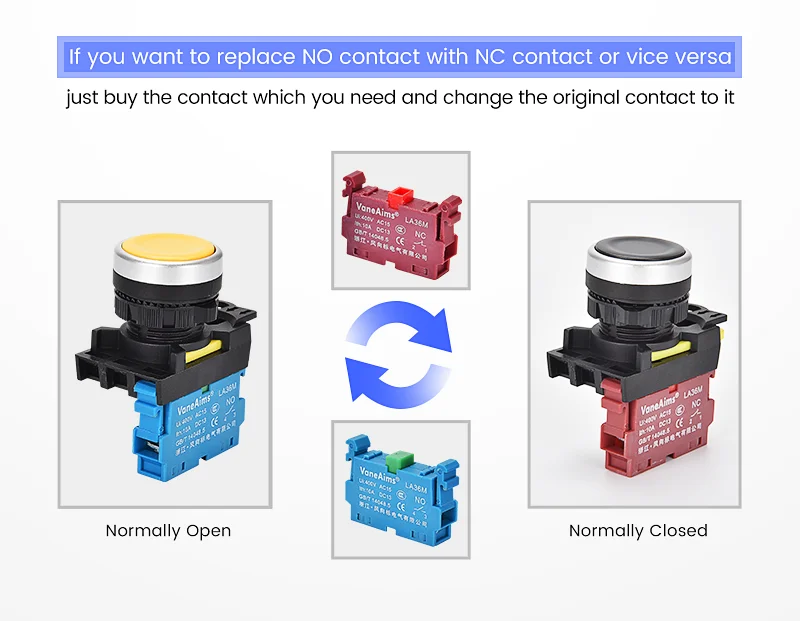

Contact modular combination

NO(normally open) and NC(normally closed ) contact can replace and add at any time. It can hold 1-4 pcs Contact modules at most.

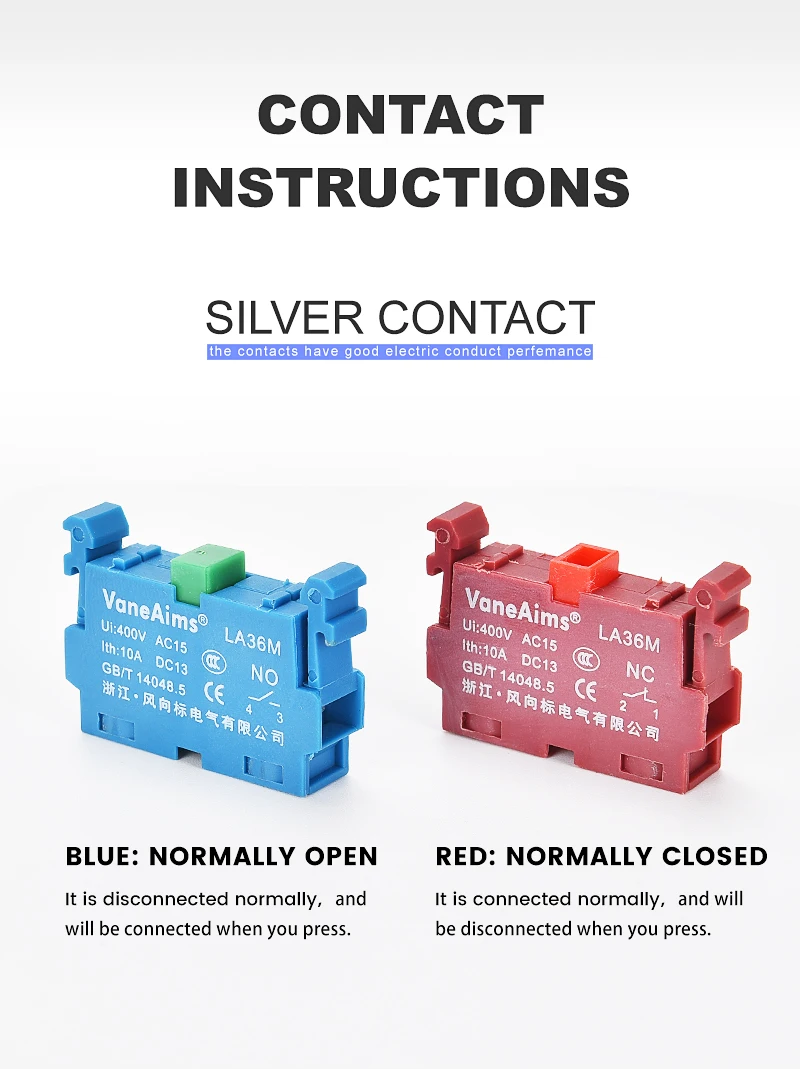

NO(Normally open contact): Normally in off state, press to power on.

NC(Normally closed contact): Normally in on state, press to power off.

Difference between Momentary button and Self-locking button:

For example, button with 1NO contact:

1. Momentary button: press this button to turn on the power;

Release your hand, the button will self reset, and power will turn off automatically.

2. Self-locking button: press this button into locking state and turn on the power, release your hand, the button is still in fixation;

Press the button again to turn off the power.
