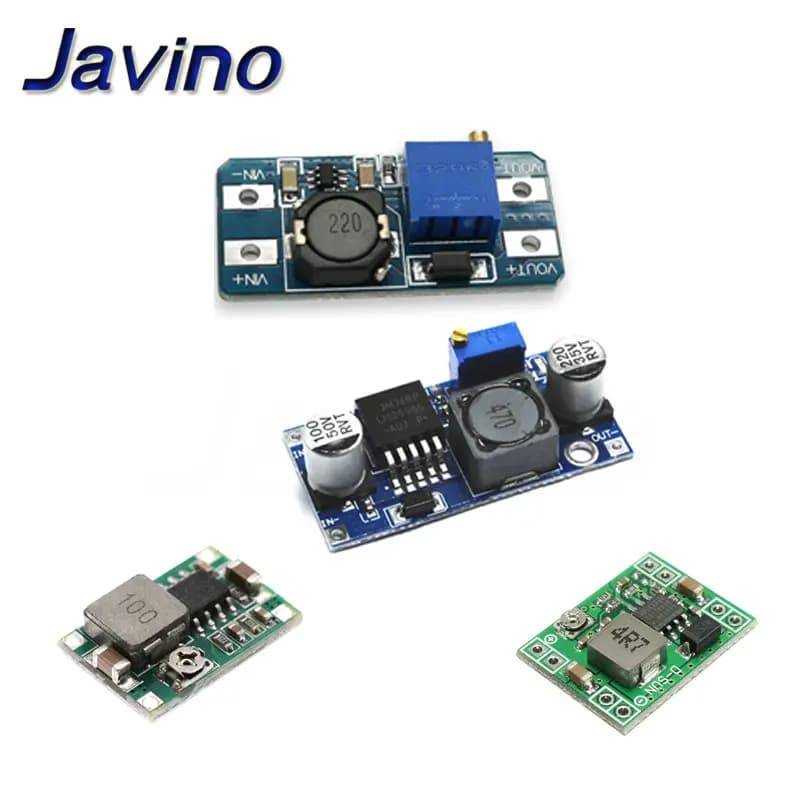

1-10Pcs DC-DC Voltage stabilized power supply module Adjustable boost& buck voltage regulator module LM2596S-ADJ MT3608 MP1584EN

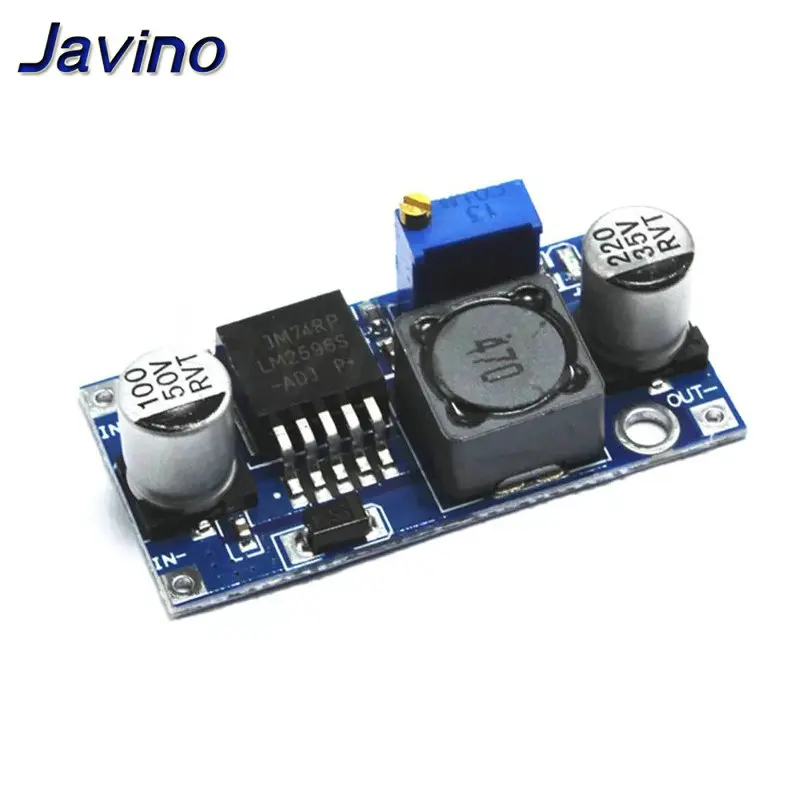

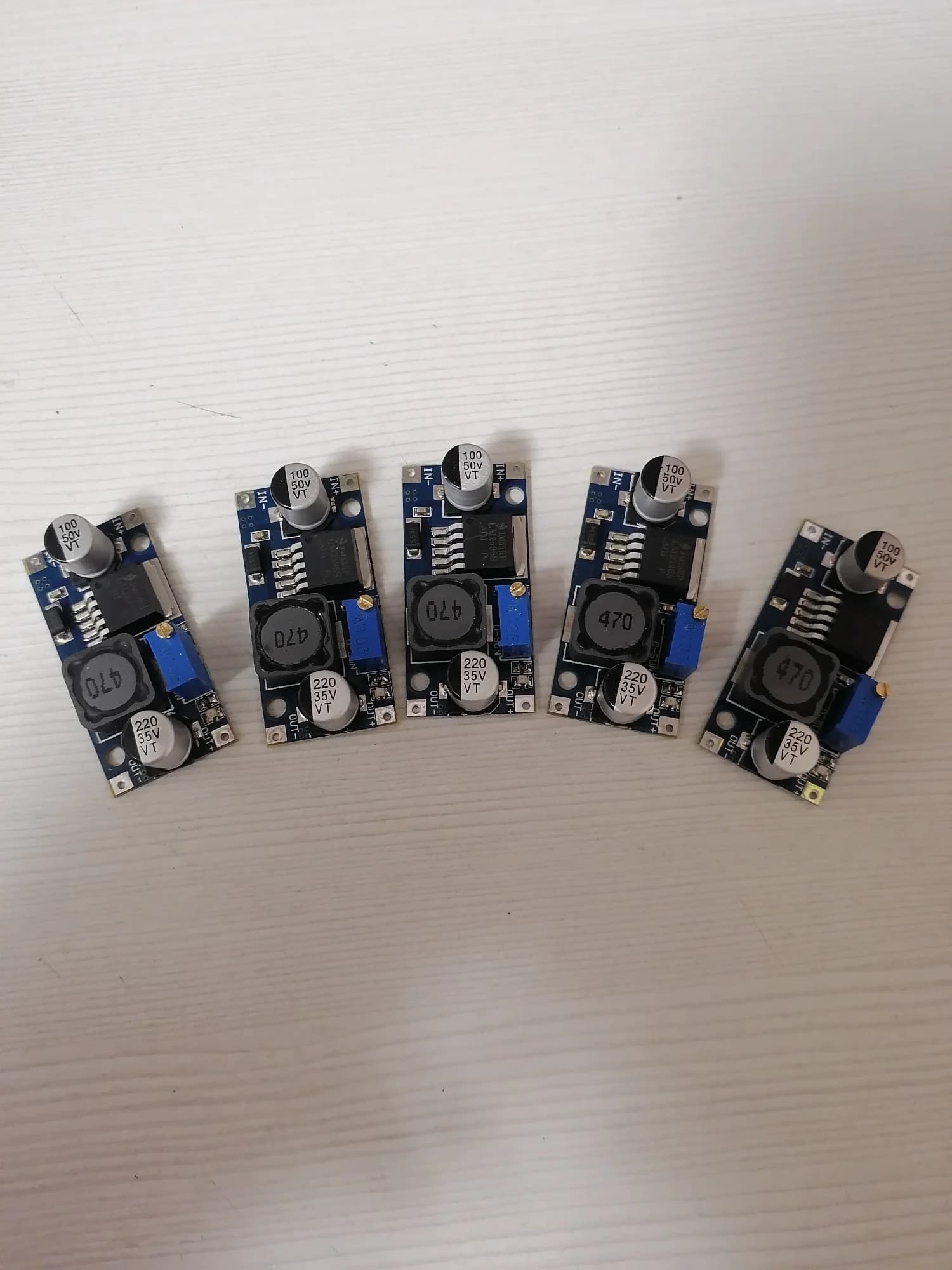

Name : LM2596 DC-DC Buck module

Input voltage :4V ~ 35V

The output voltage : 1.23V ~ 30V

Output Current :3A( Max)

Conversion efficiency:92%( MAX )

Output ripple: <30mV

Switching frequency: 150KHz

Working temperature: -forty Five~ +85

Size :43mm * 21mm * 14mm(Long*Width*Hight)

Features:

1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable,high efficiency (92%) largest maximum output current is 3A.

Instructions:

1. Power (3-40V),power indicator light,the module is working properly.

2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

Note:

  Current work long hours is recommended for use in less than 2.5A,while adding bulkHeat sink (10W output above),because it is the step-down module,in order to ensure stable output Set,please keep the minimum 1.5V differential.

LM2596S DC-DC 3.6-46V 3A adjustable step-down power Supply module With reverse connection protection 5V voltage regulator

LM2596S upgrade!Increase the input with reverse connection protection,plus or minus the reverse would not burn module,strengthen the quality of the inductance,increase the service life of the product!

Using the tutorial:

1. Plugged into a power supply (3-40 v),the power indicator light is lit,the module to work properly.

2. Adjust the blue potentiometer knob (generally booster clockwise,counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

MT3608

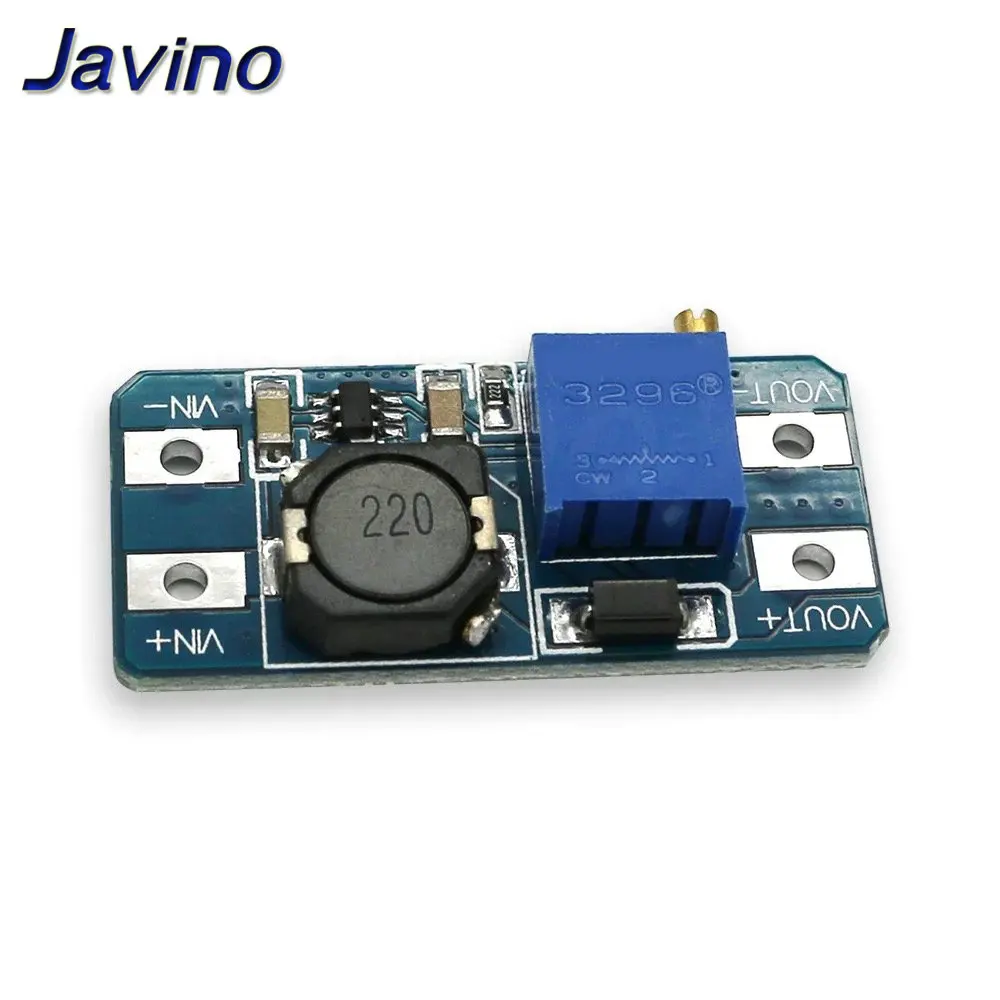

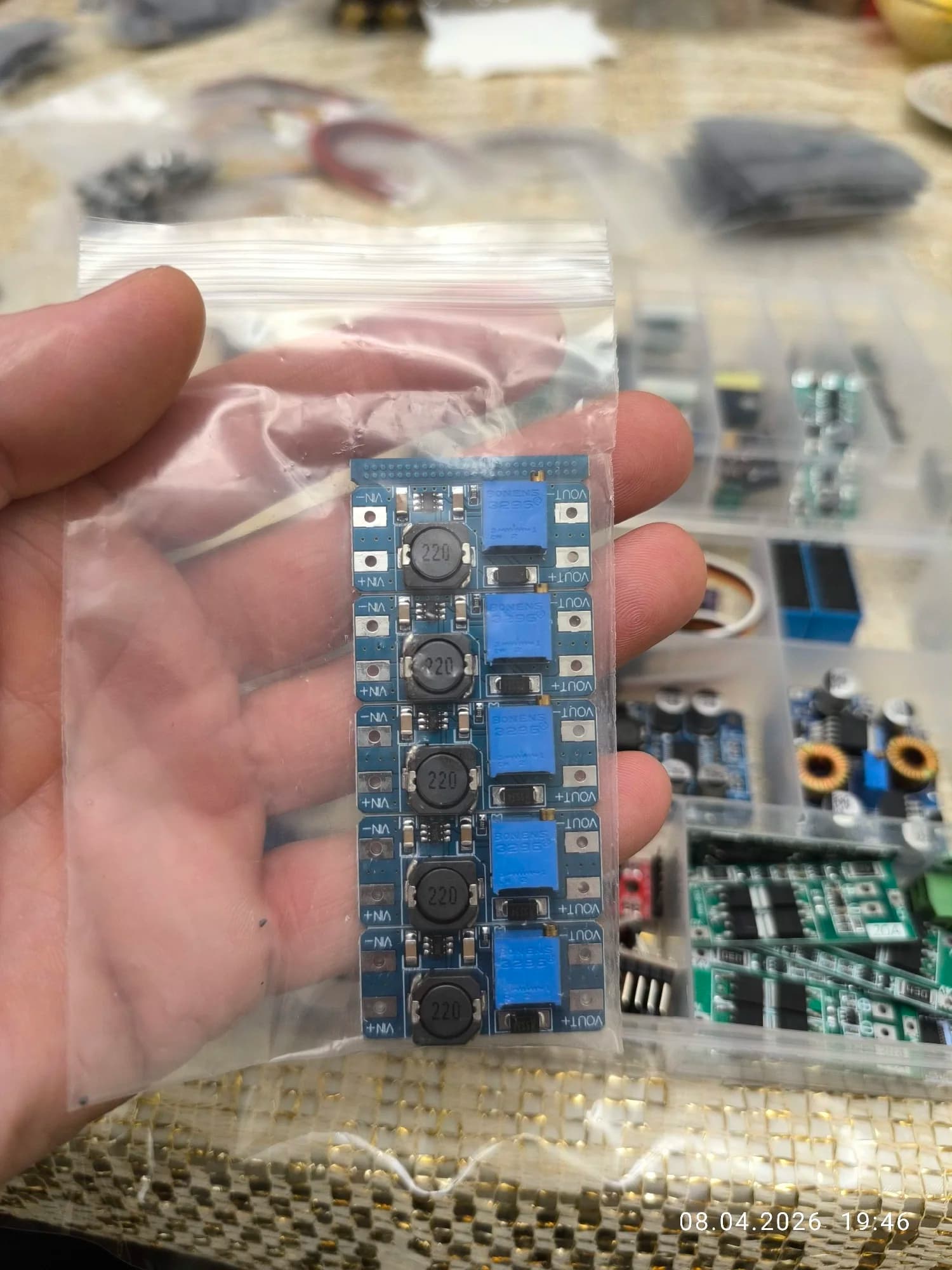

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module

Electrical Characteristics:

1. The Maximum Output Current: 2A.

2. The Input Voltage: 2V ~ 24V.

3. The Maximum Output Voltage: 28V.

4. Efficiency: Max 93%.

Mechanical Properties:

Product Size: 36 mm * 17 mm * 14 mm.

Method Of Use:

The module of the IN+ and - after 2~24v,IN adjusting the potentiometer can adjust output voltage,output voltage is greater than the input voltage.

Matters Needing Attention:

1. The input voltage should not exceed the maximum input voltage.

2. The peak current output current is no more than TV university.

When the module output voltage can not be adjusted,the output  voltage is always equal to the input voltage.Please adjust the potentiometer counterclockwise 20 laps or more. (Let potentiometer against your chest,counterclockwise turn boost)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

MP1584EN

Application

          DIY mobile power,monitor power supply,power buggies,camera power supply,car power,communications equipment supply,various right size and weight for demanding applications (such as aviation models,etc.).

1. Model Name:   Ultra-small DC-DC step-down module

2. Input voltage:  4.5-28V

3. Output Voltage:  0.8-20V

4. Output current:  rated current 3A(MAX).

5. Switching Frequency:  1.5MHz (highest),typical 1MHz

6. Output Ripple:  < 30mV

7. Efficiency:  96% (max)

8. Operating temperature:  -40 Celsius to +85 Celsius

9. Size:  22mm*17mm*4mm

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

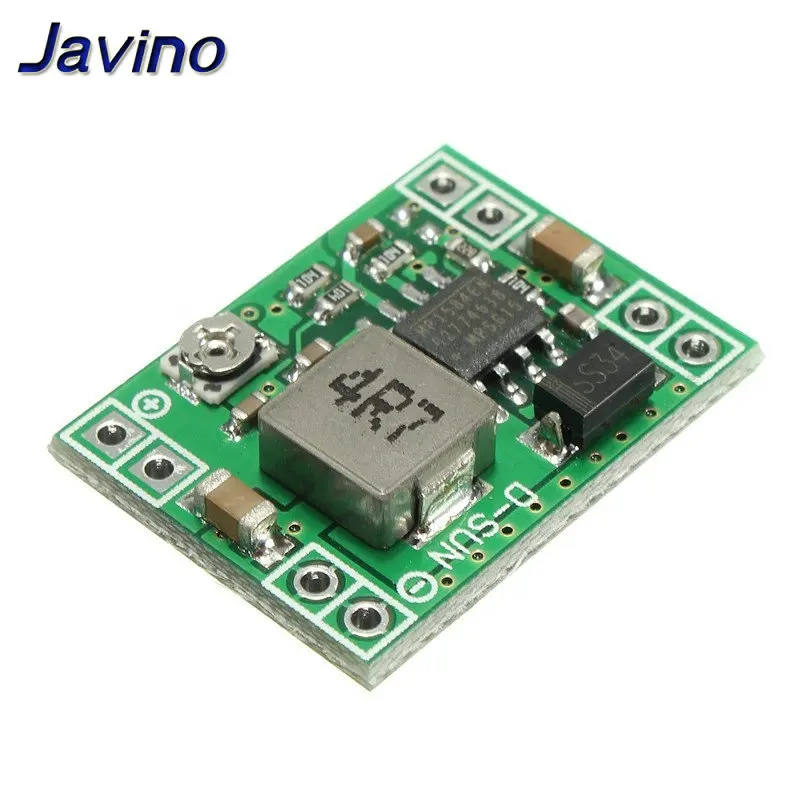

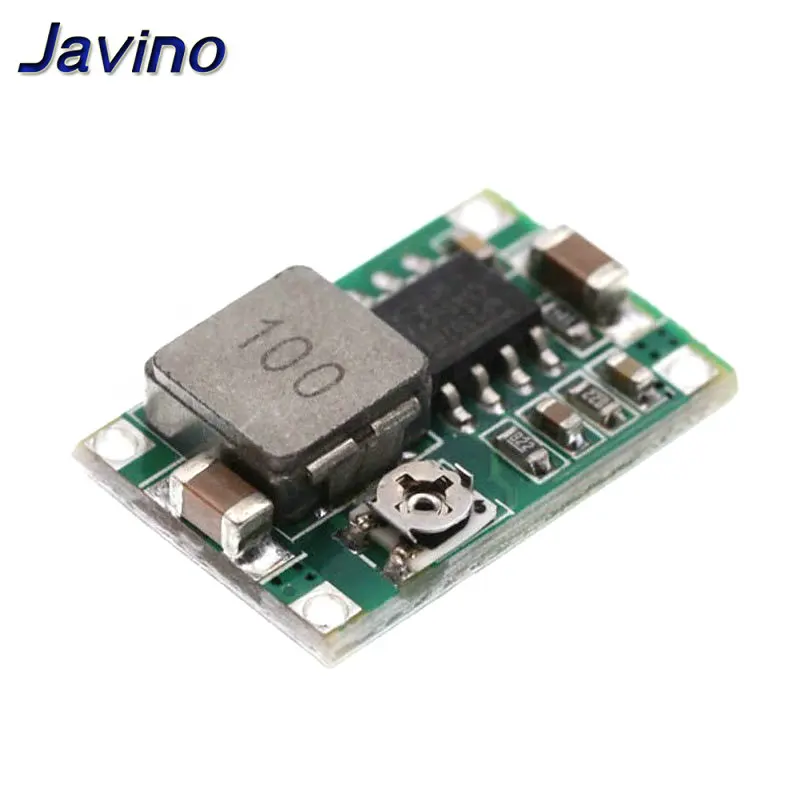

MP2307DN(MINI360)

Description

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module

Module Properties: non-isolated buck

Rectification: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1.0V-17V

Output Current: lowering the value of 3A,long 1.8A

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Working temperature: -40 Centigrade to +85 Centigrade

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Features: Use integrally molded power inductor and synchronous rectifier control chip,smaller and more efficient.

Package Include:

1 pcs Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module
