Smar CCTV 9CH 10CH 16CH 32CH 4K NVR Motherboard H.265+Network Video Recorder For 5MP 8MP IP Camera Support Face Detection ONVIF

ONVIF Compatibility Notice:

This NVR/Device supports standard ONVIF and NETIP protocols. While ONVIF enables basic cross-brand connection, full feature compatibility depends on your existing system.
Important Checkpoints Before Buying:
ONVIF Support Required: Please ensure your existing IP Camera / NVR explicitly supports the ONVIF protocol. (Non-ONVIF devices cannot connect).
Feature Compatibility: Basic video stream and continuous recording are widely supported.Advanced features (e.g., Motion Detection, PTZ, Audio) depend on the underlying chip solution.
✅ XMEye / ICSee Users (Quick Purchase):
If your cameras or system currently use XMEye or iCSee Apps, our mainstream NVRs are 100% fully compatible via proprietary NETIP protocol. You can order directly with confidence!

💡 Need help verifying other protocols?

If you use other Apps (e.g., Seetong, Danale, Tuya, CamHi, etc.) or unknown brands, please send us a screenshot of your mobile App icon or device model via message. Our technical team will verify compatibility for you within 24 hours!

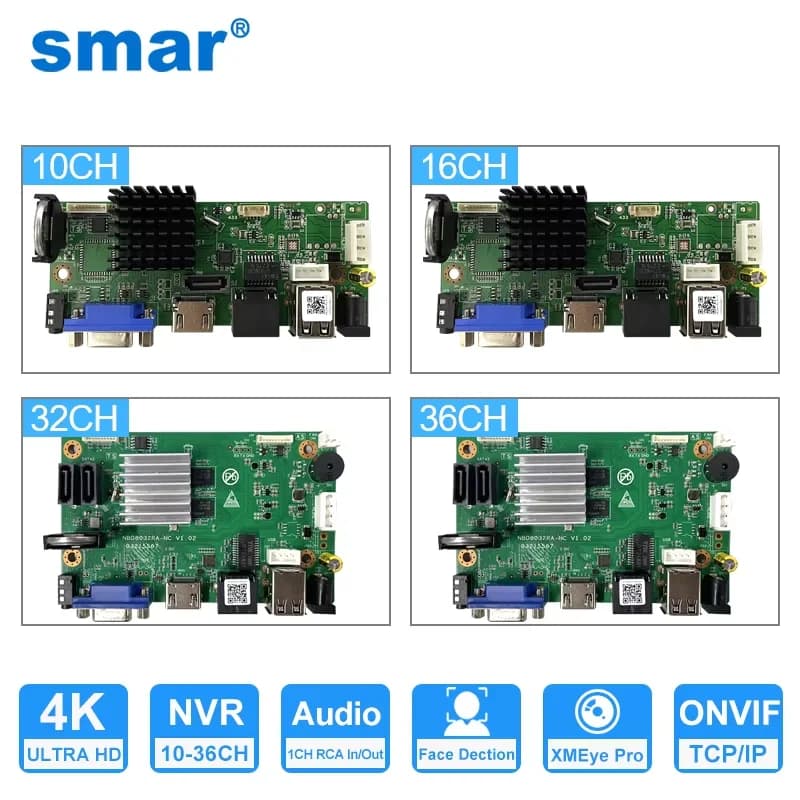

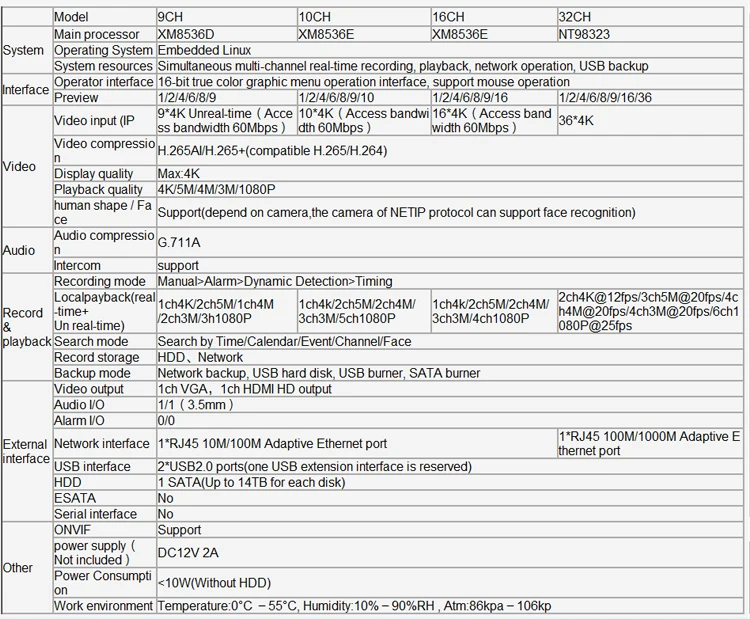

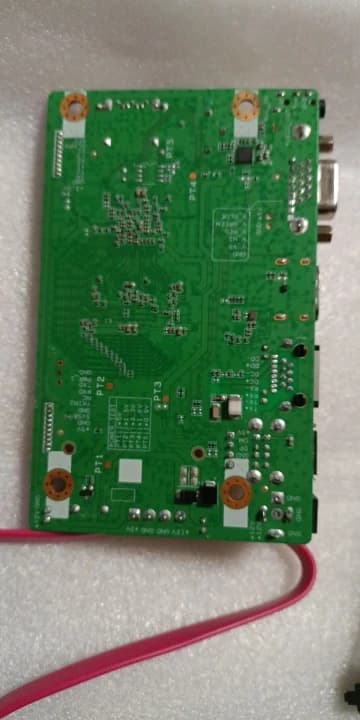

The difference of three Motherboards:

1.This link include 9CH ,10CH, 16CH and 32CH optional, The corresponding products are as follows:
2. 9CH/10CH/16CH are XM8536E Chip; They are all don't support Wifi Adater,
32CH is NT98323 Chip，Only has 32CH Support Wifi adapter,and the Model of wifi adapte is:7601

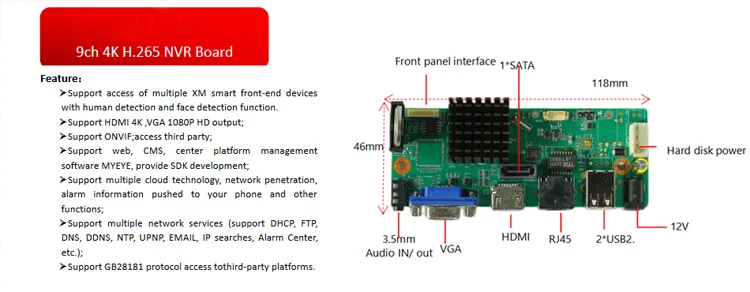

9CH Board of NVR

1. 9CH is XM Chip;
2. Max support 9*4K(8MP) IP Camera
3. Don't support Wifi Adapter;
4. 9CH(XM) Board Max Support 1920x1080P Display

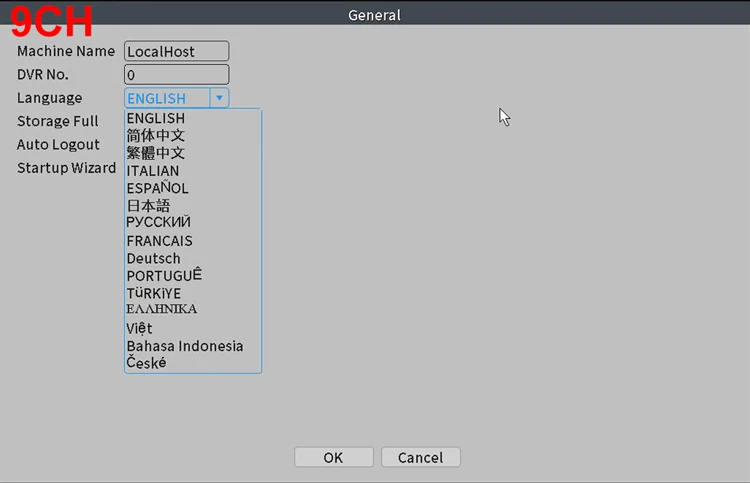

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

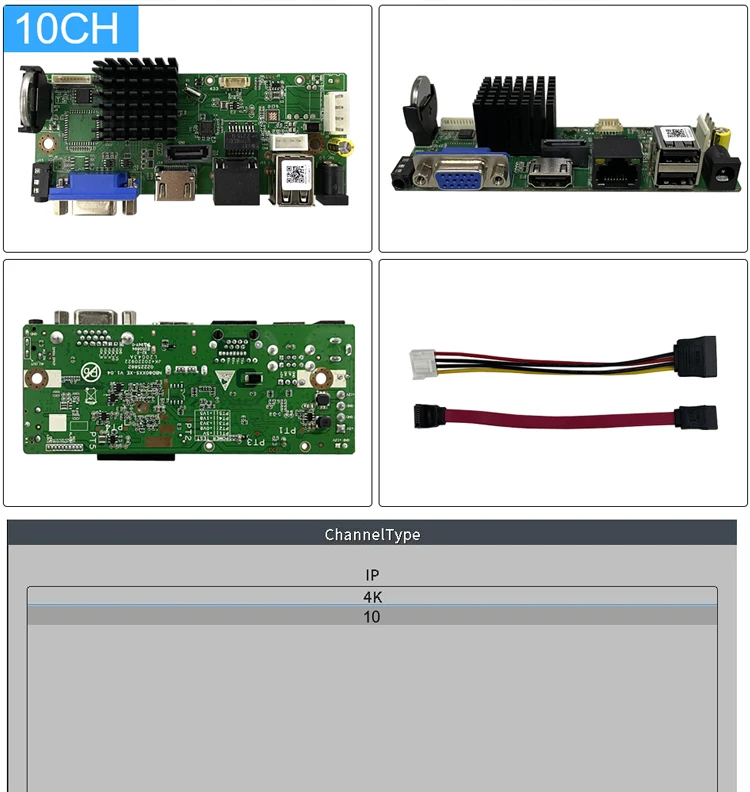

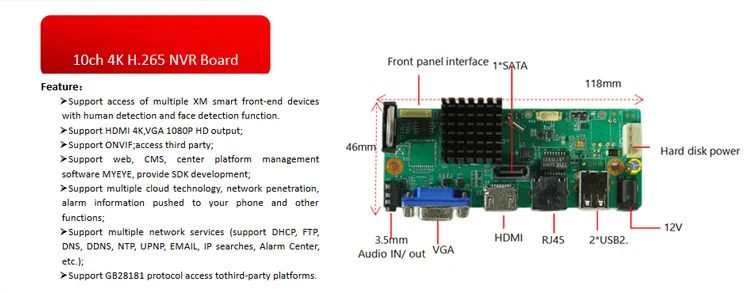

10CH Board of NVR

1.10CH is NT9832X Chip;
2. Max support 10*4K(8MP) IP Camera
3. Don't Support Wifi Adapter
4.10CH is NT9832X Board Max Support the 4K Display

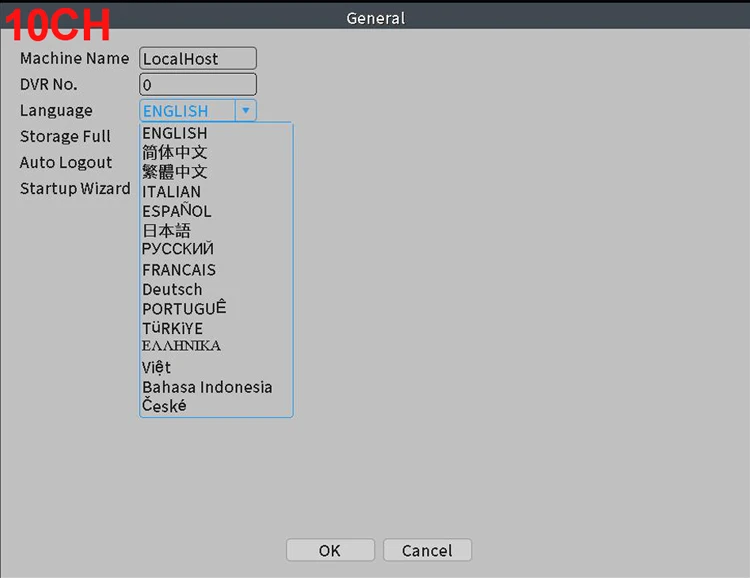

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

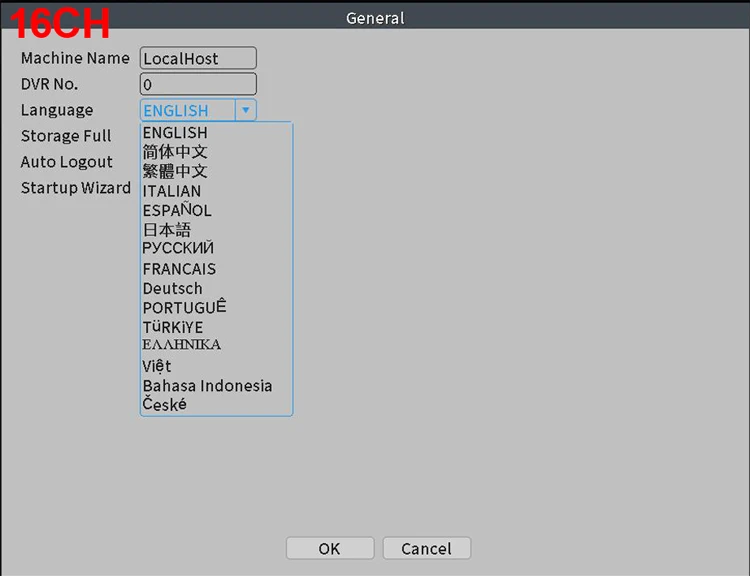

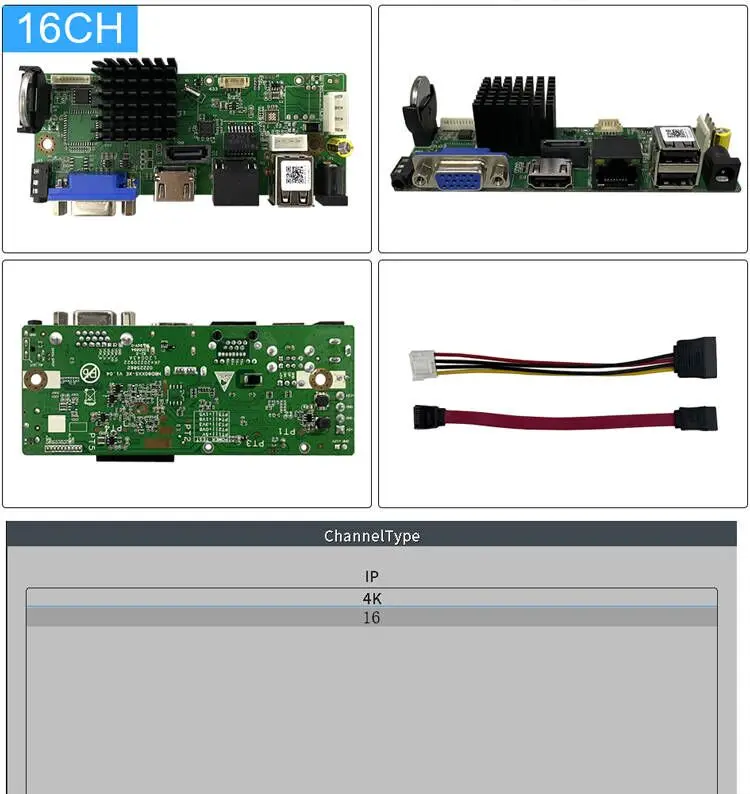

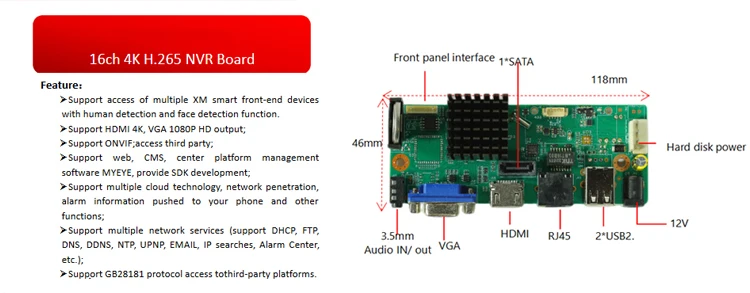

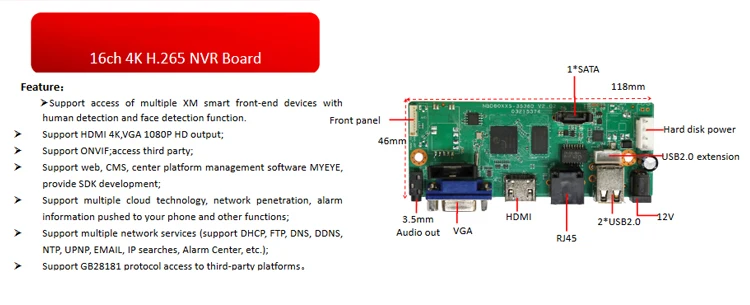

16CH Board of NVR

1. 16CH is XM8536E Chip;
2. Max support 16*4K(8MP) IP Camera
3. Don't support WiFi Adapter
4. 16CH(XM8536E) Board Max Support the 4K Display
5.
English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Greek, Vietnamese,Indonesian, Czech

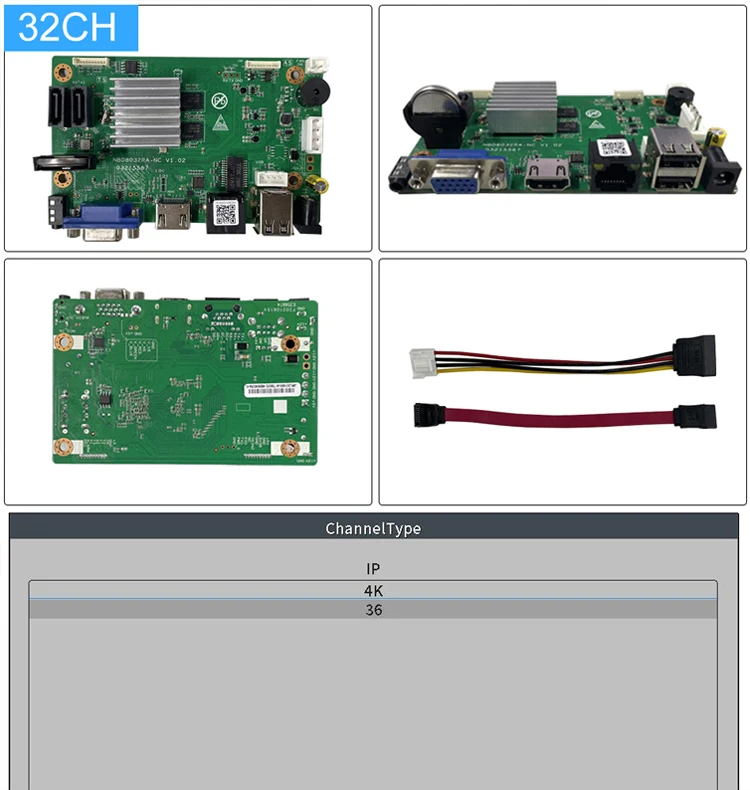

32CH Board of NVR

1.32CH is NT98323 Chip;
2. Max support 36*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.32CH(NT982323) Board Max Support the 4K Display

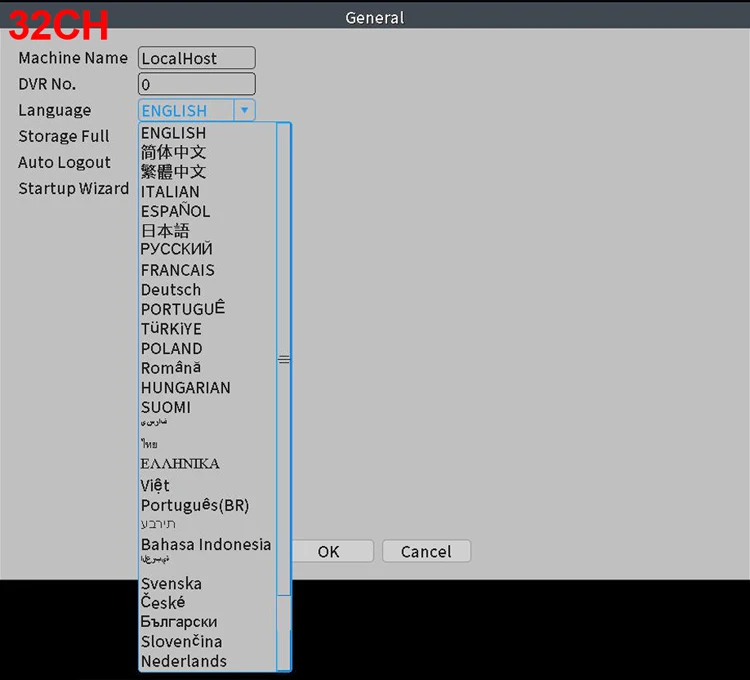

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech, Bulgarian, Slovak, Dutch

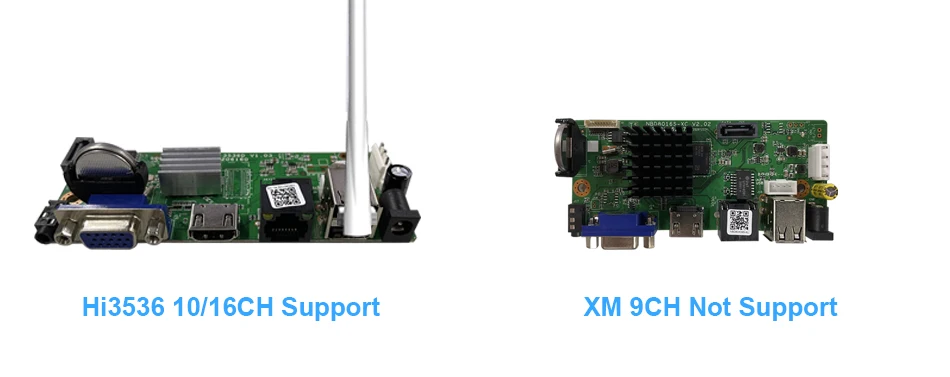

7601 Wifi Adapter

The 16CH/32CH support Wifi adapter
The 9CH/10CH not support Wifi adapter
(This link is not include wifi adapter, if you need, please press the below photo to buy)

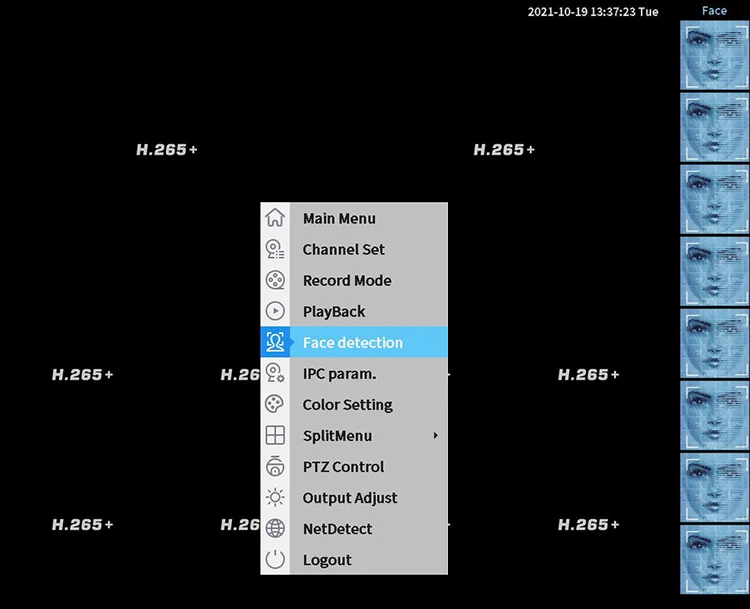

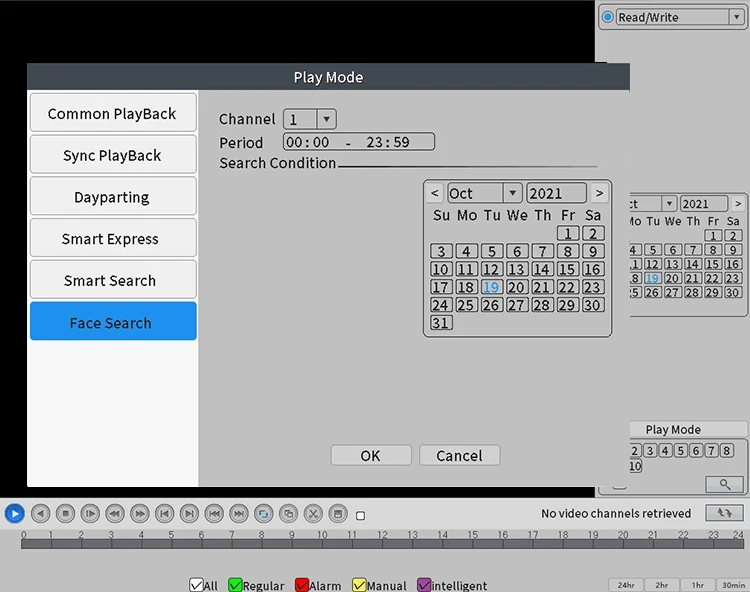

Face Record/Face Detection/Face Playback

Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera

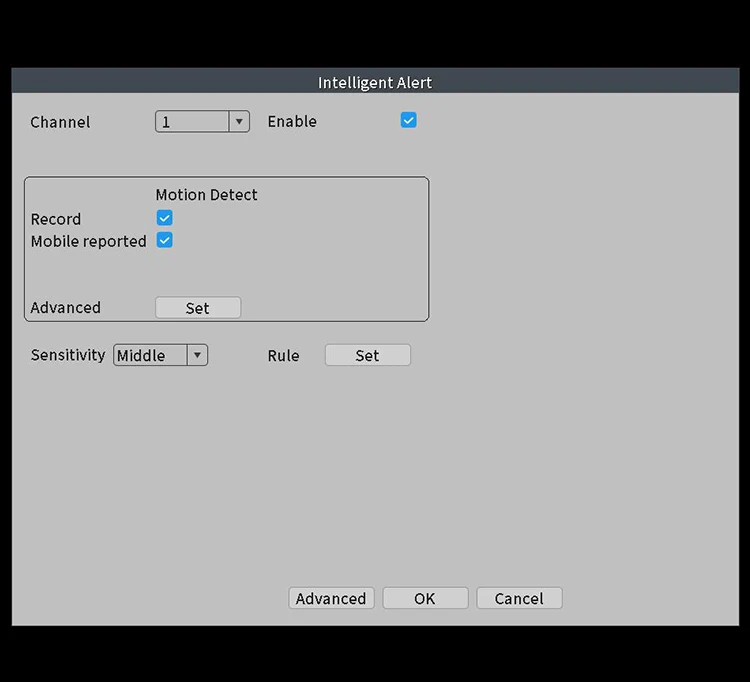

Motion Detection & Email Alert/Record

When motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

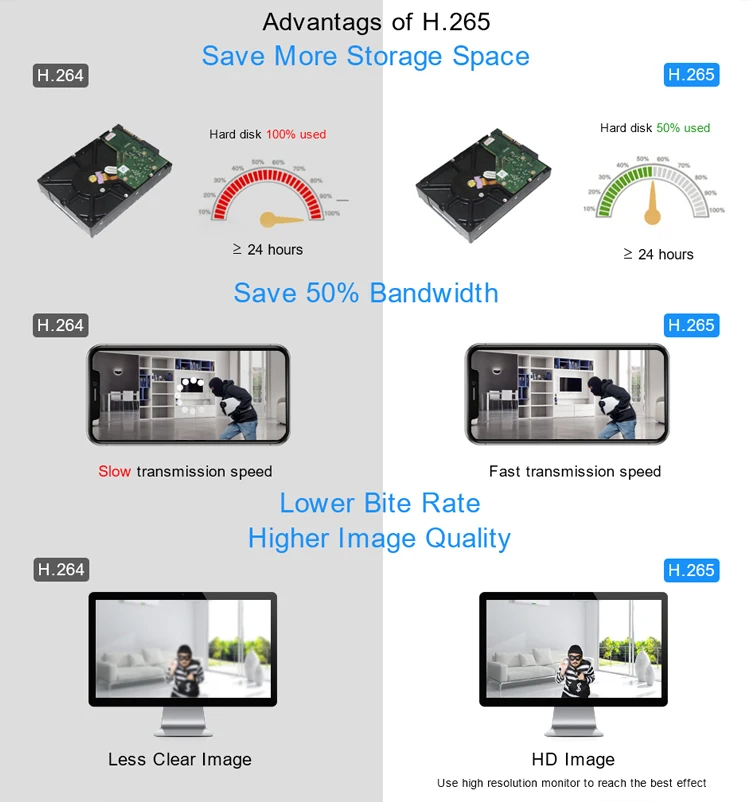

Advanced H.265++ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

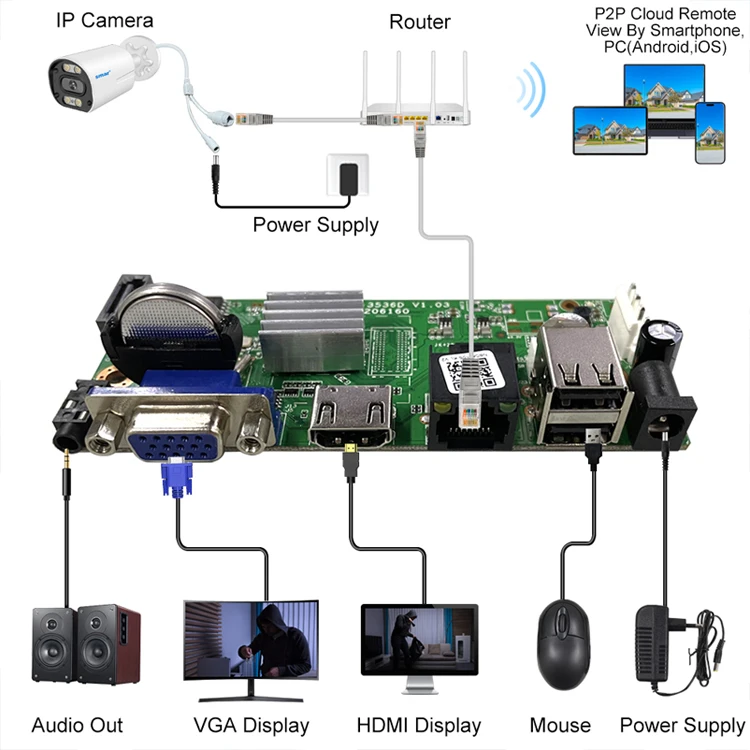

HDMI & VGA Output

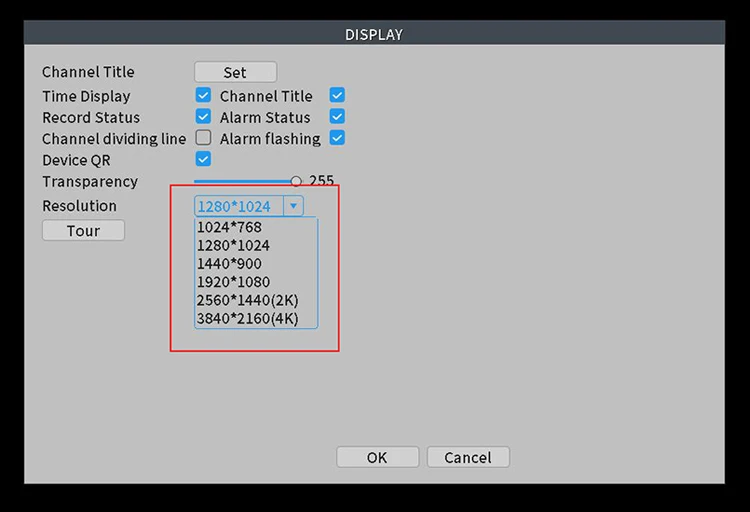

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output

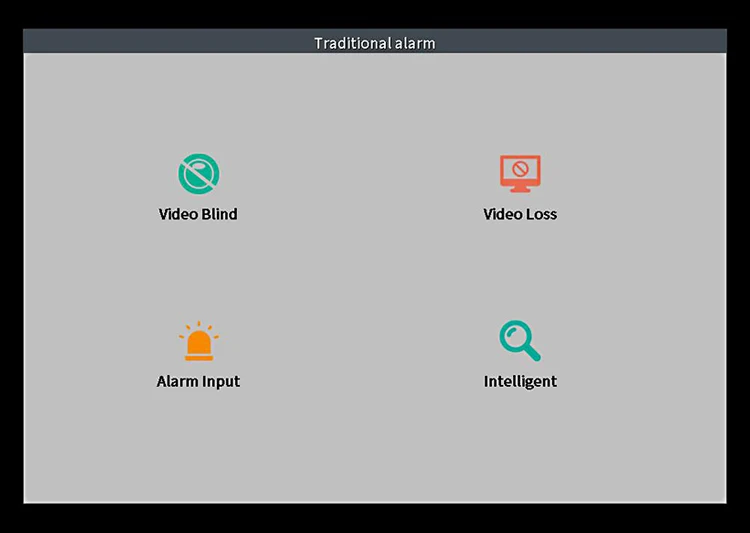

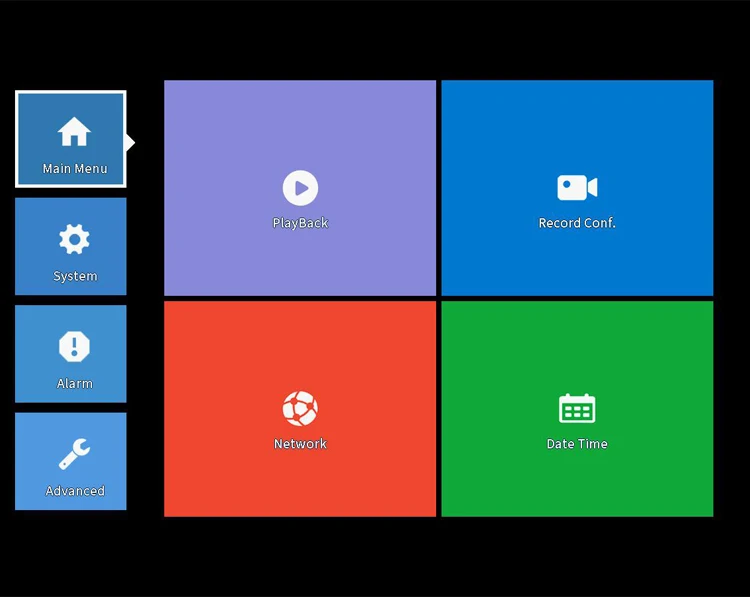

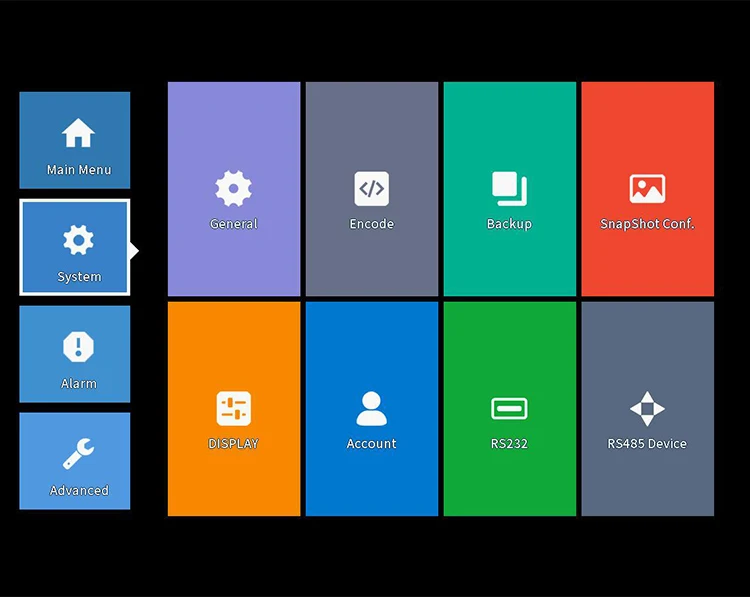

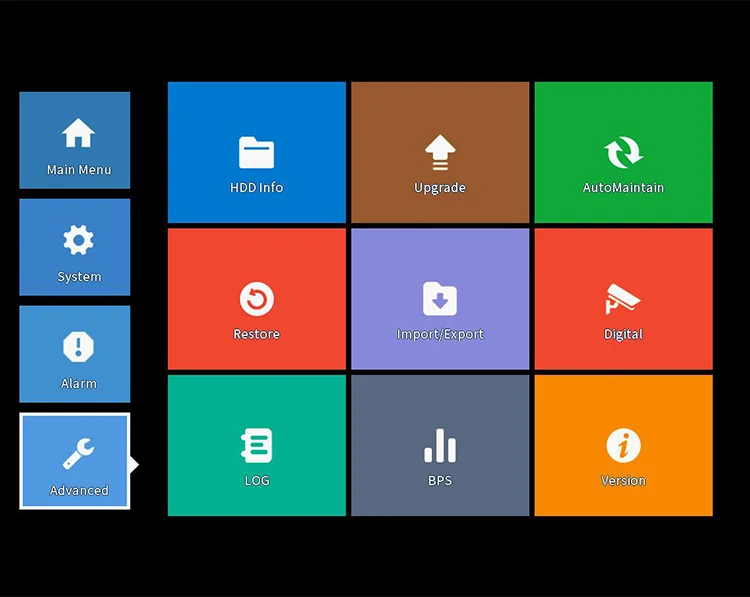

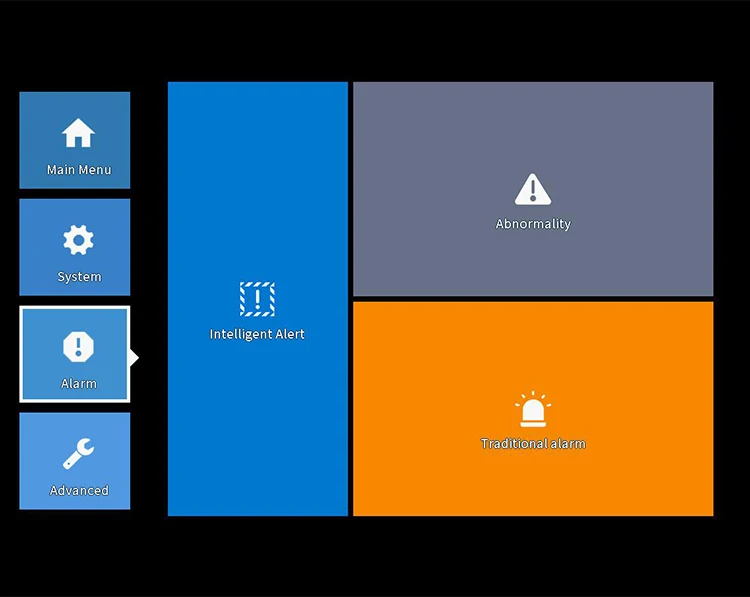

Product Operata Interface

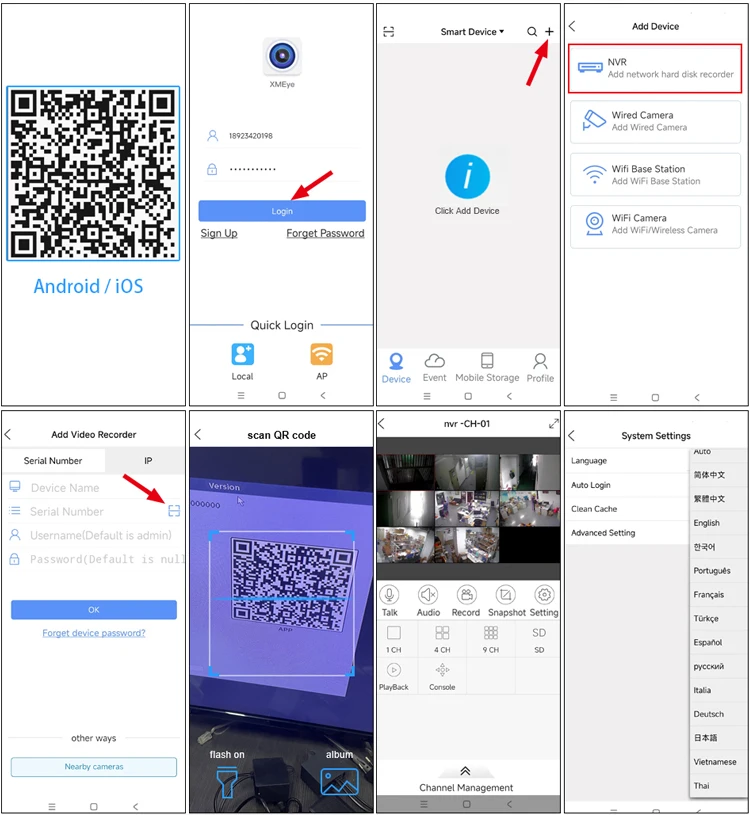

How to remote view through Mobile phone?

1. Dowload XMEye Pro Free APP in your mobile phone;
2. Open the software register an account and login.
3. Add devices( Connect the camera to the NVR first)
4. Add successfully, enjoy live video

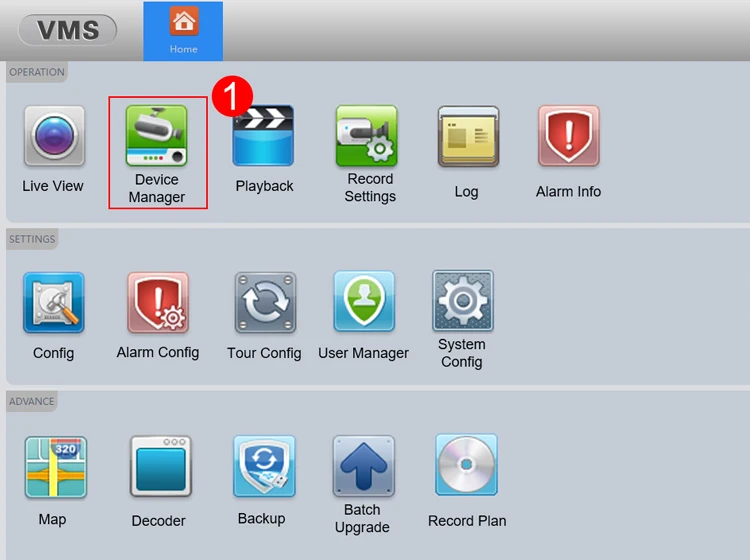

How to manage the cameras through PC client?

1. Please used your mobile phone to scan the QR code as below, and then click to download；

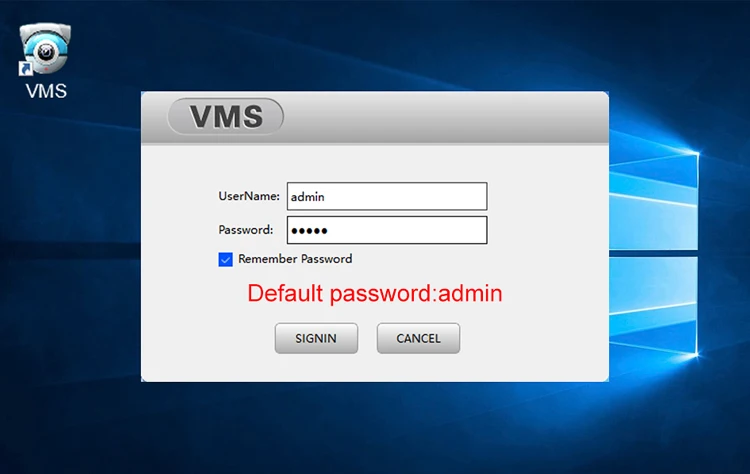

2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

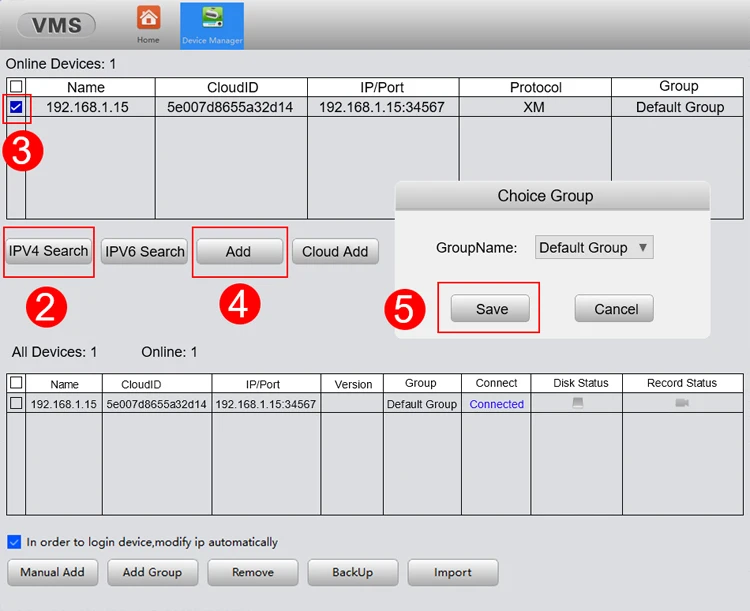

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;

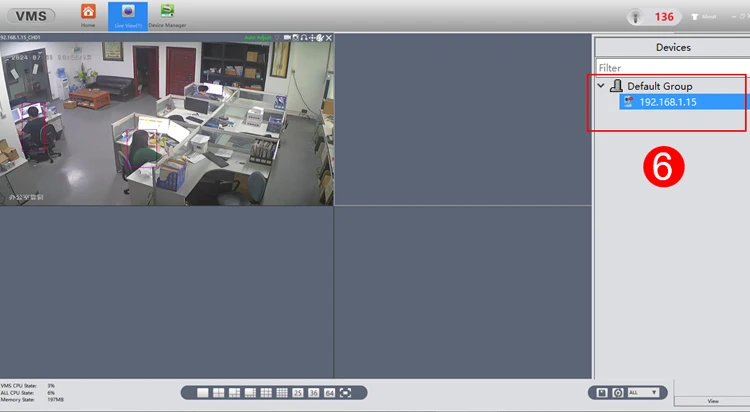

4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.

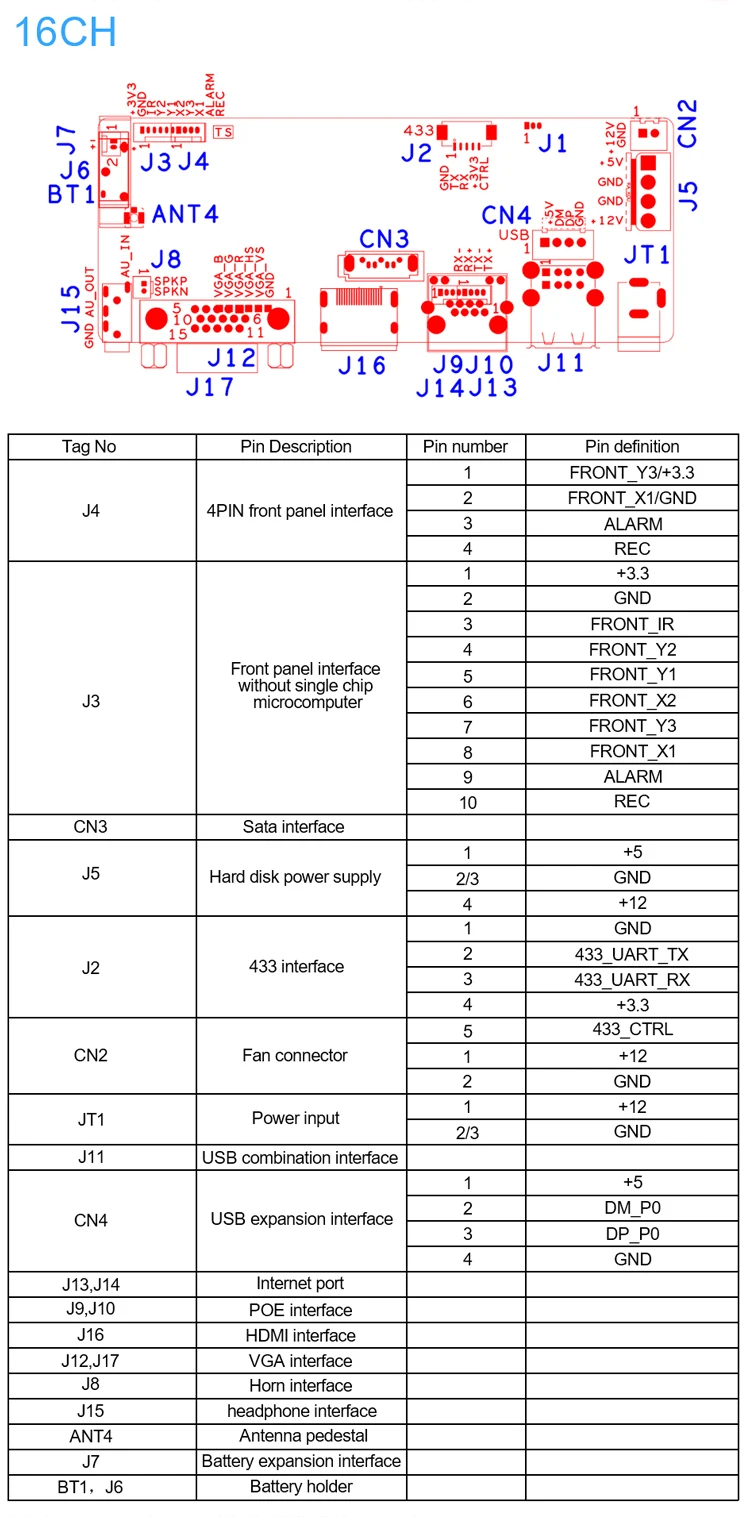

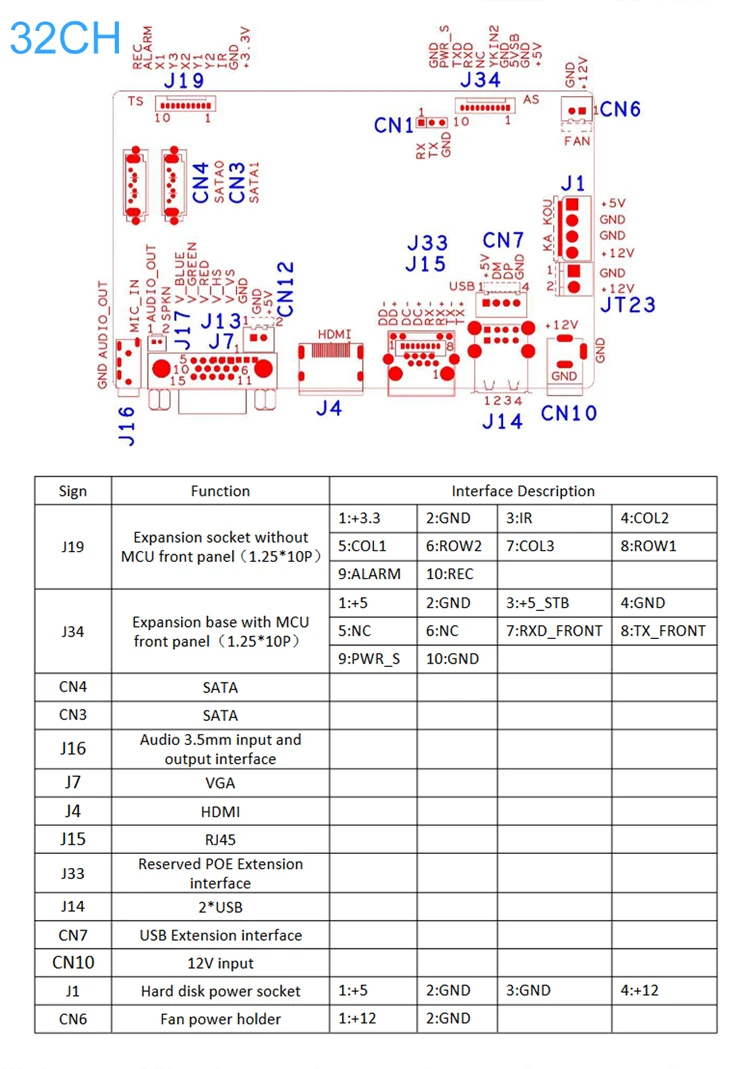

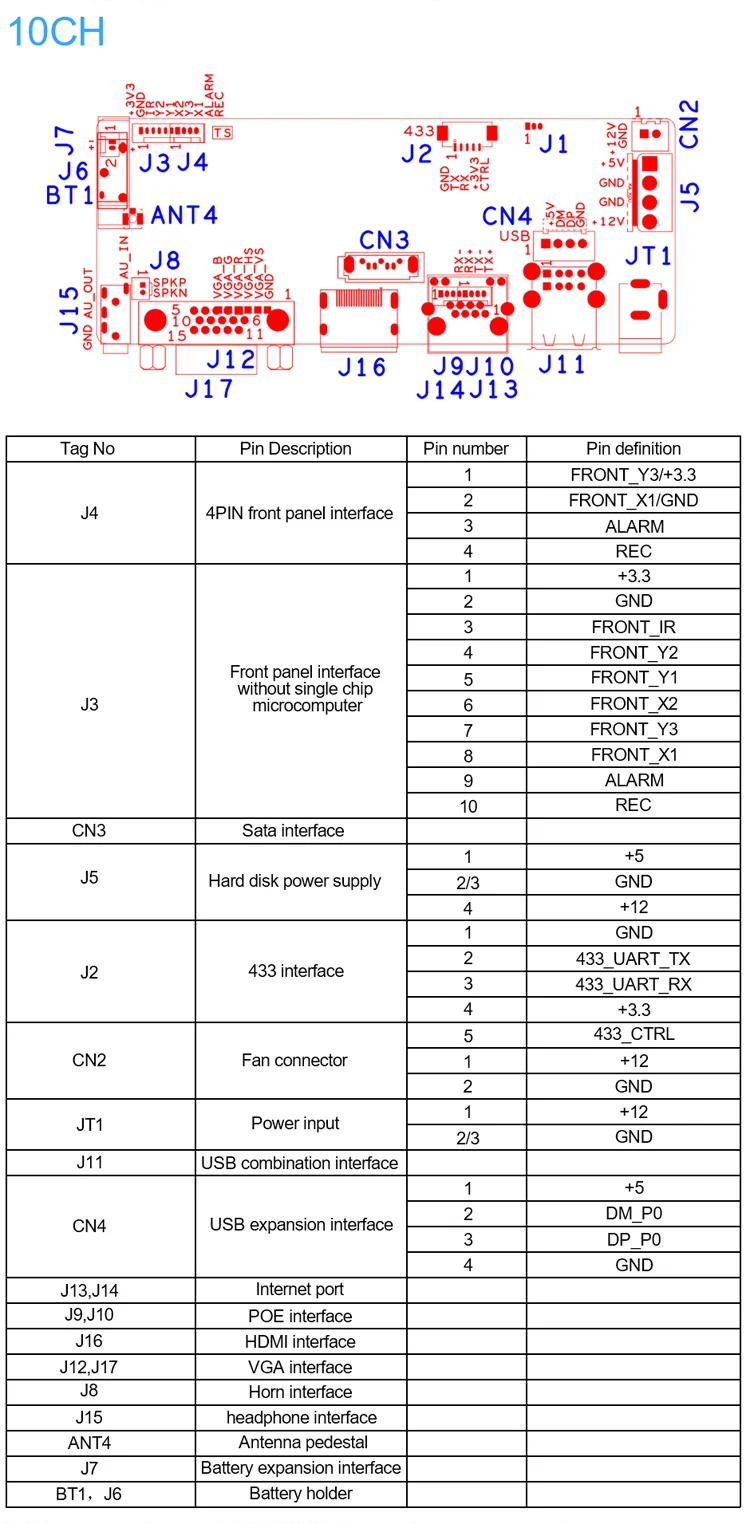

Interface Definition
