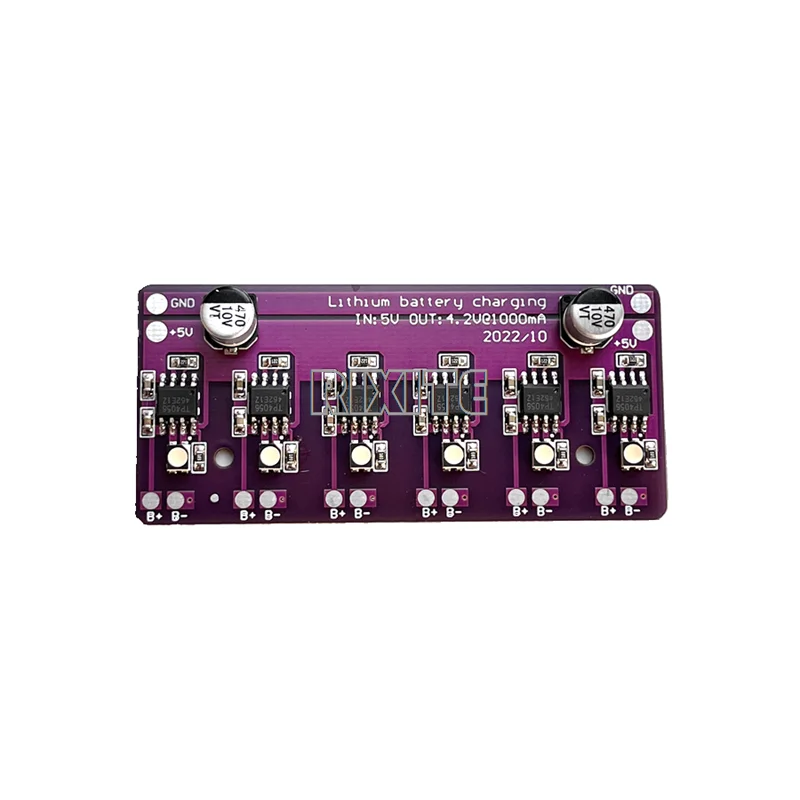

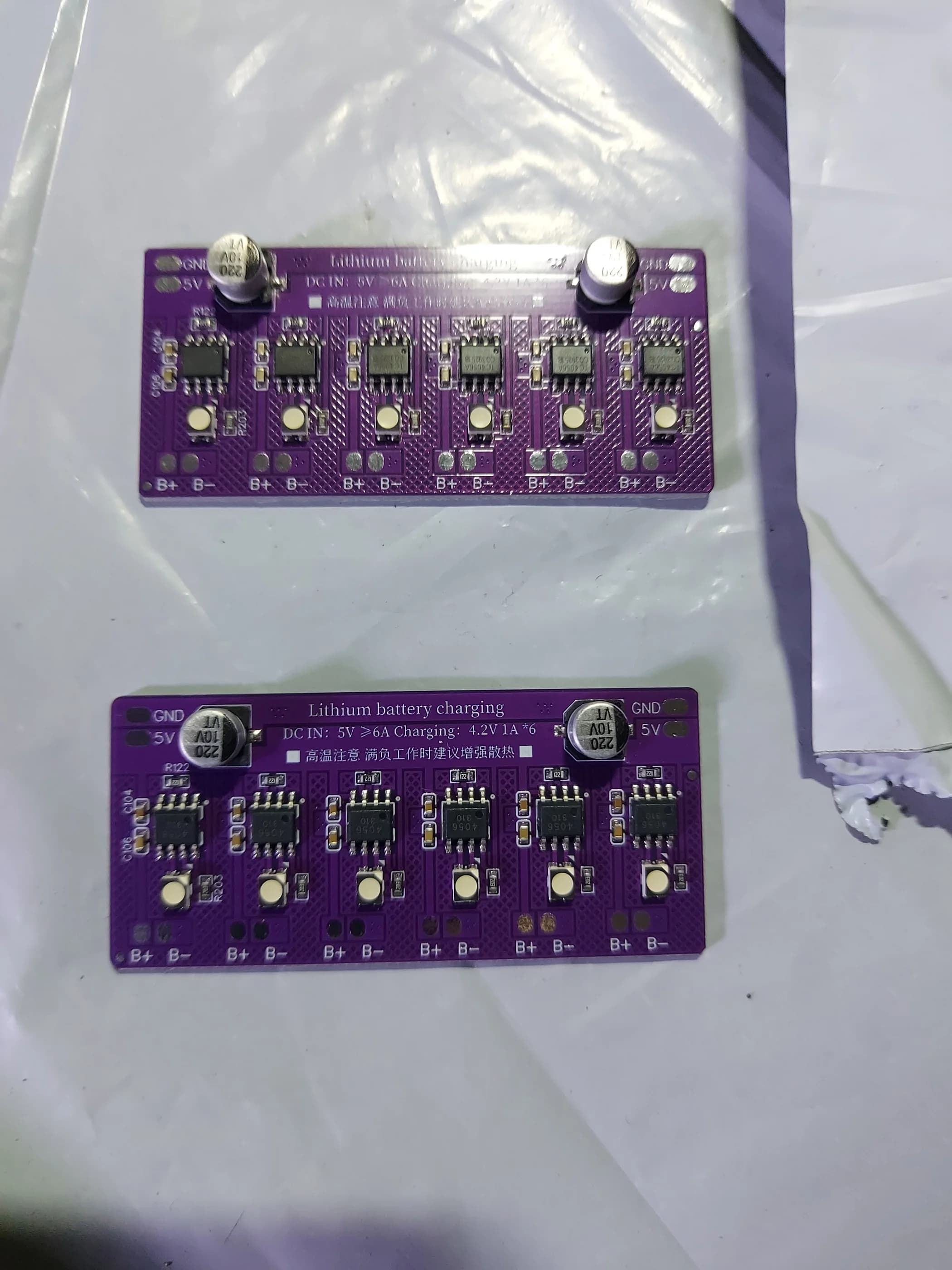

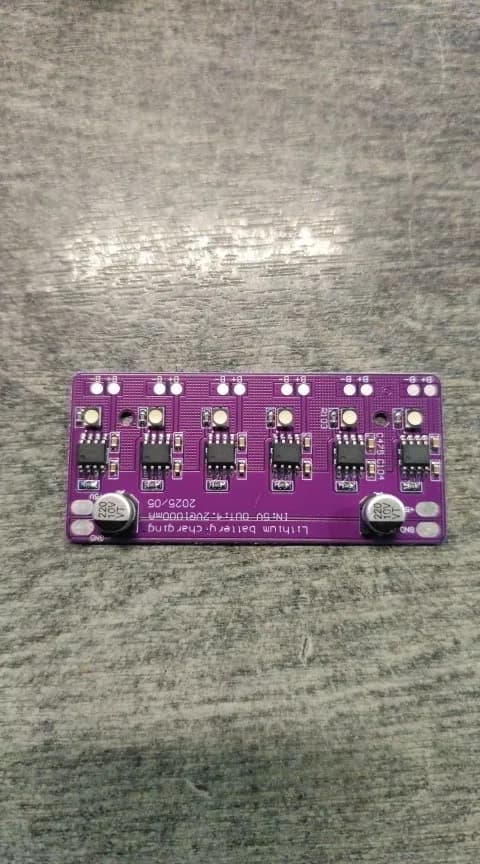

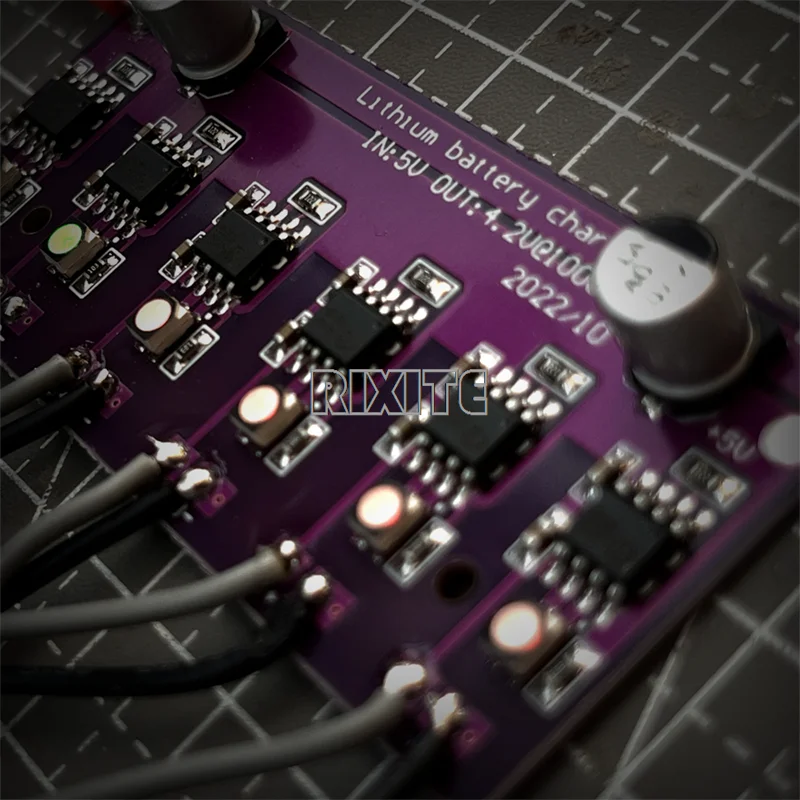

18650 Lithium Battery Charging Module TP4056 5V Input for 4.2V 1A Charger Board 6 Independent Charge Discharge PCB Circuit Board

Features:

1.6*1A parallel output can increase the current

2.Lithium battery charging module 4056 independent 6 groups in parallel, each output 1000ma

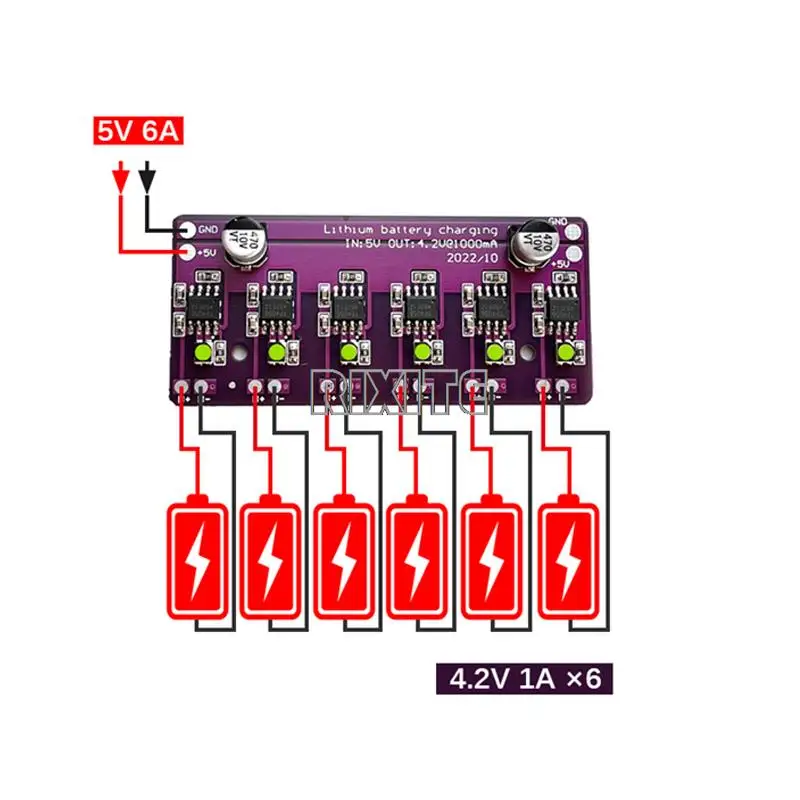

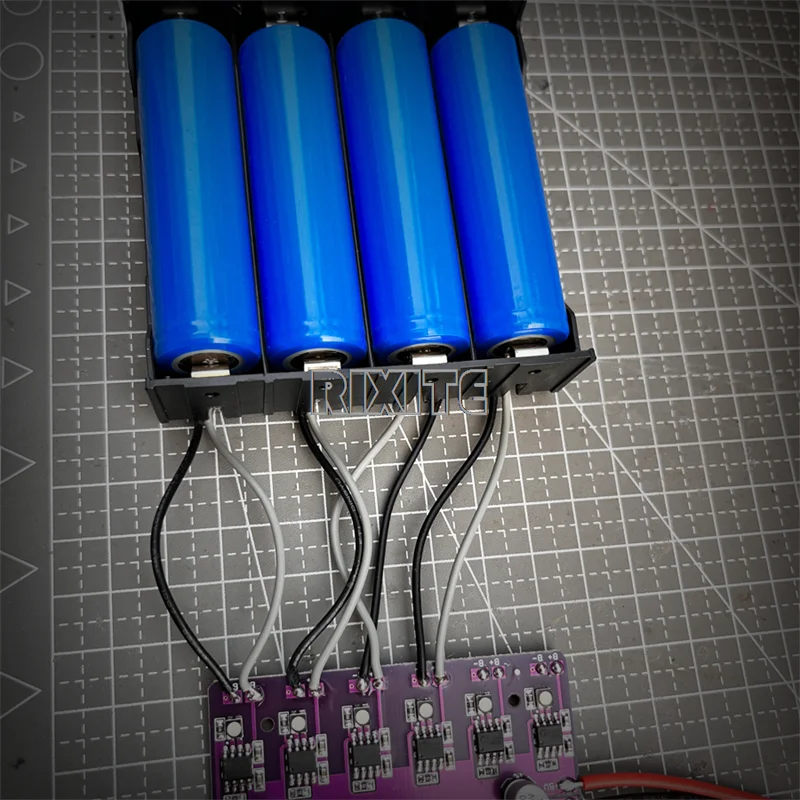

3.Support 6 batteries to charge 5V input circuit together

4.The output is common ground, and multiple bits can be connected in parallel to increase the output current

5.With status indicator light, more convenient to use

Product parameters:

Input voltage: 5V-6V (exceeding the voltage will cause damage)

Output voltage: 4.2V (±1%)

Output current: 1A

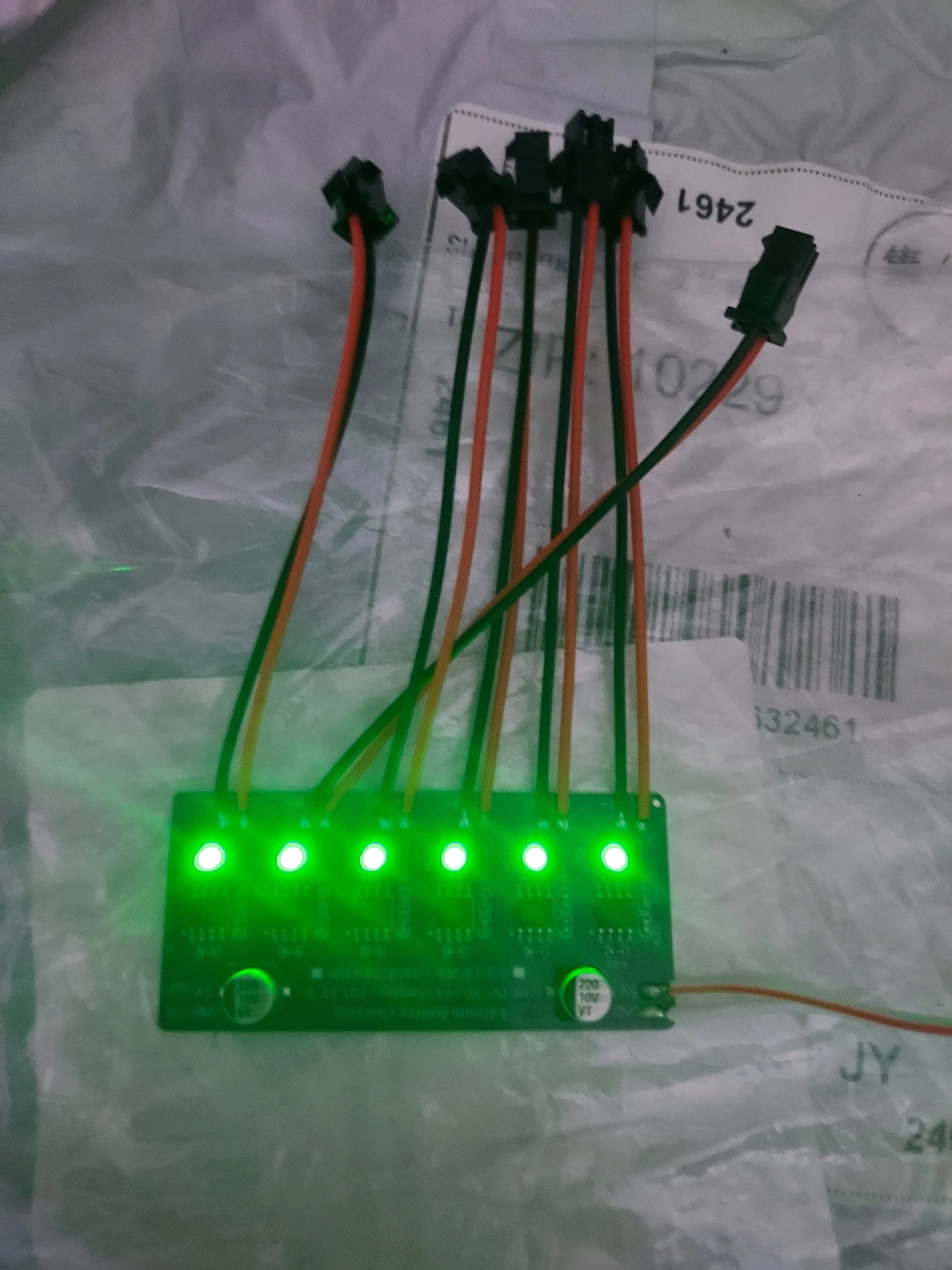

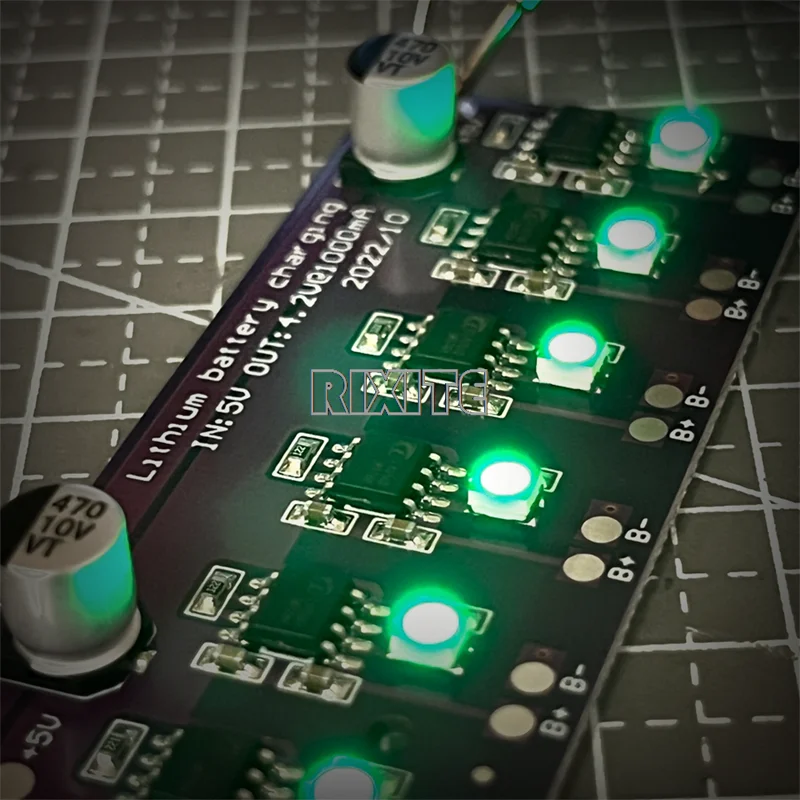

Status indication: LED charging red light, fully charged to green (green light is always on or green light is flashing)

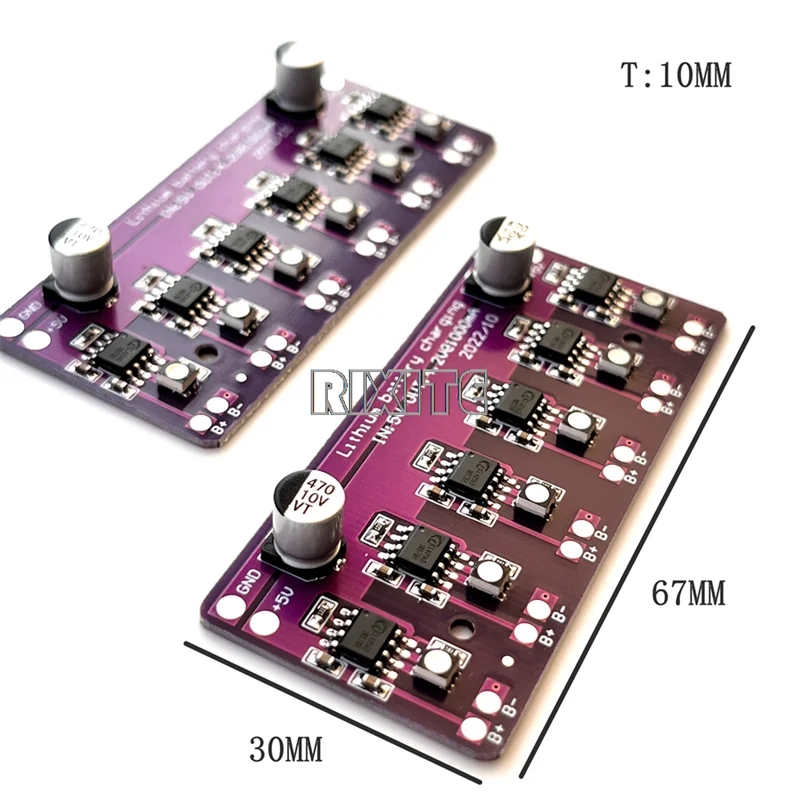

Body size: 40MM*67MM*T10MM

Note:

1.The input cannot be reversed or overvoltage, and the output cannot be reversed to the battery, otherwise the chip will be damaged.

2.The output has a common ground, and multiple bits can be connected in parallel to increase the output current, but it cannot be connected in series to charge the battery.

3.This product does not contain a transformer, and the customer should prepare a 5V 6A power transformer by himself.
