2/4/5/10/20pcs MG90S Micro Servo Motor Metal Gear Analog RC Servomotor 180 360 For Mini Car Airplane Helicopter Arduino Robot

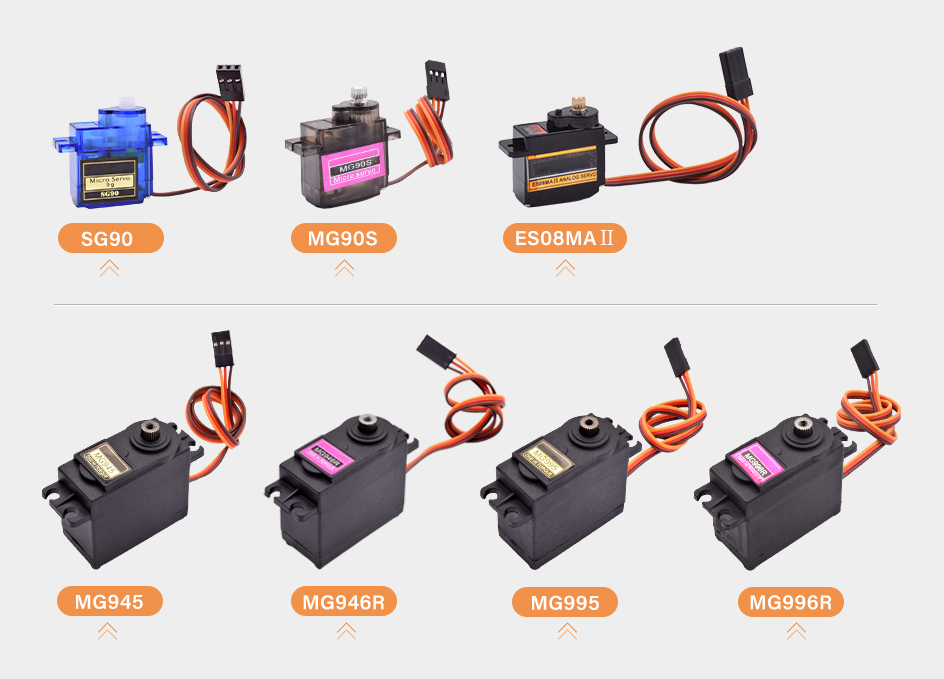

If need Analog Servo, Click the photo below to buy

If need Digital Servo, Click the photo below to buy

Note:

1. Servo half metal means gearwheel is Aluminium and Plastic made; all metal means gearwheel all is metal

2. 360 Degree Servo rotates continuously. If need to control the angle, plesae choose the option 180 Degree Servo

3. For 180 degree servo, some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle, as shown in the video: https://youtu.be/zv6vd7eud_o

YIDI 2/4/5/10/20pcs/lot MG90S Micro Servo Motor Metal Gear Analog RC Servomotor 180 360 For Mini Car Airplane Helicopter Arduino Robot

Specification:

Product Model: MG90S

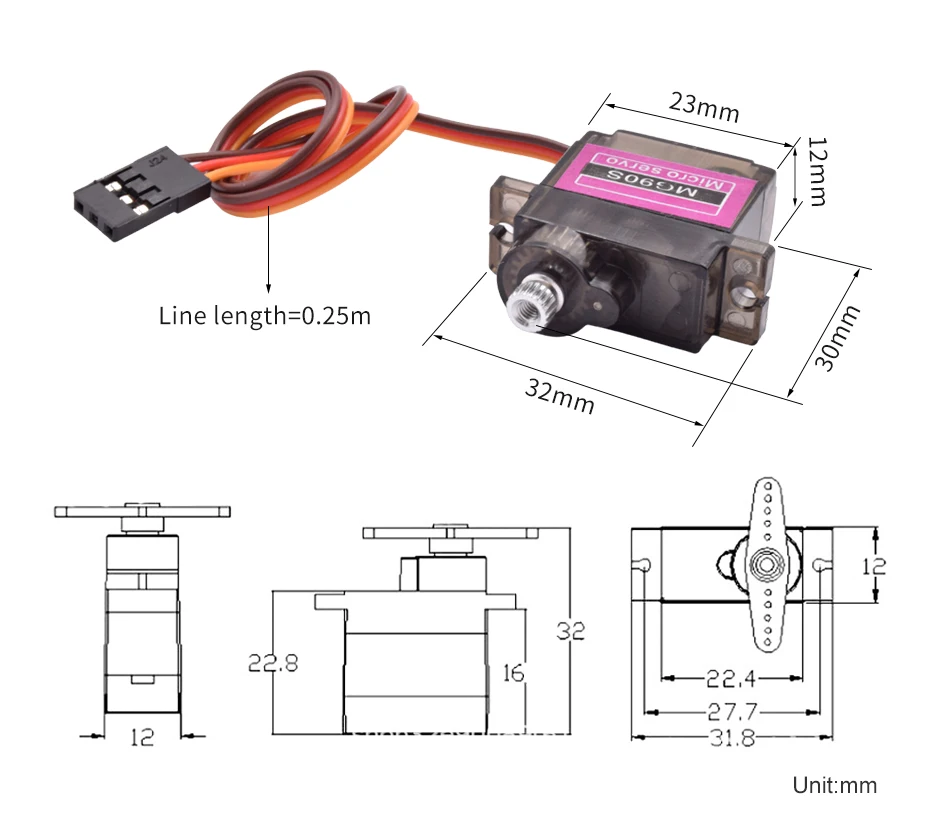

Dimensions: 22.8 x 22.4 x 12mm
Working Torque: 2kg/cm
Reaction Speed: 0.11 seconds / 60 degrees (4.8V)
Operating Temperature: 0 ℃- 55 ℃
Dead Band Width: 5usec
Plug Type: JR, FUTABA General
Rotation Angle: 0-180°/360°(Continuous Rotation)
Operating Mode: Analog
Operating Voltage: 4.8V
Gear Material: Aluminium+Plastics/All Metal

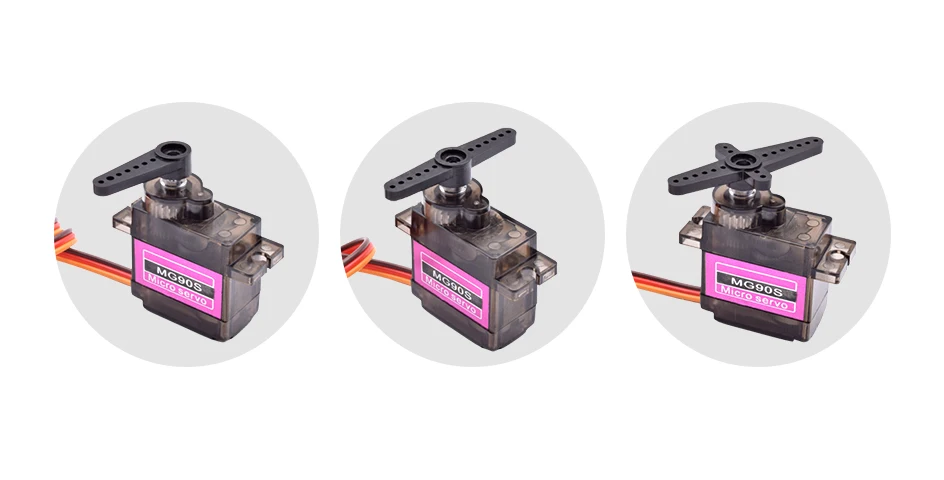

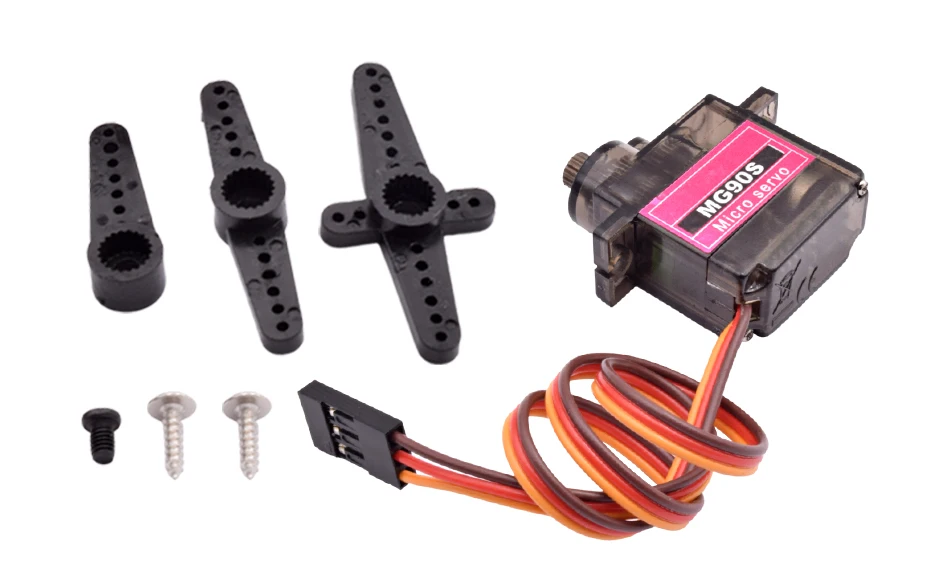

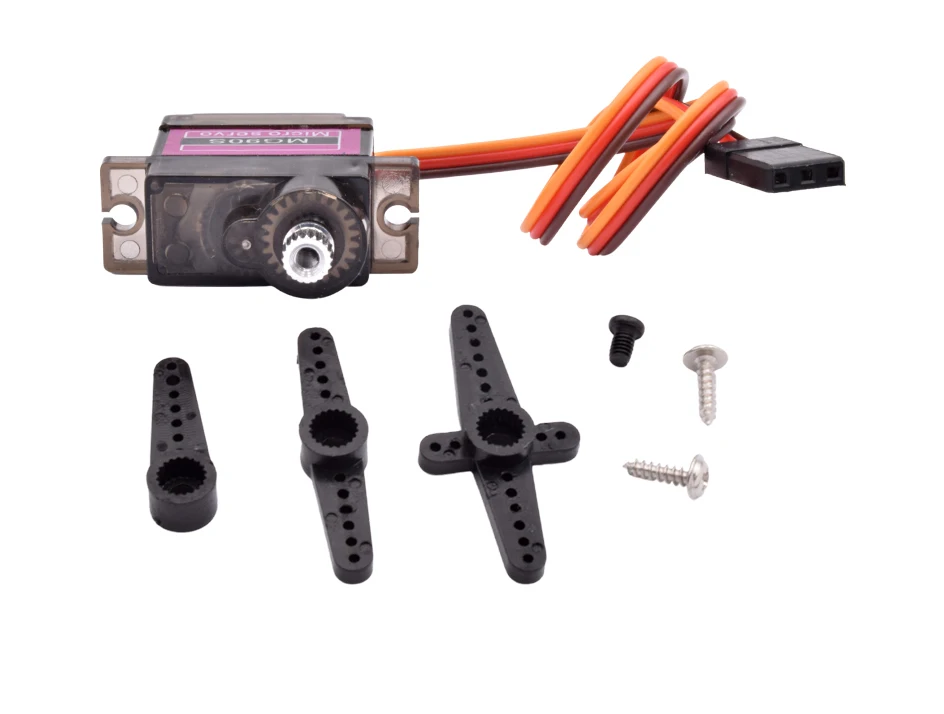

Accessories: Multi-arm, Fixing screws(AS the picture shows)

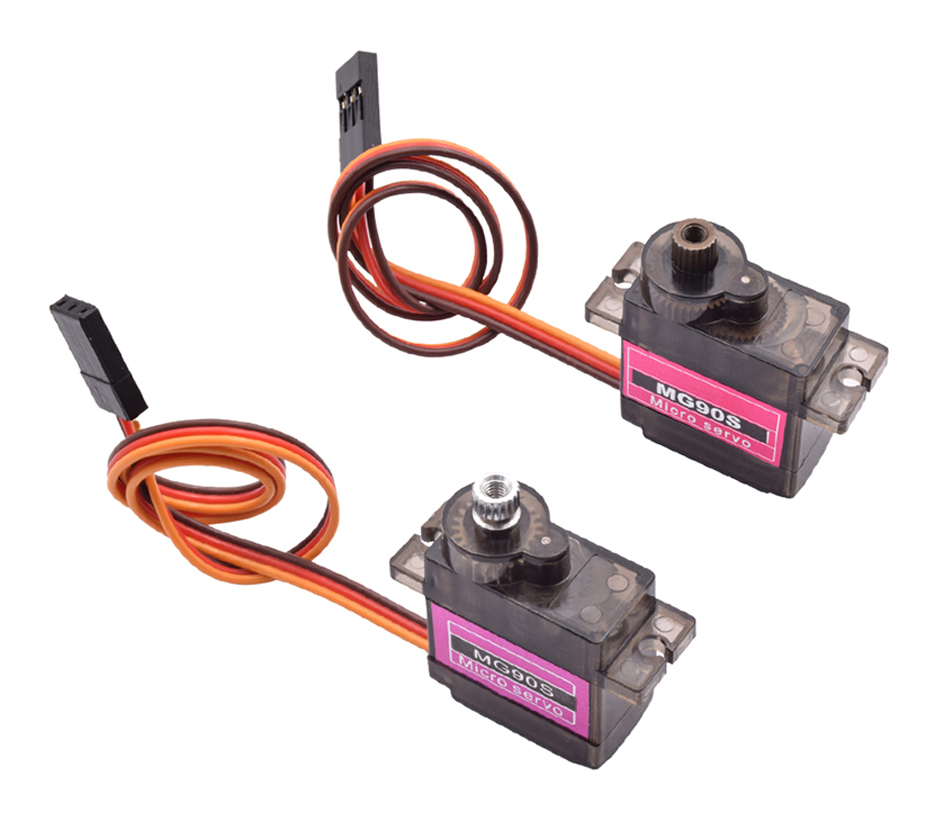

Connector Wire: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Scope: Small and medium-sized electric model aircraft and model

Steering Gear Control:

The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.

1. Servo 0-180 Degree

The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees

For 180 degree servo, please use a professional PWM Servo Controller to control the angle

2. Servo 360 Degree

The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.

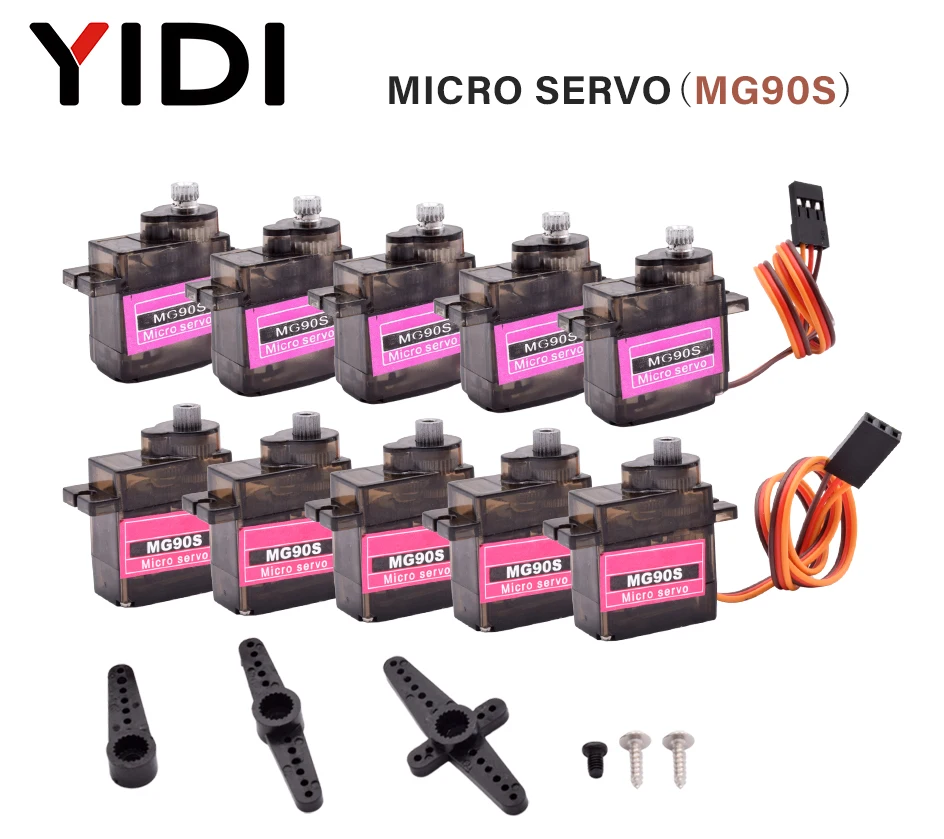

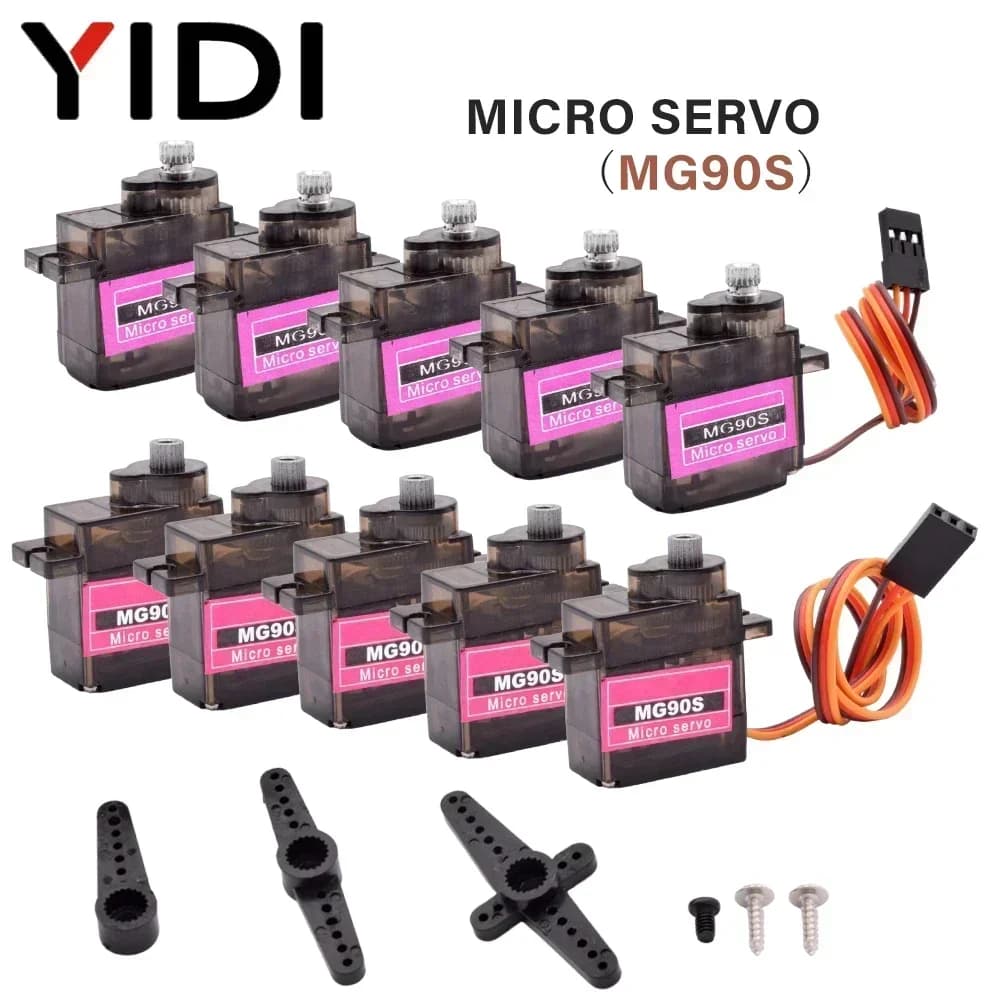

Packing: 2/4/5/10/20 x MG90S Servo Motor (with Accessories)
