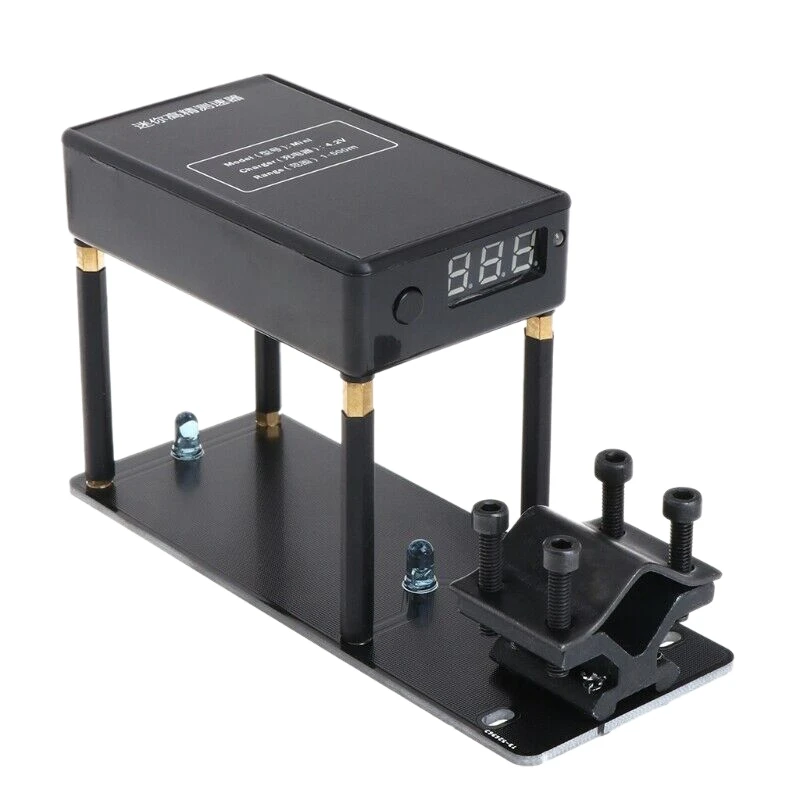

Digital Speed Meter Multifunctional for Shooting Speed Meter Ball Velocity Energy Measurement Shooting Chronograph Bullet Speed

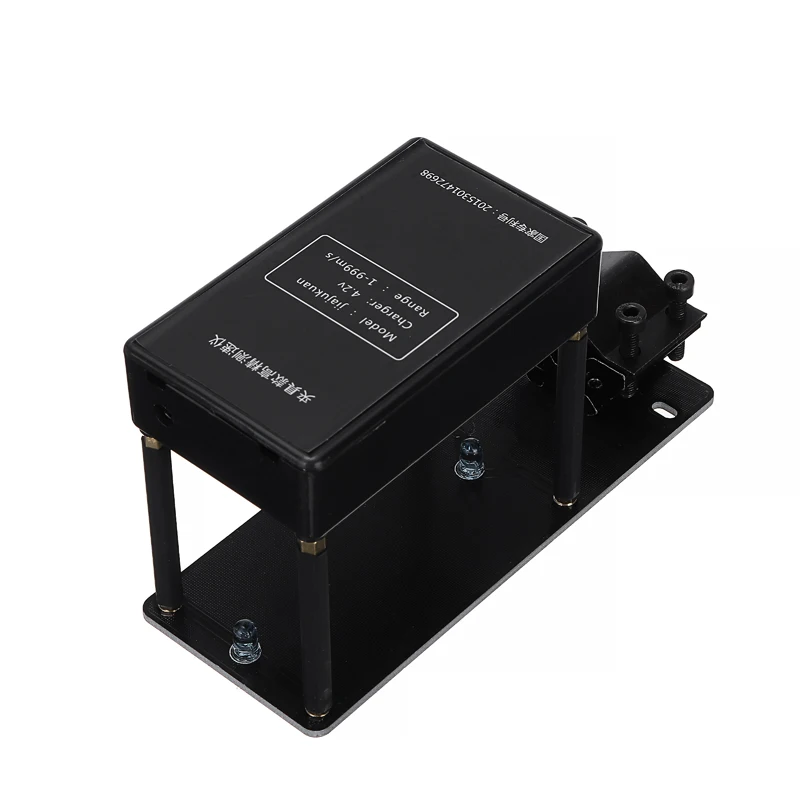

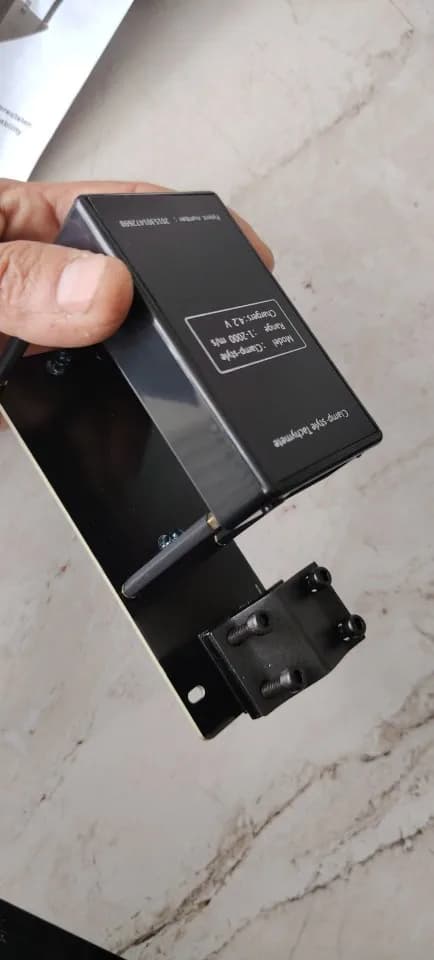

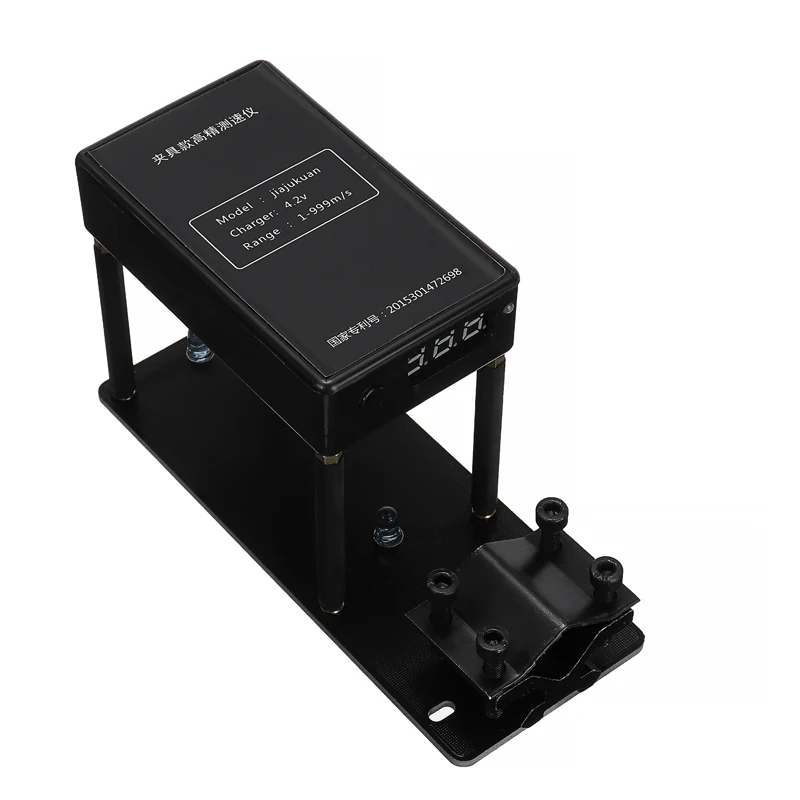

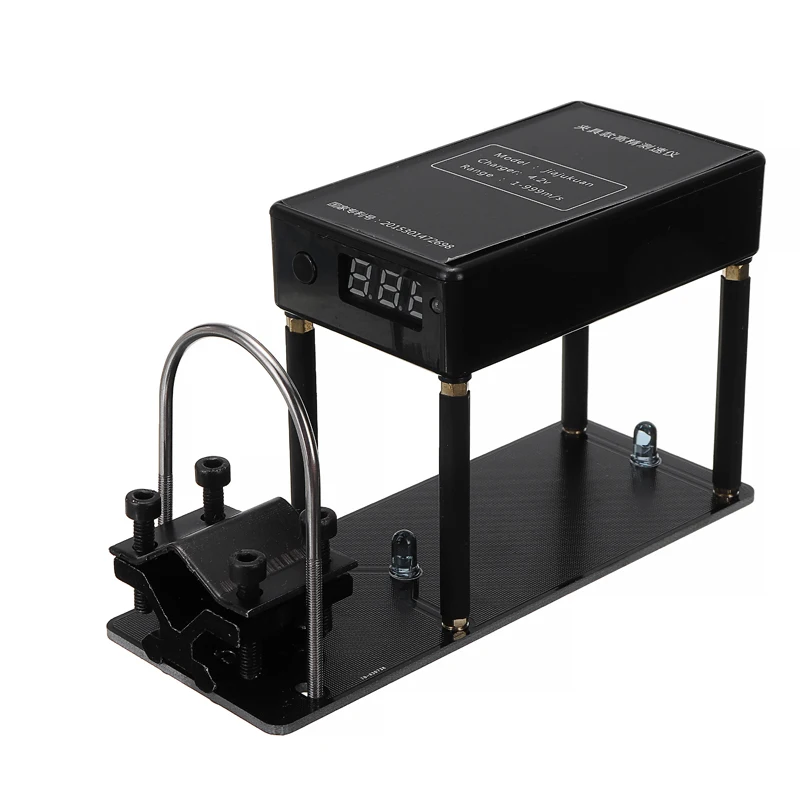

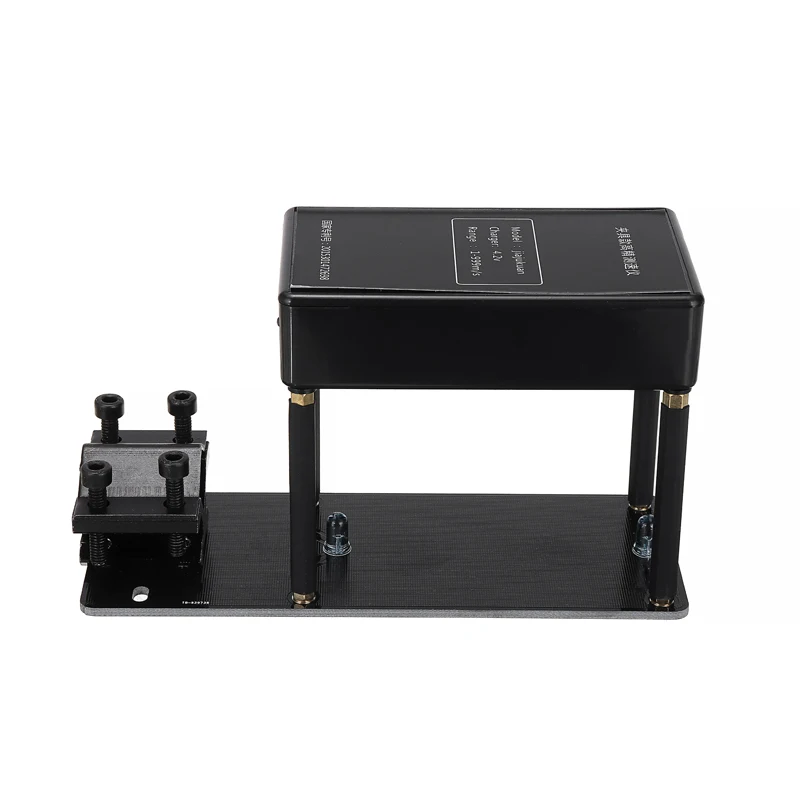

Note: This product is a clamp type speedometer, which must be clamped on the tube for testing, and cannot be tested against the clamp. The speed can be measured only when the bullet is flying in the middle

Mainly used for learning and experiencing the high-speed data processing ability of single-chip microcmputer and measuring the flight speed of various things. Such as: table tennis, badminton, arrow and so on. Core components are industrial-grade encapsulation with stable performance and small error.

Features:

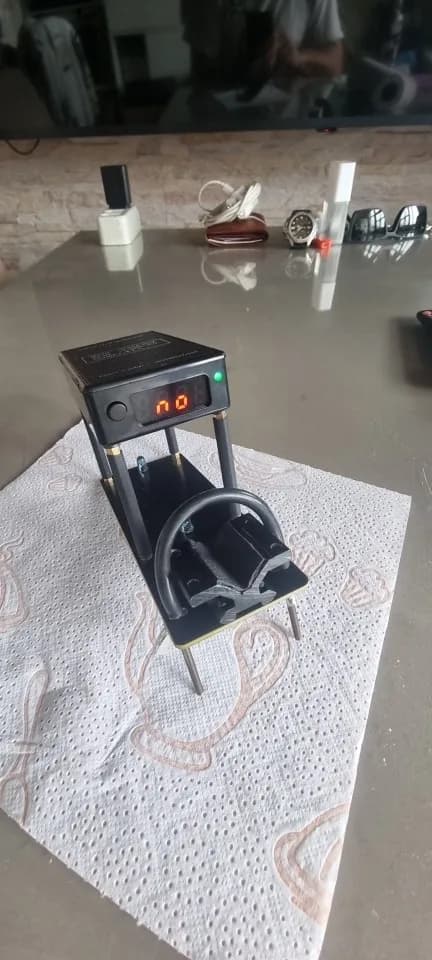

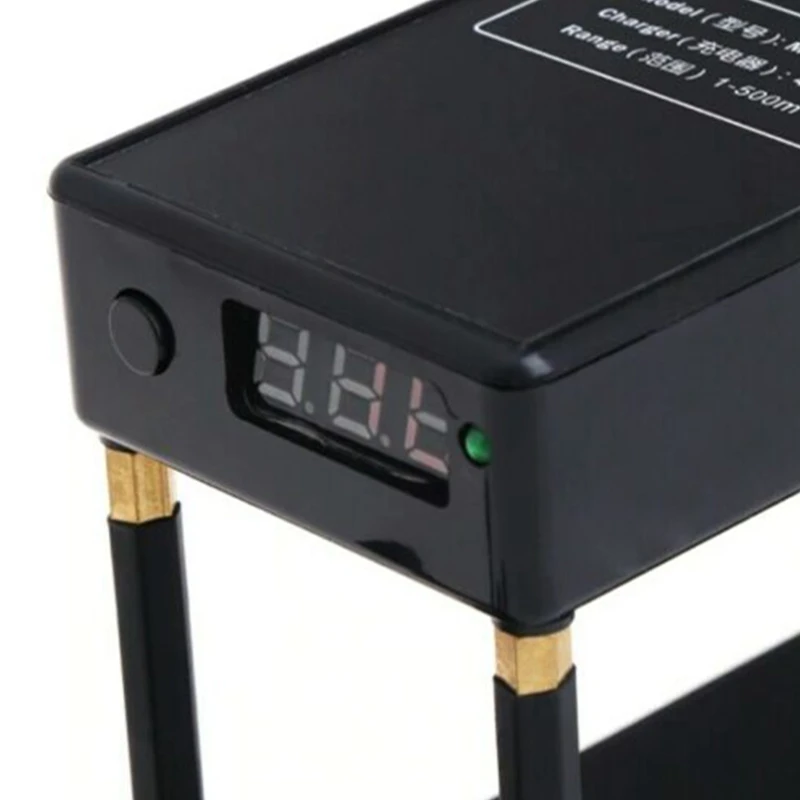

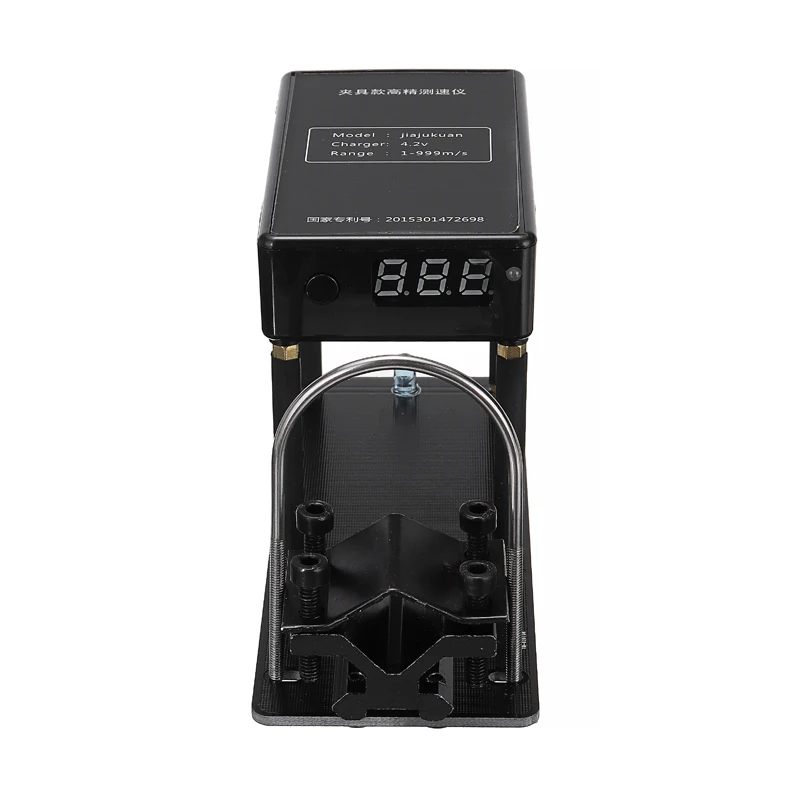

The panel is mainly composed of digital display tube, function, key and LED indicator. The function key is the micro touching button.

Four sides of the air design, to effectively ease the impact of testing time. Improved stability and accuracy. Display surface and the operation of the button in front of the operation and to see the test data are very convenient.

Mini size is easy to carry. Simple and easy operation.

High accuracy measurement. As the device with high accuracy and clamp rail, and fixed equipment after the path every time are the same, and with the guide rail can be made with the mining model in parallel, so the measurement result error is small, small fluctuation dynamic error.

Function is more abundant. Not only can measure the speed, but also can measure the kine-tic energy, at the same time can record up to 40 groups of speed and the 40 group of the kine-tic energy value.

Multiple power management and protection. The lithium cell has the function of over charging, over discharging and short circuit protect, and the integrated intelligent shutdown and low power shutdown function.

Specifications:

Working Voltage: DC4.2V

Accuracy: test error less than or equal to 0.5%

Measuring Range: 1-999m/s

Cell(built-in): 1 * 3.7V 450mAh Lithium Cell

Working Surrounding Temperature: -10℃ - 60℃

Speed Measurement Range: 1-999m/s

Energy Measurement Range: 1-800J

Weight Input Range 0.1-10g

Speed Record: 40 group

Kine-tic Energy Recording: 40 group

Item Size: 130 * 80 * 50mm / 5.1 * 3.1 * 2.0in

Package Size: 175 * 115 * 95mm / 6.9 * 4.5 * 3.7in

Item Weight: 145g / 5.1ounce

Package Weight: 240g / 8.5ounce

Notes:

Please allow 1-30mm error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

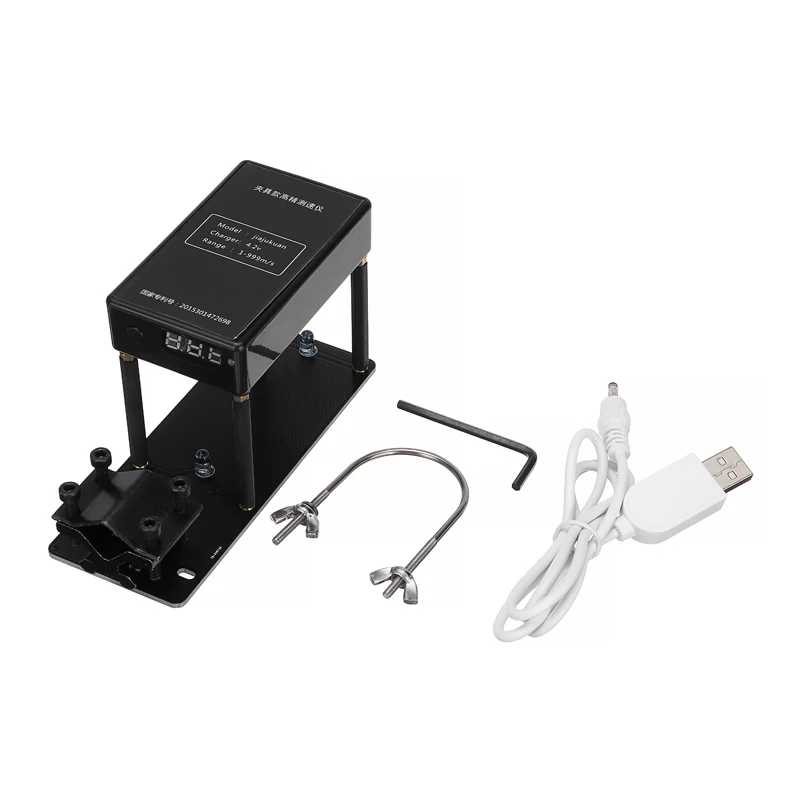

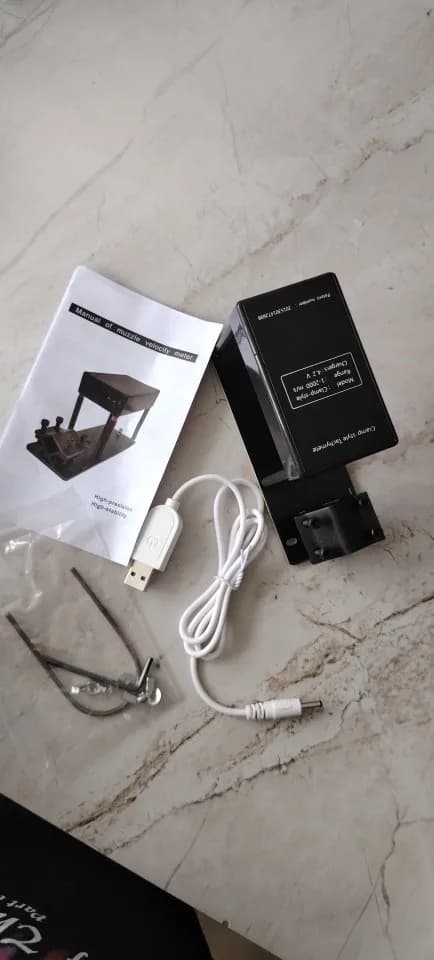

Package List:

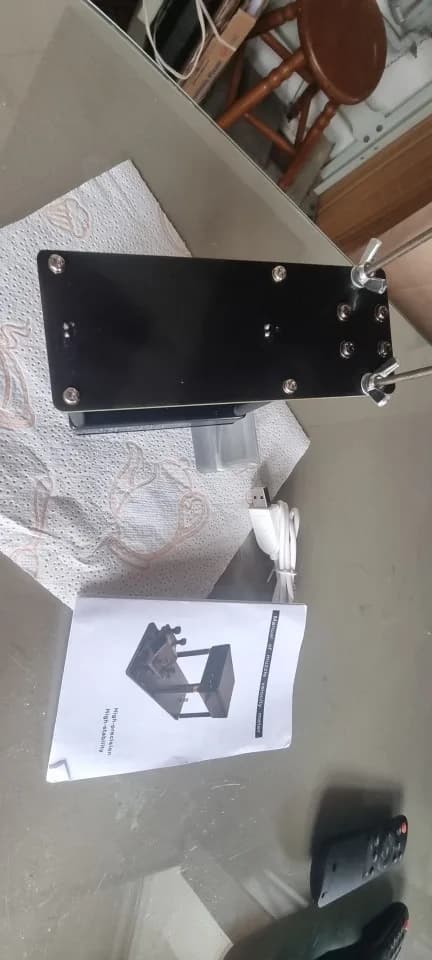

1 * Speed Measuring Instrument

1 * Manual
