Pneumatic Quick Release Fitting Connector 6mm 8mm 10mm 12mm OD Hose Tube to 1/8 1/4 3/8 1/2 Thread Air Compressor Joint Coupler

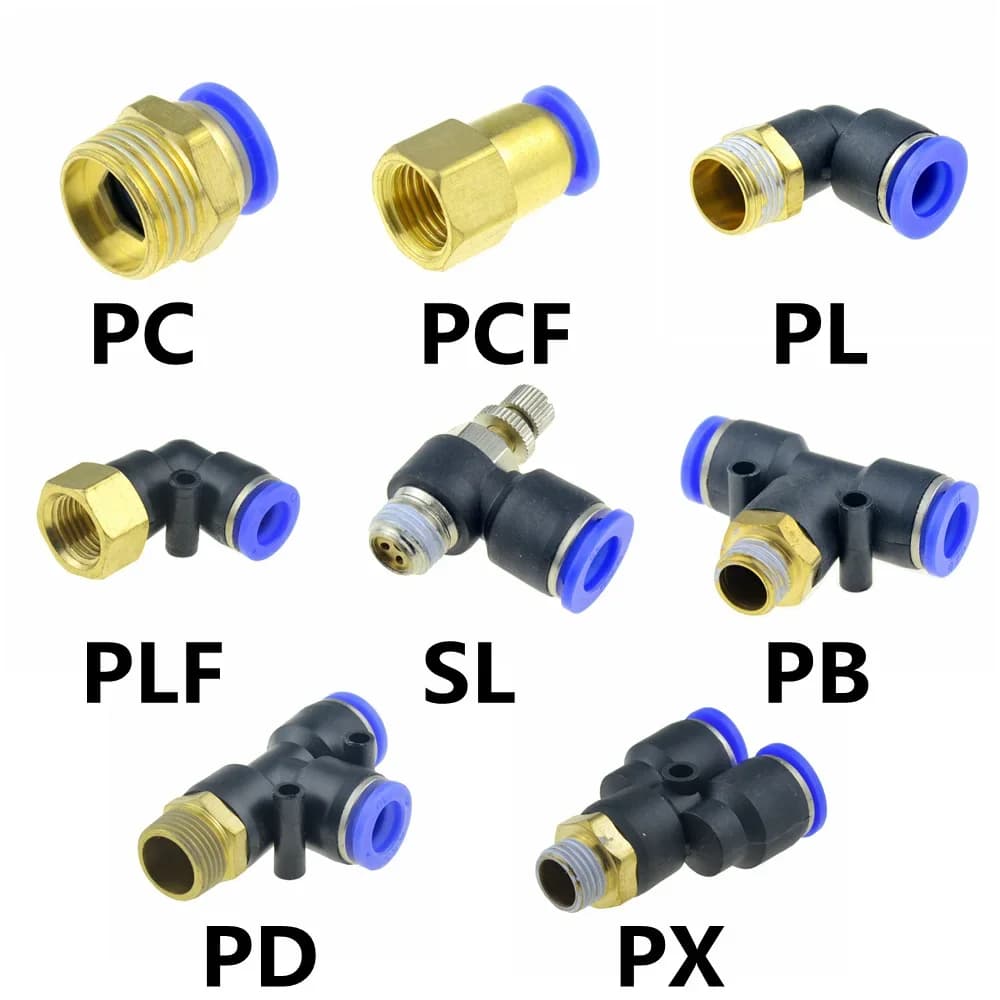

Note: *BSPT Thread: British Standard Pipe Taper thread O.D.= Outside Diameter I.D.= Inside Diameter Thread Mark Code---> Nominal Size: 1/8 Thread ---> 1/8 1/4 Thread ---> 1/4 3/8 Thread ---> 3/8 1/2 Thread ---> 1/2 Model Hose O.D. BSPT Male Thread PC 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : PC 8mm-1/4 is 8mm OD hose to 1/4 male thread Model Hose O.D. BSPT Female Thread PCF 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size I.D. mm I.D. inches 1/8 Thread 1/8 ≈9 ≈0.35 1/4 Thread 1/4 ≈12 ≈0.47 3/8 Thread 3/8 ≈15 ≈0.59 1/2 Thread 1/2 ≈19 ≈0.75 Such as : PCF 8mm-1/4 is 8mm OD hose to 1/4 female thread Model Hose O.D. BSPT Male Thread PL 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : PL 8mm-1/4 is 8mm OD hose to 1/4 male thread Model Hose O.D. BSPT Female Thread PLF 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size I.D. mm I.D. inches 1/8 Thread 1/8 ≈9 ≈0.35 1/4 Thread 1/4 ≈12 ≈0.47 3/8 Thread 3/8 ≈15 ≈0.59 1/2 Thread 1/2 ≈19 ≈0.75 Such as :PLF 8mm-1/4 is 8mm OD hose to 1/4 female thread Model Hose O.D. BSPT Male Thread SL Adjust Function 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : SL 8mm-1/4 is 8mm OD hose to 1/4 male thread note: a certain amount of inside leakage is allowed in the closed state of the speed controller valve, it is not designed for the use as stop valve with zero air leakage. ---------------------------------------------------- Model Hose O.D. BSPT Male Thread PB 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : PB 8mm-1/4 is 8mm OD hose to 1/4 male thread Model Hose O.D. BSPT Male Thread PD 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : PD 8mm-1/4 is 8mm OD hose to 1/4 male thread Model Hose O.D. BSPT Male Thread PX 4mm 6mm 8mm 10mm 12mm Mark Code Nominal Size O.D. mm O.D. inches 1/8 Thread 1/8 ≈9.5 ≈0.37 1/4 Thread 1/4 ≈12.5 ≈0.49 3/8 Thread 3/8 ≈16.5 ≈0.65 1/2 Thread 1/2 ≈20.5 ≈0.8 Such as : PX 8mm-1/4 is 8mm OD hose to 1/4 male thread Product Name: Pneumatic Connector Fluid Type: Air Operating Pressure: 0~10.2kgf/cm2 (0~1.0Mpa) Negative Pressure: -750mmhg (10 Torr) Operating Temperature Range: 0~60C Fit For Tube Material: PU / Nylon ,Polyurethane Quick Fitting Material: Brass & Plastic Type: Hose to Thread Package Content: 1 PC Quick Fitting
