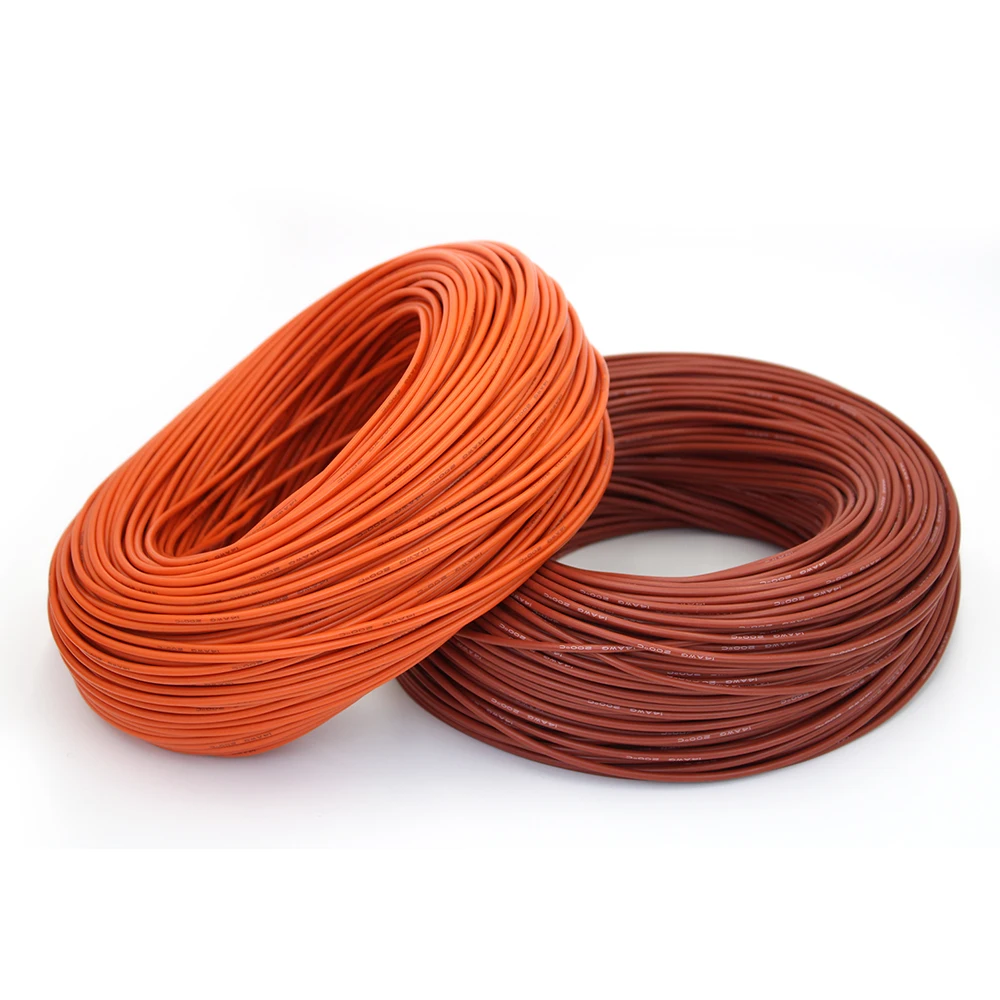

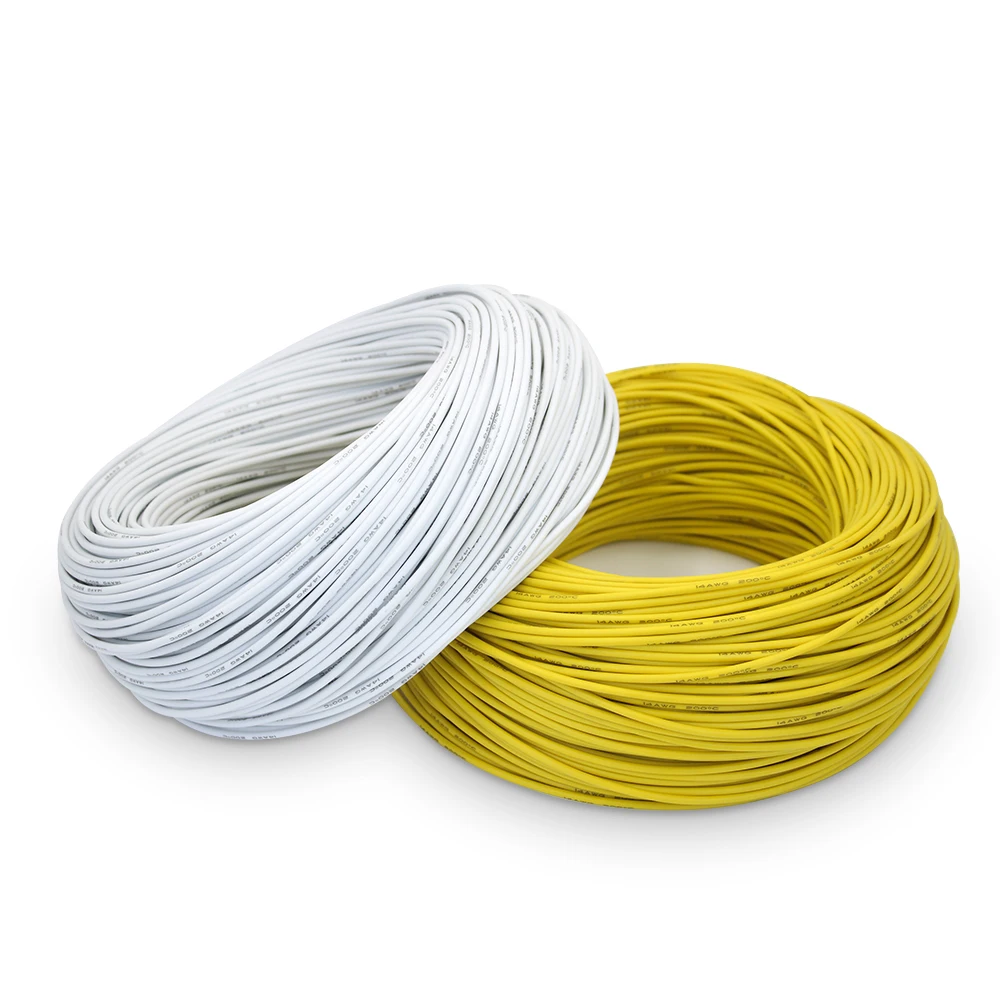

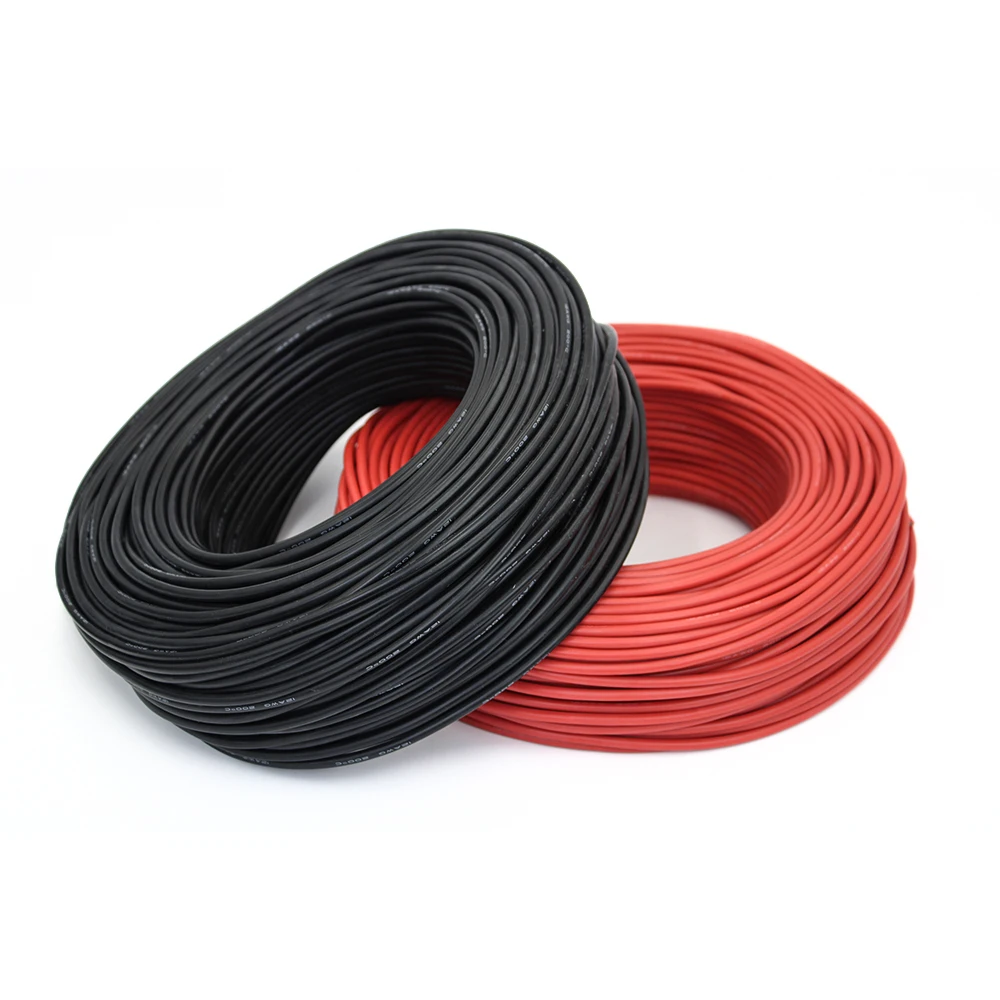

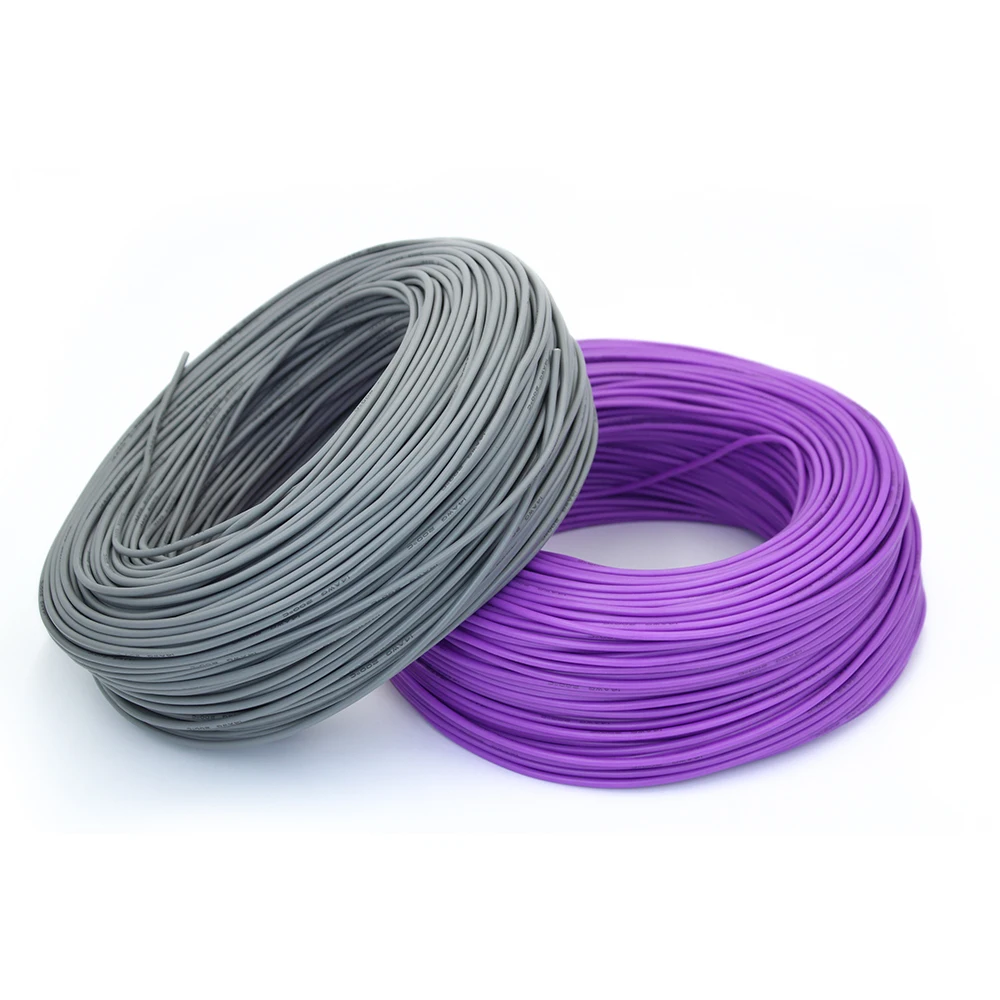

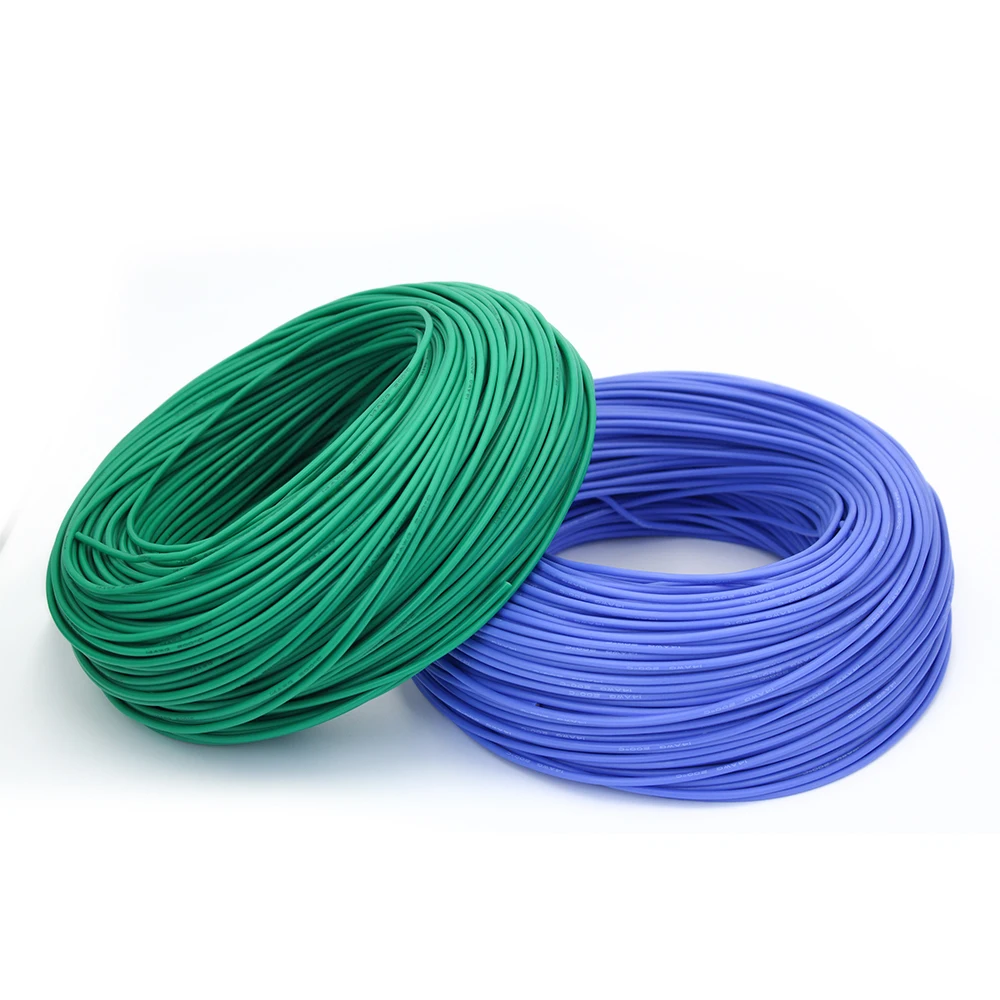

Heat-resistant cable wire Soft silicone wire 12AWG 14AWG 16AWG 18AWG 20AWG 22AWG 24AWG 26AWG 28AWG 30AWG heat-resistant silicone

You are welcome to come, if you have any questions, please contact me, I am happy to serve you, thank you.

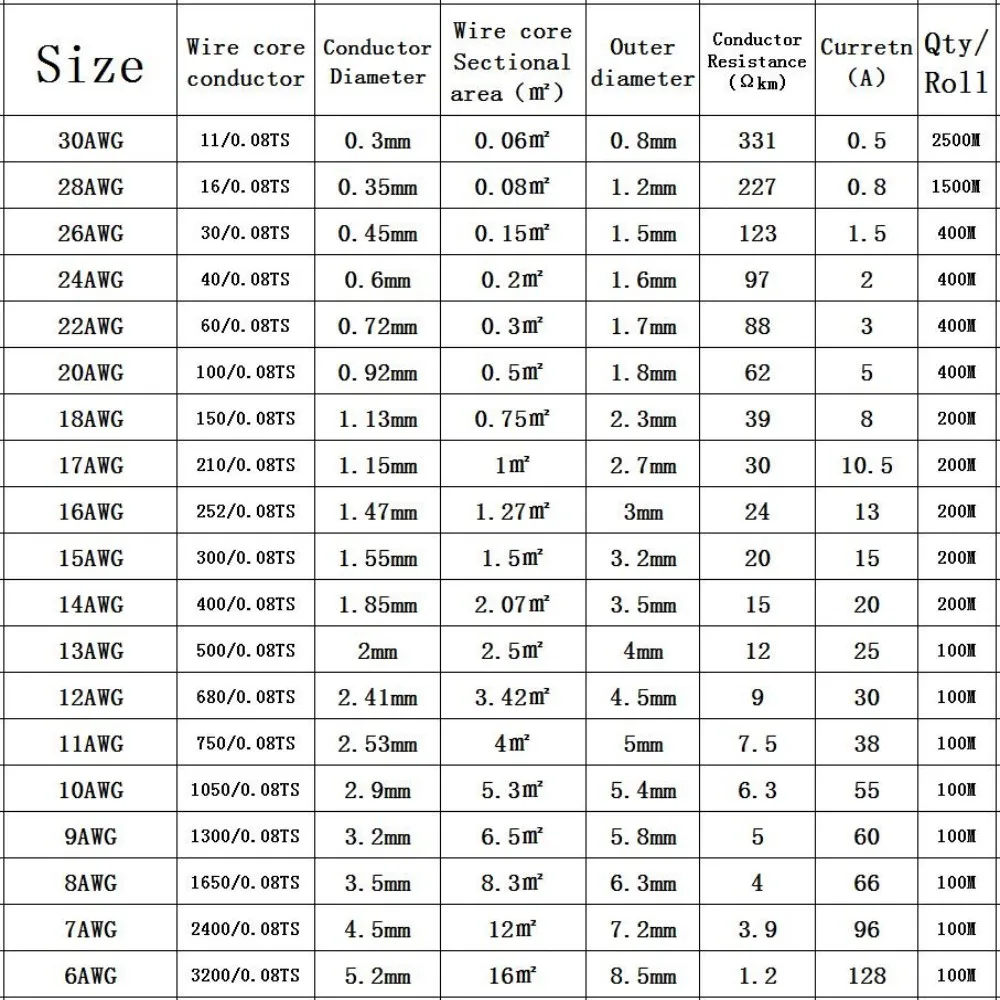

Detailed parameters of all the following specifications

Extra soft high temperature silicone wire and cable

12 wire gauge

Temperature: -65 degrees to  200 degrees

Each copper wire diameter: 0.08mm

Core: 680 strands  (3.42 square millimeters)

Outer diameter: 4.5mm

14 wire gauge

Temperature: -65 degrees to  200 degrees

Each copper wire diameter: 0.08mm

Core: 400 shares(2.07 square millimeters)

Outer diameter: 3.5mm

15 wire gauge

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 300 shares(1.5 square millimeters)

Outer diameter: 3.2mm

16 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 252 shares(1.27 square millimeters)

Outer diameter: 3.0mm

17AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 210 shares(1.0 square millimeters)

Outer diameter: 2.9mm

18 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 150 shares(0.75 square millimeters)

Outer diameter: 2.3mm

20 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 100 shares(0.5 square millimeters)

Outer diameter: 1.80mm

22 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Grain: 60 shares(0.3 square millimeters)

Outer diameter: 1.70mm

24 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 40 shares(0.2 square millimeters)

Outer diameter: 1.60mm

26 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 30 shares(0.15 square millimeters)

Outer diameter: 1.5mm

28 AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 16 shares(0.08 square millimeters)

Outer diameter: 1.3mm

30AWG

Temperature: -65 degrees to  200 degrees-

Each copper wire diameter: 0.08mm

Core: 11 shares(0.06 square millimeters)

Outer diameter: 0.8mm

use:

This product is widely used in the connection of electronic products, batteries, aircraft model batteries, model wiring harnesses, electrical equipment and internally connected instrument equipment, lamps and motor wires

DIY for home use
