RS550 9/11/12/13/14 Teeth DC ELectric Motor 10.8V/12V/14.4V/16.8V/18V/21V/25V Screwdriver Drill Motor with High Torque Gear Box

Description:

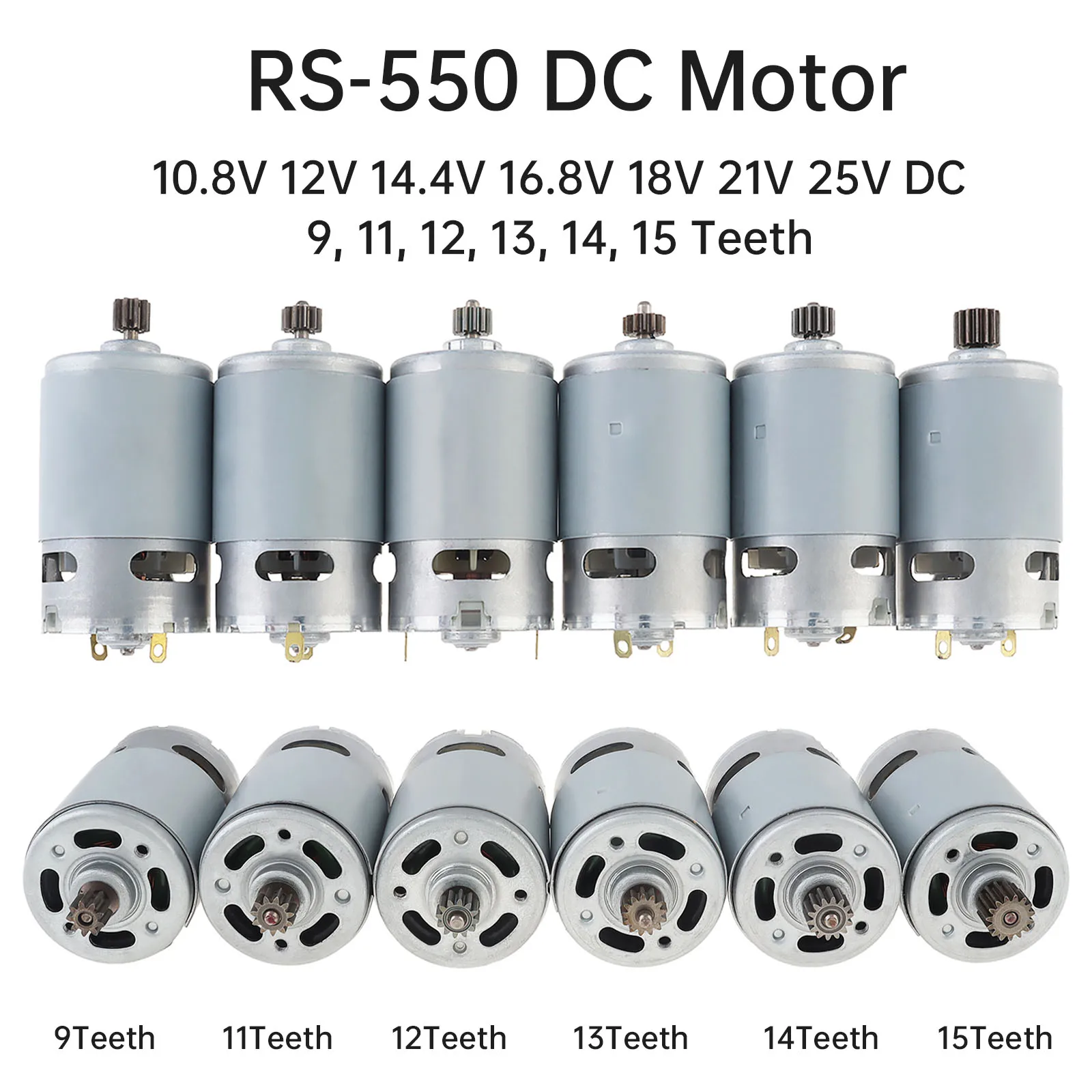

RS550 Electric Drill Motor 10.8 12V 14.4V 16.8V 18V 21V 25V Motor 9 11 12 13 14 15 Teeth Replacement DC Motor for Electric Screwdriver / Cordless Drill

- RS550 with 9-15 gear teeth DC motor, are specially designed for replacement rechargeable lithium battery cordless electric drill / screwdriver.

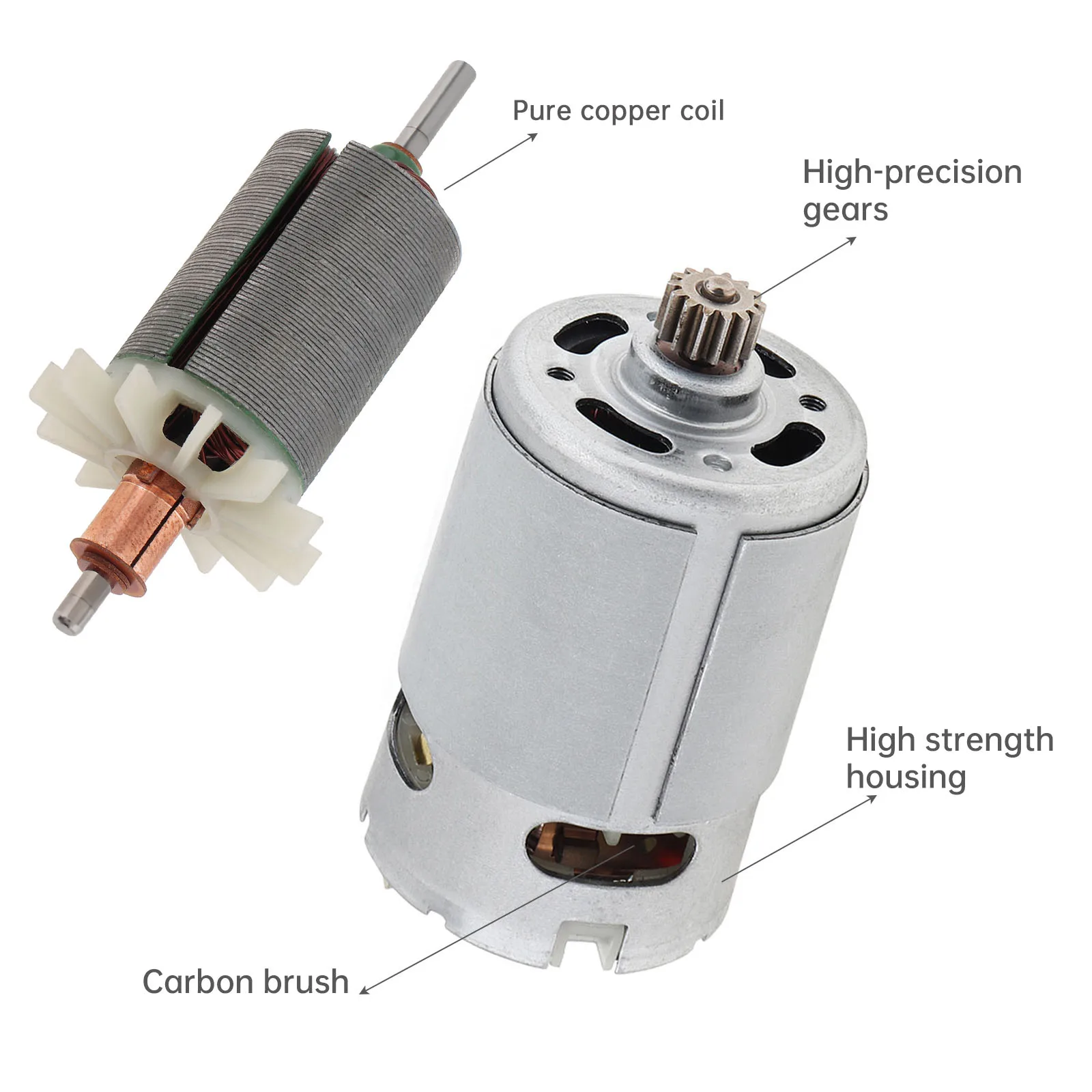

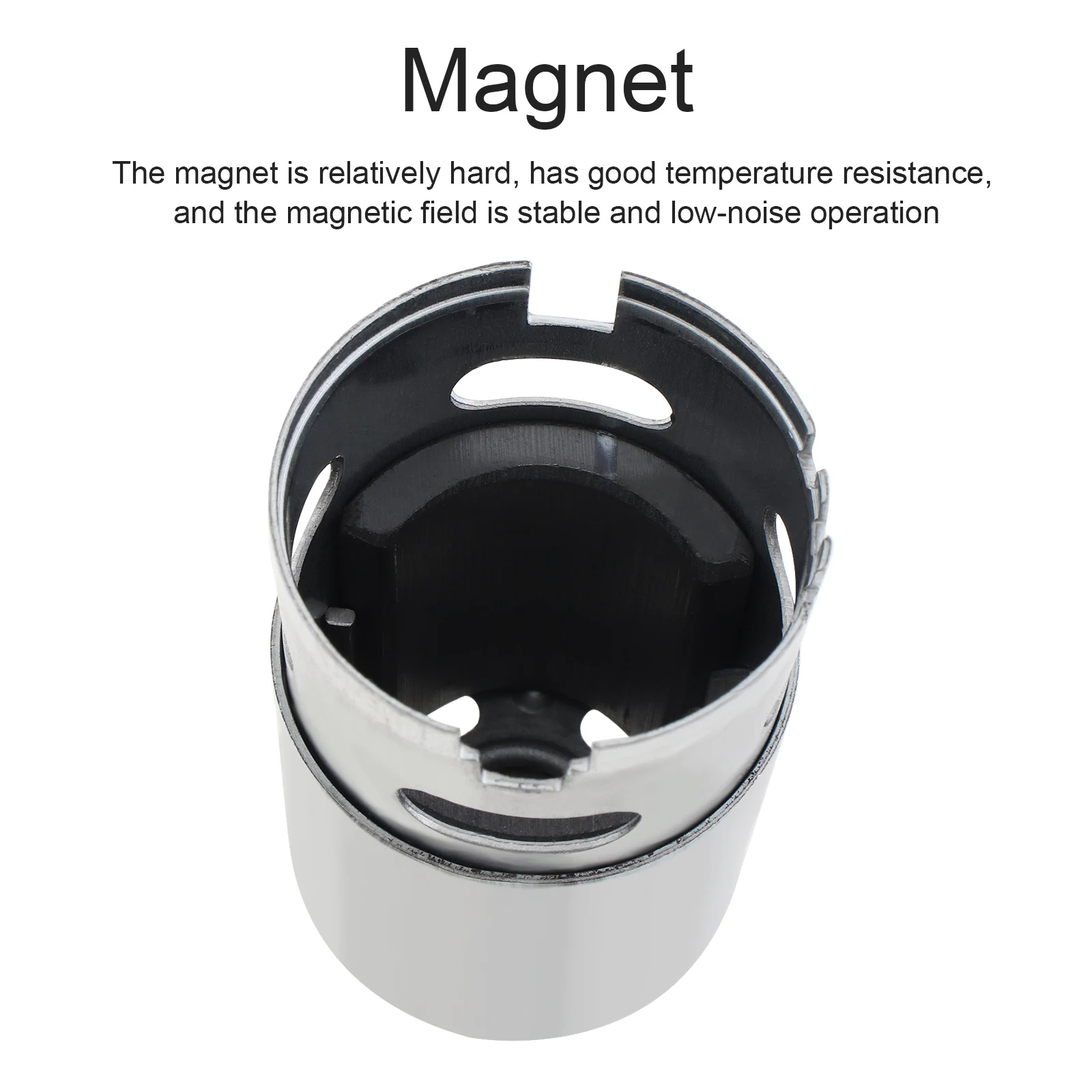

- Stainless steel shell material, Pure copper coil, low current, high efficiency, strong output power.

- Low noise, high speed and high torque, good heat dissipation, stable performance and long life.

- Easy to use, the front can be fixed with 2 M3 screws.

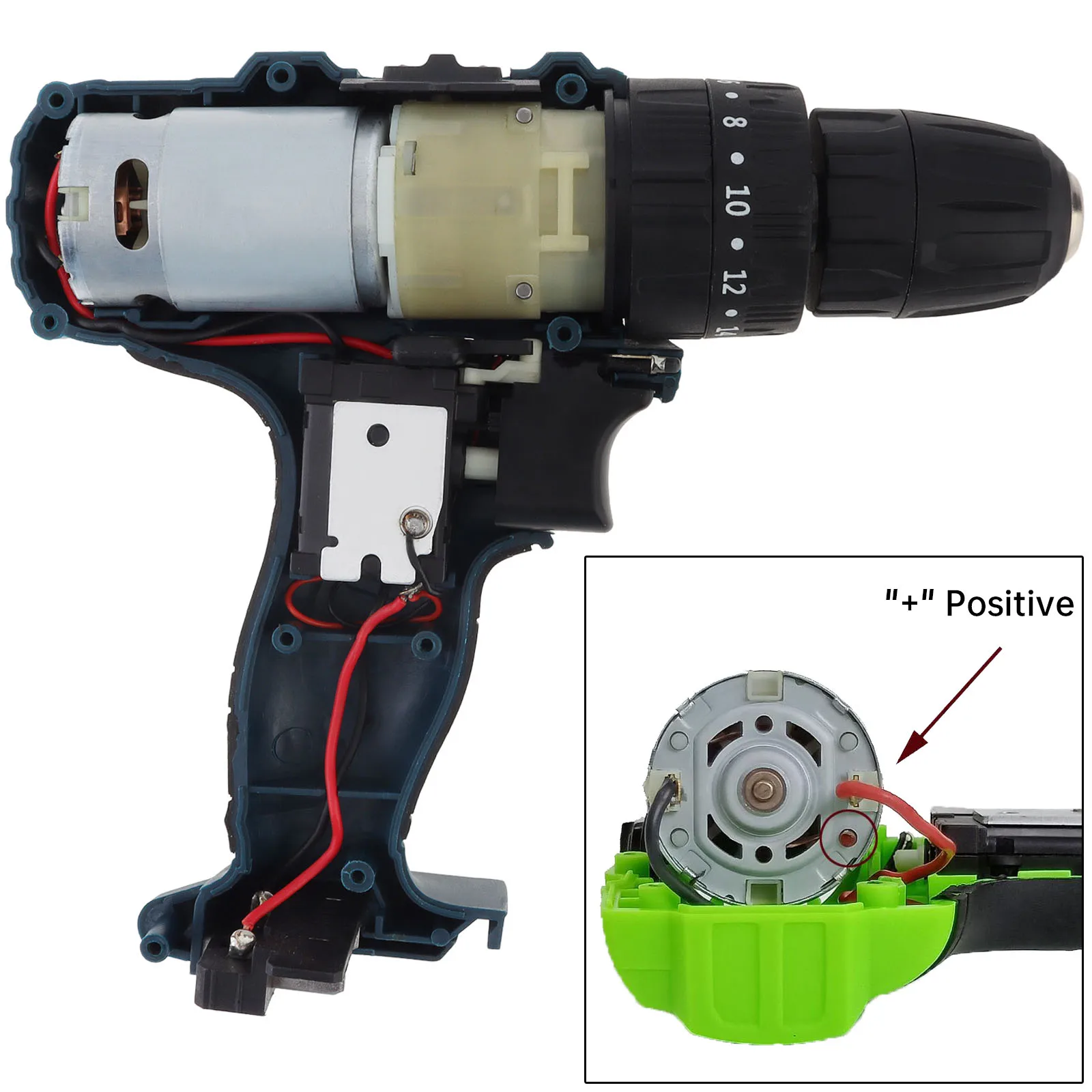

- Widely used in cordless drill, table drill, electric drill and electric screwdriver etc.

Support voltages: 10.8V / 12V / 14.4V / 16.8V / 18V / 21V / 25V

Support gear teeth number: 9 / 11 / 12 / 13 / 14 / 15

No load Speed: 20000-30000RPM

Rated Power: 80W (approx.)

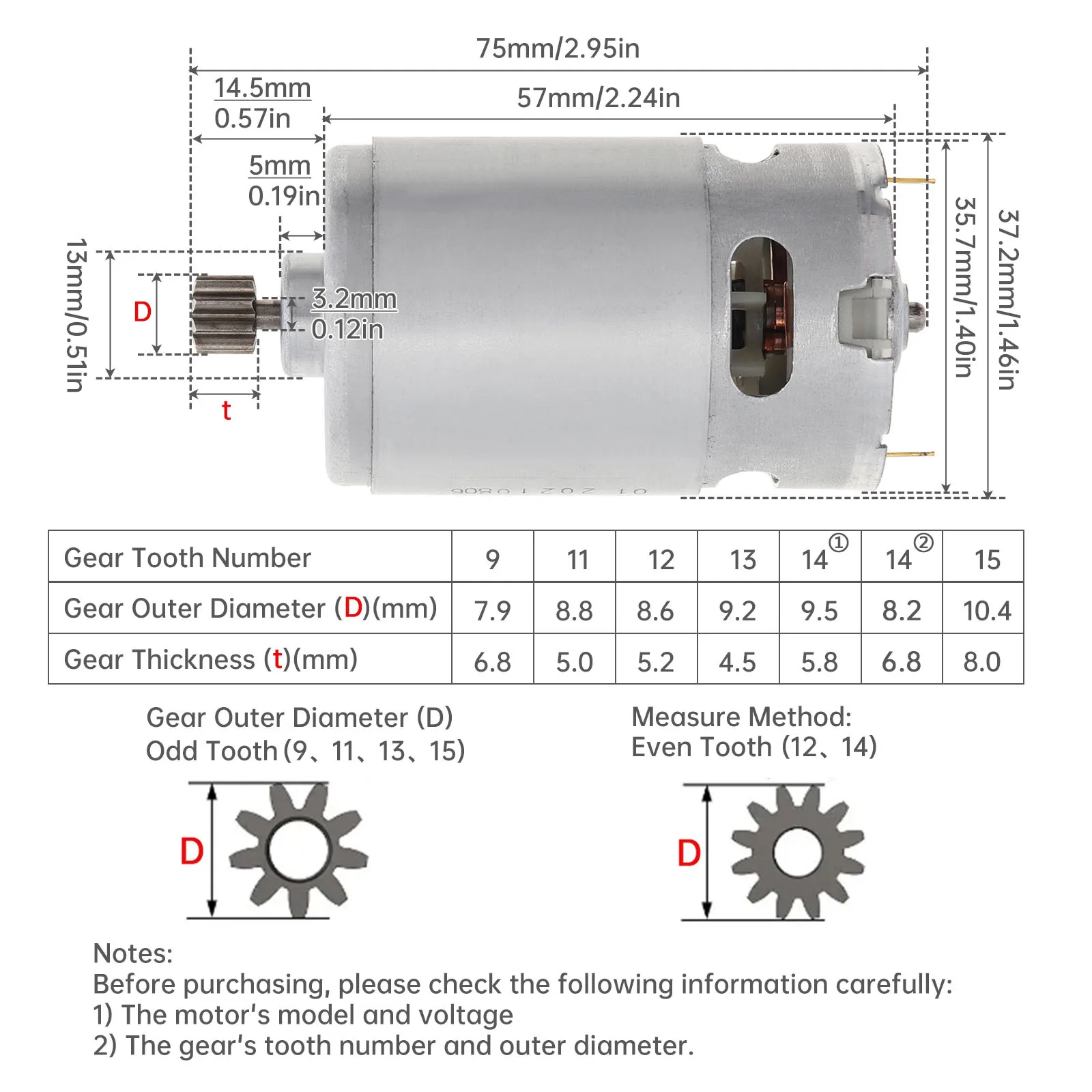

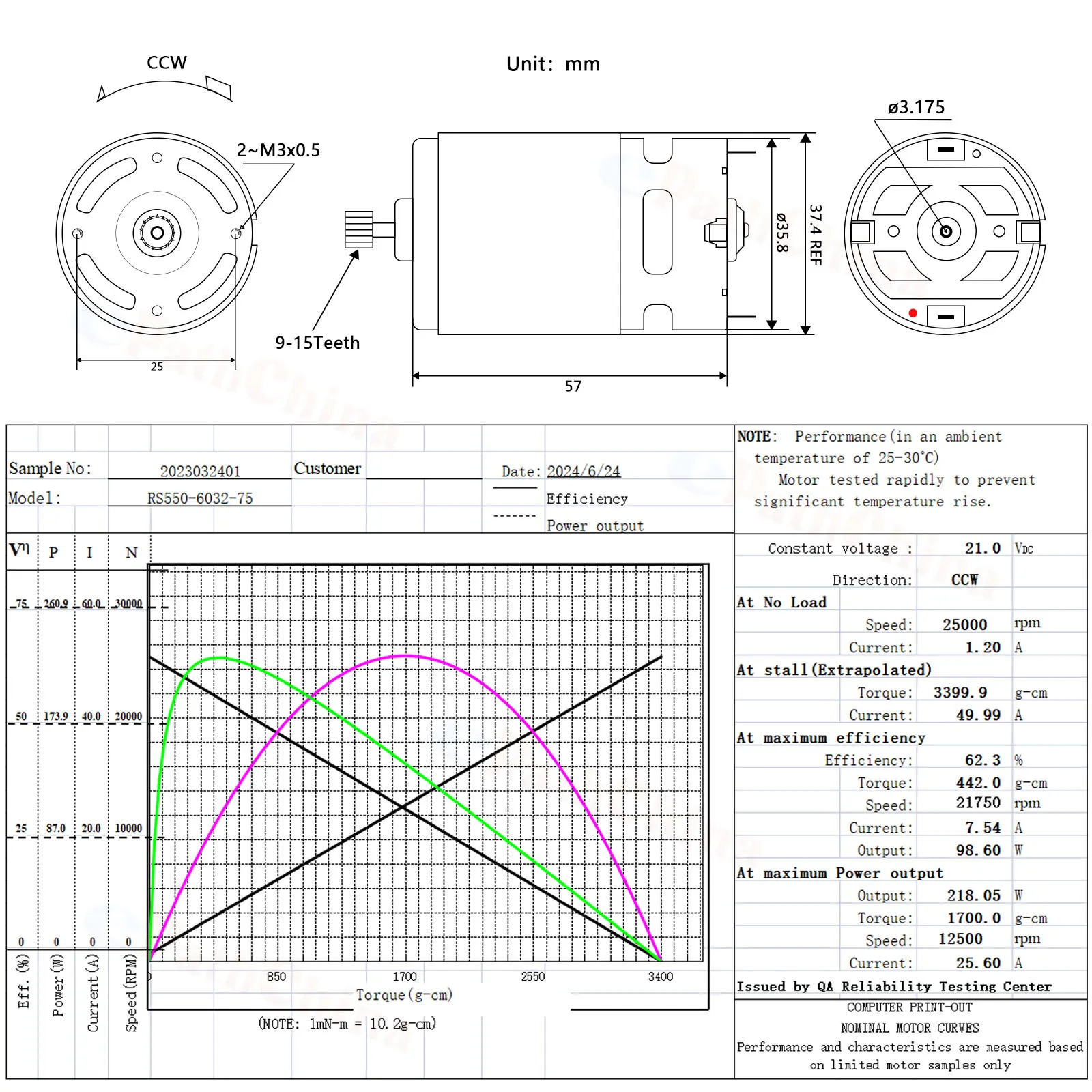

Motor Body Length: 75.1mm; Diameter: 37.2mm

Motor Shaft Diameter: 3.2mm; Length: 12mm

Motor Gear Diameter: 7.9mm; Thickness: 6.5mm

Motor Installation Size: 2 M3 screws; Spacing 25mm

Motor Use Temperature: 0 - 50 Centigrade

Motor Storage: Temperature: 0 - 40 Centigrade; Humidity: 15-90 Percent RH

How to choose a motor for a rechargeable electric drill / screwdriver:

1. Confirm your motor model is RS550 or motor diameter(about 37.2mm), and motor body length(about 57mm), and total length(about 75.1mm).

2. Confirm the voltage of your motor (DC10.8V-25V) and choose a motor with the same or similar voltage.

3. Confirm the number of teeth of your motor (9-15 teeth), make sure to choose the motor with the same number of teeth, and verify that the outer diameter and thickness of the gears are the same or similar.

Part of applicable lithium electric drill models:

10.8V: GSR 10.8-2-LI, GSB 10.8-2-LI, GSR 108-2-LI, GSB 108-2-LI

12V: GSR 12-2-LI, GSB 12-2-LI, GSR 120-LI, GSB 120-LI

14.4V: GSR 14.4-2-LI, GSB 14.4-2-LI, GSR 144-2-LI, GSB 144-2-LI

18V: GSR 18-2-LI, GSB 18-2-LI, GSR 180-2-LI, GSB 180-2-LI

GSR 10.8 V LI-2 - 3 601 H68 100, GSR 12-LI - 3 601 J92 901

GSR 12-2-LI - 3 601 H68 101, PS21 - 3 601 J92 910

GSR 12V-15 - 3 601 H68 102, PS21 - 3 601 J92 911

PS31 - 3 601 H68 110, GSR 10.8 V LI - 3 601 J92 9E0

PS31 - 3 601 H68 111, GSR 10.8 V LI - 3 601 J92 9F0

GSR 10.8-2-LI - 3 601 H68 150, GSR 10.8 V LI - 3 601 J92 9G0

GSR 10.8-2-LI - 3 601 H68 180, GSR 10.8 V LI - 3 601 J92 9H0

GSR 12-2-LI - 3 601 H68 181, GSR 12V-15FC - 3 601 JF6 000

GSR 10.8-2-LI - 3 601 H68 1B0, GSR 12V-140FC - 3 601 JF6 010

GSR 10.8-2-LI - 3 601 H68 1C0, GSR 10.8-15 FC - 3 601 JF6 050

GSR 10.8-2-LI - 3 601 H68 1E0, GSR 12V-15FC - 3 601 JF6 080

GSR 10.8-2-LI - 3 601 H68 1G0, GSR 10.8-15 FC - 3 601 JF6 0B0

GSR 10.8-2-LI - 3 601 H68 1H0, GSR 12V-15FC - 3 601 JF6 0E0

GSR 12-2-LI - 3 601 H68 1L0, GSR 12V-15FC - 3 601 JF6 0K0

Note:

- The RS550 motor has multi voltage and multi gear teeth combinations, which can be adapted to many electric power drills on the market, but there are too many brands and models of power tools, which makes it impossible for us to identify them all, so please compare them carefully before an order.

- If you want to buy RS550 14 teeth motor, there are two sizes of 14 teeth, which are used for different tools, please pay attention to it before order.

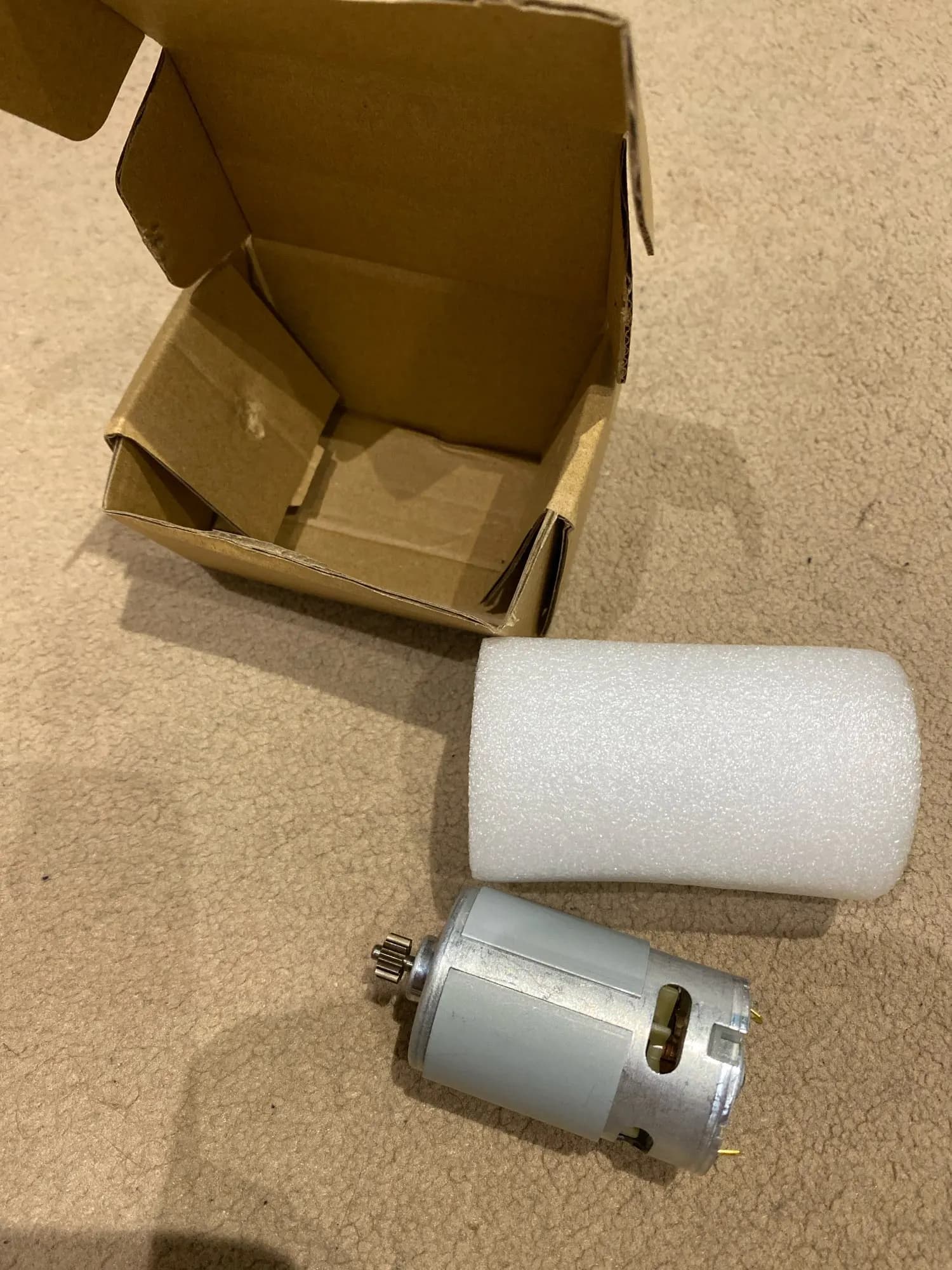

Package include:

1 x DC Motor
