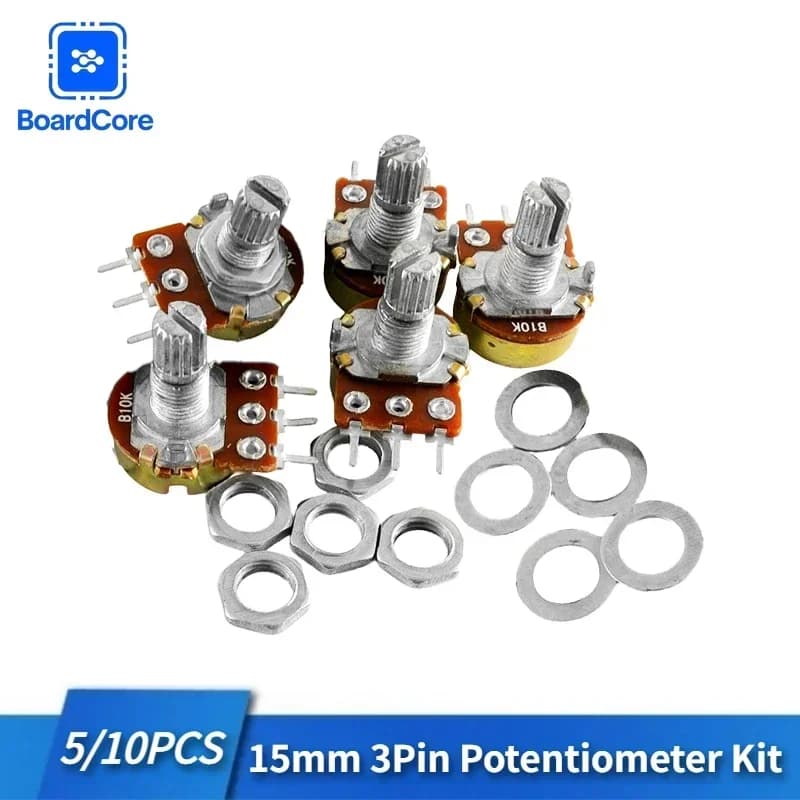

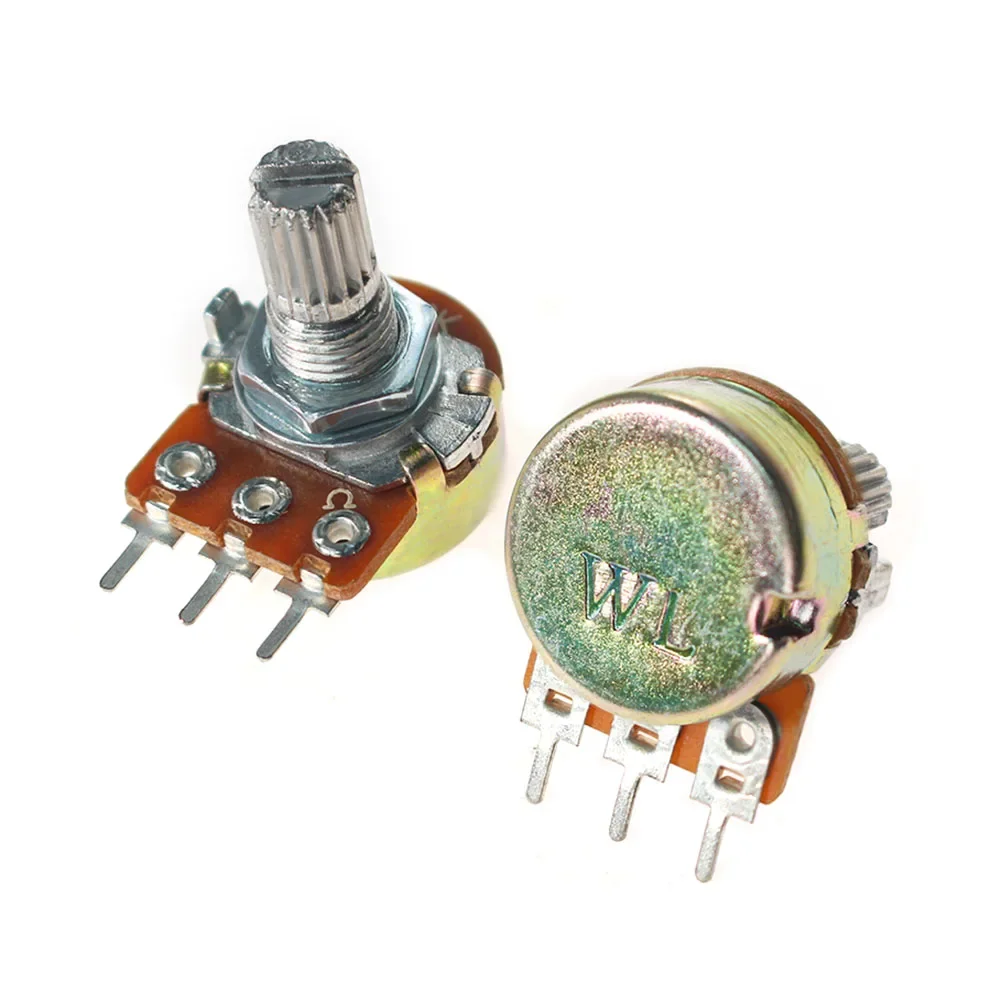

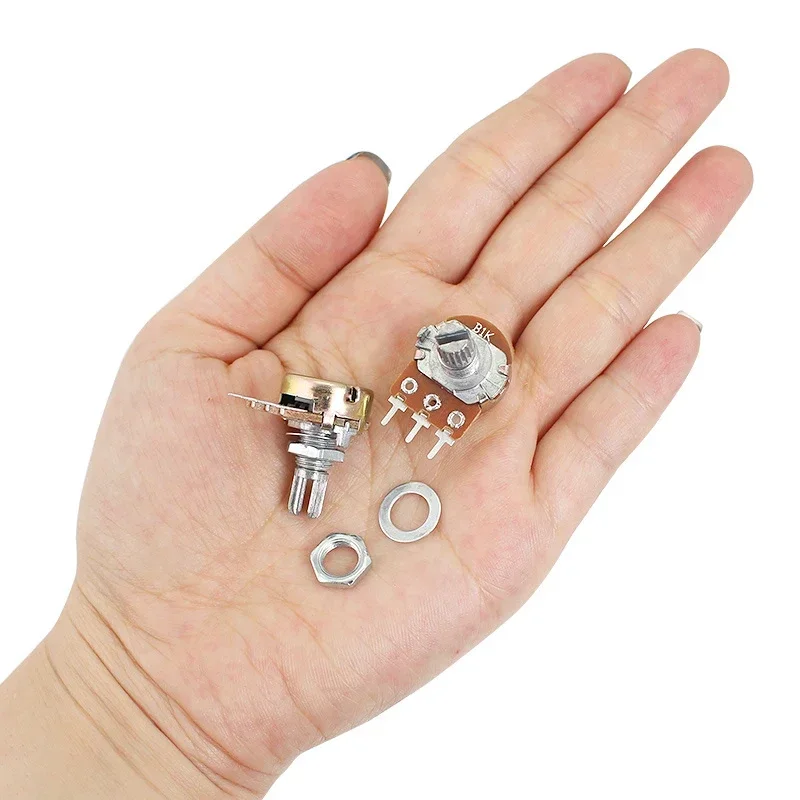

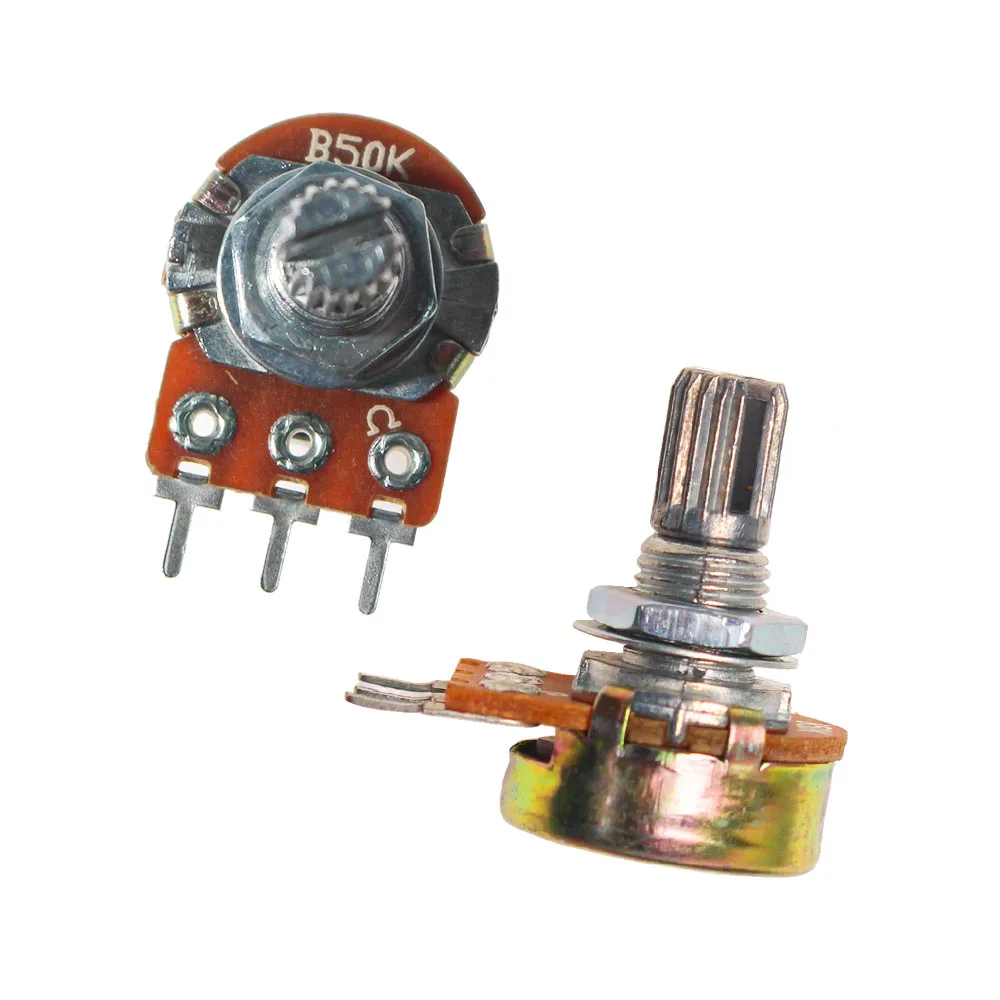

5/10PCS WH148 Potentiometer 15mm Shaft 3Pin B1K B5K B10K B20K B50K B100K B500K Linear Audio Volume Control with Nuts & Washers

Name: WH148 Potentiometer
Product introduction:
1. Potentiometer is an adjustable electronic component. It consists of a resistance body and a rotating or sliding system. By manually adjusting the shaft or sliding handle, change the moving contact in the resistance body. The position of, then changes the resistance value between the moving contact and any fixed end, thus changing the size of the voltage and current.
2. Single potentiometer is a kind of resistance substrate made of synchronous regulation potentiometer in potentiometer is obtained
Cloud input voltage (voltage) into a certain relationship to the output potentiometer, the potentiometer volume, power
Large, sliding visual intuitive, can also be used as a current limiter.

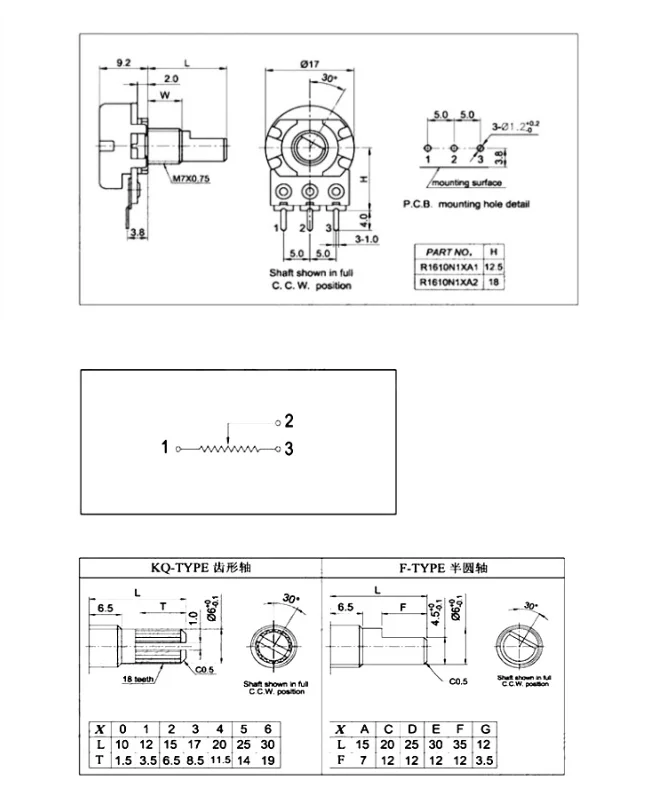

Parameters:
1. Rotation Angle: 300°± 10°
2. Rotating torque: 10~ 200gf.com
3. Stop strength: 6.0kgf.cn Min
4. Axial push-pull strength: 8.0kgf,cm
5. Registration points: Center, 7/11/21/41 Detent
6. Electrical torque of point position: 50~ 150gf.cm

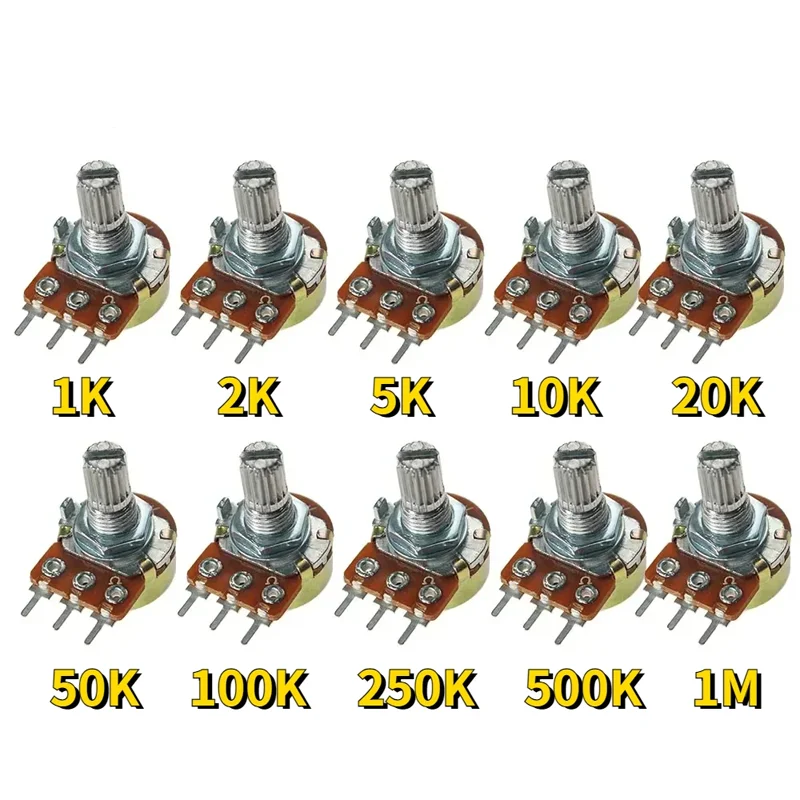

7. Resistance range: 10kΩ~1MΩ
8. Resistance tolerance: ±20% (more than 1MΩ±30%)
9. Load power: Curve B: 0.05W, other yhan B: 0.025W
10. Use voltage: Curve B:50VDC other than B:25V AV
11. Residual short rent: R≥25KΩ 0.1%max, of total tesistance
12. 250KΩ>R> 10KΩ 20Ωmax 20 Kω ≥R 10KΩ max
13. Insulation resistance: More than 100MΩ at DC 250V 1minute
14. Withstand voltage: 1 minute AC 250V
15. Synchronization error: -40~0dB <±3dB
16. Rotating noise: less than 100mV
17. Rotation life: 10,000 cycles

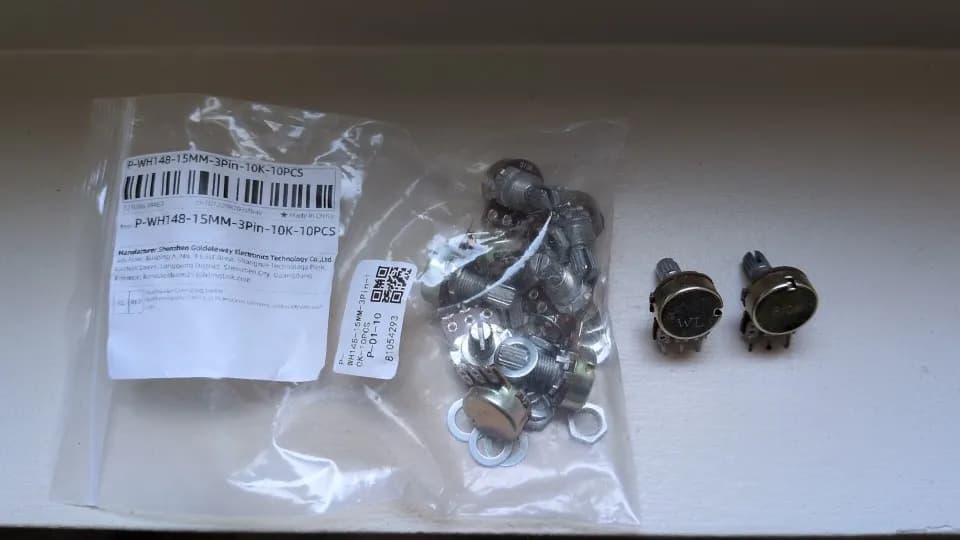

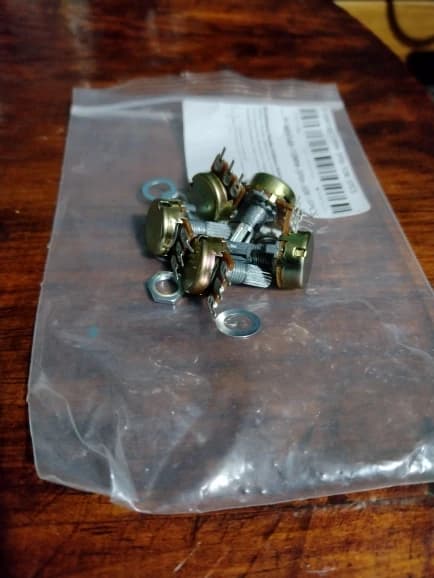

Package List:
5PCS WH148 Potentiometer
Product application:
Widely used in electrical equipment, audio equipment, communications, medical facilities, security products
UPS power supply, video recorder, MP3, VCD player, telephone and other equipment
