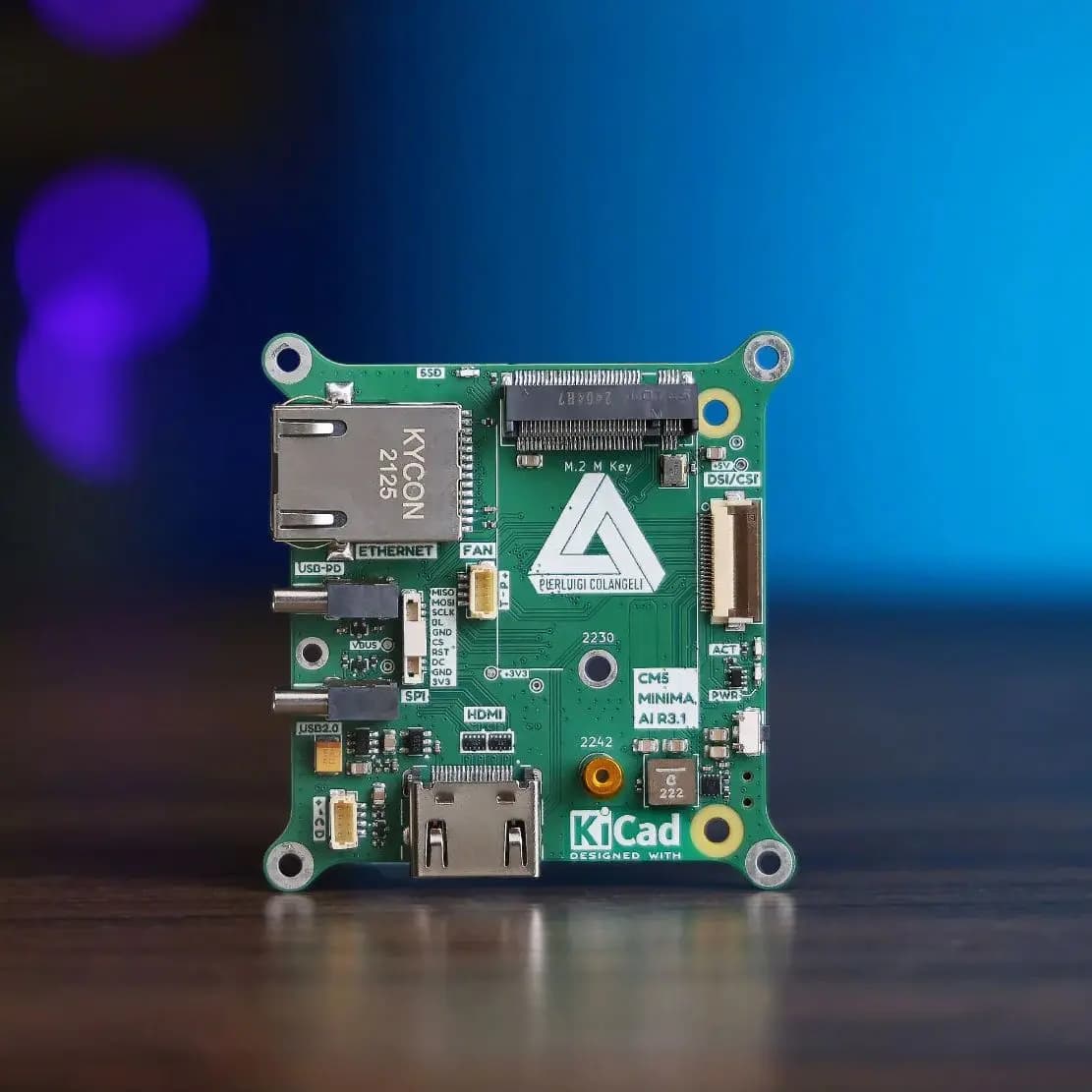

Raspberry Pi Compute Module 5 CM5 MINIMA Compact Carrier Board, M.2 Key Slot Hailo AI/SSD,CSI/DSI,Gigabit Ethernet,HDMI,USB-C PD

Description

The CM5 MINIMA is a compact carrier board for the latest Raspberry Pi computing module 5.

It is designed for embedded applications, DIY electronics, and low-power computing projects.

Unlike traditional desktop computers, the CM5 is a small, efficient system that integrates essential computing hardware onto a single board.

Whether you're a hobbyist, developer, or engineer, this module provides a versatile platform for various applications, including IoT, automation, and custom hardware development.

This product is a co-create collaboration with Seeed Studio and Pierluigi Colangeli.

Feature

• USB-C Power Delivery (PD): Supports power negotiation for efficient energy use.

• USB 2.0 Ports: Connect peripherals such as keyboards, mice, and external storage.

• Gigabit Ethernet: High-speed wired networking with a low-profile cutout magjack.

• HDMI Port: Output video to external displays for media playback or interface applications.

• M.2 M Key Slot: Supports 2242 HAILO accelerator or SSDs for storage expansion.

• CSI/DSI Connector: Attach camera modules or displays for vision-based applications.

• LIS3DH STM32 accelerometer: can help with automatic camera orientation.

• I2C Connector (3.3V only): Connect low-power sensors and communication modules.

• SPI Connector: Supports high-speed communication with other devices.

• Fan Connector: Optional cooling support for high-performance applications.

• Status LEDs: Visual indicators for power and system activity.

• nRPI boot switch: Flash CM5 OS directly on-board.

• Compact Size: Measuring only 6.1 × 6.1 cm, ideal for space-constrained projects.

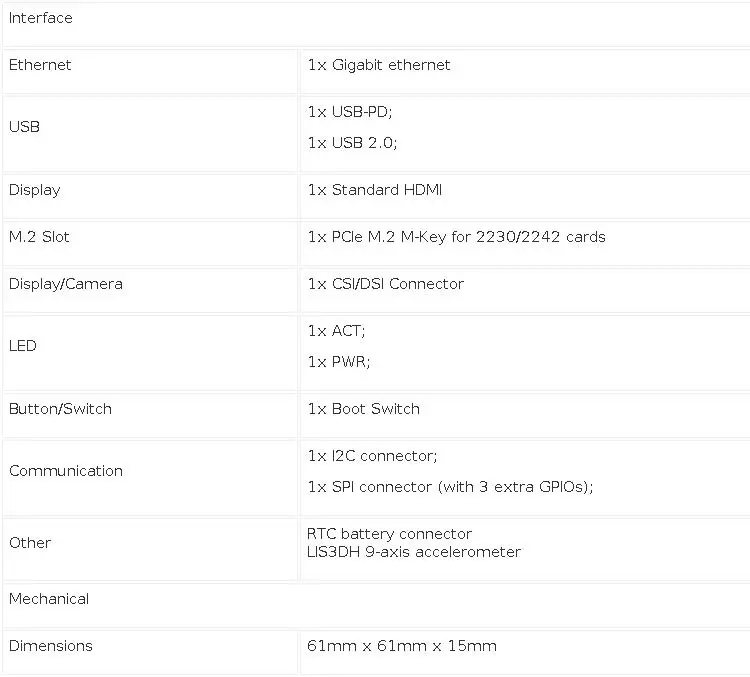

Specification

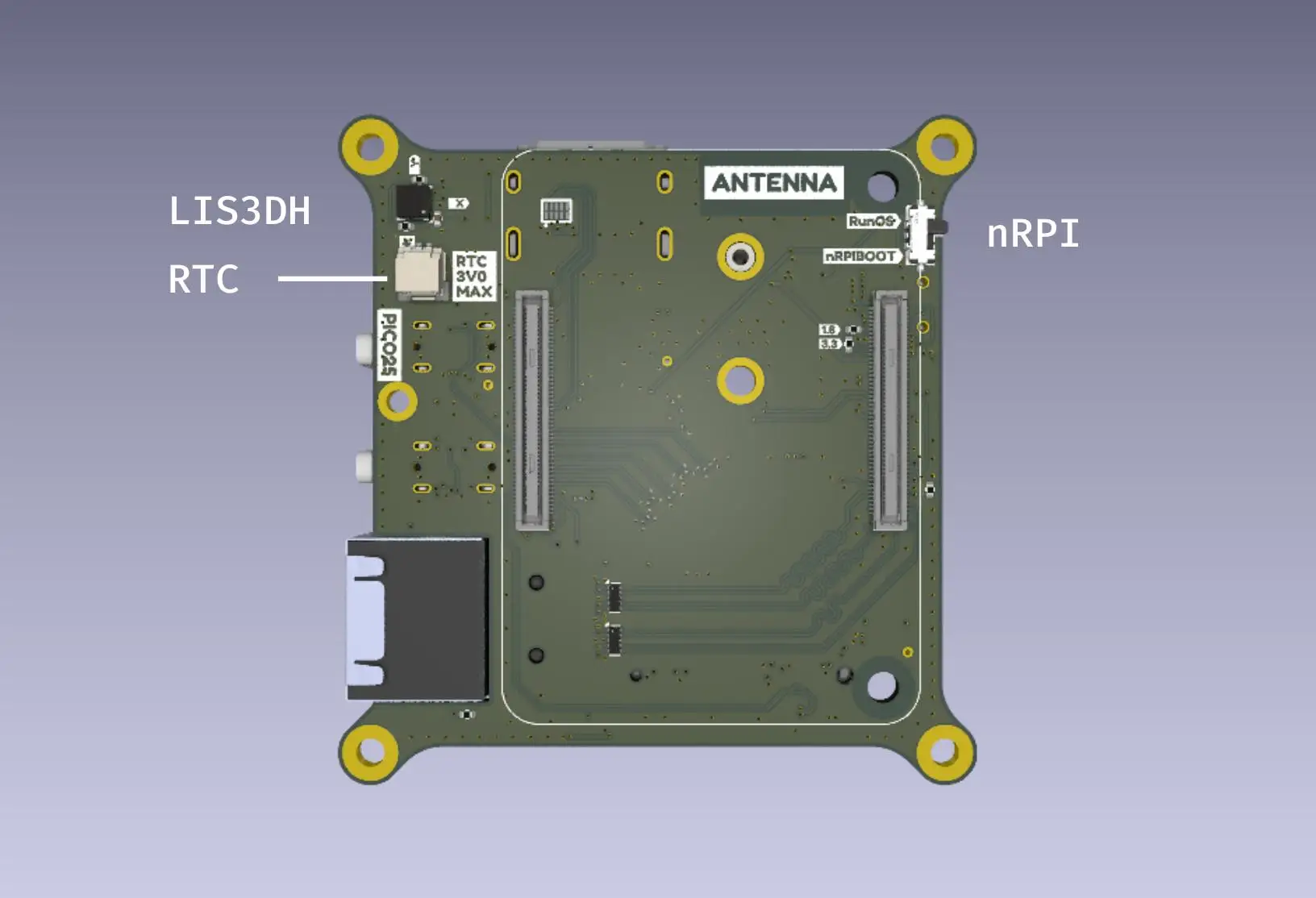

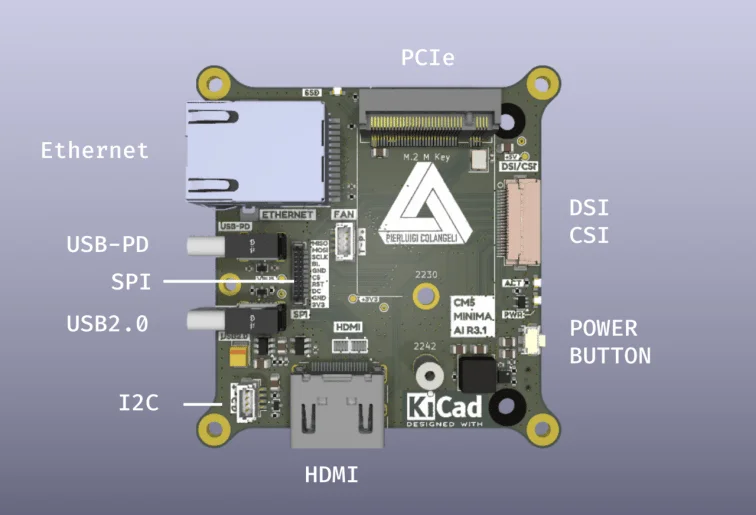

Hardware Overview

Application

IoT & Smart Devices

Hand-held projects

AI camera traps and security systems

Home Automation

Media Centers

DIY Projects

Part List

CM5 MINIMA - Mini Carrier Board (Without CM5) *1
