Ebike Sine WaveDisplay Controller 17A26A30A Three-Mode 24V/36V/48V with Learning Function S866 LCDColor Display 350W-1000W Motor

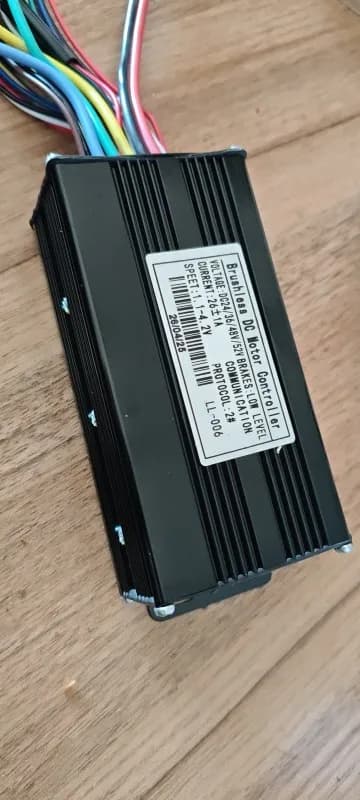

Please note that the 1T5 cable brake in this product is the 3 pin male plug. To prevent the controller from being incompatible with your display, I suggest that you purchase the controller and display together :) If you want to purchase a 1T5 cable brake with 2pin female plugs, please click on the picture▲ Parameter： LCD Display Type : S866/CS866 LCD Display Voltage : 24V 36V 48V 52V Plug : 5Pin+2Pin(2-pin plug to connect the plug of the headlight) Male SM Plug Holder Diameter :φ22mm Cable Length: 170cm ( SM ) 17AController ●Type: 17A Controller ●Size(L*W*H):About 97*52*31mm ●Rated Power:250W/350W ●Speed Set:1.1-4.2V ●Mosfet:9Mosfet ●Booster:1:5 ●Brakes:Low-L evel ●Rated Voltage:DC24/36/48V/52V SM Controller line length:150mm/5.9in ●Compatible with motors with or without Hall ●With motor forward and reverse learning function 26A Controller ●Type: 26A Controller ●Size(L*W*H):About 150*65*40mm (The measured size includes ear hooks) ●Rated Power:500W/750W ●Speed Set:1.1-4.2V ●Mosfet:9Mosfet ●Booster:1:5 ●Brakes:Low-L evel ●Rated Voltage:DC24/36/48V/52V SM Controller line length:150mm/5.9in ●Compatible with motors with or without Hall ●With motor forward and reverse learning function 30A Controller ●Type: 30A Controller ●Size(L*W*H):175*65*40mm(The measured size includes ear hooks) ●Rated Power:1000W ●Speed Set:1.1-4.2V ●Mosfet:12 Mosfet ●Booster:1:5 ●Brakes:Low-Level ●Rated Voltage:DC24/36/48V/52V SM Controller line length:150mm/5.9in ●Compatible with motors with or without Hall ●With motor forward and reverse learning function 40A Controller ●Type: 40A Controller SM Plug ●Size(L*W*H):212*85*45mm(The measured size includes ear hooks) ●Rated Power:2000W ●Speed Set:1.1-4.2V ●Mosfet:15 Mosfet ●Booster:1:5 ●Brakes:Low-Level ●Rated Voltage:DC36/48/52V ●Compatible with motors with or without Hall SM Controller line length:100mm/3.9in ●With motor forward and reverse learning function ●Can manually connect to the 25km/h speed limit line 45A Controller ●Type: 45A Controller SM Plug ●Size(L*W*H):212*85*45mm(The measured size includes ear hooks) ●Rated Power:2000W ●Speed Set:1.1-4.2V ●Mosfet:15 Mosfet ●Booster:1:5 ●Brakes:Low-Level ●Rated Voltage:DC36/48/52V ●Compatible with motors with or without Hall SM Controller line length:100mm/3.9in ●With motor forward and reverse learning function ●Can manually connect to the 25km/h speed limit line 1T5 Cable (Julet Brand) Cable Length:1500mm/59.1in Please note that when purchasing a waterproof controller , the size measurement of the motor connection plug should be accurate to ensure that it can be connected▼ When purchasing a controller with 17A-30A 3MO waterproof plug light module, please check that the light power of the electric bicycle you purchased cannot exceed 7.5W, otherwise the 17A-30A3MO waterproof plug light module will not be able to be used!!! The products in the controller connection diagram are only used as a display description.Please refer to the actual product for the purchase of the combination product. △ 17A Controller Cable Length Battery plug wire length:13cm/5.1in 1T5 plug wire length:15cm/5.9in PAS plug wire length:15cm/5.9in Light plug wire length:14.5cm/5.7in Motor plug wire length:18.5cm/7.3in Learning line plug length:14.5cm/5.7in △△ 26A Controller Cable Length Battery plug wire length:12.5cm/4.9in 1T5 plug wire length:12.5cm/4.9in PAS plug wire length:13cm/5.1in Light plug wire length:13cm/5.1in Motor plug wire length:15.5cm/6.1in Learning line plug length:13cm/5.1in △ 30A Controller Cable Length Battery plug wire length:17cm/6.7in 1T5 plug wire length:9cm/3.5in PAS plug wire length:15cm/5.9in Light plug wire length:15cm/5.9in Motor plug wire length:17cm/6.7in Learning line plug length:11.8cm/4.6in Please note that when purchasing a waterproof controller , the size measurement of the motor connection plug should be accurate to ensure that it can be connected!!!
