LAUNCH X431 PRO3S+ Smartlink HD Auto Diagnostic Tool For 12V Car + 24V Truck J2534 Program ECU Coding All Service Bidirectionnal

Must Read Before Buying

We are the LAUNCH Official Authorized Store in Aliexpress! 100% Original Products and Best Price. We Support Wholesale Price and Dropshipping !!!

If you encounter payment problems, please contact us in time！

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD 12V cars 24V heavy duty trucks Diesel & Gasoline Diagnostic Tools , All system diagnose + All reset service + J2534 programming + Bidirectional Control + ECU Coding + Topology Map Scan Tool , CANFD DOIP FCA supports , 2 Years Free Update

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD is the only tool supports 12V cars and 24V heavy duty trucks !!!

it supports almost kinds of 12V cars , 24V trucks & heavy duty , pls do not hesitate to choose it !!!

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD has 2 Version in Sale :

Type 1 is Global version , it works in Global , NO IP limited !

Type 2 is EU version , it works in all europe countries only . it is with EU IP limited , can not work out of Europe , pls note !
The EU Version is special for Europe Customers , the price is cheaper than Global version , pls choose this version if you are from Europe .

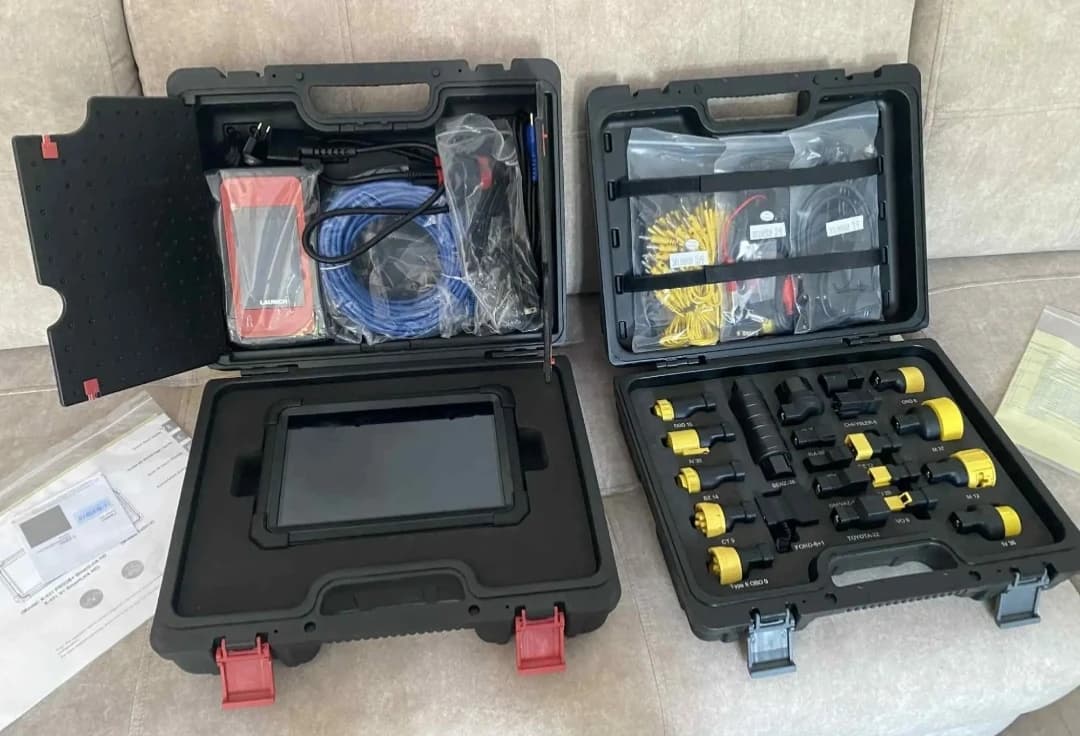

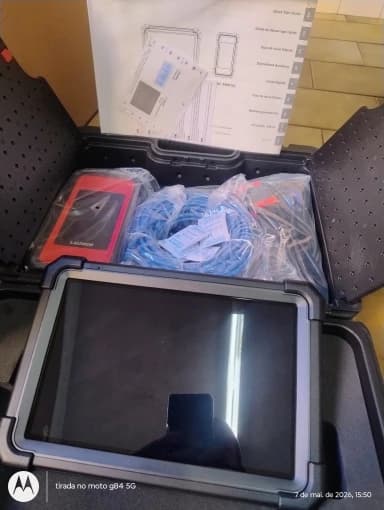

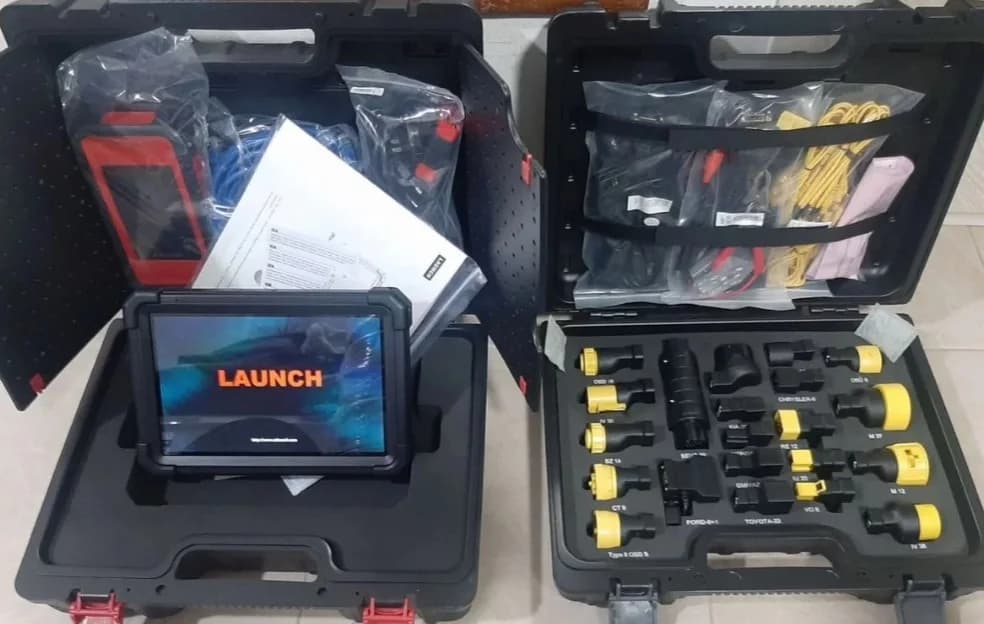

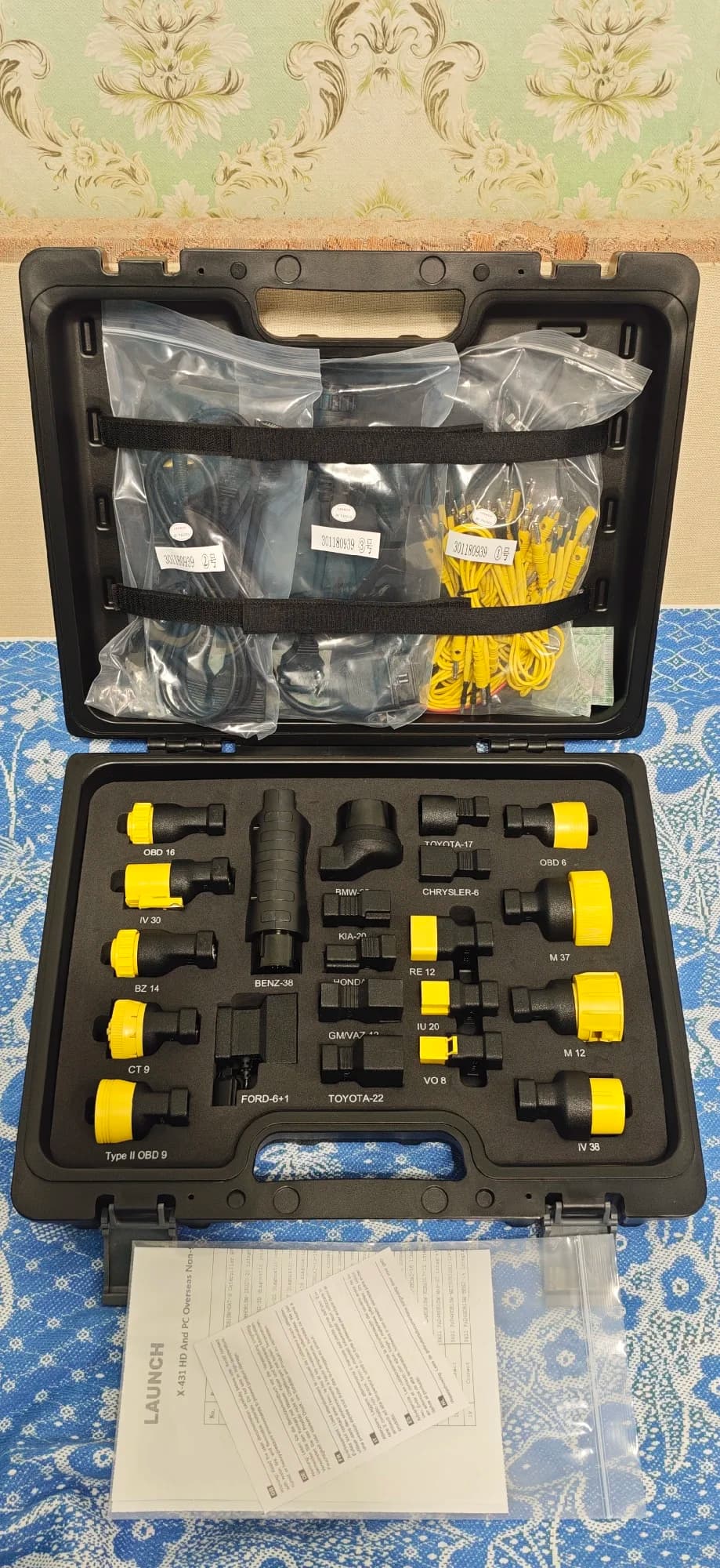

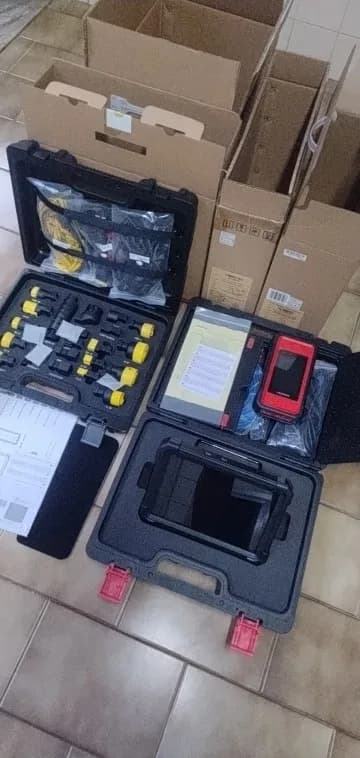

The packing list of them are same , do not worry !

Pls choose the correct version to order !!!

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD 2 Years One-Click Free Update , Lifetime Free USE

That mean after 2 Years , X431 PRO3S+ V5.0 still can work , it will not be lock , you can use it lifetime free !!!

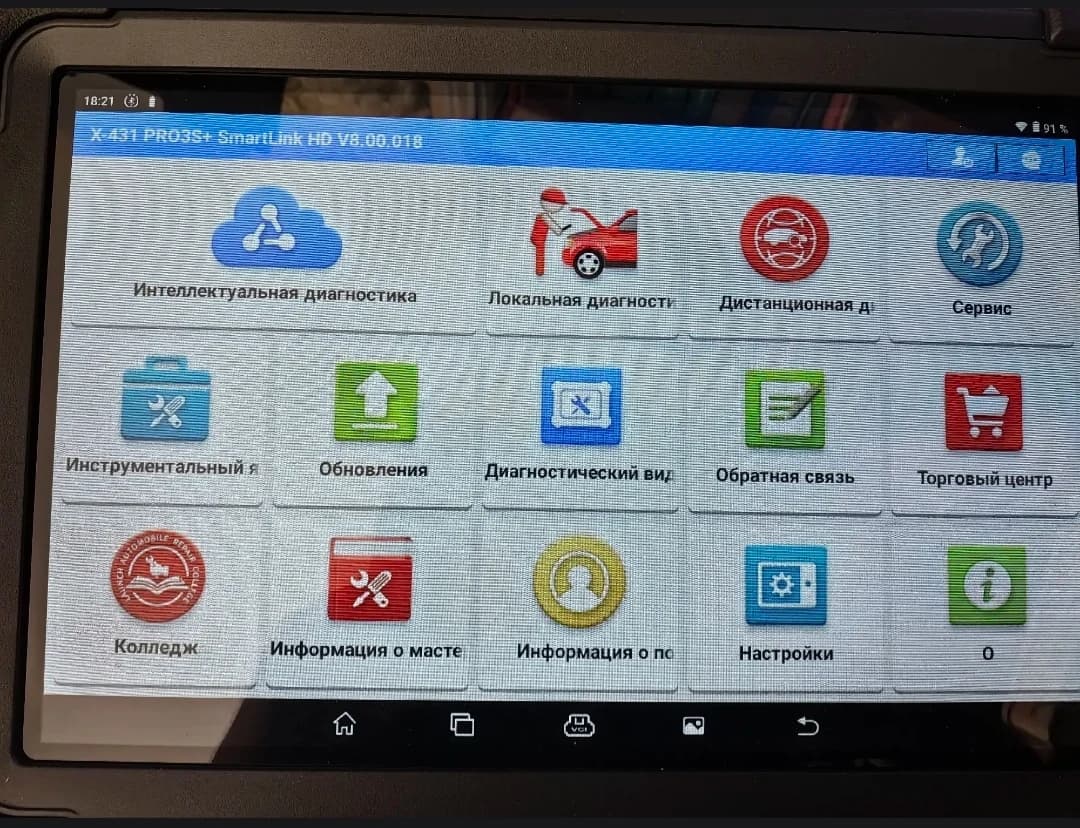

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports Lauguange :

Italian, English, Chinese Simplified, Chinese Traditional, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Romanian, Serbian, Finnish, Swedish, Czech

Warm TIP: The factory presets the language and the model software in English. After switching the language, customer needs to re-download the model software in the corresponding language.

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD supports CANFD and DIOP protocol , it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth !!!

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024

DOIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO3S+ V5.0 SmartLink C HD save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with For BMW (F&G chassis), For Volvo models (2018 later), For Land Rover & For Jaguar models (2017 later).

( Note : this is car list that CANFD and DIOP supports , X431 PRO3S+ SmartLink C HD also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

FCA/SGW AutoAuth :

FCA SGW Access: For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 ACE car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.

For Renault SGW Access: Serve 2019+ For Renault SGW vehicles include for CLIO V, for CAPTUR II, for CAPTUR II CN, for MEGANE IV ph2, for ESPACE V ph2, for TALISMAN/SM6 ph2, for NEW ZOE, for ARKANA CN, for XM3/NEW ARKANA, for NEW SANDERO/LOGAN, etc. Unloking security gateway to perform service function, active test, coding, programming, etc.

Note : This Function need have the account in FCA Website first .

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Added Functions : Topology Map ,improving your working efficiency highest than ever.

* Introducing the revolutionary function of topology mapping in automotive diagnostic products! Say goodbye to guesswork and hello to precision with our advanced technology that allows you to easily identify and locate faults in your vehicle's electrical system. With topology mapping, you can quickly and accurately diagnose issues, saving you time and money on costly repairs.

* Our cutting-edge diagnostic tools provide a comprehensive view of your vehicle's electrical system, giving you a detailed map of all the components and their connections. This allows you to quickly pinpoint any faults and troubleshoot with ease. Whether you're a professional mechanic or a DIY enthusiast, our topology mapping feature is a game-changer that will take your diagnostic capabilities to the next level.

* Don't settle for outdated diagnostic tools that leave you guessing. Upgrade to our topology mapping technology and experience the future of automotive diagnostics today. With our products, you'll have the power to diagnose and fix problems with confidence, ensuring your vehicle runs smoothly and efficiently. Try it now and see the difference for yourself!

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD support all Systems Diagnostic Tool (Faster and more effective than OE-level coverage diagnostic equipment) :

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition
--ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
--Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports J2534 Programming :

Pairing with the SmartLink C V2.0 device (serving as J2534-Compliant VCI), you can operate a PC or LAUNCH X431 PRO3S+SmartLink C diagnostic tool to download OEM software and install J2534 files from LAUNCH official website, to perform the J2534 programming for some vehicles.

Note: Reach us to get the J2534 Operation manual.

What can this J2534 Programming Function do for you?

(1)Operate OEM programming without using the OEM tools
(2)Replace ECUs: program blank ECUs
(3)Write-in Data: refresh used ECUs
(4)Repair missing ECU information
(5) Upgrade ECU software version

* For Audi / For VW Firmware Protection Cancel Features:
One feature most techs really want is to remove firmware protection from their cars. This feature helps mechanics replace car parts. Carry out car modifications.

* (PMI) Pro-grammable Module Installation:
Support PMI function,Compatible with For Ford / For Lincoin/ For Mazda etc.This function is used when you need to replace a module (replace ECU) or initia-lize a module.No need using the J2534 or buying a subscription

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports ECU Coding :

* Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.

* Offline Coding: read the code from the original module, and then write the code for the new module,for example ,write a VIN to new ECU.

* Component Matching:Matching,relearn ,Cali-b-ration, or initia-lization adaptive data for certain components after repair or replacements,such as: suspension cali-bration ,seat matching ,sunroof initia-lization,gearbox matching,injector cali-bration, transmission adap-tion.Delete Adapt-ation Data, Tank Cali-b-ration,Height sensor system cali-bration,PSM Sensor Cali-b-ration ,etc.

* Re-trofit/Modi-fication: for example, re-trofit battery with different type, Upgrading the headlights, taillights, and interior lighting to LED lights,etc.

* Unlock the hidden features:for example,disable auto start-stop, disable daytime running light, disable safety belt chiming ,delete transport mode,delete transmission adaptive value.setting speed limits,etc.

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports Bi-directional Control: ( ACTIVE TEST ) :

* For cars :
Injector Buzz Test/Idle Speed Adjustment/Window/Mirror/Door Lock test/Pump and Valve tests/Fuel Pump/Solenoid valve ,tank Ventilation/Switch/cylinder correction off/on/E.GR test/EVAP test/A/C Compressor Activation/Turn on the radiator fan/Modulate the throttle/cycling the a/c/clutch on and off/Acceleration Device Test,etc .(vary by car model,year)

* For Heavy duty Trucks:
Cylinder cut-out test/compression test/injector volume commands/injector programming/S.CR commands/rail high pressure test/S.CR catalyst regen/Cylinder balance test/D.PF regen/VGT calibrations/S.CR commands/Aftertreatment reset/Parameter changing/glow relay activation check/reset the D.P.F filter,etc.(vary by car model,year)

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports Guided Function for Volkswagen/Audi , the following function need Guided Function :

√Service Regeneration,Particle Filter(DPF)
√Adapt Injector Correction Value
√ Reset Engine Control Adaptation Values
√ Throttle Learning
√ Fill Coolant Circuit
√ Adapt Values,SCR system
√ Activating/Deactivating Cruise Control System
√ Basic Setting Of Transmission
√ Basic Setting of Sensors (-G85/-G200/-G201/-G251)
√ Basic Setting/Bleeding Brake System
√ Initial A/C Compressor Run-In
√ Adaptation Automatic Locking At 15 km/h
√ Distance Control System Calibration
√ Deactivate Or Activate Airbags And Belt Tensioners
√ Adaptation Menu Key Multifunction Steering Wheel
√ Adapting Service Intervals
√ Service Interval Display ,Resetting
√ Transport Mode, Switching Off/On
√ Level Control System Basic Settings
√ Brake Pad Change
√ Headlight Beam Adjustment
√ Battery Adaptation
√ Rear View Camera System Calibration
√ Driver Assistance Systems Front Sensor System Calibration etc.

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Supports all reset function :

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

.......

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Other Function :

12 in 1 graphic data stream : view and capture (record) real-time Live Data. This data including current operating status for parameters and /or sensor information can provide insight on overall vehicle performance. It can also be used to guide vehicle repair.

Aut VIN Scan : VIN scan quick test and manual diagnosis are available.support all system diagnosis of passenger car

Remote Diagnosis : help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster. If you encounter a diagnostic problem that can not be solved by yourself, you can ask assistance for professional Mechanic.

Vehicle Health Report Share and Print : Auto generate vehicle health report, and it can be shared via email, then print it on computer.

Diagnostic Feedback : If you the scanner can not scan any car system or functions does not support, you can submit diagnostic feedback, then send serial number to us, we will deal the case soon.

Data Review : It allows you playback the stored data and diagnostic process, help customer compare current and past data.

Online Database : is fully filled with abundant repair cases( Circuit diagram / maintenance handbook)and automotive technology handbook for your easier retrieval and reference.

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD diagnostic scanner has supported various extended modules (needs to buy additionally) :

LAUNCH X431 ADAS TOOL : For ADAS Calibration functions , Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)

LAUNCH X431 I-TPMS : TPMS activation,programming and learning function.
a)Activation:to activate the sensor's IlD, wheel pressure, sensor frequency, tire temperature and battery status.

b)Programming:to program sensor data to a blank Thinkcar sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available:automatic, manual, and via activation replication.

c)Learning:to write the sensor ID into the vehicle ECU for sensor identification.

LAUNCH X431 X-prog 3 : Features of LAUNCH X431 PRO3S+ car key programmer go beyond any other scan tools you’ll find at the same level. This LAUNCH X431 diagnostic tool can also be a capable IMMO service tool, providing fast, easy, and intuitive k-ey programming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level antitheft systems.

Add Key, Delete Key, Read Pin Code (All K-eys Lost), and more.
Need to pair with LAUNCH X431-PROG3 IMMO Programming box to have complete IMMO & K-ey Programming (read & wirte 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.
NOT universally compatible. Reach us to check car coverage if necessary.

LAUNCH VSP-600 VIDEOSCOPE : Check unseen parts of engine, fuel tank system, etc.

X431 BST-360 Battery tester : it supports Battery Health Test , Smart System Test , Charging Health Test and Test Record

X431 wifi mini PRINTER : Print out diagnostic data/reports

X431 Scopebox : Quickly acquire the circuit signal, and slowly display the waveform for better data analysis.(NEED EXTRA BUY)

X431 S2-2 Sensorbox: Specially designed to diagnose and simulator vehicle sensor faults quickly and conveniently.(NEED EXTRA BUY)
S2-2 Multimeter:Allows you to measure the physical parameters such as voltage, resistance, frequency etc. It utilizes the same hardware as the S2-2 Sensorbox.(NEED EXTRA BUY)

X431 New Energy Battery Pack: Supports reading the current SOC/SOH, cell/module voltage, input/output current and power, battery temperature, as well as reading the detailed status information and fault information of the battery pack, automatically calculating the total voltage, voltage difference, maximum/minimum voltage and other index data, automatically labeling the abnormal data, and quickly locating the battery pack problems for more than 130 + New energy vehicles ,include BMS_For BYD,BMS_HD_For BENZ,EV_For AUDI,EV_For BMW,EV_For CHRYSLER,EV_For GM,EV_HD_For CAMC,EV_HD_For GEELY,EV_HD_For VOLVO,EV_For HONDA,EV_For TOYOTA,EV_For TESLA,EV_For RENAULT,etc

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD supports Vehicles List :

For 12V Cars :

EUROPE Cars :

For Audi, For Mercedes-Benz, For Maybach, For BMW, For Mini, For HCBMW, For Rollsroyce, For Citroen, For Fukang, For Ferrari, For Fiat, For Abbas, For Lancia, For Romeo, For NanjingFiat, For GAZ, For LandRover, For Jaguar, For Martha Lahti, For Open, For GMSA, For Vauxhall, For Peugeot, For DFPeugeot, For Porsche, For Renault, For Dacia, For Rover, For SAAB, For Skoda, For Seat, For Smart, For Transporter&V-Class, For VAZ, For Volvo, For VW, For Bingley, For Bugatti

America Cars :

For Brazil Fiat, For Brazil GM, For Chrysler, For Dodge, For Jeep, For GM, For Buick, For Cadillac, For Chevrolet, For Ford, For ChinaFord, For Lincoln, For EuropeanFord

Asia Cars :

For Daewoo, For Daihatsu, For Honda, For Acura, For DFHonda, For GZhonda, For Hyundai, For Ikco, For India Mahindra, For India Maruti, For India Tata, For JPIsuzu, For TLIsuzu, For Kia, For Luxgen, For Mahindra, For Malaysia Asia Pacific Perodua, For Malaysia Asia Pacific Proton, For Maruti, For Mazda, For YQMazda, For Mitsubishi, For Nissan, For Infiniti, For DFNissan, For Perodua, For Proton, For SAIPA, For Ssangyong, For Subaru, For Suzuki, For TATA, For Toyota, For Lexus, For TJToyota

Australia Cars :

For Australia Ford, For Australia Horton

China Cars :

For Chang'an, For ChangCheng, For Chenghe, For DR automotive, For ECUADI, For BYD, For Foton, For Hafei, For Haima, For Brilliance, For Jiangling, For Iveco, For Jac JAC refine general, For Gonow Auto, For Xiamen Golden, For Kowloon, For Lifan auto, For GSMW, For SAIC Chase, For MVW Automotive, For Chery, For SAIC and MG, For SGM, For CHCHEVROLET, For CHBuick, For CHCadillac, For Tianjin FAW, For XinKai, For ZhongShun, For ZOTYE, For Zhongxing

For 24V Heavy Duty Truck list :

For CUMMINS , For DACHAI , For DAF , For DELPHI , For DENSO_DIESEL , For DFL , DS_For MITSUBISHI , DS_For NISSAN , DS_For TOYOTA , DS_For USAFORD , For FAWJIEFANG , For FOTONAUMAN , HD_ABS , HD_For AISIN , HD_For ALLISON , HD_For ASHOK_For LEYLAND , HD_For ASTRA , HD_For AUTOSEARCH , HD_For BENDIX_ABS , HD_For BENZ , HD_For BHARATBENZ , HD_For BONLUCK , HD_For BOSCH , HD_For BREMACH , HD_For CASE , HD_For CATERPILLAR , HD_For CHAOCHAI , HD_For CREDO , HD_DEMO , HD_For DETROIT , HD_For DEUTZ , HD_For DOOSAN , HD_For EATON , HD_For EICHER , HD_For ERF , HD_For FLEXICOIL , HD_For FREIGHTLINER , HD_For FUSO , HD_For GOLDENDRAGON , HD_For HALDEX_ABS , HD_For HIGER , HD_For HINO , HD_For HYUNDAI , HD_For INTERNATIONAL , HD_For IRISBUS , HD_For IRIZAR , HD_For ISUZU , HD_For IVECO , HD_For JCB , HD_For JMC , HD_For JOHNDEERE , HD_For KENWORTH , HD_For KINGLONG , HD_For KNORR , HD_For MACHINERY , HD_For MAHINDRA , HD_For MAN , HD_For MAXXFORCE , HD_For MILLER , HD_For MWM , HD_For NATURE , HD_For NEOPLAN , HD_For NEWHOLLAND , HD_OBD , HD_For PACCAR , HD_For PETERBILT , HD_For PSI , HD_For QUANCHAITY , HD_For RENAULT , HD_For SCR , HD_For SETRA , HD_For SITCAR , HD_For STERLING , HD_For STEYR , HD_For SUNLONG , HD_For SUNWIN , HD_For TATA , HD_For TRAILER , HD_For VOITH , HD_For VOLVO , HD_For VOLVO_CE , HD_For WABCO_ABS , HD_For WESTERN_STAR , HD_For XICHAI , HD_For YANGCHAI , HD_For YUFENG , HD_For ZF , HD_For ZHONGTONG , For JAC_HD , For KOBELCO , For MACK , For PERKINS , For SCANIA , For SHANGCHAI , For SINOTRUK , For UD , For WP_DIESEL , For YUCHAI , For YUTONG , For SHACMAN

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Parameter :

Tablet PC Parameter :

Tablet size: 10.1 inch, 1280*800
System version: Android 10.0
CPU version: 2.0 GHz 4 core
Current memory: 4GB
Storage memory: 64GB
Battery capacity: 47880mWh (7.6V, 6300mAh)
Camera: rear 800W
WiFi network: 2.4GHz, 5GHz dual frequency
Charging power: 5V 5A (25W)
Board size: 274*190.5*40.5mm
Packing size: 450* 333*396mm
Total product weight: 12.5KG

SmartLink C HD model Parameter :

CPU dual processor Cortex-A7+Cortex-M7
Memory: 256M
ROM: 8GB
WIFI: 2.4/5.0GHZ
Working temperature: 0-50℃
Display: 3.97-inch TFT screen
Resolution: 320x480
External interface: USB Type B/RJ45/OBD II-16/DC-IN
Size: 204x110x45(mm)

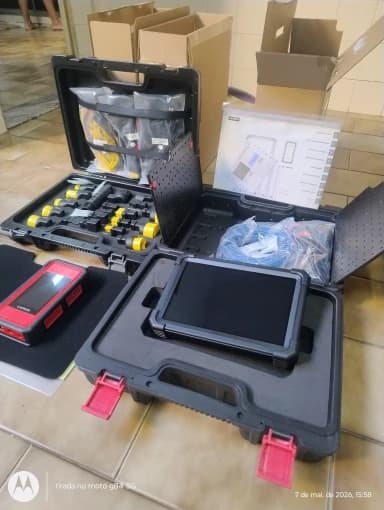

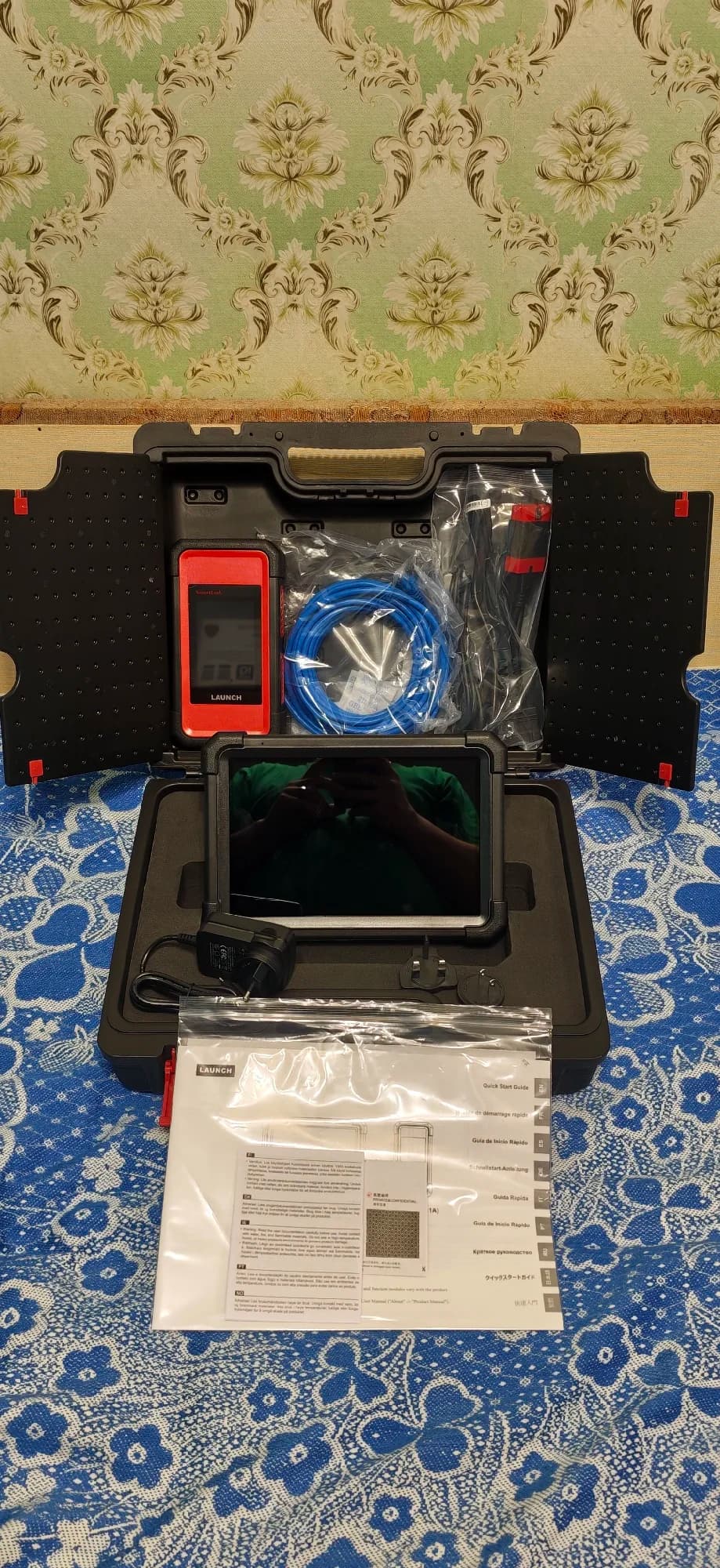

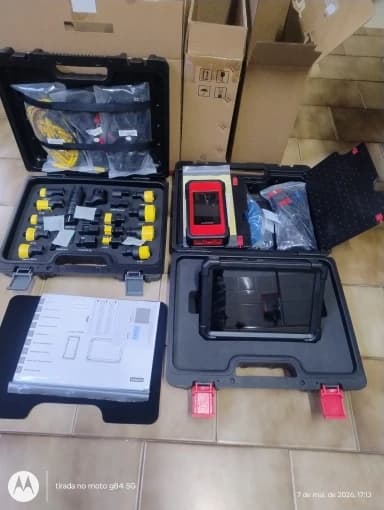

LAUNCH X431 PRO3S+ V5.0 SmartLink C HD Packing List :

BOX 1：

1pc * X431 PRO3S+ host
1pc * SmartLink C V2.0
1pc * HD15F to OBDII 16 Connector
3pcs * charger connector (UK Plug/EU Plug /US Plug)
1pc * DB15F to HD15F Cable
1pc * Network Cable
1pc * Type A -Type B USB Cable
1pc * Type A -Type C USB Cable
1pc * PIN envelope

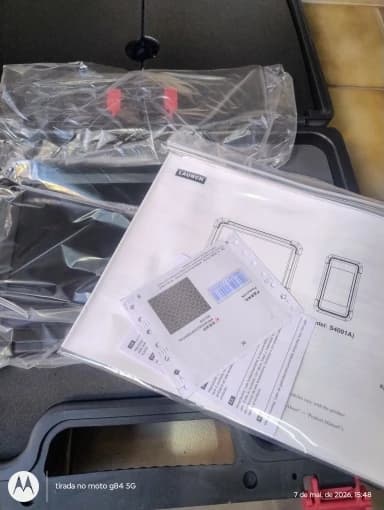

1pc * Quick Start Guide

BOX 2:

1pc * For BENZ-38
1pc * For NISSAN-14+16
1pc * For BENZ-14
1pc * For BMW-20
1pc * For CHRYSLER-6
1pc * For FORD-6+1
1pc * For GM/ For VAZ-12
1pc * For HONDA-3
1pc * For KIA-20
1pc * For MITSUBISHI/ For HYUNDAI-12+16
1pc * For TOYOTA-17
1pc * For TOYOTA-22
1pc * For BENZ-14
1pc * For CAT-9
1pc * For HYUNDAI-16
1pc * For ISUZU-20
1pc * For IVECO-30
1pc * For IVECO-38
1pc * JUMPER 10
1pc * For MAN-12
1pc * For MAN-37
1pc * For MITSUBISHI-12+16
1pc * For RENAULT-12
1pc * Type II OBD 9
1pc * For VOLVO-8
1pc * Power Cable
1pc * Cigarette lighter Cable
1pc * Switching Cable 1-9
1pc * OBD 16 connector
1pc * OBD 6 connector
