EDUP 9602GS 10M/100M/1000Mbps Network Card Gigabit Ethernet PCI Express RJ45 LAN Adapter PCIe Converter for Desktop PC

Product Description:

The EDUP Realtek RTL8111F EP-9602GS Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111F offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

Features:

1.A single 10/100/1000Mbps compatible RJ45 Ethernet port

2.Gigabit detection and Link/Activity LED indicators

3.Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards

4.Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x

5.Full Duplex Flow Control

6.Jumbo frame support

7.Full and half duplex support

8.Supports Wake-on-LAN function

9.Crossover Detection & Auto-Correction (Auto MDI/MDI-X)

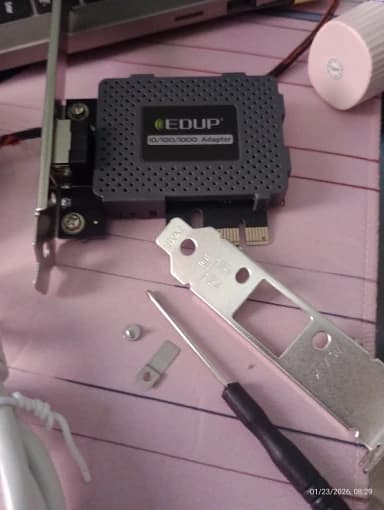

10.Includes a low profile/half-height installation bracket

Specifications:

Chip: Realtek 8111F

Connectivity Technology: wired

Transmission Rate: 10/100/1000Mbps

Interface Type: PCI Express x1

Port: RJ45

Colour: black

IEEE standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Windows® 10 (32/64), 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000,Win11.

Windows Server® 2012, 2008 R2, 2003(32/64)

Maximum Data Transfer Rate: 1000 Mbps

Compatible Networks: 10/100/1000 Mbps

Auto MDIX: Yes

Full Duplex Support: Yes

Jumbo Frame Support: 9K max.

MTBF: 376,212 Hours

Supported Protocols: CSMA/CD

LED Indicators: 2 * Gigabit Detect (Yellow)

Operating temperature: 0°C to 70°C (32°F to 158°F)

Storage temperature: 0°C to 100°C (32°F to 212°F)

Humidity: 10% ~ 90% RH

Shipping and Returns:

Shipping is available from China and Russia

Warranty:

Products ordered from China come with a 75-day money-back guarantee.
