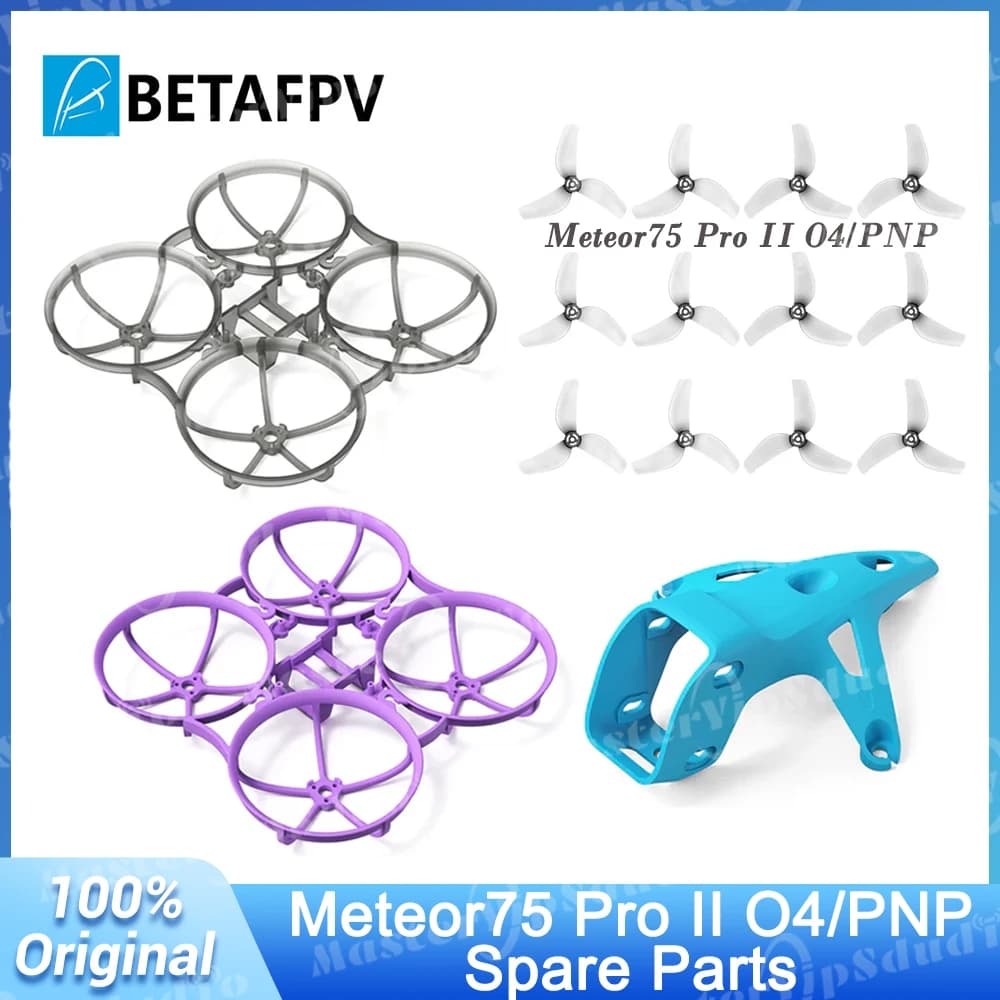

BETAFPV Meteor75 Pro II Canopy II for O4 Air Unit and Brushless Whoop Frame, Gemfan 1811 3-Blade Propellers Parts and Spares
30.59$
15.9$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

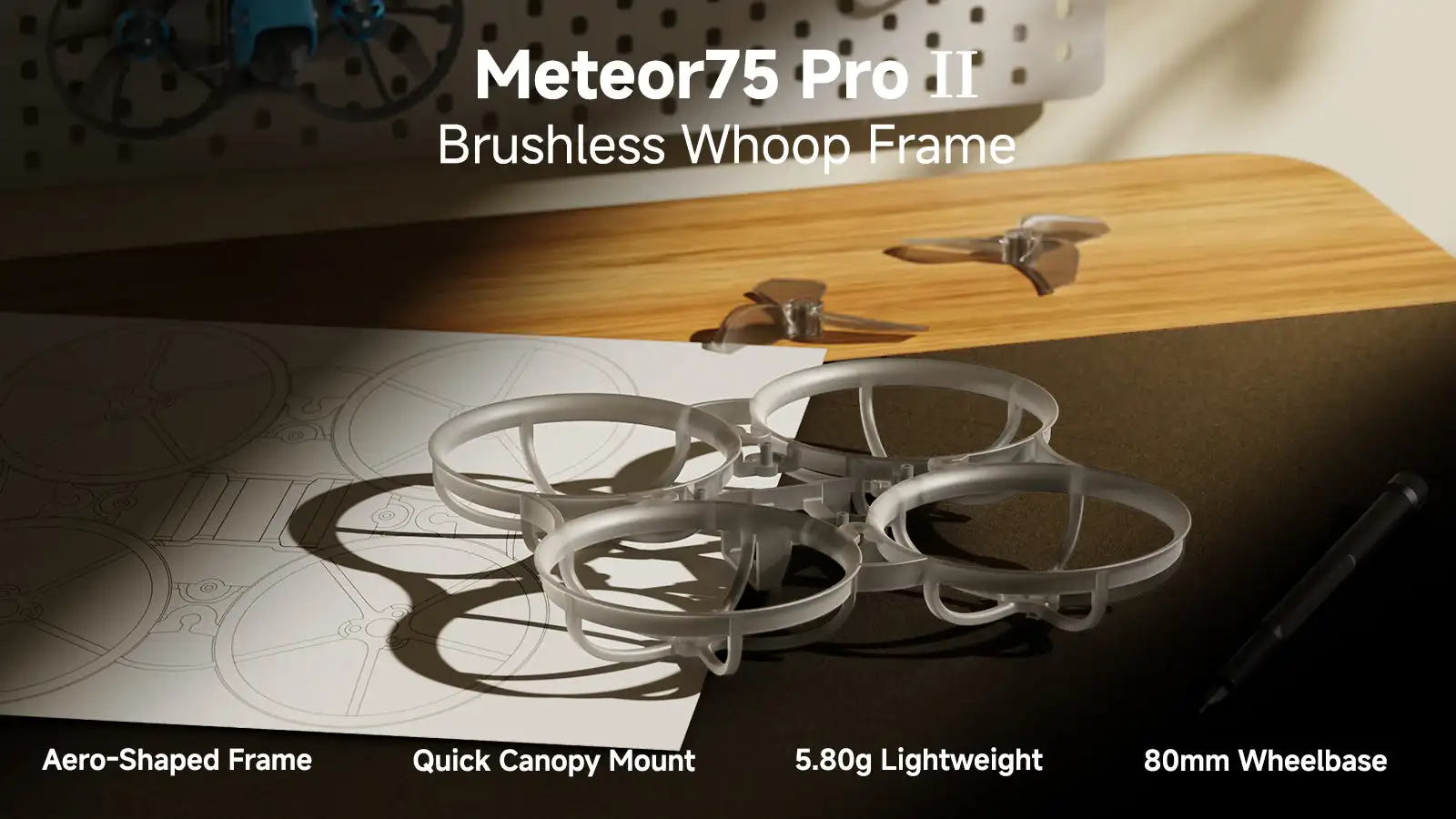

Meteor75 Pro II Brushless Whoop Frame
The Meteor75 Pro II Frame is a next-generation whoop frame designed for superior flight performance, durability, and ease of use. Featuring optimized aerodynamics with arm braces refined from 6 to 5 and a curved whoop duct design, it reduces weight and air resistance for improved flight efficiency. With simplified installation through four shock-absorbing mounting holes and seamless Canopy II compatibility, the frame delivers stable, jello-free footage and effortless maintenance. Weighing only 5.80g—nearly 2g lighter than the previous version—and built tough to withstand crashes, the Meteor75 Pro II Frame offers an agile flying experience and exceptional durability, making it the ideal choice for both indoor and outdoor flights.
Bullet Points
Optimized Derodynamics: Arm braces refined from 6 to 5 and curved whoop duct reducing weight and air resistance for improved flight efficiency.
Simplified Installation: Four shock-absorbing mounting holes with Canopy II compatibility ensure easy assembly, quick maintenance, and stable footage.
Lightweight Design: Weighing only 5.80g—nearly 2g lighter than the previous version—for a more responsive and agile flight experience.
Exceptional Durability: Built tough to withstand crashes, so you can get back in the air quickly and keep flying with confidence.
Specifications
Item: Meteor75 Pro II Brushless Whoop Frame
Material: PP
Wheelbase: 80mm
Weight: 5.80g
Color: Transparent gray, black, white, blue, purple
Motor Mounting Hole: 3-M1.4-φ6.6mm
FC Mounting Hole:26*26mm
Battery Slot: 16.1*6.3mm
Dimensions: 108.5*108.5*16.2mm

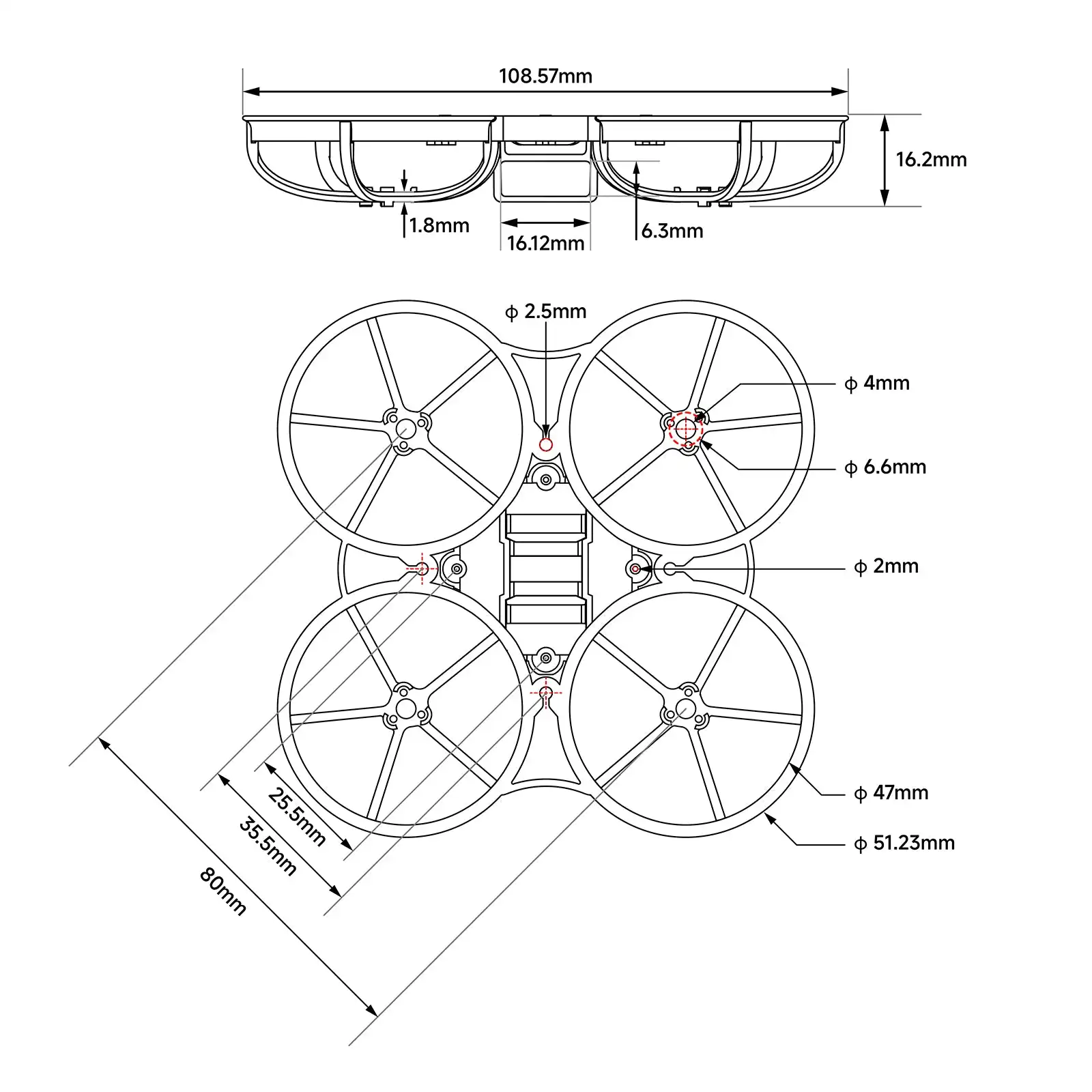

Diagram
Optimized Aerodynamics
The arm braces have been refined from 6 to 5, reducing weight while maintaining structural integrity. The whoop duct has been aerodynamically optimized to minimize air resistance, resulting in improved flight efficiency and overall performance. With a total weight of only 5.80g—nearly 2g lighter than the previous version—it delivers a noticeably lighter and more responsive flight experience for Meteor75 Pro II.
Simple Installation & Unmatched Durability
Four new installation holes for shock-absorbing balls, paired with the Canopy II for O4 Air Unit, simplify both installation and removal while delivering stable, jello-free footage performance. This durable and low-maintenance design makes the Meteor75 Pro II Frame ideal for both indoor and outdoor flight environments.

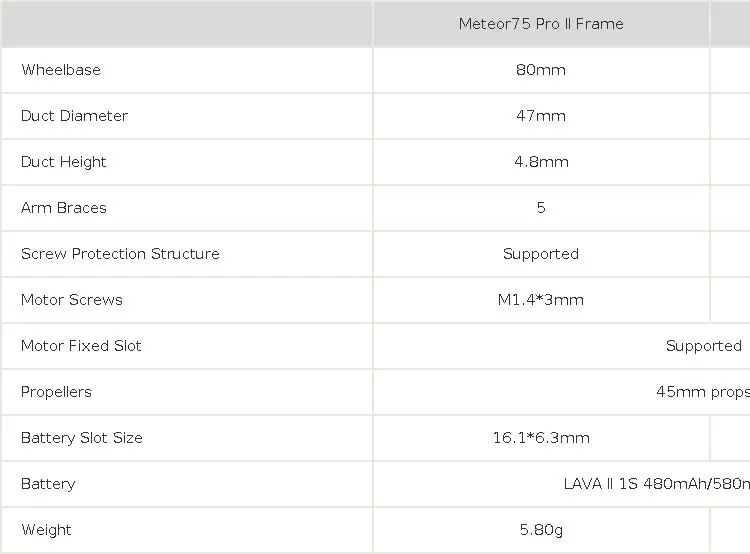

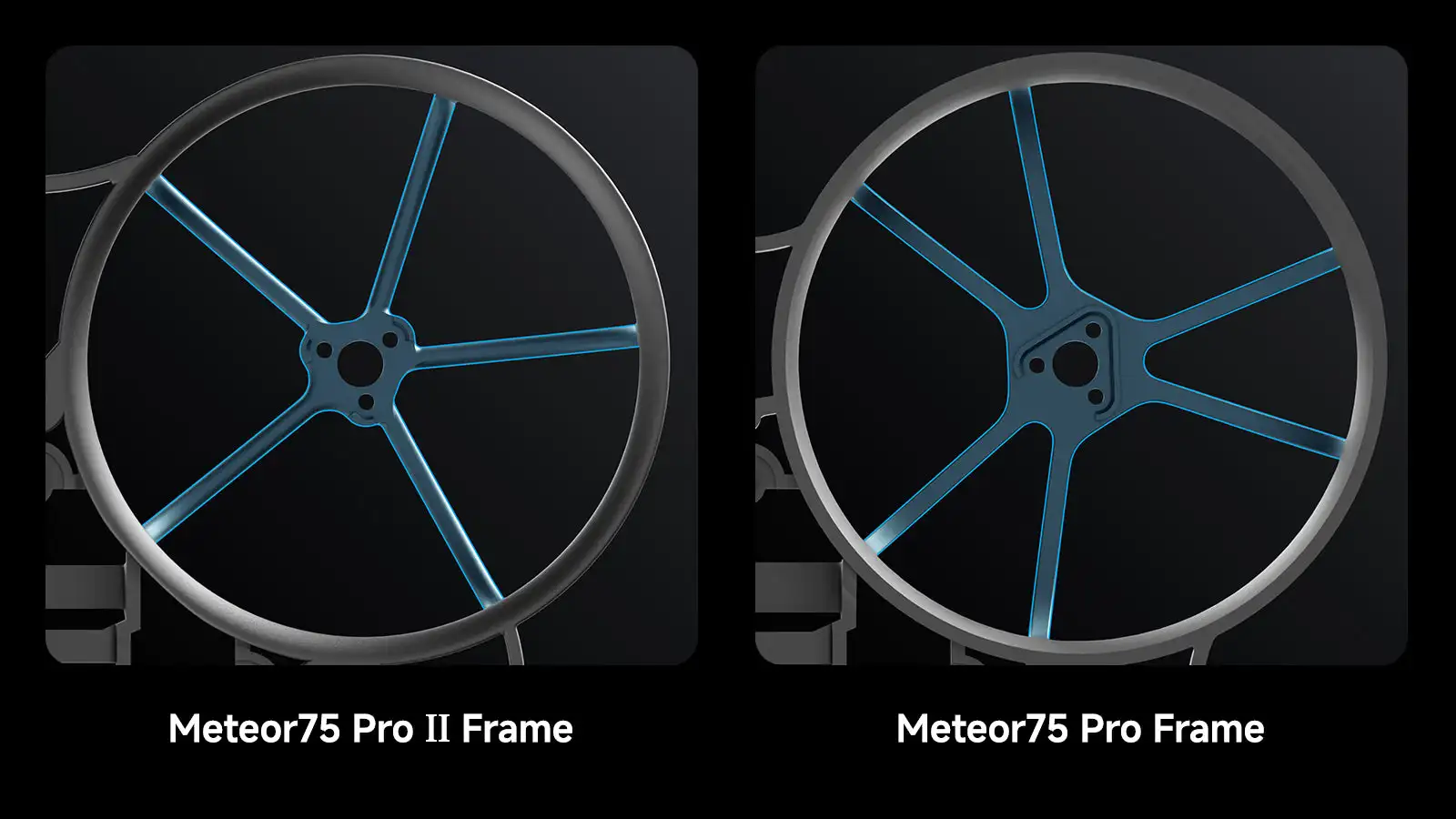

Meteor75 Pro II Frame vs. Meteor75 Pro Frame
Recommended Parts
Motors: 1102 Freestyle Brushless Motors (2026)
Propellers: GF 1811 3-Blade Props, GF 45mm 3-Blade Props
FC: Matrix 1S 3IN1/4IN1, Matrix 1S 5IN1 II, Matrix 1S 5IN1
Batteries: LAVA II 1S 480mAh/580mAh/680mAh
Canopy: Canopy II for O4 Air Unit, Canopy for O4 Air Unit, Air II Canopy, Micro Canopy
Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

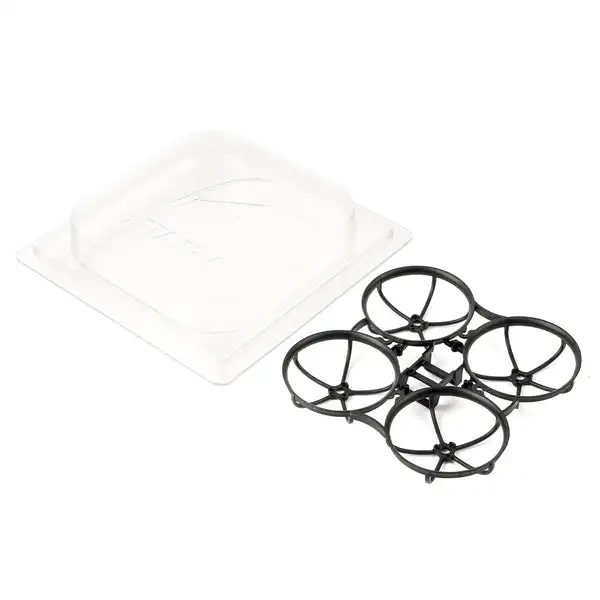

Package
1 * Meteor75 Pro II Brushless Whoop Frame

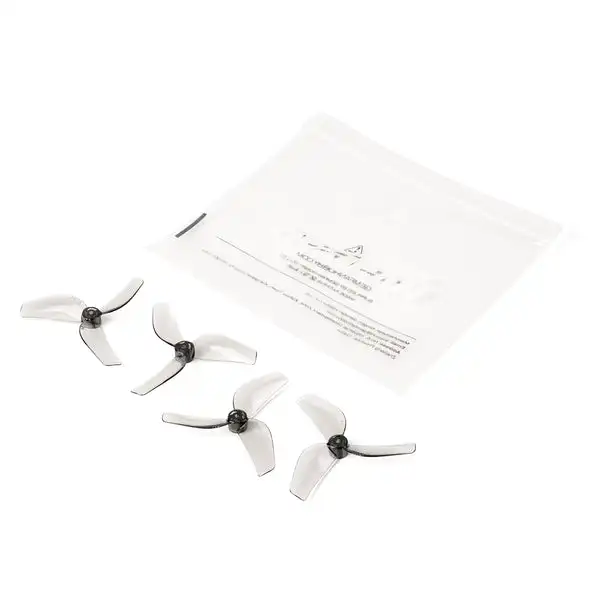

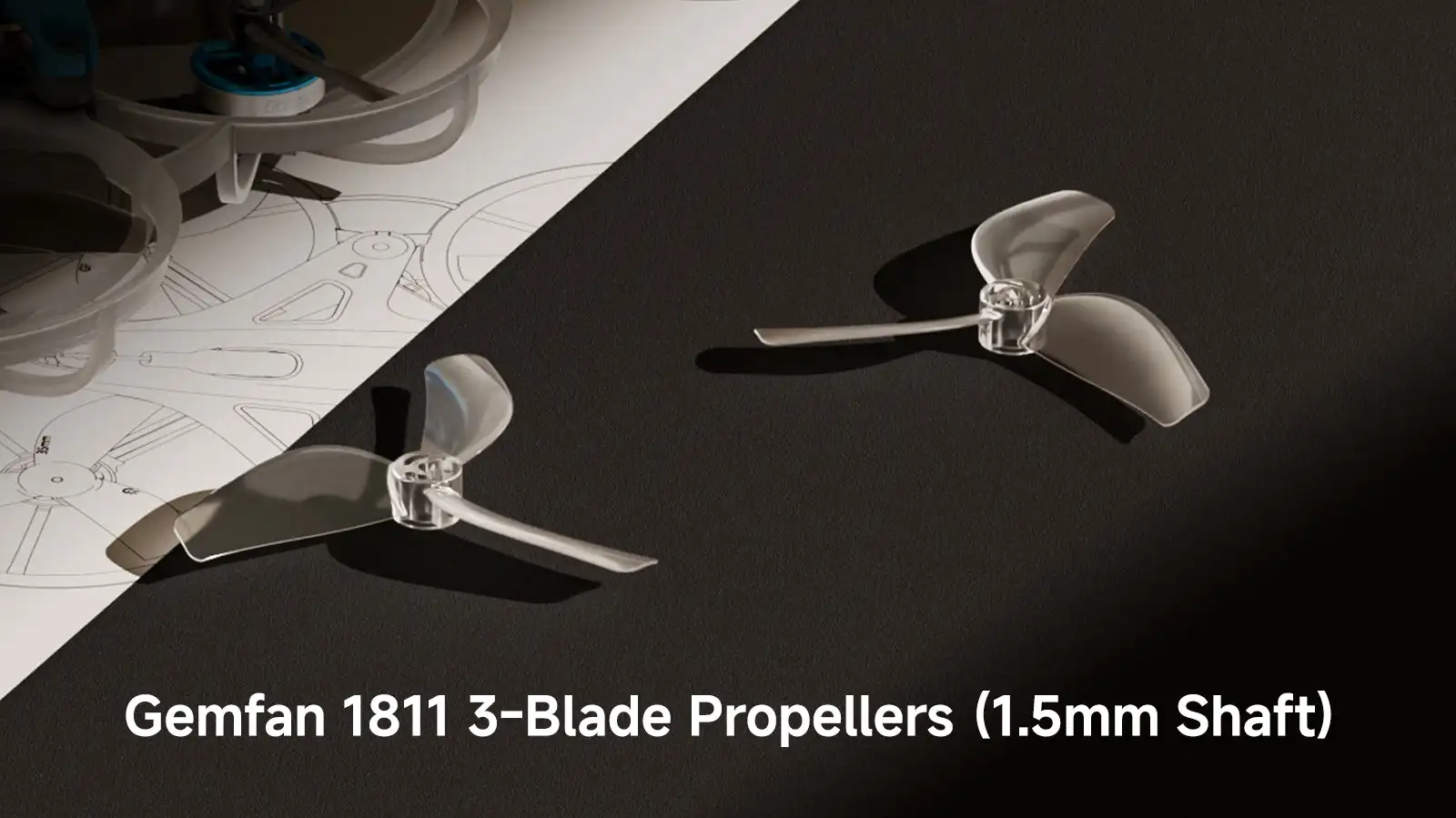

Gemfan 1811 3-Blade Propellers (1.5mm Shaft)
Featuring a 45mm diameter with a 1.8-inch pitch, Gemfan 1811 3-Blade Propellers (1.5mm Shaft) weigh only 0.32g—minimizing rotational inertia for rapid throttle response and agile handling. The precision-balanced tri-blade design ensures smooth, vibration-free operation, maximizing both efficiency and flight performance. Constructed from durable PC material, they offer excellent impact resistance for long-lasting reliability. Available in classic white and transparent gray, these propellers pair perfectly with the 1102 Freestyle Motors (2026) to provide a high-performance propulsion system for Meteor75 Pro II.
Specifications
Item: Gemfan 1811 3-Blade Propellers (1.5mm Shaft)
Materials: PC
Pitch: 1.8 inch
Propeller diameter: 45mm
Center thickness: 4.4mm
Max prop width: 8.7mm
Center hole inner diameter: 1.5mm
Weight: 0.32g/1pcs
Takeoff weight: 100g
Colors: White / transparent gray

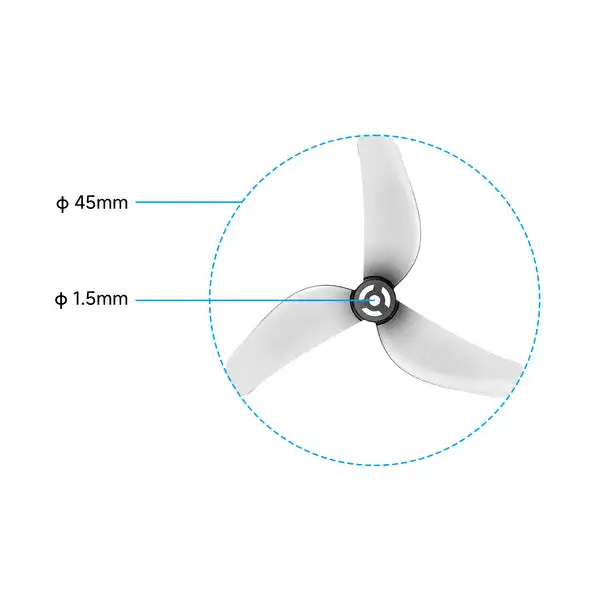

Diagram
Recommended Parts
Quadcopter: Meteor75 Pro II O4
Motor: 1102 Brushless Motors (2026)
Package
4 * Gemfan 1811 3-Blade Propellers (1.5mm Shaft) (4PCS)
12 * Gemfan 1811 3-Blade Propellers (1.5mm Shaft) (12PCS)

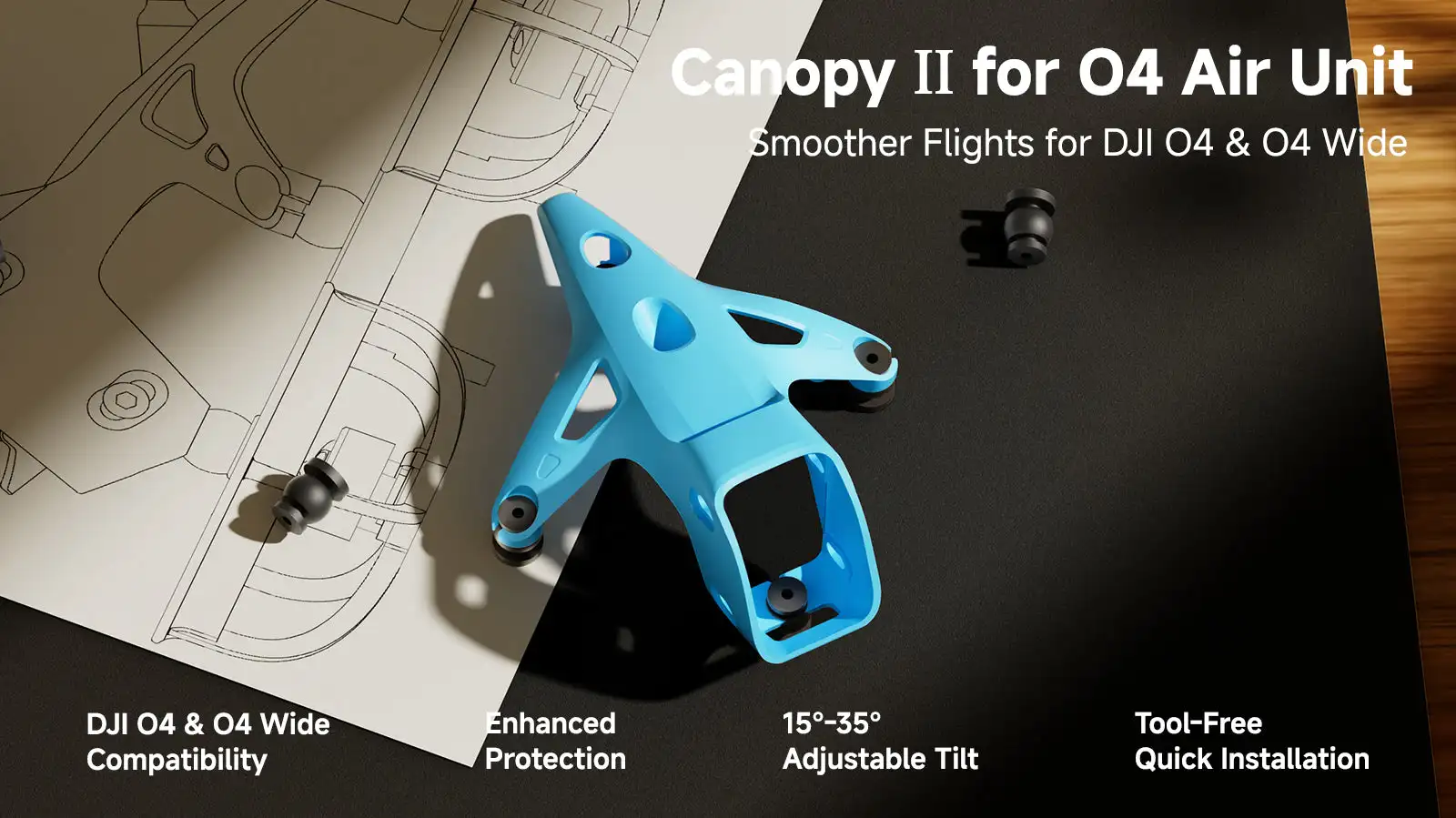

Canopy II for O4 Air Unit
The Canopy II for O4 Air Unit boasts a redesigned vibration-damping and camera mounting system, purpose-built for the DJI O4 and O4 Wide Air Units to deliver superior stability, complete protection, and effortless installation. A secure four-screw fixation system, combined with flexible mounting holes, offers 15° to 35° camera angle adjustments for versatile shooting across any scenario.
Bullet Points
Enhanced Vibration Damping: Four shock-absorbing balls effectively eliminate jello for professional-grade footage.
Simplified Installation: Quick and easy to install and remove versus first-generation design.
Complete Camera Protection: New form factor ensures full compatibility and robust protection for both DJI O4 and O4 Wide Air Units.
Adjustable Tilt Range: 15° to 35° angle adjustments for versatile shooting.
DIY-Friendly: Standard 25.5mm x 25.5mm mounting holes for customization flexibility.
Specifications
Item: Canopy II for O4 Air Unit
Material: PP
Color: White/Black/Blue/Purple
Weight: 2.66g
Digital VTX Mounting Holes: 25.5mm * 25.5mm
Camera Installation Spacing: 14mm
Compatible Camera: DJI O4 and O4 Wide Camera
Camera Tilt: 15°-35°
Compatible Frame: Meteor65 Pro II Frame, Meteor75 Pro II Frame

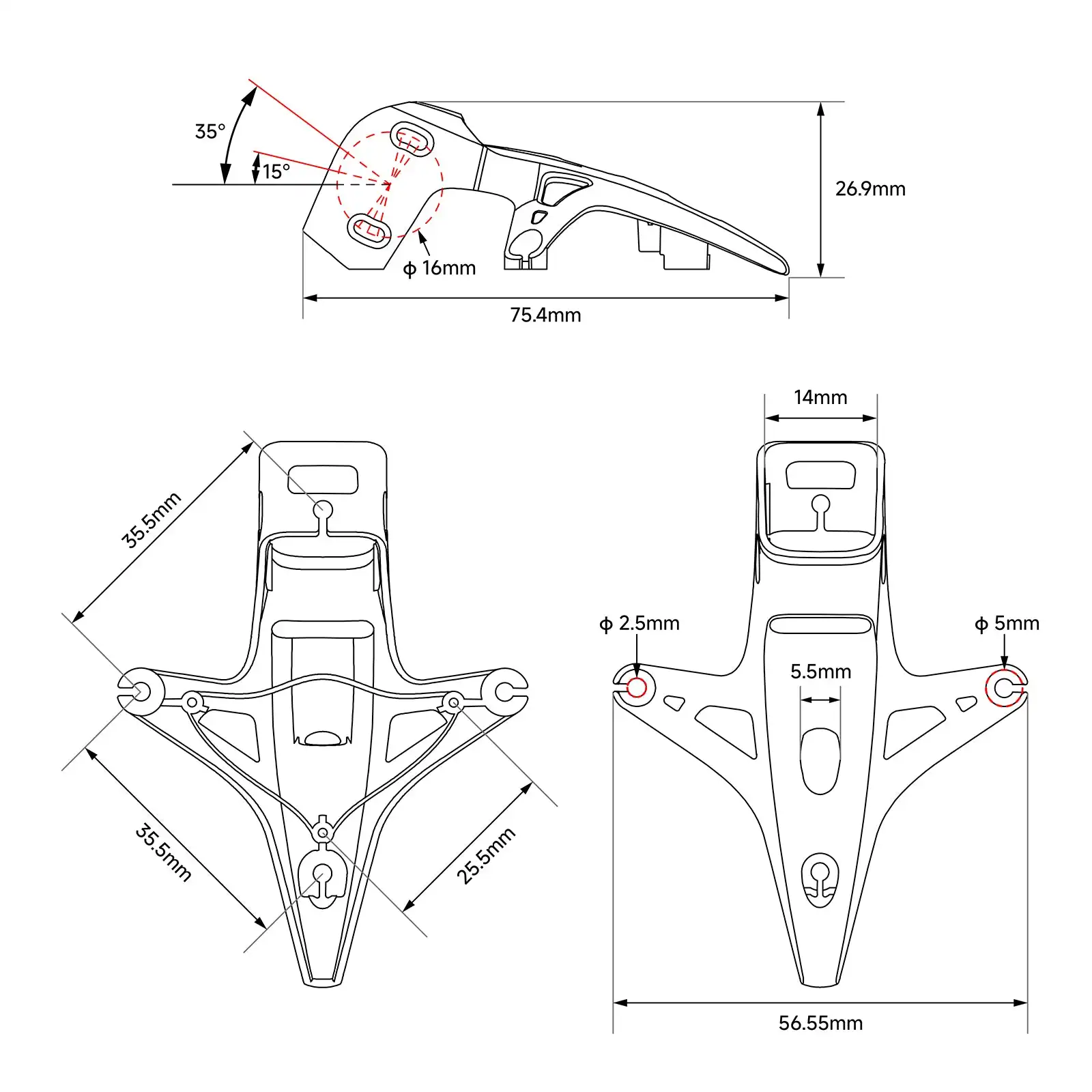

Diagram
More Stability, Even Simpler
Featuring a four shock-absorbing ball connection system with the Meteor II Frame, the Canopy II for O4 Air Unit delivers outstanding vibration damping for smooth, crystal-clear HD footage. Compared to the first generation's complicated installation, the Canopy II draws on the proven O4 Pro bracket solution from the Pavo series, making it significantly easier to install and remove while delivering enhanced stability throughout every flight session. The redesigned form factor ensures complete protection for both DJI O4 and O4 Wide Air Units, safeguarding your investment during aggressive maneuvers.

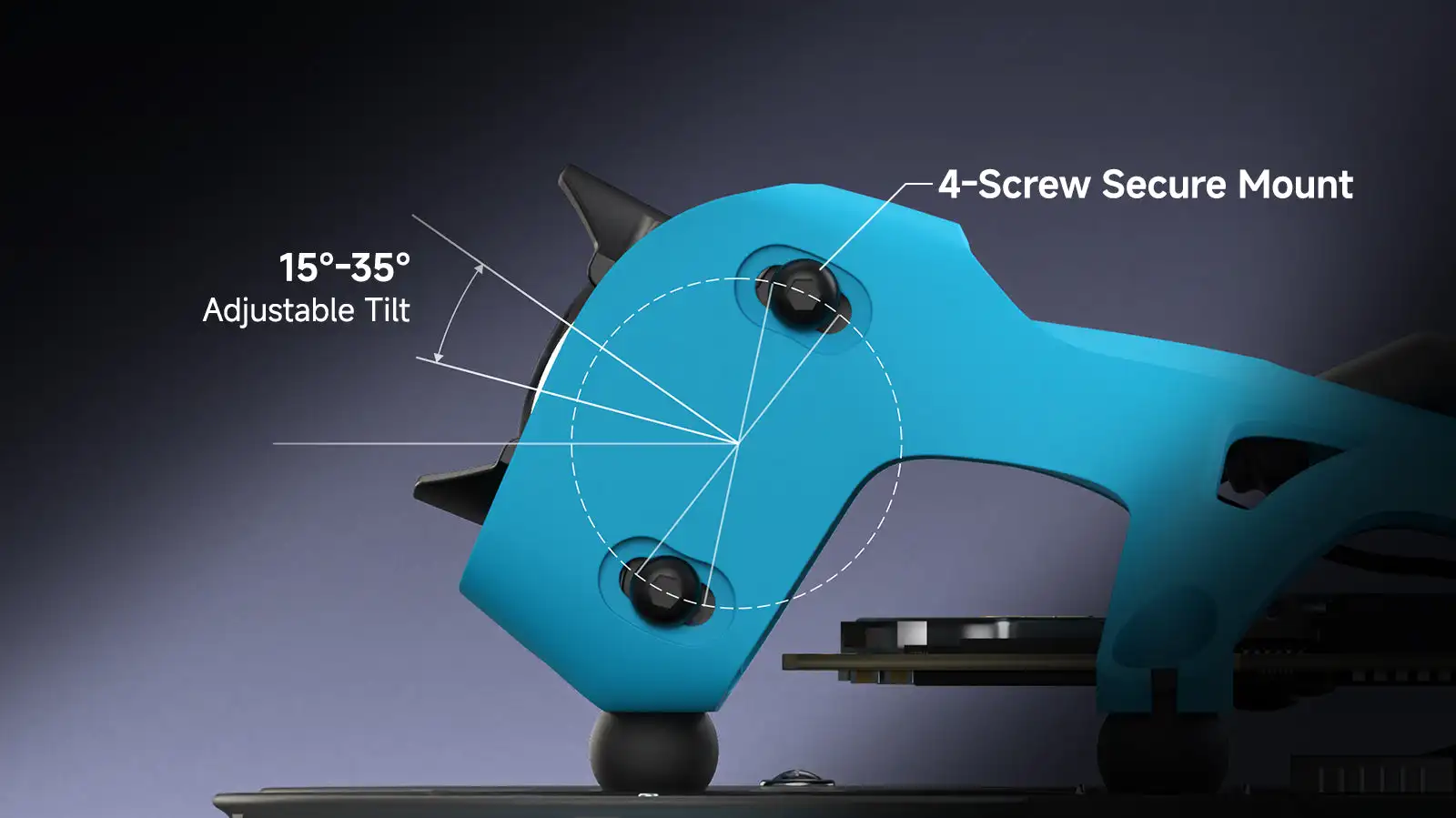

Flexible and Stable Camera Design
With a secure four-screw fixation system, the camera remains firmly in place during even the most aggressive maneuvers. Flexible installation holes enable 15° to 35° camera angle adjustments, ensuring flawless HD footage across diverse shooting scenarios.
Recommended Parts
Whoops: Meteor65 Pro II O4, Meteor75 Pro II O4
Frames: Meteor65 Pro II Frame, Meteor75 Pro II Frame
Camera: DJI O4 and O4 Wide

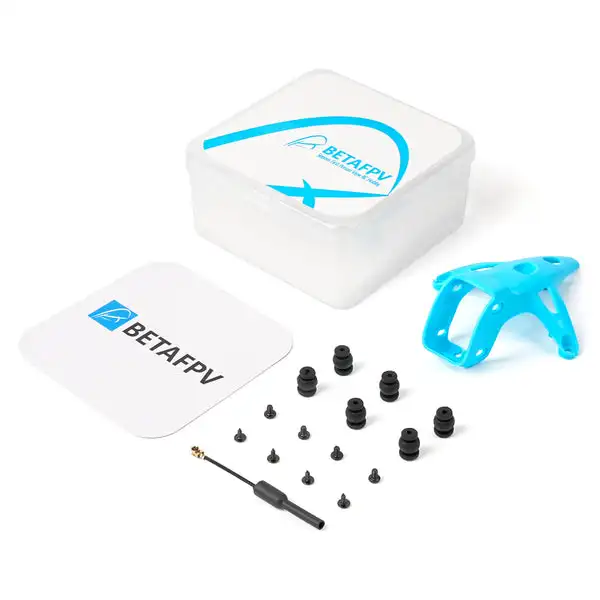

Package
1 * Canopy II for O4 Air Unit (White/Black/Blue/Purple)
6 * Shock-absorbing Balls (8.8mm)
1 * 5.8G Antenna
4 * M1.4*4 Phillips Screws
4 * M2*3 Flat Head Socket Cap Screws
Customer Reviews
47 ratings
fast delivery (5)
well-packed (4)
highly recommended (4)
amazing (3)
useful for replacements (2)
comprehensive package (1)
Customer photos (11)
Buyer from United States
October 15, 2026
Variant: Color:4in1 Blue Set 4
Great!
U***r
October 1, 2026

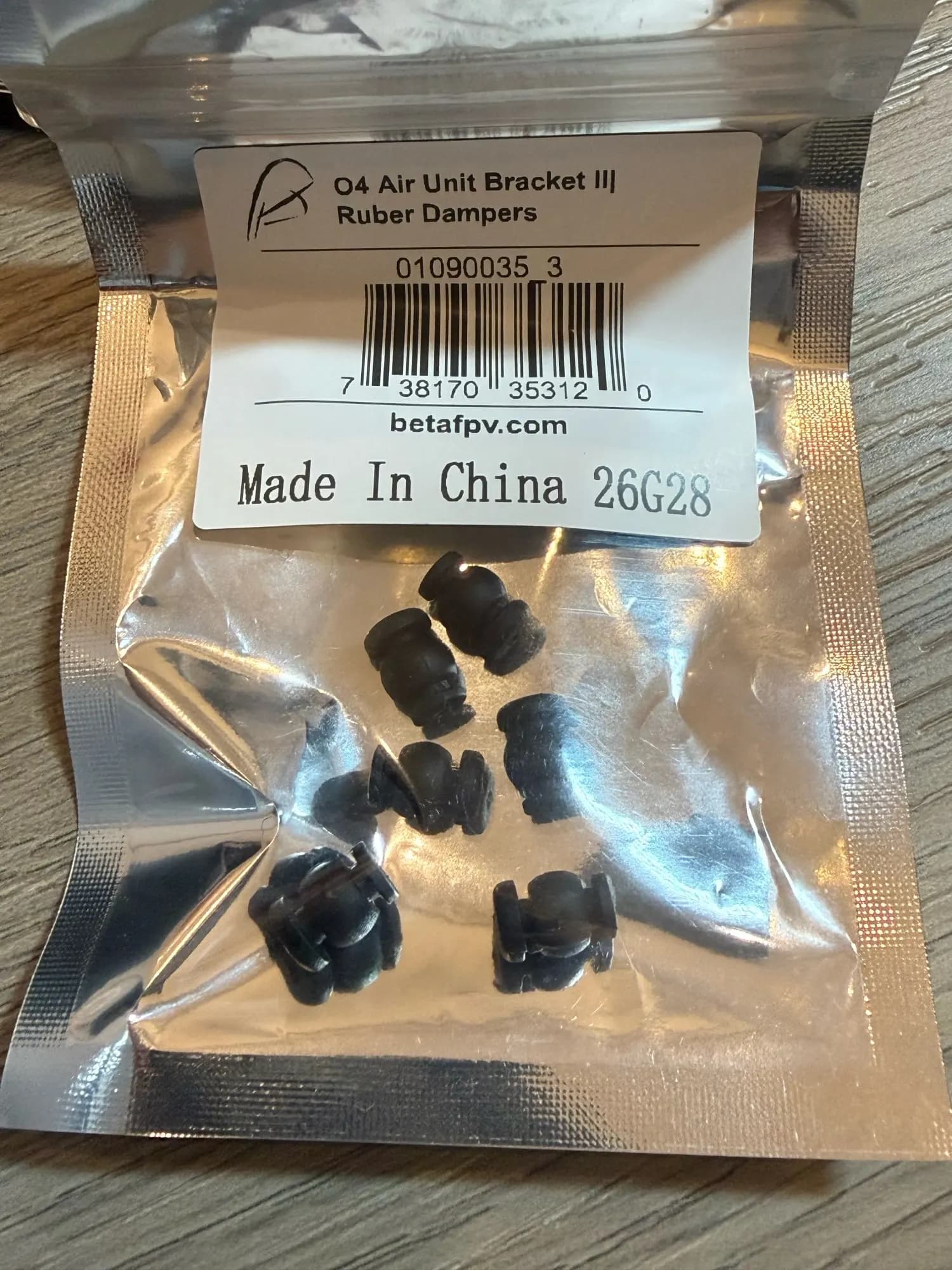

Variant: Color:Shock-absorbingBalls
Perfect extras for the Meteor 75 Pro 2, especially if you crash in open fields. If the canopy pops off( depending on crash), the shock ball may separate from the canopy and frame leaving you with unstabilized and jello feed. Shipped quick and definitely would order from this store again
U***r
September 21, 2026

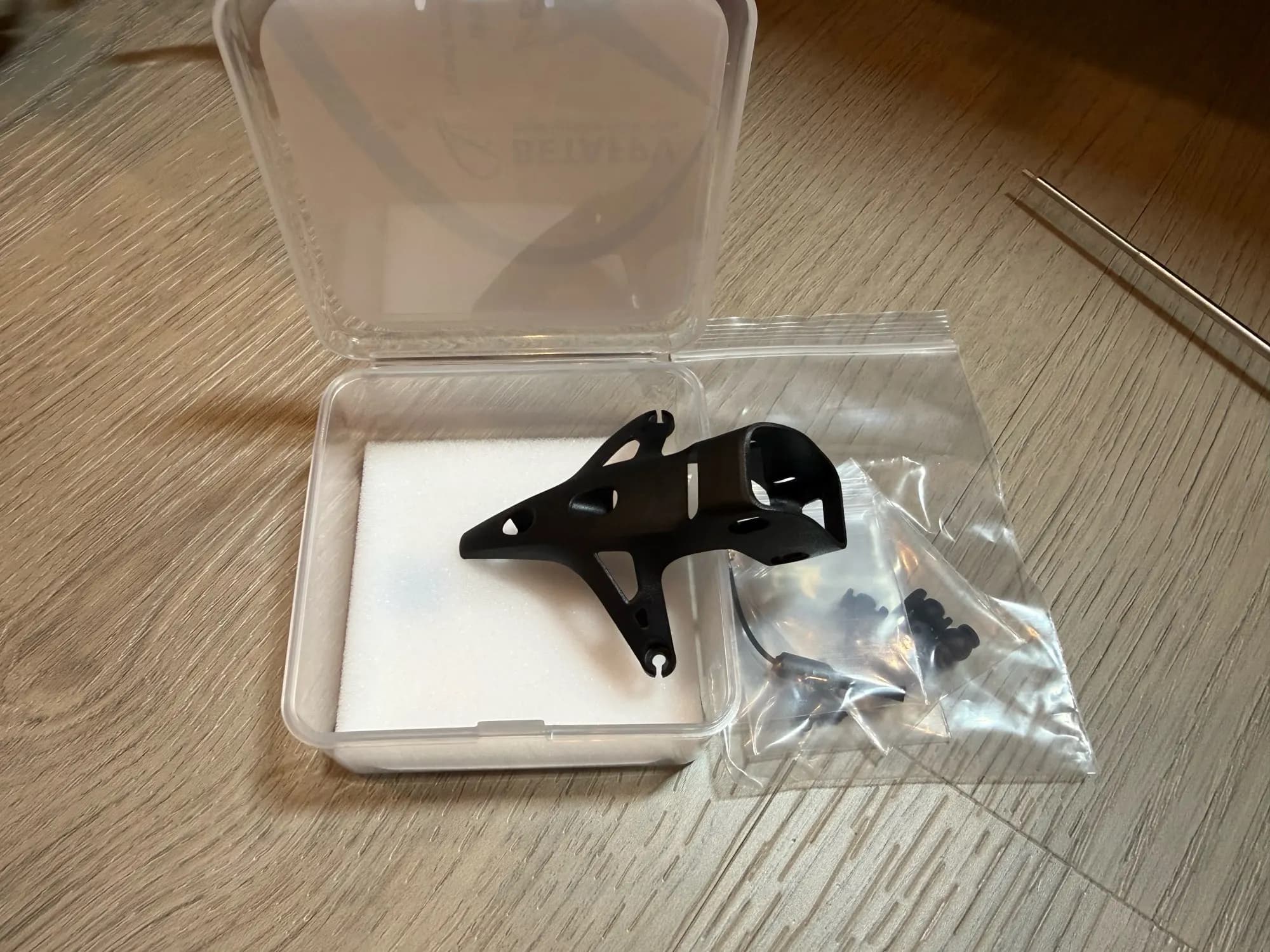

Variant: Color:DJI O4 Camera Mount
I didn’t have to replace the camera or mount yet, but it’s always good to have a spare! Or if you plan on using the air unit for another build, definitely purchase this
U***r
September 21, 2026
Variant: Color:Frame-Black
Definitely worth the purchase. In case of any sudden crashes, especially the hard hits, you can simply replace the frame. Highly recommended
U***r
September 21, 2026
Variant: Color:5in1 white Set

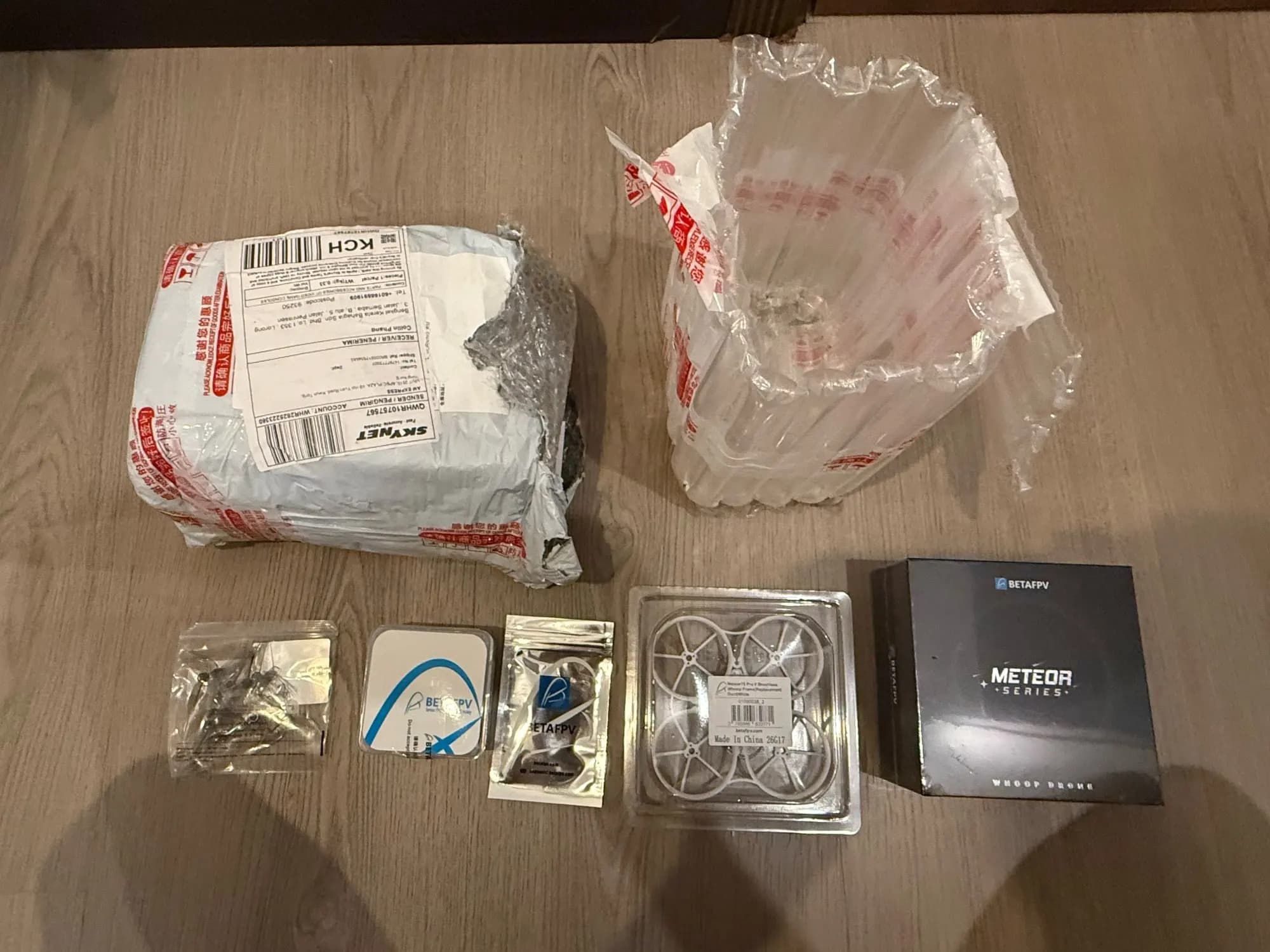

If you’re thinking over getting replacement parts for the METEOR 75 PRO 2, just get the 5in1 package: it comes with motor screws, a canopy, frame, shock balls, and an extra Dji antenna for the 04 air unit it comes with. Perfect for replacement parts after a crash. Personally, in the future, I’ll be ordering more due to how much the 5in1 comes with. Packaging was great as well, company wrapped it extra to avoid any damages. Definitely recommended
Buyer from United States
August 2, 2026
Variant: Color:4in1 Black Set 1

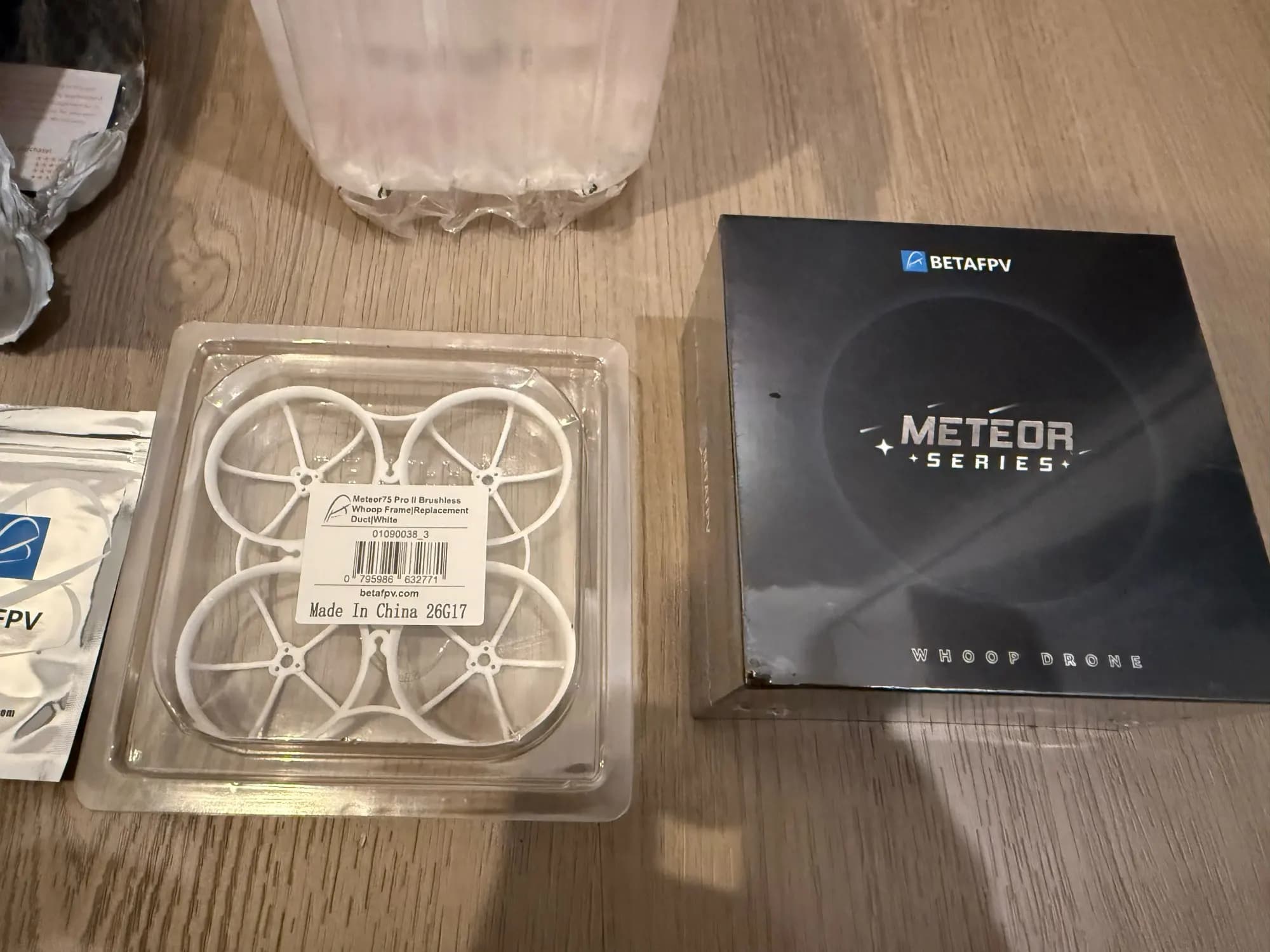

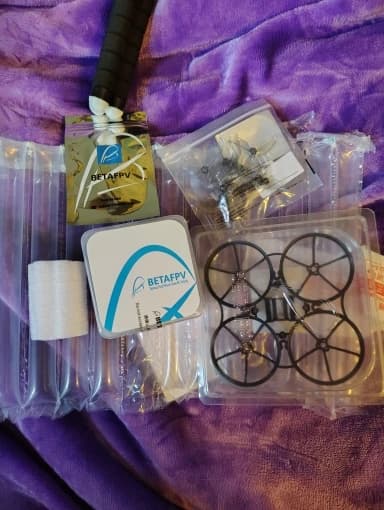

seller shipped same day and it arrived extremely fast. it was packed very very well so everything arrived in mint condition. no bent props or frame, and the canopy looks amazing.
