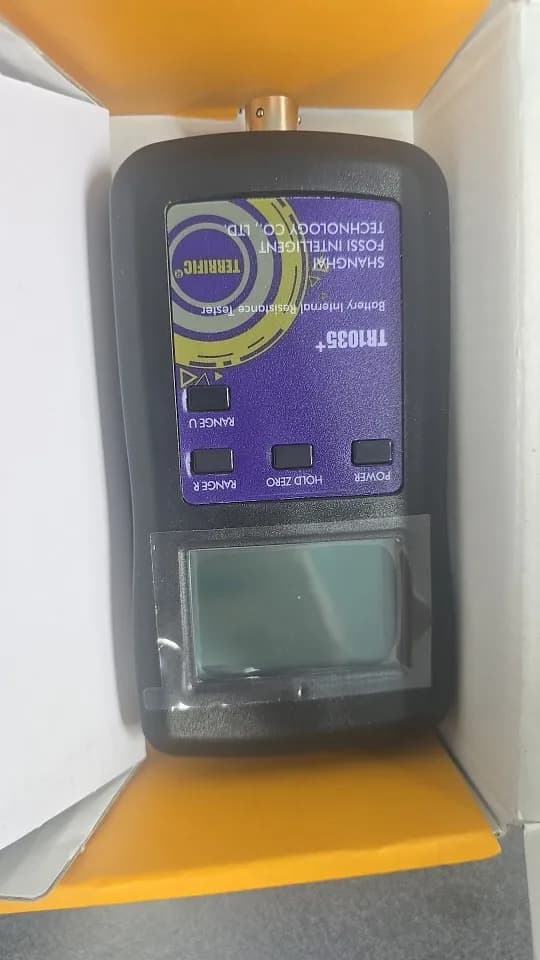

Upgrade YR1035 Original Four-line Lithium Battery Internal Resistance Test Digital TR1035 Electrical 18650 Dry Battery Tester

PRODUCT FEATURES
The built-in battery of the instrument, pay attention to whether the selected express and consignment can be transported, otherwise there is no battery outside the mainland by default. By default, Hong Kong, Macao and Taiwan Xinjiang and overseas regions or other express delivery need to contact customer service to make up the difference. Because the express delivery is not available in Tibet. Direct returns overseas regions do not return non-replacement.
The machine does not have a charger, charging can be charged with an Android phone charger~ If you have any questions, please contact customer service~
The default length of the test line is 0.5 meters. If you need longer, please contact customer service to make up the difference.

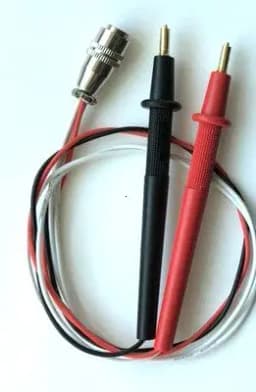

Combination 1: host + probe test line (suitable for measuring various types of batteries, good versatility. twisted pair of wires to improve anti-interference)
Combination 2: Host + Kelvin clip (suitable for measuring lead ends, chip tabs, etc. Wires are easy to twist, better accuracy)
Combination 3: Host + 18650 test stand (for column battery such as 18650, etc. Suitable for one-hand operation, convenient and fast, with sorting function suitable for incoming material detection)
Combination 4: Host + 18650 test stand + Kelvin clip + probe test line (suitable for measuring more types of batteries, corresponding to various situations)
Combination 5: Host + Probe Test Line + Kelvin Clip
Combination 6: Host + 18650 test stand + probe test line
Combination 7: Host + 18650 Test Stand + Kelvin Clip
The main parameters:
Internal resistance measurement:
Precision format: ± ([precision percentage] + [least significant digit]
Range minimum resolution accuracy
20mΩ 0.01mΩ 0.7%+7 (when ZR function is enabled)
200mΩ 0.1mΩ 0.5%+5
2Ω 1mΩ 0.5%+5
20Ω 10mΩ 0.5%+5
200Ω 0.1Ω 0.6%+5
In the range of 5%-95% of the gear position, if it is not within this range (less than 5% gear range range, or greater than 95% gear range range), the error may be greater than the above accuracy.
Voltage measurement:
Range Accuracy ± (% reading + % range)
1V 0.35+0.015
10V 0.30+0.010
100V 0.30+0.015
Positive and negative symmetry error ± (0.012% + 5 words)
Temperature drift within normal use temperature (10 ° C -40 ° C) 100ppm / ° C
*The tester test resistance from 0.01mΩ --- 200Ω
*The tester test voltagse under 100V .It show 4 digit after decimal point
Combination 1 : Tester +Test Pin
Combination 2: Tester + Kelvin Clip
Combination 4: Tester +Test Pin+Kelvin Clip+Test Stand
Combination 5: Tester +Test Pin+Kelvin Clip
Combination 6: Tester +Test Pin+Test Stand
Combination 7: Tester +Kelvin Clip+Test Stand
