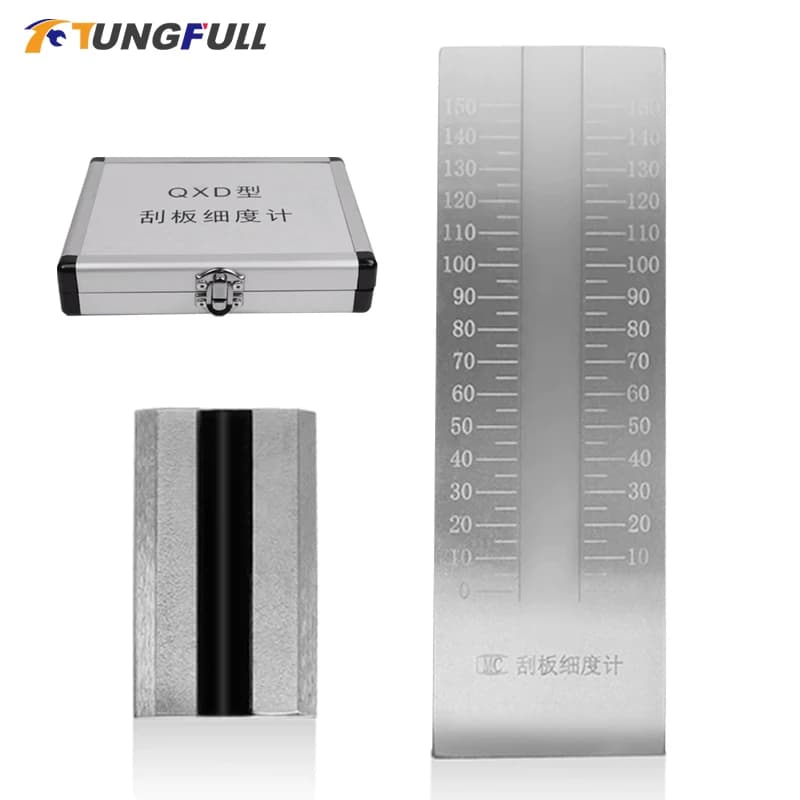

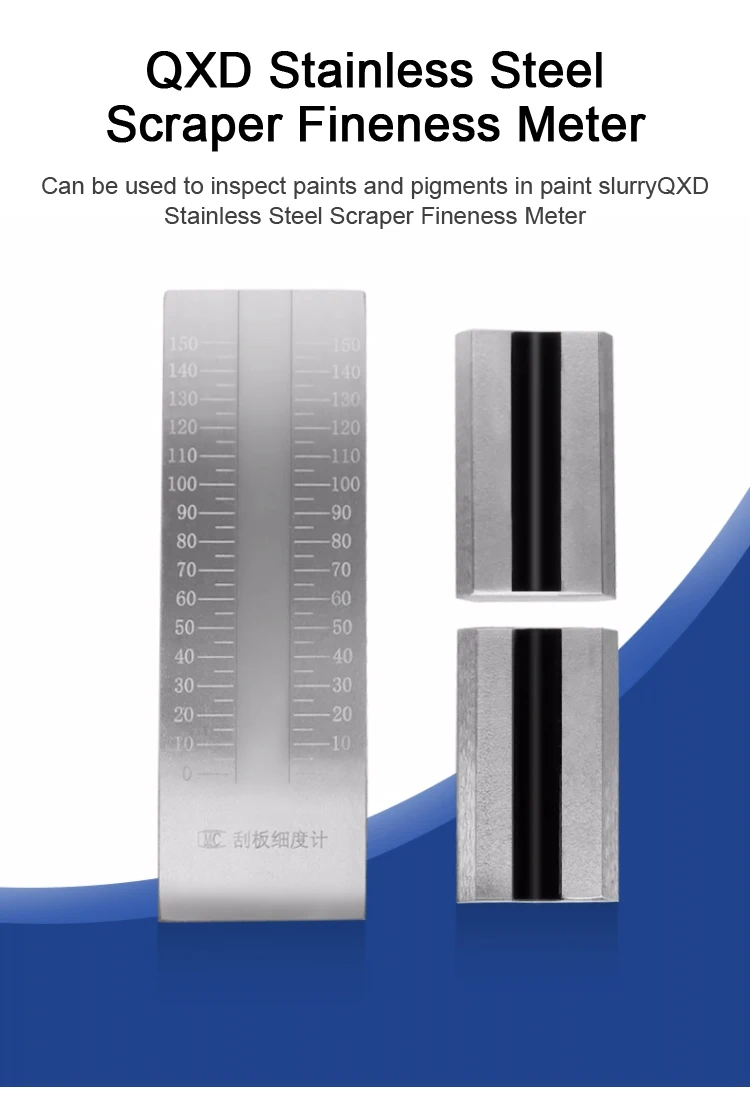

QXD Stainless Steel Scraper Fineness Meter Single Groove Fineness Plate Fineness Gauge 25/50/100/150um

Description:

This fineness meter is made of alloy steel wear-resistant material and is durable. Applicable to GB/T1724-93, ISO1524, GB/T13217.3-91 standard.

Scraper fineness gauge is made in strict accordance with GB / T 1724-89, ISO1524 standard. It mensurates paint particles’ size and particle distribution in the dope, printing ink and other liquid to control quality during producing, storage and using. Scraper fineness gauge is widely used in many industries, such as paint, plastic, printing ink, paper, ceramic, medicine, food and so on.

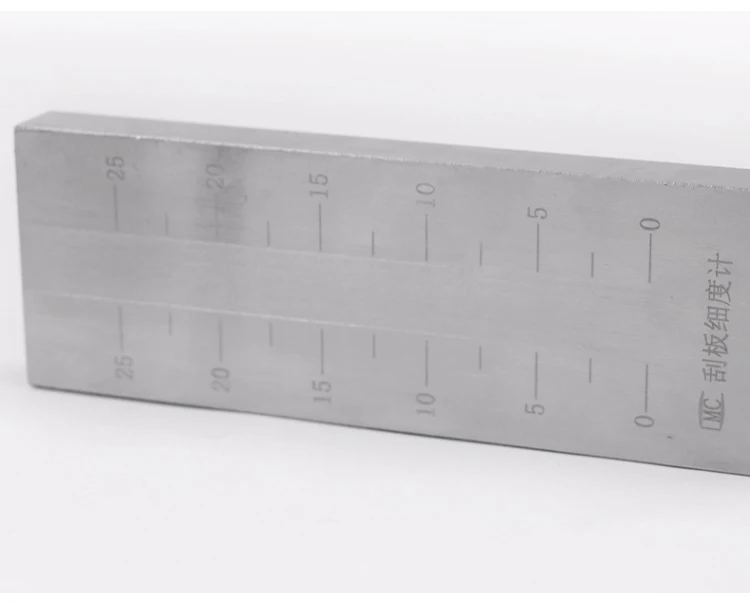

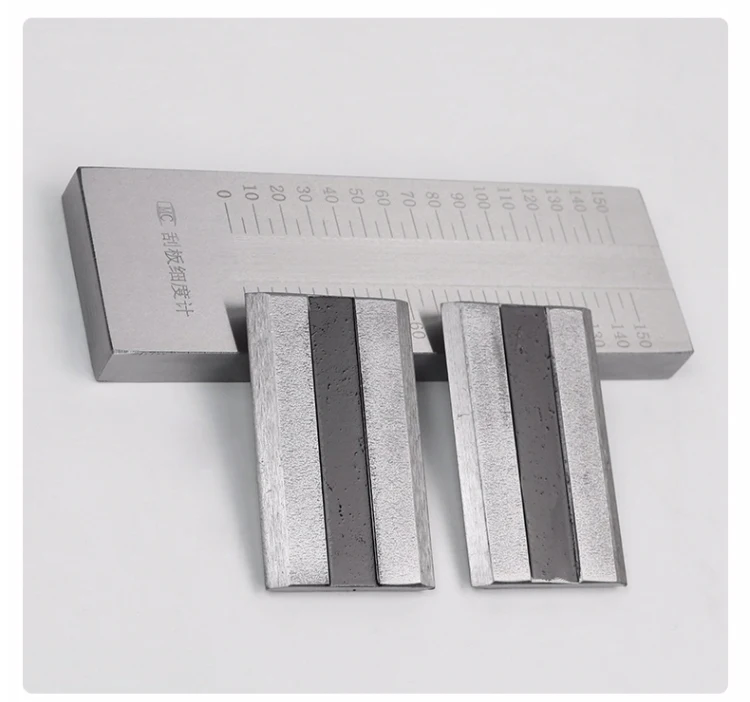

Scraper fineness gauge is flat steel with groove on the surface. The groove depth is changed from maximum at one side to zero at the end. The groove depth value Marked on the flat steel to read the particles’ size. The particle distribution’s unit is um or Hegman, from 0-8 Hegman. 0 Hegman=100 um, 4 Hegman=50 um, 8 Hegman= 0 um.Using: Put some particles on the deeper groove, then use scraper to scrape them from deeper to low groove. We can read the particle’s size on the point there are more roughness particles.

Specification:

Range: 0 to 25μm, 0 to 50μm, 0 to 100μm, 0 to 150μm (optional)

Technical parameters: Executive standard; GB/T1724-89

Fineness range: 0-25, 0-50, 0-100, 0-150

Graduation value: (2.5, 5, 5, 5) μm

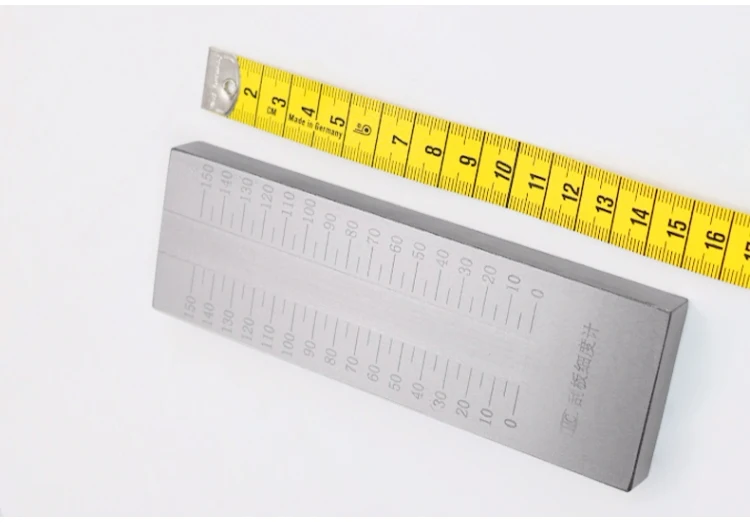

Structure size: scraper 155 × 50 × 12mm

Inclined groove: 13×120mm

Scraper: 68 × 40 × 6.5mm
