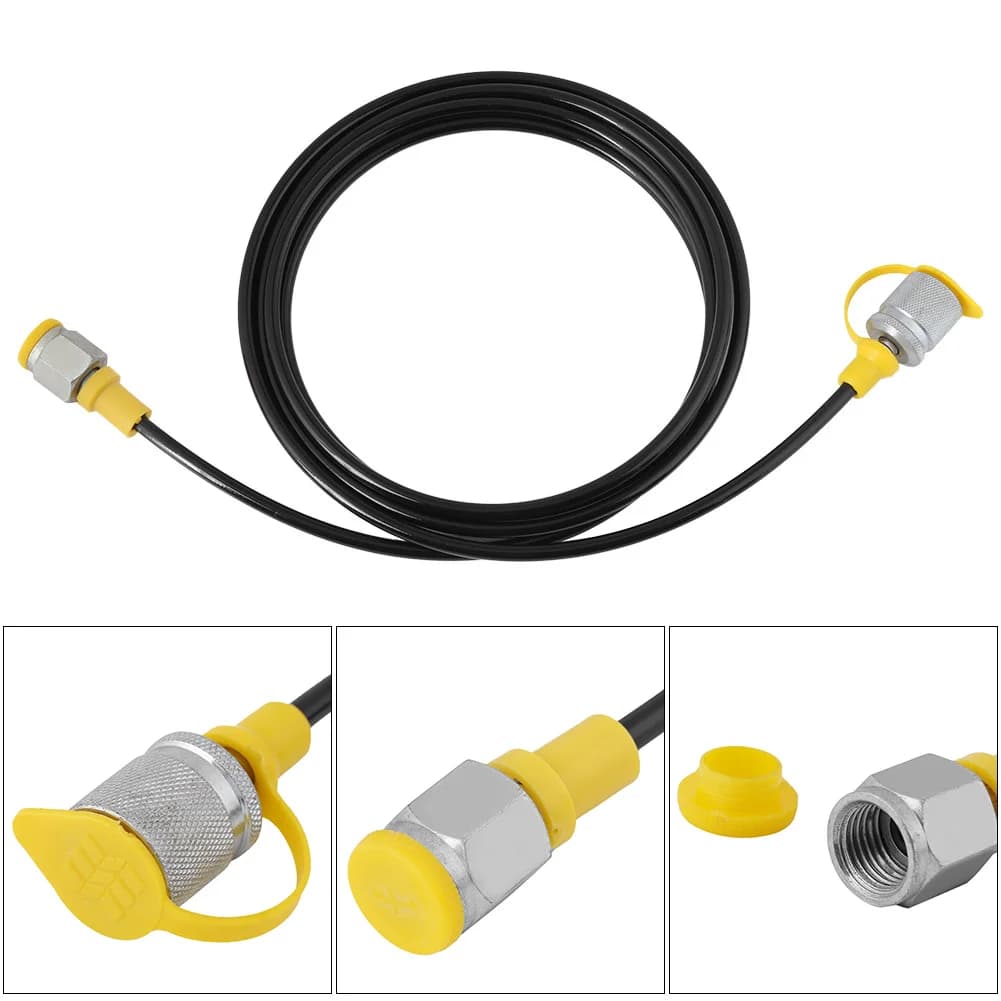

Hydraulic Pressure Test Hose 2.0m/6FT (M16*2-1/4BSP)Testing Coupling Point Hose Point Coupling Hose Test Coupling

Hydraulic Pressure Test Hose 2.0m/6FT (M16*2-1/4BSP)Testing Coupling Point Hose Point Coupling Hose Test Coupling
Specification:
Descriptions:
Hydraulic test hose is used in the hydraulic system, test the pressure of each point in the hydraulic system and as a conduit for conducting fluid media. And has good performance of oil resistance, acid and alkali resistance, high pressure resistance.
Features:
Used in the hydraulic system, test the pressure of each point in the hydraulic system and as a conduit for conducting fluid media.
It has the features of advanced structure, reliable seal, strong attachment, light weight and easy to use.
Lining layer is nylon, the enhancement layer is extremely strong industrial fiber, outer cladding is made from polyurethane.
This hydraulic test hose has good performance of oil resistance, acid and alkali resistance, high pressure resistance.
One end is M16*2 female, connect to coupling; the other end is BSP1/4 female, connect to Gauge.
Specifications:
Color: black
Wall thickness: 1.5 mm
Length: 2m/6FT
Temperature: - 40 ℃ to + 120 ℃
Lining: nylon
Enhanced layer: super industrial fiber
Outer cladding: polyurethane
Hose I.D.=2mm, O.D.=5mm
Allowable working pressure: 64Mpa
Minimum blasting pressure:160Mpa
Minimum bending radius: 30 mm/1.18inch
Weight:105g
Package Included:
1 x Hydraulic Pressure Test Hose
