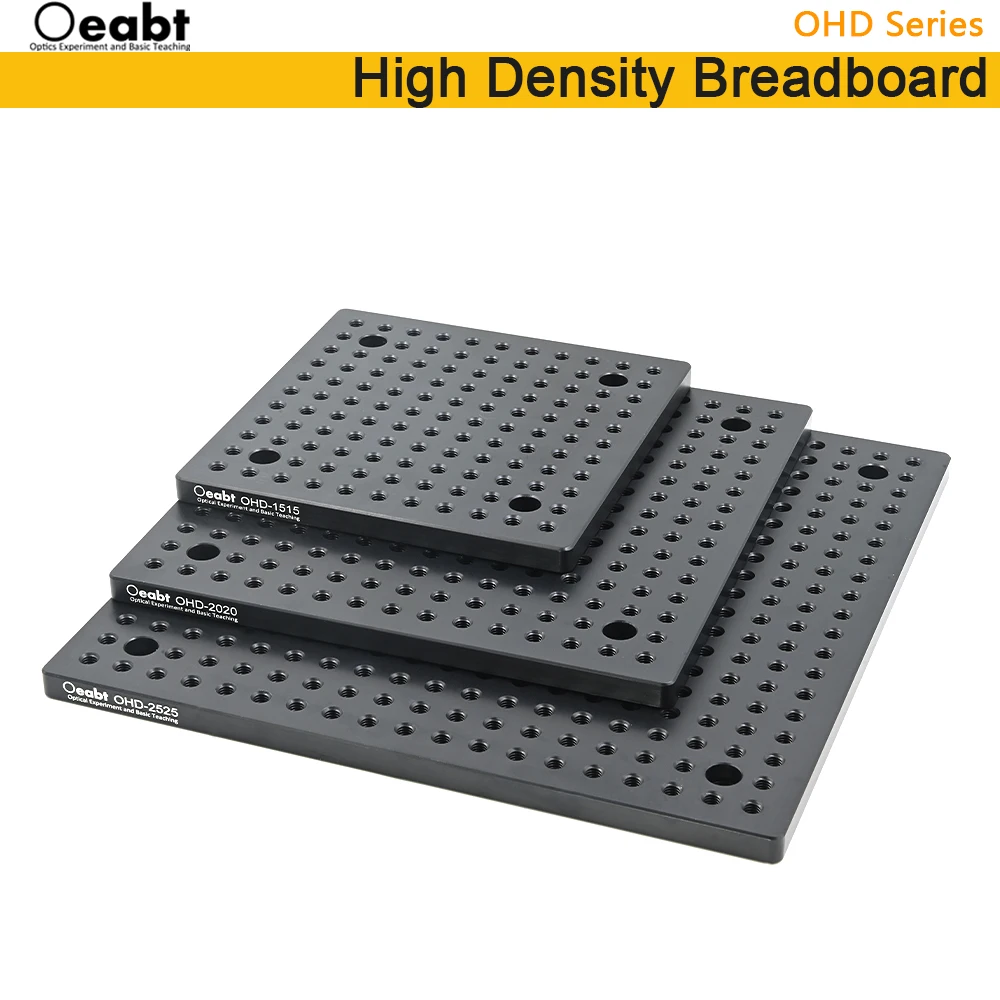

OHD Series Optical Breadboard High-density Optical Platform Aluminum Flat Optical Experiment Oeabt

Characteristic

► High density M6 screw hole array with 12.5mm hole spacing;

► Aluminum anodized blackening treatment process, large degree of reflection reduction;

► Countersunk holes downward for mounting breadboards;

► Multiple sizes available;

Designed for installations with limited space, this series of optical breadboards features a higher density of screw holes and can be used to hold and support a wide range of optical components, optical equipment and experimental devices.

The panels are available in side length sizes from 150-250mm, and each breadboard features 4 countersunk holes that can be mounted to our standard breadboards, mounting brackets, or splice rod assemblies without interfering with the mounting surface of the intended application.

Describe

(1) Designed for installations with limited space, this series of optical breadboards features a higher density of screw holes that can be used to hold and support a variety of optical components, optical equipment and experimental devices. The table surface is open with a high-density array of M6 screw holes with a hole spacing of 12.5mm, which allows users to easily mount optical components, holders, fixtures, etc. in a more compact location.

(2) The breadboard surface is anodized and blackened to minimize surface reflection.

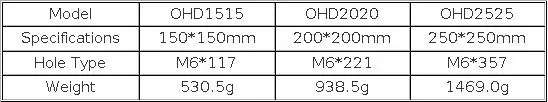

(3) Panel edge sizes are available from 150-250mm, and each breadboard features 4 countersunk holes that can be mounted on our standard breadboards, mounting brackets or rod assemblies without affecting the mounting surface of the intended application. 4 M6 countersunk holes are located at the corners of the breadboards, 12.5mm away from the edge of each side.
