Heavy Duty Universal Radio Antenna Stand 304 Stainless Steel Two-Way One-Key Fold down Base Mount for Clear Signal Reception

Description:

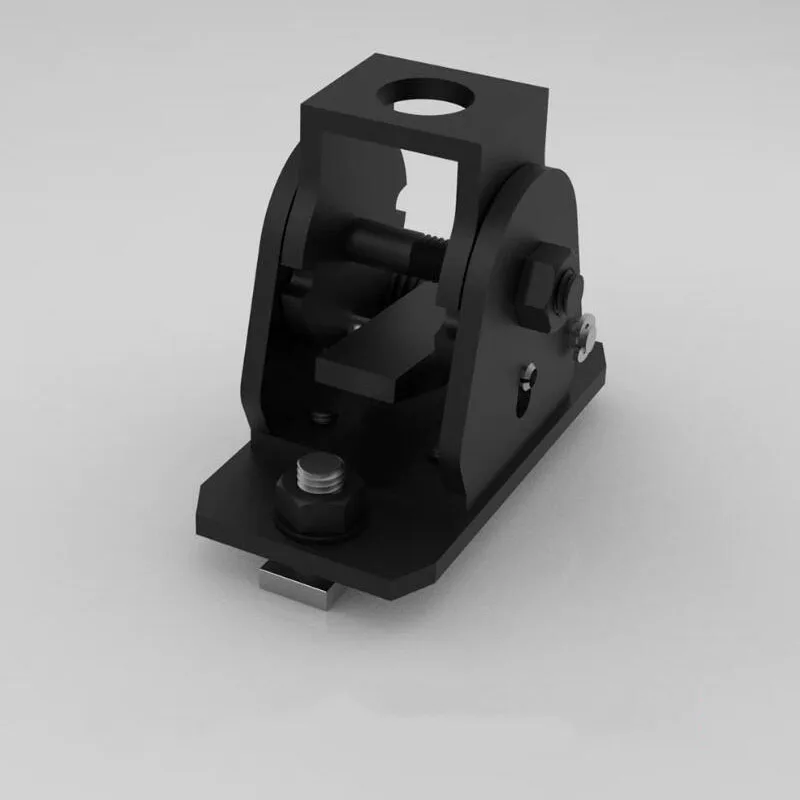

This heavy‑duty antenna base is built for demanding applications. The base and plate are separated to support 0‑90° rotation, letting you choose the folding direction that best fits your vehicle or installation. With a simple press of the spring tongue, the antenna locks into upright or folded position. The 4mm thick 304 stainless steel ensures long‑term corrosion resistance and structural strength, even for large or heavy antennas.

Package includes 8mm and 12mm stepped adapters, so you can easily mount different types of antennas or accessories. The base is a universal solution for amateur radio, CB, marine, or other mobile antenna systems.

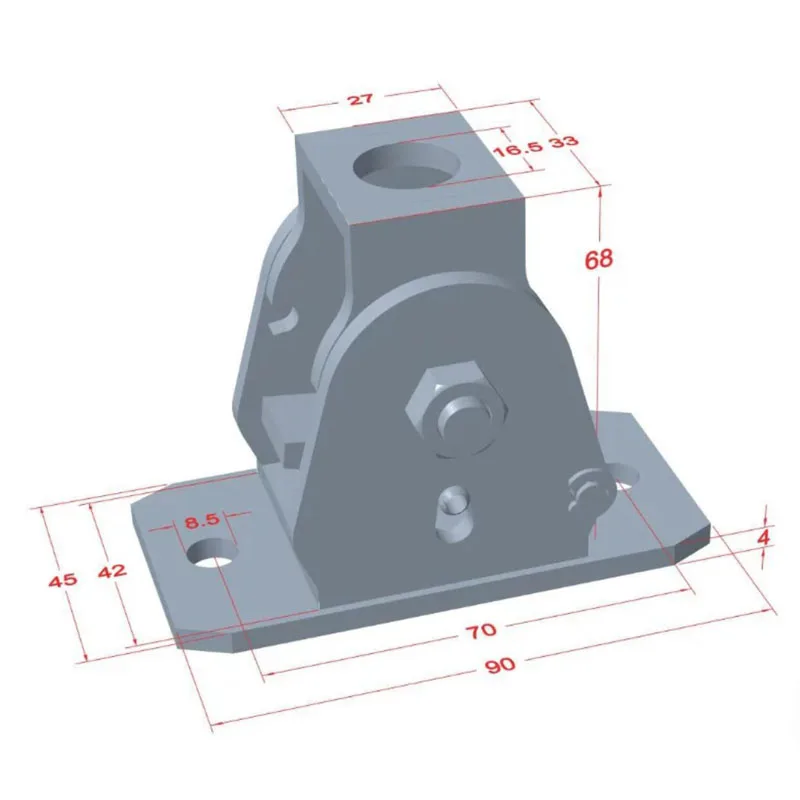

Specifications:

Product Name: Heavy Duty Universal Antenna Base

Material: 304 Stainless Steel

Plate Thickness: 4 mm

Folding Angle: 0 – 90°

Mounting Hole Sizes: 8 mm / 12 mm / 16 mm (changeable with included adapters)

Base Plate Dimensions: 90 x 45 mm

Base Plate Mounting Holes: 8.5 mm diameter

Folded Height (approx.): 58 mm

Features:

Ultra Sturdy Construction – Made of 4mm thick 304 stainless steel for excellent durability and stability.

One-Key Fold Down – Simply press the middle tongue to quickly fold the antenna down, making storage and transport easier.

Bi‑Directional Fold Down Design – The base can rotate 90° relative to the mounting plate, allowing the antenna to fold down either parallel or perpendicular to the expansion slot.

Versatile Mounting – Comes with 8mm and 12mm adapters, converting the 16mm mounting hole (for cigar/bullet connectors) to 8mm or 12mm for other accessories.

Compact Folded Height – When folded down, the total height is approx. 58mm, keeping a low profile.
