Screen Separator, Screen Repair Machine, Automatic Heating, Metal Plate, Glass Removal, 2 in 1, Phone Repair Separator Machine,

Product Information:

Package includes:

-1 x screen separator

-1 x Power Charger

-1 x silicone pad

-1 x packing box

Characteristics:

-Automatic heating metal plate, the maximum temperature is 120 degrees centigrade.

-Safety power system inside, avoiding electrical leakage problem.

-Smooth metal plate to hold the touch screen without any damage.

-With LED display, you can get clear information about the temperature.

-Range of application: separation of the different cover plates, LCD, etc.

-Anti-static body material, prevent the LCD and flex cable from being damaged by static.

-Don't set the temperature higher than 120 degrees as it may damage the screen.

-Temperature should be set from 80 centigrade to 100 centigrade, when you do the work on the LCD phone.

Specifications:

-Plug type: 110V US plug, 220V EU plug (optional)

-Color blue

-Model: 918B

-Power: 450W

-Material: Metal

-Voltage: AC 110 / 220V 50-60Hz

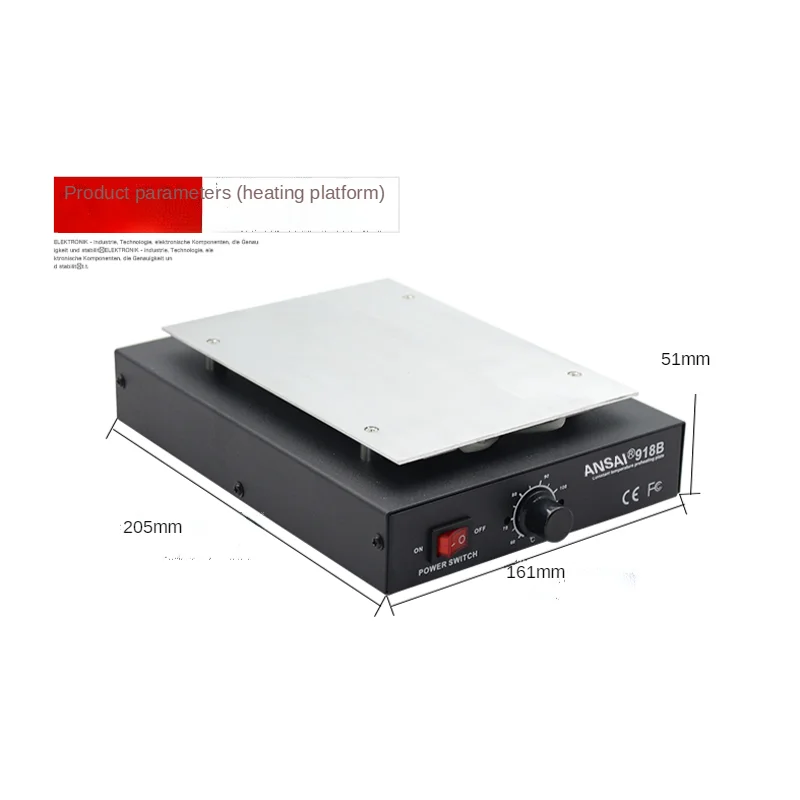

-Size: approx. 160x210x48mm / 6.30x8.27x1.89 "

-Heating plate size: approx. 180x130mm / 7.09x5.12 ''

-Working temperature: 0-55 degrees, <90% RH non-condensing

-Compatible with: for 7 "or less LCD or LED screen assembly

Operation steps:

-Step 1: Place your touch screen LCD on the metal plate, LCD side up.

-Step 2: Turn on the machine and wait for the metal plate to turn 80-100 degrees, and do a good job for fixing.

-Step 3: start to separate the LCD screen from the glass with a core, then move right and left with the core between the LCD screen and the glass ,. Please note that you should use soft power and keep the core on the surface of the LCD screen, to prevent the touch screen from being damaged.

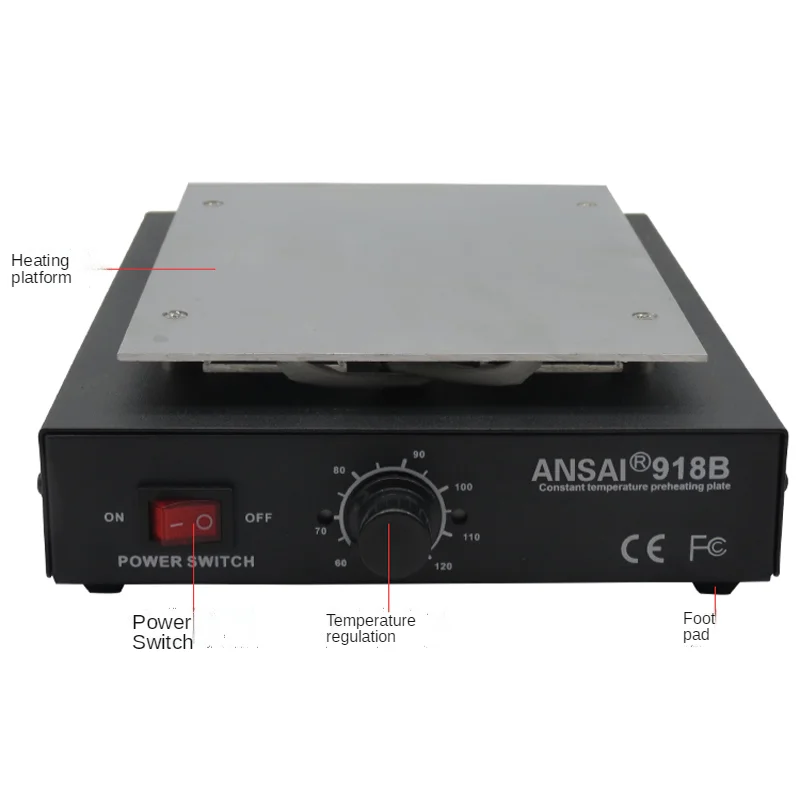

Product show:
