Industrial HMI Support Arm System, Articulated Mounting Bracket for Electrical Control Box & Enclosure, Automation Equipment

Product Positioning：

The 6095 Series is a medium-duty support arm system that balances structural strength with installation flexibility. It is suitable for medium-load control panels and operator stations. Compared with the 5065 Series, it features a more robust structure capable of supporting longer arms and larger panel sizes.

Load Capacity ：1000 N

Applications：

1：Medium-sized control panels and operator stations

2：Applications requiring longer arm reach

3：Industrial environments with higher stability requirements

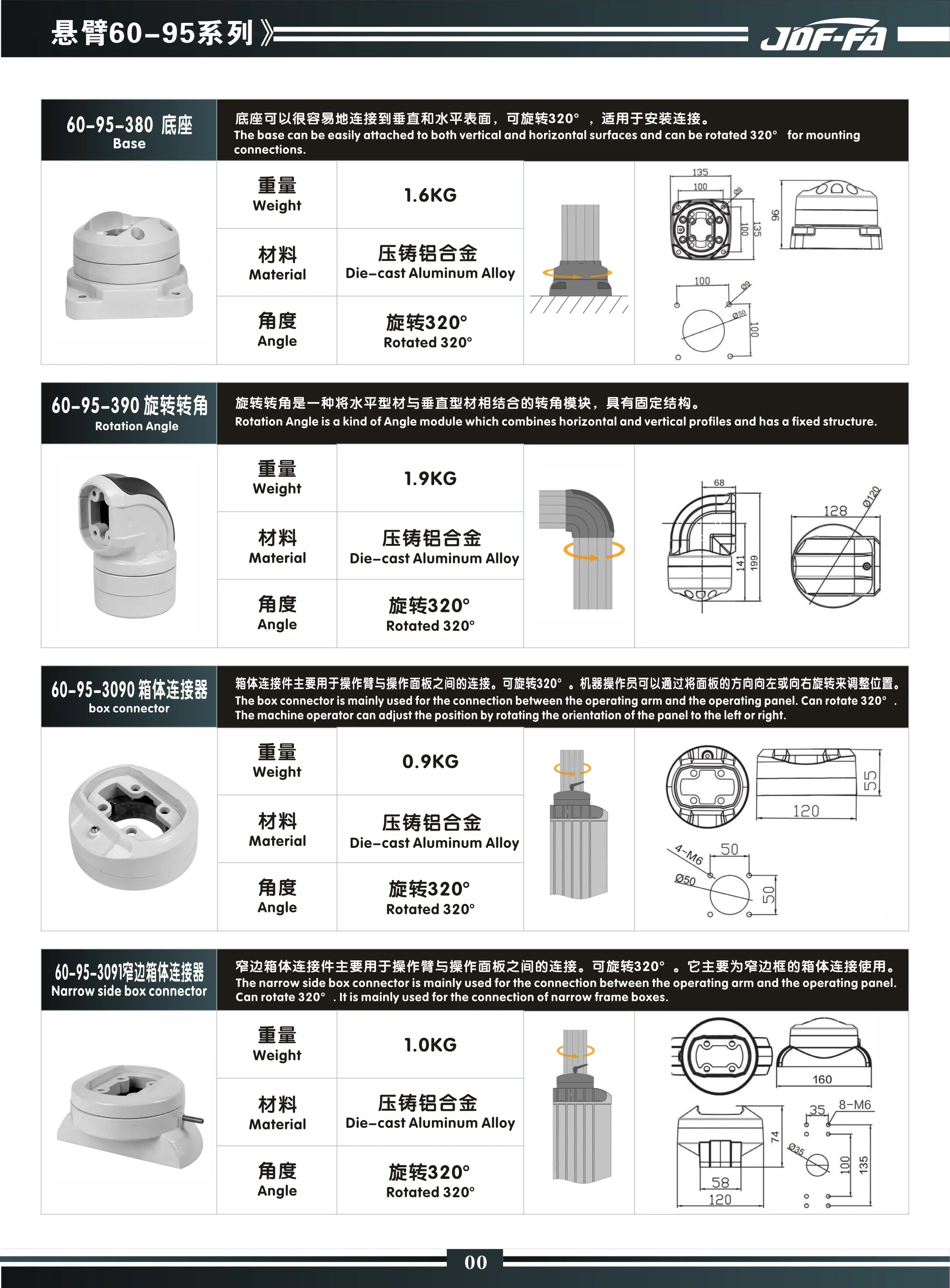

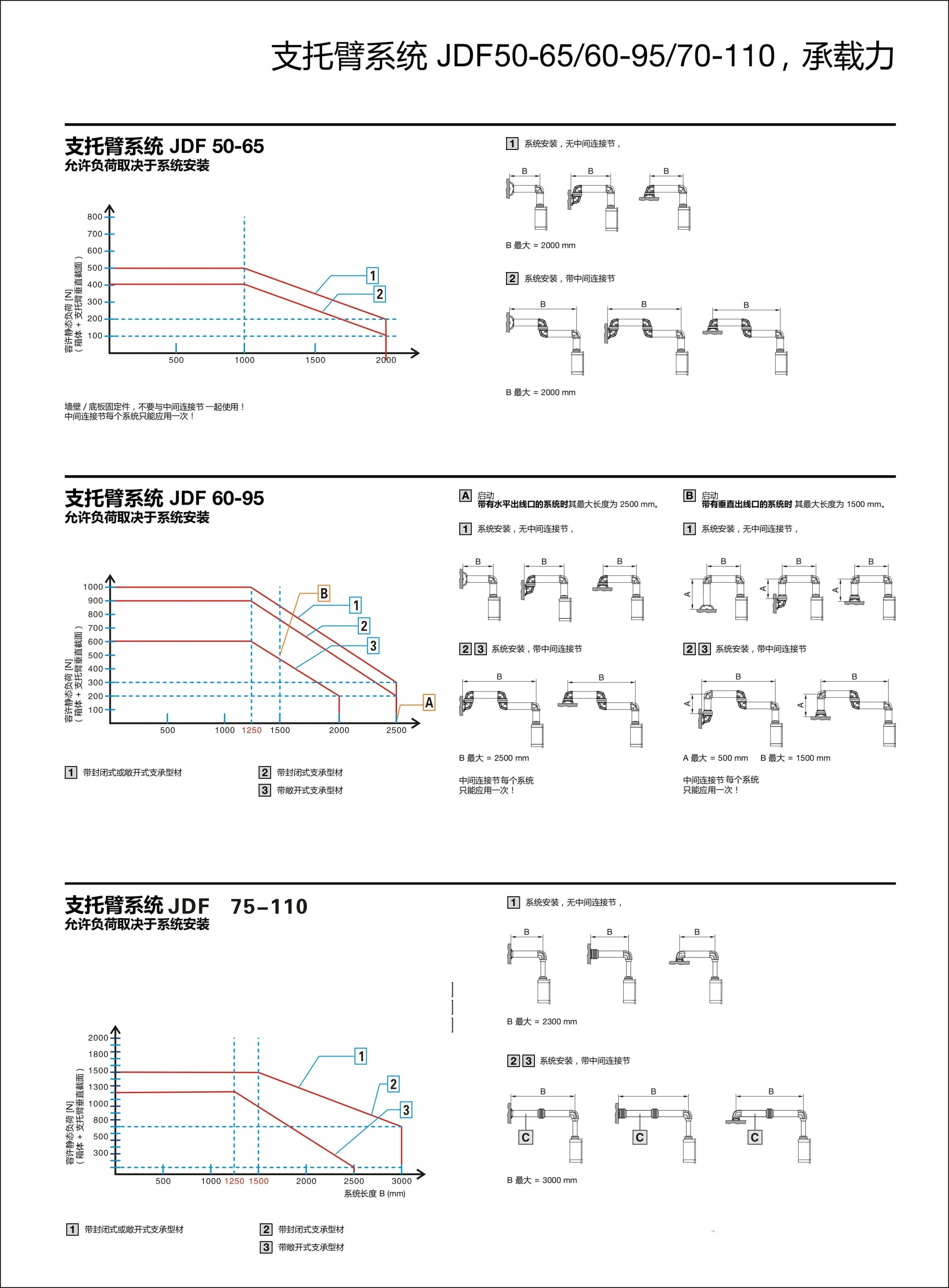

When selecting the 6095 Series, please note that the load capacity decreases as the arm length (B) increases. For applications requiring a longer reach (up to 2500 mm), ensure the total weight of the control panel and its components does not exceed the corresponding load limit shown in the specification table. If your required load exceeds these values, please consider our heavier-duty series.

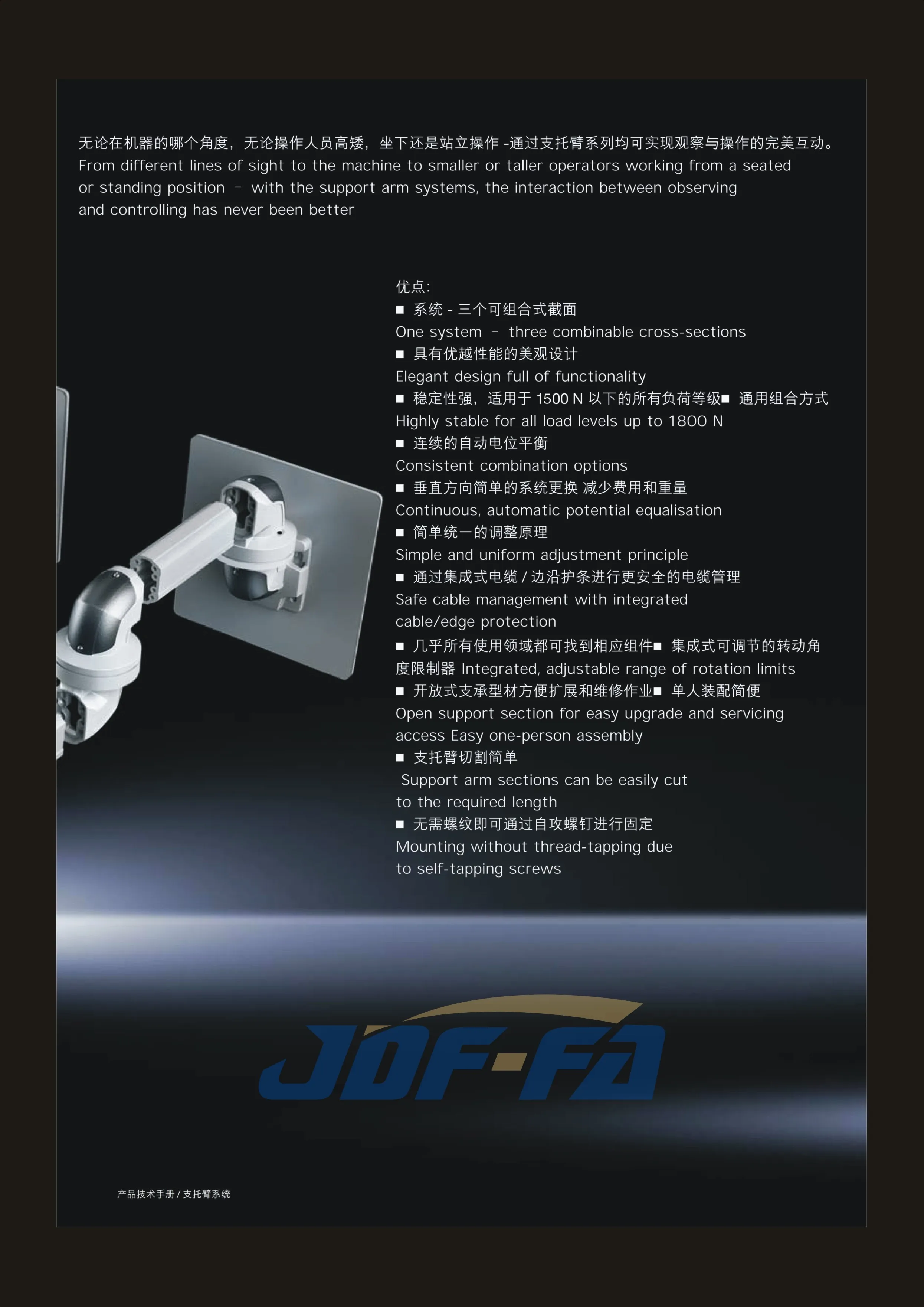

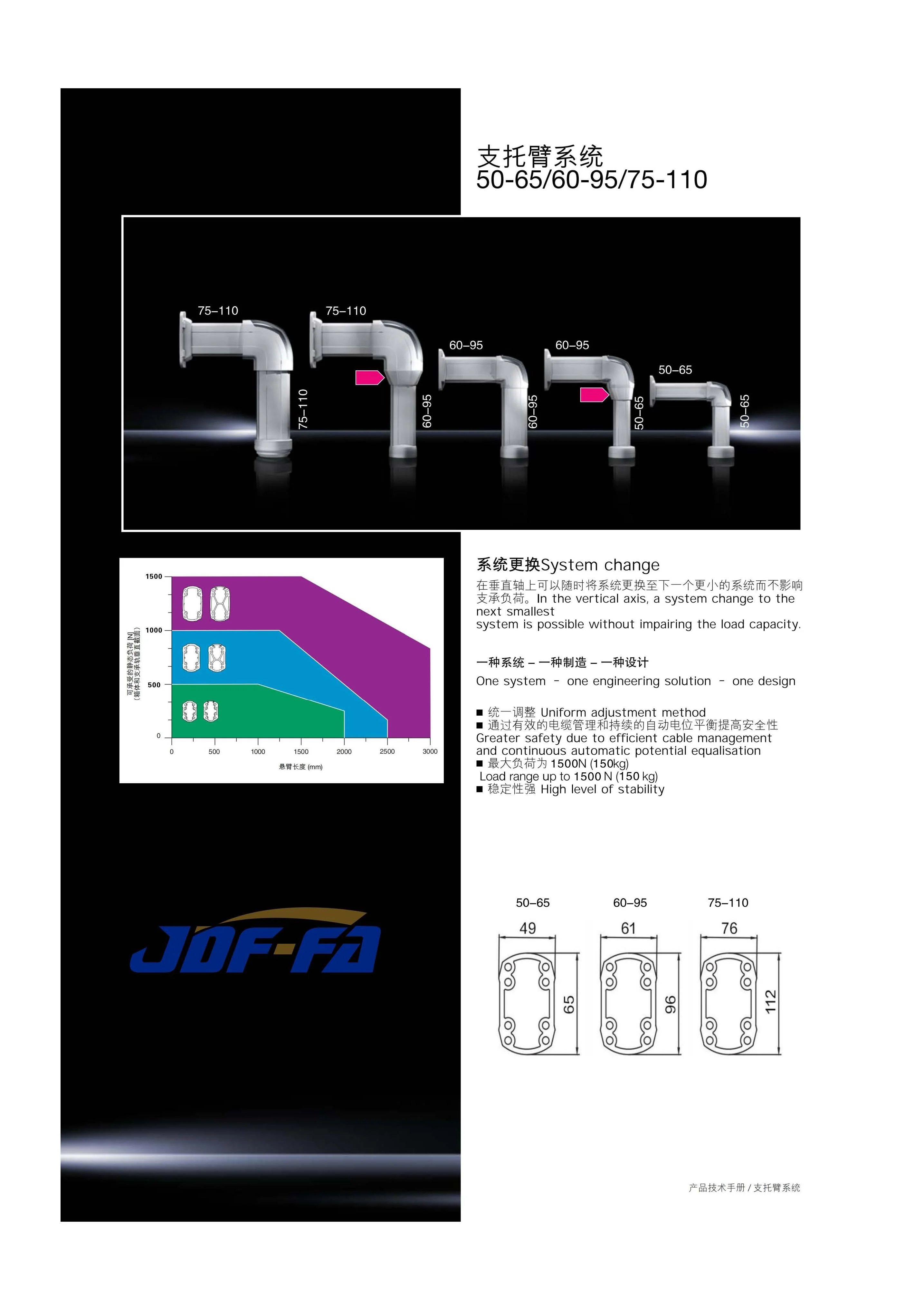

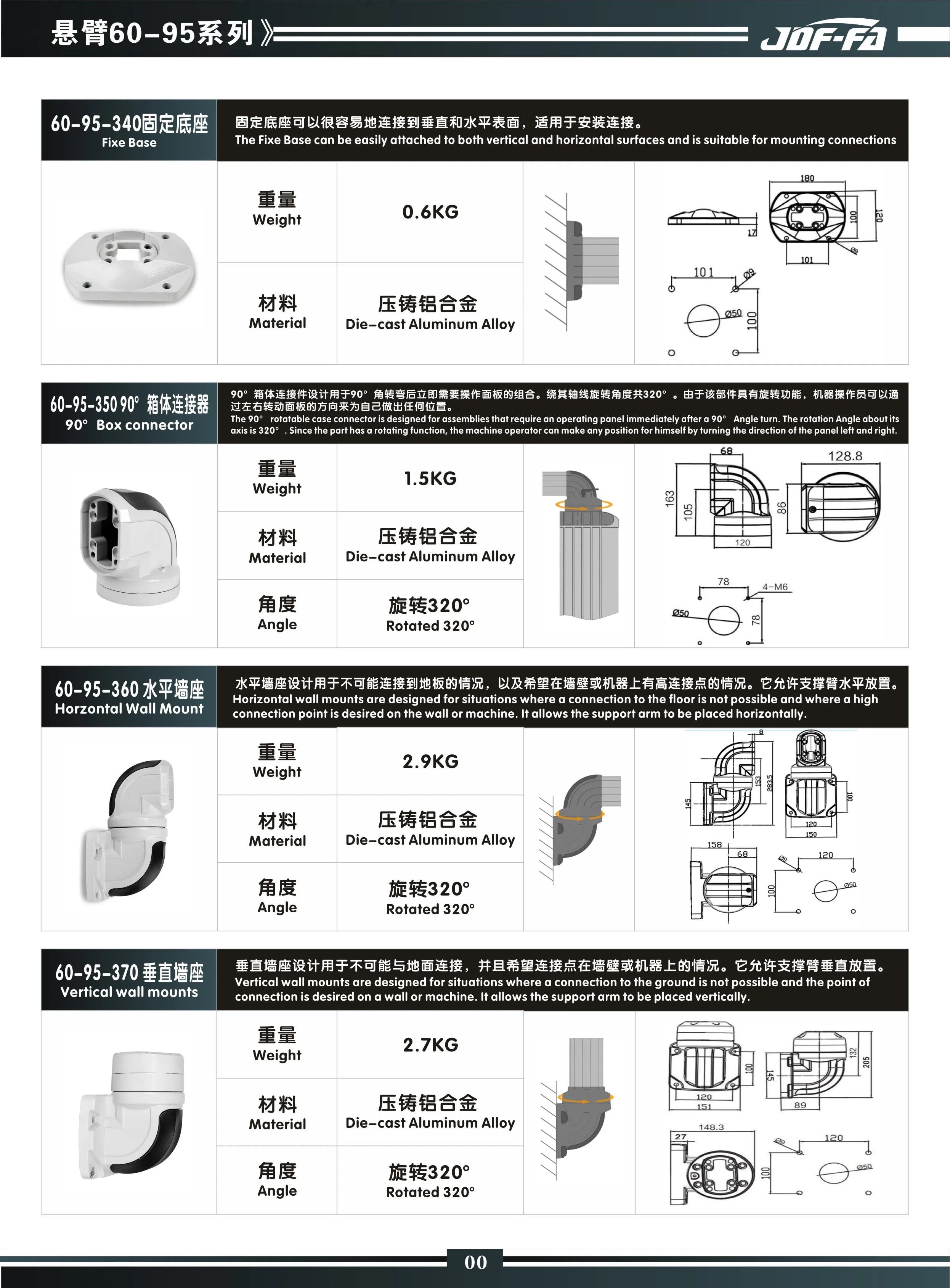

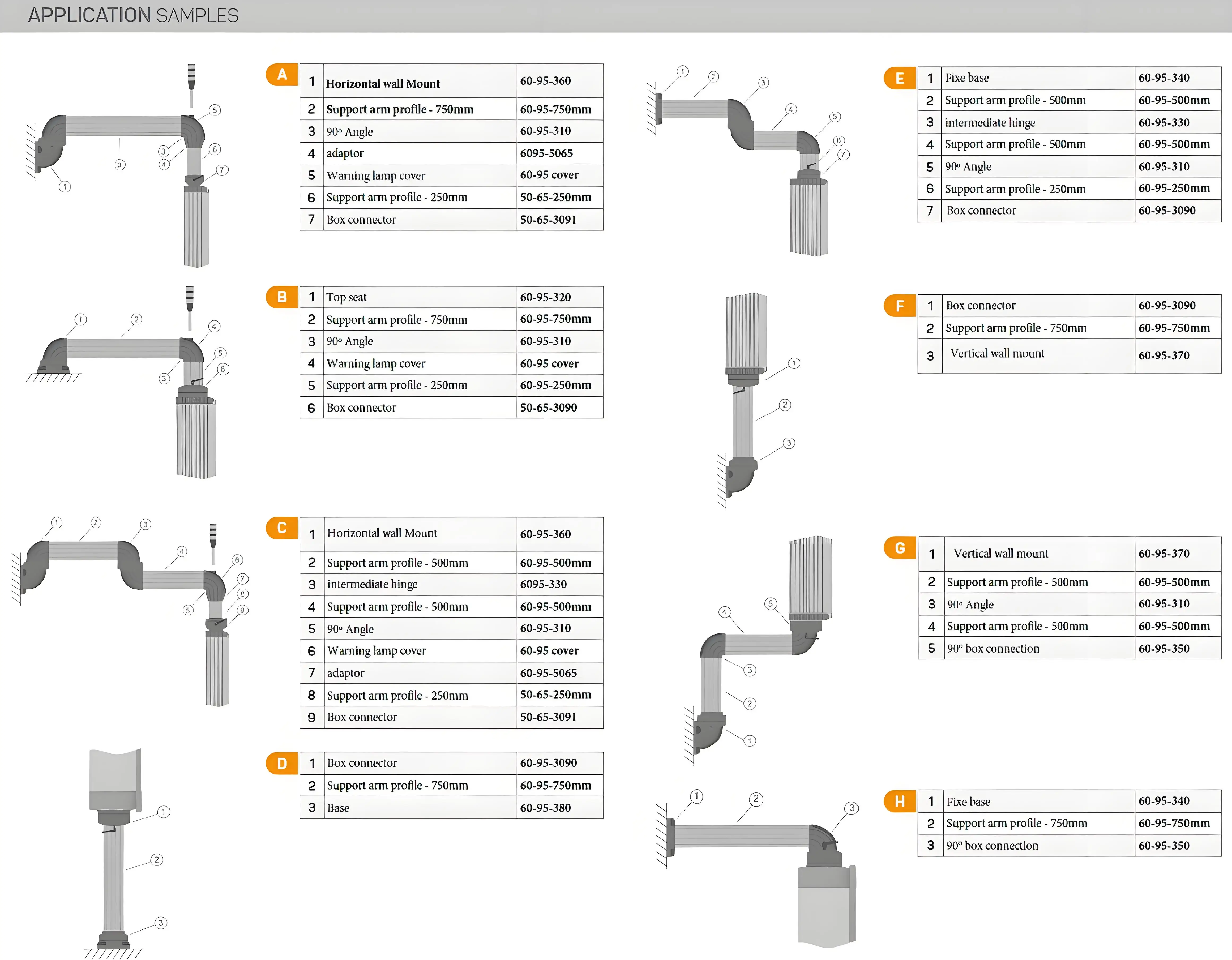

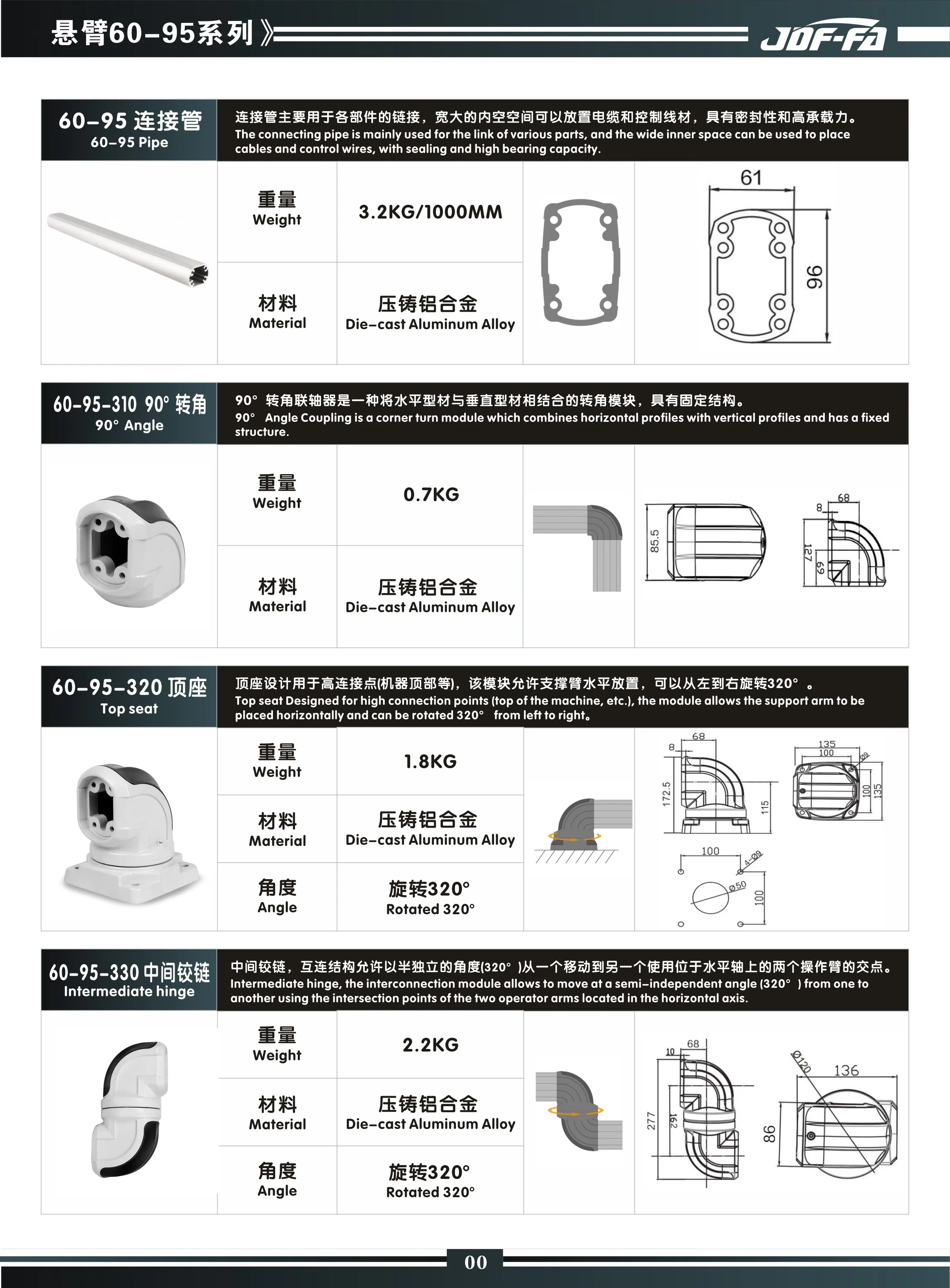

Selection method

Selection method: In the selection reference at the bottom of this page, choose the design scheme suitable for your equipment (you can also design your own combination), and then choose the appropriate component series by controlling the total weight of the box and the rotation length of the design, a total of 50-65,60-95.75-110 three series to choose from, the function of each part of the three series is the same. The default connection tube is 500mm, if you need 1000mm, please order 2, and then note 500mm*2 on the order page, so that we can send a 1000mm connection tube.

About the drawings

Please enter our website to download CAD graphic drawings and Step 3 d drawings

Our website address is

www.jdf-fa.com

We specialize in this leveling casters, with the strength of, with good quality and pretty competitive price.Should you have any questions, pls do not hesitate to contact me.
