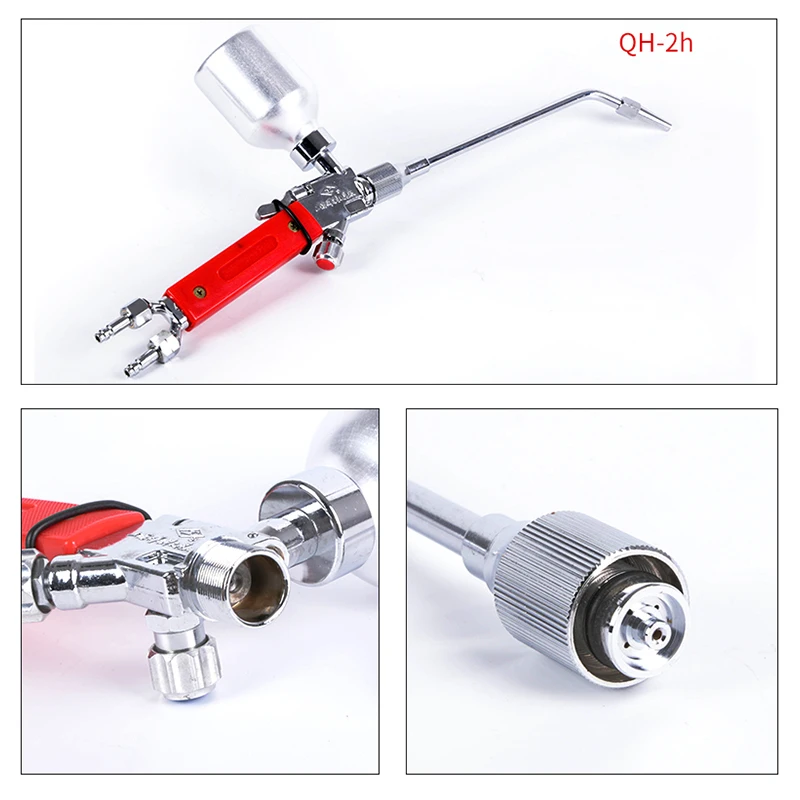

Metal Powder Spray Welding Torch,Oxygen Acetylene Flame Welding Gun

Metal Powder Spray Welding Torch,Oxygen Acetylene Flame Welding Gun

Specification:
Model:Q-2/H
Nozzle Diameter: 3pcs (1.6 /1.9/2.2)
Power Velocity: 1.0-1.4/1.4-1.7/1.7-2.0
Length: 470mm
Application: Gas Type (Oxgyen Acetylene: O2; C2H2)
Use method :
1. With oxygen acetylene flame on the workpiece is heated to 300--400 degrees celsius.
The nozzle and the workpiece surface distance 120~150 mm, at same time you can put the self fluxing alloy powder evenly sprayed on the surface of the workpiece, and then through the flame to melt, to appear on the surface mirror, gradually Moving molten position, so that the alloy powder and the workpieces polarized, dispersed to each other to form a binding layer
3.Different kinds of alloy powder used, can get the abrasion resistance, corrosion resistance and other different properties of strengthening layer.
Note:
1. Medium pressure type structure, it must be used in the medium pressure acetylene generator and an acetylene cylinder pipe, absolutely should not be used in low pressure acetylene generator and pipeline.
2. Spray gun, if no ignition, can not press powder valve switch, to avoid blockage.
3. Due to the powder 's particle size is not uniform, or become damp and other factors, make the powder valve switch failure, clogging, it shouold be repaired in time before be used again .
4. Attention --must use dry powder.
5. Regular cleaning spray gun, in order to avoid the gas tube holes are
blocked. while cleaning pipe hole ,ejects out and clean up the control powder feeder.
6. Keep the gas pipeline drying, smooth to avoid damp effect of powder.
7. All the pipelines of spray welding torch are not contaminated oil, to
prevent oxygen meet oil to have combustion and explosion .
8. Spray gun at the end of work, first close the acetylene valve, and then use the oxygen blowing internal pipeline, after liquidation shall be
sprayed welding torch and hose hanging, prevent dust and impurity invasion of spray welding nozzle, to effect the normal use.
9. The use of spray welding torch, oxygen, acetylene pipeline must be
equipped with a backfire preventing device
Include:
3 x Welding nozzle
1 x The connecting nuts
1 x Powder bucket seat
1 x Powder hopper
1 x Control powder feeder
1 x Powder pressing hand
1 x Oxygen joint
1 x The acetylene joint
1 x The handle
1 x Acetylene handwheel
1 x In the middle of the subject
1 x Oxygen handwheel
1 x Hybrid junction
1 x Mixed gas pipe
