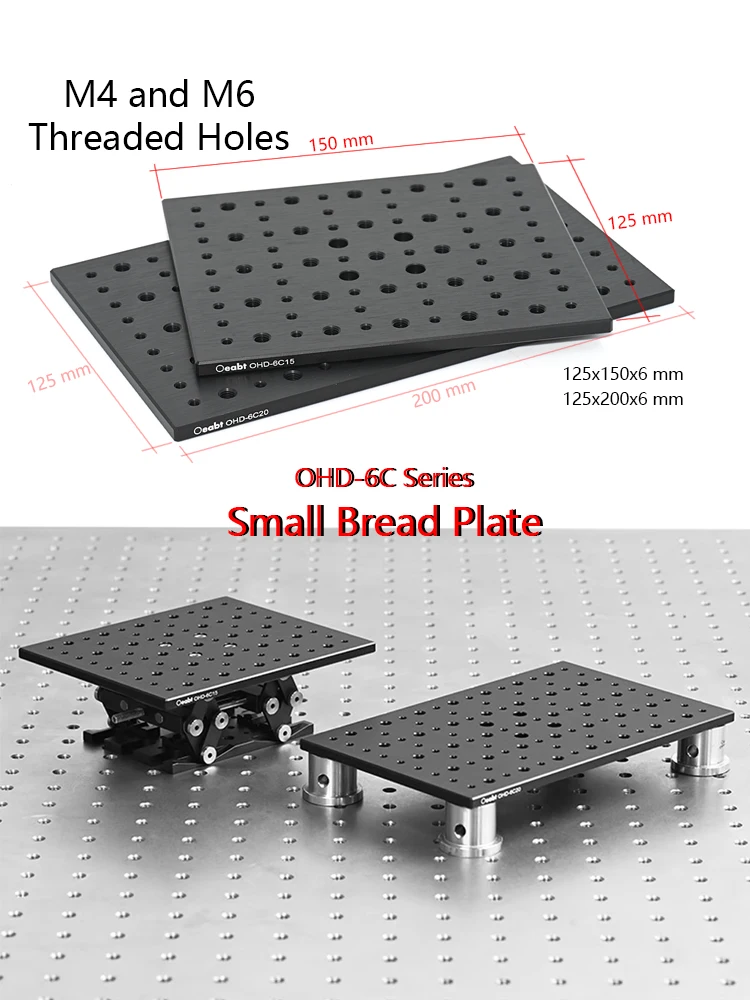

OHD-6C Optical Breadboard Multi-hole Aluminum Plate Optical Flat Plate Aluminum Alloy Base Plate Experimental Fixing Plate

For better communication, please add a Skype account or send an email to the mailbox. We will see the message and reply you as soon as possible.

Skype account:

[email protected]

Email:

[email protected]

Product information

Characteristic

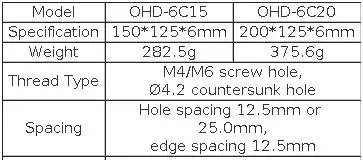

►M4, M6 high-density screw hole arrangement;

► Screw hole spacing 12.5mm or 25mm, providing more installation position options;

► Solid aluminum structure with oxide blackening treatment, greatly reducing reflection;

► Multiple specifications are available;

Description

(1) The OHD-6C series breadboard is designed for space-constrained installations and is constructed from a 6mm thick solid aluminum oxide blackened to minimize surface reflections. Its small size and thin profile also make the breadboard ideal for use in narrow areas, or extended light assembly countertops.

(2) The breadboard has a higher density of M4 and M6 screw hole arrays with hole spacing of 12.5 mm or 25 mm. In addition, there are 4 M4 counterbores in the center of the panel. It can be mounted on our standard breadboards, mounting brackets or adapter assemblies.
