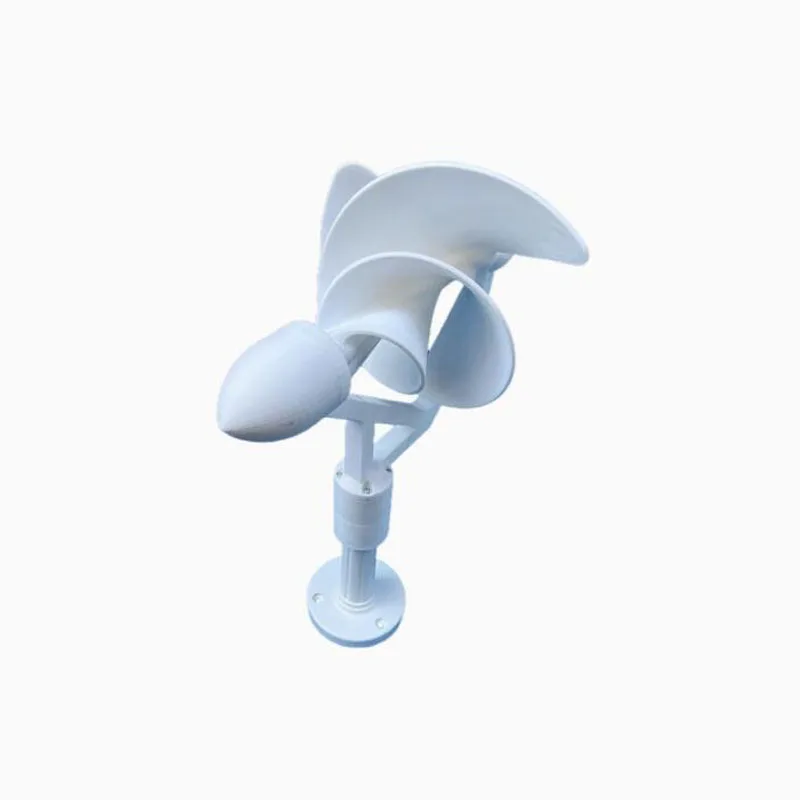

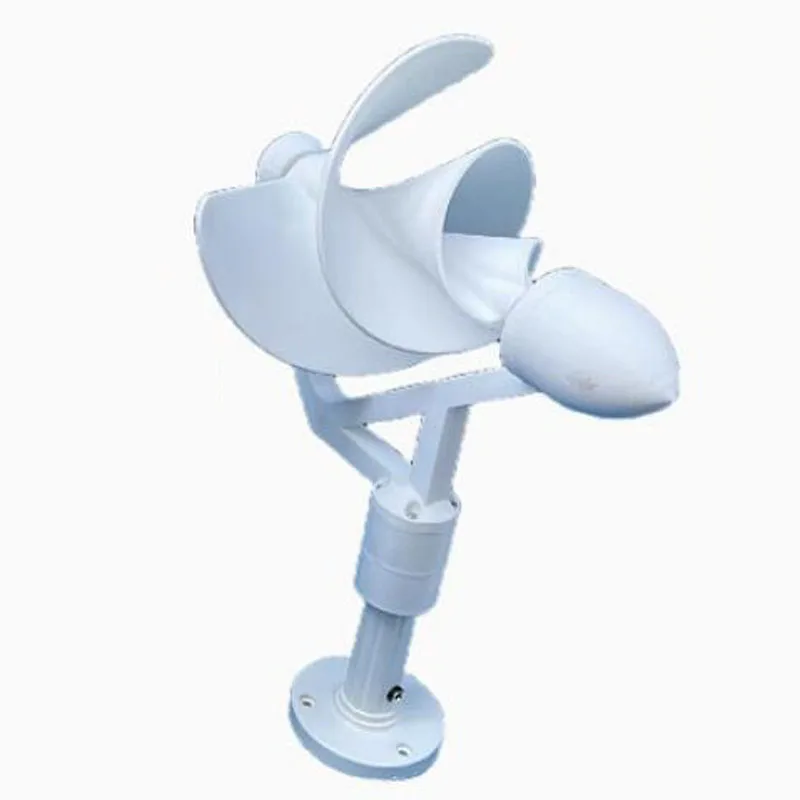

12V DC Output, Low Start Wind Speed (1.5m/s), Effective Three-Phase PM Brushless Generator, Micro Wind Turbine Generator 50W

Specifications:

Product Name: Archimedes Spiral Wind Turbine Generator

Rated Power: 50W

Rated Voltage: 12V DC

Rated Current Range: 0.1 - 2A

Start-up Wind Speed: 1.5 m/s

Rated Wind Speed: 8 m/s

Rotor Speed Range: 50 - 800 RPM

Rotor Diameter: 220 x 220 mm

Rotor Material: PLA (Polylactic Acid - Durable & Eco-friendly)

Yaw Control: Automatic Wind Direction Yaw

Generator Type: Three-Phase Permanent Magnet Brushless Generator

Mounting: Screw Fixation

Product Weight: Approx. 0.5 kg (1.1 lbs)

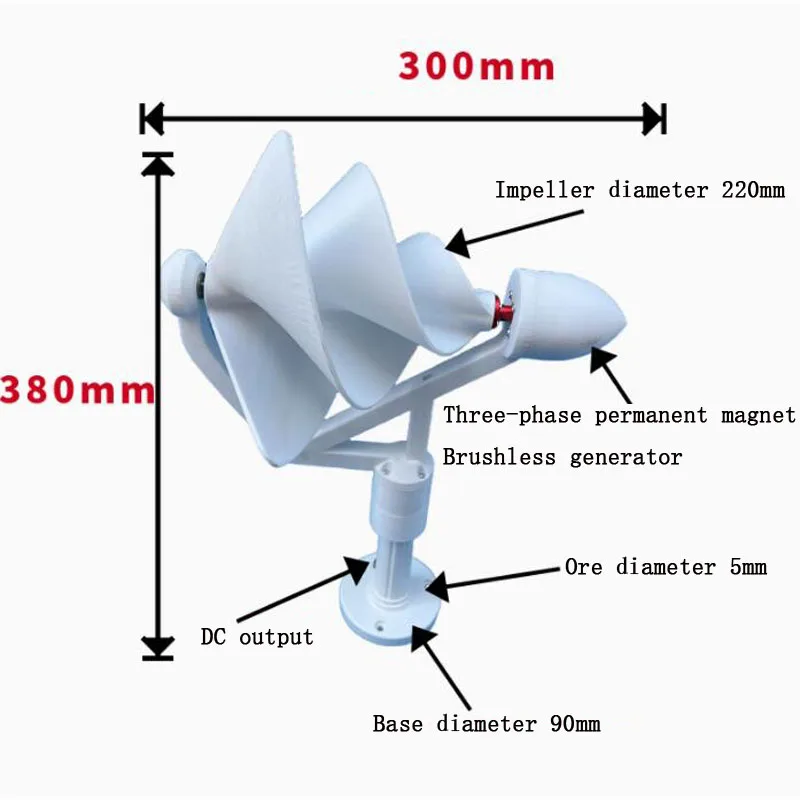

Product Dimensions: 300 x 220 x 380 mm (L x W x H)

Feature:

Compact & Flexible Installation: Small footprint eliminates the need for large towers or long blades. Perfect for space-constrained locations like rooftops, balconies, street lights, RVs, or boats. Easily expand power output by connecting multiple units in parallel.

Quiet & Safe Operation: Low rotational speed ensures minimal mechanical noise, reducing disturbance. Safe for public areas and wildlife (like birds) due to the absence of high-speed rotating blades.

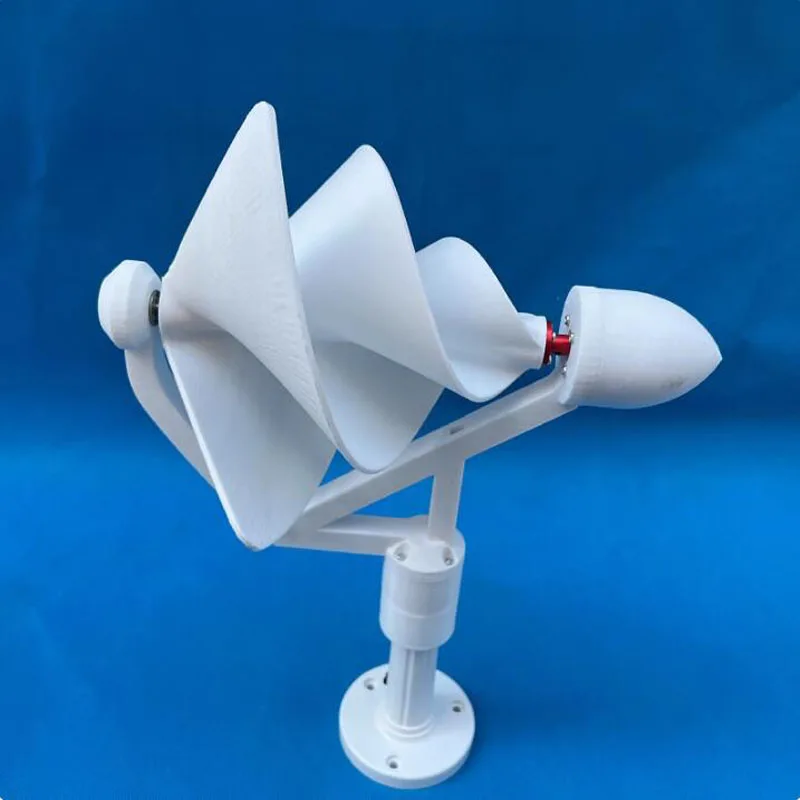

Optimized Spiral Blade Design: Features a unique 3D Archimedes spiral blade shape for superior aerodynamics, maximizing efficiency while minimizing turbulence and noise generation.

Exceptional Low Wind Performance: Starts generating power at very low wind speeds (from 1.5 m/s), making it highly effective in urban environments with variable or gentle breezes.

Eco-Friendly & Efficient: Utilizes a highly efficient three-phase PM brushless generator for reliable DC power output and durable PLA construction.

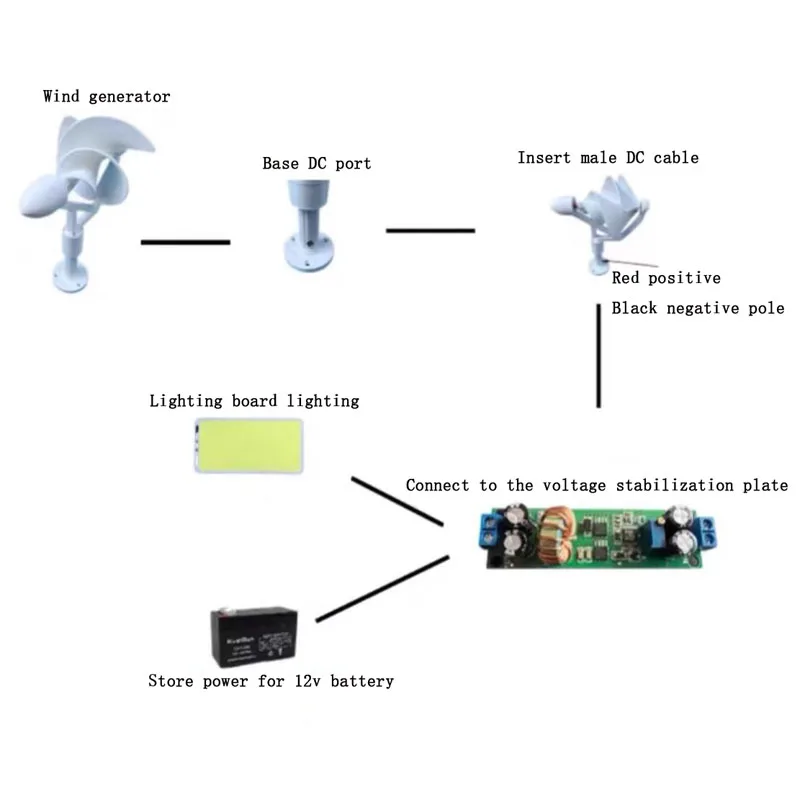

Ideal For: Off-grid power, battery charging (12V systems), urban renewable energy projects, educational kits, monitoring equipment, street lighting, balconies, gardens, boats, and RVs.
