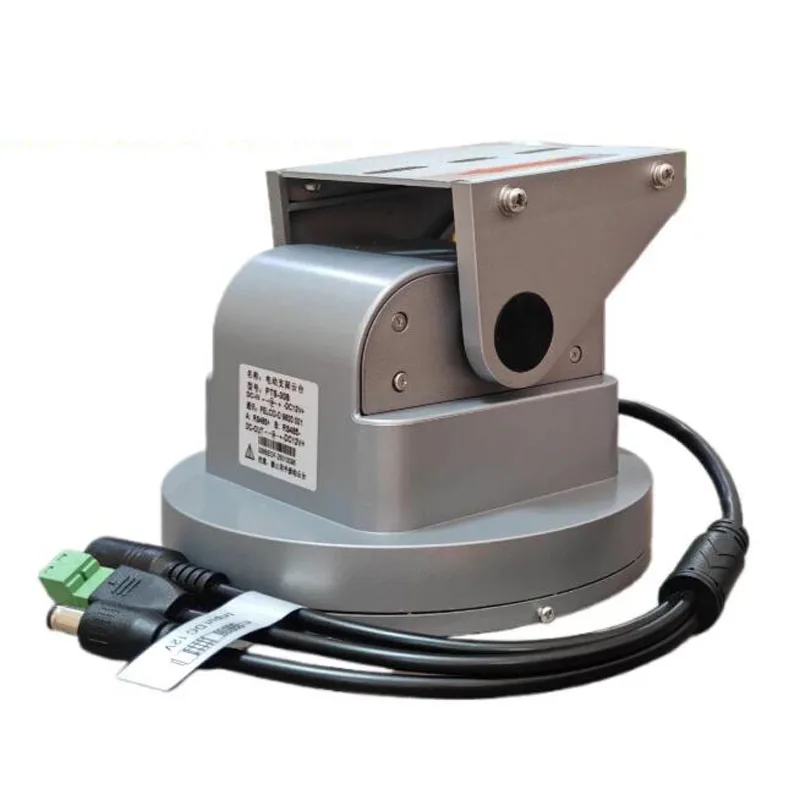

Auto-Tracking PTZ Camera Mount Dual-Axis Rotation RS485 Control for Security Surveillance Systems

Parameter:

Product Name: Motorized PTZ Mount

Model: PTS-308

Horizontal Rotation: -90° to 90°

Vertical Rotation: -15° to 30°

Horizontal Speed: 10°/S

Vertical Speed: 3°/S

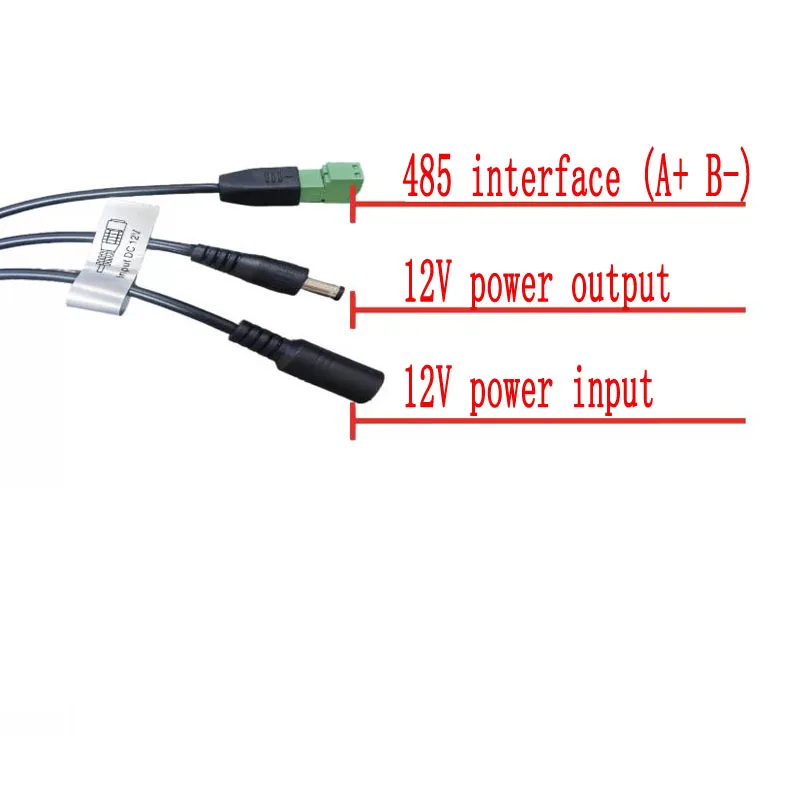

Control Interface: RS485

Protocol: Pelco-D

Baud Rate: 9600 (fixed)

Address Code: 001 (fixed)

Power Supply: DC 12V ±20%

Load Capacity: 2kg

Cable Length: 200mm

Housing Material: PC (Polycarbonate)

Protection Class: Class A (Indoor Use)

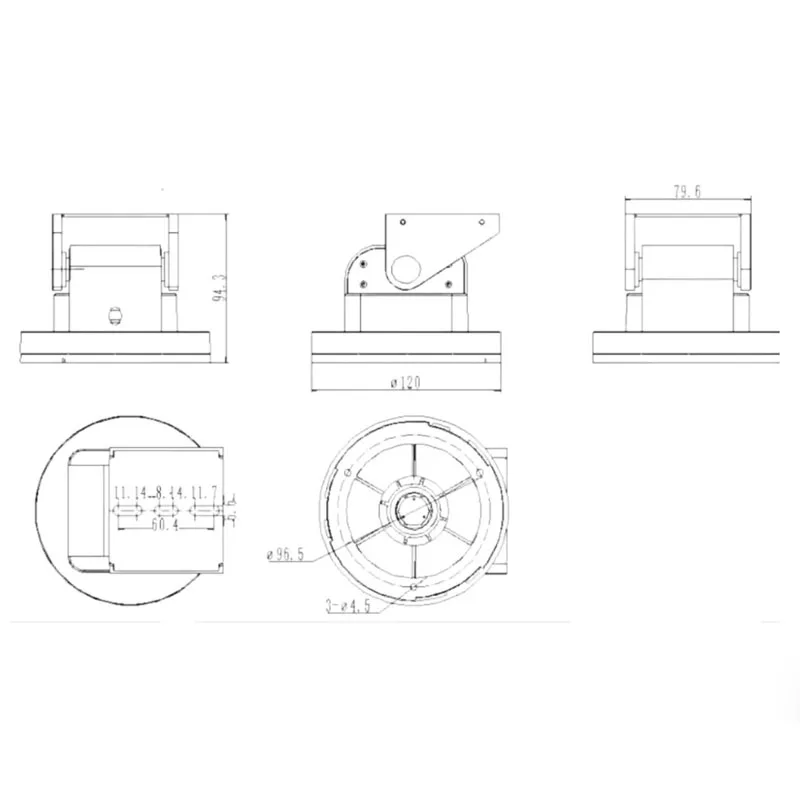

Dimensions: φ120 x 43mm

Weight: 415g

Features:

Dual-axis rotation (horizontal & vertical) for flexible coverage

Smooth motion: horizontal 10°/S, vertical 3°/S

Wide angle range: horizontal -90° to 90°, vertical -15° to 30°

RS485 interface with Pelco-D protocol for seamless integration

Sturdy build supports up to 2kg load

Compact & lightweight design for easy installation

DC 12V power supply, low voltage operation for safety

Note:

This mount requires RS485 control for operation and does not support preset positions or self-test functions. Baud rate and address code are fixed and cannot be modified. Ideal for integration into customized surveillance systems.
