4x 2.5G LAN I226-V Firewall Mini PC Intel I7 13620H I5 1235U I3 8505 N5105 Industrial Computer PfSense OPNsense Homelab Server

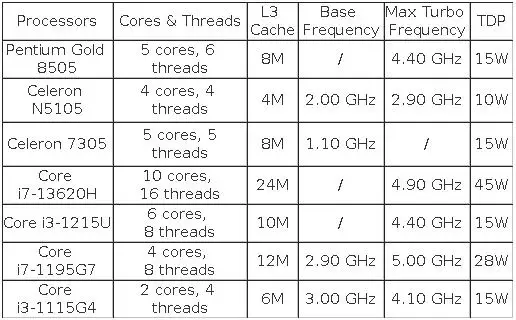

Processor parameter for referance only

Product Highlights

2 x DDR4 SODIMM RAM slots, supporting up to 64GB maximum memory.

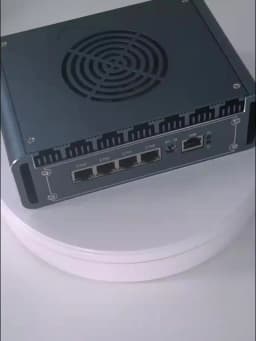

4 x Intel i226-V 2.5G RJ45 LAN ports, 2 x USB 3.0, 2 x USB 2.0, 1 x RJ45 COM console port.

Supports dual storage: 1 x M.2 2280 NVMe/PCIe x4 SSD + 1 x 7mm 2.5'' SATA SSD/HDD.

1 x SIM slot (rear side) & 1 x MPCIE slot, supporting either WiFi or 4G connection (one option only).

1 x HDMI 2.0 and 1 x DP 1.4, supporting dual 4K@60Hz UHD video output.

Supports AES-NI, ESXI, PVE, Watchdog, auto power on, RTC, PXE boot, Wake-on-LAN and more.

Innovative design: full aluminum alloy finned passive heatsink + intelligent fan cooling. Fan and motherboard are isolated for dust and corrosion protection. The device can flexibly switch between fan and fanless modes. The built-in fan inside the solid aluminum case provides excellent heat dissipation to fully unlock CPU performance with low noise. You may unplug the fan connector from the motherboard for a completely silent fanless setup.

Low TDP power consumption; supports VESA mounting behind a monitor (bracket optional).

Package List

1 x Mini PC

1 x Power Adapter

1 x Power Cord (EU/US/UK/AU plug according to the buyer’s country)

1 x SATA Cable

Welcome to click the picture of VESA Bracket to order together if you need:
