Qotom 10x 2.5G LAN Fanless Mini PC Q31100GT I226-V 6305 i5-1135G7 i7-1185G7 i5-11300H Firewall Router Network Appliance

Note:Shipment&Customs Clearance

Note:Shipment&Customs Clearance1. DHL / FedEx/UPS Express to most of countries
​5~7 days to most of countries.
​​
1. About Shipment:
All packages are shipped from China mainland, the consignee is responsible for completing customs clearance and promptly paying any applicable import charges, including duties, VAT, and other related fees, please pay attention to shipment.
​
2. Invoice
​If you have special requirements on invoice, please leave message.
​If you need invoice (PDF), please provide an email address.

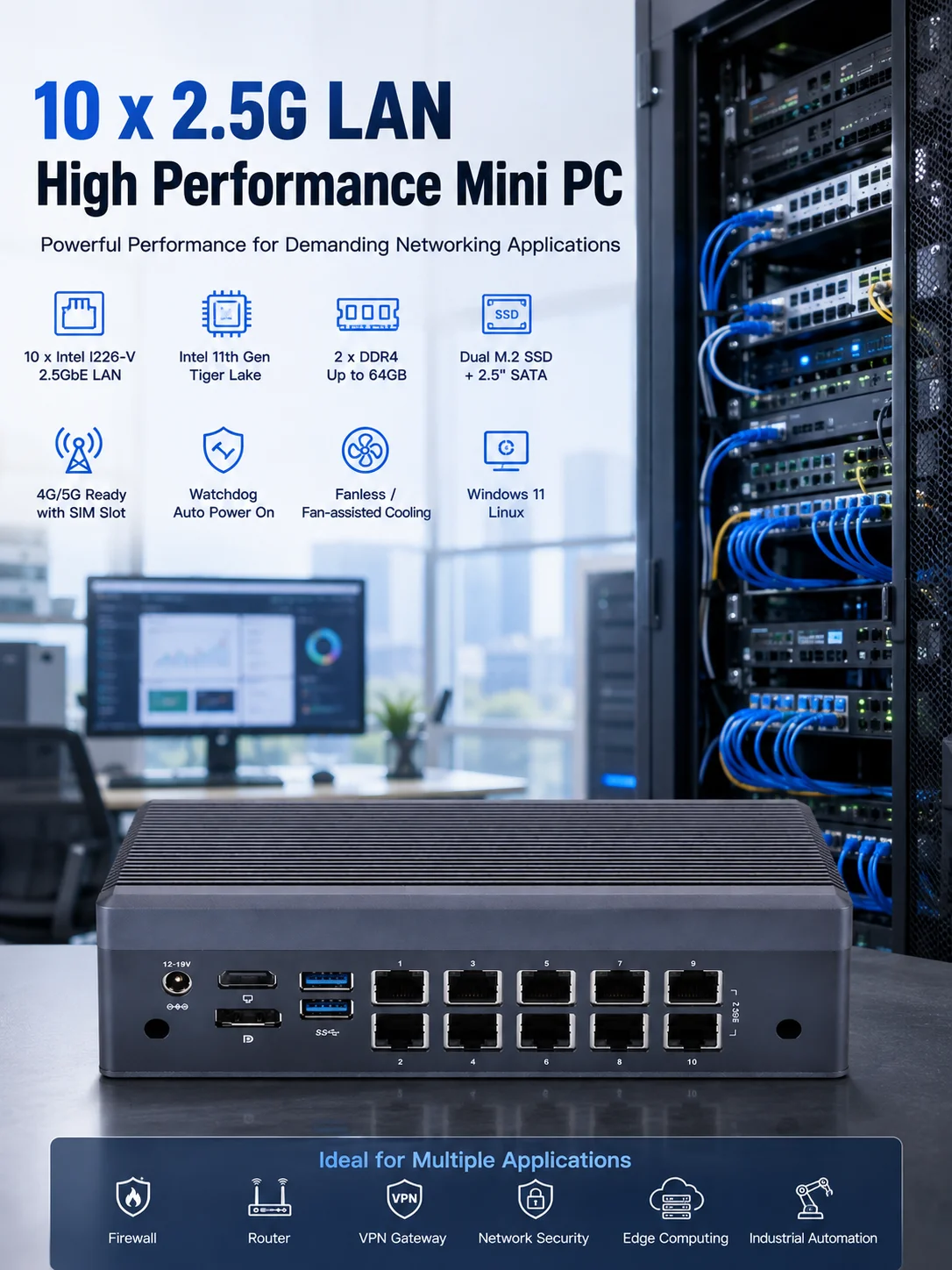

Mini PC Q31100GT Series

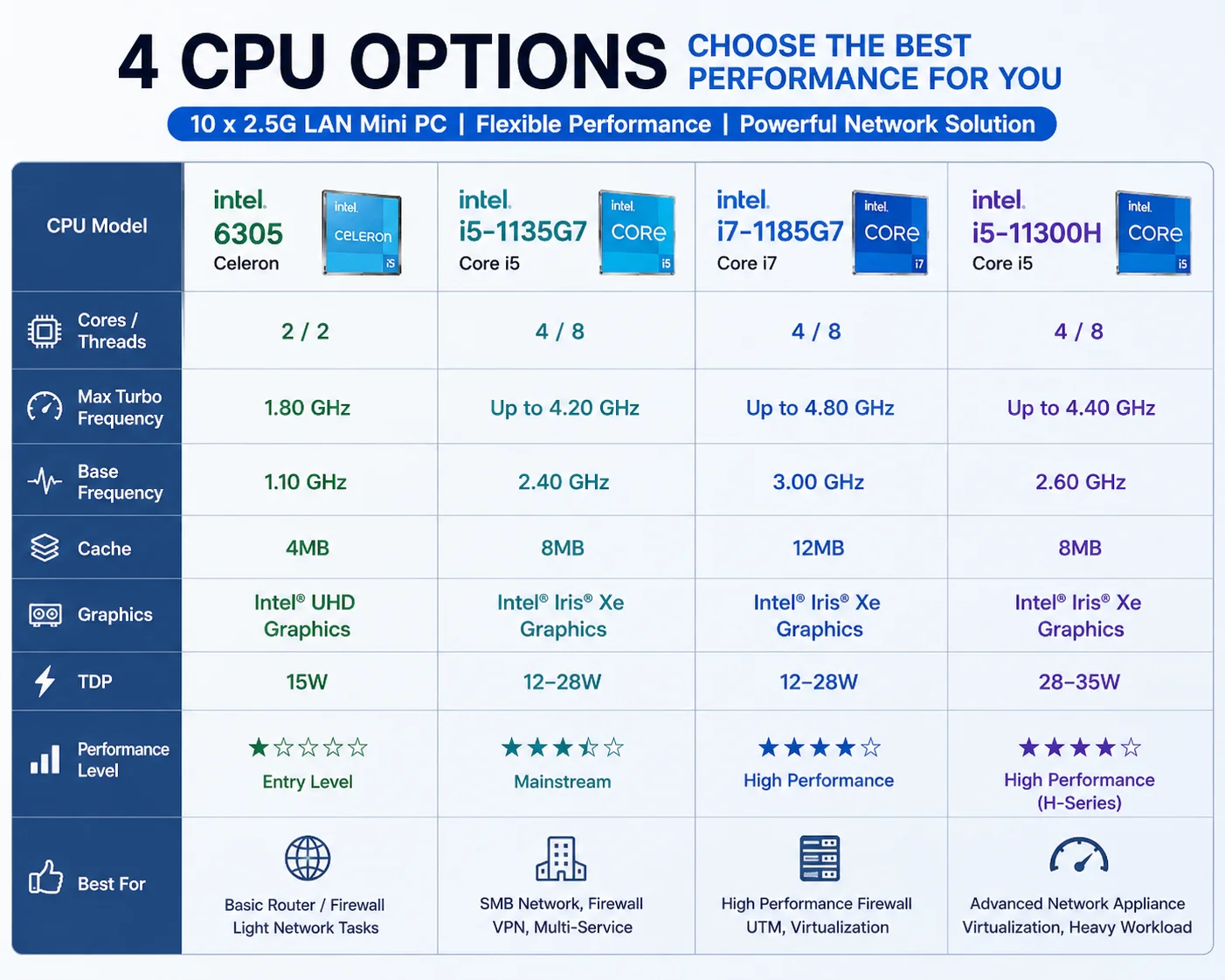

- CPU: Intel 11th Tiger Lake Processor
- Small and compact: 196 x 122 x 59mm
- Fanless Design, Fan-assisted Cooling, quite working
- Running 24/7
- Aluminum alloy case
- 2 x DDR 4 SO-DIMM Sockets (Up to 64G,21 33/24 00MHz)
- 1 x M.2 for SSD,1 x M.2 for SSD,1 x 2.5-inch HDD/SSD
- 10 x Intel I226-V 2.5G LAN
- Preinstall inactive Windows 10 Pro for test
- Support multiple Operating System
- 1-Year Warranty & Lifetime Technical Support

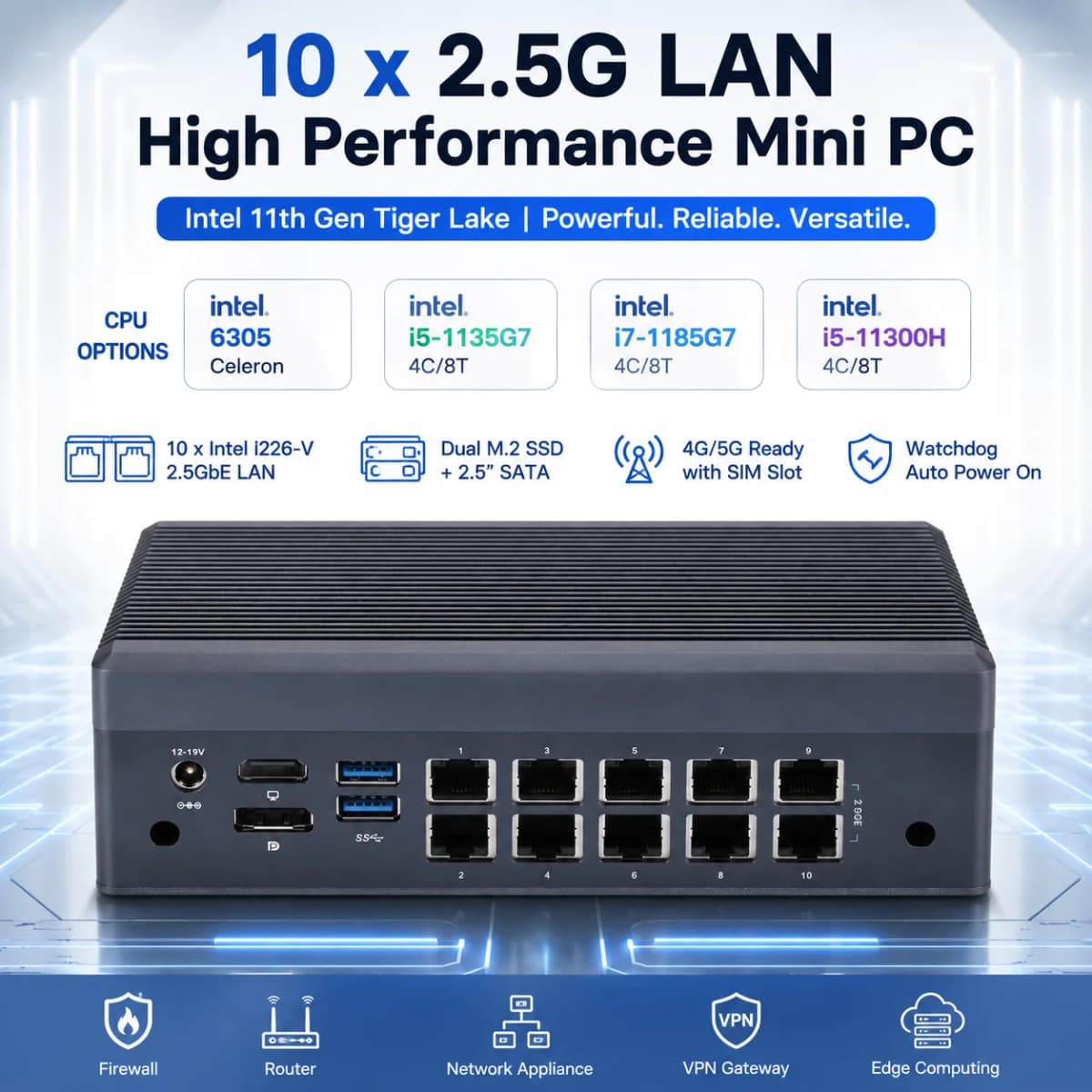

Rear I/O

1 x DC Jack
1 x HDMI,1 x Display Port
10 x Intel I226-V 2.5G LAN
2 x USB 3.0

Front I/O

1 x Power Button,1 x CMOS Clear Button
1 x Power LED, 1 x HDD LED

Designed for 24/7 Network Applications

The aluminum alloy chassis combined with active fan cooling provides efficient heat dissipation for high-performance desktop processors.

Watchdog and Auto Power On functions are also supported, making the system suitable for long-term unattended operation.

Expansion

1 x M.2 for SSD , (Designator:KEY-M1),
(M key, Type: 2280, PCIe 4.0 x 4)
1 x M.2 for 4G/5G (B key, Type: 3042/3052)
1 x M.2 for SSD, (Designator:KEY-M),
(M key, Type: 2280, PCIe 3.0 x 1) (Option 2)
1 x M.2 for Wi-Fi (E key, Type: 2230), (Designator:WIFI1),(Option 1, Preferred)
1 x SIM Card Slot
1 x AutoStart Jumper(1 x 3Pin, Pitch 2.0mm)
1 x CMOS Clear Jumper(1 x 3Pin, Pitch 2.0mm)
1 x GPIO(2 x 5Pin, Pitch 2.0mm)

UEFI BIOS

You can ask for changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.
Press "delete" key, you can enter the BIOS

LOGO and OEM

LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.

Operating System

Mini PC supports Windows 10, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.

Preload Windows 10(Unactivated) for test. Buyer can reinstall OS.

F11 key boot from USB Drive. Delete key enter BIOS.

Packing & Delivery

Item Size: 196 × 122 × 59mm
Packaging Size: 285 × 260 × 120mm
