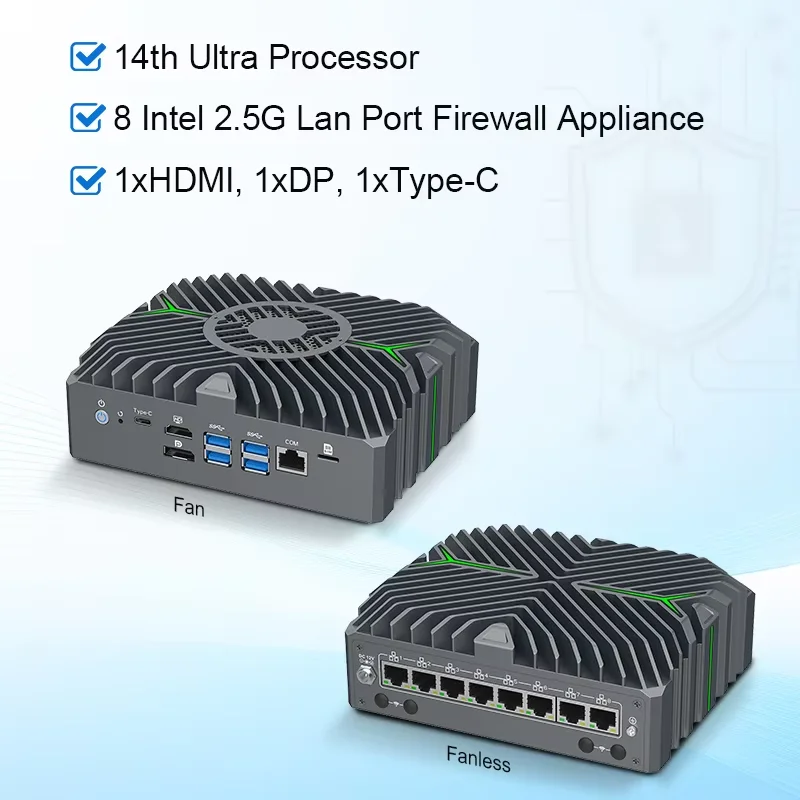

8x2.5G LAN Firewall Mini PC Intel Core Ultra 5 125U VPro IoT AI Edge Industrial Computer Network Server pfSense OPNsense Router

Note:

WiFi/4G card is optional for separate purchase.

The power plug (EU/US/UK/AU) will be shipped according to the buyer's country.

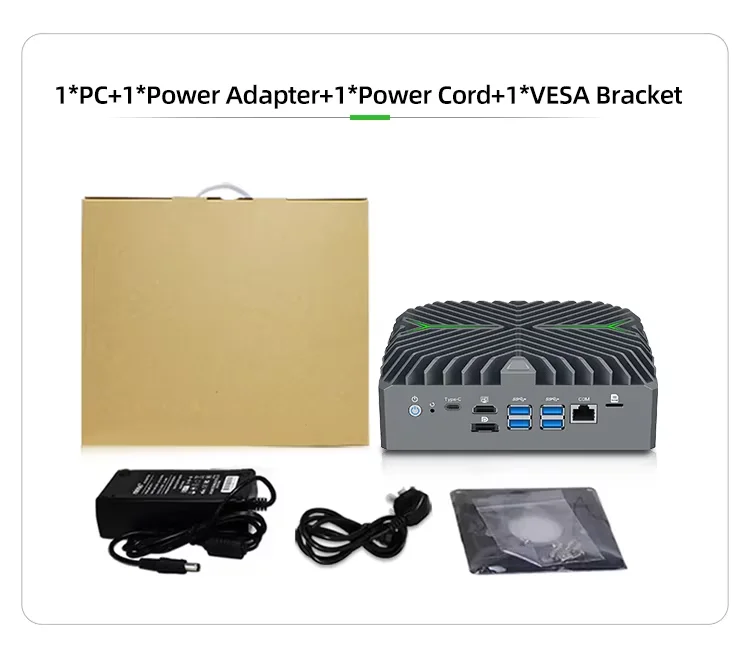

Package List:

1 × Ultra 5 125U Mini PC

1 × Power Adapter

1 × Power Cord (EU/US/UK/AU plug based on buyer’s country)

1 × VESA Bracket

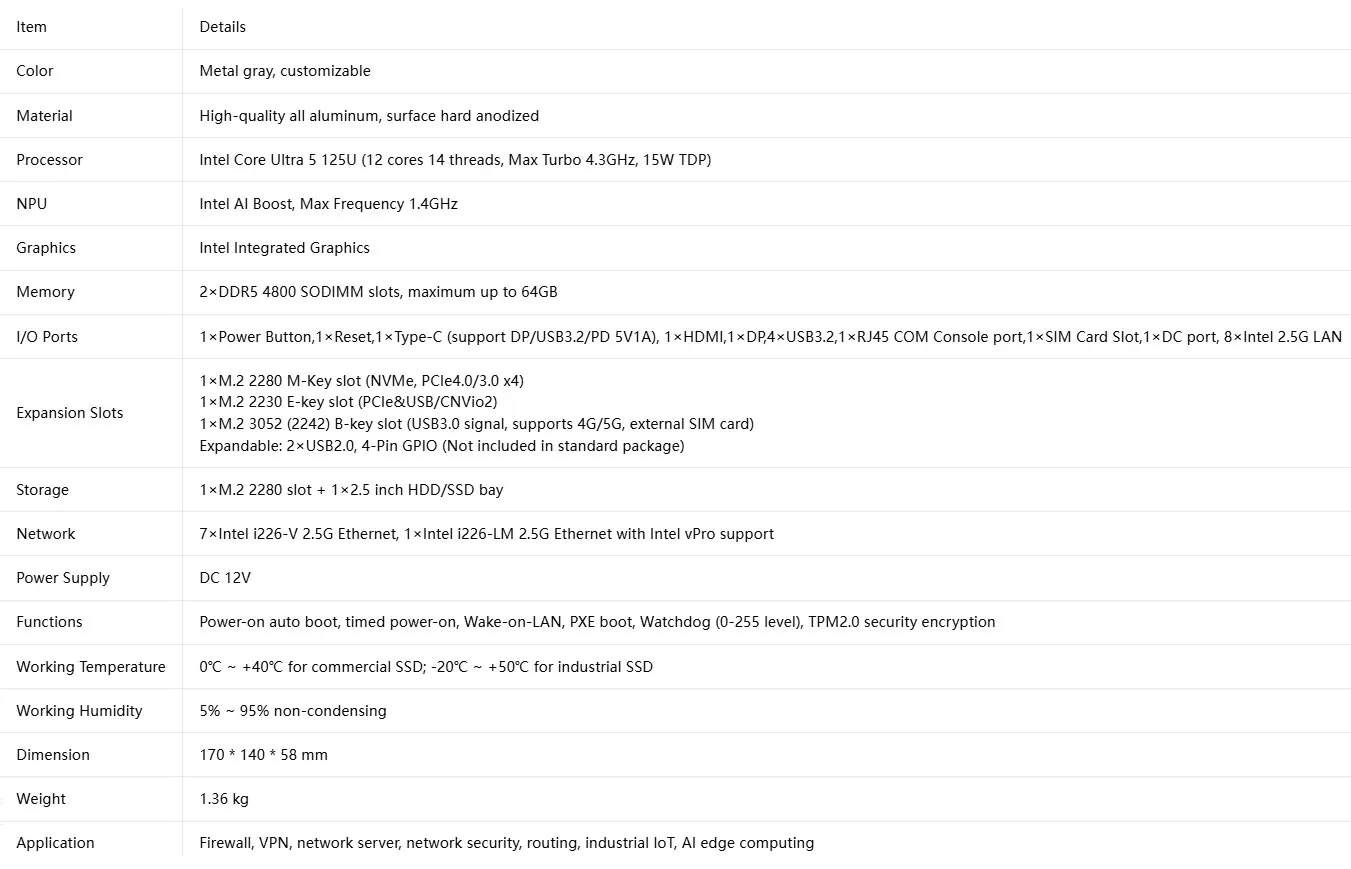

Product Highlights

✅ All aluminum metal gray chassis, surface hard anodized treatment, color customizable.

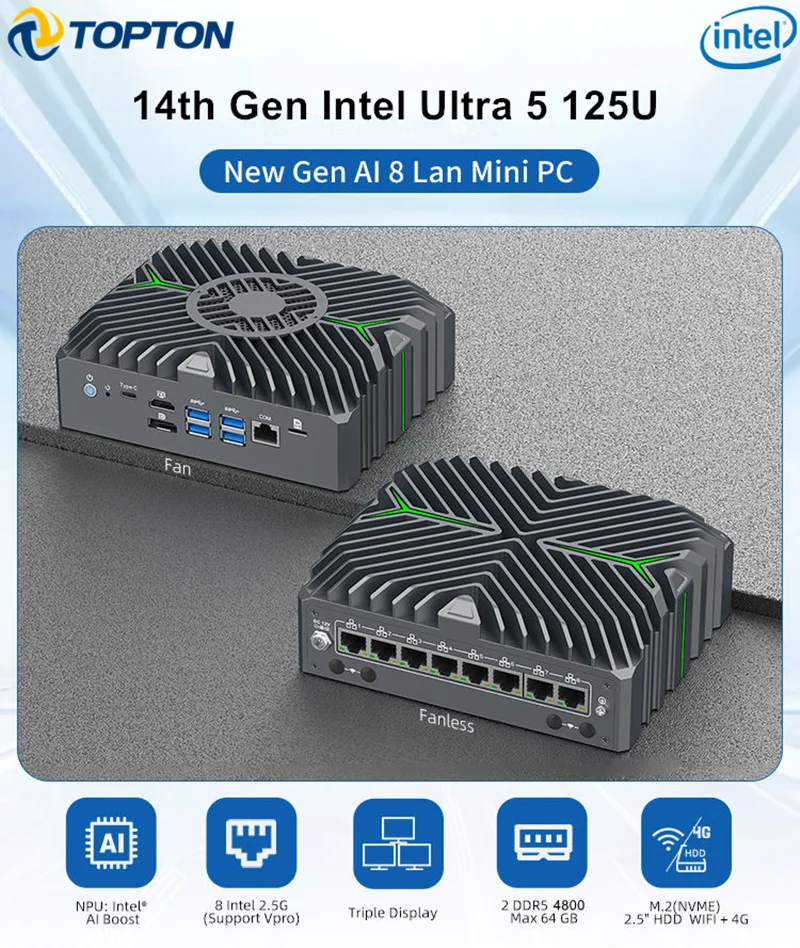

✅ Powered by Intel Core Ultra 5 125U, 12 Cores 14 Threads, max turbo 4.3GHz, 15W low TDP, built-in Intel AI Boost NPU up to 1.4GHz for AI computing.

✅ Dual DDR5 4800 SODIMM slots, maximum support 64GB memory, great for multi-tasking and virtualization.

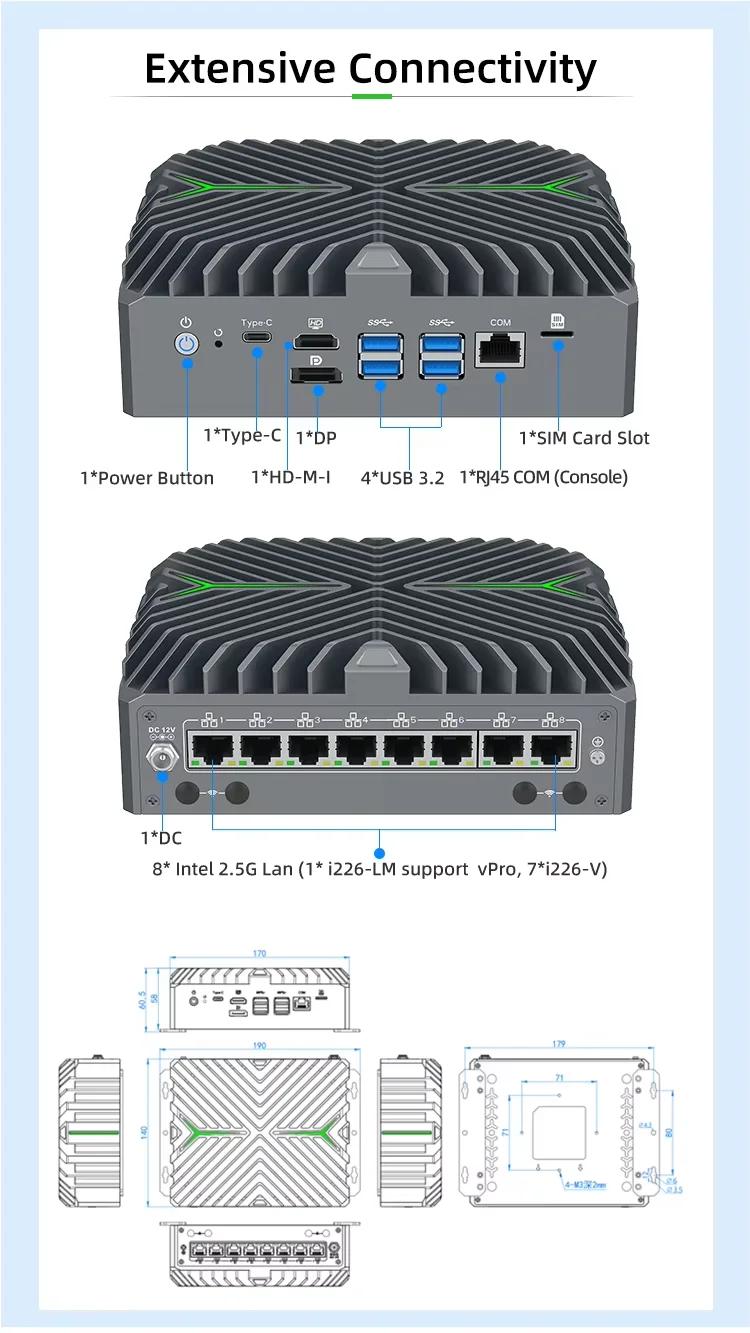

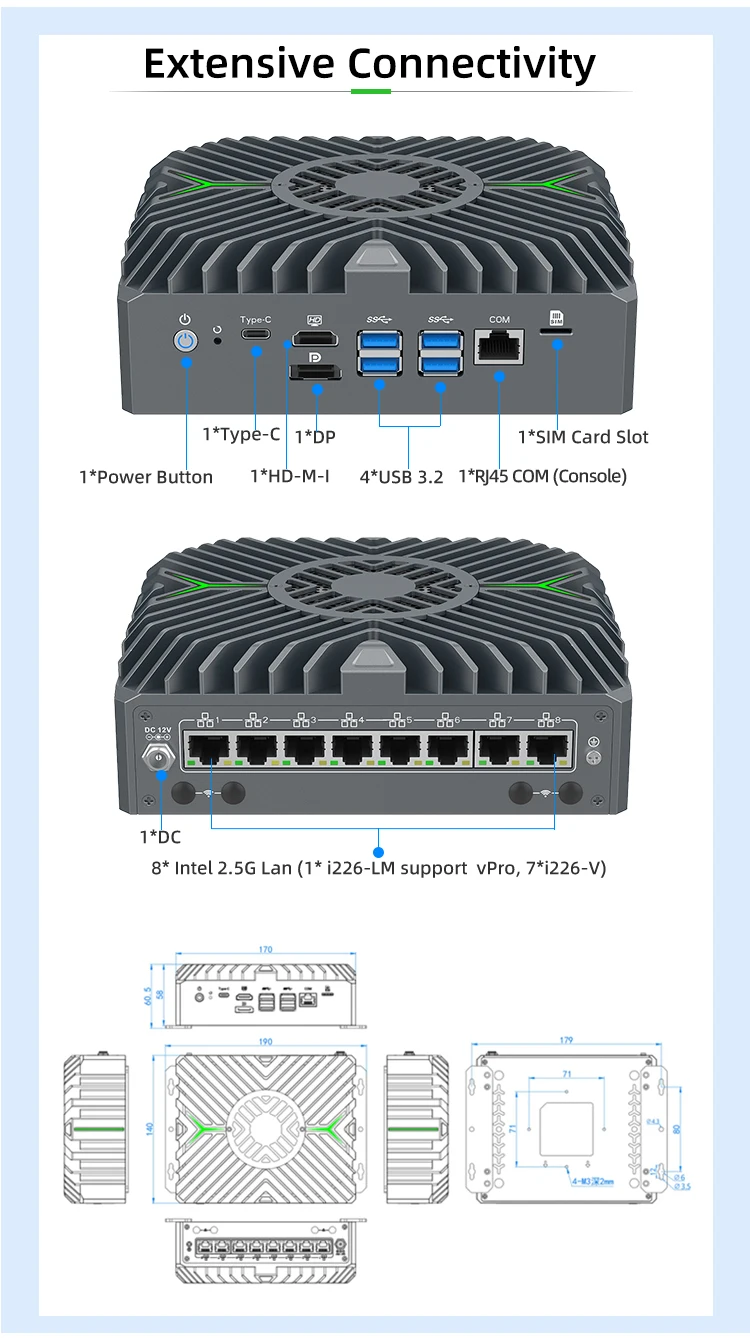

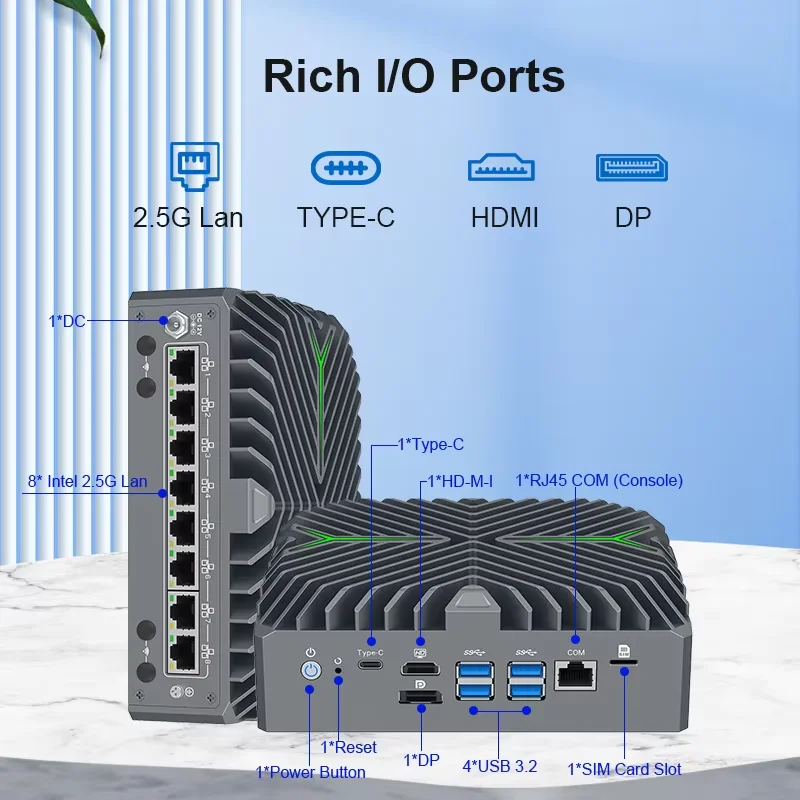

✅ Rich I/O ports: Power Button, Reset, Type‑C (DP/USB3.2/PD 5V1A), HD-MI, DP, 4×USB3.2, RJ45 COM Console port, SIM card slot.

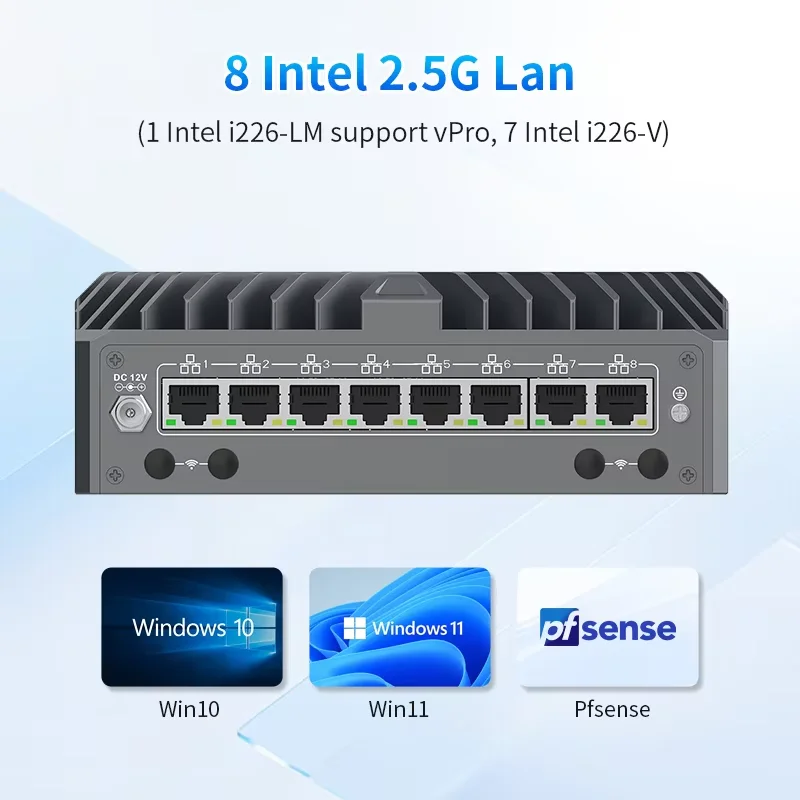

✅ 7× Intel i226-V + 1× Intel i226-LM 2.5G LAN, total 8×2.5G Ethernet. LAN1 supports Intel vPro, ideal for firewall, router, VPN and network server.

✅ Multiple M.2 expansion slots:

1× M.2 2280 M-key (NVMe PCIe4.0/3.0 x4)

1× M.2 2230 E-key (PCIe&USB /CNVio2 for WiFi)

1× M.2 3052(2242) B-key for 4G/5G module with external SIM slot

✅ Storage: 1×M.2 2280 slot + 1×2.5 inch HDD/SSD bay for mass storage.

✅ Extra expandable interface: 2×USB2.0, 4-Pin GPIO (Not included in standard package).

✅ Advanced functions: Power-on, Timed power-on, Wake-on-LAN, PXE boot, Watchdog (0-255 level), TPM2.0 security encryption.

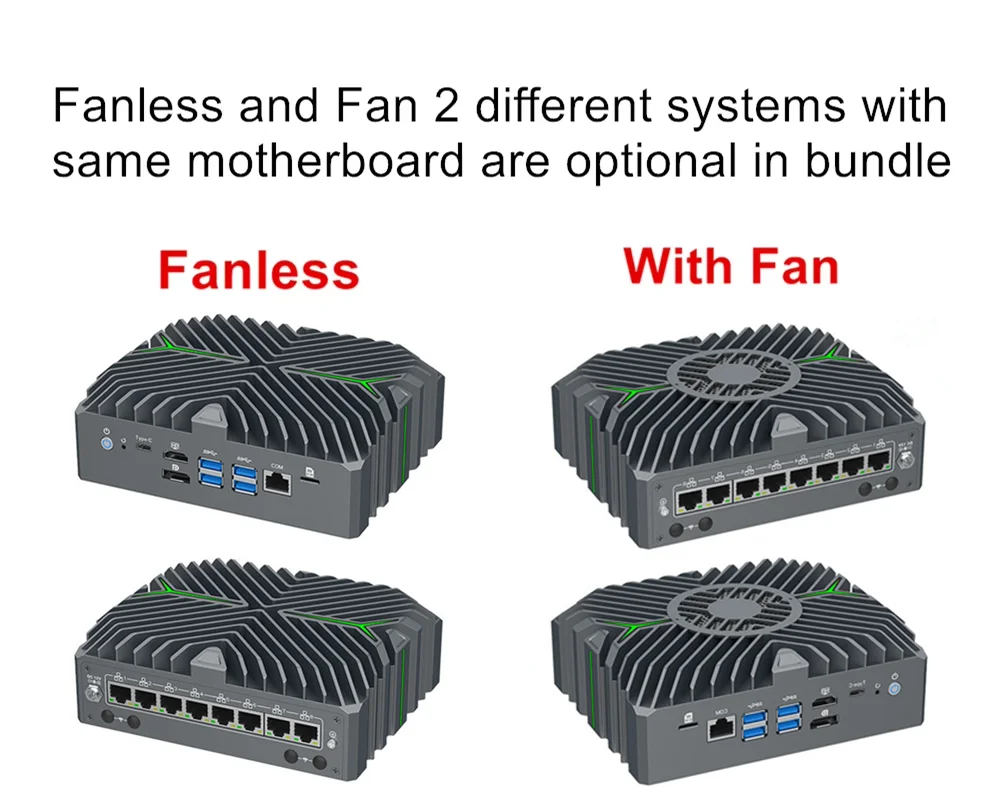

✅ Wide operating temperature: 0℃~+40℃ with commercial HDD; -20℃~+50℃ with industrial SSD, surface air cooling.

✅ Application Scenarios: Firewall, VPN, Network Server, Network Security, Routing, Industrial Edge Computing.
