Solid Fanless Mini PC Firewall Intel N100 Pentium Gold 8505 7505 6305 6x2.5G LAN DDR5/DDR4 NVMe/SATA Proxmox/pfSense Home Server
Quantity:
1
Availability:
Not AvailableCard Payments
Crypto Payments
Easy return
Reliable Shipping

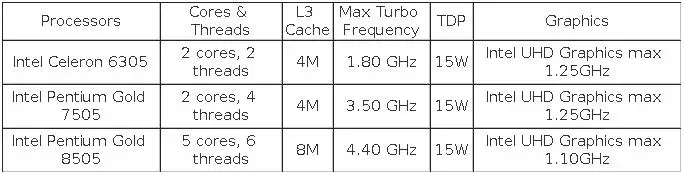

Processor parameter for referance only
Product Highlight
Intel Pentium Gold 8505 Model:
-6xIntel i226-V 2.5G RJ45 LANs, 3xUSB3.2, 1xUSB2.0, 1xType-C USB2.0, 1xRJ45 COM console.
-2xDDR5 SODIMM non-ECC ram slots, support max 64GB 4800MHz.
-Support 4 storages: 2xM.2 2280 NVMe/PCIex4 SSD(one on each side of motherboard)+2xSATA3.0 SSD/HDD.
Intel N100 Model:
-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 2xUSB2.0, 1xType-C USB2.0, 1xRJ45 COM console.
-1xDDR4 SODIMM non-ECC ram slots, support max 32GB 2400/2666/3200MHz.
-Support 2 storages: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1xSATA3.0 SSD/HDD.
Pentium Gold 7505/Celeron 6305 Model:
-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C USB3.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ECC ram slot, support max 64GB 2400/2666/3200MHz.
-Support 3 storages: 1xM.2 2280 NVMe/PCIe3.0x4 SSD+2xSATA3.0 SSD/HDD.
-1xM.2 2230 WiFi slot, support WiFi module(optional to buy).
-1xHDMI and 1xDP support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy solid-built shell with three-sided Y-section fins as heat-sink, excellent cooling performance, exquisite production craft on outside design. It is silent and durable to work as long as 7x24 hours. it is flexible to change power consumption in BIOS if you want lower consumption and temperature, also we include a 4pins internal fan as gift if you still worry heat.
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
1x4pins internal fan(as a gift)
Intel Pentium Gold 8505 Model Motherboard Diagram:
Intel Pentium Gold 7505/Celeron 6305 Model Motherboard Diagram:
Intel N100 Model Motherboard Diagram:
