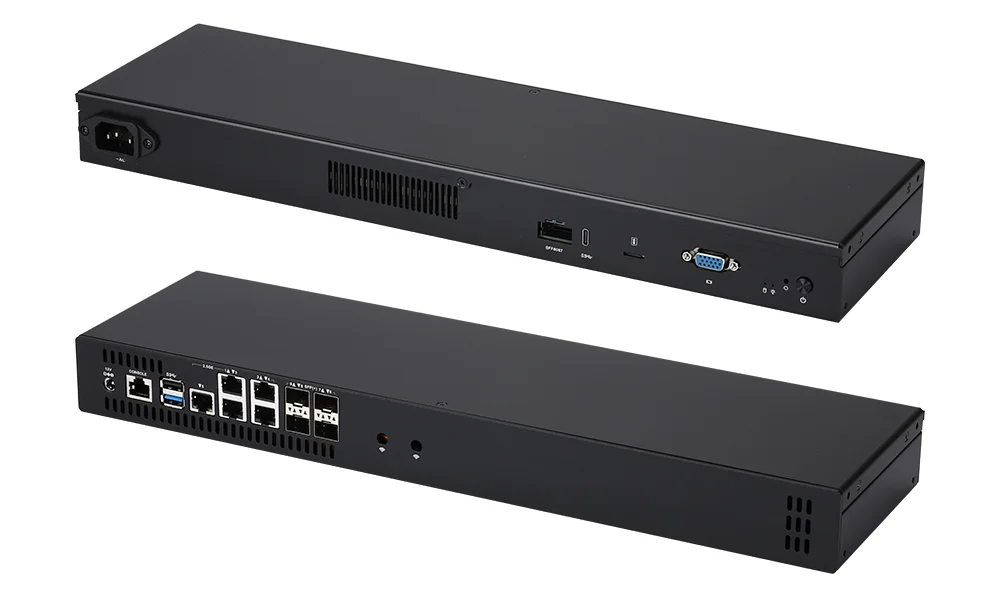

Qotom C3758R C3958 1U Rackable Server Atom Denverton 4*X553 10G SFP+ 5*2.5G LAN Barebone Firewall Router Network Mini PC

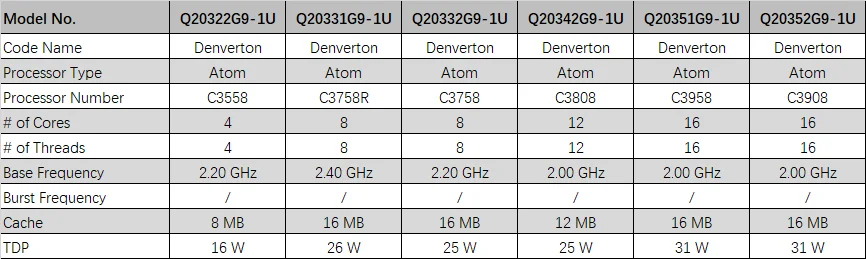

CPU Specification

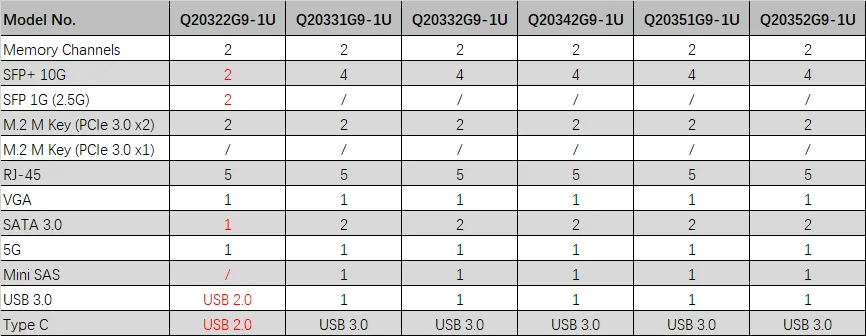

Function Difference

Memory: 2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)

Storage: 2 x M.2 for SSD (M Key, Type: 2280, PCIe 3.0 x2), 2 x 2.5 inch HDD/SSD

LAN Chipset: 5 x Intel I226-V 2.5 Gigabit Lan, 4 x Intel X553 SFP(+)

Graphics: Aspeed AST2400

Cooling Mode: Fan

Dimension: 440 x 127 x 44mm

OS Support: Windows 10, Linux etc; Will come with unactivated Windows 10 for test. If you need other OS, please contact us in advance

Attention!!! (For barebone buyers)

Pls buy these memory listed to avoid incompatibility between memory and machine, which will result in NO display.

Bullet Points

Flexible Intel Atom® C3000 Series CPUs – Supports C3758, C3758R, C3808, C3908, and C3958 processors for versatile performance options

5× Intel® I226-V 2.5GbE LAN Ports – High-speed networking with enhanced bandwidth for demanding network applications

4× Intel® X553 10GbE SFP+ Ports – High-speed fiber connectivity for data-intensive workloads, uplinks, and enterprise networking

1U Rackmount Design – Compact 1U form factor maximizes rack space efficiency while providing a professional server solution

Built for Network & Edge Applications – Ideal for firewall, router, gateway, virtualization, NAS, network security, and edge computing deployments

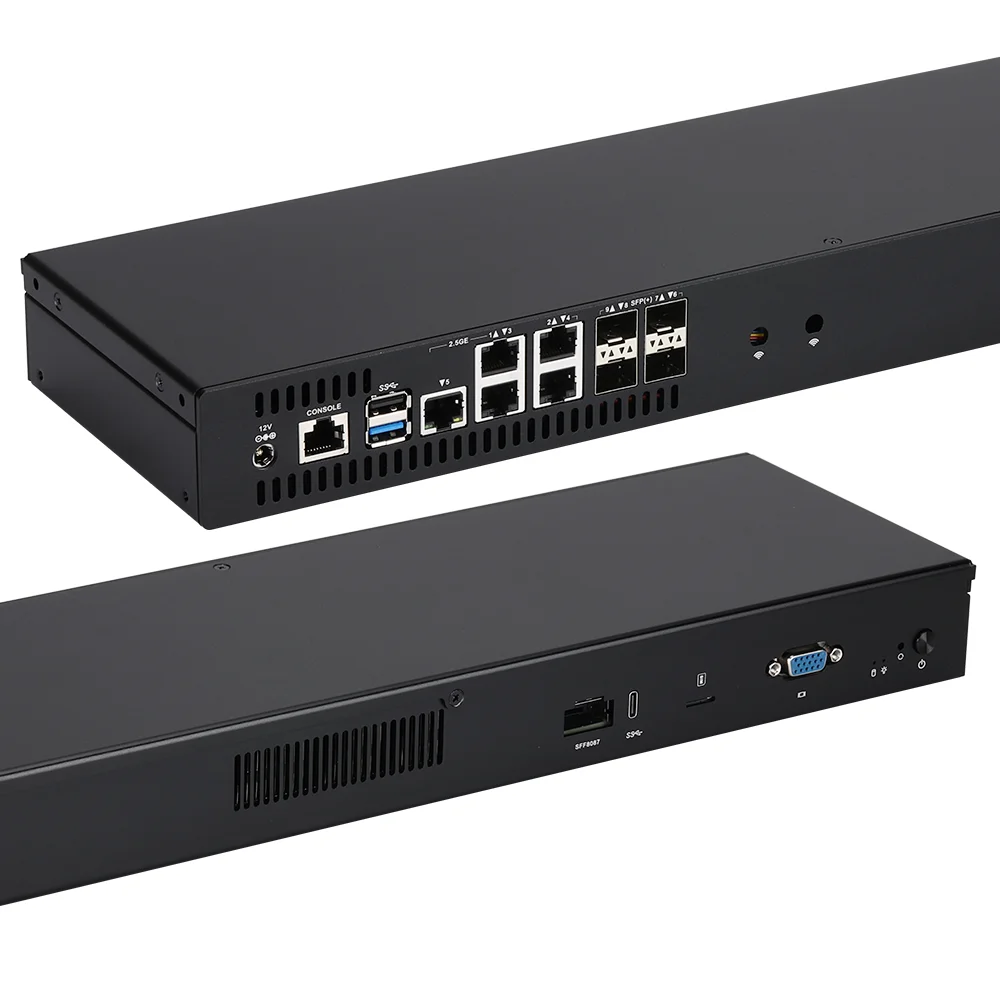

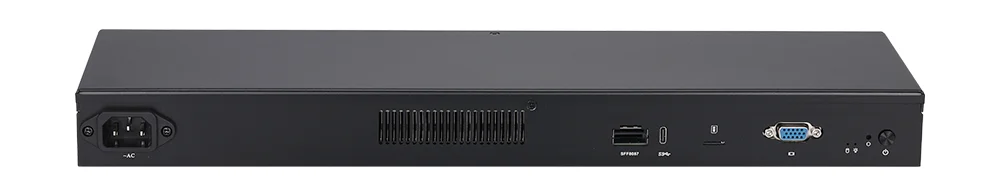

Front Ports

1 x Power Button, 1 x Reset Button

1 x Power LED, 1 x HDD LED

1 x Nano SIM Slot, 1 x DB15 VGA

1 x Type-C (USB 3.0) (C3558 model is USB 2.0)

1 x Mini SAS (SFF8087) (C3558 model don't support)

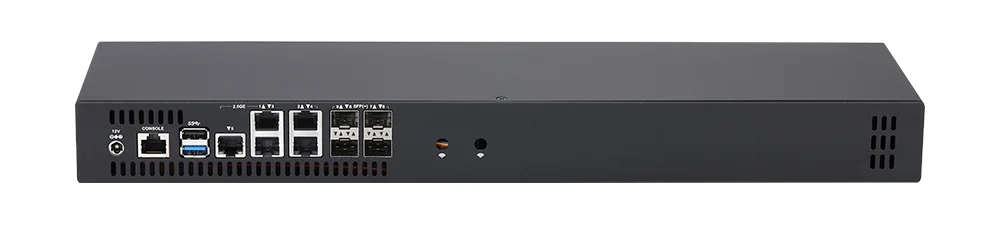

Back Ports

1 x 12V DC Power Jack

1 x RS-232 (RJ-45)

1 x USB 3.0, 1 x USB 2.0

5 x Intel I226-V 2.5 Gigabit LAN

4 x Intel X553 10G SFP+ (C3558 model only 2x10G SFP+)

Expansion

1 x M.2 for 4G/5G (B key, 3042/3052)

1 x M.2 for SSD (M key, type:2280, PCIe 3.0 x2)

Our Service

1. LOGO printing is free, just provide your logo document if any need.

2. Support setup booting image

3. 1 year warranty

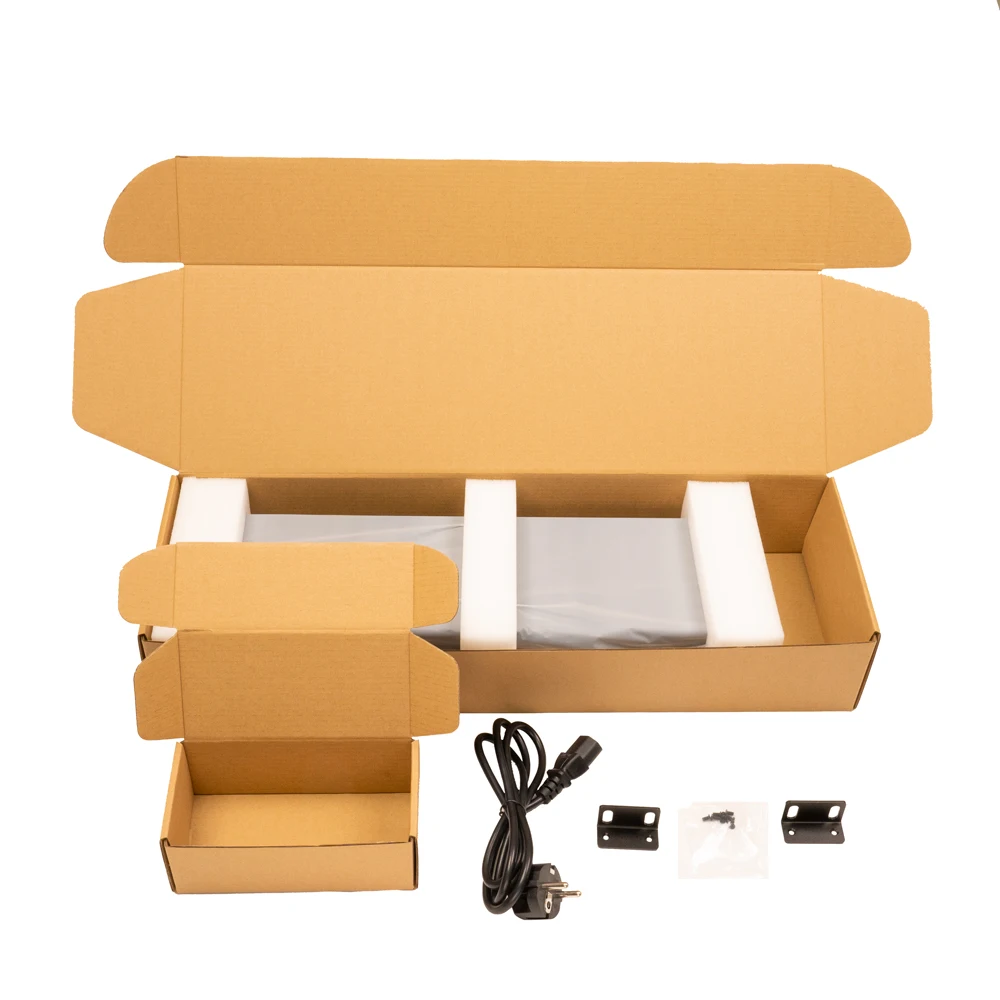

Packing List

1 x 1U Device

1 x Power Cable (Type based on buyer's country)

2 x Rack Ears & Screws

Shipment

1. Goods ship from China.

2. Door to door service :

    -Via international Express such as DHL/Fedex/UPS etc. , the E.T.A. is 3-7 business days in normally

    -Shipping to United States, price has included import tax, the E.T.A. is 7-15 business days in normally
