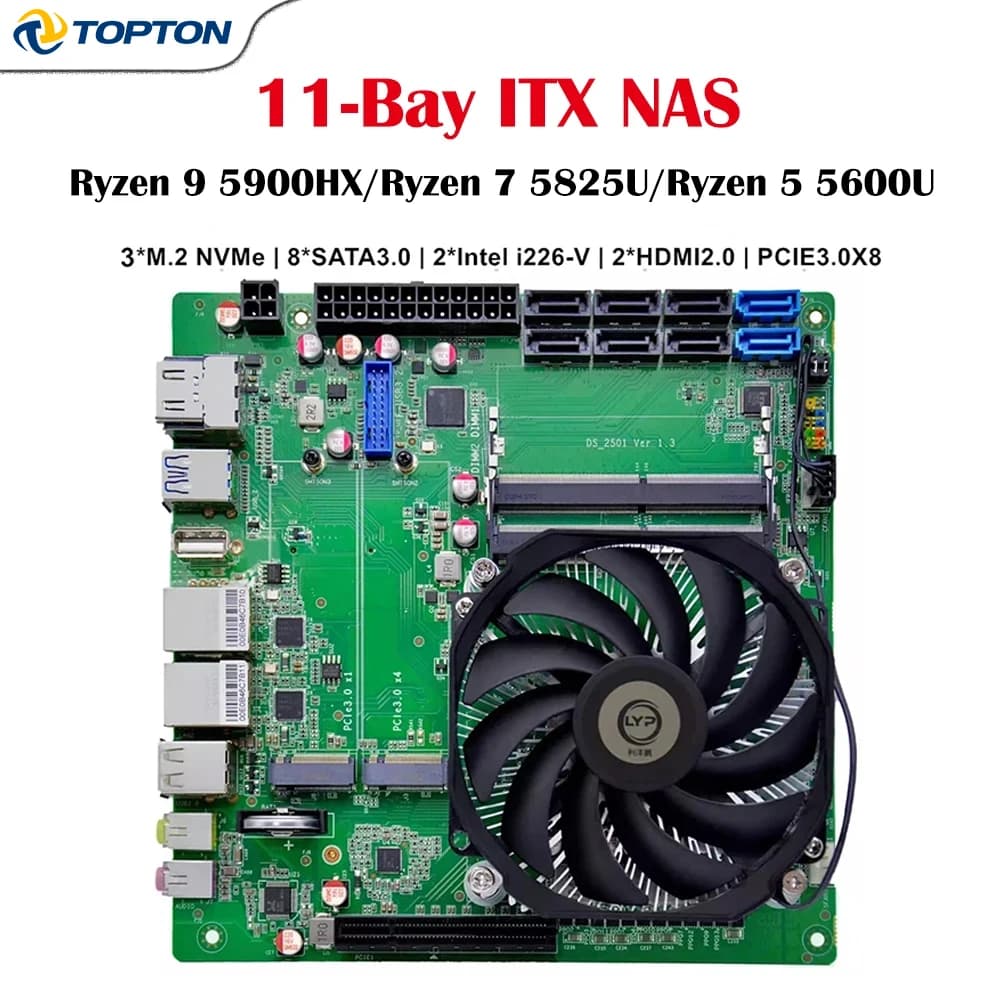

11-Bay Mini ITX NAS Motherboard AMD R5 5600U Ryzen 7 5825U/5800H R9 5900HX DDR4 3×NVMe 8×SATA 2.5G LAN Firewall Gaming Mainboard

CPU Options

1. AMD Ryzen 5 5600U 6 Core 12 thread 2.3GHz up to 4.2GHz, 16M Cache, TDP 15W

2. AMD Ryzen 7 5800U/5825U 8 Core 16 thread 1.9/2.0GHz up to 4.4/4.5GHz, 16M Cache, TDP 15W

3. AMD Ryzen 7 5800H 8 Core 16 thread 3.2GHz up to 4.4GHz, 16M Cache, TDP 45W

4. AMD Ryzen 9 5900H(HX) 8 Core 16 thread 3.3GHz up to 4.6GHz, 16M Cache, TDP 45W

5. AMD Ryzen 7 PRO 5850U 8 Core 16 thread 1.9GHz up to 4.4GHz, 16M Cache, TDP 15W(support ECC ram)

6. AMD Ryzen 9 5900HX ES (Engineering Sample Version): 8‑Core 16‑Thread. Performance is around 3‑5% lower than retail official version. The system will show product serial number e.g. 100‑000000300 instead of the standard CPU model name. You may check the exact CPU specification on AMD official website.

GPU: AMD Radeon Integrated Graphics

RAM: 2 × DDR4 Non‑ECC SODIMM slots, maximum 64GB, 3200MHz

Network: 2 × Intel i226‑V 2.5G RJ45 LAN ports

Display Output: 2 × HDMI 2.0 ports, dual 4K@60Hz display supported

Storage:

8 × SATA3.0 ports;

3 × M.2 2280 NVMe slots (1×PCIe3.0 x4 + 2×PCIe3.0 x1, one M.2 slot located on rear side of motherboard)

Power Supply: 24‑pin + 4‑pin ATX 12V power interface. Both connectors must be plugged in simultaneously for power‑on.

Expansion: 1 × PCIe3.0 x8 slot, compatible for GPU, network card and other expansion hardware.

Cooling Fan: Supports standard LGA115X cooling fan (75×75 mm), square‑layout screw mounting holes, fan sold separately.

Motherboard Functions:

Support Power‑on‑after‑power‑failure, Wake‑on‑LAN, RTC, Watchdog.

BIOS hotkeys: Press DELETE to enter BIOS setup; Press F7 for boot menu selection; Press F3 to restore BIOS factory defaults.

Form Factor: Mini‑ITX, 170mm × 170mm

External I/O Ports

‑ 2 × RJ45 2.5G LAN (Intel i226‑V)

‑ 2 × HDMI 2.0

‑ 2 × USB3.2

‑ 3 × USB2.0

‑ 1 × Audio Jack

‑ 1 × MIC Jack

On‑board Internal I/O Ports

‑ 8 × SATA3.0

‑ 3 × M.2 NVMe slots

‑ 2 × DDR4 SODIMM memory slots

‑ 1 × PCIe3.0 x8 slot

‑ Front‑panel 2×USB3.2 pin header

‑ F‑Panel front‑case pin header

‑ Auto‑power‑on jumper

‑ Clear‑CMOS jumper

‑ 4‑pin CPU_FAN header

‑ 4‑pin SYS_FAN header
