D12 Ultra Mini PC Gaming Computer, Intel Ultra 9/7/5 285H/255H/235H ES, OCuLink & USB4, Windows 11 Pro Compact Desktop PC BOX

Important Notice

The system will not display the complete CPU model name; it will only show Genuine Intel(R) 0000 in device manager.

You may look up the matching CPU version ID information via Intel’s official website for reference.

This listing is equipped with ES (Engineering Sample) CPUs.

Compared with retail official CPUs, ES CPUs have around 5%–10% lower operating frequency and overall performance.

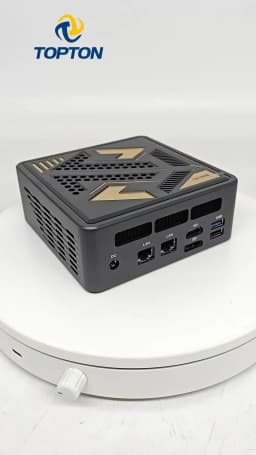

Model name: D12 Ultra

Material: Metal body

Dimension: palm size, 132mm(L)x132mm(W)x50.5mm(H)

CPU:

1. Genuine Intel(R) 0000 16-cores 16-threads, 24M L3 cache(Ultra 9-285H Engineering Sample Version)

2. Genuine Intel(R) 0000 16-cores 16-threads, 24M L3 cache(Ultra 7-255H Engineering Sample Version)

3. Genuine Intel(R) 0000 14-cores 14-threads, 18M L3 cache(Ultra 5-235H Engineering Sample Version)

4. Genuine Intel(R) 0000 16-cores 22-threads, 24M L3 cache(Ultra 9-185H Engineering Sample Version)

GPU: Intel Arc Graphics

Ram: 2 x SO-DIMM DDR5 slots, max up to 128GB 4800MHz

SSD: Support 2xM.2 2280 NVME/PCIE4.0x4 (compatible with PCIE3.0)

WiFi: 802.11 AX WiFi6E with Bluethooth5.3

RJ45: 2 x 2.5G Intel i226-V

Front I/O: 2 x USB 3.2, 1 x OCuLink(PCIE Gen4x4), 1 x Type-C USB4.0(40Gbps), 1 x Audio, 1 x Switch

Rear I/O: 1 x USB 3.2, 1 x USB 2.0, 1 x HDMI2.1, 1 x DP2.1, 2 x 2.5G RJ45 LAN, 1 x DC-IN

OS: Activated Windows 11 Pro pre-installed(except no ram no storage bundle)

Power adapter plug: The power adapter plug will be automatically provided in EU/US/UK/AU standard based on your shipping country.
