AVRT9 APRS TNC Portable DIGI/TRACKER/IGATE GPS+WIFI+BT VHF Support UI/KISS/WPL/KISS BLE Output IOS/APRSdroid

AVRT9 is the latest APRS TNC launched by BI7NOR (supports APRS tracking, DIGI, IGATE, Messages), which is operated and configured by 5 buttons and supports firmware upgrades.

Note: All products shipped after September 10, 2025, support KISS BLE output to the app. Customers who purchased before this date should contact store customer service. Thank you.

Tested with: APRSdroid, APRS FI (KISS BLE)

Main introduction:

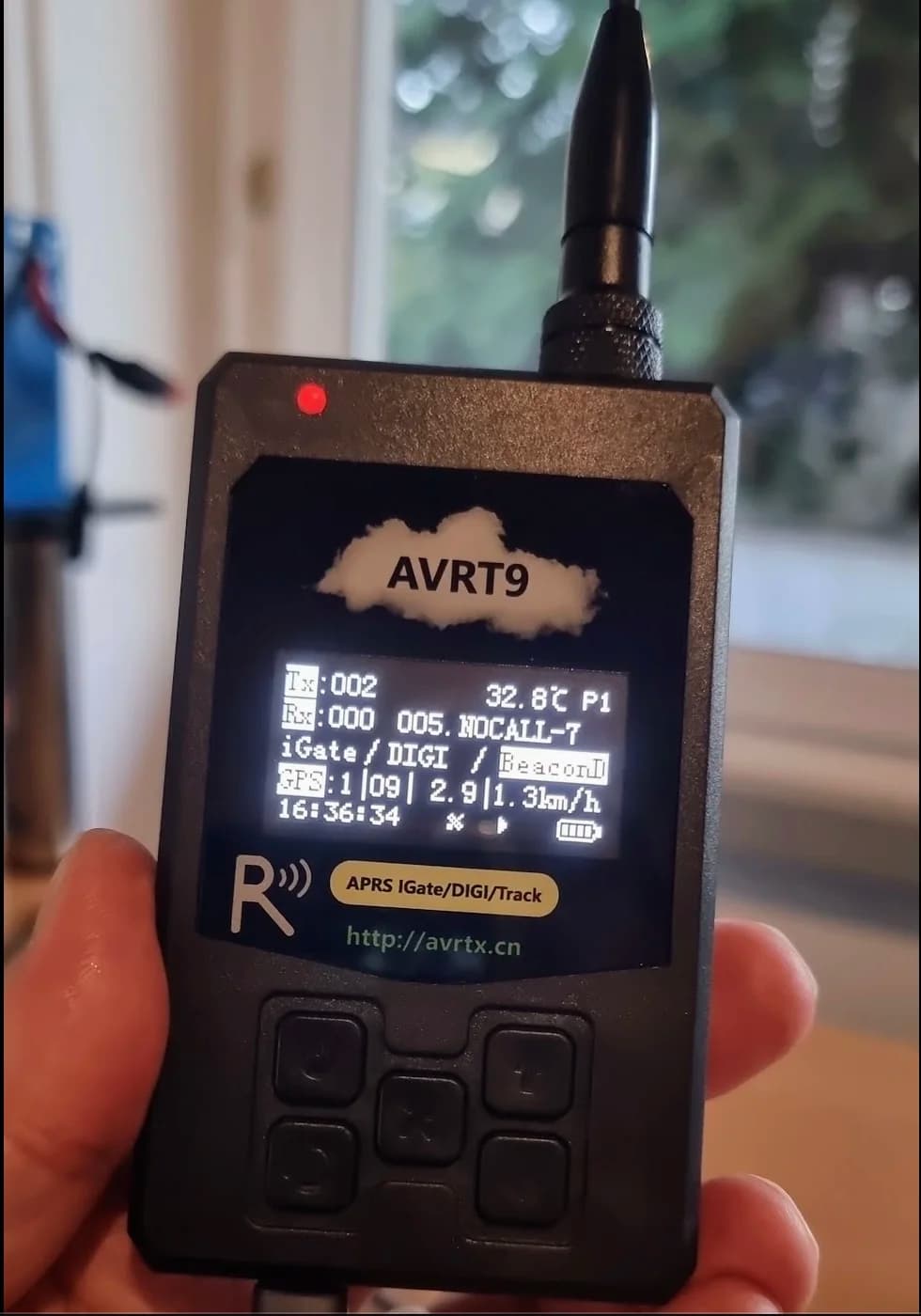

Main interface: You can switch to display the current beacon, GPS satellite list, GPS speed, and after the test UI interface is turned on, you can display the WIFI connection status.

Beacon list: AVRT9 will record the reception time of each beacon, display 5 per screen, and scroll to record up to 149 beacons. The beacon displays distance, direction, GPS coordinates, altitude, speed, heading, path and other information.

Beacons support time intervals, distance intervals and smart beacons

Serial port supports output UI/KISS/WPL/KISS BLE

Parameters:

1.54-inch OLED display, which can be clearly displayed even in direct sunlight outdoors.

Built-in VHF module (0.5/2W output adjustable), receiving and transmitting frequency range 136-174MHz.

Built-in independent APRS decoding chip, hard decoding protocol AX.25, rate 1200BPS.

Built-in GPS, receive satellite signals to obtain coordinates.

Built-in Bluetooth module, support aprsdroid.

Built-in WIFI module, can receive APRS data packets, decode and upload to the server, and also support uploading local GPS tracks directly to the server.

Built-in temperature sensor, can detect the temperature of the VHF module, can also be moved outdoors to detect the ambient temperature.

Built-in buzzer, can be set to output buzzer sound prompts when receiving decoding/transmitting.

Built-in lithium battery 3.7V/2500MAH (tested to turn on GPS/BT and use smart beacons for 10 hours). Use USB-C to charge. 5V1A.

Specification:

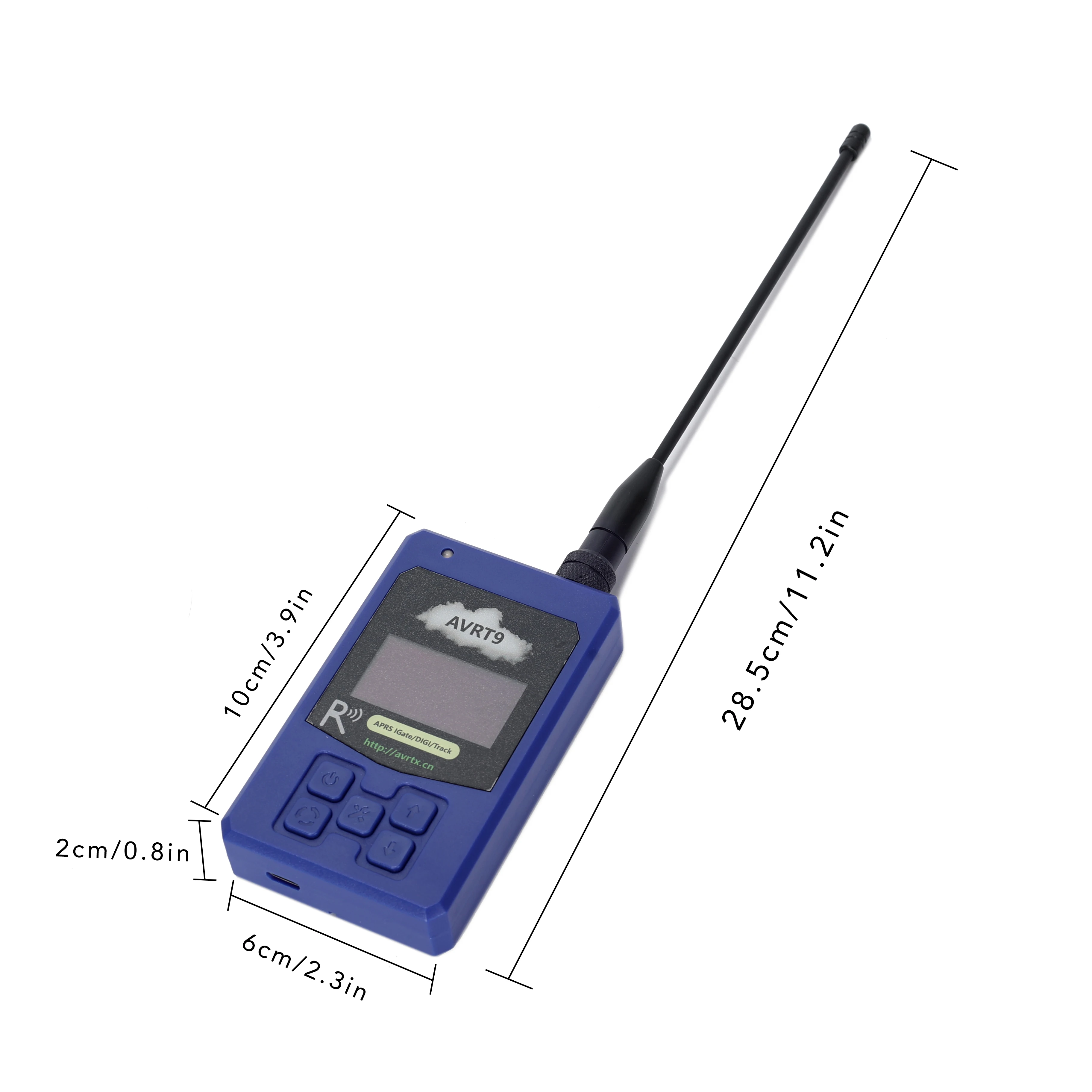

- Product size: 60 x 20 x 160mm

- Net weight: 150g

Package Included:

- 1 x AVRT9
