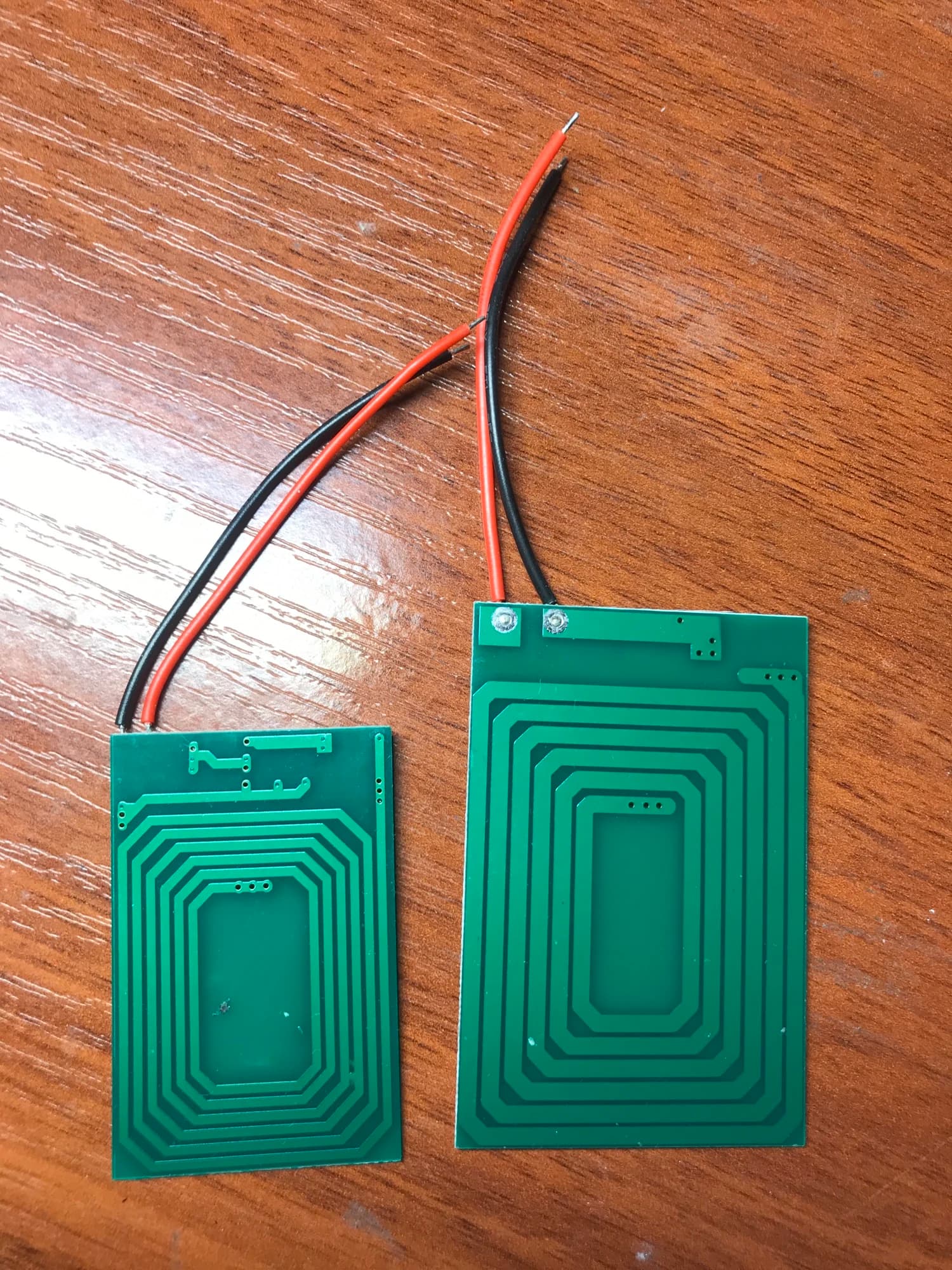

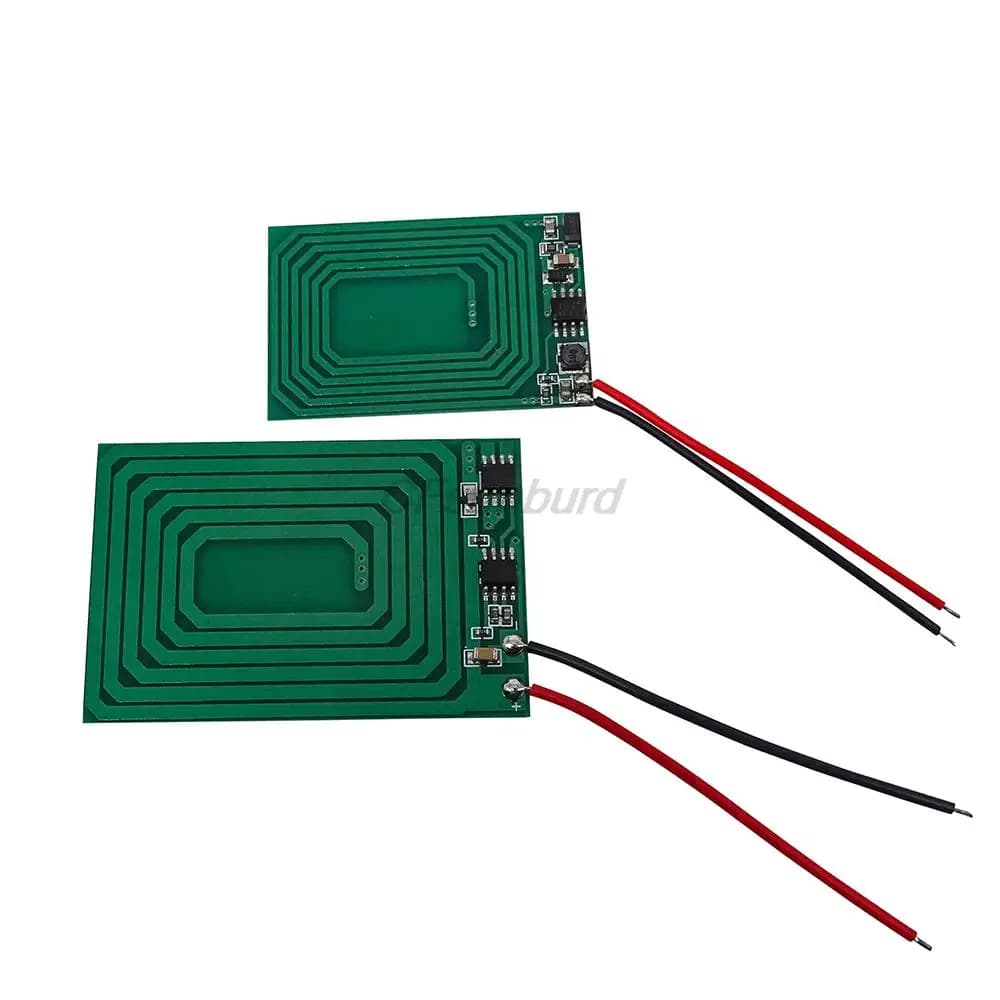

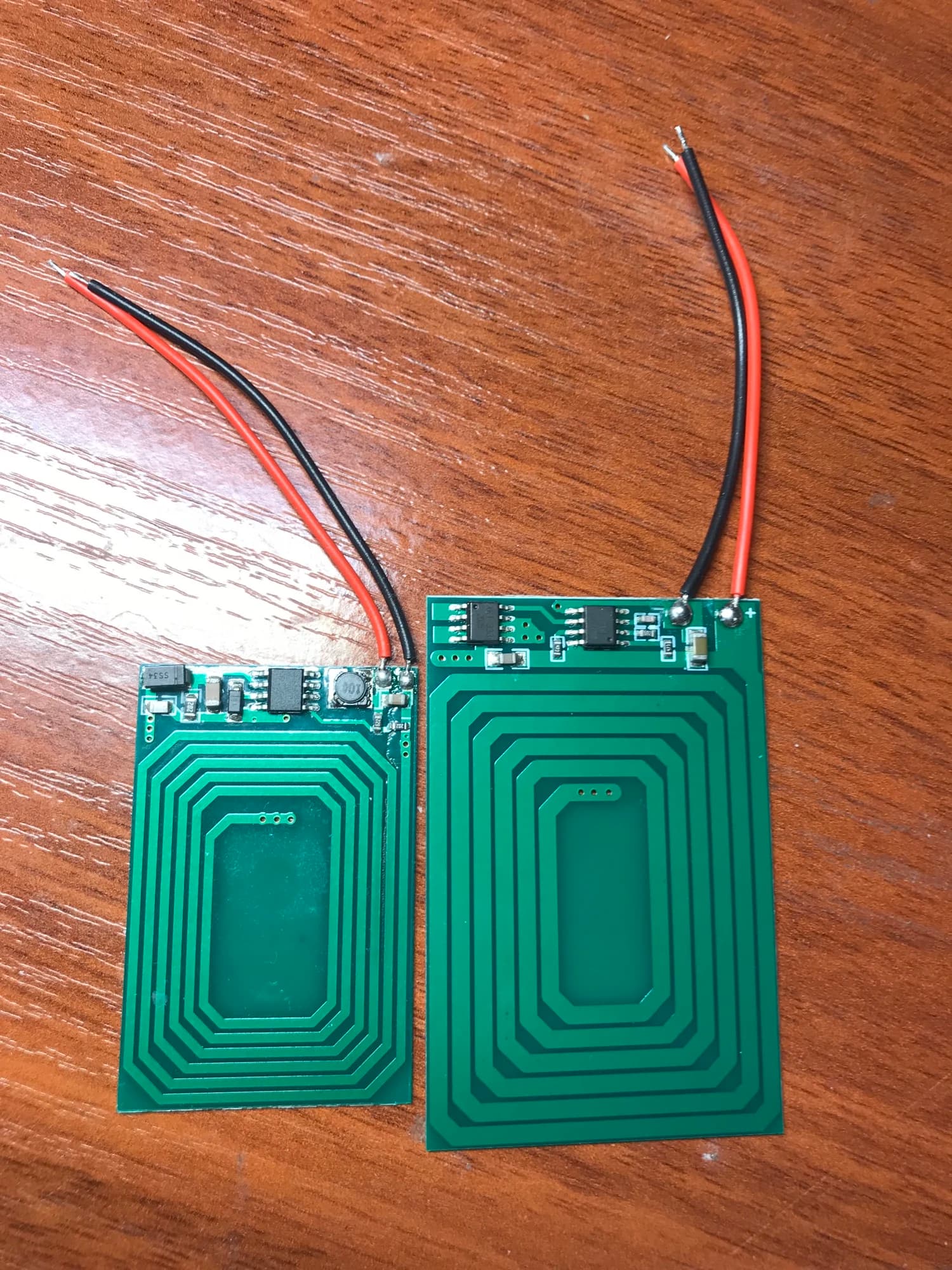

PCB wireless charging module XKT-412A wireless power supply module wireless charger DIY

XKT-412A Wireless charging module This module is the core of the latest development of the kotai XKT-412 Chip development and into the module, this chip is powerful, can be easily implemented in large power and very small products, can meet a variety of large and small products to achieve the use of external coil PCB Itself as a transceiver to realize wireless charging power supply, this module and the chip core Ketai exclusive sales, mainly for various manufacturers of products application, experience and engineering and technical personnel of electronic enthusiasts, and small batch trial, the volume of customers can apply for price concessions. 2 Cover the bag, 10 More than ten sets of buy a send one, provide circuit and production information The main technical parameters of the module: The transmitting module can be operated in an adaptive way, and can directly work in the 5V~12V Transmitter module working current: 30~55mA launch PCB Board size: 61mm*41mm*1mm receive PCB Board size: 41mm*31mm*0.3mm The maximum output current of the receiving module: 5V/700mA (the larger the device can be replaced by a large current output) Receiving module long time working current: 5V/500mA '
