Motor Control Development Board with EtherCAT AX58100 And LAN9252 BLDC Control for Precision Motion Manage
40.07$
40.07$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
OPT1 BLDC , Parameters: voltage 24V, power 60W, rated torque 0.18Nm, rated speed 3000rpm, 2 pairs of poles, with Hall.

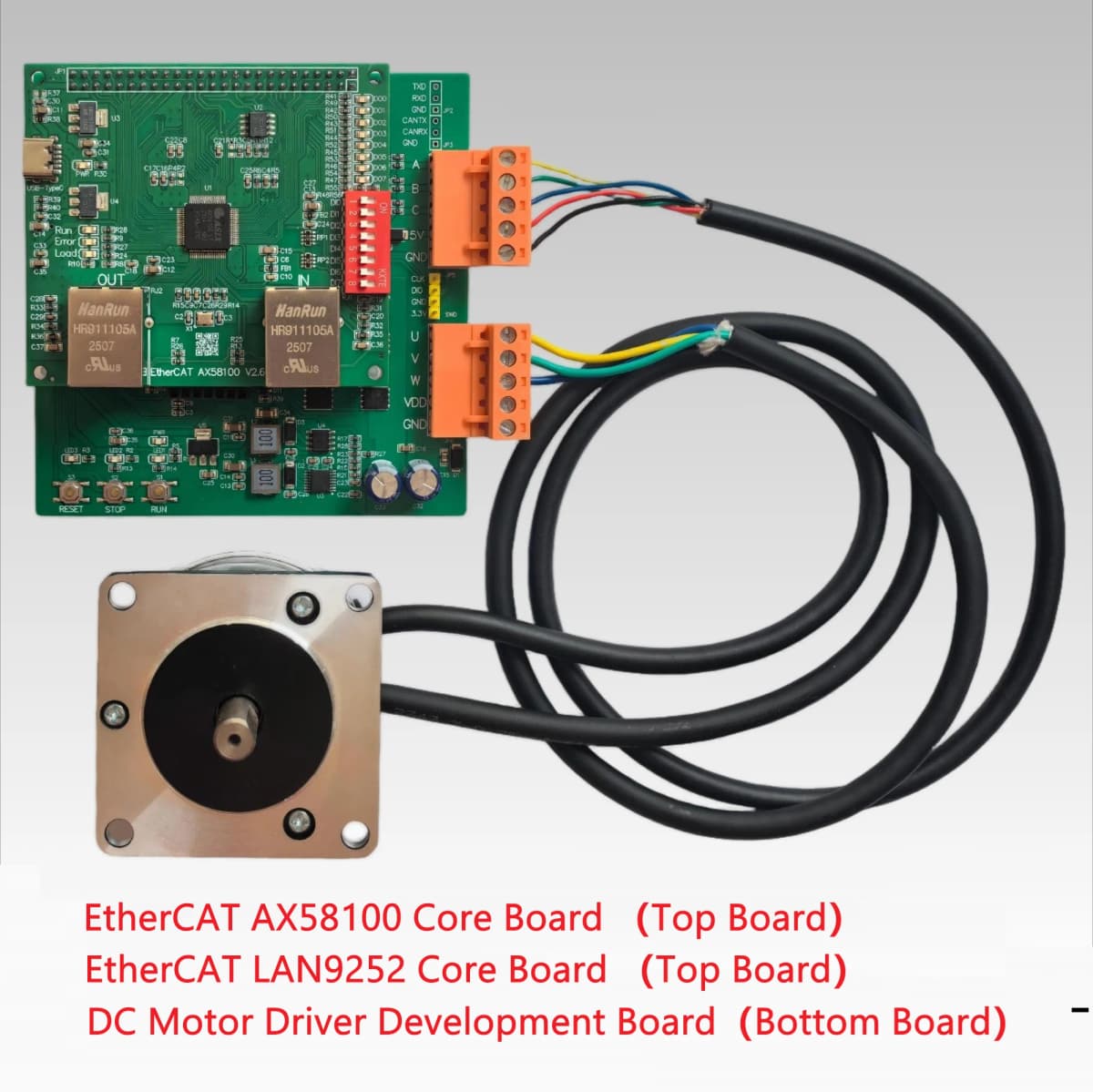

OPT2 DC Motor Driver Development Board, can work independently.It adopts a three-phase full-bridge drive circuit, composed of 6 power MOSFETs that control the power-on and power-off of the A, B, and C three-phase windings respectively. The N-Channel MOSFET has a maximum voltage of 60V and a maximum current of 90A. The operating power supply is DC 24V.
OPT3 OPT2 Add EtherCAT LAN9252 Core Board,substrate STM32F407VE,Motor Driver Control(with Hall).
OPT4 OPT2 Add EtherCAT AX58100 Core Board,substrate STM32F407VE,Motor Driver Control(with Hall).
Note
OPT1,It can be purchased individually as needed, and a programmer is provided(OPT2-4).
The development documentation are complete, including the use of instruction documents (continuously updated), schematics, data manuals, program source code, software materials and other related materials.Product materials will be sent via email or cloud storage.
