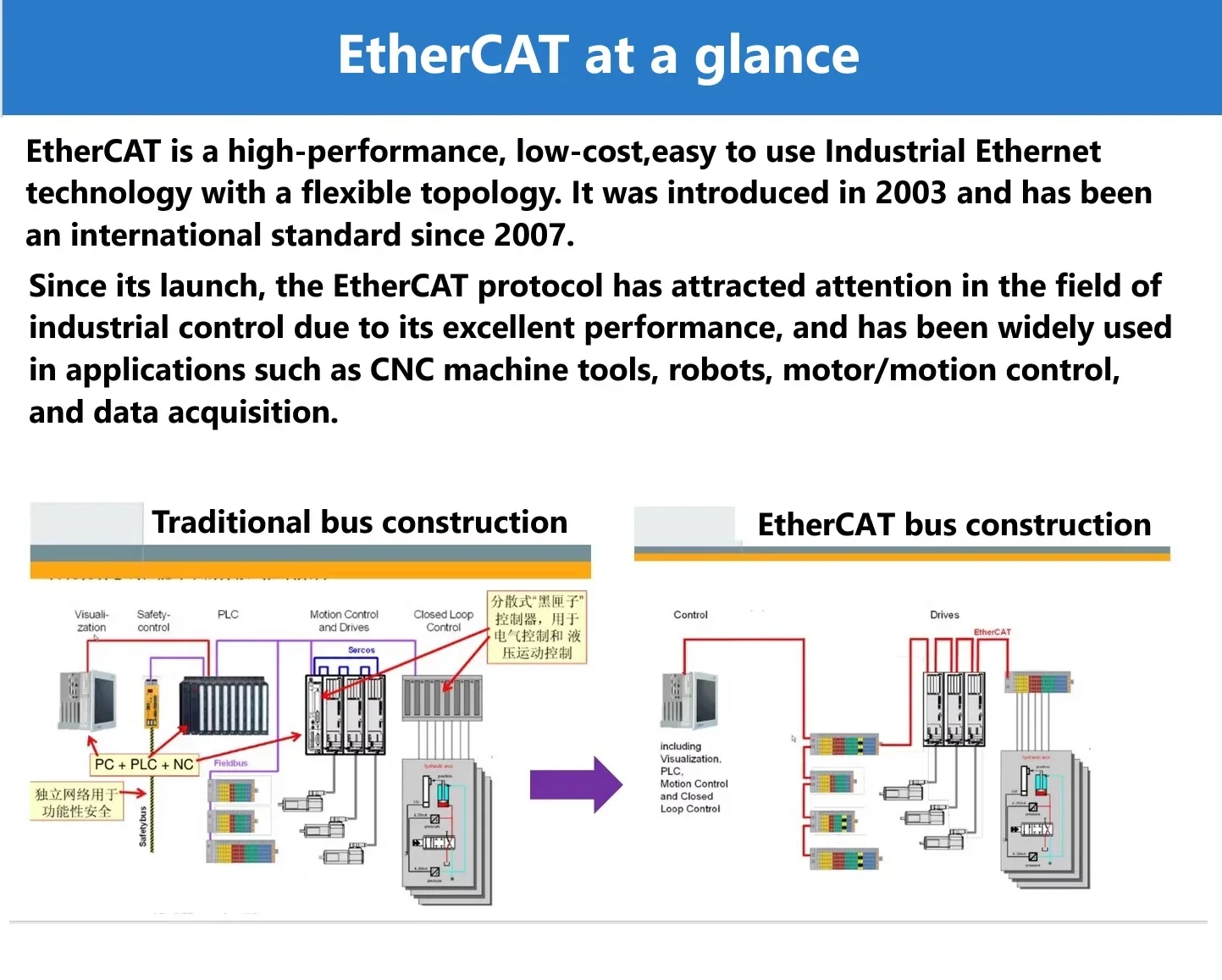

AX58100&LAN9252 EtherCAT Development Board Slave Station 8IO CIA402 Based on STM32F407VE

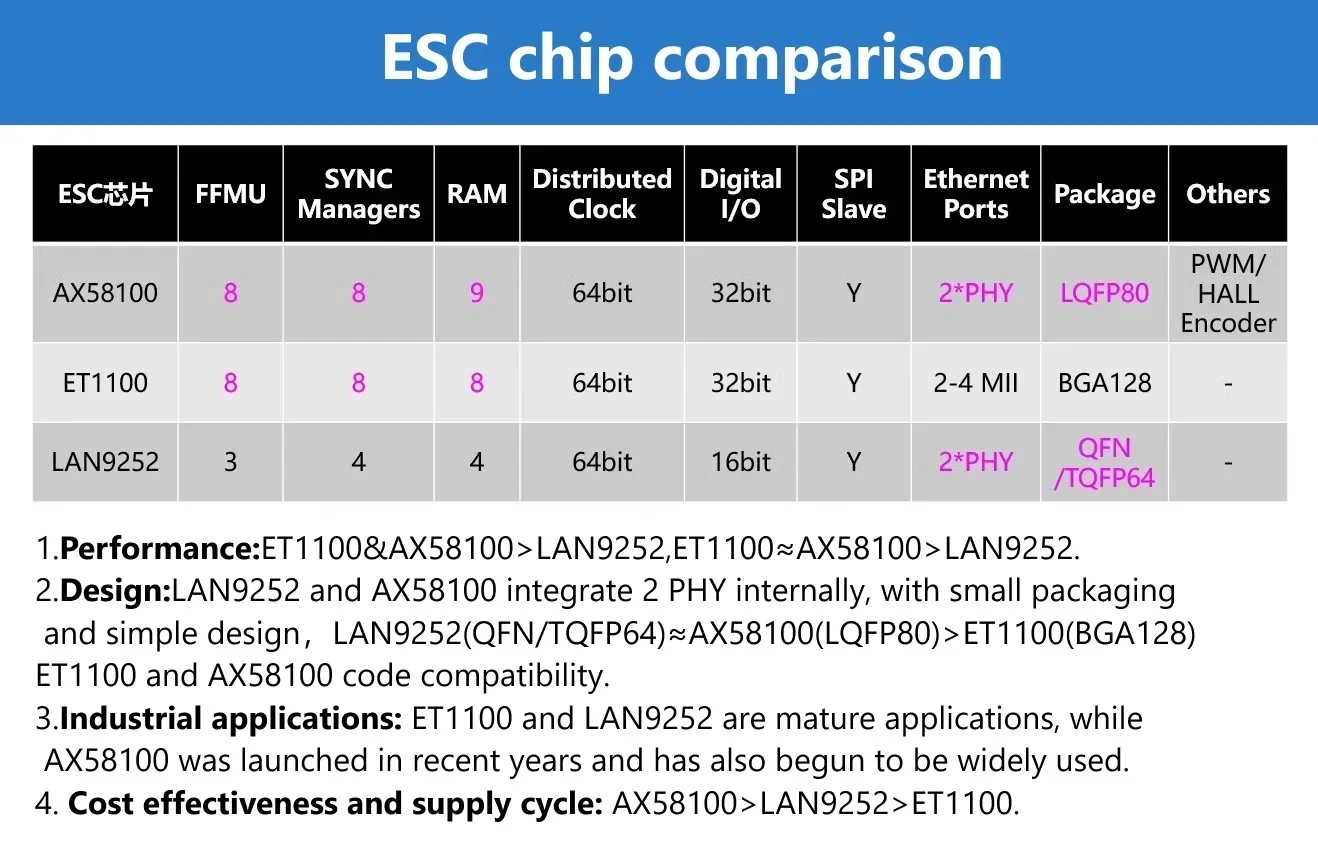

OPT1 LAN9252 Development Board Core Board  can quickly complete simple applications such as high-speed IO control without an external MCU. It can also build complex applications by connecting an external MCU;USB TYPE-C power supply, independent operation; Two EtherCAT interfaces are introduced, with 8 inputs and 8 outputs, and all pins have been pulled out.

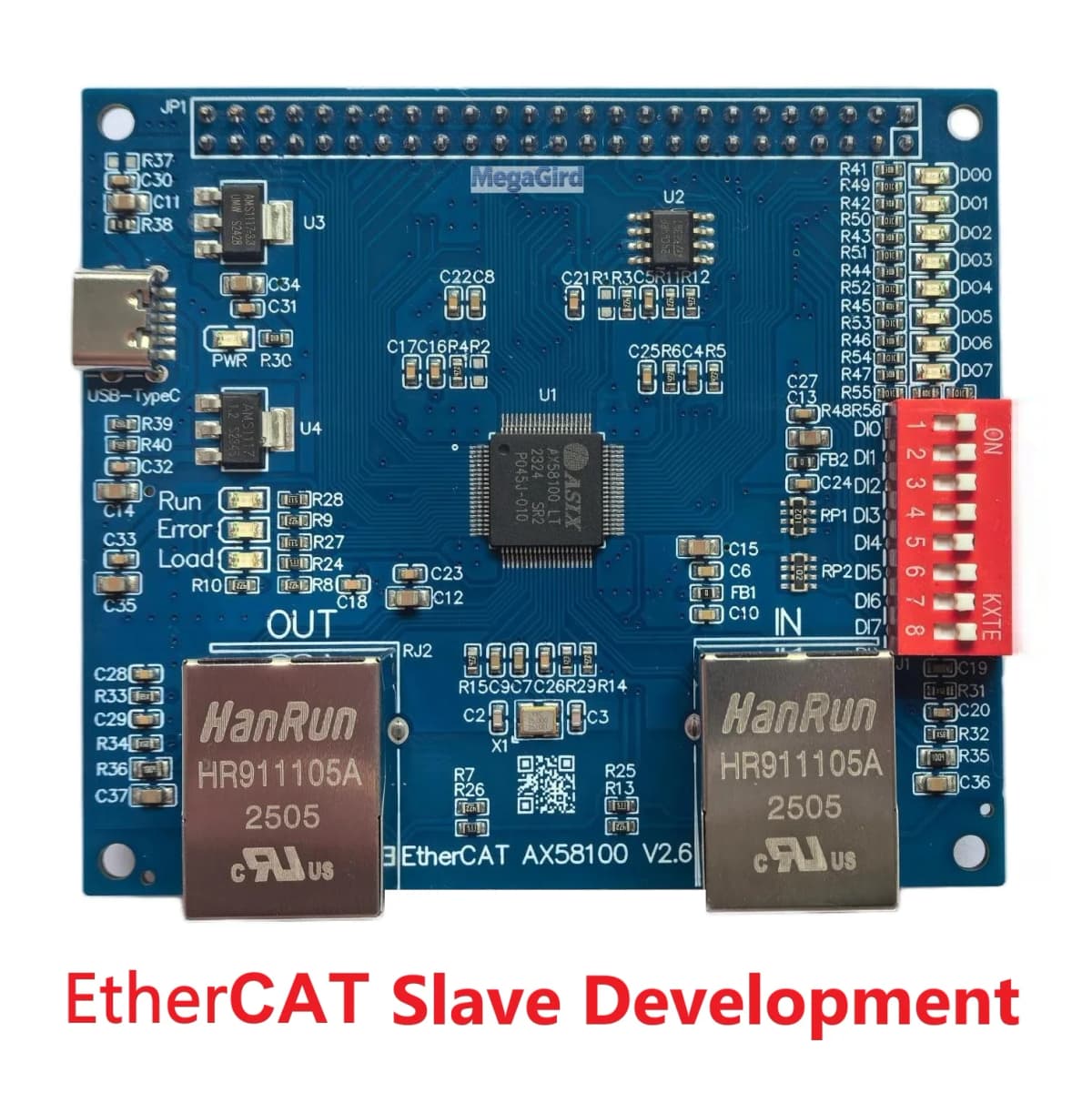

OPT2 AX58100 Development Board Core Board  can quickly complete simple applications such as high-speed IO control/ADC without an external MCU. It can also build complex applications by connecting an external MCU;USB TYPE-C power supply, independent operation; Two EtherCAT interfaces are introduced, with 8 inputs and 8 outputs, and all pins have been pulled out.

OPT3 Adopting the STM32F407VE+LAN8720A scheme,Using the SOEM library from Beckhoff,the two communicate through RMII and are powered by USBTYPE-B,with 8 dip switch inputs and 8 LED outputs,and 1 adjustable resistor analog sampling, provide an example of a master station controlling a slave station,the MCU pins have been pulled out.Can be used independently as a master.The default mode is the EtherCAT slave mode. Source code for master station development is provided.

OPT4 Adopting the AX58100+STM32F407VE scheme, the two communicate through SPI and are powered by USBTYPE-B, with 8 dip switch inputs and 8 LED outputs, and 1 adjustable resistor analog sampling, supporting CAN, 485, UART, etc.Provide a dip switch to select the master or slave function, and the master and slave cannot be used simultaneously.

OPT5 Adopting the LAN9252+STM32F407VE scheme, the two communicate through SPI and are powered by USBTYPE-B, with 8 dip switch inputs and 8 LED outputs, and 1 adjustable resistor analog sampling, supporting CAN, 485, UART, etc.Provide a dip switch to select the master or slave function, and the master and slave cannot be used simultaneously.

Note

Provide original products and technical support.
Please  contact us via the internal message or the technical support email address below.Provide user instructions, program C source code, circuit schematic PDF, TwinCAT related operation learning videos, IC datasheetEtherCAT related document, tool software packages, etc.

All information will be sent through Netdisk or Email:[email protected]

Package Included

- 1 x Development Board

- 1 x Ethernet Cable

- 1 x DC Cable

- 1 xSTLINK V2 (OPT3-OPT5)
